You hit the wall button. The garage door starts down, hesitates, then pops back up. Maybe the opener clicks. Maybe one little light near the track is blinking at you like it knows exactly how inconvenient this is.
If you are dealing with that right now, you are in good company. Around Cleveland, this is one of the garage door problems we hear about all the time. The good news is that it often comes down to a small fix. In many cases, the issue is that the safety sensors at the bottom of the door opening got nudged out of position.
That can happen from everyday life. Trash cans get shoved around. Kids leave toys near the track. A lawn tool catches a bracket. Then winter cold turns to damp spring weather, hardware shifts a hair, and suddenly the door won't close. If you want to align safety sensors garage doors the right way, the trick is to slow down, check the lights, and make small adjustments instead of forcing anything.
That Annoying Beep and a Door That Won't Budge
You hit the remote on a rainy Cleveland morning, the door starts down, then heads right back up. Now the opener is beeping, you are late, and the only way to force the door closed is by holding the wall button the whole time.
That pattern usually points to the safety sensors.
In real garages, these sensors rarely drift out of place for some mysterious reason. A trash can clips the bracket. A bike tire taps one side. Kids leave a ball or toy by the track. Then a stretch of cold nights and damp afternoons loosens hardware just enough that the beam no longer lines up. If you want a quick overview of how garage door safety sensors work, it helps to know they need a clear, steady path from one side of the door to the other.
I see this all the time in Northeast Ohio. Homeowners often suspect the opener first because that is the part making noise. The actual trouble is often much lower, right near the floor where the two sensor eyes sit facing each other.
For a door that refuses to close, checking sensor alignment is the first and most effective troubleshooting step.
Most of the time, the sensors did not fail overnight. Something got bumped, dirty, or loose enough to interrupt the beam.
The opener is doing its job. If the signal between the sensors is blocked or unsteady, it stops the closing cycle to keep the door from coming down on a person, pet, or object. Annoying in the moment, yes, but that safety reversal is exactly what the system is designed to do.
Your Pre-Alignment Checklist
Before you touch a bracket or loosen a screw, take a minute to set yourself up. This part saves time. It also keeps you from chasing the wrong problem.
Know what you're looking at
Garage door safety sensors should be mounted low. According to Chamberlain's sensor alignment guidance, they must be mounted no higher than 6 inches from the floor, and the system uses an amber LED sending unit and a green LED receiving unit that create an infrared beam.
If you'd like a quick primer on how these parts work together, this guide to garage door safety sensors is a helpful reference.
Grab a few simple tools
You usually don't need a full toolbox. Most sensor jobs only call for:
- A soft cloth: For dust, spider webs, and grime on the lens.
- A screwdriver or nut driver: For loosening the bracket just enough to move the sensor.
- A small level: Helpful if one sensor looks visibly crooked.
- Good lighting: A flashlight helps in darker garages.
Keep the area clear before you begin. Move bins, sports gear, strollers, and anything leaning against the track. A lot of alignment attempts fail because the sensor path is still partly blocked.
Read the lights before making adjustments
The lights tell you where to focus.
| Sensor light behavior | What it usually means |
|---|---|
| Amber light is on | The sending sensor has power |
| Green light is solid | The receiving sensor is lined up and reading the beam |
| Green light is flickering or off | The beam isn't being received steadily |
| No lights at all | You may have a power or wiring issue instead of simple alignment |
Practical rule: Don't start bending brackets right away. First make sure the lenses are clean and nothing is sitting in the beam path.
If the green light is already steady, alignment may not be the issue. If it's weak, blinking, or dark while the amber side is on, you're in the right place.
How to Perfectly Align Your Garage Door Sensors
A lot of sensor jobs go sideways because the sensor itself is not the first thing that moved. In Cleveland garages, I see the bracket get bumped by a trash can, a kid's scooter, a snow shovel, or a bike tire leaning in the wrong spot. Temperature swings can loosen old hardware too, especially on doors that already rattle.
Start with the bracket, not the opener
Stand inside the garage and look at both sensors near the bottom of the tracks. One sends the beam. The other receives it. If a bracket looks sagged, twisted, or slightly turned inward, correct that before touching the opener settings.
Put one hand on the bracket and gently check for movement. A little play is enough to break the beam once the door starts vibrating. Tighten the fastener just enough to take out the wobble while still letting the sensor move for fine adjustment. If the bracket is bent from an impact, straighten it carefully and stop if the metal feels ready to crack.
Old hardware can be touchy. Overtightening can shift the sensor body while you are securing it, which leaves you chasing the problem in circles.
Aim for a steady green light
Once the bracket is stable, adjust the receiving sensor in small increments. This is the part where patience saves time.
Use this process:
- Wipe both lenses first: Dirt, salt film, and spider webs can block or weaken the beam.
- Loosen the fastener slightly: The sensor should pivot without flopping around.
- Nudge the sensor a little at a time: Small left, right, up, or down corrections work better than big moves.
- Watch for the green LED to go solid: That steady light means the beam is landing where it should.
- Hold the sensor as you retighten: Many sensors drift a hair while the wingnut or screw cinches down.
A level can help if one side looks noticeably crooked, but the light matters more than making both sensors look perfectly even.
What works in a real garage
Here is the simple version I give homeowners on the phone.
| What works | What usually causes trouble |
|---|---|
| Small adjustments while watching the light | Forcing the bracket over too far |
| Fixing looseness before aiming | Adjusting a sensor on a wobbly mount |
| Cleaning road dust and cobwebs first | Assuming the lens is fine because it "looks clean" |
| Retightening while holding the sensor steady | Letting the sensor twist during tightening |
Some openers will also point you in the right direction with a sensor misalignment code. That is useful, but the hands-on fix is still the same. Check the mount, line up the beam, then make sure the sensor stays put after you tighten it.
One last thing catches people. The light turns solid, the door closes once, and then the problem comes back the next morning. That usually means the bracket is still loose, the track got bumped again, or vibration is knocking the sensor just out of position. If you want a full walkthrough after the adjustment, this guide on how to test garage door sensors after alignment will help you confirm the fix.
Testing Your Alignment the Right Way
A solid light is encouraging. It isn't the finish line.
Use a real obstruction test
After you align the sensors, place a 1.5-inch object in the door's path. A 2×4 board laid flat works well. Then close the door with the remote or wall control.
According to Clopay's sensor testing guide, the door must stop and reverse to the open position when it encounters the obstruction. That same guide notes that dust and spider webs are responsible for up to 25% of sensor "failures," which is why technicians wipe the lenses before and after alignment.
If you want a deeper walkthrough of the verification process, this page on how to test garage door sensors breaks it down clearly.
What you should see
When the system is working properly:
- The door starts closing normally
- The obstruction interrupts safe travel
- The opener reverses the door back open
If the door closes onto the object and keeps going, stop using the door until the safety system is corrected.
A lot of homeowners skip this part once the door finally closes again. Don't. The entire point of the sensors is protecting kids, pets, and anything low to the ground.

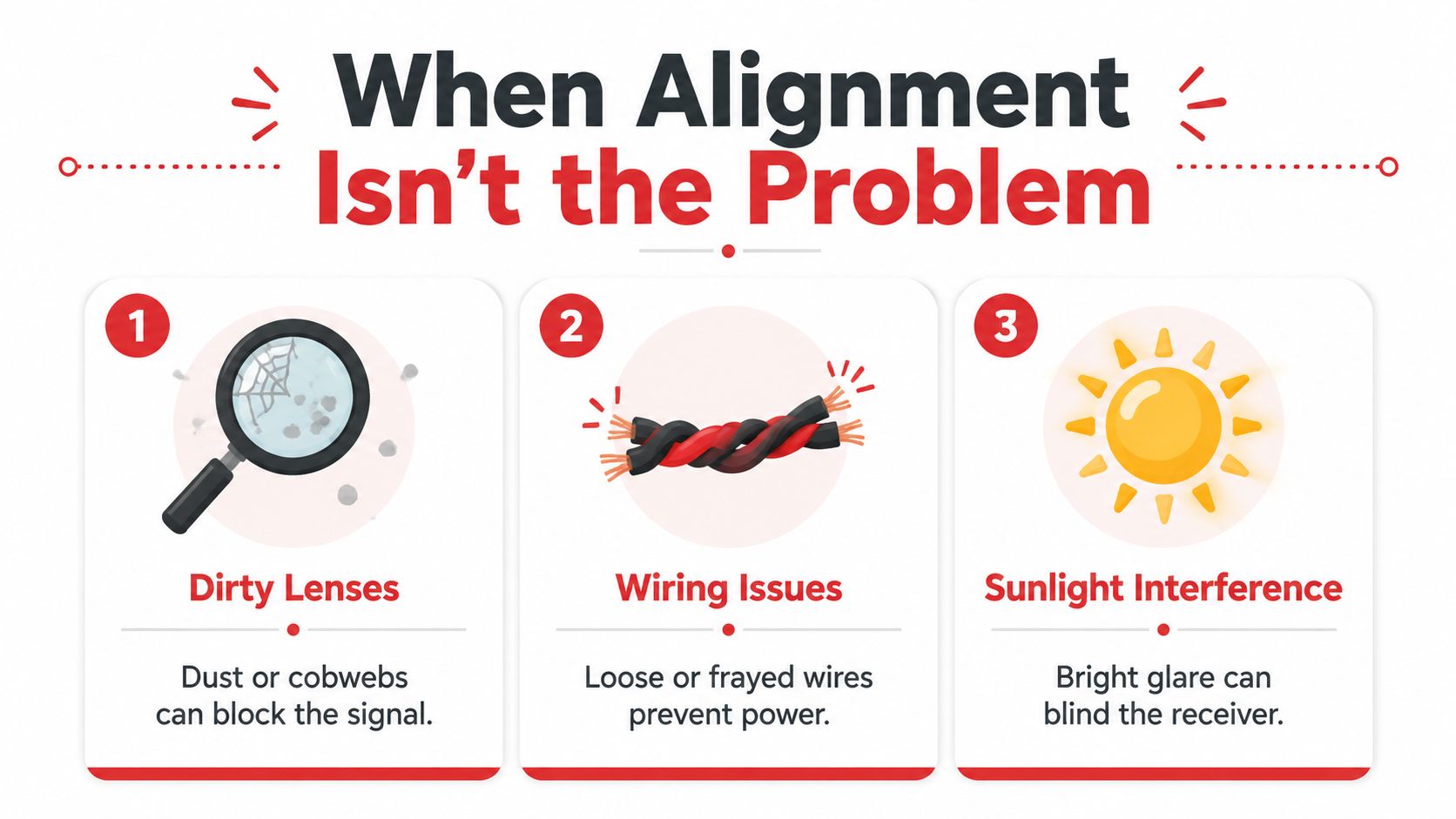

When Alignment Isn't the Problem
Sometimes you do everything right and the door still acts up. That's when it helps to sort the symptoms instead of repeating the same adjustment over and over.
If the lights are on but the door still won't close
This can fool people. They assume the sensors are fine because they see lights on both sides. But a lit sensor isn't always a correctly working sensor.
Check these first:
- Dirty lens faces: Wipe both sides with a soft, lint-free cloth.
- Intermittent bracket movement: Press lightly on each sensor while watching the LED.
- Sun glare: Bright light can sometimes interfere with the receiving side.
- A partial obstruction: A broom handle, extension cord, or bag edge in the beam path can be enough.
If the behavior feels inconsistent, this troubleshooting guide for a garage door that won't shut can help you narrow it down.
If one or both sensor lights are completely off
No lights usually points away from alignment and toward power or wiring.
Look for:
| Symptom | Likely issue |
|---|---|
| Both sensors dark | Opener power issue, disconnected wire, or failed logic board |
| One sensor dark | Broken sensor, loose wire, or damaged connection at the opener |
| Light comes on only when wire is moved | Frayed or pinched wire |
Wiring problems often show up where the low-voltage wire runs along the wall or gets stapled in place. If the insulation is nicked or crushed, the signal may cut in and out.
If the green light keeps blinking after adjustment
At that point, stop assuming it's only alignment. The receiving sensor may be failing, the bracket may be warped, or the wire may have a weak connection you can't see from the outside.
A blinking light after careful alignment usually means something else in the system is unstable.
This is also where older equipment can waste your time. You can spend an hour trying to dial in a sensor that is worn out.
Know When to Call Danny's Garage Door Repair
Some sensor jobs are easy. Some are not worth stretching into a half-day project.
Call for help if you see cracked sensor housings, cut or water-damaged wires, rusted brackets that won't hold position, or an opener that behaves erratically even after the sensors appear lined up. Those are signs the issue may be beyond a basic adjustment.
For property owners and service businesses trying to keep repair requests organized, the Recepta.ai platform for garage door repair companies is worth a look because it shows how teams handle inquiries, scheduling, and follow-up in a more structured way.
If you're in Greater Cleveland and the door still won't operate safely, Danny's Garage Door Repair can inspect the sensors, wiring, and opener logic board, and the company offers 24/7 emergency service for urgent situations. That's usually the smart move when the problem keeps coming back or the safety system won't pass a proper test.
Frequently Asked Questions About Garage Sensors
Why is one light amber and the other green
Because the two sensors do different jobs. One sends the infrared beam. The other receives it. The color difference helps you tell them apart quickly when you're troubleshooting.
In day-to-day terms, the amber side is the sender and the green side is the receiver. When the receiver gets a clean signal, that green light should stay steady.
Is it okay to bypass the sensors just to get the door closed
No. The sensors are a required safety feature, and bypassing them creates a real risk for children, pets, and anything under the door.
There are times when a wall control may let you hold the button to close the door temporarily, but that's not a repair. It's a workaround to move the door under direct supervision. The system still needs to be fixed before normal use.
How often should I check sensor alignment
A quick visual check a few times a year is smart, especially after you reorganize the garage, move equipment around the track area, or go through a strong weather swing.
In Ohio, seasonal changes matter. Hardware expands, contracts, and shakes loose over time. If the door starts acting strange, sensor alignment should be one of the first things you check.
Can I align the sensors without replacing parts
Usually, yes. If the brackets are intact, the wiring is sound, and the lenses are clean, many alignment problems can be solved with a simple adjustment.
If the sensors won't hold alignment, won't light properly, or fail the safety test after repeated attempts, replacement may be the better path.
What should I avoid while adjusting them
Don't force the brackets, don't overtighten plastic housings, and don't assume the problem is fixed just because the door closed once.
The safe approach is simple:
- Clean first: Remove dust and webs before moving anything.
- Adjust gently: Tiny changes beat big movements.
- Test after: Always confirm the reverse function works.
- Stop when symptoms change: If the issue shifts from misalignment to power loss or erratic operation, you're likely dealing with something else.
