A Homeowner’s Guide to Balancing a Garage Door

Have you noticed your garage door groaning and creaking its way open? Or maybe it slams down way too fast? These aren't just annoying noises; they're tell-tale signs that your door's balance is off. A properly balanced garage door is absolutely crucial for safe, reliable operation. The heavy lifting is supposed to be done by the springs, not the opener.

Why a Balanced Garage Door Matters

It helps to think of your garage door system as a finely tuned machine. The springs are calibrated to perfectly counteract the door's weight, making it feel surprisingly light. The garage door opener’s job is simply to give it a little nudge to get it going up or down.

When that delicate balance is thrown off, the whole system is compromised. The opener is suddenly forced to strain against hundreds of pounds of dead weight it was never designed to handle. This doesn't just make a racket; it creates a domino effect of problems that can put your family and your budget at risk.

Signs of an Unbalanced Garage Door

Not sure if your door is out of whack? This quick guide breaks down the common symptoms we see in the field.

Symptom	What It Looks or Sounds Like	What It Means
Door Won't Stay Put	You lift the door halfway, and it immediately slams shut or shoots open.	The spring tension is either too weak (slams shut) or too strong (flies open). It should hang in place.
Loud Noises	Grinding, groaning, or squealing sounds, especially from the opener motor.	The motor is working overtime to lift a weight it shouldn't be, causing internal strain.
Uneven Movement	The door appears crooked or jerky as it moves, or one side seems to lag behind the other.	This could point to uneven spring tension or a problem with the cables or tracks.
Slow or Labored Opening	The door seems to struggle and moves much slower than it used to.	The opener is fighting against the door's full weight because the springs aren't providing enough lift.

Spotting any of these signs early is key to preventing a bigger, more expensive failure down the road.

The Real Cost of an Unbalanced Door

An unbalanced door is far more than an inconvenience. It's a system under constant, severe stress, leading to a cascade of issues that only get worse. The extra workload on your opener can cause its motor to grind down gears, strip belts, and burn out years ahead of its time.

That strain also rapidly wears out other critical parts. Cables can fray and snap, rollers can crack under pressure, and even the door panels themselves can start to bend or warp. Ignoring the problem inevitably leads to a much costlier emergency repair.

Here’s a breakdown of what you're risking:

• Rapid Opener Wear: Forcing the motor to deadlift your door is the fastest way to a pricey replacement.
• Component Failure: Cables, rollers, and tracks will wear out much quicker under excessive strain.
• Significant Safety Hazards: A door with failing springs can fall without warning, causing serious injury or property damage.
• Higher Energy Bills: A motor that's struggling to do its job draws a lot more electricity.

The most important takeaway is this: your garage door opener is designed to guide motion, not lift weight. When the springs aren't pulling their weight, the opener is doing a job it was never built for, and it simply won't last.

Proactive Care Saves Money and Headaches

Checking your door's balance every few months is one of the most important things you can do for your home's largest moving part. It’s a simple test that should be a core part of any good maintenance routine.

In fact, keeping a garage door balanced delivers real safety and financial benefits. Industry studies show that routine care, including balance checks, can extend a door's lifespan by 20–50% and slash long-term repair costs by 20–30%. For more tips on what small tasks make a big difference, have a look at our comprehensive garage door maintenance checklist.

How to Perform the 5-Minute Balance Test

You don't need a toolbox or any special know-how to check if your garage door is properly balanced. In fact, this simple test takes less than five minutes, and I recommend doing it a couple of times a year. It's the single best way to catch a spring issue before it burns out your expensive opener motor.

First things first: make sure your garage door is all the way down. This is a non-negotiable safety step before you disconnect anything.

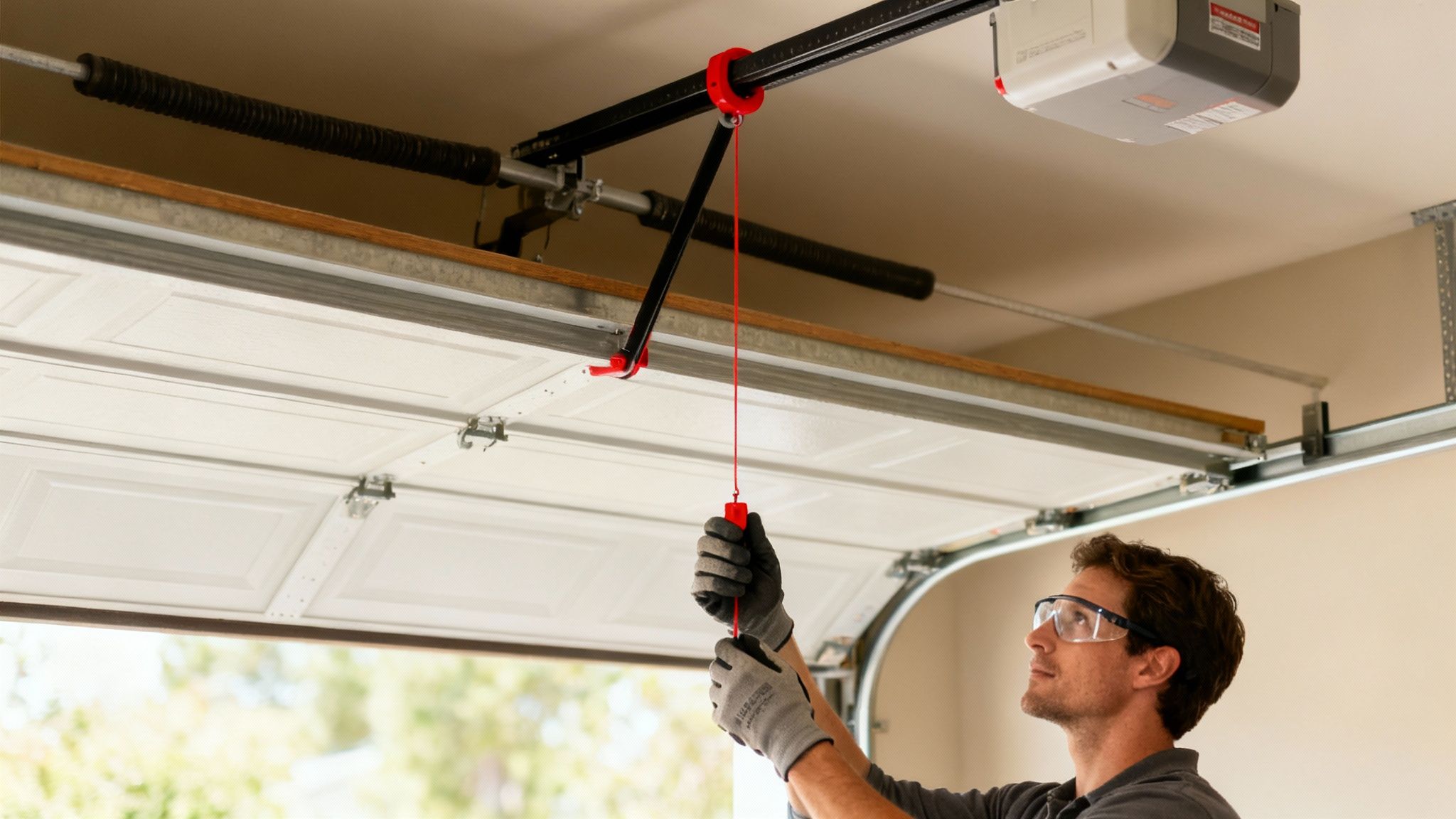

Disconnecting the Opener Safely

Alright, let's switch the door over to manual mode. You'll see a red cord dangling from the opener's track—that’s the emergency release cord.

Give that cord a solid tug down and slightly back (towards the motor) until you feel or hear a distinct click. This action disconnects the door from the chain or belt drive, freeing it from the opener's control. Now you can lift it by hand.

Lifting the Door to Check Its Behavior

This is the moment of truth. Go ahead and lift the door manually, nice and slow. Get a feel for its weight. If it feels incredibly heavy right from the start, that’s your first red flag that the springs aren't pulling their weight anymore.

Here’s what you’re looking for at a few key checkpoints:

• One Foot Off the Ground: Lift the door until it’s about a foot off the floor and gently let go. A perfectly balanced door will hang right there, or maybe drift down ever so slowly. If it drops or slams shut, the springs are too weak.
• Halfway Up (Midpoint): Now, raise the door to about waist height—the middle of its travel. Let go again. It should stay put, almost as if it's weightless.
• Almost Fully Open: Finally, push the door almost all the way up, leaving about a foot of space at the top. Let go. If the door wants to fly open the rest of the way on its own, the spring tension is too high.

The ideal outcome? Your door feels light and stays exactly where you leave it at every one of these points.

The rule of thumb is simple: the door should stay where you put it. If it moves more than a couple of inches up or down after you let go, the balance is off. A door that slams shut is a serious safety risk, while one that flies open puts unnecessary strain on the opener when it tries to close.

Interpreting the Results

What happened during the test tells you exactly what the problem is. If the door felt like dead weight and wanted to fall, your springs have lost tension and can't provide enough lift. If it was jumpy and wanted to shoot open, the springs are too tight.

Either way, an imbalance means it's time for an adjustment. And while this diagnostic test is safe for any homeowner to perform, the actual work of balancing a garage door by adjusting those high-tension springs is a different story. That’s a job where experience and the right tools are crucial for safety.

Getting Set Up: Tools and Safety First

Alright, before we get anywhere near the springs, we need to have a serious talk about preparation. Adjusting garage door springs is no joke—it's hands-down one of the most dangerous jobs a homeowner can attempt. We're not talking about a leaky faucet here. The energy stored in those springs is immense, so getting your gear and your mindset right from the start is absolutely critical.

This isn't a task you can rush. Going in unprepared is a surefire way to end up with a catastrophic failure, a trip to the ER, or both. Let's walk through what you need to do this the right way.

The Tools You Can't Do Without

Having the correct tools on hand isn't just for convenience; it's a fundamental part of staying safe. Trying to make do with the wrong equipment, especially when it comes to the winding bars, is asking for trouble.

Here’s the gear you absolutely must have:

• Proper Winding Bars: I can't stress this enough. These are solid, half-inch steel rods designed specifically for the torque of a torsion spring. Never, ever use screwdrivers, pieces of rebar, or anything else. A screwdriver will snap under that kind of pressure and can become a dangerous projectile.
• A Sturdy Ladder: You’ll need a solid A-frame or extension ladder to get up to the spring assembly safely. Always make sure it’s on level, stable ground before you even think about climbing it.
• Wrenches & Socket Set: A good set is essential. You'll need the right sizes to loosen the set screws on the winding cone and tighten them back up again.
• Safety Glasses and Gloves: Eye protection is non-negotiable. A spring or bolt failure can happen in a split second. A good pair of work gloves will also give you a better grip and save your knuckles.

If you're looking to gear up, you can find the necessary tools and replacement parts from vendors who specialize in garage door hardware.

Your Pre-Work Safety Checklist

More important than any tool is your safety procedure. You need to follow these steps religiously to make sure the door stays put while you're working.

Key Takeaway: A wound torsion spring contains enough energy to cause life-threatening injuries. Treat every single component with caution and always keep your body out of the potential path of the winding bars or a snapping spring.

Here’s how to secure the area before you start:

First, make sure the garage door is completely closed. All spring adjustments must be done with the door in the down position. This ensures the door's full weight is on the floor, not hanging from the springs and cables.

Next, unplug the garage door opener from the power outlet. This is a crucial step that prevents anyone from accidentally hitting a remote or wall button and activating the door while you're in a vulnerable position.

Finally, for an extra layer of security, clamp a pair of locking C-clamps or Vise-Grips tightly onto the door track, right above one of the bottom rollers. This acts as a physical block, making it impossible for the door to suddenly fly open while you're working on the springs.

Getting to Grips with Garage Door Spring Adjustments

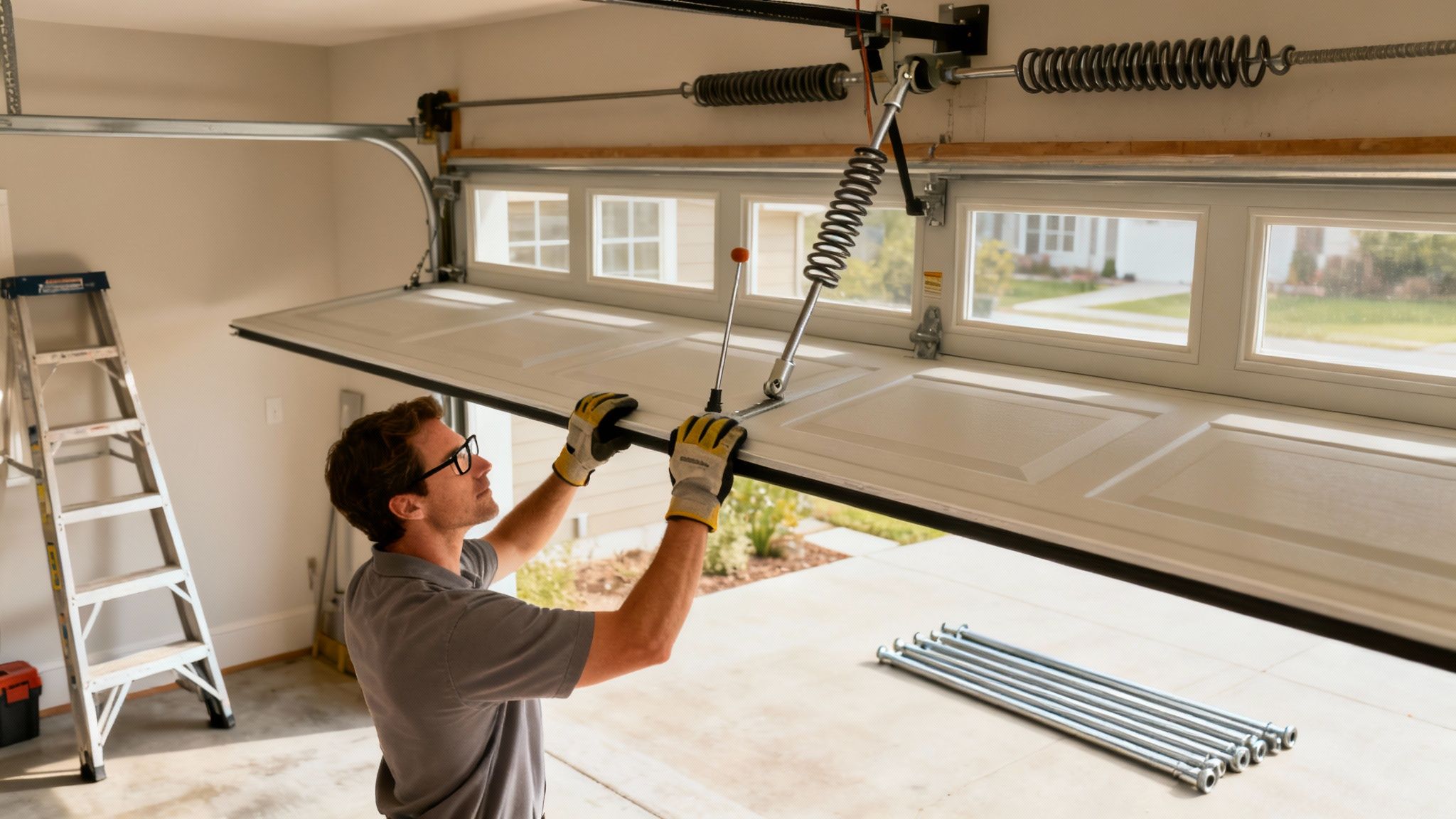

Alright, this is where we get into the nitty-gritty of balancing a garage door. Adjusting the springs is where the real danger lies, and knowing what’s involved helps you understand why this job is often best left to the pros. You’ll be dealing with one of two spring systems, and how you adjust them couldn't be more different.

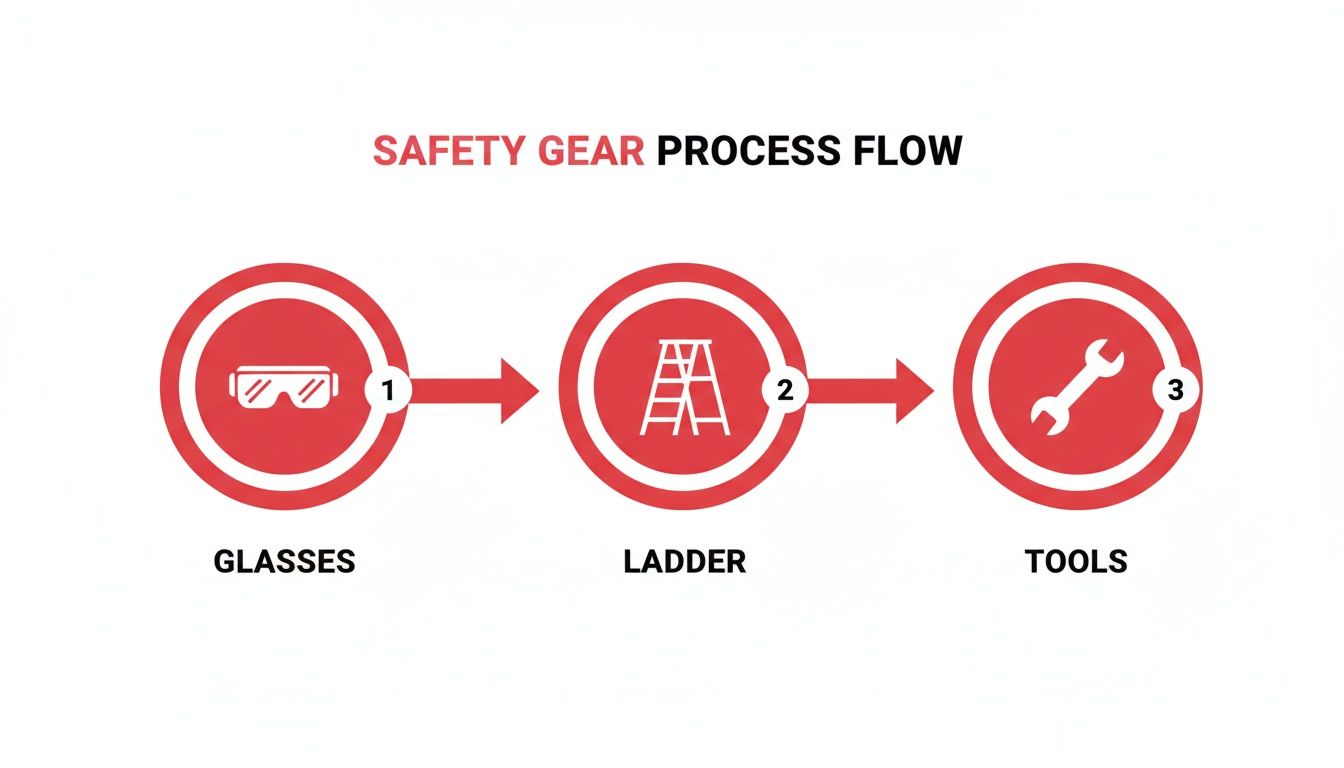

Before you even think about touching a spring, let’s talk about safety gear. This isn't optional.

The essentials are non-negotiable: solid eye protection, a sturdy ladder that’s properly placed, and the right tools for the job. This is your bare minimum for creating a safe workspace.

Working with Extension Springs

Extension springs are the long, slinky-like springs you see running alongside the horizontal door tracks. They work by stretching out as the door closes, storing energy to help lift it back up again.

If your balance test showed the door was heavy and slammed shut, you need to increase the tension. You’ll typically do this by moving the S-hook at the end of the safety cable to a hole further away from the door itself, which stretches the spring a bit more. If the door was light and shot up, you’d do the exact opposite—move the hook to a closer hole to ease off the tension.

Sounds simple enough, right? The catch is that you have to make identical adjustments on both sides. If you don't, you'll throw the door's alignment off, causing it to run crooked and jerky in the tracks. Even with these springs, there's a risk of one snapping if it's old or rusted.

The Dangers of Adjusting Torsion Springs

Now for the big ones. Torsion springs are the hefty, coiled springs mounted on a metal bar right above the garage door opening. This system is under an incredible amount of tension and is a whole different level of dangerous. To even attempt an adjustment, you need a pair of special tools called winding bars. Let me be clear: screwdrivers or tire irons are not a substitute and will get you hurt.

Warning: A torsion spring is loaded with enough kinetic energy to cause life-altering injuries or worse if it breaks or releases suddenly. Winding bars can be thrown with brutal force, and a snapping spring can send shrapnel flying.

The process for adjusting a torsion spring is methodical and requires undivided attention. It generally involves:

• Securing and Loosening: You insert one winding bar firmly into the winding cone to hold the spring's tension. Only then do you carefully loosen the set screws that lock the cone to the shaft.
• Making Quarter-Turn Adjustments: Using two winding bars in a "leapfrog" motion, you wind the spring tighter (to add lift) or unwind it (to reduce lift). Every move is a deliberate quarter-turn.
• Tightening and Re-testing: After a small adjustment, you retighten the set screws securely and run the balance test all over again.

This is a job of precision, not guesswork. Go too tight, and you could break a spring or cause the door to fly open violently. Not tight enough, and you haven't fixed the problem. While you can find more detail on how to adjust garage door tension in more technical guides, we can't stress the need for caution enough.

Ultimately, my goal here isn't to walk you through a risky DIY job. It’s to give you a healthy respect for the forces you're dealing with. Understanding the mechanics helps you make a truly informed decision about who should be balancing a garage door—you, or a trained professional who does this every day.

Knowing When to Call a Professional

One of the smartest things you can do as a homeowner is know your limits. While running the balance test we just covered is a simple diagnostic anyone can handle, actually adjusting high-tension springs is a completely different story. This is the exact point where a simple DIY project can go sideways, fast.

Honestly, the best tool in your toolbox is often your phone. If you have even a shadow of a doubt about what you're doing, that’s your cue to stop immediately and call for backup. The risk of serious injury or creating an even more expensive problem just isn't worth it.

Red Flags That Demand a Professional

Some issues are non-negotiable stop signs for any DIY ambitions. If you see any of the following problems, don't even think about trying an adjustment yourself. These are crystal-clear signs that the system is compromised and needs an expert’s touch.

Keep an eye out for these critical warning signs:

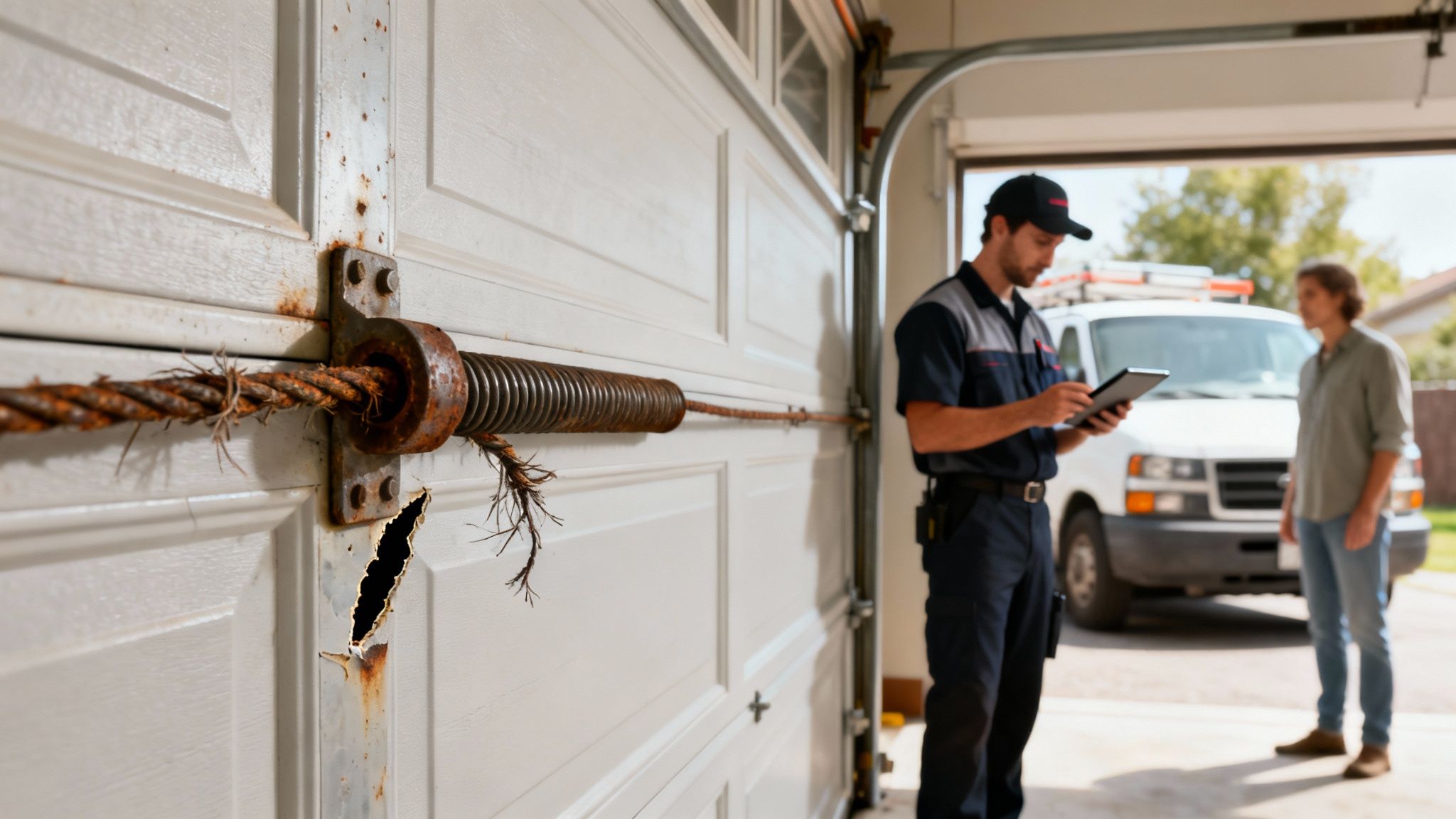

• Broken or Frayed Cables: The lift cables are the vital link between the springs and the door. Any snapped strands or significant rust means they are on the verge of failing.
• Visible Rust or Gaps in the Springs: A rusty spring is a weak spring, plain and simple. If you look at a torsion spring and see a gap in the coils, it’s already broken and holding zero tension.

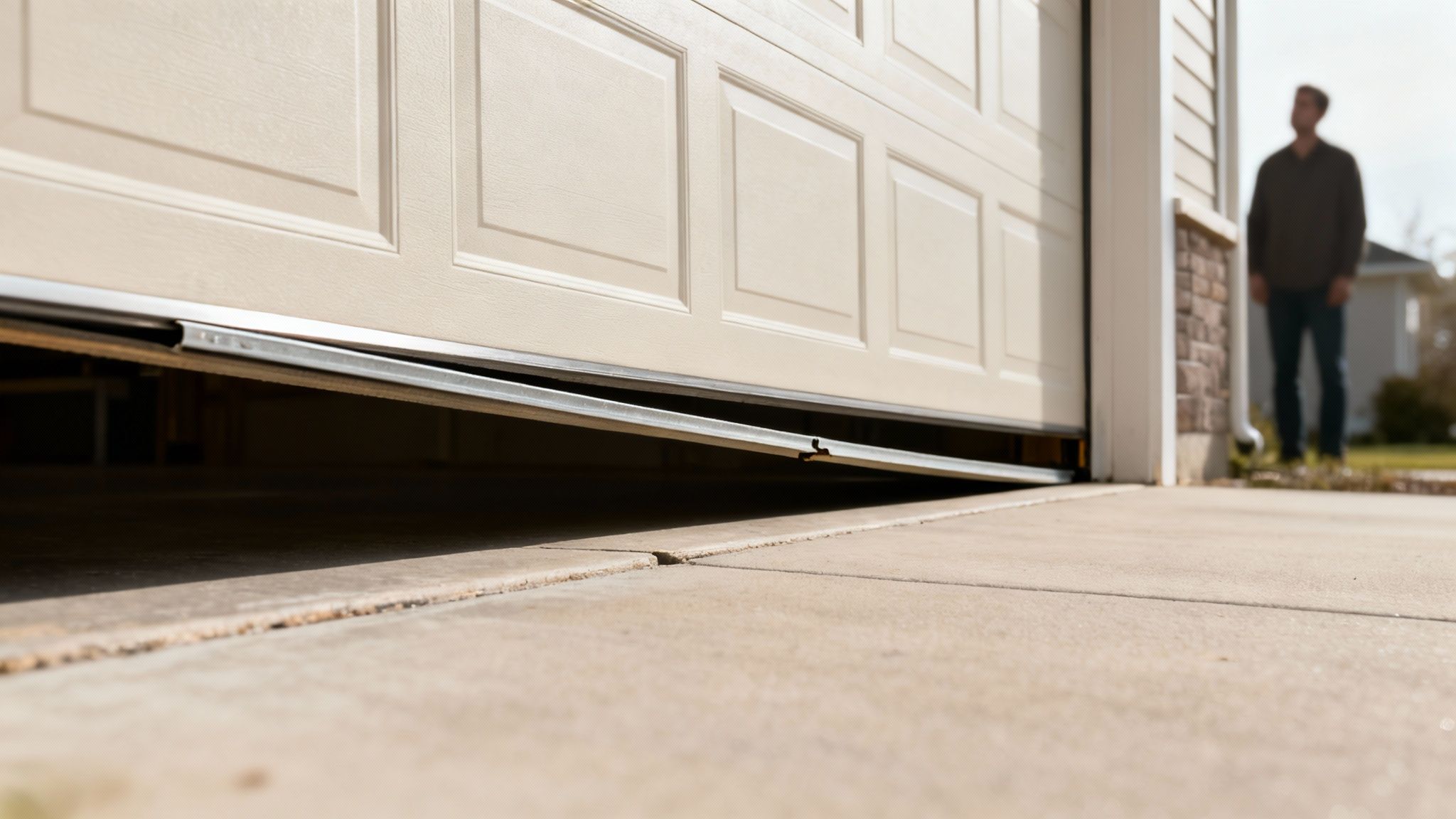

• A Severely Crooked Door: Does one side of the door lift while the other is stuck? You’ve almost certainly got a broken cable or spring. Trying to force it can bring the entire door crashing down.
• Loud Popping or Banging Noises: A sudden, explosive bang from your garage is the unmistakable sound of a torsion spring snapping. That's a clear signal that a professional replacement is required.

Understanding the Real Dangers

Think about it: the average residential garage door opens and closes between 1,500 to 1,825 times every single year. All that work puts an incredible amount of strain on the springs and cables, leading to component fatigue and imbalance over time.

When a high-tension spring finally gives out, it unleashes all its stored energy in a split second. This can send the spring itself—or the tools you're using—flying across the garage with enough force to cause devastating injuries. While guides on winding a garage door spring exist, they also highlight the extreme danger involved.

The bottom line is that a professional has the right training, specialized tools, and years of experience to do this job safely and correctly the first time. We can spot underlying issues you might miss, ensuring your whole system is solid, not just temporarily patched up.

Trying to balance a garage door without proper knowledge can easily lead to bigger headaches, like throwing the door off its tracks or burning out your opener motor. In the end, calling a pro isn't just the safest move—it's usually the most cost-effective one, too.

Your Garage Door Balance Questions, Answered

Over the years, we've heard just about every question you can imagine when it comes to garage door balance. It's a topic that can feel a little mysterious and even intimidating for homeowners. To clear things up, I’ve put together answers to the most common questions we get, straight from our experience in the field.

How Often Should I Check My Door's Balance?

This is probably the most frequent question we get, and it’s a smart one to ask. A little proactive maintenance goes a long way.

For most homes, a quick balance test every three to six months is the perfect schedule. It only takes a minute and can spot an issue before it snowballs into a serious—and expensive—problem.

Now, if your garage is basically your front door and gets a ton of daily use, I'd bump that up to a quarterly check. It's also a great idea to have a pro come out for a full inspection and tune-up once a year. This keeps your door safe and, in many cases, is required to keep your warranty active.

I've Seen People Use Screwdrivers on Torsion Springs. Can I Do That?

Let me be crystal clear: absolutely not. Using a screwdriver, a rebar, or any other random tool to adjust a torsion spring is one of the most dangerous things you can do around your home. I can't stress this enough.

Torsion springs are wound under an incredible amount of force. A screwdriver simply isn't built to handle that kind of torque. It will bend, snap, or slip out of the hole, instantly becoming a high-speed projectile. We've seen the damage and injuries this can cause. Only solid steel winding bars designed for garage doors should ever be used, and honestly, this job is best left to a trained technician.

What’s the Big Difference Between Adjusting Torsion and Extension Springs?

It’s a night-and-day difference, both in the process and the level of risk involved. You'll find one of two types of springs on your door.

• Extension Springs: These are the long, stretchy springs that run parallel to the horizontal tracks on each side of the door. Adjusting them typically means moving the S-hook on the cable to a different hole in the bracket. It's still a task that demands caution (especially with safety cables in place), but it’s far less dangerous than messing with torsion springs.
• Torsion Springs: This is the beefy spring (or pair of springs) mounted on a metal shaft directly above the garage door opening. They hold immense tension and require special winding bars and a very specific, careful procedure to adjust. Because of the serious risk of injury, we always recommend calling a professional for any torsion spring adjustments.

My Door Is Super Loud. Will Balancing It Help?

There's a very good chance it will. A lot of that awful groaning, straining, and grinding you hear is the sound of your opener motor fighting to lift a door that's too heavy. The springs are supposed to do most of the lifting, not the motor.

When the door is properly balanced, the springs perfectly counteract the door's weight, allowing the opener to guide it up and down with very little effort. The motor can finally run smoothly and quietly, the way it was meant to.

If the noise continues after the door is balanced, the next step is usually a good lubrication of all the moving parts—rollers, hinges, and bearings—and a quick check for any loose hardware.

---

If you've tested your door and it’s clearly out of balance, or if any part of this process feels outside your comfort zone, the smartest and safest thing to do is call a professional. For homeowners in Cleveland and Northeast Ohio, the team at Danny's Garage Door Repair is on call 24/7 to get your door running safely and smoothly again. You can learn more and get a free estimate by visiting us at https://garagedoors101.com.
