If the sound of your garage door opening sends a shudder through the whole house, you know exactly what I'm talking about. For homes with attached garages, that grinding, rattling noise is more than just an annoyance—it's a jarring part of your daily routine. Thankfully, the best belt drive garage door openers provide a genuinely quiet solution that can completely change how you feel about your garage.
The Secret to a Silent Garage Door: Belt Drive Openers
A loud garage door isn't just a minor issue. It’s what wakes the baby from a nap, interrupts your Zoom meeting, and announces your 11 PM arrival to the entire block. This is a huge problem in many homes, especially when the master bedroom is right above or next to the garage. Nine times out of ten, the culprit behind that racket is an old, traditional chain drive opener.
Think about the difference between a greasy bicycle chain and the smooth serpentine belt in your car's engine. That's the basic idea that makes belt drives the gold standard for quiet operation.

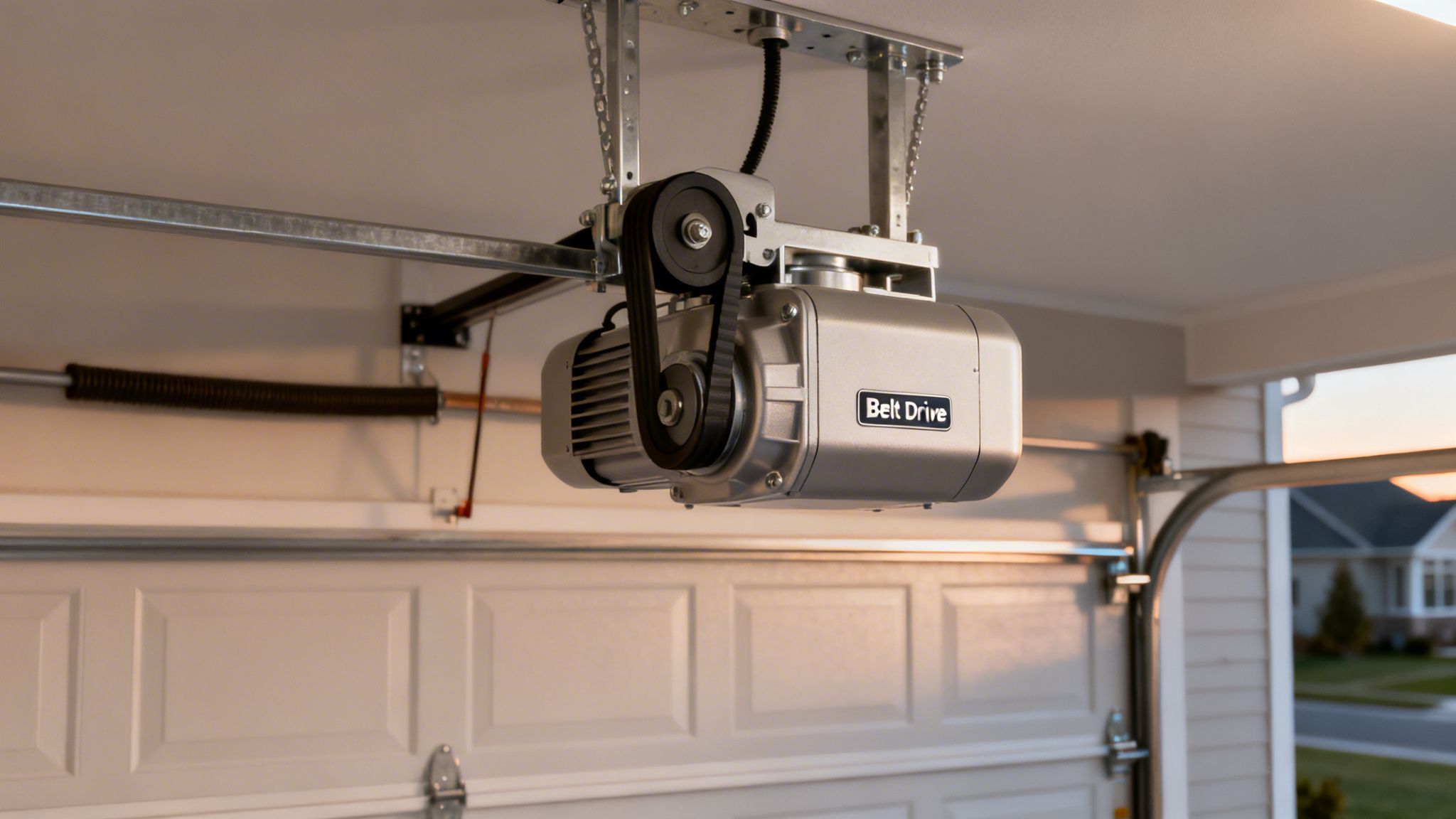

How They Achieve Near-Silent Performance
Instead of a clunky metal chain dragging the door open, a belt drive opener uses a rugged, steel-reinforced rubber belt. It seems like a simple change, but it makes a world of difference in how the system performs.
- Vibration Absorption: The flexible rubber belt literally soaks up the vibrations and jolts that a metal chain would send right into the framework of your home.
- Smooth, Gliding Motion: You get none of the metal-on-metal clanking. The belt just glides effortlessly along the rail, resulting in a fluid and whisper-quiet movement.
- Less Overall Stress: This smoother ride puts less strain on the motor, the trolley, and the garage door itself. That often translates to a longer, more reliable life for the entire setup.
This smart engineering is why a modern belt drive can be up to 50% quieter than its chain-driven cousin.
The difference in person is stunning. A typical chain drive can hit 75 decibels—as loud as a vacuum cleaner running right next to you. A quality belt drive, on the other hand, often purrs along at under 60 decibels, which is about the level of a normal conversation.
Is a Belt Drive the Right Choice for Your Home?
While almost anyone can appreciate a quieter garage, a belt drive becomes a true necessity in a few common situations. If any of these sound familiar, you're the perfect candidate for an upgrade.
| If This Is Your Situation… | Here's Why a Belt Drive Is the Answer |
|---|---|
| Bedrooms Are Above or Next to the Garage | It stops the noise that travels through the walls and floors, making it a must-have for families and light sleepers. |
| You Have a Home Office | It keeps the jarring sound of the garage door from derailing your conference calls or breaking your focus. |
| You Work Shifts or Keep Odd Hours | You can leave early or get home late without waking up the rest of the house—or the neighbors. |
| You Simply Want a More Peaceful Home | It eliminates one of the biggest and most disruptive sources of noise pollution in the modern home. |
| The Garage Is Used as a Living Space | If your garage is also your gym, workshop, or man cave, a quiet opener makes the space far more enjoyable. |
At the end of the day, choosing one of the best belt drive garage door openers is an investment in your home's peace and quiet. It helps your garage feel like a connected part of your home, not just a noisy appendage.

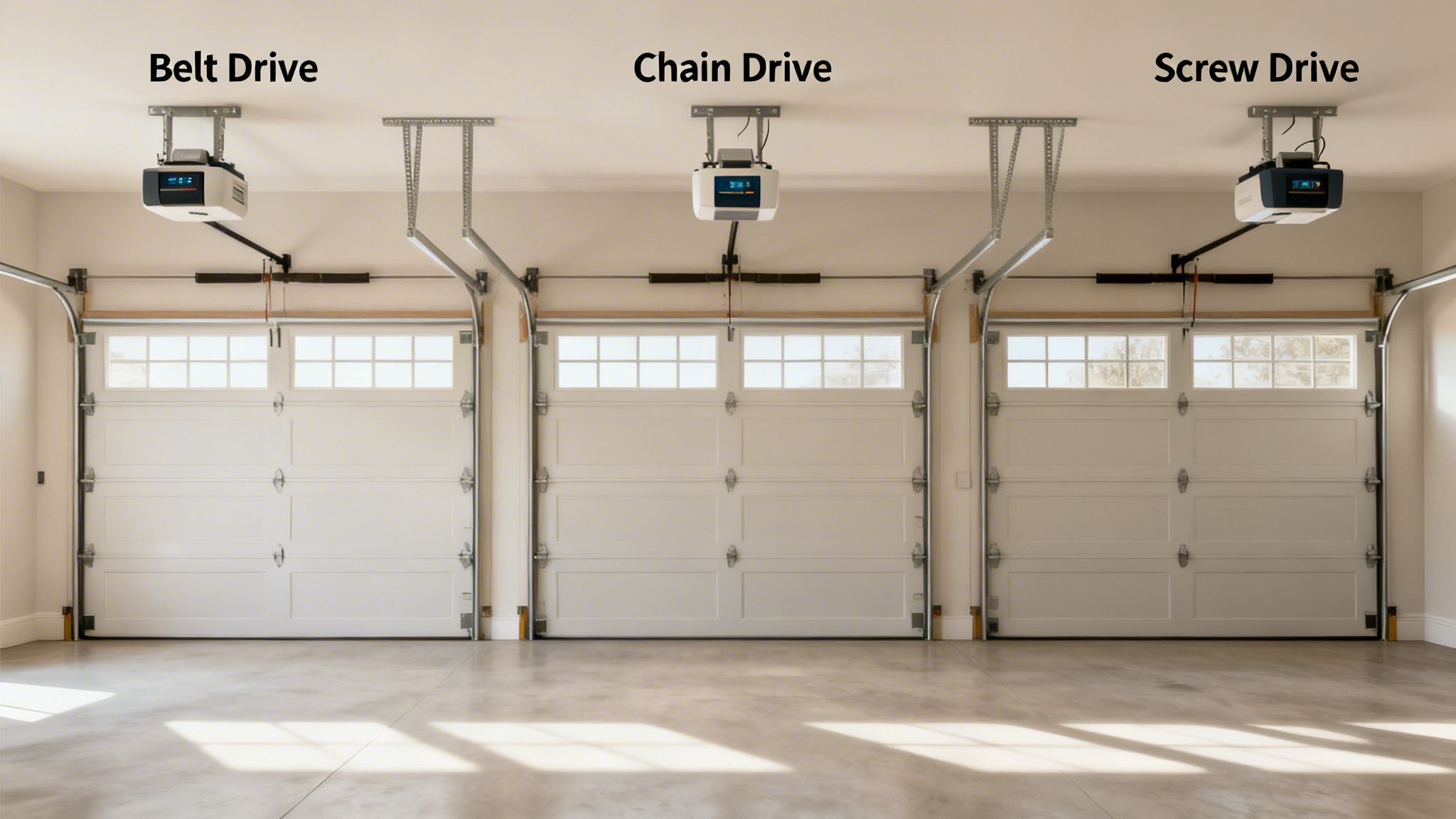

Belt Drive vs. Chain Drive vs. Screw Drive Comparison
When you're shopping for a garage door opener, it’s easy to think it’s a simple decision. But the real choice isn't just about the brand—it's about the drive system that powers it. The three main options on the market are belt, chain, and screw drives, and each one offers a vastly different day-to-day experience.
Getting this choice right comes down to understanding what makes each one tick. You don't want to end up with a clunky, loud opener right below a bedroom, or a system that gives you trouble during brutal winters. Let's cut through the jargon and compare them head-to-head.
The Classic Workhorse: Chain Drive
For years, the chain drive was the undisputed king of garage door openers. It operates with a simple, rugged metal chain—think of a heavy-duty bicycle chain—that pulls a trolley along a rail to hoist your door. The design is straightforward, powerful, and built to last.
Its biggest selling point is raw strength. Chain drives are the go-to for lifting exceptionally heavy custom wood doors, oversized doors, or older doors that need a little extra muscle. That brawny construction also means they can take a beating in high-use garages.
The trade-off? Noise. All that metal-on-metal action generates a lot of clatter and vibration. If your garage is detached, you might not care one bit. But for attached garages, the racket can easily travel through the walls and become a real nuisance. It’s a dependable workhorse, but you’re sacrificing quiet for power and a lower price tag.
The Quiet Champion: Belt Drive
As we've covered, the belt drive is the modern answer for homeowners who value peace and quiet. Instead of a clanking chain, it uses a steel-reinforced rubber belt that glides silently along the rail. This simple change in material makes all the difference, earning it the title of the quietest opener available.
Their popularity has exploded for this very reason. Homeowners are tired of the noise, and the numbers prove it. In 2024, the global market for belt drive openers soared to USD 1.2 billion, capturing a commanding 55% share of all opener sales. These systems can operate at noise levels up to 50% lower than their chain-driven counterparts.
Imagine this: you pull into your driveway late at night after a long shift. With a belt drive, you can open the garage, park your car, and walk inside without waking up the entire house. It’s that small, everyday convenience that makes them so appealing.
The Specialized Contender: Screw Drive
Screw drive openers are the third, less-common type you'll encounter. They use a long, threaded steel rod that rotates like a screw to move the trolley and lift the door. With fewer moving parts than a chain drive, they're generally faster, a bit quieter, and require minimal maintenance.
The catch, especially for those in climates with big temperature swings, is their sensitivity to weather. The grease that lubricates the threaded rod can get thick and gummy in freezing winters or lose viscosity on hot summer days, potentially affecting the opener's performance and reliability. It's a solid design, but our climate can expose its weakness.
Drive Type Showdown: Belt vs. Chain vs. Screw
To put it all into perspective, here’s a straightforward comparison. This table highlights the key differences so you can see at a glance which drive type is the right fit for your home and priorities. If you want an even deeper dive, our comprehensive guide on overhead garage door openers is a great resource.
| Feature | Belt Drive | Chain Drive | Screw Drive |
|---|---|---|---|
| Noise Level | Whisper-Quiet: The best choice for attached garages. | Loud: Creates significant noise and vibration. | Moderate: Quieter than a chain but louder than a belt. |
| Ideal Door Type | Standard residential doors; powerful models can lift heavy doors. | Heavy, oversized, wood, or carriage house doors. | Standard residential doors; good lifting power. |
| Performance in Cold Climates | Excellent: The belt is not affected by temperature changes. | Excellent: Extremely reliable in all weather conditions. | Fair: Can struggle in extreme cold or heat. |
| Maintenance Needs | Very Low: No lubrication needed; just occasional checks. | High: The chain requires regular lubrication and tensioning. | Low: Fewer parts, but the screw may need re-lubrication. |
| Cost | Higher: Premium price for premium, quiet performance. | Lowest: The most affordable option upfront. | Mid-Range: Priced between chain and belt drives. |
When you weigh all the factors, the best belt drive garage door openers consistently deliver the most well-rounded performance for the modern homeowner. They offer the perfect blend of quiet operation, impressive power, and rock-solid reliability, making them a smart investment for virtually any attached garage.
Key Features of a Modern Belt Drive Opener
So, you've decided the quiet operation of a belt drive is right for you. Great choice. But now comes the hard part: picking the right model from a sea of options. The best belt drive openers today are more than just motors; they’re sophisticated pieces of tech. Let’s cut through the marketing fluff and look at the features that actually matter for a powerful, smart, and secure setup.
The Right Amount of Power
Horsepower (HP) is where performance starts. It’s all about matching the opener’s muscle to the weight and size of your door, and this is where a lot of people get it wrong. A standard, lightweight aluminum door on a single-car garage can get by with a 1/2 HP motor. But for the heavy, insulated, or solid wood double doors we see so often, you’re going to need more oomph.
Think of it like this: you wouldn't use a small sedan to tow a large boat. An underpowered opener will constantly struggle with a heavy door, leading to a burnt-out motor and frequent repair bills. For most modern doors, a 3/4 HP or 1 1/4 HPe (Horsepower Equivalent) motor is the sweet spot.
This extra power isn’t just for show. It ensures smooth, reliable operation day after day, even when humidity makes the door feel heavier or a bit of winter frost adds resistance.

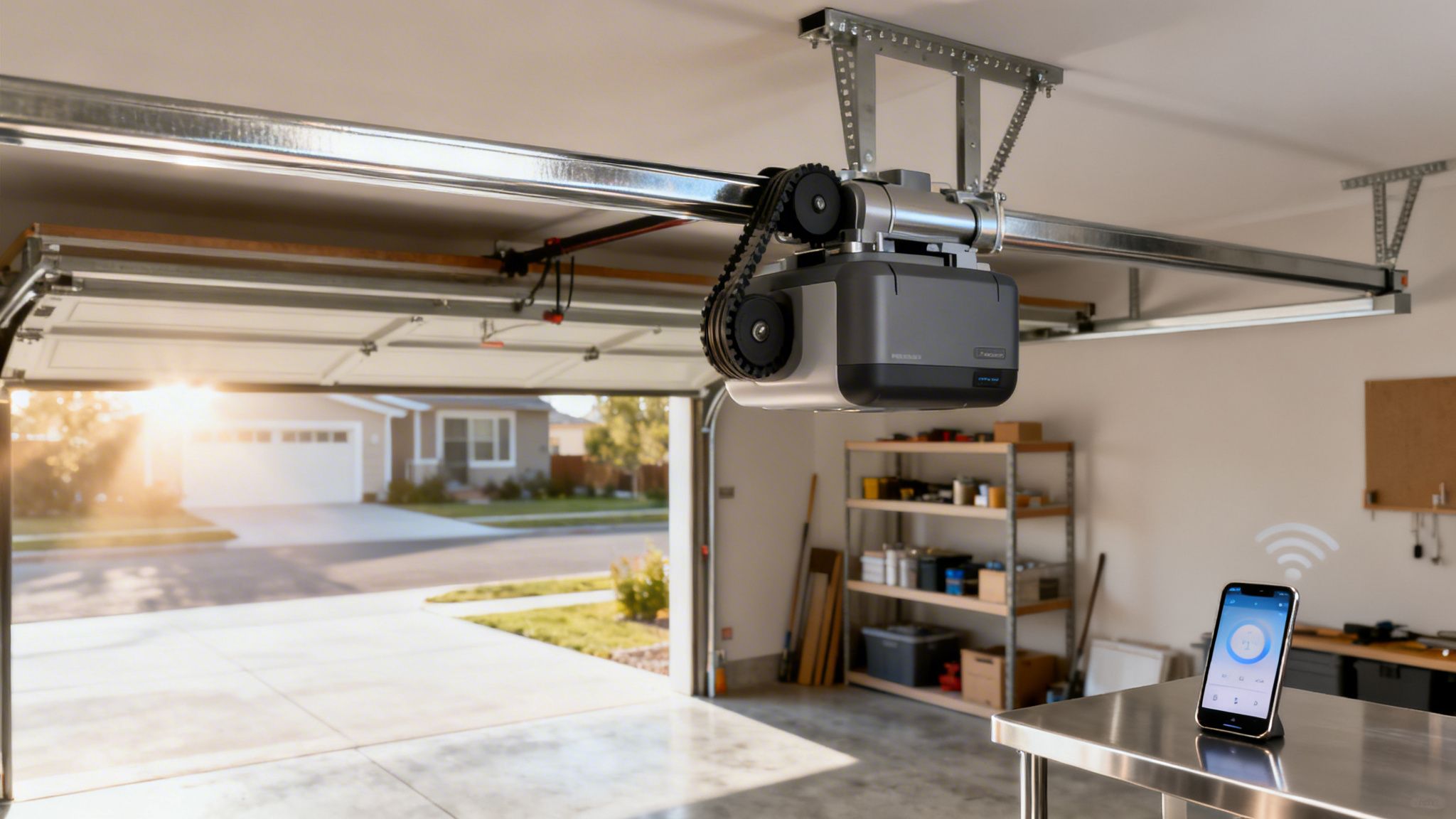

Smart Home Integration and Wi-Fi Control
Convenience in the 21st century means being connected. The best belt drive openers now include built-in Wi-Fi as a standard feature. This connects the opener to your home network, letting you control and monitor it from anywhere with a smartphone app.
Systems like myQ have become incredibly popular, and for good reason. They let you:
- Open and close your garage door remotely right from your phone.
- Get real-time alerts anytime the door is used, adding a great layer of security.
- Grant temporary access to delivery drivers, family, or contractors without having to give out a code.
- Set schedules to automatically close the door every night, so you never have to wonder if you left it open.
This isn't a gimmick—it’s about genuine peace of mind and simplifying access to your home.
Must-Have Security and Safety Features
Beyond sheer power and smarts, safety is non-negotiable. Every modern opener comes equipped with features designed to protect your family, pets, and property.
- Safety Sensors (Photo-Eyes): These are the two small sensors at the bottom of your door tracks. They shoot an invisible infrared beam across the opening. If anything breaks that beam while the door is closing, it will automatically reverse. This is the single most important safety feature.
- Rolling Code Technology: This is your defense against break-ins. Every time you click your remote, the opener generates a completely new access code from over 100 billion possibilities. This makes it practically impossible for a thief to capture your signal and get inside.
- Battery Backup: Anyone who’s lived through a storm knows power outages are a reality. An opener with a built-in battery backup means you’re never trapped in—or out of—your garage when the power goes down. You can find out more on why this is a must-have in our guide to battery backup for garage door openers.
These features are quickly becoming the standard. Belt drives now hold a massive 70% of the global market share in the residential sector for 2024. Here in North America, where noise ordinances in many neighborhoods have pushed homeowners away from loud chains, we've seen the impact firsthand. These smoother, smarter systems reduce strain and lead to 30% fewer emergency repair calls compared to older chain drive systems. You can dive deeper into the data in this detailed market report.
Choosing the Right Opener for Your Home
Not every garage door opener is created equal. What works perfectly for a standard single-car garage will be completely wrong for a heavy, custom wood door on a two-car garage. Making the right call here means you get reliable, quiet performance for years without overspending—or worse, picking a unit that’s destined to fail early.
Let's walk through what you should be looking for based on your specific situation. This isn’t about just grabbing the most expensive model off the shelf; it's about matching the machine to the mission.

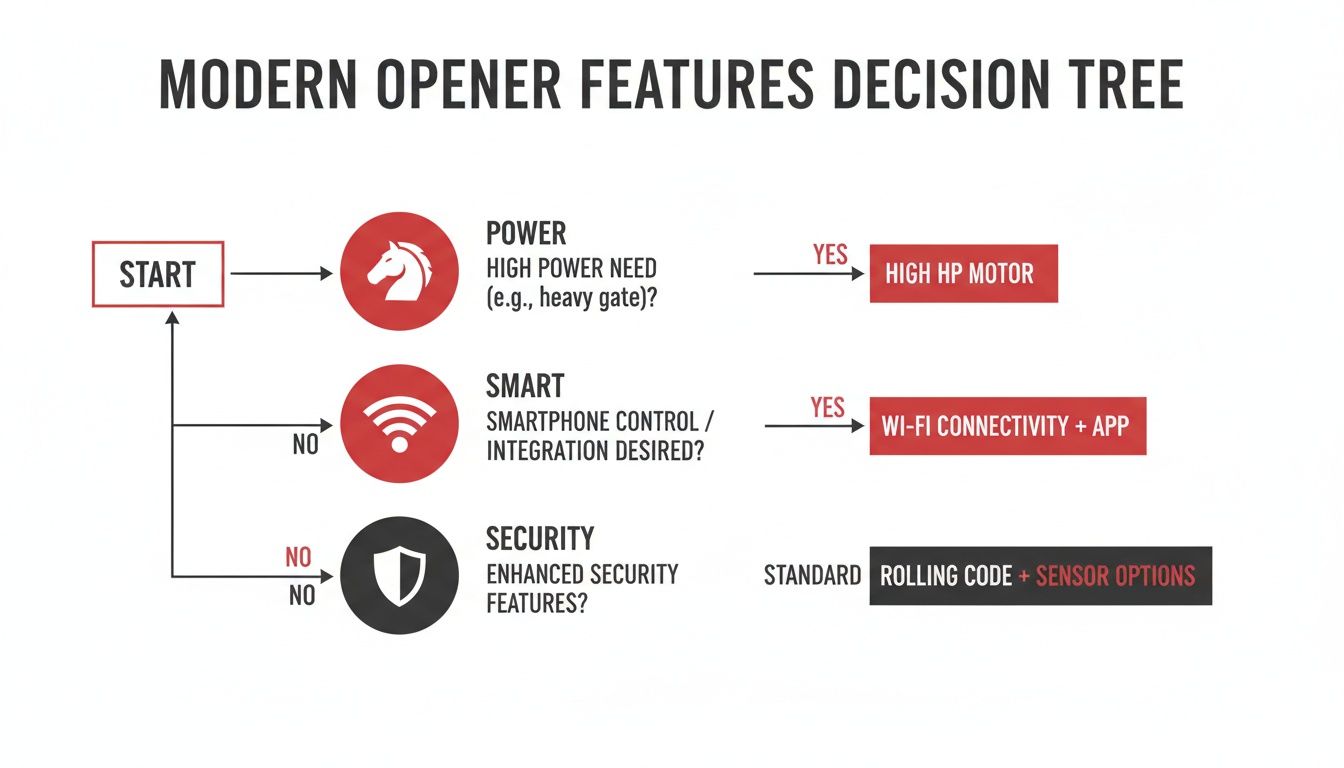

This decision tree gives you a great visual roadmap for navigating the key choices you'll face, starting with power and moving through smart features and security.
As you can see, the path begins with getting the power right, then layering on connectivity and security to build the perfect system for your home.
For Single-Family Homes with Attached Garages
This is the most common setup we see, and it’s where a belt drive opener truly excels. Your main goal here is whisper-quiet operation, especially if there are bedrooms above or next to the garage, followed by reliability and modern features.
- Typical Door: Standard insulated steel or aluminum doors, either single or double-wide. These are lightweight and make up the vast majority of doors on modern homes.
- Recommended Power: Look for a 3/4 HP or 1 1/4 HPe model. This is the sweet spot. It provides more than enough lift to handle the door without straining the motor, which is key to a long service life.
- Must-Have Features: In this day and age, Wi-Fi connectivity and a battery backup are non-negotiable. The peace of mind you get from checking your door status on an app or getting inside during a power outage is simply priceless.
For this kind of home, you're really aiming for a balanced performer. It needs to be strong, but more importantly, it has to be quiet and smart.
For Homes with Heavy or Oversized Doors
Do you have a stunning solid-wood carriage house door or an oversized, custom-built door? These add incredible curb appeal, but they are significantly heavier and put a lot more demand on an opener. They need a unit with some serious muscle.
An underpowered motor trying to lift a heavy door is a recipe for disaster. The strain will burn out the motor and put excessive stress on the door’s springs and panels, leading to costly repairs. Trust us, it’s a mistake you don’t want to make.
When you're dealing with this much weight, you have to prioritize strength above all else.
- Power: Don't even consider anything less—go straight for a 1 1/4 HPe model. This is the top tier for residential openers and is built to handle the extra torque heavy doors require.
- Key Feature: Look for a model with a "soft start and stop" function. This feature gently ramps the motor speed up and down, which dramatically reduces the jarring impact on the door, its panels, and all the hardware.
- Drive Type: While today's belt drives are surprisingly strong, make sure the model is explicitly rated for your door’s weight. A powerful belt drive will do the job quietly, but this is one case where a heavy-duty chain drive might be a better fit if noise isn't your primary concern.
For Multi-Unit Properties or Light Commercial Use
If you're a landlord managing a duplex or a small business with a frequently used bay door, your priorities shift completely. Here, it’s all about durability and the duty cycle—how many times the door can open and close per day without wearing out.
A standard residential opener, even a high-end one, just isn't engineered for the constant use of a commercial or multi-family setting.
- Duty Cycle: You absolutely need an opener rated for a higher duty cycle. These models have more robust gears and internal components designed to withstand constant operation.
- Security Needs: For multi-tenant buildings, modern security is a must. Look for openers with smart access management, which lets you grant or revoke access for tenants or employees right from your phone, eliminating the hassle of physical remotes.
- Power & Durability: A 1 1/4 HPe motor is your starting point. You'll want to pair this with a reinforced belt specifically designed for high-traffic applications to ensure you get the longevity you need.
Installation, Maintenance, and When to Call a Pro
So, you’ve picked out a fantastic belt drive opener. That’s a great move toward a quieter, more modern garage. But here’s the thing: even the best opener on the market is only as good as its installation. Getting that first step right is non-negotiable if you want the performance and safety you’re paying for.
While it’s tempting to make it a weekend DIY project, installing a garage door opener is surprisingly complex. You're dealing with electrical wiring, precise mechanical assembly, and safety features that absolutely have to work. A professional installation isn't a luxury—it’s peace of mind that your investment will perform correctly and safely from the start.

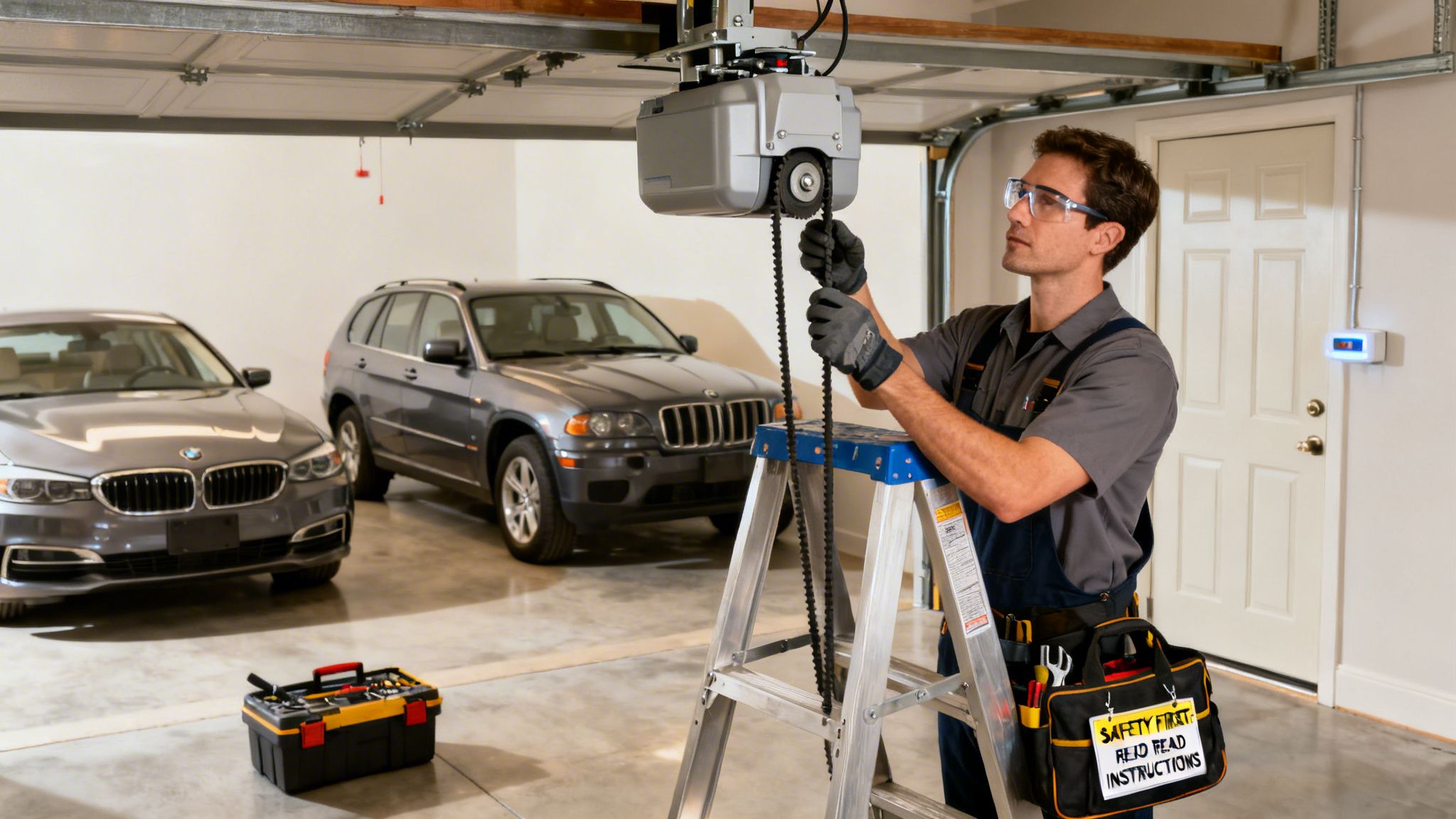

What a Professional Installation Really Looks Like
When a professional technician installs your opener, they do a lot more than just hang it from the ceiling. The process is built around long-term performance and your family's safety.
- Secure Mounting and Alignment: We make sure the unit is mounted securely and perfectly aligned with your door. Even a slight angle can put a huge strain on the motor and hardware over time.
- Perfect Belt Tension: This is the secret sauce for a belt drive. Too loose, and the belt will slip and jerk. Too tight, and you'll burn out the motor and shred the gears. A pro knows how to dial in the tension perfectly for your specific door.
- Photo-Eye Sensor Alignment: These sensors are your door’s most critical safety feature. They are meticulously aligned to create a solid, unbroken beam. If anything interrupts it, the door reverses instantly. No exceptions.
- Setting Travel and Force Limits: Techs program the opener to know exactly where to stop when opening and closing. They also fine-tune the force sensitivity, testing it to ensure the door reverses immediately if it bumps into an object.
If you’re curious about the costs involved, our guide on garage door opener installation costs provides a clear and detailed breakdown.
Simple Maintenance You Can Do Yourself
Once your opener is properly installed, a little bit of routine care will keep it humming along for years. These are easy checks you can do every couple of months.
- Test the Safety Reversal: Lay a 2×4 flat on the garage floor in the door's path. When the door makes contact with the wood, it should immediately reverse. If it doesn’t, stop using the door and call for service right away. This is a serious safety issue.
- Check the Photo-Eyes: With the door open, press the button to close it and wave something like a broom handle in front of one of the sensors. The door should immediately stop and go back up. If it doesn't, check for dirt on the sensor lenses or a possible alignment issue.
- Just Look and Listen: Run the door and pay attention. Do you hear any new grinding or scraping noises? Does the door move smoothly, or is it jerky? Catching these little things early can prevent a major breakdown.
A common mistake we see is homeowners lubricating the belt. Unlike a chain, the rubber belt on a belt drive opener should never be lubricated. Lube actually causes the belt to slip and attracts grit, which will wear it out much faster.
When to Put Down the Tools and Call a Pro
DIY is great, but there's a point where it becomes unsafe. Garage door systems have parts under extreme tension and electrical components that can be dangerous. If you see any of these red flags, it’s time to call a professional.
- Loud grinding or squealing: These sounds usually mean the gears or motor bearings inside the unit are failing.
- The door reverses for no reason: If the door goes down and then pops back up, and you've already checked that nothing is in the way, you could have a problem with the logic board or travel limit settings.
- The remote or wall button works sometimes, but not always: This could point to a failing receiver or logic board inside the opener.
- You hear the motor running, but the door isn’t moving: This is a classic sign of a stripped gear or a broken trolley carriage—both require a technician to replace.
For any issues that involve the opener’s internal wiring or the electrical supply from your home, it's safest to bring in professional residential electrical services. Tinkering with these systems on your own can lead to more expensive damage or, worse, a serious injury.
Frequently Asked Questions About Belt Drive Openers
So, you’re thinking a quiet, modern belt drive opener is the right move. That’s great, but it's completely normal to have a few more questions before you pull the trigger. It's a big decision for your home. We hear these same questions from homeowners all the time, so I've put together some straight, simple answers to help you feel confident in your choice.
How Long Does a Belt Drive Garage Door Opener Last?
A quality belt drive opener, when it's properly cared for, is a true workhorse. You can realistically expect it to last 15 to 20 years. Getting that kind of lifespan really boils down to just three things: starting with a good quality model, getting it installed by a pro, and doing a few simple maintenance checks.
The secret to their longevity is the smooth operation. Belt drives don't have the same daily wear and tear on motors and gears that you see with chain drives. That steel-reinforced rubber belt is incredibly tough and avoids the friction and vibration that wears down a metal chain. With just a little attention now and then, a good belt drive will serve your home reliably for a very long time.
Is a Belt Drive Strong Enough for My Heavy Door?
Absolutely. This is probably the most common myth we have to bust. People worry that quiet means weak, but modern engineering has made today's belt drive openers incredibly strong. While some of the older or cheaper models might have struggled, a good one from a reputable brand can handle just about anything you throw at it.
The trick is simply matching the motor's power to your door's weight. For the heavy insulated doors or custom wood carriage house doors we see so often, you just need to pick an opener with the right horsepower.
- Look for 3/4 HP or 1 1/4 HPe (Horsepower Equivalent) models. These units are built with the extra torque needed to lift heavy doors day in and day out without straining the motor.
- A "soft start and stop" feature is also a must-have. This technology eases the door into motion and gently brings it to a stop, which prevents the sudden jerking that puts a lot of stress on your door panels and hardware.
So yes, a properly chosen belt drive has all the muscle you need for even the biggest residential doors, but without all the noise.
Don't mistake quiet for weak. We regularly install high-horsepower belt drive openers on custom wood and oversized doors. With the right motor and professional installation, you get all the strength you need without any of the noise you don't.
Are Belt Drive Openers a Lot More Expensive?
They do cost a bit more upfront than a chain drive, but the price gap isn't what it used to be. The difference comes down to the materials and tech—that steel-reinforced belt and the motor components designed for silent performance simply cost more to make.
But it's helpful to think of it as an investment in your home's peace and quiet. Most people find that the massive reduction in noise is worth every penny, especially if you have a bedroom or living space above the garage. When you add in the fact that they need less maintenance (no messy chain to lubricate) and are gentler on your whole garage door system, the long-term value really starts to shine.
How Much Maintenance Does a Belt Drive Opener Need?
This is one of the best parts about them: they need very little. Chain drives need to be lubricated regularly to keep them from grinding and rusting, but the rubber belt on a belt drive is meant to run clean and dry. In fact, a crucial tip is to never lubricate the belt. Grease or oil can make it slip and will attract dirt that can damage it over time.
Your maintenance routine is quick and focuses on safety:
- Test the Safety Reversal: Once a month, put something like a 2×4 on the floor where the door closes. The door must hit it and immediately reverse. If it doesn't, stop using the opener and call for service.
- Check the Photo-Eye Sensors: As the door is closing, just wave your foot in front of one of the sensors near the floor. The door should stop and go right back up. If the sensors look dirty, just wipe the lenses with a soft cloth.
- Listen and Watch: Simply pay attention. If you start to hear new scraping sounds or see jerky movements, it's an early warning that it's time for a professional tune-up.
That's really it. This minimal upkeep makes them a fantastic "set it and forget it" choice for busy homeowners.
Can a Belt Drive Handle a Cold Winter?
Yes, and they handle it beautifully. This is actually a big advantage belt drives have over screw drive openers, which can sometimes get sluggish or fail when the grease inside them thickens in the bitter cold.
The rubber belt isn't affected by temperature swings. It stays flexible and works just as well on a humid 90-degree summer day as it does on a frigid 10-degree January morning. That year-round reliability makes them a perfect choice for any region with four distinct seasons. You get an opener that just works, no matter what the weather throws at it.
