You're probably staring at a concrete wall or floor in your garage right now, holding a bracket, a shelf standard, or an opener mount, and wondering a common question. What anchor do I use so this thing stays put?
That's a smart question. In a garage, bad anchor choices don't just leave an ugly hole. They can drop a shelf, loosen a track bracket, or turn a vibrating opener install into an ongoing problem.
Here's the quick-reference comparison most homeowners need first.
| Anchor Type | Best For | Load Capacity | Works In | Key Feature |
|---|---|---|---|---|
| Concrete screw | Fast light to medium jobs like brackets and smaller wall-mounted hardware | A 3/16-inch Tapcon screw holds about 100 to 300 lbs in tension in 3,000 psi concrete according to Build Tool HQ's anchor kit guide | Concrete, and often other masonry where the product is rated for it | Fast install and removable |
| Sleeve anchor | Mixed-material jobs where the base may be brick, block, or concrete | Capacity varies by size and substrate | Concrete, brick, block, masonry | More forgiving across different base materials |
| Wedge anchor | Heavy-duty fastening in solid concrete | A 1/2-inch wedge anchor holds about 3,000 to 5,000 lbs in tension in 3,000 psi concrete according to Build Tool HQ's anchor kit guide | Solid concrete only for this kind of heavy-duty use | Very strong expansion hold in sound concrete |
| Drop-in anchor | Overhead hanging with threaded rod or bolts | Capacity varies by size and embedment | Solid concrete ceilings and overhead slabs | Flush female thread for clean overhead installs |
Why the Right Concrete Anchor Matters
A lot of garage jobs look simple until you think about what's really holding the load. A wall shelf full of chemicals, a steel track bracket, or a motor mount for an opener all depend on a small piece of hardware gripping concrete the right way.
That's why there isn't one “best” anchor for every job. Concrete behaves differently than wood. It doesn't flex and forgive mistakes. If the anchor is undersized, installed in the wrong material, or set in a dirty hole, the failure usually shows up later, after vibration and weight have had time to work on it.
I see this most often when someone assumes all masonry fasteners are basically interchangeable. They're not. The anchor that works fine for a light storage hook can be completely wrong for a door component that moves every day.
Small part, big consequence
The anchor is the final link between your fixture and the slab or wall. If that link is wrong, the rest of the install doesn't matter much. Heavy concrete work starts with the base itself, which is why understanding the slab or pad matters just as much as the hardware. If you're dealing with a new build or replacing failed concrete around a garage, it helps to understand what goes into garage concrete pad costs.
The anchor isn't just “holding something up.” It's resisting pull, vibration, and the little movements that keep happening after the job is finished.
Why one-size-fits-all advice fails
Some hardware stores make this sound easier than it is. Grab an anchor, drill a hole, tighten it down, done. That approach causes a lot of callbacks.
What matters is the match between the anchor, the base material, and the kind of stress the install creates. A garage opener bracket doesn't load an anchor the same way as a wall-mounted hose reel. A concrete floor mount behaves differently than a ceiling mount. If you treat every concrete fastening job the same, you eventually get a loose connection, cracked masonry, or a bracket that starts shifting.

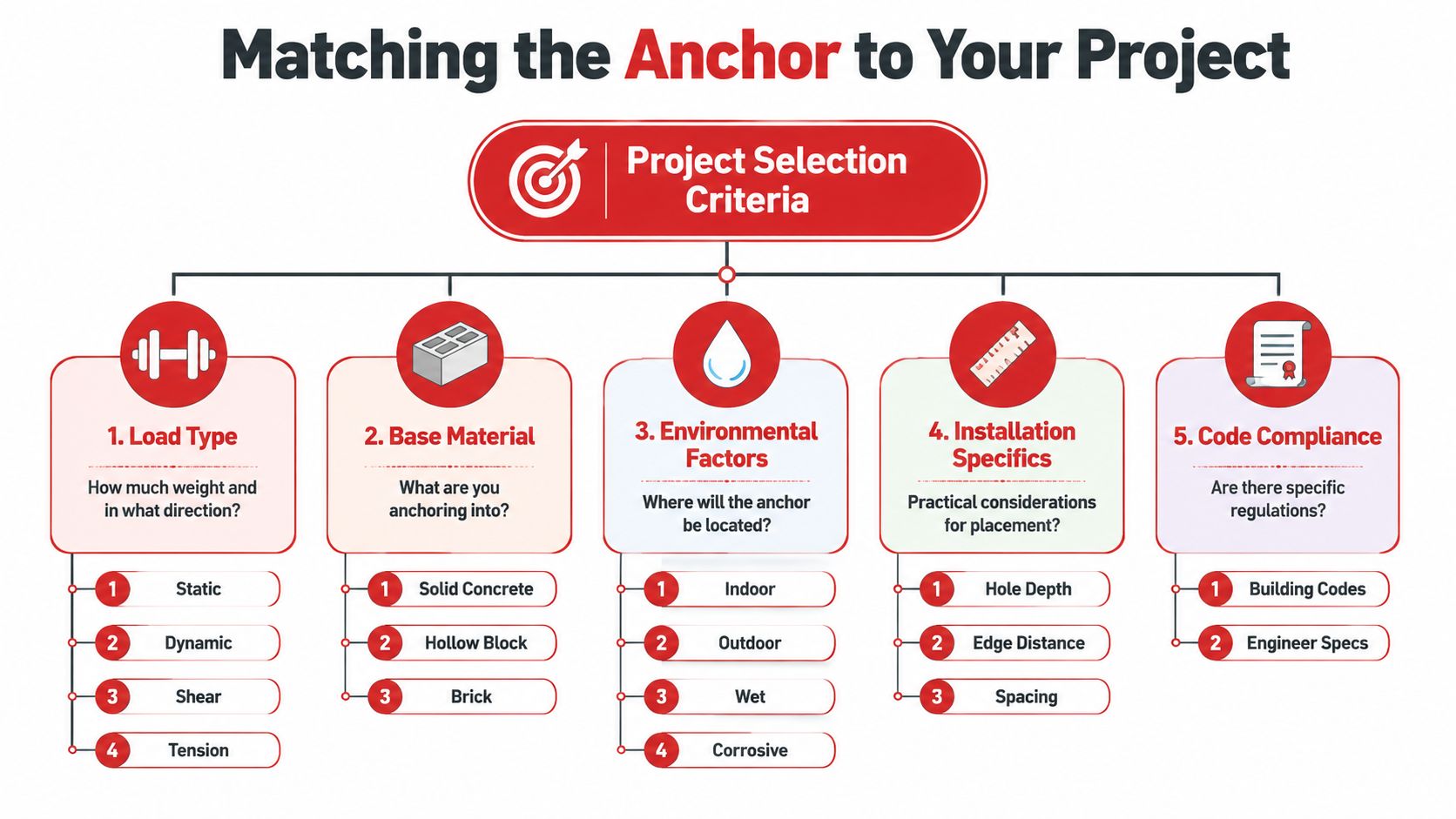

Matching the Anchor to Your Project
Before buying anything, answer three questions.
What are you fastening into? How heavy is the load? Is the location indoors or exposed to moisture? Those three answers narrow the field fast.
Start with the base material
Many DIY installs go wrong at this stage. People say “concrete” when they mean brick, block, old mortar, or a hollow unit.
If you're drilling into solid poured concrete, you have the widest range of strong anchor options. If you're drilling into brick or hollow block, your choices narrow because some anchors expand too aggressively and can damage the material instead of gripping it.
For garages attached to commercial spaces or light industrial buildings, the base can be more specialized than homeowners expect. If you're dealing with larger structural work or a slab tied to business use, a good background reference is specialized foundation concrete for businesses, because the concrete itself affects what anchoring methods make sense.
Match the anchor to the load
Load isn't just about how much something weighs on paper. It's also about how that force acts on the fastener.
Think of it this way:
- Tension load means the anchor is being pulled straight out of the concrete.
- Shear load means the force is pushing sideways across the anchor.
- Dynamic load means movement and vibration keep working on the connection.
That matters because garage hardware often sees more than one kind of load at once.
A simple rule from Fastenere's guide to concrete anchor types is useful here: light-duty applications under 100 lbs use plastic anchors or lag shields, medium-duty applications from 100 to 500 lbs use strike anchors or concrete screws, and heavy-duty applications at 500 lbs and above call for wedge anchors or heavy-duty sleeve anchors.
Don't ignore the environment
Indoor garage walls are usually a straightforward case. Standard finishes are often fine when the area stays dry.
Outdoor installs, damp garages, or spaces with regular moisture deserve more thought. Corrosion can turn a good install into a weak one over time. The same goes for freeze-thaw exposure around detached garages, apron walls, or exterior-mounted hardware.
Practical rule: If the anchor location sees moisture, stop thinking only about strength. Think about long-term reliability.
A short buying checklist
Before you walk into the store or order online, pin down these points:
- Base material first: Solid concrete, brick, or hollow block changes everything.
- Real working load: Include the object and the stress created when it moves or vibrates.
- Location: Indoor dry space is different from outdoor or damp use.
- Fixture shape: Some brackets need a flush finish, others need threaded rod or a stud.
- Framing connection: If the hardware ties into door framing or rough openings, review how to frame for a garage door before drilling into the wrong place.

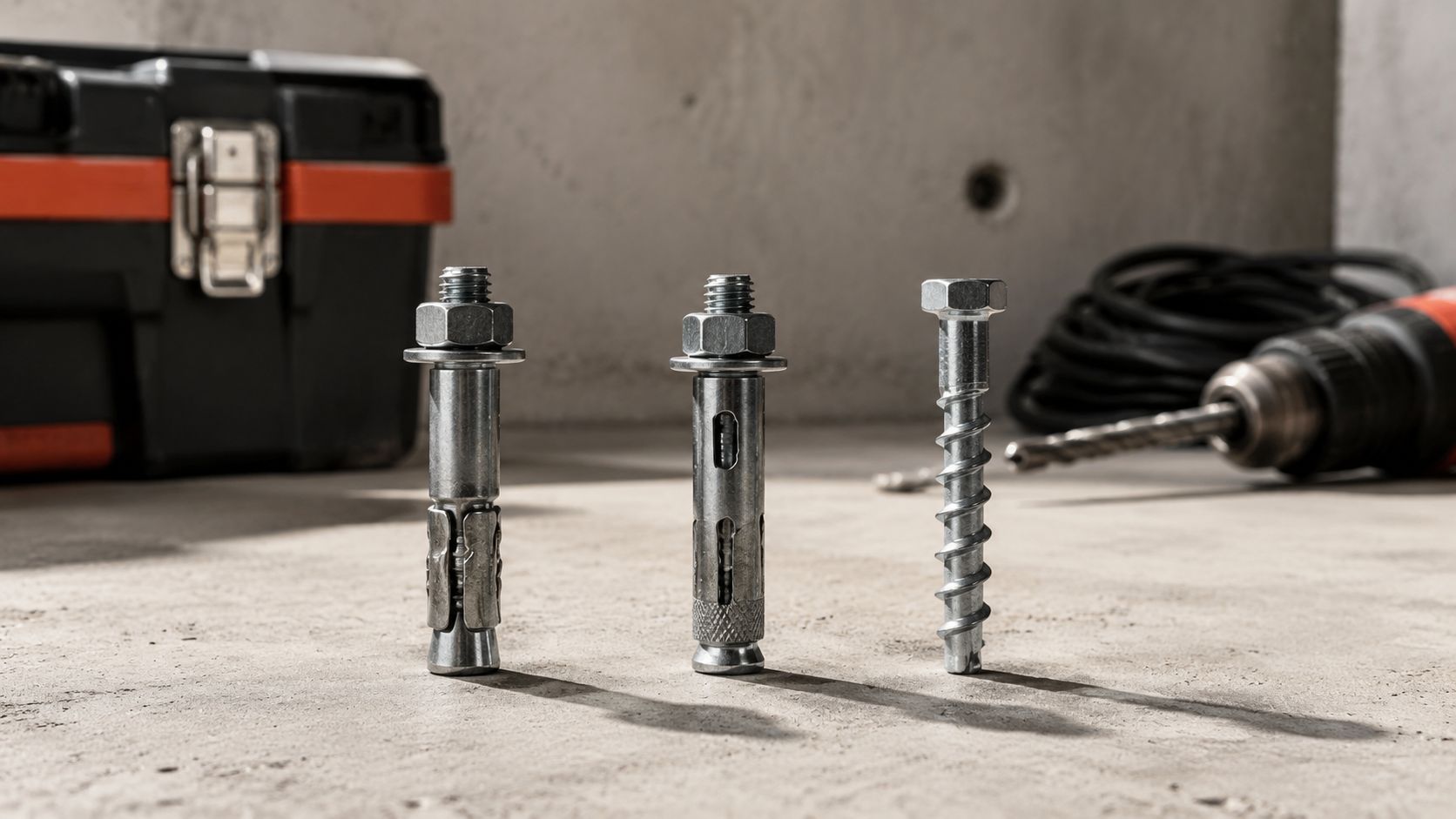

Comparing the Most Common Concrete Anchors
A garage anchor usually fails for one of two reasons. The wrong anchor went into the wrong material, or the installer drilled a decent hole and left dust in it.
That matters because these anchors are doing different jobs. A fastener that works fine for a light wall bracket can loosen up fast on hardware that sees vibration, side load, or repeated door movement. For garage work, the three anchors that come up most often are concrete screws, sleeve anchors, and wedge anchors.
Concrete screws
Concrete screws are the practical choice when the job needs to go in quickly and you may want the option to remove the fastener later. They work well for lighter mounting points, electrical clips, and some utility hardware in sound concrete or masonry where the load stays modest.
Their weak point is installation quality. If the pilot hole is undersized, oversized, or packed with dust, the threads do not bite the way they should. I see this mistake all the time on homeowner installs. The screw feels tight at first, then starts spinning or backing out after a little movement.
They also are not my first pick for a garage door component that cycles, shakes, or carries a lot of force. If you are working through the full process of mounting an overhead door system, use extra care before treating concrete screws as a one-size-fits-all answer.
Sleeve anchors
Sleeve anchors are the flexible middle-ground option. They make sense when the base material is not consistent, such as an older garage with poured concrete on one wall and block or brick on another.
That broader material compatibility is why sleeve anchors stay useful in real-world repair work. They expand more gently than wedge anchors, so they are often a safer call in masonry that is older, a little brittle, or less predictable.
Where sleeve anchors make sense
- Older garage walls: Better for surfaces that may not be uniform from one drilling location to the next.
- General-purpose bracket mounting: A solid choice when the load is moderate and the material is masonry, not guaranteed solid concrete.
- Jobs with some uncertainty: More forgiving than wedge anchors when you are trying to avoid cracking weaker material.
If your project goes beyond the garage and into other foundation or exterior support work, it can also help to compare concrete anchoring with alternatives such as ground screws for decks before you commit to drilling at all.
Wedge anchors
Wedge anchors are for heavy-duty fastening in solid concrete only. They are the anchor I trust for serious holding power, but only when the concrete itself is in good shape and the hole is drilled correctly.
This is the anchor people misuse most. They hear "strongest" and assume it belongs everywhere. It does not. In block, brick, weak concrete, or near an edge where expansion can break the material, a wedge anchor can create problems instead of solving them.
Hole prep matters here more than many installers realize. If concrete dust stays in the hole, the anchor may not seat fully, torque values can become misleading, and holding strength drops.
Concrete Anchor Comparison
| Anchor Type | Best For | Load Capacity | Works In | Key Feature |
|---|---|---|---|---|
| Concrete screw | Light to medium-duty fastening, quicker installs, removable hardware | Varies by diameter, embedment, and base material | Concrete and some rated masonry applications | Fast installation and removability |
| Sleeve anchor | Medium-duty fastening across varied masonry | Varies by size and base material | Concrete, brick, block, masonry | Broad substrate compatibility |
| Wedge anchor | Heavy-duty fastening where high holding power is needed | Higher-duty option when installed in sound concrete | Solid concrete | Strong expansion grip |
The primary trade-off
If the wall is confirmed solid concrete and the connection has to hold under serious load, wedge anchors are often the best choice. If the material is mixed, older, hollow, or questionable, sleeve anchors usually give a more reliable result. Concrete screws fit best where speed, serviceability, and lighter duty matter more than maximum strength.
The anchor itself is only half the decision. The base material, the load, and the quality of the drilled hole decide whether that anchor holds for years or starts loosening after a few door cycles.
Best Anchors for Garage Door Installations
Garage door work is different from mounting a basic wall shelf. The system is heavy, the door moves, and the hardware sees vibration over and over. That means anchor choice needs to be tied directly to the part you're mounting.

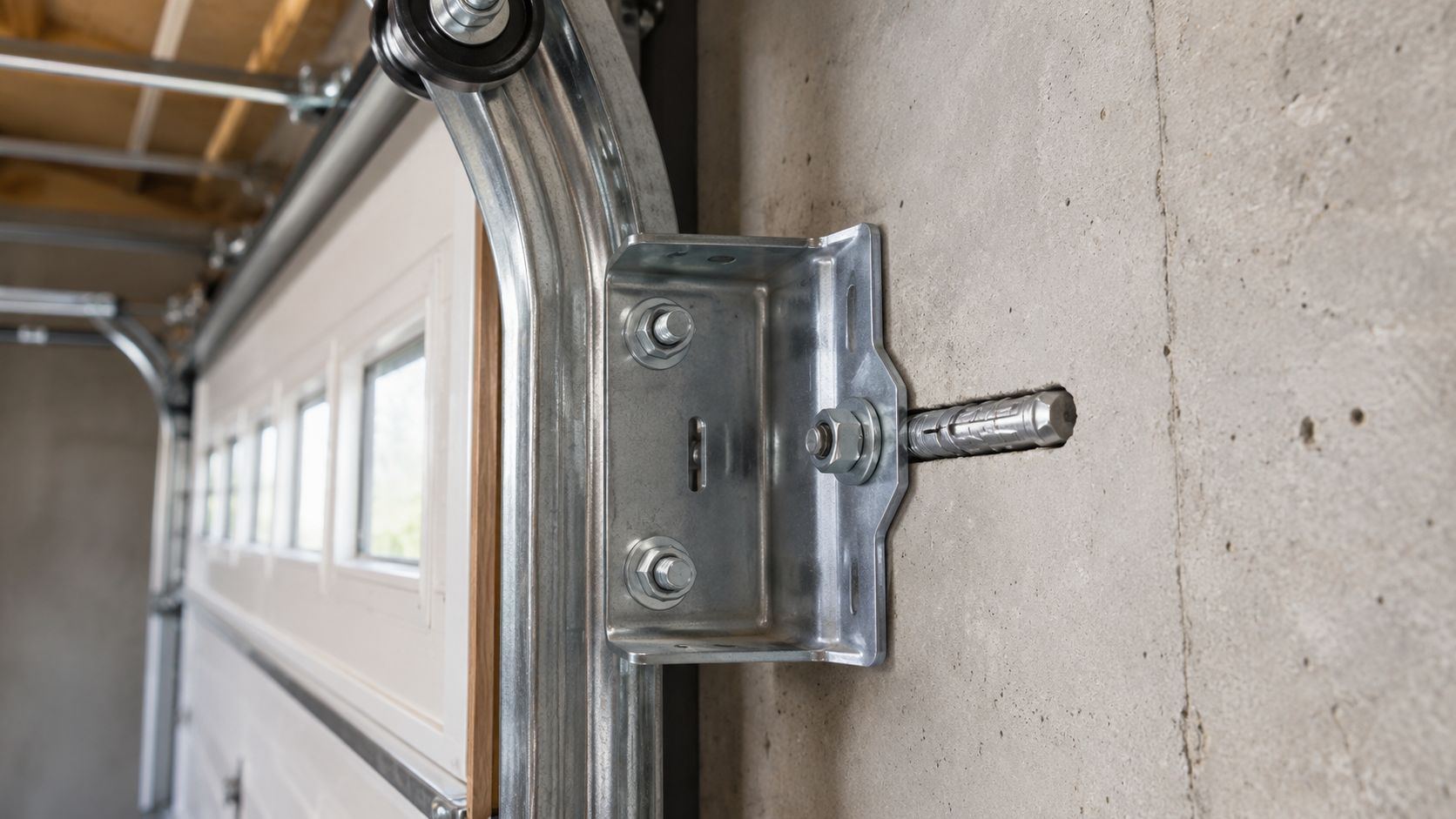

For track brackets on solid concrete
When a vertical or flag bracket fastens into solid concrete, the anchor needs to resist both weight and repeated movement. For a true concrete wall with a demanding load, a wedge anchor is usually the first choice because it gives a very solid mechanical hold in that material.
The important phrase there is solid concrete. If the wall is block, brick, or old masonry, that recommendation changes fast.
For opener mounting in a concrete ceiling
Overhead installs are their own category. For garage opener supports, threaded rod hangers, and similar ceiling work, the cleanest professional option is usually a drop-in anchor.
Angi's guide to concrete anchors notes that drop-in anchors are the definitive best choice for overhead installations, including hanging garage door openers, HVAC ductwork, and electrical cable trays, because they provide a clean threaded profile without protruding hardware.
That matters in a garage because overhead hardware needs to be secure without leaving a stud sticking down where it gets in the way.
For ceiling-mounted opener support, a drop-in anchor gives you a cleaner finished setup than trying to force a wall-style anchor into an overhead job.
For wall-mounted accessories near the door
Not every garage install needs a heavy anchor. Smaller brackets, accessory mounts, and some lighter utility hardware often work well with concrete screws, especially when the base is sound and the load stays moderate.
A few examples:
- Photo-eye brackets and lighter utility mounts: Concrete screws can be a practical option if the load is modest.
- Storage systems near the door opening: Sleeve anchors are often a safer middle ground when the wall material is less predictable.
- Heavier hardware at stress points: Use a heavier-duty anchor only when the base material supports it.
Where homeowners get in trouble
A lot of failed garage door mounting points come from using the wrong anchor in the wrong wall, not from using a cheap brand. The common mistake is treating all masonry as if it were poured concrete.
If you're replacing door hardware or planning a new system, it helps to understand the full process for installing an overhead door before you decide what gets mounted where. The anchor choice should fit the door layout, wall material, and mounting location together.

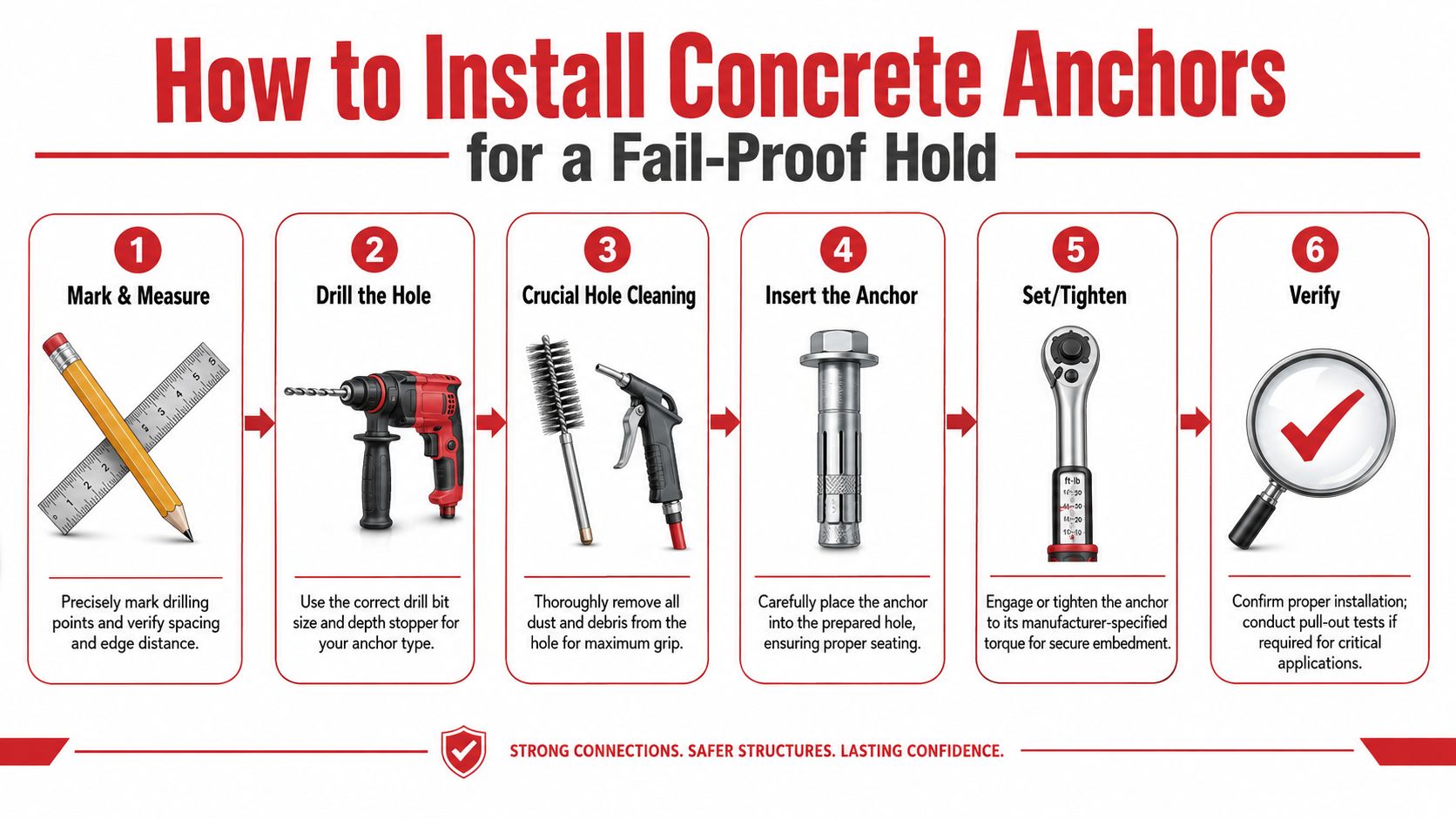

How to Install Concrete Anchors for a Fail-Proof Hold
The anchor itself matters. Hole preparation matters more.
Most bad installs fail long before the hardware reaches its rated potential because the hole was rushed. Dust left in the hole, shallow drilling, or debris packed at the bottom can stop the anchor from setting correctly even when the anchor type was the right one.
The step people skip
The most common shortcut is drilling the hole and immediately pushing the anchor in. That leftover dust can interfere with expansion or bonding.
A practical installation guide from UA Doors recommends drilling the hole about 0.5 inches deeper than the anchor length so debris has somewhere to go, then cleaning out the dust with a wire brush and compressed air or a vacuum before inserting the anchor.
Why cleaning matters so much
This is the part many weekend guides barely mention, but it's the difference between a solid hold and a weak one. A dusty hole can keep the anchor from fully contacting the concrete wall inside the bore.
According to the verified installation guidance from this anchor installation video reference, concrete anchors fail primarily because dust residue prevents epoxy bonding or interferes with expansion mechanisms, not because the anchor material itself is weak, and epoxy holes need to be brushed “dust-free” to achieve a “bulletproof” bond.
Installation truth: Spend the extra minute cleaning the hole. It matters more than arguing over anchor brands.
A pro-style install sequence
Use a repeatable process every time:
- Mark the location carefully. Keep brackets aligned before you drill.
- Use the correct bit size. A sloppy oversized hole can ruin the install.
- Drill to the right depth. Give the anchor the embedment it needs, plus room for debris if the anchor calls for it.
- Brush and clear the hole. Wire brush, then vacuum or blow it out.
- Insert and set the anchor correctly. Don't force it into a dirty or shallow hole.
- Tighten with control. Over-tightening can damage the base or the anchor.
If you work on exterior structures too, the same discipline shows up in good guides for concrete fence post installation. Different project, same lesson. Clean hole, proper depth, careful setting.
What fail-proof really means
A fail-proof hold isn't about making an anchor indestructible. It's about removing avoidable mistakes. When the hole is the right size, the dust is gone, and the anchor matches the material, you give the fastener its best chance to do the job it was designed for.
Troubleshooting Common Anchor Problems
A problem anchor usually gives you a warning before it fails. It spins, refuses to snug up, or starts showing movement after a few weeks of door vibration. Treat those signs seriously, especially on opener mounts, flag brackets, and track supports where a loose connection can turn into a safety issue fast.
If the anchor keeps spinning
Stop there. A spinning anchor usually means the hole is too large, the concrete around it has broken down, or the anchor was used in the wrong base material.
I see this most often when someone tries to fasten garage hardware into weak edge concrete, old patchwork, brick, or mortar with an anchor that needs solid concrete to grip properly. The fix is not more torque. The fix is choosing an anchor that matches the material, or moving to a sound location if the concrete is damaged.
If the anchor hole has already wallowed out, replacing the same anchor with the same size rarely holds for long. A better repair may be a different anchor type, a larger approved size, or a new hole with proper spacing from the damaged area.
If the anchor won't tighten down fully
This usually comes back to installation, not the anchor itself. The hole may be too shallow, packed with dust, or drilled unevenly so the anchor cannot seat straight.
Check these points:
- Hole depth: The anchor may be hitting the bottom before it sets.
- Packed dust or chips: Debris can keep the anchor from expanding or bonding correctly.
- Misalignment: If the bracket is pulling the anchor sideways, it may bind before it tightens.
- Wrong anchor length: A longer anchor is not better if the hole was not drilled for it.
On garage jobs, this shows up when mounting angle iron for opener support or fastening bottom track brackets near the slab. If the anchor does not pull the hardware tight to the concrete, remove it and find the cause before you load it.
If an older anchor has loosened up
Repeated door movement exposes weak installs. Vibration from an opener, door cycling, and seasonal moisture changes can all work on a marginal anchor over time.
Look closely for:
- Bracket movement: Even a little play matters on garage door hardware.
- Rust: Corrosion reduces holding strength and can stain or crack the surrounding concrete.
- Cracked concrete: Expansion pressure may be too close to an edge, or the base was already weak.
- Elongated bracket holes: Sometimes the anchor is fine, but the mounted hardware has started wearing around it.
Loose hardware around a garage door system should never be ignored. Tracks need to stay aligned. Opener mounts need to stay rigid. If the anchor location is failing, replacing the fastener alone may not solve the problem unless the concrete and bracket are still sound.
If a garage door bracket, opener mount, or concrete fastening point doesn't look right, don't guess. The safer move is to have it inspected before the hardware fails under load.
