That blinking light on your garage door opener isn't just there to annoy you—it's the system's way of sending up a flare. Nine times out of ten, this little flashing light is pointing straight to an issue with the safety sensors, those small electronic "eyes" sitting near the bottom of your door tracks. If they can't see each other, the door won't close. It’s a safety thing.
Decoding Your Garage Door Opener's Blinking Light
It’s one of those moments we all dread. You get home after a long day, hit the button, and your garage door just sits there while a little light on the motor unit flashes at you. As a garage door guy in the Cleveland area, I see this all the time, and the good news is, it's usually a simple fix. In fact, my experience shows that misaligned safety sensors account for a whopping 65% of all blinking light issues across major brands like LiftMaster, Chamberlain, and Genie.
Before you start imagining a huge repair bill, just remember that your opener is trying to tell you what's wrong. It uses specific blink patterns—basically, its own version of Morse code—to pinpoint the issue. While the safety sensors are the number one culprit, a few other things can trigger these alerts.
Common Causes for a Blinking Opener Light
Let's break down what that flashing light is usually trying to tell you. Getting familiar with these common causes can save you a ton of time and a real headache.
- Safety Sensor Problems: This is the big one. The sensors might have been bumped out of alignment, their lenses could be dirty, or something as simple as a stray leaf is blocking their path.
- Wiring Issues: Over time, the low-voltage wires connecting the sensors to the motor unit can get frayed, disconnected, or even shorted out from damage.
- Power Supply Interruptions: Sometimes, the problem isn't the opener at all. A tripped circuit breaker could be cutting off its power. Understanding what can cause a breaker to trip can help you rule out a bigger electrical issue in your home.
- Internal Errors: This is less common, but the blinking light can occasionally signal a problem with the opener's internal logic board or motor.
This simple flowchart is a great starting point for figuring out what's going on.
As you can see, your first check should always be those safety sensors. It's the most likely fix and the easiest one to handle yourself. For a deeper dive, check out our complete guide to https://garagedoors101.com/garage-door-opener-troubleshooting/.
To make things even easier, I've put together a quick reference table for the most common blink codes you'll encounter.
Quick Guide to Common Garage Door Opener Blink Codes
| Blink Pattern | Common Cause | What to Do First |
|---|---|---|
| 1 Blink | Safety sensors misaligned or obstructed | Check for obstructions; wipe lenses; realign sensors until their LEDs are solid. |
| 2 Blinks | Sensor wire short or disconnection | Inspect the wiring from the motor to each sensor for staples, cuts, or loose connections. |
| 4 Blinks | Sensor eyes misaligned (more severe) | This often requires a more precise realignment. Check both sensor brackets for stability. |
| 5 Blinks | Motor overheat or RPM sensor error | Unplug the opener for 15-20 minutes to let it cool down. If it persists, call a pro. |
| Up/Down Arrows Blinking | Vacation/Lock Mode is engaged | Find the lock button on your wall control panel and press it to deactivate the lock mode. |
This table covers the basics for most modern openers, but always keep your owner's manual handy for brand-specific codes. When in doubt, a quick check of the sensors and wiring will solve the majority of these blinking light mysteries.
Troubleshooting Misaligned Safety Sensors
Before you assume the worst, let's start with the most common culprit behind a blinking garage door opener: the safety sensors. In my years of experience, these little guys are the cause of the problem probably 9 out of 10 times.

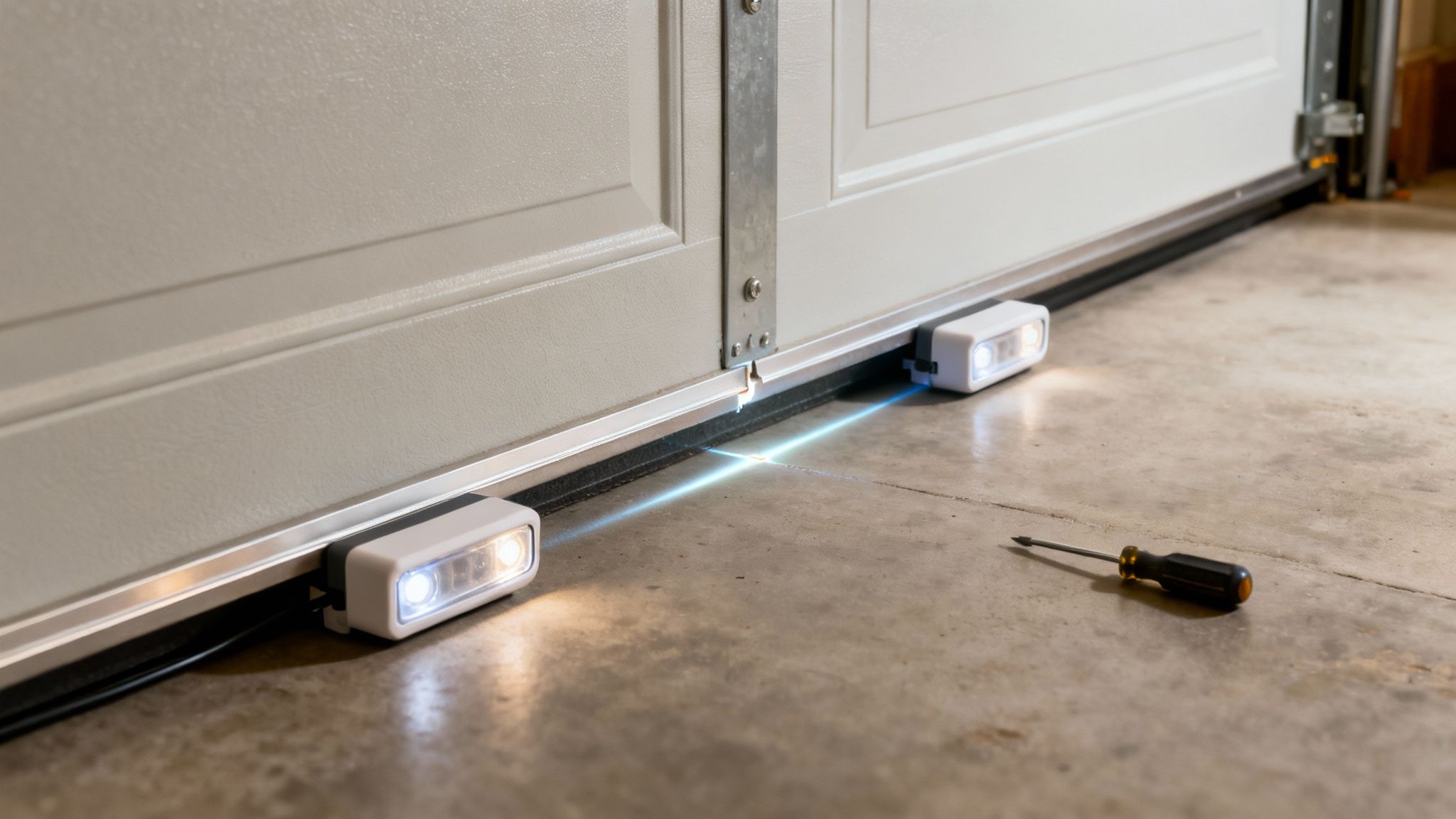

These are the two small electronic "eyes" mounted near the bottom of your garage door tracks, typically no more than six inches off the floor. They shoot an invisible infrared beam across the opening. If anything—a pet, a child, or even a stray leaf—breaks that beam while the door is coming down, the door instantly reverses. It’s a non-negotiable safety feature, but it's also a bit sensitive.
When these sensors get bumped, nudged, or just vibrate out of position, they can't "see" each other anymore. The opener's brain interprets this as a constant obstruction, triggers that blinking light on the motor unit, and refuses to close the door.
Reading the Sensor Lights
The first clue isn't on the opener motor itself, but on the sensors. Each one has its own tiny LED indicator light. On most models, you'll see a solid amber light on the "sending" unit and a solid green light on the "receiving" unit.
Pro Tip: A solid green light on the receiving sensor is the all-clear signal. If that green light is off or flickering, it's telling you it can't see the beam from its partner. That's your confirmation of a misalignment issue.
How to Realign Your Garage Door Sensors
Getting these sensors lined up again is usually a straightforward fix you can do yourself in a few minutes. You likely won't even need any tools.
First things first, give the lenses a quick wipe with a soft, dry cloth. You'd be surprised how often a little dust, a stray cobweb, or some yard debris is all it takes to block the beam. While you're down there, double-check that nothing is sitting in the beam's path—think stray recycling bins, sports equipment, or garden hoses.
Next, focus on the sensor with the flickering or unlit green light. Most are mounted on a bracket with a simple wing nut. Just loosen it slightly—enough to let you move the sensor by hand.
Now for the adjustment. Gently pivot the sensor up, down, and side-to-side, aiming it squarely at the other sensor across the garage. Watch that little green LED as you move. When it lights up and stays solid, you’ve hit the sweet spot.
Once you have a solid green light, carefully tighten the wing nut to lock it down, making sure you don't nudge it out of alignment again. Give the door a test run with your wall button, and you should be back in business.
If you want a more detailed guide, you can learn more about how to test garage door sensors to be absolutely sure they're functioning correctly. Honestly, mastering this simple adjustment will solve the vast majority of blinking-light headaches.

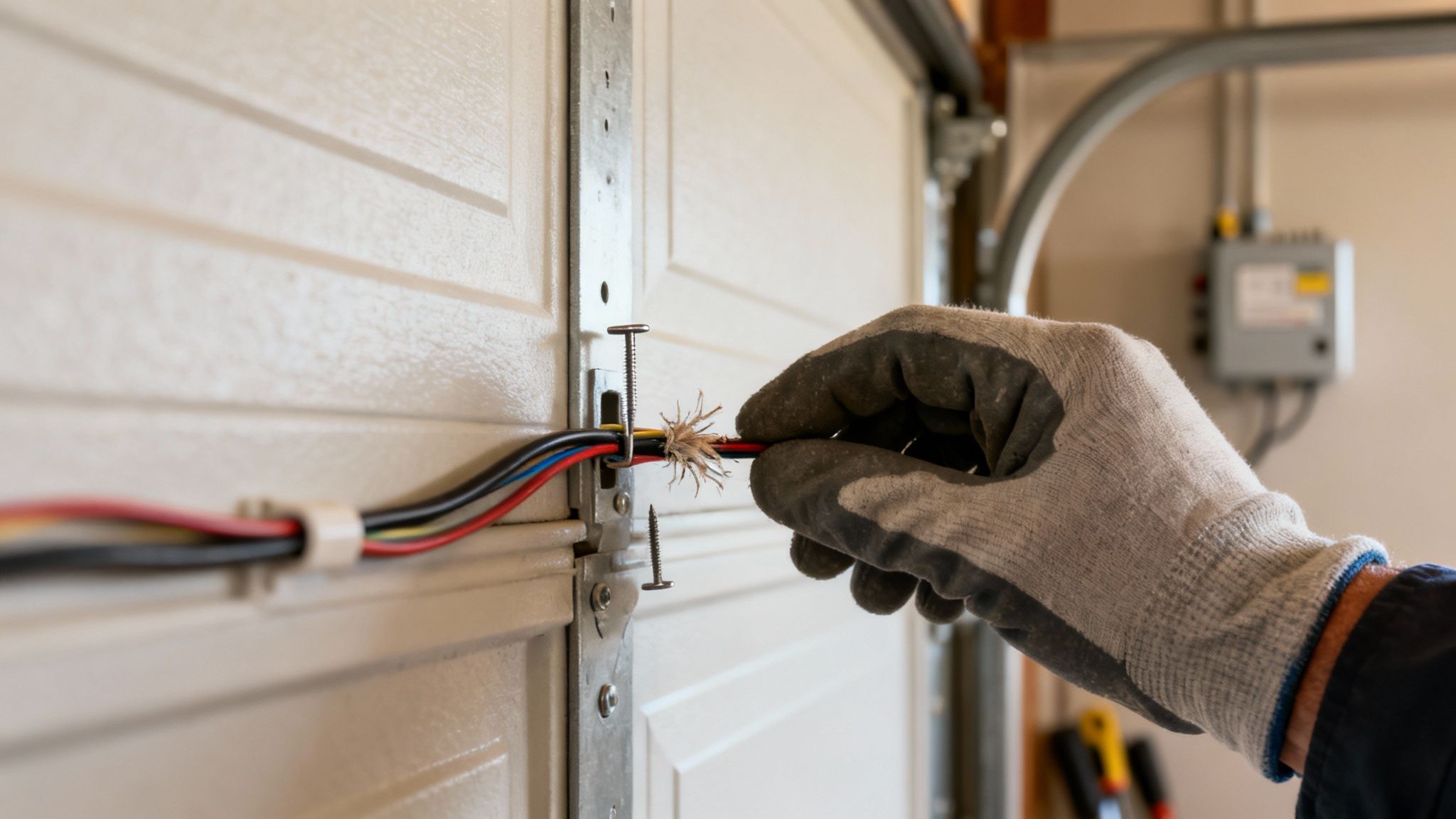

What About Damaged Sensor Wires?
So, you've cleaned and perfectly aligned your safety sensors, the little LEDs are glowing steadily, but that main opener light is still blinking. It’s a common scenario, and it usually means the problem isn't the sensors themselves, but the thin wires connecting them to the motor.
It’s easy to forget about these wires, but they live a tough life. They get pinched behind storage shelves, nicked by garden tools, frayed from years of vibration, or even chewed on by mice. Any break or short in these wires cuts off communication between the sensors and the opener, triggering the exact same blinking light as a blocked sensor.
Doing a Quick Visual Check
Before you do anything else, unplug the garage door opener from the wall outlet. This is non-negotiable. Once the unit is completely powered down, you can safely start your inspection.
Pick a sensor and slowly follow its wire with your eyes, all the way back to the motor unit on the ceiling. Then, do the same for the second sensor. You’re looking for anything that seems out of place.
Keep an eye out for these common culprits:
- Pinched or Crushed Spots: Check where the wire runs behind a tool rack, under a storage bin, or near the door track.
- Staples Driven Too Deep: Installers use staples to secure the wires. Sometimes a staple is hammered in too tightly, severing the delicate copper inside.
- Obvious Fraying or Cuts: Look for any visible nicks, exposed copper, or areas where pests might have been chewing.
- Loose Connections: Gently wiggle the wires where they connect to the terminals on the back of the opener and at the sensors. A loose wire can cause all sorts of intermittent headaches.
Letting the Blinks Guide You
That blinking light is more than just an annoyance; it's often a diagnostic code. In fact, faulty wiring is behind an estimated 25-30% of all diagnostic flashes we see. Here in Cleveland, our humid summers and freezing winters can really take a toll on wiring insulation.
Through years of experience, we've found that specific blink patterns often point to wiring issues. For many models, a single blink can indicate an open circuit (a broken wire), while two blinks might mean a short circuit where the wires are touching. These are problems our team at Danny's Garage Door Repair has fixed in about 40% of our service calls since 2015.
A Pro Tip From the Field: The most vulnerable spots for wire damage are almost always near the floor and around corners. Start your inspection there—it’s where we usually find the problem.
If you spot a simple break you can splice or a connection that just needs tightening, you might have a straightforward fix on your hands. But if the wire is damaged in multiple places or you're not comfortable with even low-voltage wiring, your best and safest move is to call a professional. Pinpointing the exact location of a short or break can be a real challenge without the right tools.
Understanding Advanced Error Codes
So, you’ve checked the safety sensors, confirmed they're aligned, and the wiring seems solid. But that pesky light on your garage door opener is still blinking. What now? It’s time to look at the motor unit itself.
Modern openers are incredibly smart. They use specific blink patterns to tell you what’s wrong internally, going far beyond the usual sensor problems. It's like your opener is trying to talk to you in its own secret language.
Is Your Opener in "Lock" Mode?
Before we get into the more technical stuff, let’s check for a very common and simple fix. Many wall control panels have a "Lock" button, sometimes called "Vacation Mode." When this is activated, it intentionally blocks all remote signals as a security feature.
If your remotes suddenly stop working but the wall button is fine, you might have accidentally pressed it. The opener light will often flash to indicate it's in lock mode. Just press the lock button again to disable it, and you should be back in business. It's a surprisingly common reason for a service call!
Decoding the Blinks from the Motor
If it's not the lock mode, the flashes are likely pointing to an issue with the opener's logic board or motor. These are the more advanced error codes, and they're crucial to understand.
A very common one is the "overheating" signal. If you see the main light flash 5 times in a row, it's telling you the motor is too hot. This happens a lot more than you’d think, especially in busy households. Here in the Greater Cleveland area, we see families using their doors 10-15 times a day, and that rapid cycling can easily overheat the motor.
The opener has a built-in safety feature to prevent burnout. It will shut down for about 15-20 minutes to cool off.
A Quick Story from the Field: I once helped a family whose opener would flash five times every single morning. We couldn't figure it out until we realized their kids loved playing with the remotes, running the door up and down like a toy before heading off to school. The motor was just protecting itself!
While a five-blink code is usually temporary, a six-blink code is a different story. If your opener flashes 6 times, it's almost always a sign of a motor circuit failure. This isn't something that will fix itself by cooling down; it points to a problem with the internal electronics. Trying to fix this yourself is not recommended and can cause more damage.
For a deeper dive into these codes, this guide on diagnostic codes and their causes is a great resource.
Now, let's look at a few more specific codes you might encounter. Different brands use different signals, but the table below covers some of the more serious warnings that tell you it's time to call in a pro.
Advanced Error Codes for Common Opener Brands
| Number of Blinks | Potential Problem | Recommended Action |
|---|---|---|
| 8 Blinks | Short circuit or broken wire in the wall control panel. | Check wiring for staples or breaks. If wiring is okay, the wall panel may need replacement. |
| 9 Blinks | RPM sensor error or motor travel module fault. | This indicates an internal component has failed. A professional diagnostic is required. |
| 10 Blinks | Logic board has detected an obstruction after the door has already closed. | Check for objects under the door or issues with the door's weatherstripping. |
| 11 Blinks | Gaps in the motor's power supply or a faulty logic board. | This is a serious internal electrical issue that requires professional service. |
These advanced codes are your opener's way of signaling a problem that goes beyond a simple fix. If you see any of these, especially the 6, 9, or 11-blink warnings, it's best to stop troubleshooting and give us a call at Danny's Garage Door Repair to prevent any further damage.
When You Should Call a Garage Door Professional
Look, I'm all for rolling up your sleeves and tackling a home project. Many times, that blinking light on your garage door opener is a simple fix you can knock out in a few minutes. But there's a point where it's smarter—and a whole lot safer—to put the tools down and call in a pro. Knowing when to quit is what separates a minor hiccup from a major, costly disaster.
So, you’ve done your part. You’ve patiently realigned the safety sensors, wiped them clean, and even traced the wiring back to the opener, looking for any obvious nicks or staples. But that stubborn light just keeps on blinking, and the door still refuses to budge.
When you’ve exhausted all the usual suspects, it’s a good sign the problem runs deeper than a dusty lens or a loose wire. This is where you can do more harm than good by continuing to poke around.
Signs It's Time for Expert Help
Not all blink codes are created equal. Some are simple warnings, while others are serious alerts. If your opener is flashing a code that points to a motor circuit failure, a logic board fault, or an RPM sensor malfunction, that's your cue. It’s a clear signal the issue is with the brains or the brawn of the system, and those parts demand specialized tools and expertise.
Here’s when I tell homeowners it’s time to make the call:
- You've Tried It All: You’ve gone through the checklist and checked all the simple fixes, but the light is still blinking.
- Serious Error Codes Appear: The opener is flashing a specific trouble code for an internal failure, like a 6 or 9-blink code on many LiftMaster and Chamberlain models.
- You Hear Strange Noises: If the motor just hums or buzzes without moving the door, the capacitor could be shot or the motor itself could be seized. Don't force it.
- You Suspect Electrical Damage: A burning smell, visibly frayed internal wires, or scorch marks on the circuit board are major red flags. Unplug it immediately and call for help.
A seasoned technician can diagnose these complex problems in a matter of minutes. That's the difference experience makes—it saves you hours of frustration and prevents you from accidentally causing more damage. The goal isn't just to get the door working today, but to ensure it operates safely for years to come.
Trying to solder a logic board or replace a motor capacitor without proper training can easily turn a repairable opener into a piece of scrap metal, forcing a full replacement. And if that blinking light leads to you being totally locked out, you might even need an emergency lockout service just to get back into your garage.
At Danny's Garage Door Repair, we see this stuff every single day. Our technicians have the experience to pinpoint the exact cause of that blinking light—fast. If you’re in Northeast Ohio and your garage door has you stumped, don't hesitate. You can also find out more about what makes for good garage door companies near me in our other guides.
Your Top Questions About Blinking Opener Lights, Answered
After running through the usual suspects, it's completely normal to still have questions. We hear these all the time from homeowners around here, so let's tackle some of the most common things people ask when that little light won't stop blinking.
Why Is My Garage Door Light Blinking if the Door Still Works?
This one throws a lot of people for a loop, but it's usually not a sign of a major failure. Think of it more like a "check engine" light. If the door is still opening and closing properly but the main light on the motor unit is flashing, your opener is most likely sending you a maintenance alert.
More often than not, this points to a battery issue. If your opener has a battery backup system, that blinking light is the classic signal that the backup battery is running low on juice and will need to be replaced soon. It can also be a heads-up that the battery in your remote control is dying. Your owner's manual will have the specific blink code to tell you which it is.
Can I Just Disable the Safety Sensors to Make the Blinking Stop?
Let me be crystal clear on this one: absolutely not. Under no circumstances should you ever try to disable, bypass, or remove your garage door’s safety sensors. They are a critical safety feature required by federal law (UL 325) for a reason—they stop the door from crushing a person, pet, or object.
Trying to get around them creates a massive risk of serious injury or expensive damage. The only right way to handle it is to find the real cause of the problem, which is almost always a quick sensor realignment, a simple cleaning, or fixing a loose wire.
Key Takeaway: The safety sensors aren't the problem; they are the system alerting you to a problem. Fixing the actual issue is the only safe and responsible thing to do.
Can Cold Weather Mess With My Garage Door Sensors?
You bet it can. The cold weather we get here in Cleveland is a common culprit. Those freeze-thaw cycles can make the concrete on your garage floor shift or heave just enough to knock the sensor brackets out of alignment. We're talking fractions of an inch, but it's enough to break the beam.
Moisture is another big factor in the cold. Condensation can easily form on the sensor lenses, and on really cold days, a layer of frost can block the infrared beam just like a spiderweb would. A good habit to get into is to gently wipe the lenses with a soft, dry cloth every so often during the winter to keep them clear.
What Should I Expect to Pay a Pro to Fix a Blinking Light?
The cost for a professional repair really depends on what's causing the blinking.
-
A straightforward service call for something like a safety sensor realignment is on the lower end, usually running between $100 to $150.
-
If the issue is more complex, like needing to track down and repair a section of bad wiring, the cost might be closer to the $200 to $350 range.
-
More serious problems, like replacing the opener's logic board or the motor itself, will cost more.
Any trustworthy company will give you a detailed, upfront estimate before they start any work, so there are no surprises.
If you've gone through the checklist and are still seeing that blinking light, don't keep guessing. The team at Danny's Garage Door Repair has seen it all and can get the problem sorted out quickly and safely. Head over to our website at https://garagedoors101.com to book a free estimate and get your door back in business.
