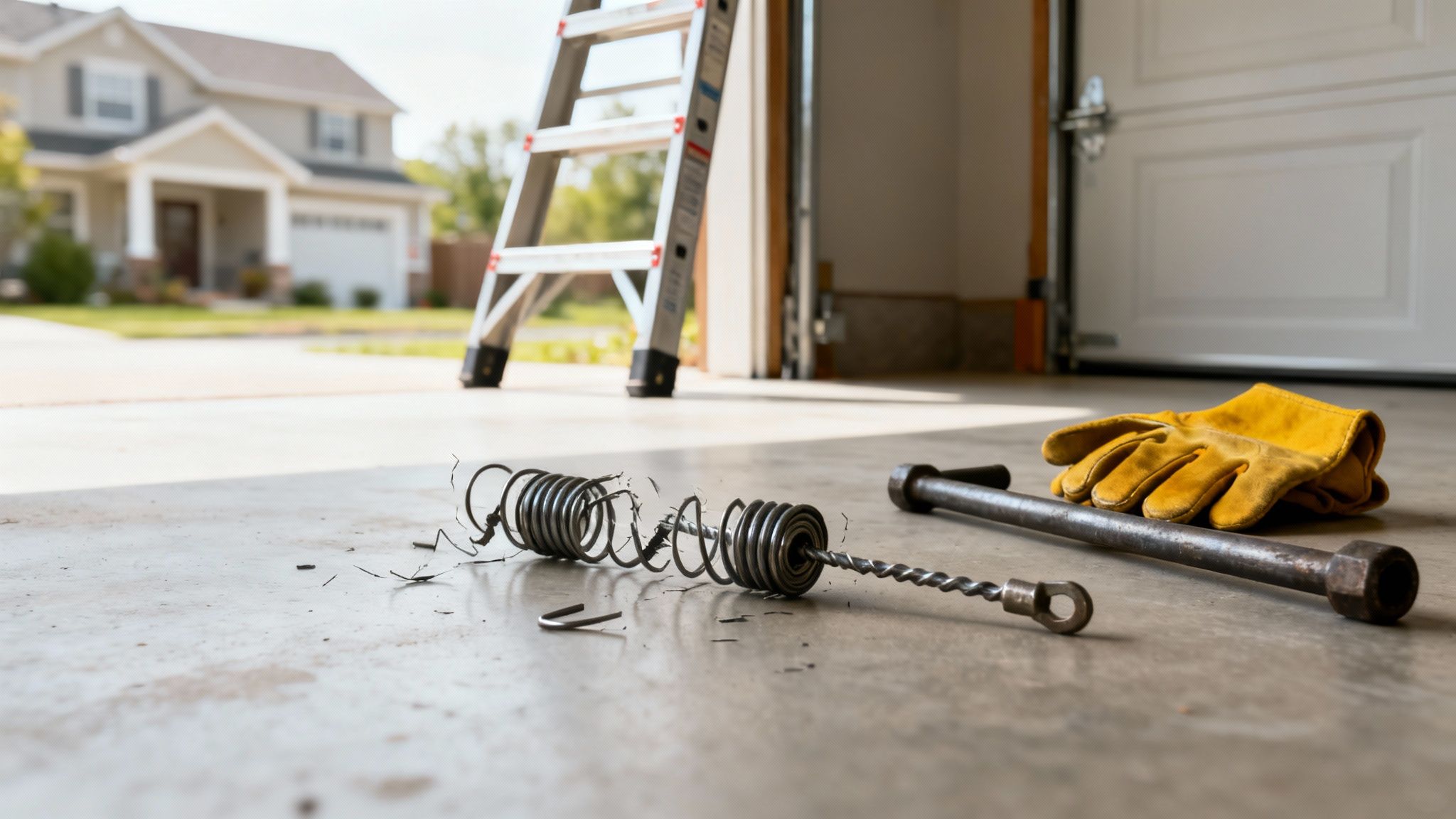

Heard a sudden, deafening BANG from the garage? It’s a sound that makes any homeowner's heart leap into their throat. Nine times out of ten, that wasn't something falling off a shelf—it was the unmistakable, violent snap of a garage door spring finally giving out.
And it's not a small problem. A broken spring is a critical failure that instantly turns your garage door into a dead weight, making it both useless and a serious safety hazard.
What That Loud Noise Really Means
Think of garage door springs as the muscles doing all the heavy lifting for your door. They're wound or stretched under incredible tension to perfectly counterbalance the hundreds of pounds your door weighs. That loud noise you heard was all that stored energy releasing in a split second as the steel failed.
Now that the spring is broken, the balance is gone. The full, crushing weight of the door is resting on the tracks. This isn't just an inconvenience; it's a dangerous situation waiting to happen.
Safety First: Whatever you do, DO NOT try to use your automatic opener. The opener is designed to guide a balanced door, not deadlift hundreds of pounds. Forcing it will almost certainly burn out the motor, strip the gears, or even buckle the door panels. You'll turn a simple spring repair into a much bigger, more expensive disaster.
What to Do in the First Five Minutes
It’s easy to panic when you hear that sound, but a clear head is your best tool right now. Your first priority is to make the area safe and figure out what you're dealing with—without putting yourself or your family at risk.
Here’s your immediate action plan:
- Clear the Area: Get everyone, especially kids and pets, out of the garage and away from the door.
- Unplug the Opener: Pull the power cord for the opener straight from the ceiling outlet. This stops anyone from accidentally trying to use it.
- Look, Don't Touch: From a safe distance, glance up at the springs. Do you see a clean two-inch gap in one of the coils? Are the lift cables hanging loose like spaghetti? Those are dead giveaways.
- Resist the Urge to "Fix" It: Don't try to lift the door or mess with any broken parts. The other spring (if you have two) is still under extreme tension, and the broken ends are razor-sharp.
Once you've secured the garage, take a moment to identify your spring system. Knowing this is key, whether you plan to tackle this yourself or call a professional for help.
Identifying Your Spring System
Garage doors typically use one of two main spring types. A quick look will tell you which one you have.
- Torsion Springs: These are the modern standard. You’ll see a long, thick, coiled spring (or a pair of them) running on a metal shaft directly above the closed garage door. They work by twisting to create lift.
- Extension Springs: These are more common on older or lighter doors. They are longer, skinnier springs that run along the sides of the door, parallel to the horizontal tracks, and lift by stretching like giant rubber bands.
To make it even easier, here's a quick cheat sheet.
Torsion vs. Extension Springs at a Glance
This table breaks down the key differences to help you quickly figure out what kind of system you have.
| Feature | Torsion Springs | Extension Springs |
|---|---|---|
| Location | Mounted horizontally above the door opening | Run parallel to the tracks on both sides of the door |
| Appearance | Thick, tightly wound coil on a metal shaft | Long, skinny springs that stretch and retract |
| Operation | Twists (Torsion) | Stretches (Extension) |
| Safety Features | Contained on the shaft when they break | Often have a safety cable running through them |
| Commonly Found On | Most modern and double-wide garage doors | Older or single-car garage doors |
Knowing the difference is the first step toward getting the right parts and using the right repair method.
Broken springs are, without a doubt, the #1 reason people call for garage door service. Industry data shows that springs are behind roughly 43% of all garage door repairs globally. With over 8.3 million doors repaired worldwide in 2023, that's a lot of broken springs. Here in North America, that number was over 3.1 million, and we see a definite spike in calls during the winter—about a 19% increase—as cold temperatures make the metal more brittle.
Of course, the biggest question is often, "But my car is trapped inside!" While you can technically lift the door by hand, it's incredibly heavy and dangerous without the springs' help. If you're in a real bind and must get your car out, you need to know exactly how to do it safely. That's why we put together a complete guide on how to manually open a garage door when the spring is broken.
DIY vs. Pro Repair: Making the Right Call for Your Broken Spring
So, you heard the loud bang from the garage and confirmed it: the spring is broken. If you're a hands-on homeowner, your first thought might be to tackle the repair yourself. Before you jump on YouTube and start ordering parts, let’s have an honest chat about what you’re getting into.
Fixing a garage door spring isn’t like swapping out a light fixture. This is one of the most dangerous DIY jobs you can attempt, and that's not an exaggeration.
It all comes down to one word: tension. Those springs are wound incredibly tight to lift a 400-pound door. That stored energy is no joke. If it releases unexpectedly, you’re looking at metal parts flying like shrapnel or the full weight of the door crashing down. The stakes are incredibly high.
The Gritty Reality of a DIY Spring Replacement
On paper, a DIY broken garage door spring repair seems like a good deal. You buy the parts, block out a Saturday, and save a few hundred bucks. But the reality is rarely that simple.
First, you need the right tools—and "close enough" won't cut it. For torsion springs, you absolutely must have a pair of solid steel winding bars that fit the winding cone perfectly.
I can't stress this enough: Never try to use screwdrivers, socket extensions, or rebar. I've seen the aftermath. Those tools will slip under the pressure, launching them across your garage with enough force to cause devastating injuries.
Then there's the know-how. You have to correctly measure the old spring's wire size, inside diameter, and length to get an exact match. You also need to calculate the precise number of quarter-turns to properly tension the new spring based on your door's height and weight. Get it wrong, and you'll have a door that either rockets open or is too heavy for the opener, quickly burning out the motor.
Let’s Talk About the Real Costs
Okay, let's break down the money. Is doing it yourself really cheaper? A new set of torsion springs might run you $50 to $100, plus another $20 for winding bars. Seems like a clear win, right?
But you have to factor in the hidden costs:
- Mistakes: Order the wrong size spring? That money is gone, and you're back to square one.
- Collateral Damage: An improperly installed spring can bend tracks, warp door panels, or destroy your opener—turning a small job into a major overhaul.
- Your Time: What's your weekend worth? A seasoned pro can usually knock this out in an hour. For a first-timer, it can easily eat up a whole frustrating day.
- Your Safety: This is the big one. One slip-up could mean a trip to the ER, and that bill will make any potential savings meaningless.
If you're trying to budget this out, it’s important to see the full picture. For a detailed cost analysis, our guide on how much it costs to replace a garage door spring provides a great side-by-side comparison of DIY versus professional expenses.
The Professional Advantage: Safety and Peace of Mind
Calling a professional isn't just about paying for convenience; it's about buying peace of mind. A trained technician shows up with a fully stocked truck, carrying the right high-cycle springs for your specific door and the experience to get the job done safely in about an hour.
This isn’t just a niche service; it's a huge part of the home maintenance industry. The global market for garage door services is projected to reach USD 6.5 billion by 2025, with spring replacement being a major piece of that pie. Here in Northeast Ohio, where lake-effect snow and temperature swings put extra stress on doors, having an expert on call is invaluable. You can see the data on these market trends here.
When you hire a pro, you’re paying for a guarantee. The job is done right, the door is perfectly balanced, and your home is safe. Professionals back their work with a warranty on both parts and labor, so you can be confident your door will work smoothly for years to come.
A Hands-On Guide to Replacing a Torsion Spring
Alright, so you’ve weighed the risks and feel confident you can tackle this broken garage door spring repair yourself. Let's get to it. This isn't just a checklist; this is a safety-focused walkthrough explaining the why behind every move. Replacing a torsion spring is a task where precision is everything.
Before a single tool touches your garage door, you need to get your equipment ready. Trying to wing it with the wrong tools is the fastest way to turn a repair into a trip to the emergency room.
Gearing Up for a Safe Repair
Having the right tools is non-negotiable. This isn’t about making the job easier; it’s about making it survivable. Seriously, don't improvise here.
Here’s your must-have list:
- Proper Steel Winding Bars: Get two of them. They must be solid steel and fit the winding cone holes snugly (typically a 1/2-inch diameter). Never, ever use screwdrivers, tire irons, or rebar. They will slip, and the spring's energy will turn them into projectiles.
- Safety Goggles and Gloves: An absolute must. Protect your eyes from debris and your hands from razor-sharp metal.
- Wrenches and a Socket Set: You'll need these for the bolts on the spring cones and center bracket.
- Locking Pliers (Vise-Grips): A sturdy C-clamp or a good pair of locking pliers is your third hand. It secures the torsion tube or the door itself, stopping it from moving unexpectedly.
- A Sturdy Ladder: You're working above your head. Make sure your ladder is solid and on stable ground.
- A Tape Measure: You'll need it to measure the old spring to guarantee you buy the right replacement.
Once you have your gear ready, the very first step is to neutralize the entire system.
Securing the Door and Releasing Tension
The real danger here is the incredible energy stored in these springs. If you have a two-spring setup and only one broke, the other one is still holding a tremendous load. You have to unwind it completely before you can safely do anything else.
First, close the garage door all the way. Go over to the opener and unplug it from the wall. This simple step prevents anyone from accidentally hitting the button while you're working. Next, take your locking pliers and clamp them down hard on one of the vertical door tracks, right above a roller. This acts as a physical block, so the door can’t fly open when the tension is released.
Now, turn your attention to the unbroken spring. Jam a winding bar deep into a hole on the winding cone. Get a firm grip and feel that tension—respect it. While holding that bar steady, use your other hand to loosen the two set screws on the cone. The instant they're loose, the bar will try to wrench itself out of your hand. Hold on tight.
Slowly and carefully, unwind the spring a quarter turn at a time. Use your second winding bar to "walk" it down, moving from one hole to the next. You'll hear the spring ticking as it loses tension. It's smart to count the turns so you know exactly how many to put back on the new spring. Once all the tension is gone, it will hang loose.
This process really shows how critical proper tension is. If you're curious about the fine-tuning, you can learn more about how to adjust garage door tension in our more detailed guide.

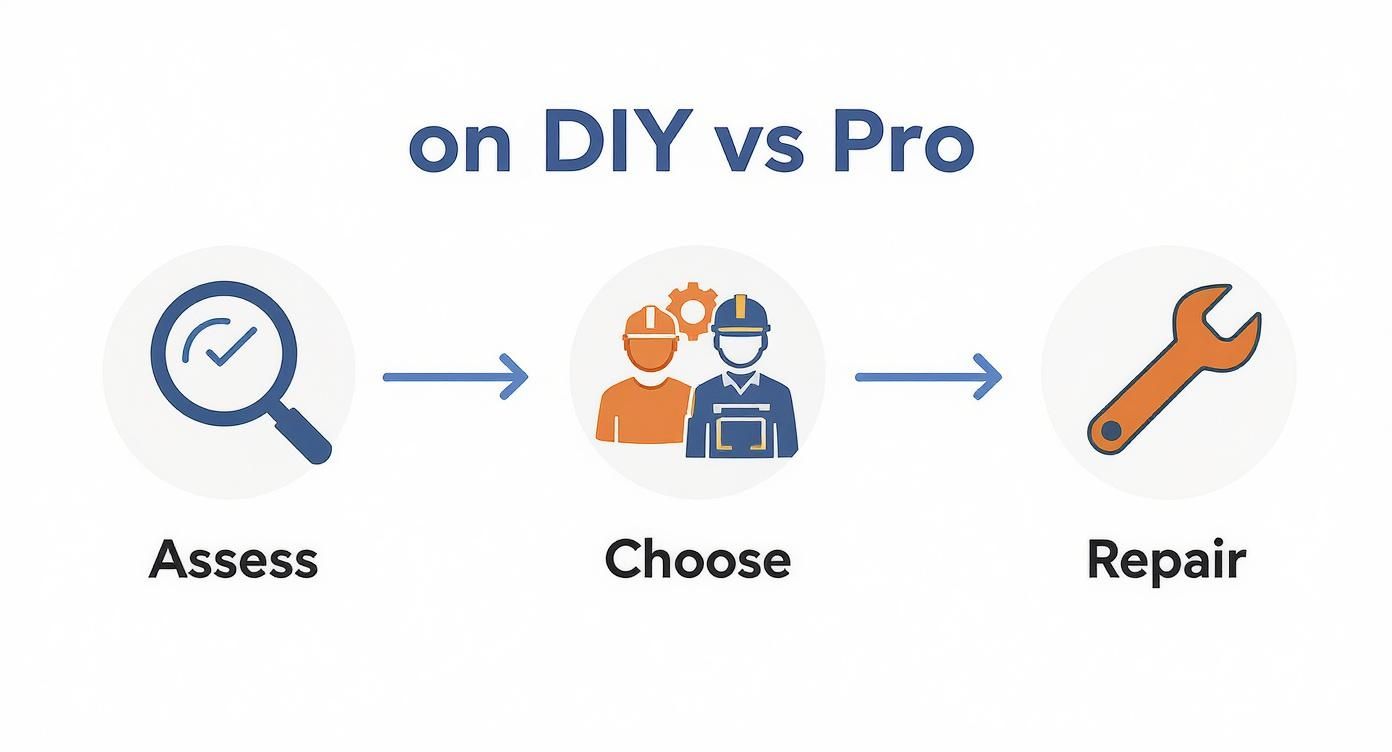

Choosing how to handle this repair comes down to a clear thought process: assess the situation, understand your options, and then get to work.
As you can see, whether you hire a pro or do it yourself, the actual repair is just the final step after some careful planning.

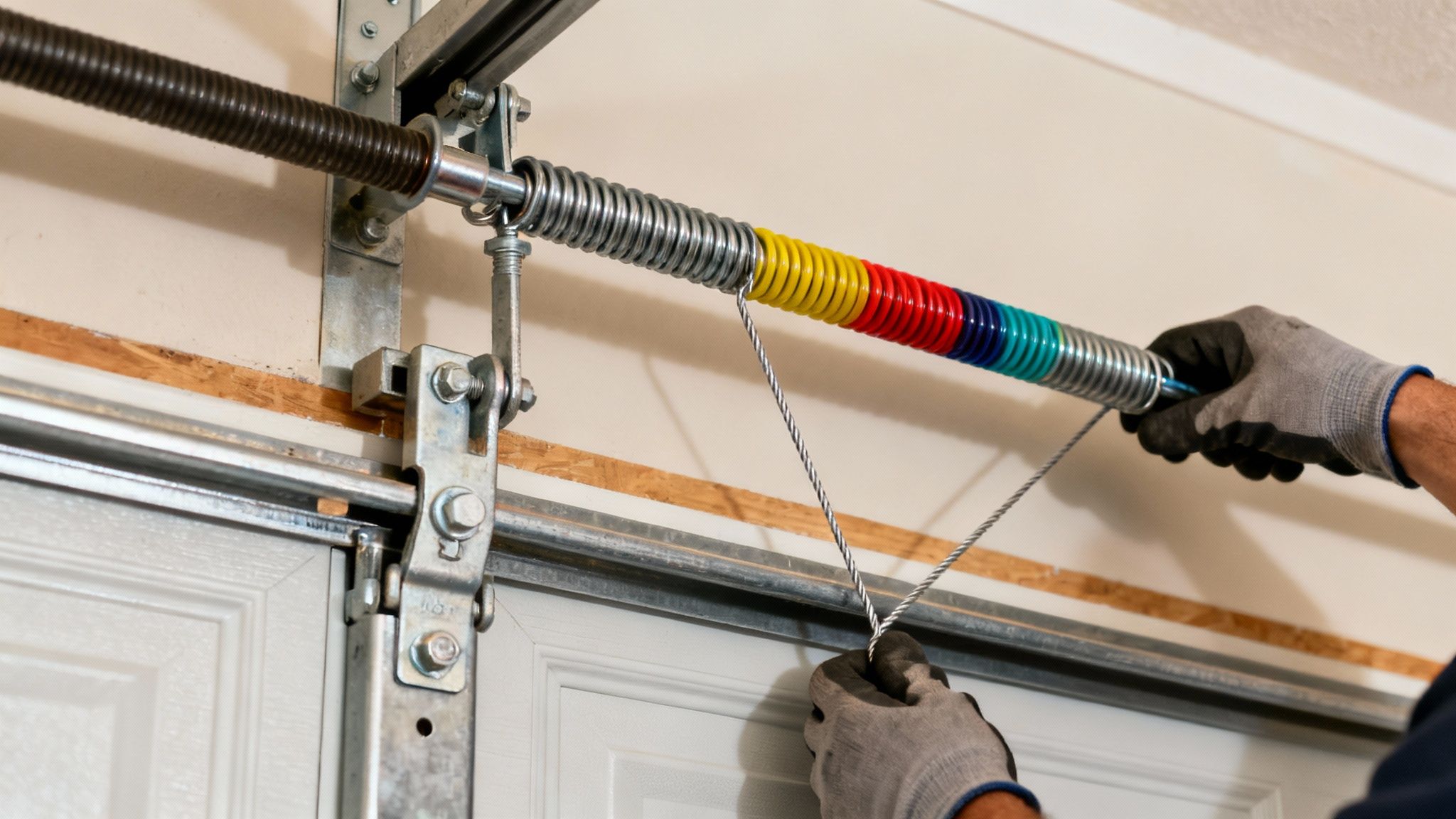

Installing the New Torsion Spring
With the old springs off, slide the new ones onto the torsion tube. The one with the red-painted winding cone goes on the left side, and the black one goes on the right. Bolt the center bearing bracket back in place and then secure the stationary cones to it.
Next up are the lift cables. Make sure the cable on each side is sitting perfectly in the groove on its drum. They need to have equal tension. If one is sagging, your door will lift crooked and likely get jammed. You can pull the tube by hand to add a bit of tension to the cables, then lock it down with your vise-grips while you move on to winding.
Pro Tip: Before you start winding, grab a marker and draw a straight line down the length of the new spring. This gives you a foolproof visual guide for counting the full rotations as you apply tension.
Now for the main event: winding the new springs. Insert a winding bar and start turning it upwards. Just like you did when unwinding, go a quarter turn at a time, leapfrogging your two bars. The number of turns is absolutely critical. A standard 7-foot door typically needs 30-31 quarter turns (or about 7.75 full rotations). An 8-foot door needs a bit more, usually around 34-36 quarter turns.
Once you’ve hit the right number of turns, tighten those set screws on the winding cone until they are rock solid. Double-check them. Finally, you can remove the locking pliers from the track. Carefully test the door by lifting it a few feet by hand. If the tension is right, it should hold its position when you let go.
How to Safely Replace Extension Springs
If you have extension springs—those long, stretchy springs running alongside the horizontal tracks—the replacement process is completely different from a torsion system. Some people find them less intimidating, but let me be clear: the danger is just as real. These things stretch and retract like giant, super-powered rubber bands, and a snap can do serious damage.
The first part of any broken garage door spring repair is figuring out what went wrong. You might spot a spring just dangling there or notice the door is hanging crooked because one side has lost its lift. When one spring goes, it's a non-negotiable rule to replace them both. This keeps the door balanced and saves you the headache of the other, older spring inevitably breaking a few weeks later.
Here’s the critical difference with this repair: you have to open the garage door all the way to take the tension off the springs. When the door is fully open, the springs are relaxed. You absolutely must lock the door in place. Grab a C-clamp or a good pair of locking pliers and clamp them tight on each track, right below the bottom rollers. This is what keeps the door from crashing down on you.
Getting the Old Springs Out
With the door safely secured in the open position, the springs have no tension, so you can handle them. You'll see each spring connects to a bracket at the back of the track and a pulley system at the front.
Your job is to disconnect the broken spring from those two points. This usually means unhooking it from an eye bolt on the rear hanger and detaching it from the pulley on the other end. Take a quick photo of how the lift cable is threaded through that pulley. You’ll need to put it back exactly the same way.
This is also the moment to get the right replacement. Extension springs are color-coded to match the weight of the door they need to lift. Find the dab of color on the end of your spring; that's your key. For example, tan typically means a 100-pound door, while white is for 110 pounds. Getting an exact match is crucial for proper balance.
Installing the New Springs and Safety Cables
Once the old spring is out, you can start putting the new one in. Hook it up to the rear bracket first, then connect the other end to the pulley. Now, carefully re-thread the lift cable just like it was before.
Now for a step you cannot skip: installing safety cables. These are simple steel cables that run right through the middle of the spring and are secured at both ends. If that new spring ever breaks, the cable contains it, stopping it from whipping across your garage. If your old setup didn't have them, you're adding them now. It's not optional.
Never skip the safety cables. They are an inexpensive and simple feature that turns a potentially violent spring failure into a contained, manageable event. Think of it as cheap insurance against a very dangerous accident.
When you're dealing with high-tension parts like these, it’s not a bad idea to put up custom warning signs to keep family members out of the work zone. A simple sign can prevent someone from wandering into a dangerous situation while you're focused.
After both new springs and their safety cables are installed, you can carefully unclamp the tracks. Lower the door by hand, watching it the whole way down. It should move smoothly. Finally, do a quick balance test: lift the door until it’s about halfway open and let go. A well-balanced door will stay put. If it wants to fly up or fall down, you'll need to make small tweaks to the cable tension until it's just right.
What to Do When the Repair Doesn't Go as Planned
So you’ve put in the work, but something’s still not quite right. It happens. Even with careful work, a garage door can be finicky after a spring replacement. Let's walk through the most common post-repair headaches and how to fix them.
The Door Feels Too Heavy or Flies Open
This is almost always a tension problem, and it’s the number one issue people run into. You’ll know right away if this is your problem.
- If the door feels like it weighs a ton and you have to wrestle it open manually, your springs are undertensioned. You just need to add a bit more tension.
- If the door rockets open or is a real chore to pull back down, you've got the opposite problem: overtensioned springs. They're wound too tight.
For torsion springs, the fix is all about small, careful adjustments. Clamp the door securely, grab your winding bars, and add or remove tension a quarter-turn at a time. After each tweak, test the door's balance. The sweet spot is when it stays put halfway open without your help.
The Door Is Closing Crooked
You close the door, but one side hits the ground while the other is still in the air. This isn't a spring issue—it's almost certainly the lift cables. An uneven door is a sign that one side is lifting faster than the other, putting dangerous stress on the tracks and panels.
Take a close look at the cable drums on either end of the torsion bar. Are both cables snug and wound properly? Often, one cable has become loose or jumped off its track. To fix this, you have to release all the spring tension first. Once it's safe, reseat the cables so they're both equally taut, then go through the spring tensioning process again.
A perfectly balanced door is the sign of a job well done. This is also why we always replace springs in pairs. Even if only one breaks, the other has done the exact same amount of work and is on its last legs. Replacing both at once ensures an even lift and saves you from doing this whole job again in a few months.
The Wrong Spring Size Mistake
This is the one mistake you can't fix with a simple adjustment. If you've installed a spring that’s too weak or too strong for your door's weight, the system will never work correctly and can be dangerous. A spring that’s too weak will burn out fast, while one that’s too strong can rip the door open with dangerous force.
Precision is everything. A standard torsion spring might be specified as a 2-inch diameter with a .207 wire gauge and 22 inches in length. Getting the winding count exact is critical. If you want to see just how precise this can be, you can find a lot of great videos about the technical side of spring installation on YouTube.
Always measure your old, broken spring carefully—wire size, inside diameter, and length—to ensure you get an identical replacement. When in doubt, call a pro. It’s far cheaper than buying the wrong parts twice or dealing with an accident.
A little proactive care can save you from another surprise "bang" from the garage. For some great ideas on how to keep your whole system running smoothly, check out these preventive maintenance tips.
When to Call a Professional for Your Repair
Knowing your limits is the smartest tool you have. While tackling a broken garage door spring repair yourself can feel empowering, some red flags are too big to ignore. This isn’t about admitting defeat; it’s about making a smart call for safety and getting the job done right the first time.
Think of it this way: you wouldn't perform your own dental surgery just because you own a pair of pliers. A garage door spring, loaded with incredible tension, is no different. It’s a specialized job where a small mistake can have big, dangerous consequences.
So, when is it an absolute must to call in a professional? Let's break down the scenarios where the risk of going it alone just isn't worth it.
Clear Signs It's Time for a Pro
Sometimes, a repair goes beyond the standard textbook case. If you run into any of these situations, picking up the phone is the safest and most effective move you can make.
- You Have a Low-Headroom System: Does your garage have a low ceiling? You probably have a special track system with double rollers or other unique hardware. These setups are a different beast and require a more complex replacement procedure that can easily endanger a DIYer.
- Your Door Is Unusually Heavy or Custom: Is your door solid wood, extra-wide, or fitted with heavy glass panels? The standard springs from a big-box store won't work. A pro has the tools to accurately weigh your door and install the correct high-cycle springs needed to balance it perfectly.
- You’re Just Not Confident: Honestly, this is a big one. If you get halfway through and feel uneasy or intimidated by the tension on those springs, that’s your gut telling you to stop. There’s no shame in recognizing a job is outside your comfort zone.
In these cases, a trained technician isn’t a luxury—it's a necessity. They’ve seen these non-standard setups before and have the proper equipment to manage them safely.
The Value of Choosing an Expert
Hiring a professional service is about more than just fixing a broken part. You're investing in the safety and long-term reliability of the biggest moving object in your home. It’s about the confidence you get from knowing the repair was done correctly, with the right parts, by someone who does this for a living.
For homeowners in Northeast Ohio, a professional repair means you're getting more than just a quick fix. You're getting the peace of mind that comes with a full warranty on both the high-quality parts and the expert labor that goes into the job.
A professional team brings a level of efficiency and safety that's tough to match on your own. They show up with fully stocked trucks, carrying a wide range of spring sizes to make sure they have the perfect fit for your specific door. This means they can usually wrap up the entire job in about an hour, getting your day back on track fast.
Plus, technicians are trained, licensed, and insured, which protects you and your property. Most reputable companies provide transparent pricing with free estimates before any work begins, so there are no hidden fees or surprises.
And we all know that springs love to snap at the worst possible time—late at night or on a holiday weekend. Many pros offer 24/7 emergency services, meaning you’re never left stranded. One quick call brings a skilled technician to your door, ready to make your home secure again. It’s that blend of expertise, reliability, and genuine care that builds trust with homeowners.
When you need fast, reliable, and safe broken garage door spring repair in Northeast Ohio, don't hesitate to reach out. The team at Danny's Garage Door Repair is ready to help 24/7. Get your free estimate and experience the peace of mind that comes with professional service.
