A Practical Guide to Framing for a Garage Door

Getting the framing right for a garage door isn't just about slapping some lumber around an opening. It’s the structural backbone that ensures your door glides smoothly and stays secure for years to come. A rock-solid frame carries the entire system, preventing common headaches like misalignment and annoying gaps. Honestly, nailing this foundational step is a must if you want a trouble-free installation that lasts.

Why Proper Garage Door Framing Is Non-Negotiable

Before we dive into the "how-to," let's talk about why the frame is the unsung hero of your garage door. From my experience, a poorly constructed frame is the root cause of countless service calls, from doors that jump their tracks to gaps big enough to let in the cold.

This is about much more than just wood and nails. The frame is what supports the immense weight and constant motion of the door. Think about it—that door can weigh anywhere from 150 to 400 pounds, and it’s moving up and down thousands of times a year. All that force needs a perfectly stable structure to rest on.

The Real-World Consequences of a Bad Frame

When a frame isn't perfectly square, plumb, and level, it kicks off a domino effect of problems. In the booming global garage door market, you might be surprised to learn that poorly framed openings contribute to a staggering 15-20% of service calls for doors that have run off-track. A crooked frame puts uneven stress on the rollers, springs, and cables, causing them to wear out way faster than they should. Dig into the market trends and you'll see why quality installation is a huge focus.

A well-built frame does more than just keep the door running right; it's also a big player in your home's energy efficiency. Gaps from a bad fit create drafts that can make your garage—and any rooms next to it—noticeably colder. A correctly installed frame, especially when paired with a modern insulated door, can really make a difference on your energy bills.

The bottom line is this: The quality of your framing for a garage door directly impacts its safety, performance, and lifespan. Taking shortcuts here almost always leads to bigger, more expensive problems down the road.

Ultimately, getting this foundational step right ensures your door:

• Operates smoothly without all that grinding, catching, or jerking.
• Seals tightly against the jambs and header to keep weather and pests out.
• Lasts for years without needing constant fiddling and adjustments.

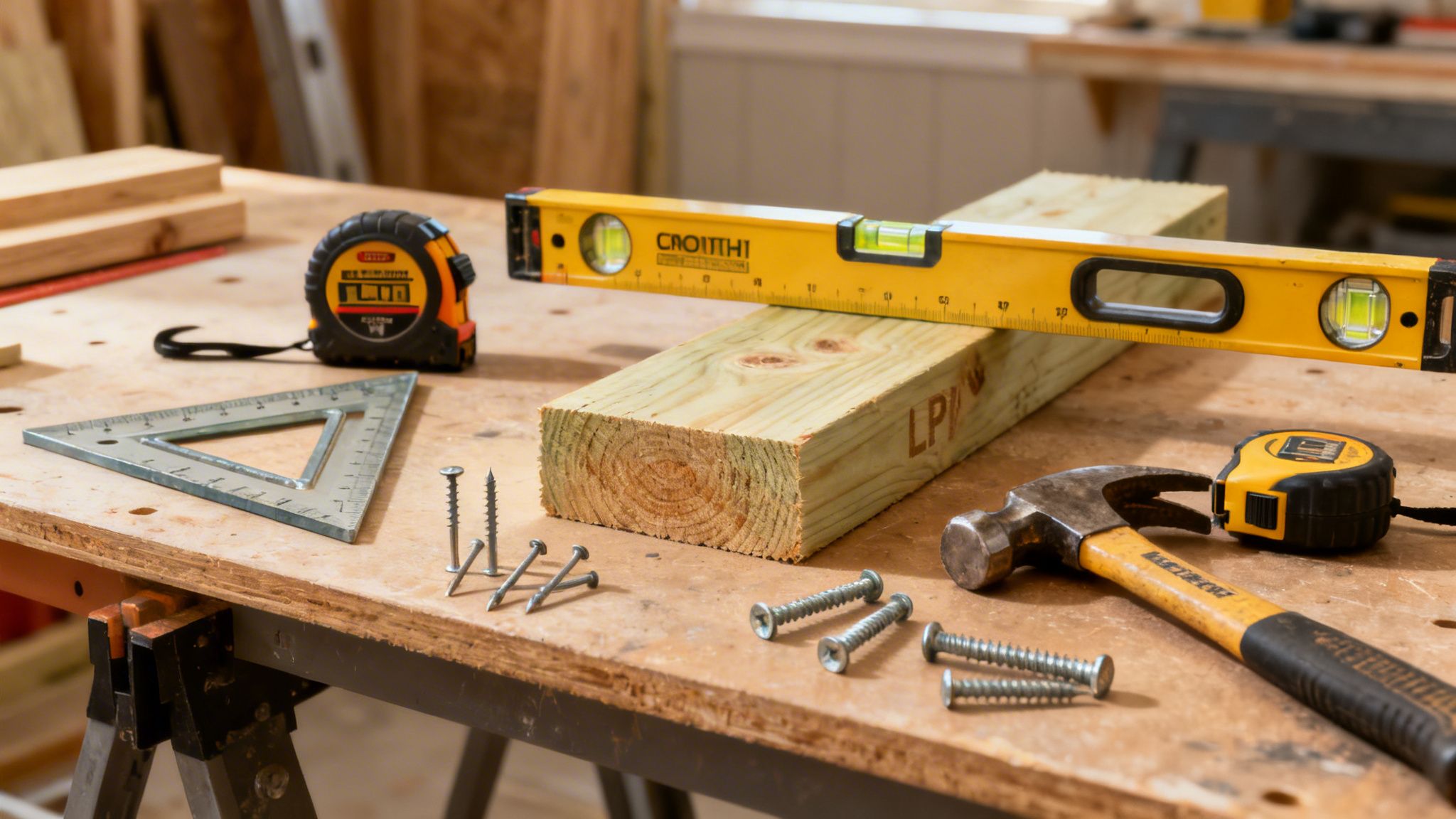

Choosing the Right Tools and Materials for Framing

Walking into a hardware store can feel overwhelming, but getting the right gear before you start is half the battle when you’re framing for a garage door. This isn’t just about grabbing a level; it’s about having the right level for the job at hand.

That short, two-foot level you have is great for hanging pictures, but it won’t cut it here. For a garage door header, you really need a six-foot level. A longer level is the only way to guarantee the header is perfectly horizontal across the entire opening. Get this wrong, and you're setting yourself up for a door that binds, scrapes, or runs crooked down the line.

Selecting the Right Lumber

Picking the right wood is every bit as important as the tools you use. For your vertical studs—the king and jack studs—standard SPF (Spruce-Pine-Fir) lumber is the go-to choice. It's affordable, reliable, and what you'll find in most residential builds.

Now for a critical detail: any wood that touches concrete must be pressure-treated. Don't skip this. Standard lumber will wick moisture right out of the slab and start to rot, which will eventually compromise your entire structure. Pressure-treated wood is chemically designed to resist moisture and decay, making it non-negotiable for the sill plate at the bottom of the frame.

When it comes to the header, size and material matter. Here's a quick guide based on what I've seen in the field:

• Standard Double Doors (up to 16 feet): A header built from two 2x12s sandwiched together is usually strong enough.
• Wider Spans or Heavy Custom Doors: For these, you'll want to step up to an LVL (Laminated Veneer Lumber) header. It’s an engineered product that provides superior strength and prevents sagging over time.

A solid frame is the foundation of a long-lasting, smooth-operating garage door. Investing a little extra in the right lumber, like pressure-treated boards and a correctly sized header, will save you from major headaches and costly repairs down the road.

Securing the frame properly is the final piece of the puzzle. To get a rock-solid installation, you need to understand the different concrete fasteners, like the sleeve anchor vs wedge anchor. Choosing the right one ensures your frame isn't going anywhere.

And don't forget the big picture. The insulation of your door plays a role in the overall system's efficiency. To learn more, check out our guide on what R-value means for garage doors to make an informed choice.

Essential Tools and Materials Checklist

To help you get organized, here’s a checklist of the core tools and materials you'll need for this project. Having everything on-site before you begin makes the whole process run much smoother.

This list covers the essentials. Depending on your specific situation, you might need a few other items, but this will get you through most standard garage door framing jobs.

Getting Your Garage Door Rough Opening Measurements Right

You’ve heard the old carpenter’s saying, "measure twice, cut once." Well, when you're framing a garage door, you might want to measure three times. This is the one spot where being off by even a quarter of an inch can create serious installation headaches. A perfectly framed rough opening is the foundation for a door that runs smoothly and seals out the weather for years to come.

Let's walk through how to figure out the right dimensions. It’s not about complicated math, just some simple addition. We’ll use a standard 16-foot by 7-foot double door for our example since it's one of the most common sizes out there.

Calculating Width and Height

The rough opening isn't the same size as the door itself. It has to be a little bigger to make room for the wood frame—the jambs—that the door will eventually rest and seal against. Luckily, there's a simple formula that works every time.

For the width, just take the actual width of the garage door and add three inches. This gives you space for a 2×6 or 2×8 on each side, which is actually 1.5 inches thick.

• Example: For a 16-foot (192-inch) wide door, the math looks like this:
  • 192 inches (door) + 1.5 inches (left jamb) + 1.5 inches (right jamb) = 195 inches (16’ 3”) wide rough opening

The height calculation is even easier. Add the thickness of one jamb board to the door's height.

• Example: For a 7-foot (84-inch) tall door:
  • 84 inches (door) + 1.5 inches (top jamb) = 85.5 inches (7’ 1.5”) tall rough opening

Stick to this formula, and you'll end up with an opening that’s just right—snug, but not so tight that you have to fight the jambs into place. For a deeper dive into finished dimensions, our guide on standard garage door sizes has more info.

Don't Forget Your Clearances

A perfectly framed opening is great, but it's only half the battle. The entire garage door system—tracks, springs, and opener—needs room to breathe inside the garage. This is the step people often forget, and it can bring a project to a screeching halt.

I’ve seen it happen: a beautifully built frame that leaves no room for the opener. Always check your headroom, sideroom, and backroom before you even think about cutting lumber.

Here’s what you need to measure inside the garage:

1. Headroom: This is the vertical space between the top of the finished opening and the ceiling (or the lowest thing in the way, like a pipe). For a standard track system, you’ll want at least 12 inches of clear space.
2. Sideroom: Check the wall space on either side of the rough opening. The vertical tracks need about 3.75 inches on each side.
3. Backroom: Measure from the opening straight back into the garage. You'll need the door's height plus another 18 inches to accommodate the horizontal tracks and the opener.

Checking these clearances ahead of time is what separates a smooth project from a frustrating one. It ensures the frame you’re about to build will actually house a fully functioning garage door.

Putting It All Together: Assembling Your Garage Door Frame

You’ve got your lumber, your measurements are double-checked, and now it’s time for the fun part: turning that pile of wood into a rock-solid frame. This is where precision and a methodical approach really pay off. Get this right, and the rest of the garage door installation will be a breeze.

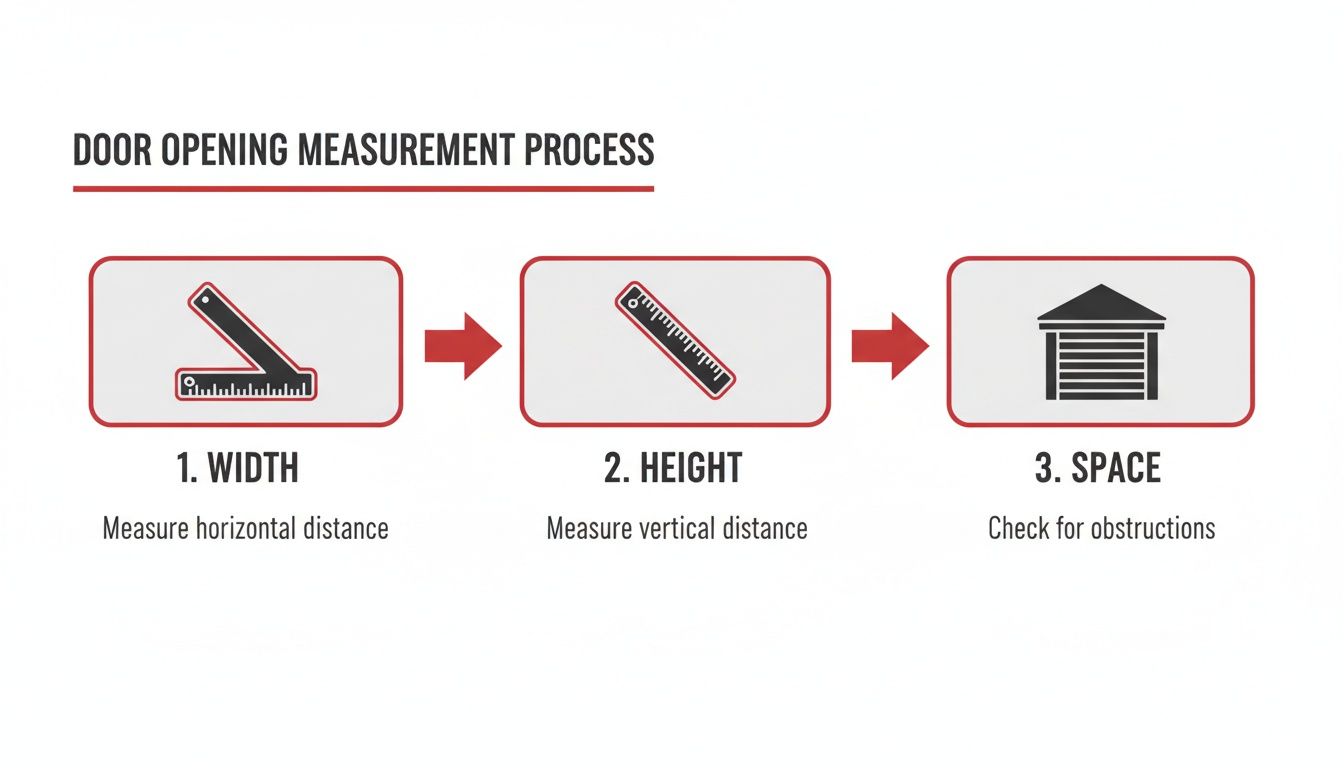

As a quick visual reminder, here are the key measurements you need to keep in mind.

This simple diagram covers the three essentials—width, height, and interior space—that guarantee your frame can accommodate not just the door itself, but all the tracks and hardware that make it work.

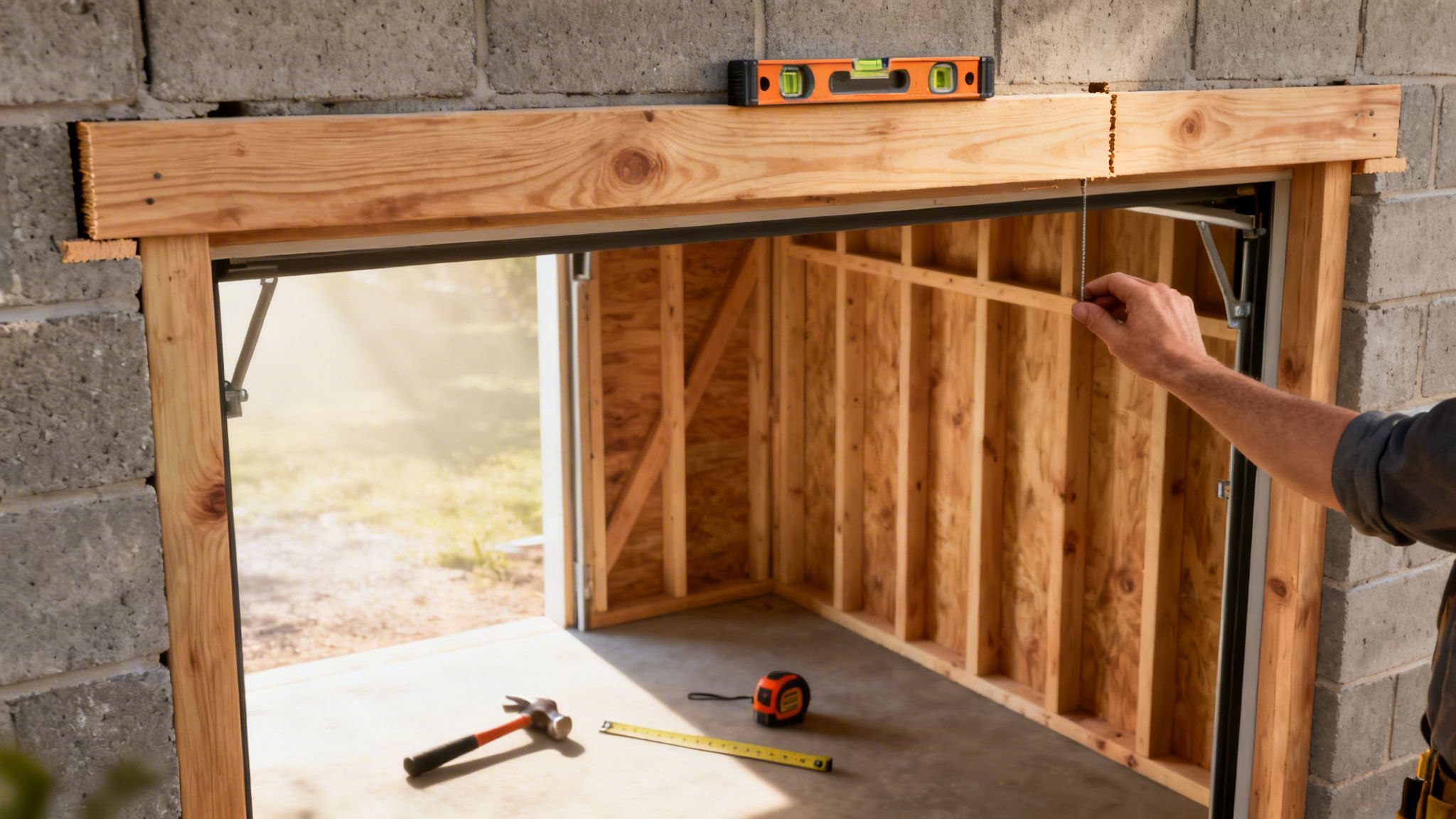

Building and Setting the Header

The header is the backbone of your entire garage door opening. It’s a heavy-duty beam that carries the load of the wall above, so it has to be built tough and installed perfectly level. For a standard two-car garage, you'll typically "sandwich" two 2x12s around a half-inch piece of plywood or OSB.

Here’s how to get it done:

• Cut Your Lumber: Start by cutting your header pieces to the exact width of the rough opening. Don't eyeball this; precision is everything.
• Crown the Boards: Look down the narrow edge of each 2×12. You'll see a slight upward curve, known as the "crown." This is crucial. Always install them with the crown facing up. When the wall's weight settles on the header, it will flatten out instead of sagging.
• Assemble the Sandwich: Lay the boards flat, apply a generous amount of construction adhesive to the plywood spacer, and nail the three pieces together. I recommend using a staggered nail pattern from both sides to create a truly unified beam.

Once your header is built, lift it into place so it rests on top of the jack studs. Grab your six-foot level and make absolutely sure it's perfectly horizontal before you nail it home into the king studs.

Framing the Vertical Supports

The sides of your frame are made of two key components working in tandem: the king stud and the jack stud. The king stud provides the main structure, running all the way from the wall's bottom plate to the top plate. Nestled right beside it is the shorter jack stud (sometimes called a trimmer), which is what actually supports the header.

Your first move is to nail the jack stud to the king stud, keeping their inside edges perfectly flush. You’ll build one of these units for each side of the rough opening. Then, you can install them, making sure the top of the jack stud sits snugly right under the header you just placed.

A little tip from experience: The number one mistake I see is installing jack studs that aren't perfectly plumb (vertically level). Even a slight lean can cause the garage door to bind, scrape, and operate poorly down the line. Take your time with the level here.

Anchoring the Frame to Your Foundation

If you’re framing on top of a concrete slab or block foundation, a solid anchor is non-negotiable. The bottom of your frame—the pressure-treated sill plate—needs to be mechanically fastened to the concrete to keep the entire structure from shifting.

On a poured concrete slab, wedge anchors or sleeve anchors are the way to go. You'll need a good hammer drill to make the pilot holes, but once you drive them in, that frame isn’t going anywhere. For hollow concrete block walls, toggle bolts or specific masonry anchors that expand inside the block are a must. Don't even think about relying on construction adhesive alone for this job.

It might sound surprising, but poor framing is a major headache in this industry. In fact, framing failures are a contributing factor in nearly 25% of the 21.3 million garage door service calls that happen globally each year. Using the right materials, like properly sealed pressure-treated lumber for the sill plate, dramatically cuts down the risk of rot and structural issues. You can explore the full market report for more data on this. A little extra care now ensures you won’t become part of that statistic later.

Finishing and Weatherproofing Your New Frame

You've built the frame, it's square, and it's firmly anchored. Great work. But don't close up your toolbox just yet. An unprotected wood frame is basically an open invitation for moisture, drafts, and eventually, rot. This last phase is all about buttoning things up to protect your work for years to come.

These final touches are what truly elevate a project from a quick DIY fix to a professional-grade installation. It’s not just about aesthetics; it’s about preventing water from sneaking in, stopping expensive heat loss, and ensuring the frame you just built doesn't decay in a few short years.

Sealing the Deal Against the Elements

Your first line of defense is a good quality exterior caulk. You'll want to run a solid bead along the seam where your new wood jambs meet the siding or brick of your house. This simple but critical step closes up any tiny gaps where water could wick in and start causing trouble.

Next, you'll install the vinyl stop molding. This is the trim piece that mounts to the outside of the frame and has a flexible vinyl flap that rests against the garage door itself. When it's set just right, it forms an impressive seal against wind, rain, and snow.

Here’s how to get it right:

• Start by cutting the top piece of molding to fit snugly between where the two side pieces will go.
• With the garage door closed, gently press the molding against it until the flexible flap makes light, even contact.
• Nail it into place. The key is to avoid pressing it so hard that it pinches the door and makes it hard to operate.
• Now, do the same for both of the side pieces.

The Critical Role of Flashing

Proper flashing is absolutely non-negotiable. This is typically a thin strip of metal or vinyl that gets tucked up underneath your home's weather-resistant barrier (like Tyvek) and then extends out over the top of your exterior trim. Its only job is to channel rainwater down and away from the top of the opening, keeping the wooden header completely dry.

Think of weatherproofing as an insurance policy for your frame. Taking an extra hour to caulk, install trim, and check your flashing can add years to the life of your garage door frame, saving you from costly water damage repairs.

These details have a huge impact on energy efficiency, too. A poorly sealed garage door is a massive source of heat loss in the winter. A well-framed and properly sealed door can last 20-30 years, a stark contrast to the maybe 10 years you'd get from a shoddy job. That quality installation can slash lifetime costs by as much as 45%. You can learn more about overhead door market trends to see just how much quality matters.

To get a complete seal, don't forget the bottom of the door. We've got you covered with our guide on how to install garage door weather stripping.

Common Questions About Garage Door Framing

When you're knee-deep in a garage door project, a few questions always seem to pop up. I've heard them all over the years, so let's get you some clear, no-nonsense answers to the most common ones.

What Size Lumber Should I Use for a Garage Door Header?

This is a big one, and the answer comes down to the span of the opening. There’s no magic bullet here because that header is responsible for carrying a serious amount of weight from the wall and roof above.

For a single-car garage door, which is typically 8 or 9 feet wide, you can usually get by with a header made from two 2x8s or 2x10s sandwiched together. It's a tried-and-true approach. But when you jump up to a 16-foot double door, the game changes. You’re dealing with a much wider span, which demands a lot more strength.

For these larger openings, you’ll need to use at least a double 2×12 header. Frankly, I often recommend going with an engineered beam like an LVL (Laminated Veneer Lumber) for superior stability and strength.

A Quick Tip: Always, always double-check your local building codes. Things like regional snow loads and specific roof designs can dramatically alter what’s required. It’s better to be safe than sorry.

Can I Reuse My Old Garage Door Frame?

I get it—it's a tempting shortcut. But you have to be brutally honest about the condition of the old frame. The only time you should even consider it is if the existing frame is in pristine condition.

Grab a level and get to work. Are the jambs perfectly plumb? Is the header dead level? Inspect every inch of the wood for any sign of rot, water stains, splitting, or warping. If it’s rock-solid, straight, and properly sized for your new door, you might be in the clear.

But here’s my professional advice: if there’s even a shadow of a doubt, just replace it. A new door deserves a new frame. Think of it as a small investment to protect the much bigger one you just made in the door itself.

How Do I Calculate the Rough Opening Size?

This part is actually simpler than most people think. You just need to leave a little extra room for the jambs to fit snugly.

Here’s the formula I use on every job:

• Width: Take the garage door's actual width and add 3 inches. That gives you space for a 1.5-inch jamb on each side.
• Height: Take the door's height and add 1.5 inches for the top jamb.

So, for a standard 16’x7’ door, your rough opening should be right around 16’ 3” wide by 7’ 1.5” high. Nail those numbers, and your installation will go smoothly.

When Is It Time to Call a Professional?

Knowing when to tag in an expert is the mark of a smart homeowner. If your project involves creating a new opening in a load-bearing wall, that's your cue. Put the tools down and call a pro immediately. Messing with your home's structure is not a DIY job—it requires a deep understanding of load paths and structural engineering.

It's also a good idea to seek help if you feel out of your depth with header calculations, figuring out local codes, or anchoring the frame into tricky masonry. If you're looking for help with the woodwork, finding experienced Carpentry Contractors is a crucial move. A seasoned pro will ensure the job is done safely and correctly, saving you from headaches and costly repairs down the road.
