You punch in the keypad. Nothing. Then you hit the remote from the car. Still nothing. A lot of homeowners call that a “garage door code problem,” but that phrase can mean a few totally different things.
Sometimes it means the PIN you type on the outside keypad. Sometimes it means the security code system inside the remote and opener. And sometimes it means the flashing diagnostic code on the opener itself that's trying to tell you something is wrong.
That mix-up causes a lot of wasted time. People replace a keypad battery when the safety sensors are out of line. Or they try to reprogram a remote when the actual issue is an old fixed-code opener. If you deal with garage doors regularly, you learn fast that the first job is naming the problem correctly.
Your Guide to Garage Door Codes
A common real-life scenario goes like this. The wall button still runs the door, but the remote doesn't. Or the keypad lights up, accepts the numbers, and the door still won't move. Then the opener light starts blinking, and now it feels like every part of the system has its own “code.”
That's why I break garage door codes into three buckets:
- Access codes for keypads. This is the number you enter outside.
- Security codes in the remote system. This is the radio signal method your opener uses.
- Diagnostic codes from the opener. These are the flashes or light patterns that point to a fault.
If you know which bucket you're dealing with, the next step gets easier.
The three code types homeowners confuse
The keypad PIN is the simplest one. If it's wrong, forgotten, or no longer paired, the door won't open from the keypad.
The security system code is less visible. That's the part that decides whether your opener uses an older fixed signal or a newer rolling signal. Most homeowners never think about it until they lose a remote, move into an older house, or start wondering how secure the opener really is.
Then there are diagnostic codes. These aren't entry codes at all. They're the opener's way of reporting trouble.
Practical rule: If the opener flashes lights or arrows, think diagnostic issue first. If the keypad accepts input but won't operate the door, think pairing, battery, or programming first.
If you work in property maintenance or support, a good reference on understanding broken garage doors for pros can also help sort out when a “code problem” is really a bigger door or opener issue.

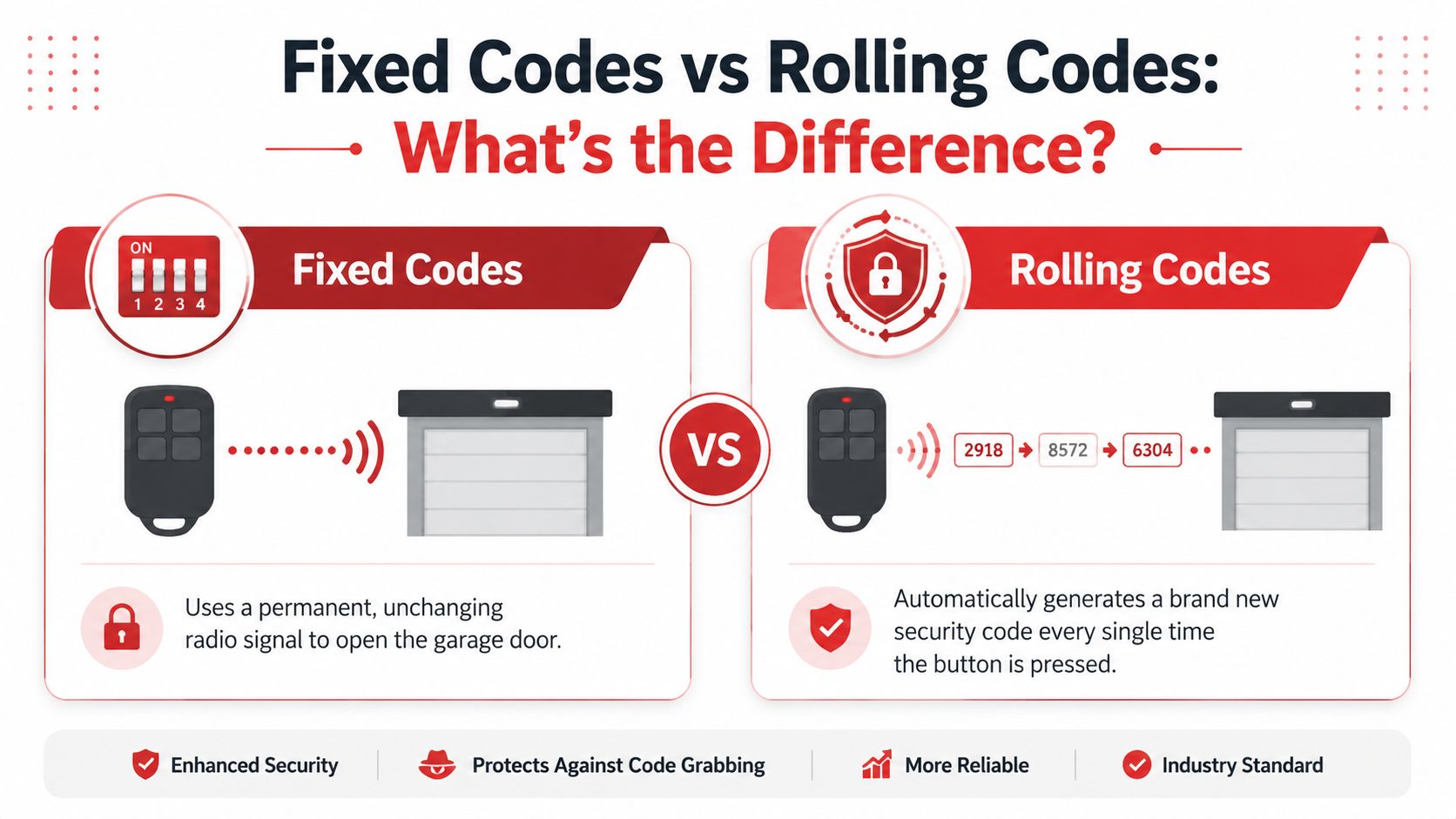

Fixed Codes vs Rolling Codes What's the Difference
The biggest security difference in garage door codes is whether your opener uses a fixed code or a rolling code.
A fixed code works like a password that never changes. Press the remote, and it sends the same signal every time. That was normal on older systems, especially units with DIP switches.
A rolling code works more like a one-time pass. Each button press sends a new code instead of repeating the same one. That change is why modern systems are much harder to defeat.
How fixed-code systems worked
On older openers, tiny switches inside the remote and receiver matched each other. Set the switches the same way, and the opener responded. Simple, but not very secure.
Early fixed-code openers using 8-bit DIP switches had only 256 possible combinations, while 12-bit systems had 4,096 according to research on garage door fixed-code systems. That same research notes how limited those systems were against brute-force methods.
A quick comparison makes the trade-off clear:
| System type | How it behaves | Main weakness |
|---|---|---|
| Fixed code | Sends the same code every time | Can be captured, replayed, or guessed on older systems |
| Rolling code | Changes the code each press | More secure, but still needs proper programming and working hardware |
If you open an older remote and see DIP switches, that's your clue. Those systems were easy to set up, but they aged badly from a security standpoint.
Why rolling codes replaced them
Rolling codes were designed to stop replay attacks. Instead of repeating one signal forever, the remote and opener stay in sync through a changing code sequence. The receiver can usually accept a future window of codes so the remote still works if you press it away from the house a few times.
The KeeLoq example commonly used to describe rolling code systems sends 66 data bits total, including 32 encrypted bits for the changing rolling-code portion, as outlined in this rolling code overview. You don't need to memorize those details. The important part is this: the signal is much more complex than the old fixed pattern.
A homeowner usually doesn't need to know the encryption details. They do need to know whether their opener is old enough to be worth replacing.
If you're trying to identify your opener before buying a new remote or keypad, it helps to understand the garage door opener learn button, because that button tells you a lot about how the system is programmed.
Troubleshooting Common Garage Door Code Issues
Most code complaints turn out to be basic problems. Dead batteries. Lost programming. Sensor trouble. A weak signal. The trick is not chasing the wrong fix first.
If the keypad stopped working
Start with the easy stuff. Keypads live outside, so weather, age, and battery issues show up there first.
Try this checklist:
- Replace the battery first: A keypad can light up and still fail to send a strong signal.
- Clean the buttons: Dirt and moisture can keep one key from registering properly.
- Re-enter the PIN carefully: People often hit one wrong digit and assume the whole opener failed.
- Reprogram the keypad: If the opener lost memory or the keypad lost sync, the code may need to be entered again.
If the keypad lights, accepts input, and still does nothing, that usually points to a programming issue rather than a broken spring or track issue.
If the remote only works up close
That often means signal trouble, not a bad code.
Check these items in order:
- Swap the remote battery.
- Test with the garage door closed and then open.
- Look at nearby LED bulbs in the opener or garage. Some bulbs can interfere with remote range.
- Check the opener antenna. If it's tucked up, damaged, or missing, range can drop.
- Try a second remote if you have one.
If one remote acts up and another works normally, the opener is probably fine. The problem is likely in that transmitter.
If the opener is blinking at you
Homeowners frequently get tripped up. On many Chamberlain and LiftMaster models, flashing lights are often diagnostic codes, not remote-code problems. Chamberlain's own guide explains that these flash patterns can point to issues like misaligned safety sensors rather than a programming fault, as shown in their garage door opener diagnostic codes guide.
So if the opener is blinking, check the door path and the safety eyes near the floor before you reset anything.
A simple way to sort it out:
- Wall button works, remote doesn't: remote, keypad, battery, or programming issue
- Nothing works, opener blinks: diagnostic or safety issue
- Motor hums but door won't move: likely a mechanical issue, not a code issue
A Guide to Garage Door Security Best Practices
Garage doors get treated like convenience equipment, but they're also part of your home's security. If the opener is old or the access setup is sloppy, you're giving that entry point more trust than it deserves.
What to do right away
If you just moved in, lost a remote, or gave one away, reset the system. Don't wait. You have no practical way to know who still has access.
Use a keypad PIN that isn't obvious. Avoid easy patterns and personal details. Pick something you can remember without writing it on the garage frame or storing it in the car.
Good habits matter here:
- Clear stored devices after a lost remote: If a remote goes missing, wipe the opener memory and add back only the remotes you still control.
- Change old keypad PINs: Especially after a move, tenant turnover, or contractor access.
- Keep remotes out of plain sight in vehicles: A visible remote plus registration with your address is an avoidable risk.
When an upgrade makes sense
The biggest security concern is still the older fixed-code opener. The main risk comes from pre-1997 fixed-code systems, where the remote sends the same code every time. That repeated signal can be captured and reused, which is why those units remain a prime target according to this garage door security discussion.
That doesn't mean every older opener must be replaced today. But if your unit is aging, uses DIP switches, acts inconsistently, or you can't identify what security system it has, replacement becomes a smart call rather than an upgrade for looks.
Older openers can still run a door. That doesn't mean they're still the right opener to trust with home access.
A lot of people also mistake strange opener behavior for hacking when the issue is electrical noise, failing logic boards, or travel problems. If your garage door opens on its own, it's worth ruling out both security and hardware causes before jumping to conclusions.
Resetting and Reprogramming Your Garage Door Codes
Most homeowners can handle basic reprogramming if they move slowly and start at the opener head, not the keypad.
The general process
First, find the Learn button on the opener motor unit. It's usually on the back or side, sometimes behind a light cover.
Then follow a simple order:
- Clear the opener memory if you're starting fresh after moving in or losing a remote.
- Program the remote by pressing the Learn button and then the remote button within the opener's pairing window.
- Program the keypad by pressing Learn again and entering your new PIN.
- Test each device one at a time so you know which one worked and which one didn't.
Brand details vary, but that sequence is common across many systems.
Why new systems pair this way
Modern rolling-code openers use a changing encrypted signal, so pairing is about syncing authorized devices with the opener. In KeeLoq-style systems, the transmitted signal includes 66 bits, with a 32-bit encrypted portion that changes with each press, which is why replaying the same captured press isn't practical, as described in this overview of rolling code operation.
If you want model-specific help after the basic reset, this guide on how to program a garage opener is the next place to look.
When You Need a Garage Door Professional
Some garage door codes problems stop being code problems pretty quickly. If you've changed batteries, checked the sensors, reprogrammed the keypad, and the opener still won't respond, it's time for hands-on diagnosis.
Call a pro when:
- The opener is old and hard to identify: That usually slows down DIY troubleshooting.
- Programming won't hold: Memory or logic board issues may be involved.
- The door has both electronic and mechanical symptoms: Grinding, binding, uneven travel, or reversal problems point beyond coding.
- You don't want to work from a ladder near the opener: That's a reasonable line to draw.
For service companies, good dispatch and communication matter too. If you're curious how repair businesses organize calls and follow-up, garage door repair receptionist software gives a useful look at that side of the industry.
In Northeast Ohio, homeowners dealing with stubborn opener programming, insecure older systems, or mixed electronic and door issues can also contact Danny's Garage Door Repair for diagnosis, reprogramming, or opener replacement.
If your garage door code issue is turning into guesswork, Danny's Garage Door Repair can help you sort out whether you're dealing with a keypad PIN problem, an opener diagnostic code, or an outdated security system. We serve Greater Cleveland with repair, programming, upgrades, and emergency garage door service.
