Heard a sudden, deafening BANG from your garage? That’s the classic sound of a garage door spring giving up. Tackling a garage door extension spring replacement yourself can save you some money, but this isn't a simple weekend project. You're dealing with parts under extreme tension, and a single mistake can lead to serious injury.
This guide will walk you through the process, but first, let's figure out if this is a job you should even take on.
Deciding If This Is a DIY Project for You
Before you start looking for parts, let's be honest. Garage door springs do the heavy lifting, counterbalancing hundreds of pounds of door weight. When one snaps, all that stored energy is released instantly. Installing a new one means carefully putting that tension back. It’s a job that demands your full respect and attention.
Your Skill and Comfort Level
Think about your past repair jobs. Are you someone who follows instructions to the letter, or do you tend to improvise? Success here depends on precision and a good mechanical understanding.
Ask yourself a few questions:
- How steady are you on a ladder? You’ll be working up there for a while, often with your arms overhead. Stability is crucial.
- Do you like mechanical puzzles? This is a specific sequence of removing and installing parts. Getting the order wrong is dangerous.
- Are you a stickler for safety? Every single precaution, especially clamping the door in place, is non-negotiable. There are no shortcuts.
If you’re hesitating on these answers, that's your gut talking. There's zero shame in calling a professional. In fact, knowing your limits is the smartest move you can make.
Weighing the Real Costs
Saving money is usually the main reason for a DIY project, but you need to look at the whole picture, not just the price tag on the springs.
Doing It Yourself:
- Parts: A quality set of extension springs and safety cables will run you $40 to $80.
- Tools: If you don't already have a sturdy ladder, C-clamps, and locking pliers, you'll need to buy or borrow them.
- Time: For a first-timer, plan on at least 3 to 4 hours. That's if everything goes smoothly.
Hiring a Professional:
- Total Price: A pro garage door extension spring replacement usually costs between $200 and $350. This covers parts, labor, and a warranty.
- Time: An experienced tech can often get the job done in about an hour.
The DIY savings look good on paper, but a pro brings experience, specialized tools, and the guarantee that the job is done safely and correctly. It helps to run through a practical risk assessment process to make sure you're truly ready for the risks.
Key Takeaway: If the thought of stretching a spring powerful enough to lift a 300-pound door makes you nervous, trust that feeling. Calling an expert is a small price for safety and peace of mind.
Ultimately, you know what you're capable of. If you're confident, careful, and have the right gear, you can do this. But if you’re in Cleveland or anywhere in Northeast Ohio and decide it's best left to the experts, finding a trusted garage door repair service near you is the safest bet.
How To Identify And Source The Correct Springs
Before you even touch a wrench, you need to play detective. Ordering the wrong extension springs isn’t just an inconvenience—it’s a major safety risk. A spring that's too strong can make the door shoot up, while a weak one will burn out your opener motor.
Your mission is to find an exact match for your old springs. To do that, you'll need a few key details.
Reading The Spring Color Code
The fastest way to identify a spring's strength is its color code. Manufacturers paint the end of the spring with a specific color to indicate the door weight it can lift.
This small spot of color is your best clue. For example, a gold tip is for an 80-pound door, while a white tip is for a 110-pound door. Getting this right is critical, so don't guess. If you need more examples, our guide on when to replace garage door springs has more details.
Here’s a quick chart for the most common colors.
Garage Door Extension Spring Color Code Chart
| Color | Door Weight Supported (lbs) |
|---|---|
| Tan | 100 |
| White | 110 |
| Green | 120 |
| Yellow | 130 |
| Blue | 140 |
| Red | 150 |
| Brown | 160 |
| Orange | 170 |
| Gold | 180 |
| Light Blue | 190 |
Use this chart as your starting point, but always try to confirm with your existing spring.
Pro Tip: What if the paint is gone? If the color is faded or chipped off, don't worry. You can still find the right spring by taking a few precise measurements. It's more work, but it ensures you get the right part.
Taking Precise Measurements
If the color code lets you down, it's time to grab your tape measure. You need three specific measurements to order the correct replacement.
- Stretched Length: Measure the spring from one end to the other, including the loops. It's best to measure the unbroken spring if one is still intact.
- Outside Diameter: Measure the width across the outside of the spring's coil. Most residential springs are between 1-1/2" and 2-1/2".
- Wire Diameter: This is the most critical measurement and the hardest to get right. Use calipers for the best accuracy. If you don't have calipers, lay a tape measure across 10 or 20 coils, then divide that total measurement by the number of coils you measured (10 or 20). This trick gets you a surprisingly accurate result.
Identifying The End Type
Last, look closely at how the springs connect to the pulleys and brackets. Not all extension springs have the same ends.
The three common types are:
- Double Looped Ends: These are the best—strong and reliable, with a built-in backup loop.
- Single Looped Ends: A single loop is bent back into the spring. They work but aren't as durable.
- Clipped Ends: These use a special metal clip instead of a loop, often found on older doors.
Try to match the end type exactly. However, if you have single-looped or clipped ends, I highly recommend upgrading to double-looped springs for extra durability and peace of mind.
Getting these details right is more than half the job. The garage door repair market is huge—projected to be $5 billion by 2025—and spring replacements are a massive part of that. Sourcing the right parts is the key to a safe repair.
Gearing Up: Your Tools and Safety Checklist
Trying to replace an extension spring without the right tools is a bad idea. This isn't just about making the job easier—it's about staying safe. Take a few minutes to gather everything you need before you start so you aren't stuck on a ladder trying to find a wrench.
Think of this as a pilot's pre-flight check. Lay everything out where you can reach it. The last thing you want is to be holding a tensioned part and realize your C-clamp is across the garage.

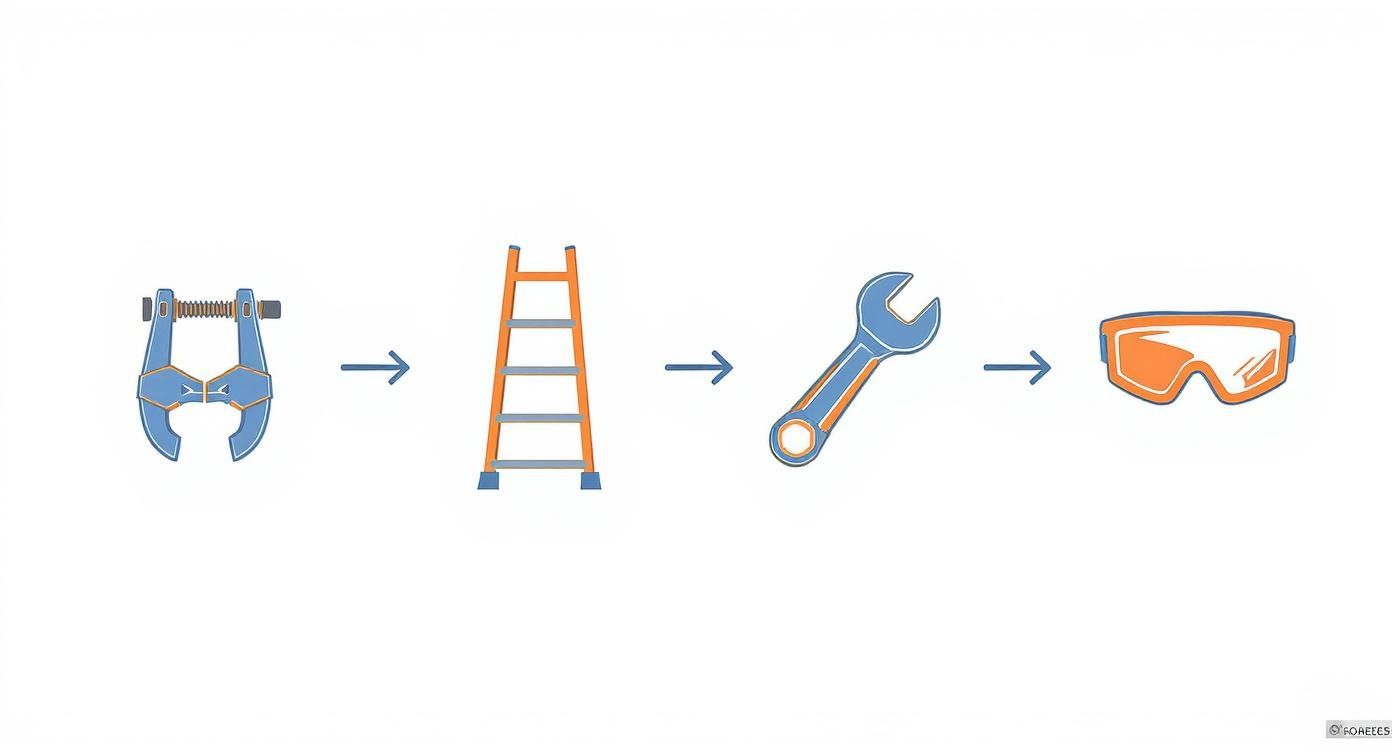

The Essential Toolkit
Having the right tools gives you control. Every item on this list plays a key role in keeping you safe and getting the job done correctly.
Here’s what you absolutely must have:
- A Sturdy Ladder: You'll be working above your head. Don't risk it with a wobbly stool. Use a stable ladder that lets you work comfortably.
- Two Heavy-Duty C-Clamps: These are your most important safety tools. You'll clamp one on each door track to physically stop the door from moving. Do not skip this step.
- Locking Pliers (Vise-Grips): These are great for gripping stubborn parts, especially the lift cables near the pulleys.
- Socket Wrench Set: You'll need different-sized sockets for the nuts and bolts on the pulley brackets.
- Tape Measure: You'll need this to measure your old springs and confirm the new ones are correct.
It's clear that more homeowners are taking on these projects. The market for garage door replacement parts is projected to grow from $3.755 billion in 2024 to $4.305 billion by 2031. You can check out the data behind this trend on qyresearch.in.
Your Personal Protective Equipment (PPE)
Let's be blunt: a stretched extension spring holds an incredible amount of energy. If it snaps, it can send metal flying with dangerous force. Your safety gear is not optional.
A Quick Word on Safety: The energy in a loaded spring is immense, like a giant slingshot. If that energy is released without control, it can cause life-changing injuries. Your PPE is your best defense.
Make sure you're wearing this before you start:
- Impact-Rated Safety Glasses: Regular glasses aren't enough. You need ANSI-rated safety glasses to protect your eyes from a snapping cable or flying shrapnel.
- Thick Work Gloves: Broken springs and metal tracks have sharp edges. A good pair of leather gloves will protect your hands from nasty cuts.
Laying out your tools is also a good time to mentally walk through the job. With everything ready, you can focus on the repair. If you finish and find the door balance is a bit off, don't worry. We cover how to fix that in our guide on how to adjust garage door tension. A little prep turns a dangerous job into a manageable one.
A Practical Walkthrough for Replacing the Springs
Alright, time to get to work. This is the step-by-step process for replacing your springs. The two most important things you need are patience and precision. Rushing this job is the easiest way to get hurt.
The process is simple: first, secure the door. Second, remove the old parts. Third, install the new ones. And finally, test everything carefully.
Setting the Stage for a Safe Repair
Before touching a single tool, your number one priority is securing the garage door. This step removes all the dangerous tension from the system so you can work safely.
Start by opening the garage door all the way. Then, lock it in place. Grab your two C-clamps and attach one to each vertical track, right under the bottom rollers. These clamps are your physical safety net, stopping the door from crashing down.
Once the door is secured, unplug the garage door opener. This ensures no one can accidentally hit the button while you're working.
Removing the Old Spring and Hardware
Now that the door is stable, it's time to get that old, broken spring out. Even if only one spring snapped, you must replace both. Springs are installed as a pair and wear out at the same rate. Replacing only one creates an unbalanced system and the other will likely break soon after.
Start on the side with the broken spring. The spring is connected to a pulley with a lift cable running through it. Carefully detach the old spring from the track hanger above and the pulley fork below.
Next, remove the safety cable—the thin wire running through the center of the spring. This is a critical feature that contains the spring if it breaks. Unthread it completely. You should always install a new safety cable with your new spring.
With the old parts gone, inspect the pulley. Spin it. If it’s stiff, cracked, or wobbly, now is the perfect time to replace it. Pulleys work just as hard as springs, and replacing a worn one now will save you another repair down the road.

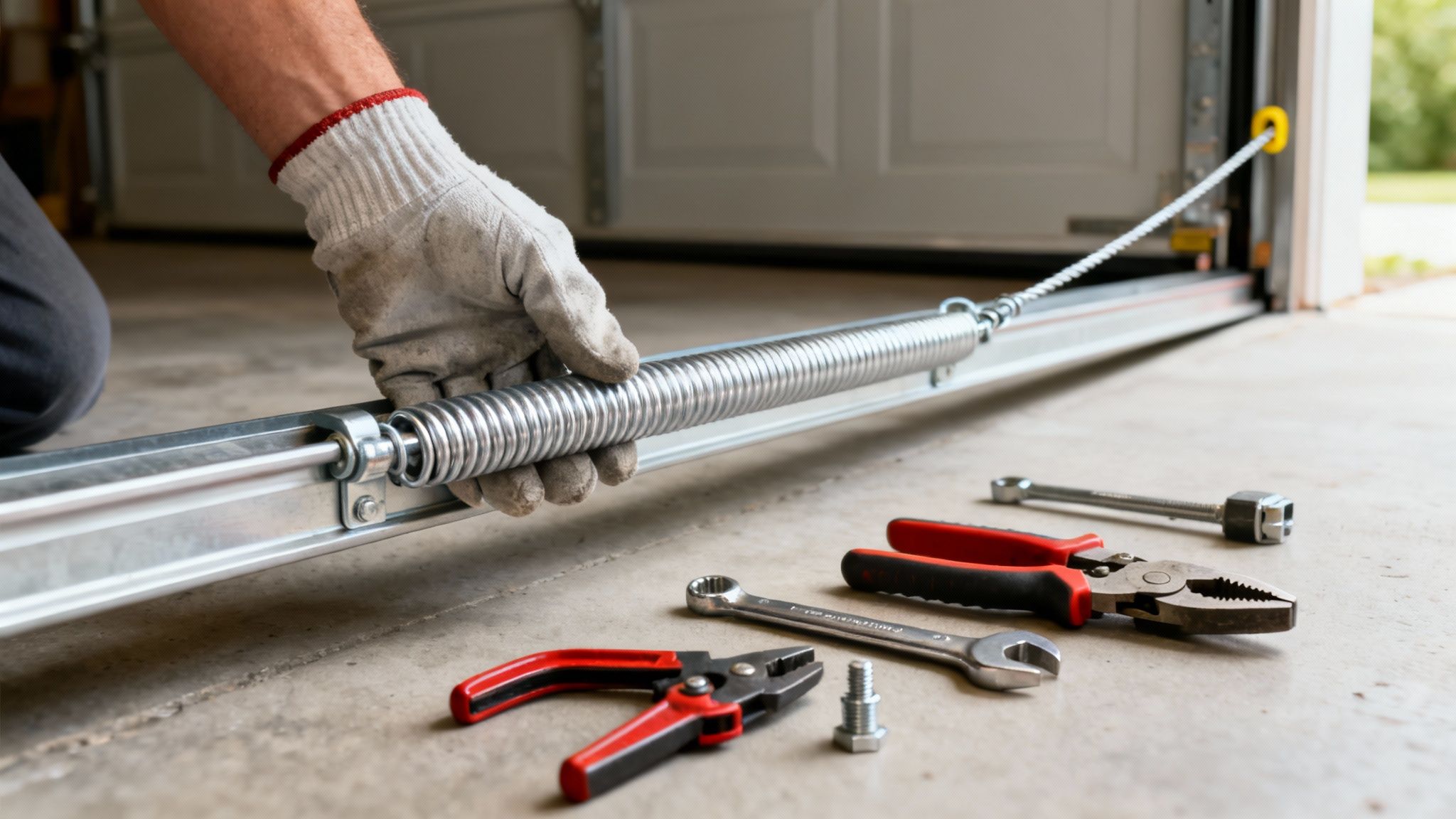

Installing the New Extension Spring
With the old hardware out, you can install the new parts. This is basically the reverse of removal, but pay close attention to every connection.
Follow this order for a smooth installation:
- Thread the New Safety Cable: Run the new safety cable through the center of the new spring before you do anything else. Secure one end of the cable to the track support bracket.
- Attach the Spring: Hook the new spring to the track hanger, then connect the pulley fork to the other end. Make sure the spring's loop is seated securely.
- Route the Lift Cable: Run the main lift cable (the one that goes to the door's bottom bracket) back through the pulley. Reconnect it to the track support so it’s taut, but don't add too much tension yet.
After the first spring is in, repeat the exact same process on the other side.
Crucial Tip: I can't say this enough: double-check that the safety cable is threaded through the spring before you hook it up. Once the spring is under tension, you can't go back and fix this. That cable is your only defense if a new spring fails.
The Final Balancing Act
With both new springs installed, it's time for the most important test: balancing the door. This confirms the new springs have the right tension.
First, carefully remove your C-clamps. Then, pull the emergency release cord on your garage door opener to disconnect it from the door. The door should now move freely by hand.
Gently lower the door halfway and let go. A perfectly balanced door will stay right where you put it.
- If the door shoots up, your springs are too tight.
- If the door drifts down, your springs are too loose.
You can adjust the tension by moving the S-hook on the lift cable to a different hole on the track bracket. Make small, one-hole adjustments at a time and re-test the balance until the door hangs perfectly still.
Only when you are 100% happy with the manual balance should you reconnect the opener. Plug it back in and run it through a full open-and-close cycle, listening for strange noises and watching for smooth movement.
Now that your springs are done, you might be ready for more upgrades. A great next project is covered in this smart garage door opener installation: Quick DIY Guide. Finishing a spring replacement is a huge win and proves you can handle one of the toughest DIY repairs.
Common DIY Mistakes and How to Avoid Them
Learning from someone else’s mistakes is always cheaper and safer than making your own—especially with garage doors. I've seen a few common errors turn a doable project into a dangerous mess. Getting this job right is about knowing what not to do.
The global market for garage door replacement parts reached about $3.66 billion in 2024, partly because it's easier than ever for homeowners to find parts and instructions. You can see how big this market is in reports from researchers like Global Growth Insights. But with that accessibility comes the risk of making critical mistakes.
Let's cover the ones I see most often.
Installing the Wrong Size Springs
This is easily the most common and dangerous mistake. It’s tempting to think "close enough" will work, but it won't. A spring that's too strong will make the door fly open. A spring that's too weak puts a huge strain on your garage door opener, causing the motor to burn out.
There is no room for guesswork here. You must use the color code or your old spring's exact measurements to find a perfect match for your door's weight. An unbalanced door isn’t just an annoyance; it’s a serious safety risk.
Replacing Only One Spring
When one spring breaks, it's tempting to save time and money by only replacing that one. This is a classic rookie mistake.
Think about it: both springs were installed at the same time and have done the same amount of work. If one just failed, its partner is on borrowed time and has been taking on extra strain since the other one broke.
Key Takeaway: Always replace both springs at once. Putting a new spring next to an old, tired one creates an imbalance that wears out the new part faster, strains the opener, and pretty much guarantees you’ll be doing this job again very soon.
Forgetting or Fumbling the Safety Cables
This one is tough to see because it’s so easy to get right. Safety cables are your last line of defense. They run through the center of the spring to contain it if it breaks, preventing it from flying across your garage like a metal whip.
A common mistake is forgetting to thread the cable through the spring before attaching it. Another is not securing both ends of the cable correctly. An improperly installed safety cable is completely useless.
Take the extra 30 seconds to double-check your cables. It's a simple step that turns a potential disaster into a minor inconvenience, and it’s arguably the most important part of the entire garage door extension spring replacement.
Your Top Garage Door Spring Questions Answered
Alright, let's tackle the questions I hear all the time from people dealing with a broken spring. When your garage door is stuck, you've got questions. Here are straight answers based on years of experience.
Should I Replace Both Springs If Only One Snapped?
Yes. I can't say this enough: always replace springs in pairs.
Think of them like tires on a car. Both springs were installed on the same day and have done the same number of lifts. If one just failed from metal fatigue, the other one is right behind it.
Changing only the broken spring throws the whole system off balance. The new spring will do most of the work, putting a ton of stress on your opener and setting you up for another broken spring very soon.
What’s the Real Cost to Replace Extension Springs?
It really comes down to whether you do it yourself or call a professional.
- The DIY Route: You'll spend $40 to $80 for a quality pair of extension springs and new safety cables. That's just for the parts.
- Hiring a Professional: A service call will typically cost between $200 and $350. That price includes parts, labor, and usually a warranty.
Going DIY saves you money upfront, but hiring a pro buys you safety, speed, and the peace of mind that it's done right.
What's the Difference Between Extension and Torsion Springs?
You can tell the difference just by looking at where they are located.
Extension springs are the long, skinny springs that run parallel to the horizontal tracks on each side of the door. They work by stretching as the door closes, like giant rubber bands.
Torsion springs, on the other hand, are the large springs mounted on a metal bar directly above the door opening. They work by twisting (torsion) to lift the door. While they tend to last longer and provide smoother operation, replacing them is extremely dangerous and is a job that should only be done by a trained professional.
The key takeaway: Both types lift your door, but the way they work and the risks involved in replacing them are completely different. If your spring is above the door, call a pro.
How Long Will My New Extension Springs Last?
A standard set of new extension springs is rated for about 10,000 cycles. A "cycle" is one complete open-and-close sequence.
For most families, this works out to about 7 to 12 years. However, things like harsh weather (like our Ohio winters!), lack of maintenance, or an unbalanced door can make the springs work harder and shorten their lifespan.
