That loud, sudden BANG from the garage is a sound you won’t forget, and it almost always means one thing: a spring just broke. But honestly, the springs usually give you plenty of warning signs before they snap completely.
If your garage door suddenly feels like lifting a car engine, slams shut with a vengeance, or hangs lsided, you’re likely looking at a garage door extension springs replacement. Catching these clues early is the key to avoiding a full-blown failure that can trap your car or, worse, create a major safety hazard.
Signs Your Garage Door Extension Springs Are Failing
Think of your garage door springs as the muscles of the whole system. They do the real heavy lifting every single time you open and close the door. But like anything under constant stress, they eventually wear out. Most are rated for about 10,000 cycles—that’s one open and one close. For a typical family, this works out to about 7 to 12 years of service.
When they start getting tired, your door will let you know. Ignoring these signs doesn't just make life inconvenient; it sets you up for bigger, more expensive headaches down the road.
The Obvious Red Flags
Sometimes, the problem is impossible to miss. That firecracker-like BANG I mentioned? That’s the sound of a spring snapping under immense tension. It’s the most dramatic and final sign of failure.

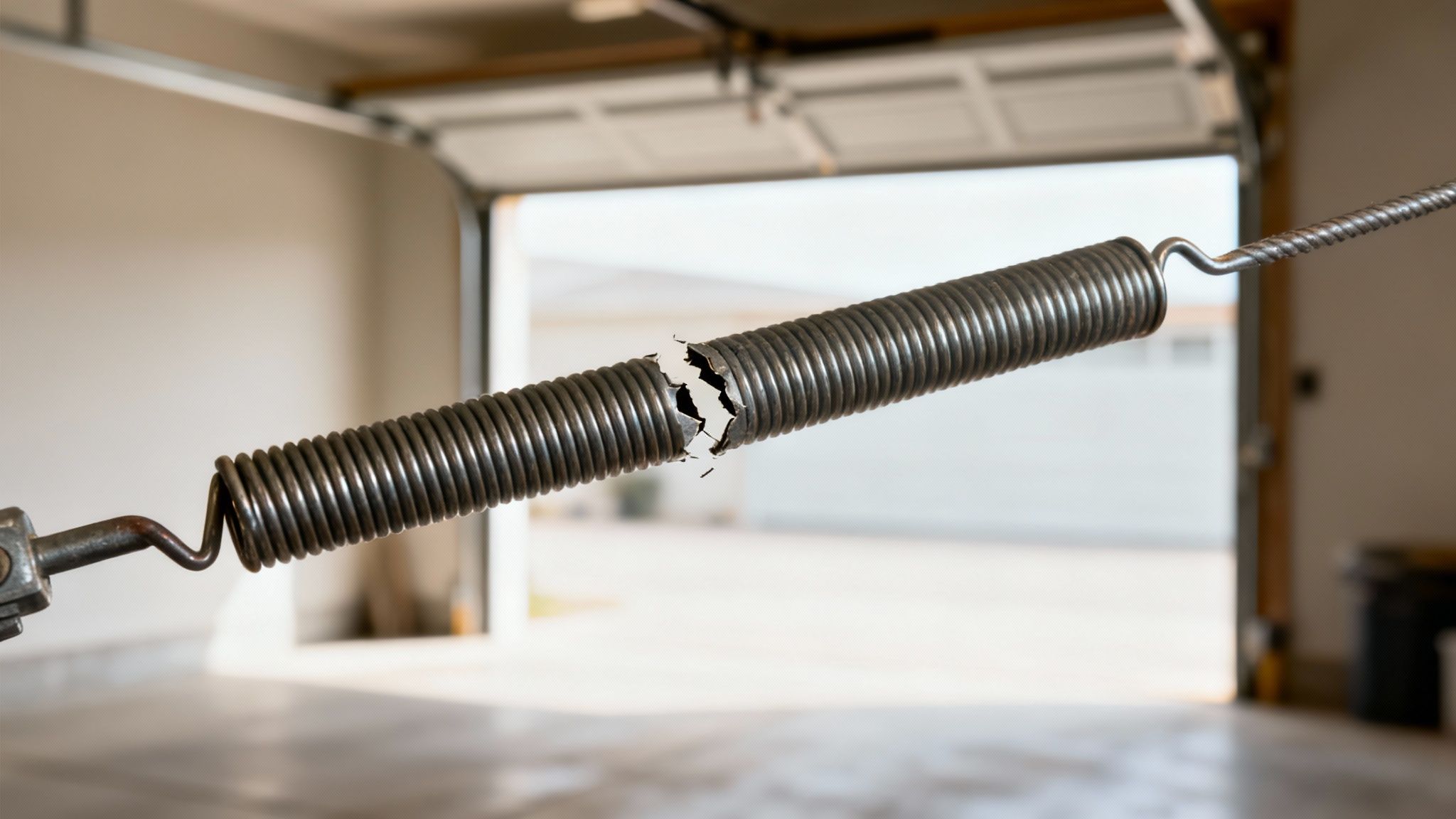

Another dead giveaway is a visible gap in the spring itself. Just look up at the long springs running parallel to your horizontal door tracks. If you can see a clean separation in the coils, that spring is toast. Don't even think about using your opener if you see this—you’ll only cause more damage.
Subtle Symptoms of a Failing Spring
Not every warning is a loud explosion. More often, the signs are subtle and creep up on you over time. Simply paying attention to how your door behaves can help you catch a problem before it becomes a full-blown emergency.
Here’s what I tell homeowners to watch for:
- The Door Feels Extremely Heavy: This is the big one. If you pull the emergency release cord on your opener and try to lift the door by hand, it should feel manageable, maybe 10-15 pounds. If it feels like you're trying to deadlift the entire door, your springs aren't counterbalancing the weight anymore.
- It Slams Shut or Closes Too Fast: A door with healthy springs should close in a controlled, steady motion. If yours drops like a guillotine or slams hard into the concrete, the springs have lost their tension and can no longer slow the door's descent. This is a serious safety risk.
- The Door Opens Crooked or Unevenly: Watch the door as it lifts. If one side rises faster than the other, making it look crooked, that’s a classic symptom. It means one of the two extension springs has broken, and the other is struggling to do the work of two.
A Quick Balance Test: Here’s a simple test I use on every service call. Disconnect the opener and lift the door to about halfway up. A well-balanced door should stay put. If it immediately starts crashing down, your springs are weak and due for replacement.
This kind of imbalance puts a huge strain on everything—the remaining spring, the cables, the tracks, and even your opener motor. Pushing your luck and continuing to use the door can quickly turn a straightforward spring replacement into a much bigger, more expensive repair. Recognizing these symptoms early gives you the power to get it fixed before it fails completely.
DIY Repair vs. Hiring a Professional
Alright, you've pinpointed a worn-out spring. Now you're at a crossroads that every homeowner faces at some point: Do I roll up my sleeves and do this myself, or do I call in a pro? Before you even glance at your toolbox, let’s have a frank discussion about what this job actually entails.
This isn't your average weekend project like fixing a leaky faucet. Replacing garage door springs is, without a doubt, one of the most dangerous repairs you can attempt around the house. Those springs are wound incredibly tight, holding back a tremendous amount of energy. If that tension is released unexpectedly, the results can be catastrophic—we're talking serious injuries and major damage to your property.
Understanding the Real Risks of a DIY Job
I get it. The main reason most of us even consider DIY is to save a few bucks. But with this particular task, the potential cost of one small mistake can dwarf any savings on labor.
One wrong move—loosening a bolt in the wrong sequence, for example—can send a spring, cable, or pulley flying with terrifying force. This is far more serious than a smashed thumb; the stakes are dangerously high. To get a clearer picture of the hazards, I highly recommend reading our guide on the dangers of garage door springs.
Beyond your personal safety, you could also do some serious damage to your garage door system. If you install the wrong size springs or don't balance the door perfectly afterward, you'll put immense strain on your garage door opener. I’ve seen it happen—the motor burns out, and a simple spring job turns into a much bigger, more expensive headache. An unbalanced door can also wreck the panels, tracks, and rollers.
The Financial Side of the Equation
Let's talk numbers. Going the DIY route means you're just paying for parts. A pair of new extension springs will usually set you back somewhere between $150 and $300. It's a fairly common repair; statistics show that over 30% of garage doors will need their springs replaced within the first 10 years.
Hiring a pro in the Greater Cleveland area typically adds a labor charge of $75 to $150 on top of the parts. At first glance, that looks like an easy place to save money, but what you're really paying for is expertise and safety.
Peace of Mind is Part of the Price: When you hire an expert, you aren't just paying for an hour of their time. You're paying for their years of experience, their specialized tools, their liability insurance, and a guarantee that the job is done right the first time.
A seasoned technician from a trusted company like Danny's Garage Door Repair will:
- Install the right springs: They know how to weigh your specific door and match it with the correctly calibrated springs for smooth, safe operation.
- Follow strict safety protocols: These guys handle high-tension systems every day and know exactly how to manage the risks.
- Inspect the entire system: A pro won't just slap on new springs. They'll do a full balance test and check your cables, pulleys, and rollers for any other signs of wear.
When to Make the Call
If the risks and complexity have you leaning toward calling a professional, that's a smart move. Being an informed customer is still your best asset. Understanding what the job involves helps you communicate clearly and feel confident you're getting what you pay for. A little research into negotiating with contractors can also ensure you get excellent service at a fair price.
In the end, while the urge to save money is always there, replacing garage door extension springs is one of those rare jobs where professional expertise is worth every single penny. It’s a decision that protects your property, and more importantly, yourself.
Getting Your Tools and Parts in Order
When you decide to replace your own garage door extension springs, the prep work is just as important as the actual job. This isn't a project you can just wing with a random wrench from the junk drawer. Getting the right tools and, crucially, the correct replacement springs lined up beforehand is the difference between a successful repair and a serious safety risk.
Think of it like a surgeon laying out their instruments before an operation—everything has its place and purpose. A clean workspace helps immensely. Taking some time to learn the best way to organize a garage can prevent a lot of headaches, letting you focus on the task without tripping over clutter.
Your Must-Have Tool List
You won't need a full mechanic's chest for this, but a few specific tools are absolutely essential. Don't even think about starting this project until you have every single one of these items within arm's reach.
Here’s what you'll need:
- A Sturdy Ladder: You'll be working overhead, so make sure your ladder is stable and on solid ground.
- Locking C-Clamps: You need two of these—no exceptions. They're used to lock the garage door to its track, which is a critical step to prevent it from slamming down while you're working.
- Heavy-Duty Work Gloves: Protect your hands. You'll be dealing with greasy parts and potentially sharp metal edges.
- Safety Glasses: This is non-negotiable. If a spring or cable under tension lets go, it can launch metal fragments with incredible force. Always protect your eyes.
- Wrenches or a Socket Set: You'll need the right sizes to handle the bolts on the pulleys and spring assemblies. An adjustable wrench can work in a pinch, but fixed-size sockets are better.
- A Tape Measure: This is key for measuring your old springs to ensure you buy the exact right replacements.
Finding the Right Replacement Springs
This is the most critical part of your preparation. If you buy the wrong springs, you'll end up with a garage door that’s dangerously unbalanced. It might fly open too fast, slam shut unexpectedly, or put a ton of strain on your garage door opener, burning out the motor.
The trick is to match the spring to your door's weight. Manufacturers use a standard color-coding system to make this easier. The color painted on the end of the spring indicates its lifting capacity.
A Word of Caution: Don't just assume the old springs on your door were the correct ones. I've seen plenty of doors where a previous installer used whatever they had on the truck. If your door has felt off-balance for a while, it’s best to weigh it to be certain you're buying the right parts this time.
To help you find the right spring, here's a chart that matches common door weights to the corresponding color code.
Extension Spring Color Code Chart for Common Door Weights
Use this chart to identify the right replacement spring. The color code corresponds to the weight of your garage door, ensuring you purchase a balanced pair.
| Door Weight (lbs) | Color Code |
|---|---|
| 10 | Light Blue |
| 20 | Dark Blue |
| 30 | Red |
| 40 | Brown |
| 50 | Orange |
| 60 | Gold |
| 70 | Tan |
| 80 | White |
| 90 | Green |
| 100 | Yellow |
| 110 | Blue |
| 120 | Red |
| 130 | Brown |
| 140 | Orange |
| 150 | Gold |
| 160 | Tan |
Remember to always replace springs in pairs. Mismatched springs—even if one is old and one is new—will throw off the door's balance.
How to Measure for New Springs
To be absolutely sure you're getting the right part, you’ll need a couple of quick measurements from one of your old, unbroken springs.
- Length: With the garage door closed and the spring relaxed (not under tension), measure its full length from one end hook to the other.
- Inside Diameter: Simply measure the width of the opening inside the spring coil.
With these measurements and your door's weight, you can confidently buy the right pair. For instance, a heavy, insulated wooden door often found in places like Chagrin Falls will need a much stronger spring (maybe one with a brown or gold code) compared to a basic, lightweight aluminum door. Getting this step right is the best way to avoid a repeat failure down the road.
A Safe Process for Replacing Extension Springs
Alright, this is where we get our hands dirty. Let's walk through the complete process for a safe garage door extension springs replacement. My advice? Treat this guide like you've got an experienced pro looking over your shoulder. Every single action needs to be deliberate and focused on safety. Rushing this job is the fastest way to get hurt or cause expensive damage.
Before you touch a single tool, let's get organized.

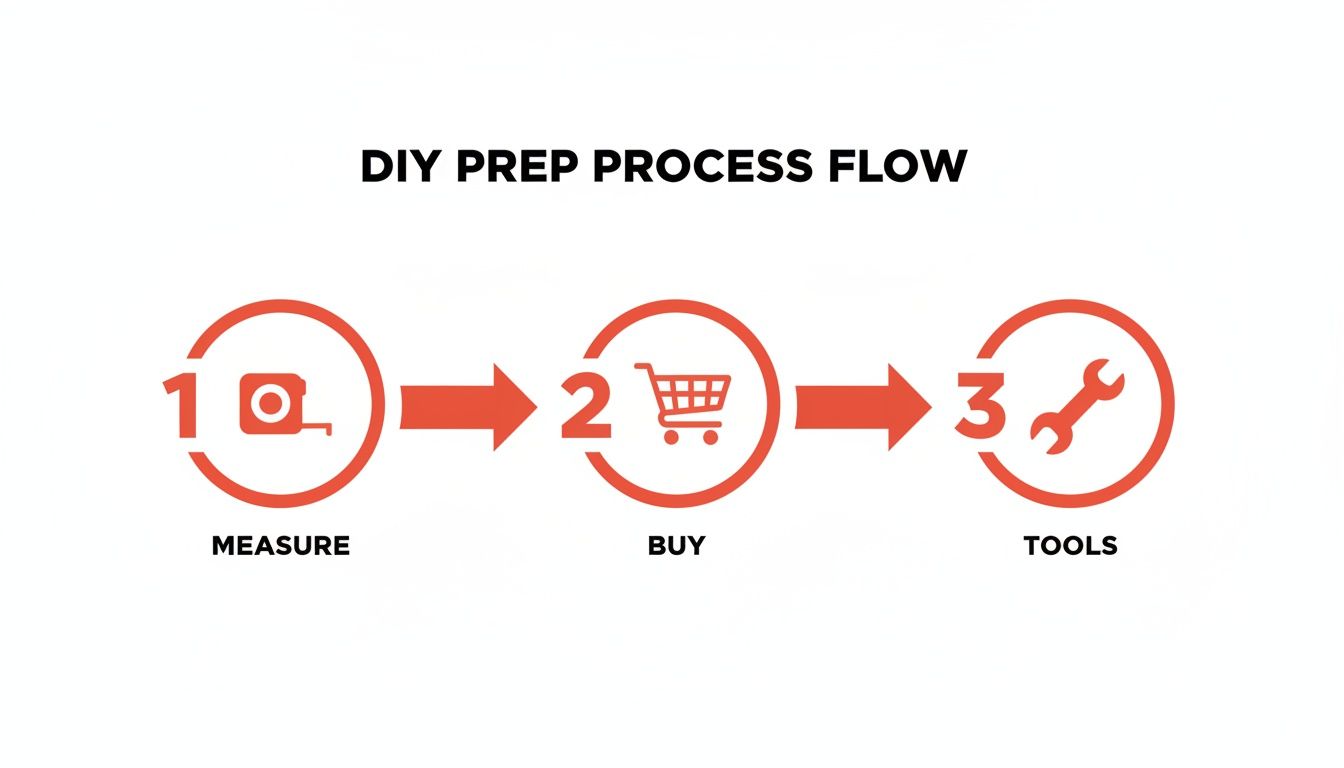

This little diagram sums it up perfectly. Your prep work boils down to three non-negotiable phases: measuring your old springs accurately, buying the exact right replacements, and getting all your tools laid out before you start. Get these three things right, and you've built a solid foundation for a successful and safe replacement.
Prepare the Door and Disconnect Power
First things first, and this is the most critical part: we have to make the entire system safe to work on. Start by getting the garage door into the fully open position. Why? When the door is all the way up, the extension springs are contracted and hold the least amount of tension. This makes them much, much safer to handle.
Once the door is up, you absolutely must secure it in place. This isn't optional. Grab your two C-clamps and tightly lock the bottom rollers to the vertical tracks on both sides of the door. Clamp one on each side, snugged up right against a roller, to physically stop the door from crashing down.
Now, let's kill the power. Unplug the garage door opener from its outlet on the ceiling. The last thing you need is someone accidentally hitting the wall button while you're working. As a final precaution, pull the red emergency release cord. This disengages the opener's trolley from the door arm, completely isolating the door.
Carefully Remove the Old Springs
With the door locked in place and the opener disconnected, it's time to start taking out the old springs. Let's tackle one side at a time. You'll see the extension spring is connected at two points: to a hanger at the back of the track and to a pulley at the front, which is linked to the bottom of the door by a lift cable.
Your goal is to carefully detach these connections. I usually start by removing the nut that holds the pulley to the spring. Pay close attention to how the lift cable, pulley, and spring are all assembled—take a picture with your phone if you have to, because you'll be putting it back together the exact same way.
Once the pulley is off, you can unhook the other end of the spring from the rear track hanger. The old spring is now free. This is the moment to remove the old safety cable. This is the thin steel cable running right through the middle of the spring, designed to contain it if it ever snaps. Carefully unthread it from its mounting points.
Now, just repeat this entire process on the other side of the garage door. And remember, even if only one spring broke, you must replace both. It's the only way to ensure the door stays properly balanced.
Installing the New Extension Springs
Time to put in the new parts. Start by threading your new safety cable through the center of the new extension spring. Never, ever skip this step; it's a critical safety feature. Make sure the cable is long enough to be secured at both ends with just a little bit of slack.
Hook the "stationary" end of the new spring (the one without the pulley) onto the same rear track hanger you just used. You'll often find the color-coded end of the spring attaches here.
Next, reassemble the pulley fork and connect it to the other end of the spring. Carefully route the lift cable around the pulley, making sure it follows the exact same path as the old one. This cable runs down to the bottom corner bracket of the door.
Crucial Safety Warning: That bottom bracket, where the lift cable attaches, is under extreme tension from the door's full weight. Never, under any circumstances, attempt to loosen or remove the bolts holding this bracket to the door.
With the spring and pulley assembly back in place, secure both ends of your new safety cable to the track support hardware. The cable should be able to move freely through the middle of the spring, ready to catch it if it ever breaks down the road.
Re-Engaging and Testing the Door
After you’ve replaced both springs and their safety cables, it's time to bring the system back to life—slowly and carefully. First, go back and double-check every nut and bolt you touched to make sure everything is good and tight.
Now you can remove your C-clamps from the tracks. Be prepared for the door to shift just a little as its weight settles onto the new springs. Manually lower the door by hand. It should feel noticeably lighter and move a lot more smoothly than it did before.
Next, we do the balance test we talked about earlier:
- Lift the door by hand to about halfway up.
- Let it go.
- A perfectly balanced door should stay put, or maybe drift just an inch or two.
If the door slams shut, your springs are too weak or need more tension. If it flies open on its own, they're too strong. You might be able to make a minor adjustment by moving the spring's connection point on the track hanger, but if the balance is way off, there's a good chance you bought the wrong springs.
Once you're happy with the balance, re-engage the opener trolley to the door arm, plug the opener back in, and run it through a full open-and-close cycle. Listen for any weird noises and watch to make sure it's moving smoothly. This methodical approach to garage door extension springs replacement puts your safety first and ensures the job gets done right.
Final Checks to Ensure a Job Well Done
You've put in the work and the new springs are on, but don't pack up your tools just yet. This last part of the job is what separates a quick fix from a professional-quality repair that will last for years.
Think of these final checks as the quality control phase of your garage door extension springs replacement. Taking a few extra minutes here protects your hard work, prevents unnecessary strain on other parts (like your opener), and gives you peace of mind that the door is safe and properly tuned.
Performing the All-Important Balance Test
I know we've mentioned this before, but it's so critical it bears repeating. A perfectly balanced door is the entire point of this repair. If the balance is off, your garage door opener has to do all the heavy lifting, which will absolutely burn out the motor and land you with another repair bill.
Here’s a quick rundown of the test:
- First, pull the red emergency release cord to disconnect the door from the opener.
- Next, lift the door by hand to about waist height.
- Carefully let go and watch what it does.
A well-balanced door will stay put, maybe drifting an inch or two at most. If it slams down, your springs are too loose. If it shoots up toward the ceiling, they're too tight. Either way, you'll need to make an adjustment before reconnecting the opener. For a more detailed guide on this, check out our article on balancing a garage door.
Fine-Tuning Spring Tension
So, your door failed the balance test. No problem—this is where the fine-tuning comes in. You adjust extension springs by moving the S-hook where the spring connects to the track hanger bracket. You'll see several holes in that bracket, and they exist for this exact purpose.
If the door felt heavy and wanted to fall, you need more tension. Move the S-hook to a hole further away from the door. If the door was light and wanted to fly open, you need less tension, so move the hook to a hole closer to the door.
Pro Tip: Patience is your best friend here. Adjust both sides equally, moving just one hole at a time. After every single adjustment, run the balance test again. It might take a few tries to nail it, but getting it perfect is worth the effort.
Ongoing Maintenance for Long-Term Health
Alright, your door is perfectly balanced and running like a dream. Now, let's keep it that way. A little bit of preventative maintenance goes a long way in protecting the investment you just made in time and parts.
Your Post-Replacement Maintenance Checklist:
- Lubricate the Moving Parts: Every few months, hit the rollers, hinges, and pulleys with a good silicone-based garage door lubricant. This is key for smooth, quiet operation.
- Do NOT Lubricate the Springs: This is a common mistake I see all the time. Spraying the springs just attracts a ton of gunk and dirt, which actually does more harm than good.
- Inspect the Cables Regularly: Give the lift cables a good look-over a couple of times a year. You're searching for any signs of fraying, rust, or kinking. A bad cable is a serious safety risk and needs to be replaced immediately.
- Check Hardware Tightness: The daily vibration of a garage door can work nuts and bolts loose over time. Once a year, do a quick check on the track brackets and hinges and snug up anything that's loose.
By running through these final checks and sticking to a simple maintenance routine, you can be confident that your garage door extension springs replacement was a complete success. You haven't just solved the problem; you've set your system up for a long and reliable future.
Your Top Questions About Extension Spring Replacement
Even with the best instructions, you're bound to have a few questions pop up when you're tackling a garage door extension springs replacement. We hear from homeowners all over the Cleveland area about this, so let's walk through some of the things people ask us most.
Getting these details sorted out will help you feel more confident, whether you're wrapping up the job yourself or trying to decide if it's time to call in the pros.
Can I Get Away with Replacing Just One Broken Spring?
I get this question all the time, and while it seems like a smart way to cut costs, it’s one of the worst things you can do for your garage door. It's a classic case of being penny-wise and pound-foolish.
Think of it like this: your springs are a matched set. They've done the same number of lifts, endured the same weather, and have worn down together. If one just snapped, the other one is living on borrowed time.
When you pair a brand-new, high-tension spring with an old, fatigued one, you throw the whole system out of whack. The new spring takes on the lion's share of the load, putting incredible stress on the door panels, tracks, and especially your opener's motor. This imbalance will cause more parts to fail, and you'll be facing a much bigger repair bill soon.
My professional advice: Always, always replace both extension springs at the same time. It's the only way to guarantee a balanced, safe, and reliable door.
How Long Should I Set Aside for This Job?
This really comes down to experience. For a seasoned pro who does this day in and day out, the whole replacement is usually wrapped up in about one to two hours. We've got the muscle memory, the right tools on the truck, and the safety routine down pat.
If you're doing this for the first time, give yourself a much bigger window. I'd recommend blocking out at least three to four hours of uninterrupted time. This isn't a project to rush through before dinner. Taking your time, re-reading the steps, and making safety your top priority is what matters most.
What's the Real Difference Between Extension and Torsion Springs?
It's a great question, because they do the same job in completely different ways.
- Extension Springs: These are the springs we're focused on here. You'll see them running alongside the horizontal tracks on either side of your door. They lift the door by stretching out like a rubber band, storing energy that's released as the door closes.
- Torsion Springs: These are the big, beefy springs you see mounted on a metal shaft right above the door opening. Instead of stretching, they work by winding and unwinding—a twisting force called torsion. Torsion systems are generally considered the modern standard; they're safer, last longer, and give a much smoother, more balanced lift.
The easiest way to tell them apart? Extension springs must have a safety cable running through the middle of the coil. It's a critical feature that stops a broken spring from flying across your garage. We cover the different repair costs in our guide to garage door spring replacement costs.
Why Are My New Springs Making So Much Noise?
A squeaky, groaning noise from a new set of springs almost always points to friction. But surprisingly, the springs themselves are rarely the culprit. More often than not, the noise is coming from the pulleys.
Before you do anything else, check the pulleys. A worn-out pulley with a bad bearing won't spin freely and will protest loudly under tension.
If the pulleys look okay, a quick spray of a silicone-based garage door lubricant can work wonders. Just don't reach for the WD-40! It's a solvent, not a true lubricant, and it will eventually attract gunk and make the problem worse. If a little lube doesn't quiet things down, it's time to have a pro come check the alignment and make sure everything was installed correctly.
