You lock the front door without thinking twice. Then you hit the garage door remote, watch the door shut, and assume that's enough.
A lot of homeowners do exactly that until they're leaving for a trip, dealing with a power outage, or hearing a strange strain from the opener one night. That's usually when the question comes up: is the opener locking the door, or just closing it?
Those are not the same thing.
A garage door lock mechanism is one of the simplest parts on the door, but it's also one of the most misunderstood. Used the right way, it adds a real physical barrier. Used the wrong way, especially with the opener still active, it can create a repair bill fast.
Is Your Garage as Secure as You Think
A common scene goes like this. The car is packed, lights are on timers, neighbors know you'll be away, and someone asks, “Did you lock the garage?” That question sounds simple until you realize the question often implies, “Did the opener close it?”
Closed and locked are different conditions.
If your garage is attached to the house, stores tools, or gives access to another entry door, it deserves the same attention you'd give any exterior opening. The opener motor helps move the door. It isn't the same thing as a dedicated physical lock.
Why homeowners miss this
Many people assume the opener holds the door shut well enough on its own. For day-to-day use, that can feel true. But when you want extra security at night, when you're away for several days, or when the opener is unplugged, a manual lock becomes a different layer entirely.
That layered thinking matters across the whole property. If you're looking at overall home security, a garage lock works best alongside lighting, sightlines, and camera coverage. A practical place to compare those broader options is Networking2000's CCTV guide.
A garage door is often the largest moving entry point on the house. It shouldn't be the least protected.
The real question
Most homeowners don't need a complicated system. They need clear answers to two things:
- When should I use the manual lock
- What happens if someone hits the opener while that lock is engaged
Those are the questions that matter in real houses, especially with kids, guests, tenants, or multiple remotes in circulation. A lock can protect the door. It can also fight the opener if people don't know it's on.
How Your Garage Lock Actually Works
Think of the opener as the part that moves the door. Think of the lock as the part that physically stops it from moving.
That's the key difference.
A garage door lock mechanism is typically a manual side-lock system built around a metal arm or bolt that slides into a fixed bracket on the door track, wall, or floor. It blocks door travel directly instead of relying on the opener, which is why it can prevent forced lifting even if the opener is disengaged or a remote code is compromised, as explained in Clopay's guide to garage door locks.

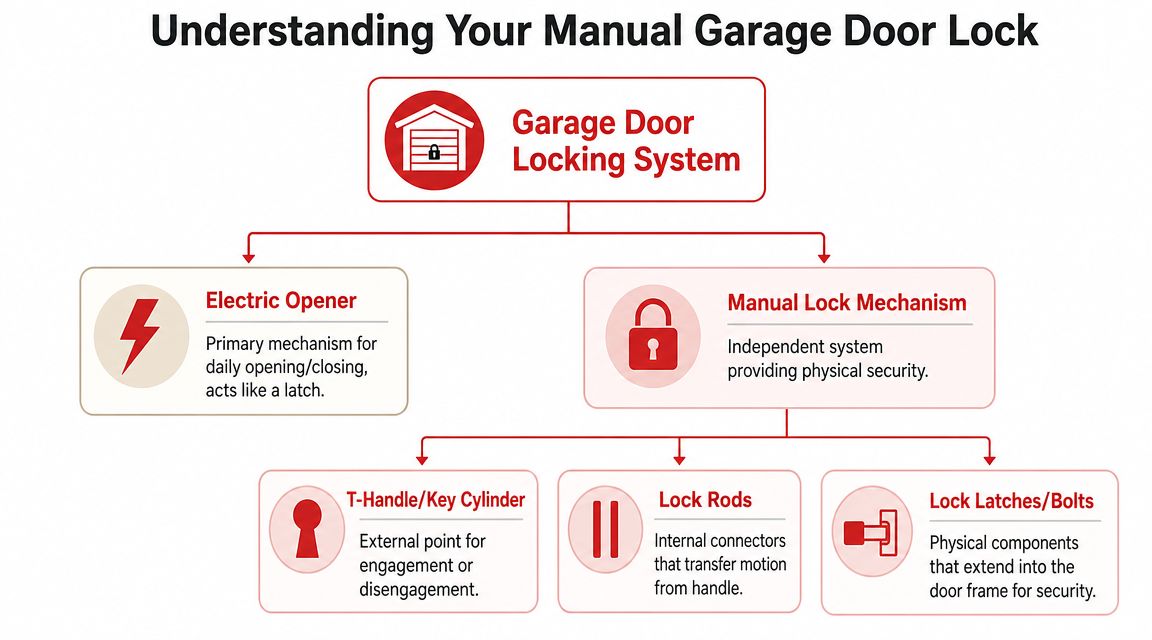

The main parts you'll usually see
On a typical sectional door, the lock system is pretty straightforward:
- Exterior handle or T-handle. This is what you turn from outside if the setup allows exterior access.
- Key cylinder. On keyed models, the cylinder provides securing and disengaging functionality for the handle.
- Square shaft or spindle. This connects the outside handle to the inside latch hardware.
- Slide latch or bolt. This is the part that moves into the track or keeper.
- Lock rods on some systems. These transfer motion so both sides engage together.
If you remove the opener from the equation, the lock works like a deadbolt. It doesn't care whether the power is on. It doesn't care whether the remote battery is dead. It blocks movement.
Why alignment matters so much
The lock only works well when the bolt lands cleanly in the bracket or track opening. If it's off, even a little, you get partial engagement, sticking, or wear.
That's why lock problems often look like small annoyances at first. The key feels rough. The handle needs extra force. The bolt drags instead of sliding cleanly. Those are usually alignment or wear issues, not mysteries.
Practical rule: If the lock doesn't engage smoothly by hand, don't force it and don't try to “power through” with the opener.
If you also want to understand the electronic side of access control, including how remotes and opener signals fit into security, it helps to read about garage door codes and how they work. That part and the physical lock do different jobs.
Common Types of Garage Door Locks
Not every garage needs the same lock setup. The right choice depends on how you use the door, whether you need outside entry, and how old the hardware is.
Some homes do fine with a simple inside slide lock. Others need a keyed outside handle because the garage has no other entry door. Older doors sometimes need a lock that matches existing holes and hardware instead of a full redesign.
The lock styles most homeowners run into

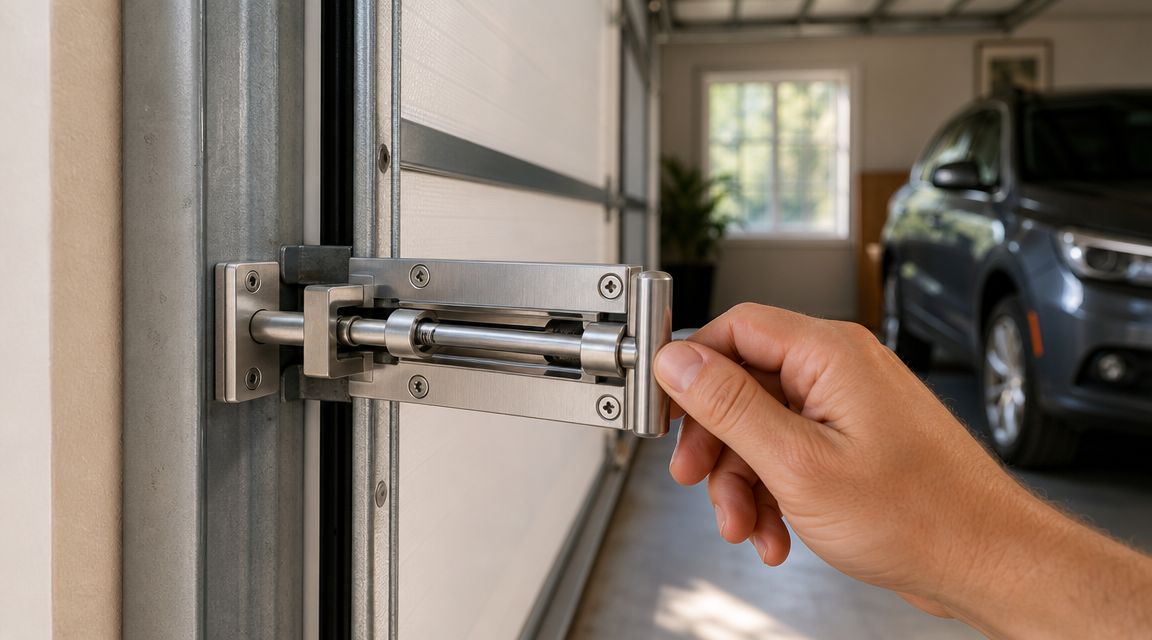

Inside slide lock
This is the plain, dependable option mounted inside the garage near the vertical track. You slide the bolt into the track to block the door from opening. It's simple, and there's not much to go wrong besides misalignment or wear.
It's a good fit when security matters more than convenience and you can still enter the garage through another door.
T-handle lock with inside latch mechanism
This is common on sectional doors that need outside access. A handle-connected inside slide lock latch mechanism uses a square shaft so turning the exterior handle retracts or extends a steel bar into the vertical track. Product specifications can include details such as a 5/16-inch square shaft and a 3-1/8-inch length, which shows how closely the hardware has to match the door's handedness and layout, as shown in this garage door lock latch mechanism product specification.
This style is useful when you need key access from outside during a power outage or if the garage is the main way in.
Opener-integrated or automated locking setups
Some newer systems combine the opener with automatic locking features or smart controls. These can be convenient, but they also add complexity. If the homeowner wants a more modern setup, it's worth comparing that route with automated garage door lock options.
Trolley or opener-side security features
These don't replace a manual physical lock. They address the opener side of the system and can help in certain setups, but they're not the same as a bolt physically securing the door panel to the track or structure.
Garage Door Lock Type Comparison
| Lock Type | Security Level | Convenience | Best For |
|---|---|---|---|
| Inside slide lock | Strong physical security when engaged | Low for daily use | Homeowners with another entry door into the garage |
| T-handle with inside latch | Good physical security with outside key access | Moderate | Detached garages or garages without another service door |
| Opener-integrated lock | Depends on system design and compatibility | High | Newer setups focused on everyday convenience |
| Trolley or opener security feature | Limited as a true substitute for a manual lock | Moderate | Supplemental security, not primary manual locking |
What tends to work best
For many homes, the answer isn't the fanciest hardware. It's the lock people can use correctly every time.
What usually fails in the field is mismatch. Wrong handedness. Wrong shaft size. Bolt doesn't land in the track properly. Exterior handle added to a door that wasn't drilled or reinforced for it. A basic lock that fits the door correctly will outperform a more complicated one that doesn't.

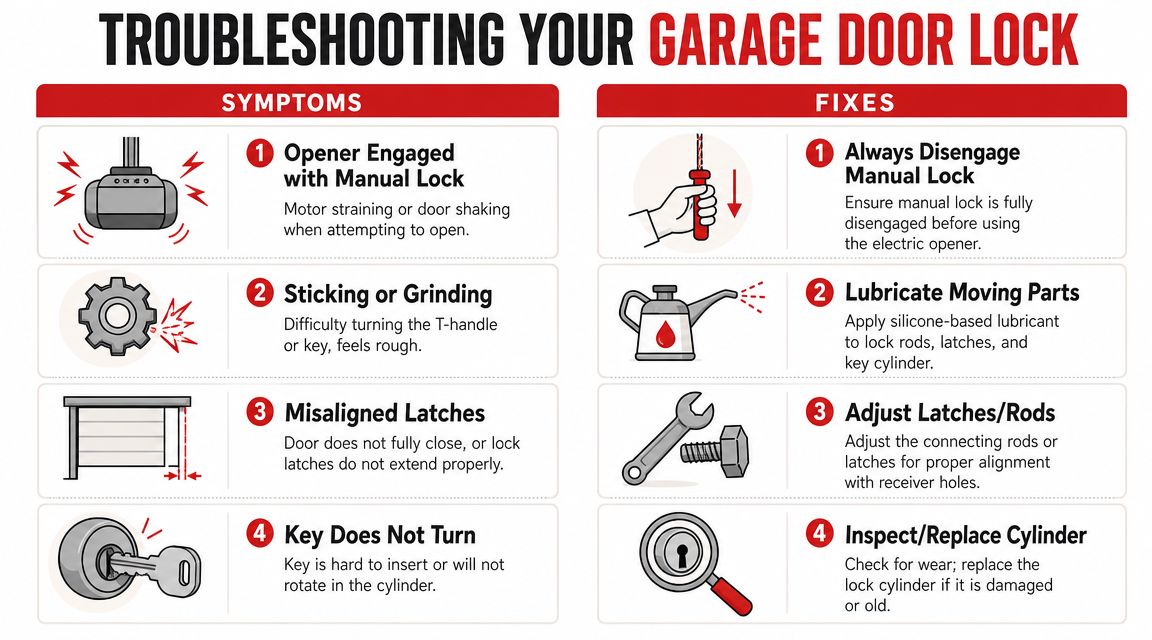

When Good Locks Go Bad Symptoms and Fixes
The most expensive garage lock mistake is simple. Someone locks the door manually, then someone else presses the opener.
That conflict can cause severe damage to the door, tracks, and opening mechanism. Guidance on manual locking warns that engaging slide locks with the opener still active can lead to damage patterns such as bent tracks, stripped gears, and stalled openers, as noted by Continental Door Company's manual lock guidance.
If the opener runs against a locked door
This is the first thing to check when a door suddenly won't open properly.
Watch for these signs:
- Motor hums but the door doesn't lift
- Door jerks, shakes, or rises only slightly
- Track looks bowed or scraped near the lock area
- Top section flexes more than usual
- Opener stops and reverses, or just stalls
Stop right there. Don't keep testing it.
A homeowner can safely do a visual check for obvious track bending, damage near the lock bar, or a bolt still engaged in the track. But if the opener has already strained against the locked door, forcing another cycle often makes the repair worse.
If the door is fighting the opener, the opener is not the place to start. Confirm the lock position first.
Other symptoms that point to lock trouble
Some problems are less dramatic and easier to fix.
Key won't turn
This usually means dirt, wear in the cylinder, or tension on the lock because the door isn't sitting square in the opening. Try relieving pressure by making sure the door is fully closed and settled before you try the key again.
If the key still drags badly or won't rotate, the cylinder may be worn or damaged.
Handle spins but nothing happens
That often points to a disconnected shaft, a loose set screw, or broken internal linkage. The outside handle may feel normal, but it's no longer moving the latch.
This is common on older hardware where screws loosen gradually.
Slide bolt is stiff or won't fully engage
That's often an alignment issue. The bolt and receiving slot have to line up. If they don't, people force the handle, and that starts bending parts.
Check for debris in the track opening and look for a bolt that lands too high or too low.
Safe fixes you can try
- Clean first. Dust, rust flakes, and old grime cause more sticking than people expect.
- Use the right lubricant. A silicone-based product is usually the safer choice for moving lock parts.
- Tighten visible loose hardware. Only if you can reach it easily and the door is stable.
- Test by hand. Engage and disengage the lock manually before reconnecting normal opener use.
Call for service if you find track damage, distorted door sections, opener strain, or hardware that no longer lines up. At that point, it's no longer just a lock issue.
Simple Maintenance to Keep Your Lock Working
Most lock failures don't begin with a dramatic break. They start with neglect. Dirt builds up, the latch starts dragging, the handle gets harder to turn, and somebody ignores it until the day the lock won't move.
A short seasonal check goes a long way.

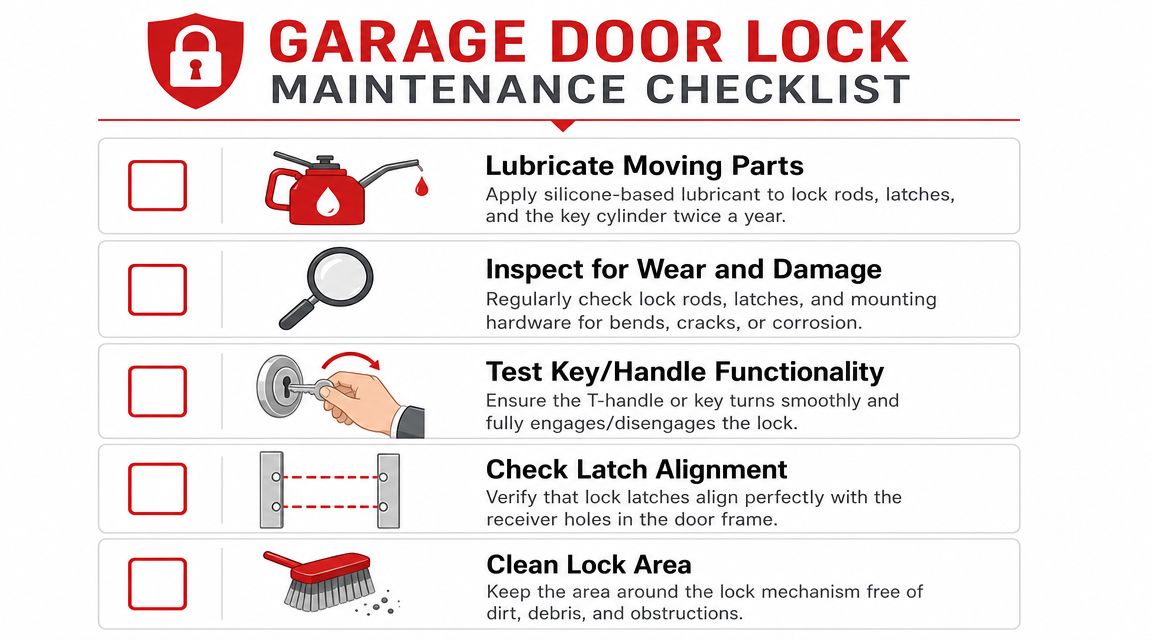

A practical checklist
Before touching the lock, disconnect normal opener operation so nobody activates the door while you're working. That one habit prevents a lot of avoidable damage.
Then work through this:
- Clean the lock area. Wipe down the latch, handle area, and the track opening where the bolt enters.
- Lubricate moving parts. Use a silicone-based lubricant on the slide bolt, rods, and key cylinder if the manufacturer allows it.
- Check mounting screws. Loose hardware can make the whole lock feel sloppy.
- Test the handle or key. It should turn smoothly without grinding or excess force.
- Watch the bolt enter the track. It should land cleanly, not scrape its way in.
What not to do
A few maintenance habits make the problem worse:
- Don't pack the lock with heavy grease. It tends to hold dirt.
- Don't force a stiff latch. Find out why it's binding.
- Don't assume the opener will “pull it straight.” It won't. It usually damages something else.
- Don't ignore small misalignment. Small problems become damaged brackets and bent rods.
Good maintenance is boring. That's the point. A lock that works smoothly shouldn't draw attention to itself.
Why old and new systems both need care
Garage door security has changed a lot over time. The overhead garage door introduced by C.G. Johnson in 1921 and the first electric opener introduced in 1926 changed how residential doors were secured, moving the industry from barn-style closures toward integrated mechanical and electronic systems, as described in this look at garage door history and security development.
Modern systems are better, but they still rely on moving parts staying clean, aligned, and usable.
If you're already doing seasonal checks, it also makes sense to look at related opener reliability issues such as backup power and remote dependence. A quick read on garage door opener batteries helps round out that side of the system.
When to Call Your Local Garage Door Pro
A stuck garage door after someone hit the wall button with the manual lock engaged is a good time to stop and look closer. I see this a lot. The opener keeps trying, the door barely moves, and what started as a simple lock mistake turns into a bent lock bar, damaged top section, or a strained opener arm.
Call a technician if the opener has pushed against a locked door, if the track is bent, or if the lock no longer lines up cleanly with the track opening. Those problems often spread beyond the lock itself. The primary concern is whether the door is still traveling straight and whether the opener or door section took the force.
You should also bring in a pro if a replacement lock requires drilling new holes, the key cylinder spins without moving the bars, or the inside handle feels loose and unpredictable. Part matching matters here. A lock that looks close can still be wrong for the door, the shaft length, or the latch position, and a poor fit usually shows up later as binding or incomplete locking.
Any sign of a cable, spring, roller, or off-track problem moves this out of DIY territory fast. The lock may be the symptom you noticed first, but the safety risk is in the rest of the door system.
Manual locks still have a place. They make sense when you are away for a while, when the opener is unplugged or unreliable, or when you want a physical lock on a detached garage. For daily in-and-out use with an automatic opener, I usually tell homeowners to rely on the opener and only use the manual lock when there is a clear reason. That one habit prevents a lot of avoidable service calls.
For homeowners in Greater Cleveland, one local option is Danny's Garage Door Repair, a licensed, bonded, and insured company serving Pepper Pike, Brunswick, Cleveland, and nearby communities with residential and light-commercial service. They also offer 24/7 emergency help, which is useful when a door will not secure at night or will not open when you need the car out.
Professional service helps keep a lock problem from turning into opener damage, track damage, and a door that is no longer safe to use.
Frequently Asked Questions About Garage Door Locks
Can I add a lock to an older garage door
Often, yes. But it depends on the door material, the existing hardware, and whether the door can accept the inside and outside parts correctly. Retrofitting an outside-access lock can require drilling precise holes and fitting matching inside and outside assemblies, and compatibility can be a challenge on many legacy doors, as explained in Ideal Door's outside-lock guidance.
Are smart garage door locks better than manual locks
They solve a different problem. Smart setups improve monitoring and convenience. A manual lock provides direct physical resistance. For some homes, smart control is enough for daily use. For others, especially when traveling or securing a detached garage, a physical manual lock still has a place.
How do I know if I have a lock problem or an opener problem
Start with the basics. If the door won't move and the opener sounds strained, check whether a manual lock is engaged. If the key or handle feels rough, spins freely, or doesn't move the bolt, that points more toward lock hardware. If the lock is fully disengaged and the opener still struggles, the problem may be elsewhere in the door system.
Should I use the manual lock every day
Usually not if the door is your main daily entry and you rely on the opener constantly. Manual locks make more sense when you want extra security overnight, during travel, during extended periods away, or when the opener is out of service. The key is making sure everyone in the household knows the lock is engaged before anyone presses the remote.
If your garage door lock mechanism feels rough, won't line up, or may have been damaged after someone used the opener against it, Danny's Garage Door Repair can inspect the door, identify the actual failure point, and help you decide whether the fix is a simple hardware adjustment or a larger repair.
