The power is out, rain is moving across Cleveland, and your car is sitting behind a garage door that won't respond to the remote. You look up and see the red handle hanging from the opener rail. Pulling it may be the right move, but only if the door is in a safe mechanical condition.
A garage door manual release disconnects the door from its automatic opener so you can move it by hand. It isn't a universal fix for a stuck door. The door's position, balance, springs, cables, and tracks all matter, especially when the opener is the only thing holding a damaged door in place.
Why Every Garage Door Has a Manual Release
The red cord and handle hanging from most residential opener rails connect to an emergency release mechanism. Pulling the handle separates the garage door from the motorized carriage. Once disconnected, a healthy and balanced door can be moved manually during a blackout or opener failure.
That feature exists for more than convenience. The U.S. Consumer Product Safety Commission reported that at least 85 children had suffered permanent brain injury or died since 1974 in accidents involving automatic door openers. The agency later warned that about 73 children ages 2 to 14 had been trapped and killed under automatic garage doors from March 1982 onward, averaging roughly three deaths per year, as documented in the PubMed record on garage door opener safety.
Those incidents helped drive stronger safety requirements for residential automatic garage door operators. The manual release became a core emergency mechanism because it gives occupants a way to disconnect the door from the opener when electricity fails or the drive system malfunctions.
The red cord is a safety device, not a shortcut.
Think of a storm outage. You pull the release with the door safely closed, lift the door by hand, move the car, and close the door again. That's the simple use case. The risk begins when someone pulls the cord while the door is open, crooked, unusually heavy, or supported by a damaged spring.
Garage door injuries remain a documented concern. Canadian surveillance recorded 622 garage-door-related injuries between 1990 and 2005, while U.S.-focused summaries report around 20,000 emergency-room visits each year from garage-door injuries overall, according to ConsumerAffairs' garage door injury data. The manual release helps in a controlled emergency, but it can't make a mechanically unsafe door safe.

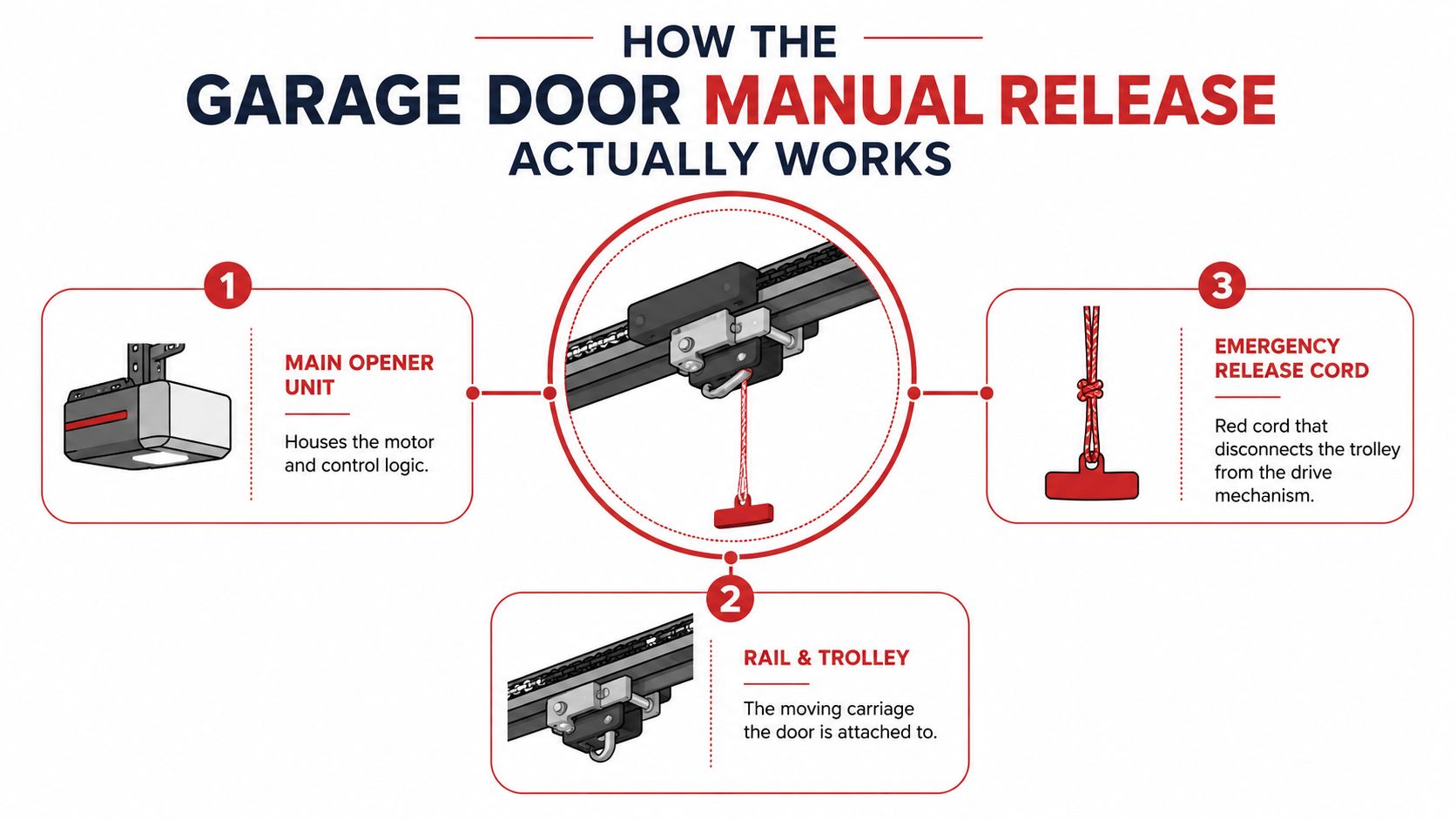

How the Garage Door Manual Release Actually Works
Most residential trolley-style openers use a rail, a moving trolley or carriage, and an arm that connects the carriage to the garage door. The motor moves the carriage along the rail, and the connected door follows.
A simple comparison helps. Think of the opener carriage as a truck pulling a trailer. The trailer moves because it's attached to the truck. Pulling the emergency release unhooks the trailer. The truck, or opener motor, can still run, but it no longer moves the door until the connection is restored.
What the cord changes

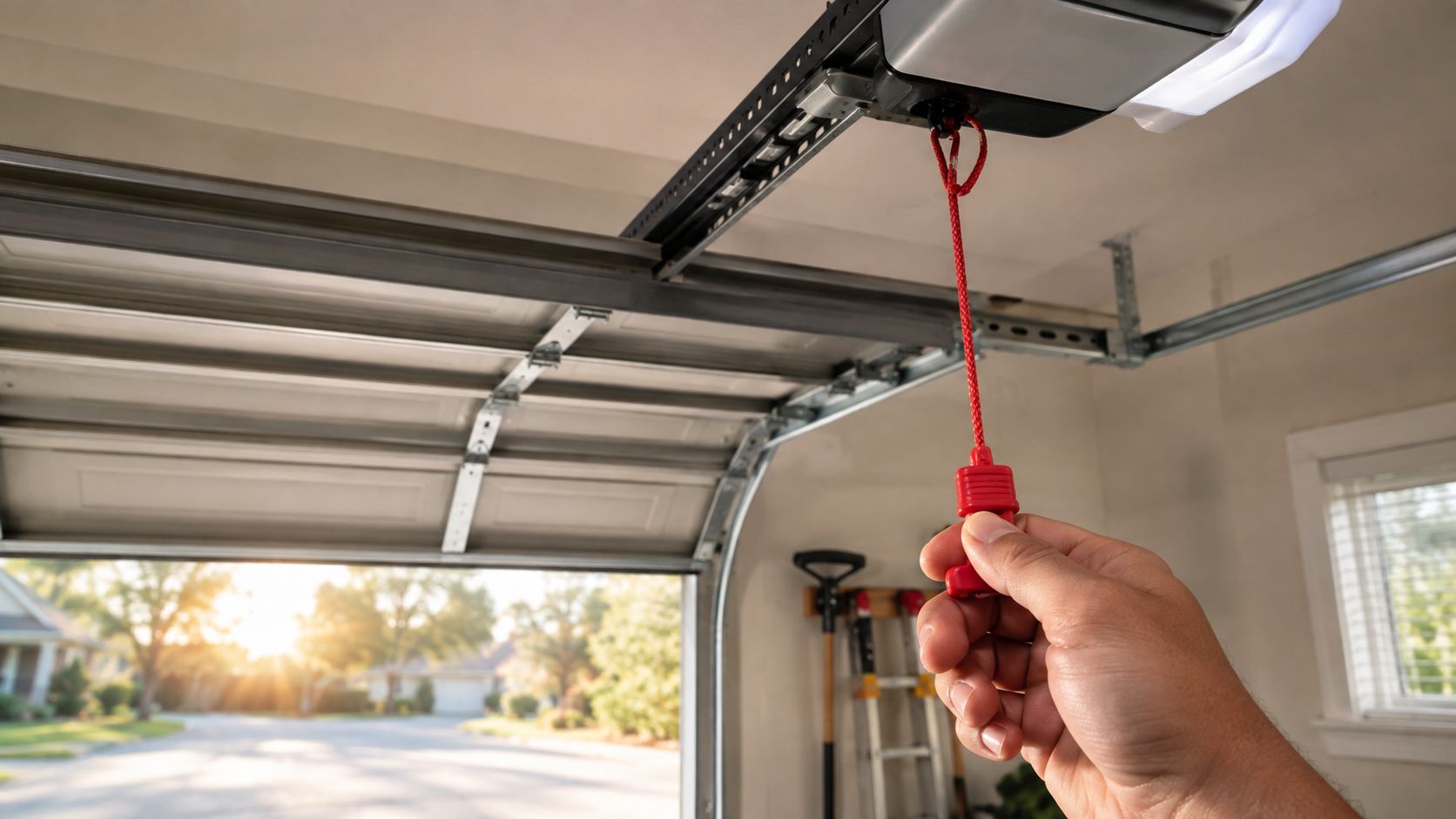

The red handle is attached to a release lever on the trolley. A firm downward pull should trigger a click and disconnect the door from the opener drive. One manufacturer instruction set specifies that the handle should be installed no higher than 1.8 metres from the floor, so an adult can reach it, and describes one firm downward pull as the action that disengages the opener, as shown in this manual-release installation guidance.
After release, the opener no longer controls the door. You must move the door using its handle or the bottom edge, while keeping your hands away from the joints and rollers. The cord isn't meant to carry the door's weight. It operates the latch.
The emergency release must be operable with no more than 50 lb of force in at least one direction of operation, according to industry guidance on automatic garage door safety. That's why the correct motion is a firm pull downward, not a lifting motion through the cord.
Why the door still needs to be sound
Disengaging the trolley doesn't repair a broken spring, bent track, loose cable, or damaged roller. It only removes the motorized connection. A properly balanced door should move smoothly by hand, but any unusual resistance is a warning to stop rather than pull harder.
The opener normally works with the door's counterbalance system. When you disconnect it, your hands become responsible for controlling the door's movement. That's manageable during a normal outage, but it can be dangerous when the door has a mechanical fault.
Using the Manual Release Safely Step by Step
Start with the door fully closed if possible. This position keeps the door's weight supported by the floor and reduces the chance that it will drop when the opener carriage disengages. Chamberlain's manual operating guidance specifically advises using the release with the door fully closed when possible.
Before touching the cord, clear the entire doorway and the area where the door will travel. Move people, children, pets, vehicles, bicycles, storage bins, and tools out of the path. The opener's safety sensors don't protect you while you're moving a disconnected door by hand.
Stand where you can reach the red handle without placing yourself beneath an open door. Pull the cord firmly downward until you feel or hear the trolley click. Don't jerk the cord sideways, and don't use it as a handle for lifting the door.
Move the door with control
Use the built-in lifting handle if the door has one. Otherwise, place both hands on the bottom edge and lift evenly. Keep your fingers away from section joints and track pinch points, and raise the door steadily rather than giving it a sharp tug.
A healthy door should feel reasonably balanced. It shouldn't suddenly become much heavier halfway up, pull toward one side, bind in the tracks, or start falling when you release some pressure. If it behaves that way, lower it carefully if you can do so without standing under the moving sections, then stop.
Never use the release cord to raise or lower the door. It only disconnects the opener.
If the door opens normally, raise it only as far as needed and keep the path clear. Don't leave a questionable door suspended while you walk underneath it. If it won't stay open, guide it down carefully and arrange service instead of trying to hold it in place with your body.
When closing a sound door manually, keep both hands on the handle or bottom edge and guide it down slowly. Make sure the door reaches the floor evenly before you attempt to reconnect the opener.
When You Should Not Pull the Release Cord
The most important question isn't always “How do I pull the red cord?” It's “What condition is the door in before I pull it?”
A partially open door deserves caution. If a spring is weak or broken, the spring may no longer counterbalance the door's weight. Once the opener releases the trolley, the door can fall rapidly and without warning. That's why guidance on when not to use a garage door emergency release emphasizes a fully closed position whenever possible.
Stop when the door gives you a warning
Don't release the opener if the door:
- Feels heavier than normal: Extra lifting force can indicate a counterbalance problem.
- Sits crooked in the opening: One side may be binding, or a cable or roller may have failed.
- Slams shut or starts dropping: The door isn't staying under controlled support.
- Won't stay open: A balanced door should not immediately slide down when raised.
- Looks frozen or jammed: Ice, a blocked track, or a damaged component can make movement unpredictable.
A loud bang, a loose cable, a visibly broken spring, or a door that has come off its track also calls for a professional inspection. Don't touch springs or cables, and don't loosen hardware that may be under tension.
If your car is trapped, the safest choice may be to leave the door closed and call for help. That can feel frustrating during a storm, but a heavy, crooked, or spring-damaged door can create a greater hazard than the outage itself.
Re-Engaging Your Garage Door Opener After Manual Use
Once power returns, don't assume the opener has reconnected just because the door is closed. The trolley must lock back onto the opener carriage before the remote or wall control can move the door.
Return the door to a safe, fully closed position. Then follow your opener model's release instructions. On many systems, pulling the cord toward the door or motor resets the release lever, while moving the door or running the opener allows the carriage to click back into place.
Keep everyone clear of the doorway before pressing the wall button or remote. Listen for the carriage to reconnect, then let the opener complete a full open-and-close cycle without interruption.
If the trolley won't reconnect
Don't force the cord, carriage, or door. Check that the door is fully closed, the release lever is in its normal position, and nothing is blocking the rail. If the opener runs but the trolley doesn't catch, stop cycling it and check the model-specific instructions rather than repeatedly operating a disconnected system.
After reconnection, test the safety reversal and photo-eye sensors. Place no person or pet beneath the door during testing, and don't interfere with the moving sections. If the door reverses unexpectedly, fails to reverse, or makes a new grinding or clicking sound, arrange an inspection.
For a related explanation of opener controls and reset procedures, see this guide to resetting a garage door opener. The exact reconnection process can vary between opener designs, so the manufacturer's manual remains the final reference for your model.

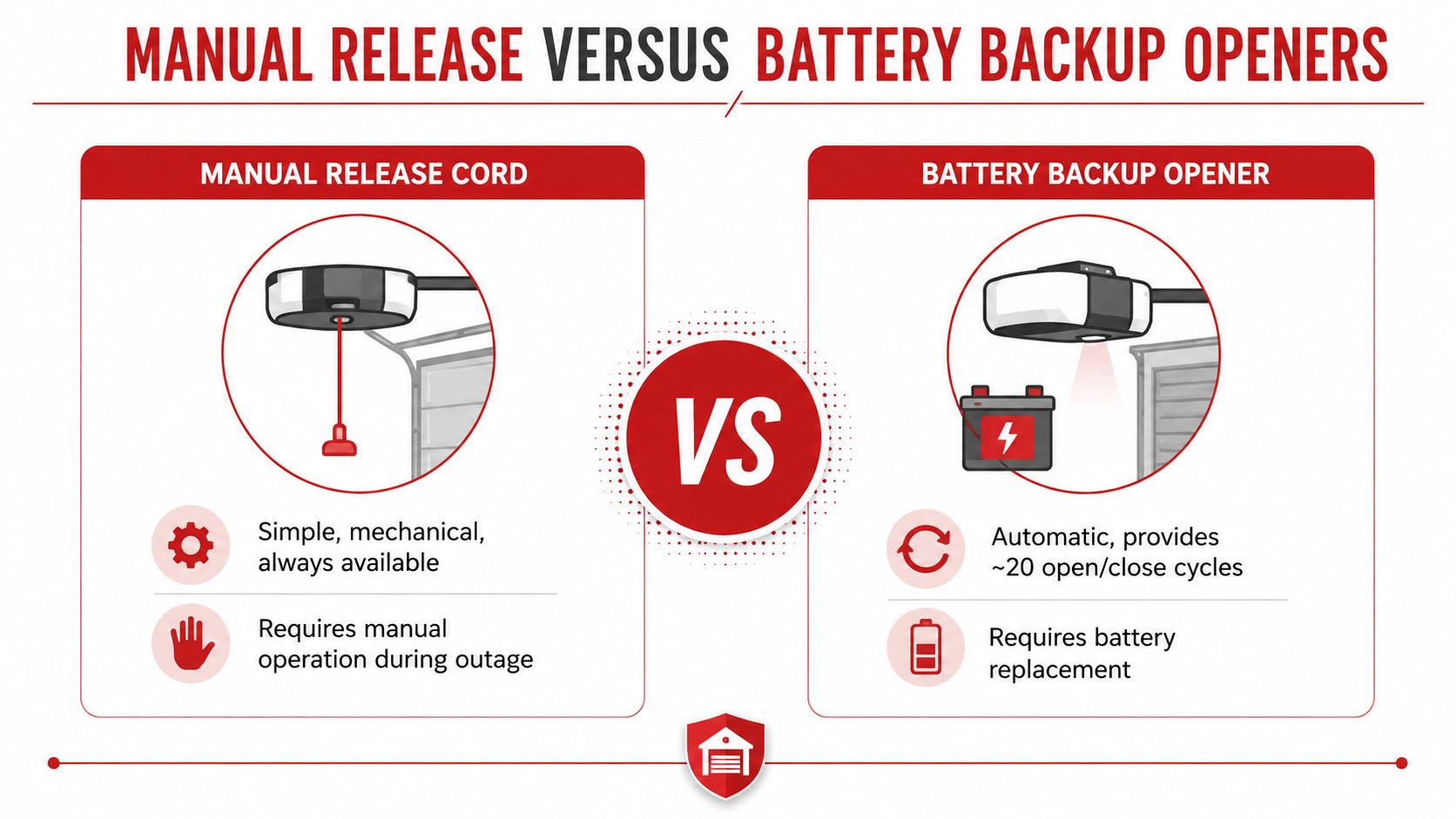

Manual Release Versus Battery Backup Openers
A manual release still works when the power is out because it is mechanical. The tradeoff is physical effort: you must lift a closed, balanced, unobstructed door yourself. Never treat the cord as a solution for a partially open, heavy, crooked, or spring-damaged door. A battery backup opener keeps the motor available during an outage, so the door can operate through its regular remote or wall control.
Recent 2025 to 2026 product coverage describes battery-backed openers as a mainstream replacement option. Some models are designed for roughly 20 open-close cycles during an outage, and backup batteries commonly last about 3 to 5 years, as discussed in this battery-backup buyer discussion. For more details, see this guide to battery backup for garage door openers.
| Factor | Manual Release Cord | Battery Backup Opener |
|---|---|---|
| Outage operation | Manual door movement | Motorized operation |
| Main requirement | A mechanically sound, balanced door | A charged backup battery |
| Effort | Requires physical lifting | Requires normal opener controls |
| Maintenance | Inspect the release and door condition | Replace the battery when needed |
| Best fit | Basic emergency access | Frequent outages or predictable access needs |
These options serve different jobs. A battery backup reduces lifting during an outage, while the manual release remains a fallback if the opener itself fails. In a Cleveland home, rental property, or light-commercial garage, both provide another way to regain access, as long as the door is mechanically safe.
Knowing Your Limits and When to Call a Pro
The manual release is appropriate for a power outage or opener failure when the door is closed, balanced, and unobstructed. It isn't appropriate for a door that feels heavy, sits crooked, slams down, or won't remain open. Suspected broken springs, loose cables, damaged tracks, and off-track doors belong with a trained technician.
If you're also cleaning the garage, these garage door oil stain tips can help with a separate concrete-maintenance problem. For a stuck or unsafe door, 24/7 emergency garage door repair service is the safer route.
