You're standing in the garage, the remote won't open the door, and the old battery is probably somewhere in a junk drawer or buried under the car papers. That's when most Cleveland homeowners search for garage door opener battery size and expect one clean answer. The catch is simple, the opener system can use several different batteries depending on which part you're replacing.
Why One Opener Can Take Several Different Batteries

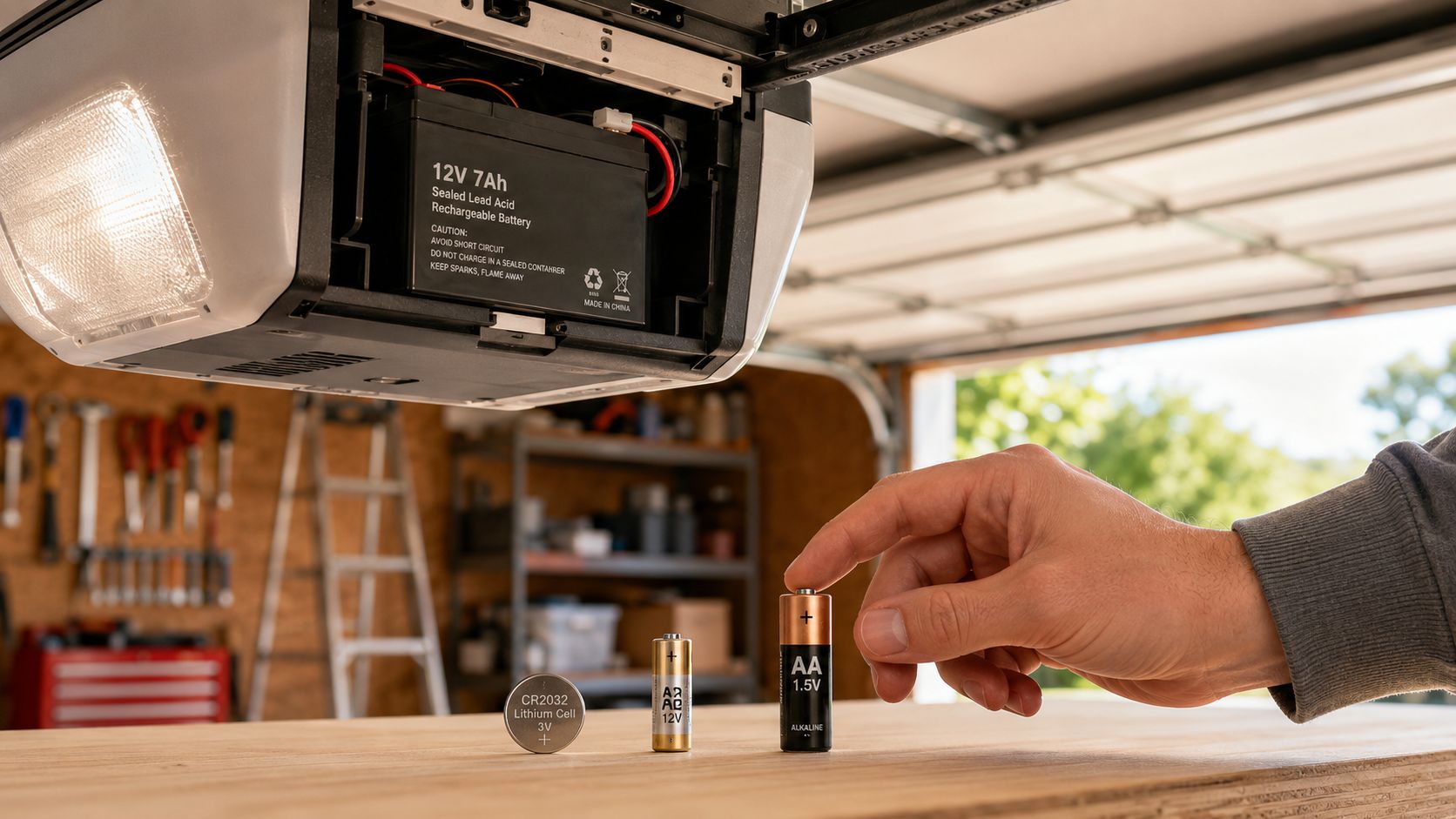

The first mistake is treating the whole opener like it has one battery. It doesn't. A handheld remote, a wireless keypad, a wall console, and the backup battery inside the motor head can all take different cells, and they're built for different jobs.
A remote battery is usually a tiny power source meant to fire a brief radio signal, not run a motor. That's why compact A23/23A 12-volt batteries became common in older transmitters, while newer remotes often use 3V coin cells such as CR2032 or CR2025. Backup power inside the opener is a separate category altogether, usually a 12V sealed lead-acid pack with an amp-hour rating matched to the unit.
Practical rule: don't ask, “What battery does a garage door opener use?” Ask, “Which part stopped working?”
That one question saves time at the counter and keeps you from buying the wrong thing twice. A dead remote, a dead keypad, and a dead backup pack can all look like “the opener is broken,” but the battery size behind each problem is different. If you know which component failed, you're already halfway to the right replacement.

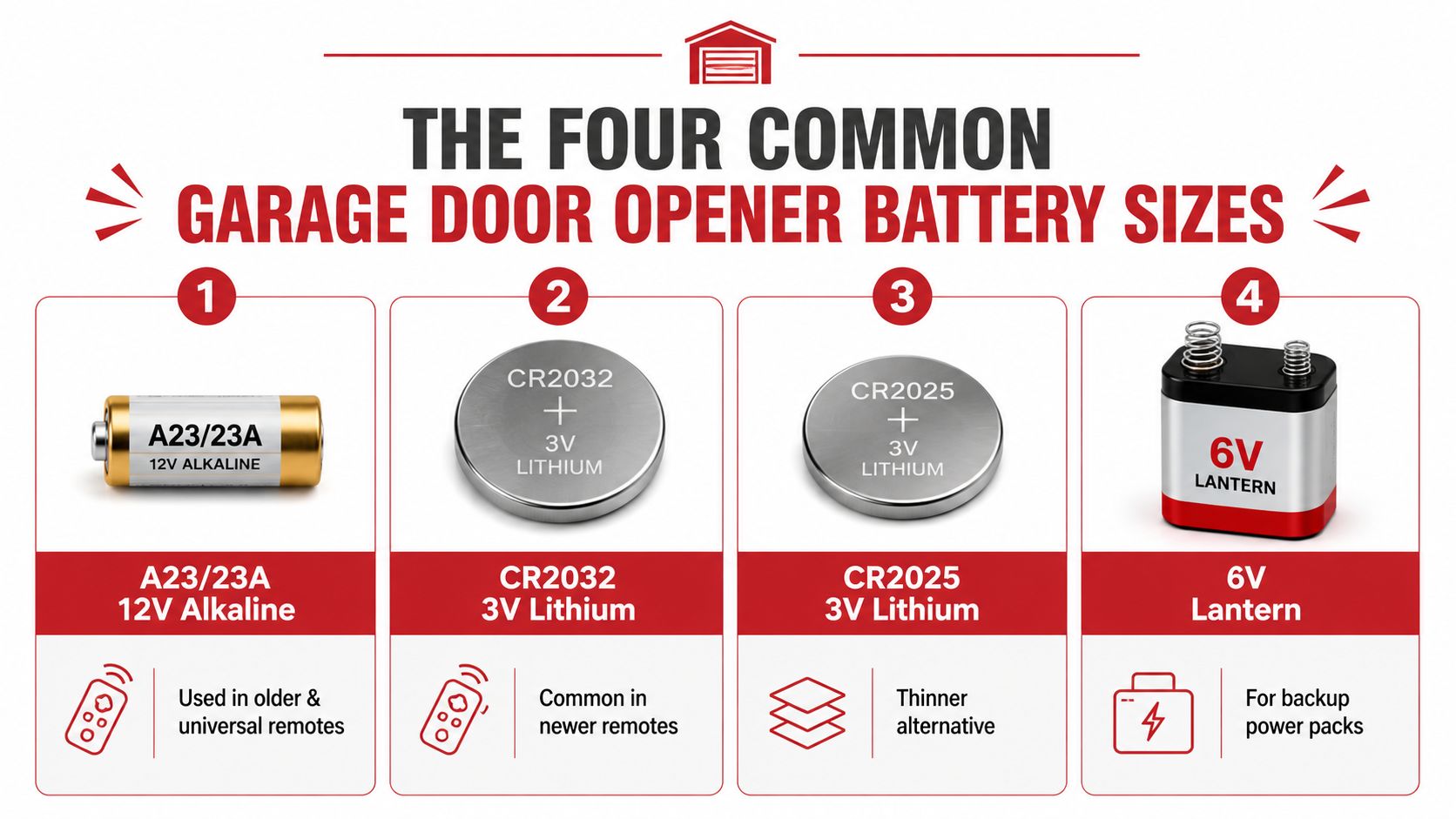

The Four Common Garage Door Opener Battery Sizes
Start with the remote. Older handheld transmitters commonly use the A23/23A 12V alkaline cell, a small cylindrical battery about 10.3 mm wide and about 28.5 mm tall with roughly 55 mAh of capacity. It is built for short RF bursts, not long runtime, so it fits the job even though it looks tiny in your hand battery reference. That size also shows up in universal transmitters and some older garage remotes, which is why it turns up so often at the counter hardware reference.
Modern remotes and many keypads use 3V lithium coin cells such as CR2032, CR2025, or CR2016. The numbering matters. In that code, the first digits point to diameter and the last digits point to thickness in tenths of a millimeter, so a CR2016 is 20 mm across and 1.6 mm thick battery code reference. On a tight battery tray, that extra thickness or lack of it decides whether the cover snaps shut or fights you.
Wall consoles and some older keypads use AA or AAA alkaline batteries. That setup is tied to the accessory itself, not the motor head, so the battery size can differ even within the same garage door system battery guidance. The backup power pack inside the opener is a separate category again, usually a 12V sealed lead-acid battery, often around 4.5Ah to 18Ah depending on the model garage opener battery guidance.
A common residential example is a 12V 5Ah battery with dimensions around 3.58 in × 2.76 in × 4.21 in and an F1 terminal product listing. That is the kind of pack you check against the opener label and the battery compartment before you buy anything.
A battery can look right in your hand and still be wrong in the holder. For opener remotes, the code on the cell beats the shape every time.
How to Confirm the Exact Battery for Your Opener
Start with the manual or the parts page for the exact opener model. Manufacturers often print the battery type right there, and that beats guessing from a photo on a shopping site. If the manual is gone, the next best clue is the molded text inside the compartment lid or on the battery door.
The old battery itself is the final check. Read the code on the label before you toss it, because that code is the answer, not the size your eyes think you see. A CR2032 and a CR2025 can look nearly identical until you check the thickness, and the compartment usually won't forgive a mismatch.
One good habit is to verify the battery code before you leave the driveway. The wrong cell is cheap, but the second trip back to the store wastes more time than the battery costs.
Field rule: voltage alone isn't enough. Match the code, then match the compartment.
For coin cells, use the code pattern to read the size. CR2032 means 20 mm diameter and 3.2 mm thick, while CR2016 is thinner at 1.6 mm code reference. For remotes and keypads, that thickness is often the difference between a snug fit and a cover that won't snap shut. If the compartment marking is readable, trust that before you trust a universal battery chart.
Replacing Remote and Keypad Batteries Step by Step

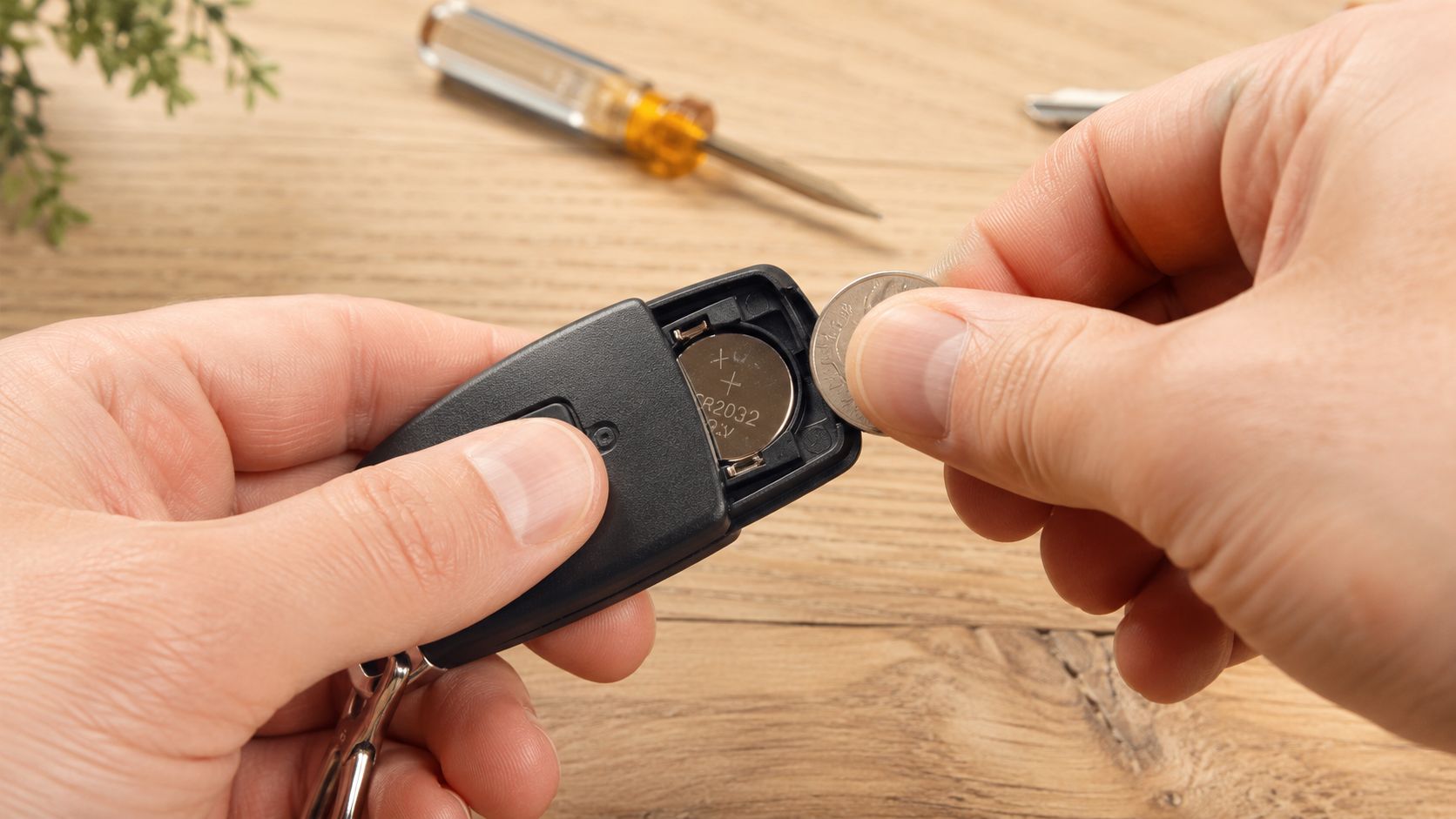

A snap-fit remote usually opens with a coin or a small flathead wrapped in tape, not a pry bar. Work the seam gently, because cracked plastic is a lot harder to replace than a coin cell. If you're dealing with a wall keypad, the same careful approach applies, just with a little more attention to how the cover clips back into place. For a keypad-specific walkthrough, this garage door keypad battery replacement guide is a useful companion.
Before lifting the old battery out, note the polarity. The plus side usually faces one way, and reversing it can keep the remote dead even with a fresh cell. I tell homeowners to snap a quick phone photo before the battery comes out. That one picture prevents half the return visits.
Clean swap habits that actually help
- Match the code exactly: If the old battery says A23, buy A23. If it says CR2032, buy CR2032.
- Keep the contacts clean: A little corrosion or dust on the metal pads can block a good battery from making contact.
- Seat the cell firmly: The battery should sit flat in the holder, not wobble.
- Close the case fully: If the cover doesn't snap tight, the remote may work intermittently or not at all.
After the swap, test it from the driveway and from inside the garage. If the opener responds with a relay click or the diagnostic light behavior changes, the battery change likely did the job. If it still acts dead, the problem may be the keypad, the remote logic board, or the backup system rather than the battery itself.
Swapping the Backup Battery Inside the Opener
The battery inside the motor head is the one homeowners forget until the lights go out. It is usually a 12V sealed lead-acid pack, and it is heavier, larger, and more model-sensitive than the battery in a remote or keypad. If the backup battery weakens, the door may still run on wall power, but outage protection becomes unreliable.
Unplug the opener before you touch the battery tray. That keeps you out of live wiring around the ceiling unit, and it is the safer way to handle a battery-backed operator. Once power is off, open the lens cover or battery compartment, lift the old pack out, and read the label before you order the replacement.
The match has to be more exact than “12V.” You need the same voltage, the same Ah rating, and the same terminal style, which is often F1 on compact residential packs. The case also has to fit the tray, because a battery that is electrically correct but physically oversized still will not do the job. A product example listed as a 12V 5Ah SLA pack measures about 3.54 in × 2.76 in × 4.21 in and weighs about 3.42 lb battery product reference, with another listing showing 3.58 in × 2.76 in × 4.21 in and an F1 terminal product listing.
A backup battery also needs a proper recharge after installation. If the battery sat discharged for too long, performance can drop even if the opener still recognizes it. That matters when you are comparing a weak backup pack to a dead remote, because those failures show up in very different ways.
Do not buy a generic 12V pack and hope it fits. Backup batteries live or die on voltage, amp-hours, terminal orientation, and tray size.
A 12 V lead-acid battery guide helps when you are reading the label and lining up the replacement with the original pack, especially if the opener uses a less common shape.

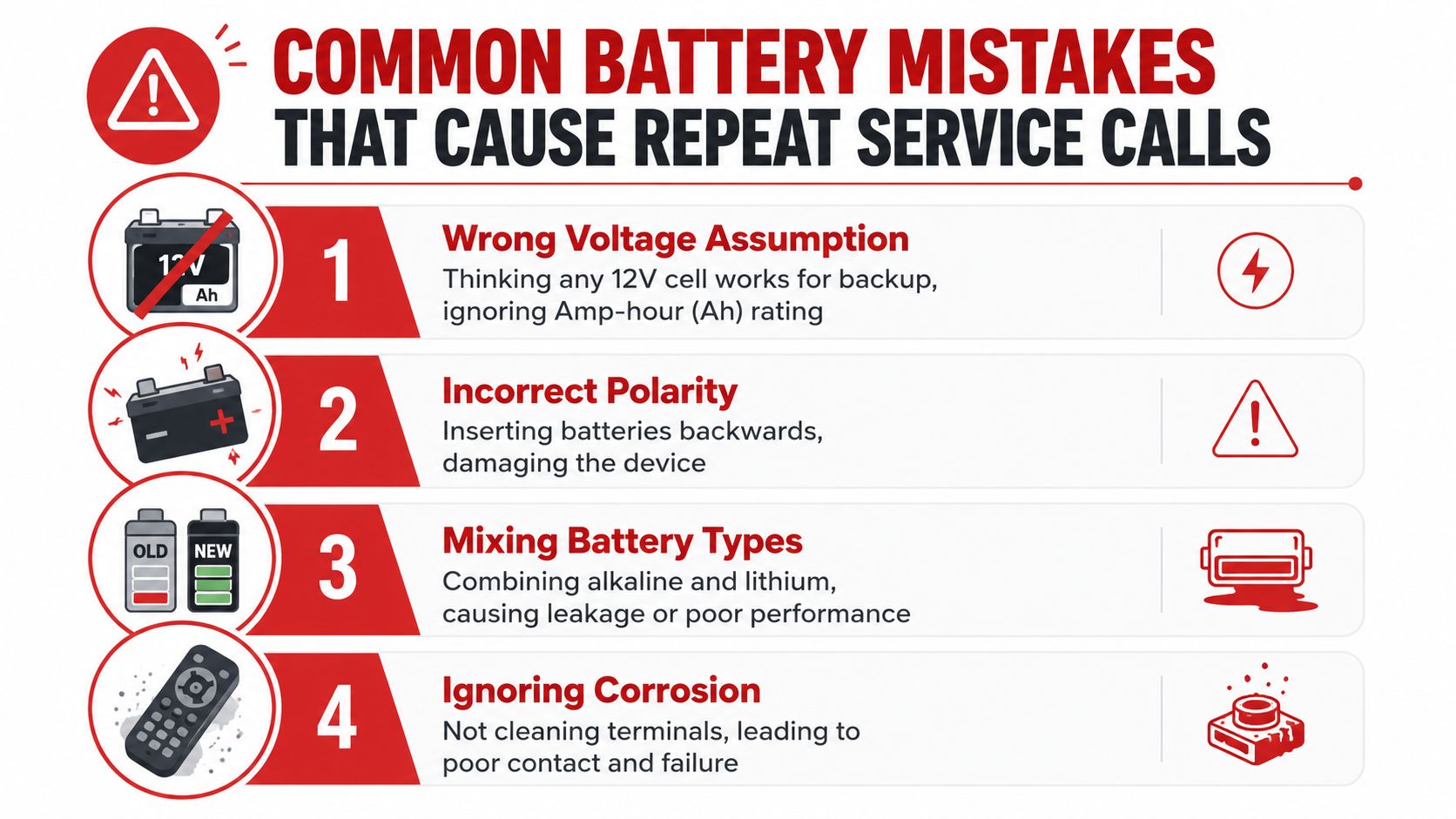

Common Battery Mistakes That Cause Repeat Service Calls
The first repeat call I see is the “any 12V battery should work” mistake. That rule causes trouble on backup packs, because voltage is only part of the match. The Ah rating, the terminal style, and the physical fit all need to line up with the opener's battery tray. A battery can be 12V and still be wrong for the job.
The second mistake is mixing up cells that look close enough to pass a quick glance. A CR2032 and a CR2025 do not have the same thickness, so the holder may not clamp down the right way if the wrong one goes in code reference. The remote may work briefly, then start acting weak or stop responding.
The third mistake is polarity. A battery installed backward can make a remote, keypad, or wall control look dead even when the cell is fresh. Reinstall it the correct way and the device may come back at once, but the wasted time adds up if you skip the check before snapping the cover shut.
The last mistake is ignoring a fading backup pack. Some homeowners expect the opener to recover on its own, but standby batteries do not bounce back once they start to fail. If the opener gives weak outage performance, the fix is a proper replacement, not waiting for a battery that is already past its useful point. For a closer look at standby behavior, the garage door opener battery backup guide is a good reference.
What I tell Cleveland homeowners is simple. Match the battery to the component, then verify the model before you spend money or start tearing open the wrong cover. The remote, keypad, wall console, and backup motor do not all use the same replacement method, and that is where a lot of repeat service calls start.
SLA packs should also be disposed of the right way. They are recyclable, and the guide to commercial battery recycling is a practical starting point when you need a place that takes the old pack.
Testing, Disposal, and When to Call a Local Pro
After a backup battery change, unplug the opener and cycle the door a few times to see whether the unit runs on backup power. Then let the battery recharge before you rely on it again, because a fresh install doesn't mean a fully recovered standby system. If you want a deeper look at standby behavior, this garage door opener battery backup guide is a good reference.
What to do with the old battery
Coin cells and small alkaline cells are easy to forget about, but SLA packs shouldn't end up in the garage trash. They're recyclable, and a proper drop-off keeps lead-acid waste out of the wrong stream. For a practical starting point on recycling options, the guide to commercial battery recycling is useful when you need a place that takes the old pack.
When the battery change isn't the whole story
- The opener shows error lights again: the backup pack may be failing under load, or the charging circuit may need service.
- The battery dies quickly after replacement: the opener may not be charging it correctly.
- The remote still won't work: the issue may be the transmitter, keypad, or receiver rather than the battery.
- The door behaves inconsistently during outages: that's a good sign the backup system needs a technician's eye.
