You've probably got the box sitting in the garage right now. New opener, rails in sections, a bag of bolts that all look almost the same, and a manual that somehow makes a simple job feel harder than it is.
A garage door opener installation kit can absolutely be a manageable project for the right person. But around Cleveland, a lot of garages aren't the clean, open, textbook setups you see in manufacturer diagrams. Older framing, low headroom, patched ceilings, odd outlets, and crooked floors change the job fast. The opener kit matters, but the garage itself usually decides whether the install goes smoothly.
That's why the best approach is to slow down early. Good installs usually feel boring at the start. You measure, inspect, test, and plan. Then the actual mounting goes a lot smoother.

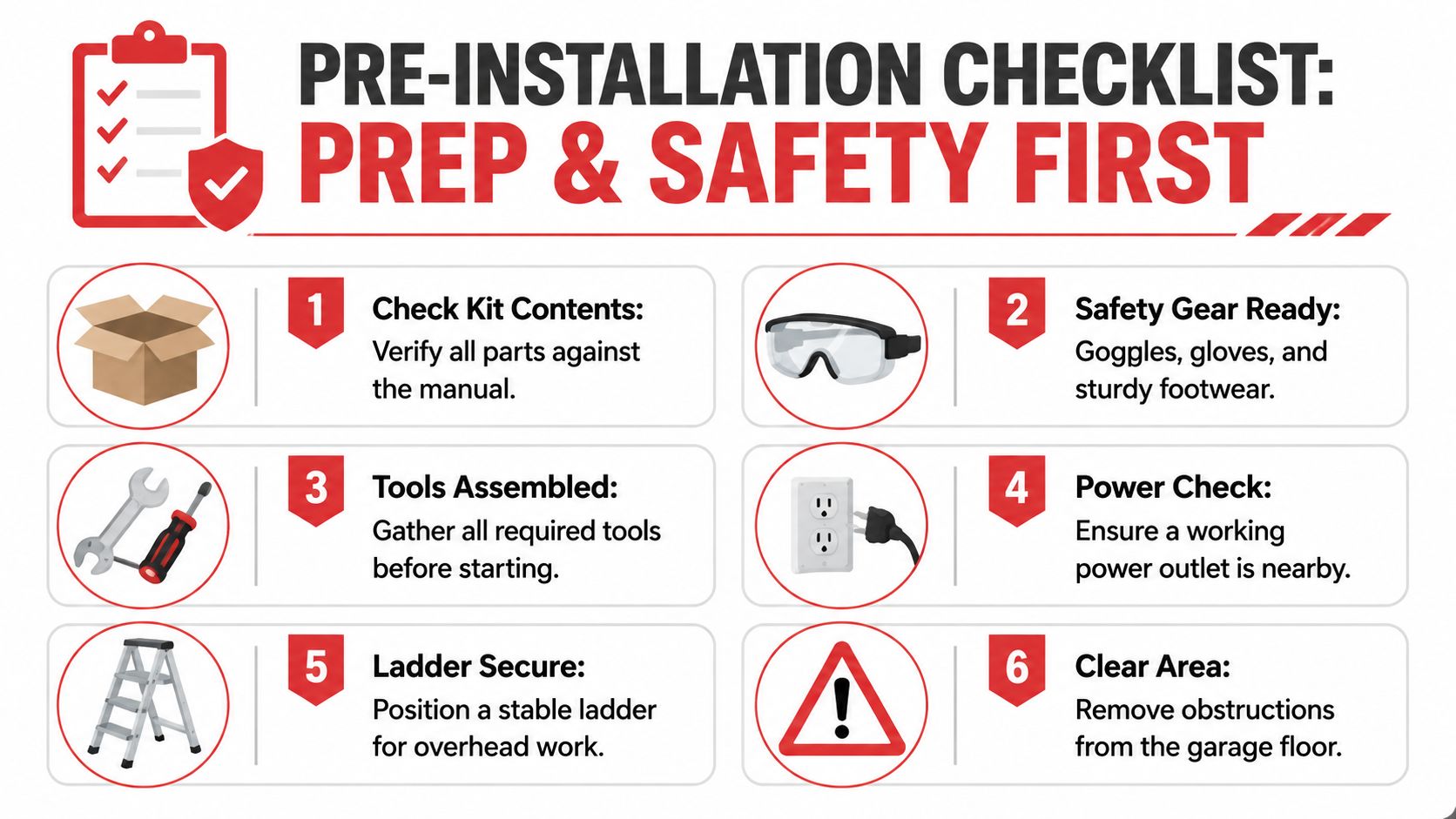

Before You Open the Box Prep Parts and Safety
It usually starts the same way. The opener box is on the garage floor, the old unit is still hanging overhead, and once you look up, you notice the ceiling joists are not where the manual seems to think they should be.
That is normal in Cleveland area garages. A lot of homes here have older framing, patched headers, low headroom, side-mounted outlets, or a floor that slopes enough to throw off quick measurements. The kit may be new, but the garage is often the part that needs the closer look.
Open the manual first. Then open the box.
Lay out every part where you can see it: motor unit, rail sections, trolley, chain or belt, header bracket, hanging brackets, wall control, safety sensors, remotes, and hardware packs. Match those parts to the manual before cutting open every small bag. It saves time, and it helps catch missing pieces before the opener is half assembled on the floor.
Check the door before you touch the opener
Start with the door itself. If the door does not move well by hand, the opener will struggle, wear out faster, or reverse when it should not.
With the old opener disconnected, lift the door manually and lower it again. Watch and feel for binding, jerky travel, scraping rollers, or a spot where the full weight suddenly shows up. A good door should move with controlled resistance and stay reasonably balanced through the travel.
If it feels heavy, hangs crooked, or slams shut, stop and fix the door issue first. Opener settings do not correct bad spring balance, worn rollers, or tracks that have drifted out of line.
Practical rule: A garage door opener is built to guide a properly working door, not drag a bad one open.
Safety gear and work area
Most opener injuries happen during simple parts of the job. A slipped ladder, a drill binding overhead, a steel strap edge across your knuckles.
Set up the space before any assembly starts:
- Wear eye protection right away: Old drywall dust, rust flakes, and metal shavings fall straight down.
- Use gloves when handling brackets and punched angle: The edges are sharp enough to slice you before you notice.
- Work from a stable ladder: If your setup feels wobbly, fix that first. For overhead garage work, this guide on choosing a 16-foot ladder is a useful reference.
- Clear the floor completely: Extension cords, snow shovels, bikes, and storage bins become trip hazards once you start carrying rails and tools.
- Use safe drill and saw habits: If you are cutting support angle or drilling into older framing, this contractor power tool safety guide covers the basics well.
One more thing. Kill power to the opener circuit before removing an old unit or opening any electrical compartment. Do not trust a wall button that happens to be dead.
Older Northeast Ohio garages need a pre-check the manual skips
This is the part box-store instructions usually gloss over. They show a clean ceiling, centered outlet, plenty of headroom, and fresh framing. A lot of garages around here are nothing like that.
Walk the space and check the building before you commit to an opener location:
- Low clearance above the top door section: The rail can interfere with door travel if headroom is tight.
- Old opener replacement holes: Existing lag points rarely line up with the new header bracket or rear hang location.
- Drywall with no visible framing marks: The opener must fasten into joists or solid blocking, not drywall alone.
- Pipes, ducts, conduit, or a garage heater: Any one of these can force a different hang height or support layout.
- An outlet off to one side: Plan for a proper receptacle location. Do not build the install around an extension cord.
- Cracked or patched header wood: The bracket needs sound structure. If the wood is split or soft, add blocking or repair the area first.
I see this a lot in older detached garages: the opener kit is fine, but the mounting plan needs to change. Sometimes that means adding angle iron supports. Sometimes it means installing blocking first. Sometimes it means realizing a standard opener setup will be cramped unless the door hardware or track arrangement is addressed.
If your garage is not standard, treat that as part of the project, not as a surprise halfway through. That little bit of planning is what keeps a DIY install from turning into a Saturday-long fight.

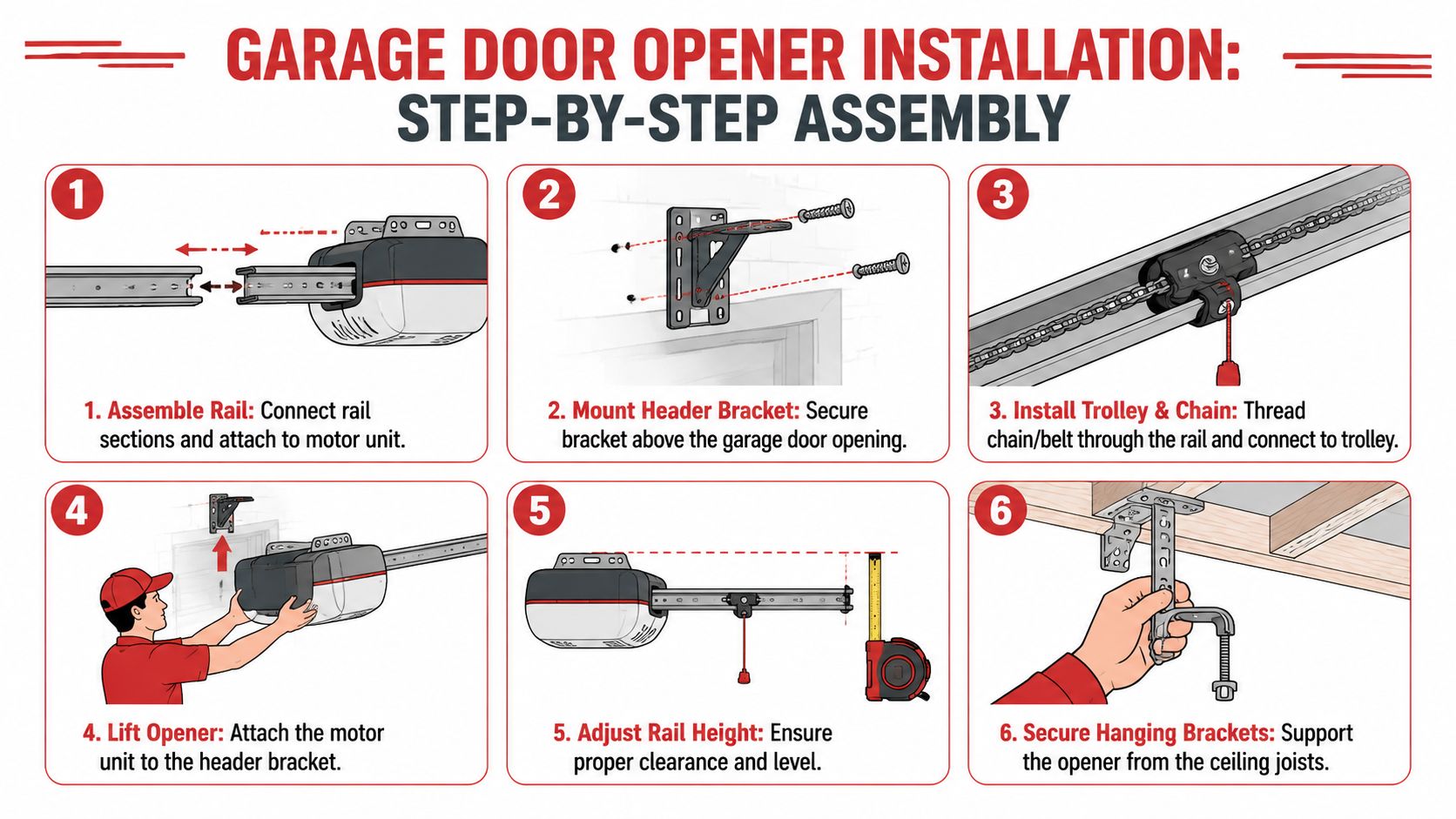

Assembling and Mounting the Opener
A lot of installs start going sideways right here. The opener is half-built on the floor, the ladder is out, and then you find out the rail lines up with an old gas line strap, the ceiling joist is not where you need it, or the header center is not where the old opener was mounted. That is common in older Northeast Ohio garages, especially detached ones that have been patched, reframed, or converted over the years.
The opener goes together cleanest when you build as much as possible on the floor, check alignment before lifting, and mount each piece to framing that can carry the load. Box-store instructions tend to assume a straight, open ceiling and fresh lumber. Real garages are often less cooperative.
Build the rail on the floor first
Lay the rail sections out on the floor in order and assemble them where you have room to see the joints clearly. Install the trolley and route the chain or belt exactly as your opener manual shows. If the kit uses a belt, keep it clean and avoid twisting it during assembly. If it uses a chain, expect to fine-tune tension later after the unit is mounted.
Do not crank every fastener down hard during early assembly. I usually snug things first, then check that the rail is straight before final tightening. A slight twist in the rail can show up later as noisy travel, uneven wear, or a trolley that feels rough halfway through the cycle.
Attach the rail to the motor head only after the rail looks straight on the floor. A bad angle is easier to fix now than when the whole assembly is overhead.
Place the header bracket where the door wants it
The header bracket has to line up with the actual door center and land in solid structure. Those two points sound obvious, but they are where many DIY jobs go wrong.
With the door fully closed, mark the center of the top section and transfer that line up to the header area. Then confirm the bracket height from your opener instructions so the door arm geometry works correctly when the door opens. On older wood headers, probe the mounting area if it looks patched or split. I have pulled off plenty of trim boards that looked solid from the front and found weak filler or old nail holes behind them.
Mounting into trim, sheathing, or a decorative face board will eventually loosen. If the framing is not where you need it, add proper blocking first.
Hang the motor so it stays quiet
A stable opener is usually a quieter opener. Support the motor end on a ladder, find your ceiling framing, and build the rear hangs from steel angle or manufacturer-approved support material. Light punched strap can work for some situations, but in older garages with vibration or uneven framing, rigid angle iron does a better job of controlling sway.
The motor should sit square to the door and the rail should track straight back from the header bracket. Perfectly level is not always the whole story. What matters is that the rail path is straight, the opener is not twisted, and the door arm can move without binding.
A few checks help before final tightening:
- Use matched supports on both sides when possible so the unit does not rock.
- Cut support pieces to fit instead of leaving long unsupported tails.
- Watch for interference with center bearing plates, low rafters, storage racks, and older door hardware.
- Cycle the trolley by hand and look for any point where the rail appears to pull left or right.
If your garage ceiling does not give you ideal mounting points, build the support around the structure you do have. That may mean spanning between joists with angle iron first, then hanging the opener from that. It takes longer, but it is the right fix when the garage is not standard.
Connect the door arm without forcing the top section
Once the motor is hanging securely, connect the trolley arm and door arm. With the door closed, the arm should line up naturally and give the top section room to start its travel without getting yanked backward at a sharp angle. If the arm looks cramped or the top panel flexes when you test the connection, stop and correct the bracket position or arm setup before powering anything.
This part affects more than noise. Bad arm geometry can make an opener work harder than it should and can beat up the top section over time.
If you want a clearer picture of how the opener wiring routes after the mechanical install is done, this guide on garage door opener wiring and control connections is a useful follow-up before you start attaching the wall control and safety sensors.

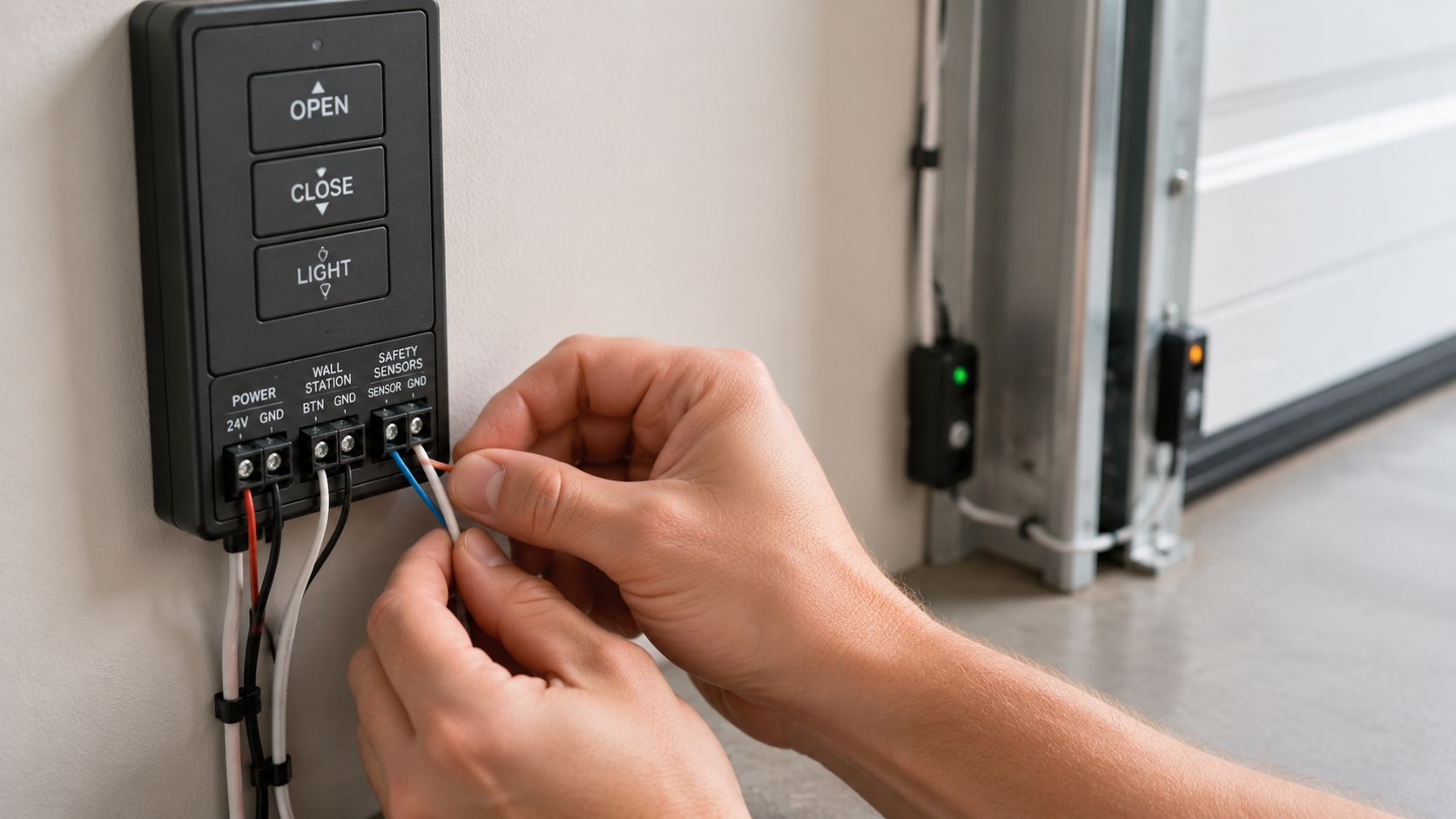

Wiring the Controls and Safety Sensors
A lot of homeowners treat wiring as the last little chore. It isn't. The controls and safety sensors are what make a modern opener safe for people, pets, and vehicles.
The U.S. Consumer Product Safety Commission has a finalized standard for garage-door entrapment safety, which reflects ongoing regulatory attention to proper sensor and force setup in modern openers. That's why this part isn't optional or cosmetic. It has to be right, as discussed in this garage door entrapment safety reference.
Mount the wall control where it belongs
The wall control should be mounted within sight of the door and at least 5 feet above the floor in commonly used installation guidance. That keeps it visible and out of easy reach for small children. Pick a spot near the access door if possible, somewhere convenient but not behind shelving or a parked vehicle path.
Run the low-voltage wire neatly along framing or wall surfaces. Keep it secured so it doesn't sag, snag, or get pinched later. If you want a more detailed walkthrough on routing and connections, this guide on wiring a garage door opener is a solid companion.
Photo-eye sensors are the part you don't rush
The sensors should sit about 6 inches above the floor and face each other directly. Their whole job is to detect an obstruction in the doorway. If they're too high, crooked, loose, or blocked by stored items, the opener can behave unpredictably.
Common mistakes I see all the time:
- One bracket twisted slightly inward: Looks fine until the door starts reversing randomly.
- Wires left loose at the track: They get snagged by rakes, bins, or kids.
- Sensors mounted to shaky metal: Vibration knocks them out of alignment.
- Sunlight and clutter ignored: Bright glare and stored objects near the lens can create headaches.
If the sensors don't have a clean line across the opening, the opener shouldn't be trusted yet.
Many systems show proper alignment with a stable light pair. On many setups, that means one sensor shows solid amber and the other shows solid green after alignment. Don't settle for flickering.
Keep the wiring tidy
Neat wiring isn't just for looks. It prevents intermittent faults later.
Use insulated staples or the fastening method your opener maker recommends. Don't crush the wire. Don't drape it across moving hardware. Give yourself a little slack at terminals, but not enough for loops to catch on tools or storage.
Once everything is connected, step back and look at the install from the driveway. If you can already spot dangling wire, the garage door will eventually find a way to snag it.
Calibrating the Opener for Perfect Performance
At this stage, the opener is mounted and wired, but it still doesn't know how your door should move. Calibration is where you teach it the right behavior.
This is the step many DIY installs shortchange. Performance isn't just that the door opens. Force, travel, and sensor behavior all need to be calibrated, and strong installs end with a stable sensor light pair and a clean remote pairing cycle, as explained in this garage door opener calibration guide.
Set travel limits first
Travel limits tell the opener where the fully open and fully closed positions are. If these are off, the door may stop short, slam into the floor, or reverse for no obvious reason.
Think of the limits as the opener's memory of the door's route. You're teaching it where the trip ends in each direction.
A good approach is simple:
- Start with small adjustments: Big changes create new problems fast.
- Watch the bottom seal closely on closing: It should meet the floor without crushing hard into it.
- Check the open position too: The door should stop cleanly without over-pulling the top section or carriage.
Dial in force with care
Force settings control how hard the opener pushes or pulls before it decides something is wrong.
Too much force can make the opener fight through resistance it should react to. Too little force can make it reverse when the weatherstrip touches the floor or when the door hits a normal bit of drag. Many people get impatient and crank the setting too far at this point.
A well-set opener sounds controlled. It doesn't slam, strain, or keep “trying harder” than it needs to.
Pair remotes and test actual safety behavior
After travel and force are set, pair the remotes and keypad if your kit includes one. One commonly used guide notes a remote learn cycle within about 30 seconds, so have your remote in hand before you press the learn button.
Then do the tests that matter:
| Check | What you want to see |
|---|---|
| Sensor interruption test | Door reverses when the beam is blocked |
| Contact reversal test | Door reverses if it meets resistance |
| Remote learn cycle | Remote pairs cleanly and operates consistently |
| Manual movement check | Door still moves smoothly by hand when disengaged |
If the door doesn't reverse on contact or when the beam is interrupted, it's not ready for service yet. Go back and correct the settings.
Troubleshooting Common Installation Hiccups
Fresh installs almost always need a little fine-tuning. The key is to diagnose the symptom, not just start turning screws at random.
A lot of post-install issues trace back to the same handful of mistakes: skipping the pre-install balance check, failing to center or level the rail, or not securing sensor wiring well. Those errors often show up as noisy operation, repeated reversals, or intermittent sensor faults instead of a total breakdown.
If the door reverses before fully closing
Start with the sensors. Look for blinking or unstable lights, loose brackets, or stored items near the beam path. Then check the down travel limit. If the opener thinks the floor arrives early, it may reverse before the door is closed.
Also look at the rail. If it's not centered or level enough, the trolley can bind near the bottom of travel and trigger a reversal.
If the opener is loud or shaky
Noise usually points to mounting or alignment.
Check these first:
- Ceiling supports: If the motor is swaying, the hanging brackets may be too light, too long, or fastened poorly.
- Rail straightness: A twisted rail can make the trolley chatter.
- Chain or belt tension: Too tight creates strain. Too loose creates slap and rattling.
- Door arm geometry: If the arm is at an awkward angle, the opener will sound rough even when the motor is fine.
If the remote won't pair or works only sometimes
Start over with the learn process instead of guessing. Stay close to the motor unit, press the learn button, and complete the pairing within the opener's allowed window. Weak battery issues are common too, so don't overlook the obvious.
If the wall control works but the remote doesn't, that usually narrows the problem to pairing, battery, or accessory programming rather than the whole opener.
Most “bad opener” calls right after installation turn out to be setup issues, not defective hardware.
If the door stops partway or strains
Disconnect the opener and test the door manually again. If it feels heavy or catches in the tracks, the opener is only exposing a door issue that was already there.
Then inspect the install itself:
- Confirm the header bracket is still solid.
- Make sure the motor is hanging square.
- Recheck trolley movement through the full rail.
- Verify no wiring or hardware is rubbing against moving parts.
A calm reset beats random adjustments. Change one thing, test it, and move on only after you know what fixed the problem.

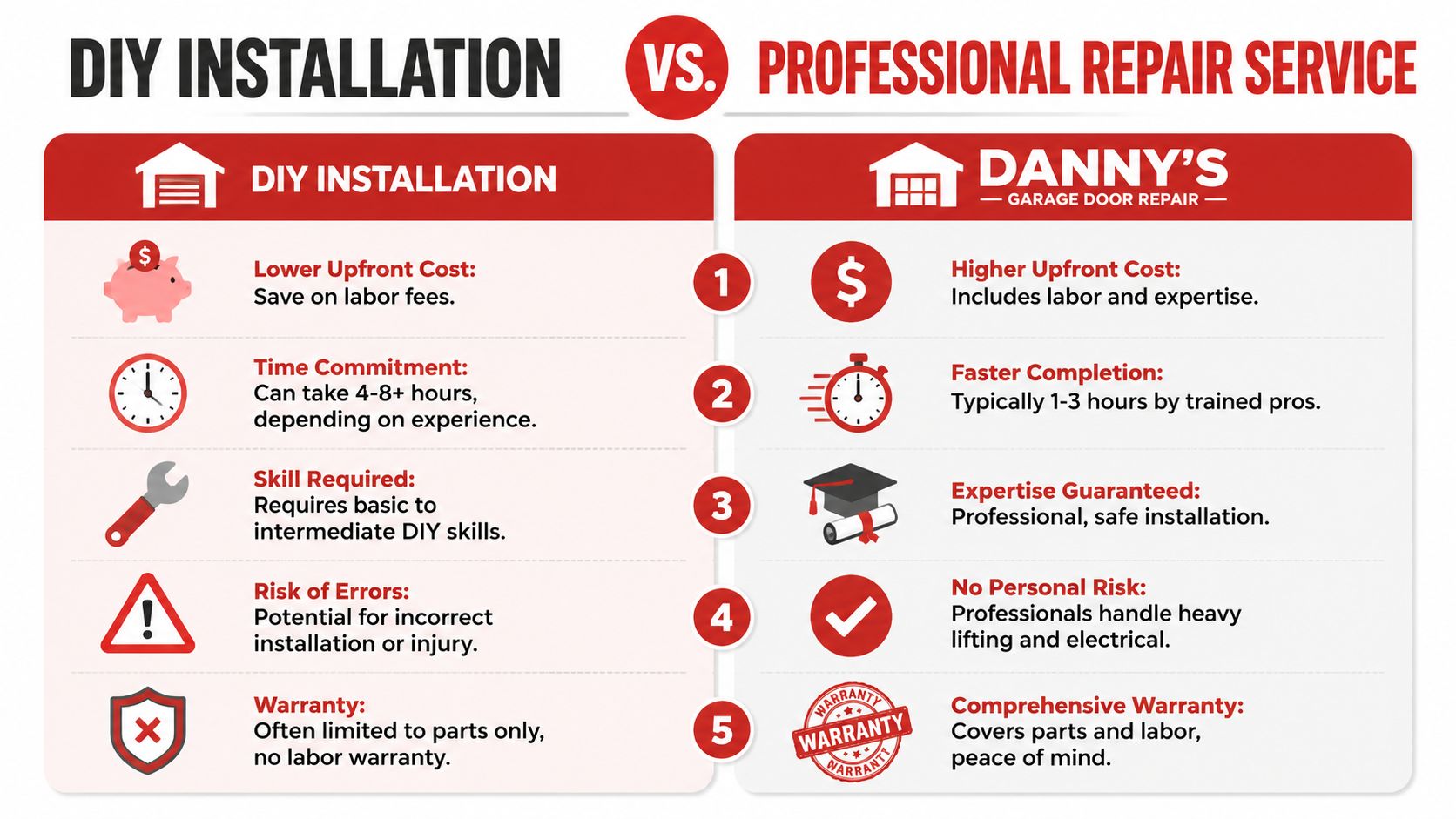

DIY vs Calling Dannys Garage Door Repair
Saturday morning in Cleveland, the opener box is open, the ladder is out, and by noon a lot of homeowners hit the same point. The rail is up, but the ceiling joists are not where the manual assumed, the old outlet is in the wrong spot, and the door opening is just crooked enough to make every adjustment take twice as long. That is usually when the DIY vs pro decision often arises.
A garage door opener installation kit can save money if the garage is straightforward and the door is already in good shape. In a newer, standard garage, many handy homeowners can get it done. In older Northeast Ohio homes, the box-store instructions leave out the part where framing has been altered, header surfaces are not flat, and replacement work rarely lines up exactly with the old opener.
What the numbers say about professional installation
Professional installation of a garage door opener kit typically costs $218 to $540, with an average of $379, and labor usually takes 2 to 6 hours, according to this garage door opener installation cost breakdown. That price makes more sense once you factor in overhead mounting, sensor setup, travel adjustments, and the time it takes to correct a garage that is not built to textbook dimensions.
The same cost guide says opener units often run $200 to $900. That gap matters. A good opener can still perform poorly if it is mounted to weak framing, paired with a door that is out of balance, or set up with sloppy travel and force adjustments.
If you are comparing your options, this local guide to garage door opener installation cost helps you budget the full job, not just the box on the shelf.
When DIY makes sense
DIY is a reasonable choice when the garage is predictable and the installer is comfortable working methodically.
It usually goes well when:
- The door runs smoothly by hand before the opener goes in
- The mounting points are solid and easy to find
- There is enough headroom and no odd ductwork, shelving, or low ceilings in the way
- You are comfortable on a ladder with drills, sockets, and measuring tools
- You will stop and correct a problem instead of forcing parts to fit
That last point matters more than people expect. A lot of bad installs start with one small compromise, like using the wrong angle iron, shifting the header bracket off center, or mounting the motor where it fits instead of where it should go.
When calling a pro is the smarter move
Call a pro when the garage is unusual, the door has existing issues, or the install starts raising structure and safety questions. That is common in Cleveland area garages with patched framing, settled slabs, old wood headers, low clearance, or a previous opener that was mounted in a way nobody would choose twice.
Professional help is the better bet when:
- The garage has low headroom or nonstandard framing
- The old opener location does not line up with the new rail and power head
- The door is heavy, jerky, or noisy before installation
- You are not fully comfortable setting travel limits, force, and safety reversal
- You need reliable operation for a rental or a detached garage you do not want to revisit next weekend
There is also a safety side to this. One industry article reports that 73% of all garage door opener failures occur within the first two years of installation, improper installation causes opener systems to fail 2.3 times more often than correct installs, 68% of garage door injuries are linked to bad installation, and DIY attempts fail 45% more often than professional installations (https://ohdctexoma.com/5-surprising-stats-about-garage-door-installation-failures-that-every-property-owner-should-know/). Take those numbers as a reminder of the bigger point. Installation quality affects both lifespan and safety.
If your opener also connects to cameras, app controls, or a larger automation setup, it can help to hire trusted smart home pros for the connected side so the opener, network, and smart controls work together without odd glitches.
My rule of thumb is simple. If the job has turned into a framing problem, a door-balance problem, or a sensor-alignment problem, it is no longer basic opener installation.
If you are in Greater Cleveland and want it done cleanly and safely, Danny's Garage Door Repair can help. We install and program openers, fix door issues that would wear out new equipment, and deal with the oddball garage setups that generic instructions never account for.
