Garage Door Opener Keypad Not Working? Fix It Fast

You press the code, wait for the familiar click, and get nothing. A blank keypad or a faint red blink can turn a routine arrival into a stressful problem, especially when the garage is your only easy entrance. Before you assume the opener has failed, use a short diagnostic path that starts with the most likely cause and moves toward programming, compatibility, interference, and hardware checks.

Most modern garage door openers use rolling-code security, which means the opener expects a changing access sequence rather than one permanent code. Industry timelines place the move to rolling-code systems for major brands around 1993 to 1997, including families such as Security+, Intellicode, and CodeDodger. That history matters because a keypad can appear powered while its transmitter and the opener's receiver are no longer synchronized. (Garador's explanation of rolling-code technology)

You're Stuck Outside and the Keypad Won't Budge

You pull into the driveway after dark, groceries balanced against one arm, while the kids wait in the back seat. The keypad lights weakly, or it stays completely blank. You press the code again, harder this time, but the garage door still refuses to move.

This kind of failure is especially frustrating during Northeast Ohio's rain, snow, and freeze-thaw weather. The keypad may have worked that morning and then stopped after moisture, cold, a weak battery, or a lock setting changed the symptoms. That doesn't automatically mean the motor, spring system, or entire opener needs replacement.

Start with the simple question a technician asks over the phone: does any other control open the door? If the wall button works, the opener motor and primary receiver may be fine, leaving the keypad, its battery, its settings, or its pairing as the likely trouble area. If the remote and wall control also fail, stop treating this as only a keypad problem and inspect the opener-side system.

Rolling-code systems create a communication relationship between a low-power wireless keypad and the receiver in the motor unit. A weak battery can power a display or backlight without sending a reliable signal, while a lost pairing can cause the opener to reject an otherwise correct PIN.

For broader home-entry planning, homeowners who depend on a garage as a primary access point may also benefit from practical CCTV and access control advice. For the immediate problem, though, the first checks are quick. Within about a minute, you can usually identify whether the likely cause is battery power, lock mode, or keypad synchronization.

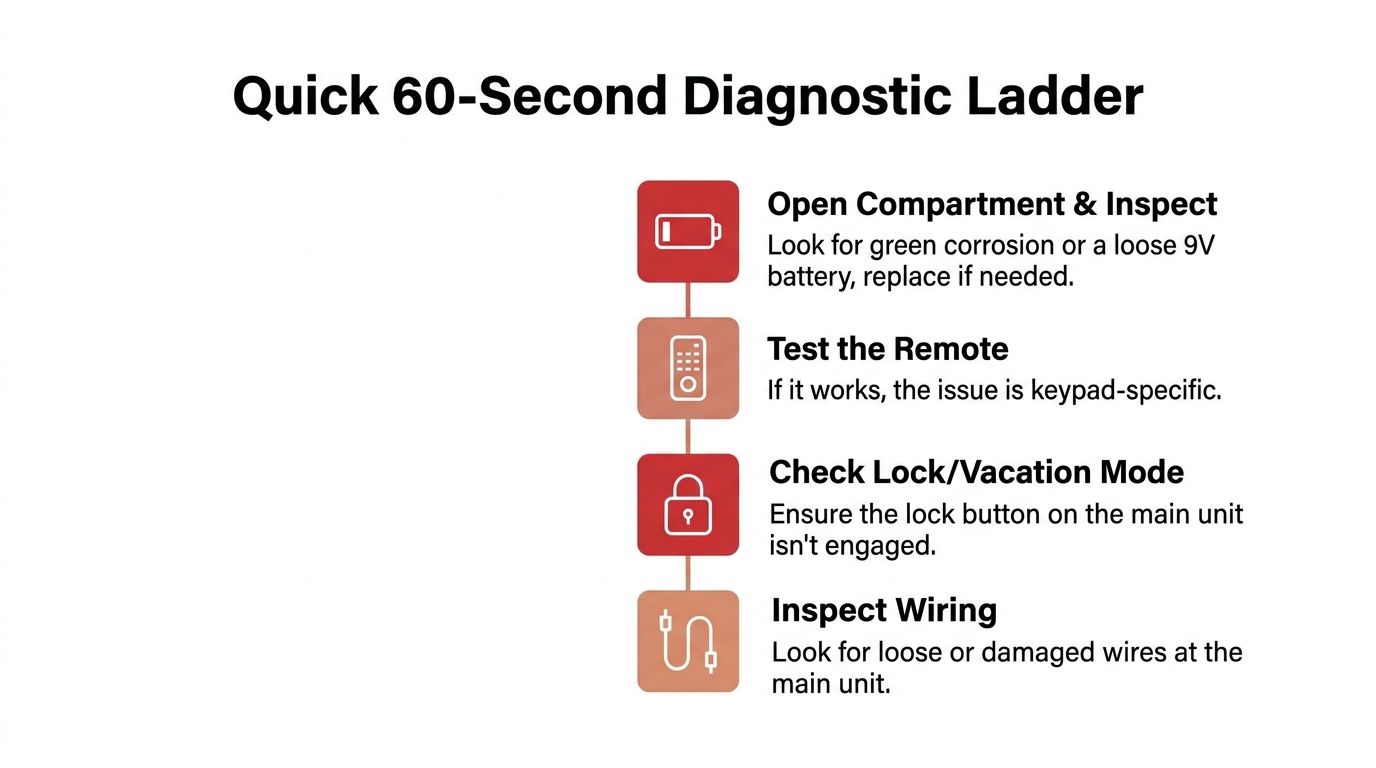

Quick Checks You Can Do in Under a Minute

Use this order. It prevents you from spending time reprogramming a keypad that has a weak cell.

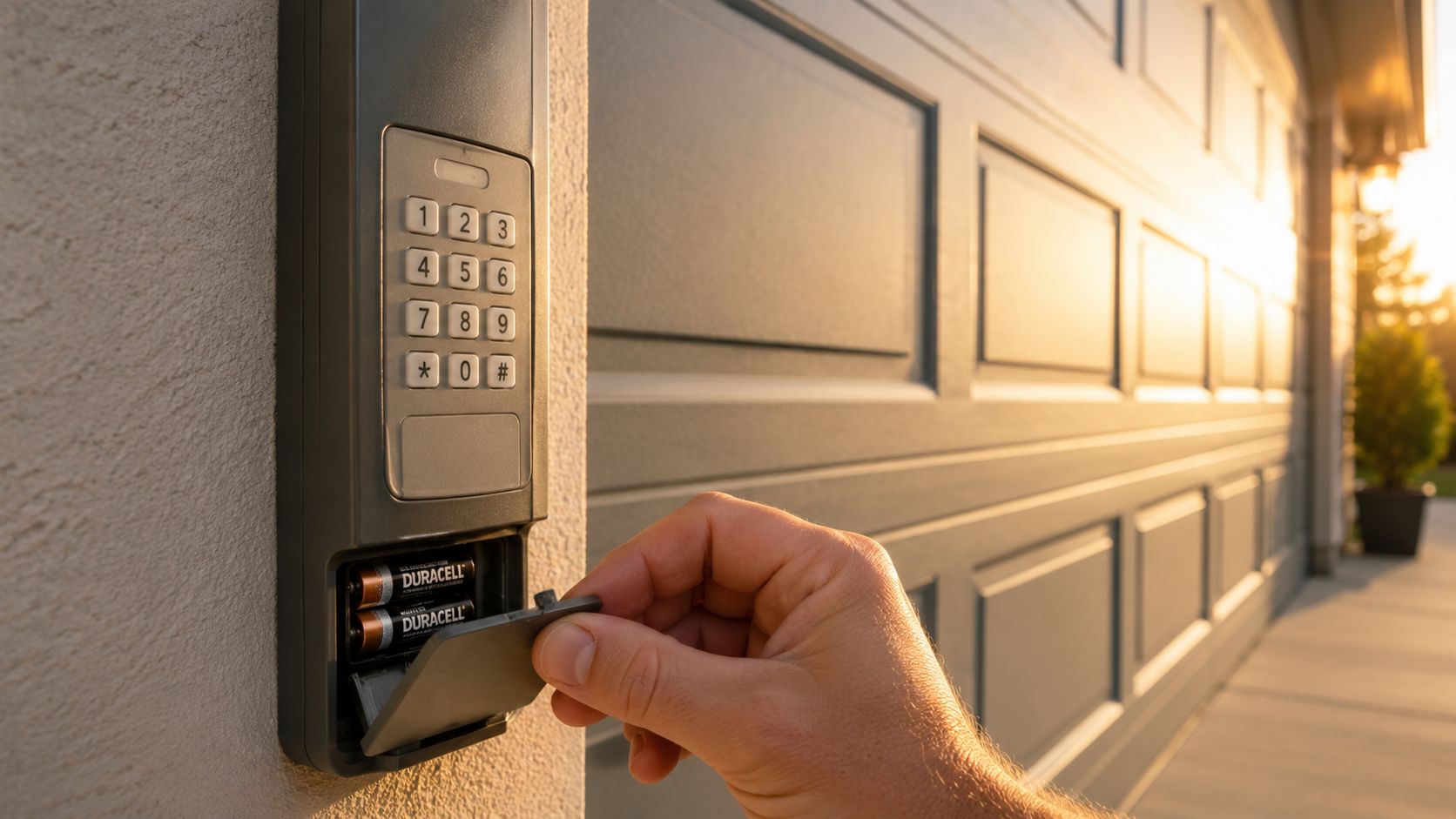

Start with the battery

Open the keypad compartment and inspect the battery and contacts. Look for green corrosion, a loose connector, or a cell that has shifted inside the housing. Many models use a replaceable battery, with 9V being a common example, while some compact keypads use a coin cell such as a CR2032. Check the label or manual before choosing the replacement. (A keypad battery example and manual guidance)

Install a fresh battery, then press a key. A keypad that was completely dark may immediately return to normal. The manufacturer support guidance identifies a dead battery as the most common reason wireless keyless entry stops working, and that matches what technicians see in the field. (Garage door failure troubleshooting guidance)

If the contacts are dirty, remove the battery and gently wipe the metal surfaces with a clean, slightly damp cloth. Let everything dry before reinstalling the new cell. For a more detailed walkthrough, use this garage door keypad battery replacement guide.

Check the wall-control lock

Look at the wall console inside the garage. A lock or vacation button can disable outside wireless entry while leaving the wall control fully functional. If that setting is engaged, the keypad may look dead even though nothing is wrong with its buttons or transmitter. (Guidance on keypad lock and vacation modes)

Watch and listen

Enter the PIN and observe the indicator. A strong blink suggests the keypad is transmitting. No light after a fresh battery points toward power, contacts, or internal damage. A rapid error flash can indicate that the opener rejected the code or that pairing has been lost, although indicator colors vary by model.

Then test the remote from inside the garage. Listen for a relay click, motor hum, or complete silence. If the remote opens the door, focus on the keypad. If every wireless control fails, check the opener's lock setting and power before attempting keypad programming.

Reprogramming Your Keypad for Common Brands

Reprogramming works when the keypad has power but has lost its relationship with the opener. It won't fix a cracked housing, failed membrane buttons, corroded contacts, or an incompatible radio protocol. Identify the motor-unit brand and model before you begin, because the correct button sequence depends on the system family.

LiftMaster and Chamberlain

For many LiftMaster and Chamberlain units, use a stable stepladder to reach the motor head. Find the yellow Learn button on the back or side of the motor unit, press and release it once, then move to the keypad promptly. You generally have about 30 seconds to enter the new PIN and confirm it, so don't press the button until you're ready. (Troubleshooting guidance for the Learn-button timing window)

Enter a four-digit PIN and hold Enter until the opener light blinks or the unit responds. That blink is the pairing confirmation on many systems. If nothing happens, repeat the process with the fresh battery already installed. Weak cells can still illuminate the keypad while failing to transmit consistently.

Newer Security+ 2.0 openers may use a specific purple or red Learn button, and the keypad must support that protocol. Older openers can use different code families or fixed-code arrangements. A keypad made for one model generation may not pair with a later opener, even when both products carry the same brand name.

If old codes need to be cleared, holding the Learn button for six seconds is a common erase procedure on compatible units. Clearing codes removes existing wireless programming, so make sure you're prepared to re-add the remotes and keypads you still use.

Genie

Genie programming usually starts at the keypad rather than with a yellow Learn button. Remove the keypad cover and press the internal Program button until its LED lights. Return to the keypad, enter the PIN, and press the Up arrow twice to send the pairing command.

Older Genie systems may use DIP switches and a different confirmation sequence, including a third key press. A DIP-switch keypad needs to match the opener's switch pattern and model family. It won't reliably pair just because the replacement keypad says “universal.”

Before buying a replacement, compare the opener's model number, keypad model, code family, and radio frequency. Universal keypad documentation lists support for common opener families operating at 300, 310, 315, 372, and 390 MHz, while compatibility references for Genie and Overhead Door Intellicode systems include 315 and 390 MHz models. (Universal keypad frequency and compatibility information)

A 2010 keypad won't automatically sync with a 2020 opener because the brand is unchanged. If you're unsure whether the problem crosses into vehicle-entry equipment or another remote-control system, it helps to understand when to hire an automotive locksmith. For garage systems, the safer purchase is a keypad confirmed for the opener's exact protocol. This universal garage door keypad resource can help you compare compatibility before ordering.

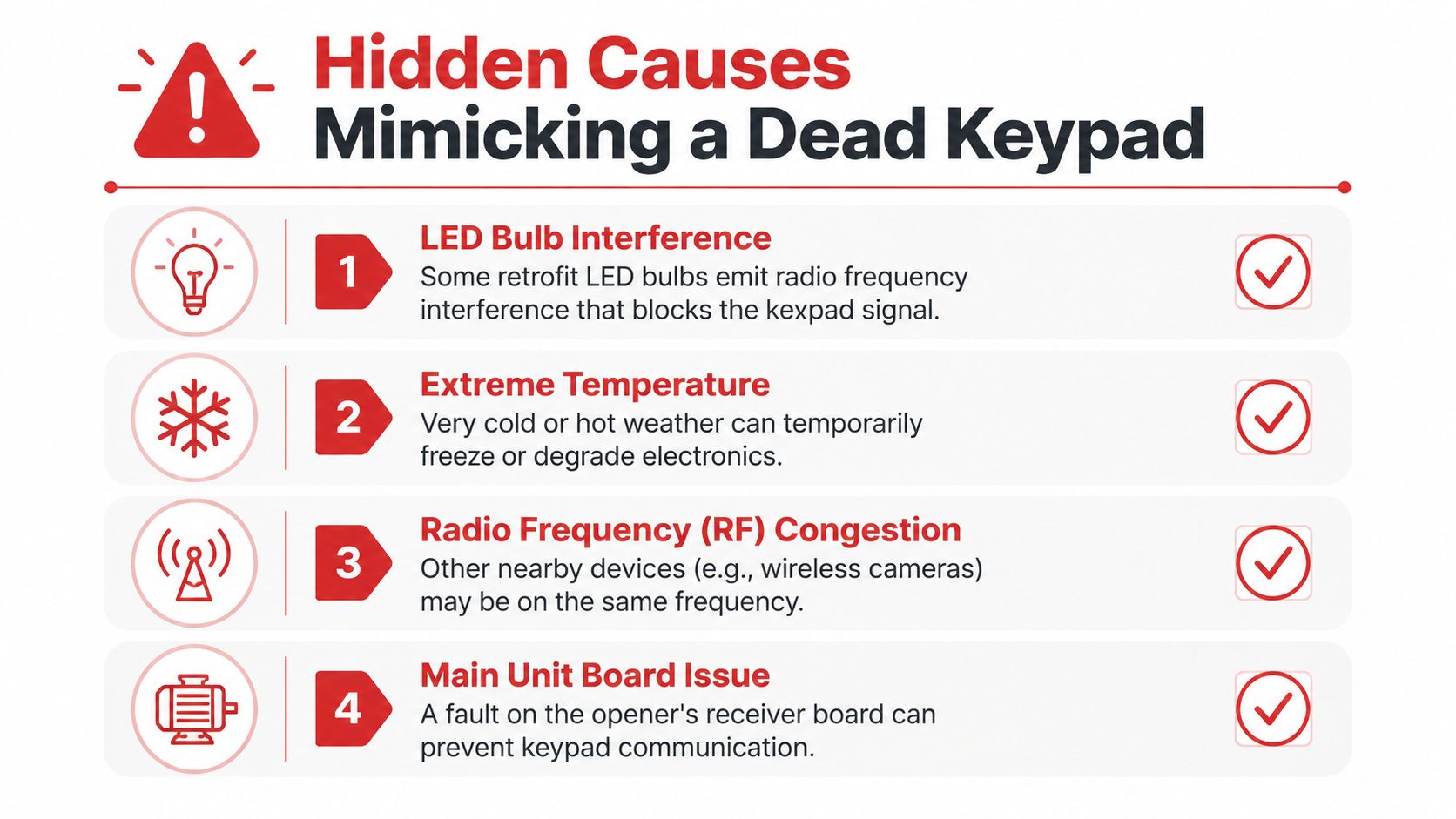

Hidden Causes That Look Like a Broken Keypad

A keypad that works in one condition and fails in another usually has a signal, environmental, or settings problem rather than a completely dead circuit. Pay attention to the pattern. Does it fail only on cold mornings, after a new LED bulb was installed, or when you stand at one side of the driveway?

LED interference and radio congestion

Some retrofit LED bulbs can emit radio-frequency interference that disrupts communication between the keypad and an older opener receiver. The quickest test is temporary: switch off or remove the suspect LED bulb, then try the keypad again. An incandescent or halogen bulb can serve as a test replacement. If the keypad works afterward, the bulb or another nearby device is interfering with the receiver.

Wireless cameras, smart-home hubs, and other transmitters can also crowd the same radio environment. Move the keypad closer to the opener for testing, without permanently relocating it until you know the result. A shorter distance that restores operation points toward range or interference, not necessarily keypad failure.

Cold, moisture, and physical wear

Cold weather reduces battery performance, and a marginal cell may fall below the keypad's operating threshold during a Northeast Ohio winter morning. Plastic housings can become brittle, while moisture can reach the rubber membrane beneath the buttons. Humidity may swell that material enough to make certain keys register inconsistently.

Dry the keypad carefully, inspect the cover seal, and test it with a fresh battery at a warmer time of day. Don't force frozen buttons. A cracked cover or water-damaged membrane is a replacement signal, not an invitation to spray cleaner into the housing.

Lockouts and motor-head connections

Check the wall-console lock or vacation setting before blaming the keypad. If the remote and wall button behave differently, inspect the low-voltage wires at the motor head for loose terminals, corrosion, or visible damage. These connections can create intermittent symptoms, especially after moisture exposure or vibration.

Diagnostic shortcut: Disconnect power to the opener for about 30 seconds, restore it, and retest the keypad. This can clear a temporary logic-board fault, but it won't repair damaged wiring or solve an incompatible keypad.

For receiver symptoms, antenna problems, and opener-side diagnosis, review this guide to the garage door opener and receiver.

Repair or Replace How to Decide

Repair makes sense when the keypad responds to a new battery, accepts programming, or has one accessible loose terminal. Replacement becomes more sensible when the housing is cracked, several buttons fail after cleaning, the model is discontinued, or repeated pairing attempts began after a power surge and never restored stable operation.

Compatibility should decide the purchase before price. Older Security+ 2.0 units won't sync with a legacy keypad, and Genie openers with DIP switches need the matching DIP-style model. A universal keypad can be convenient, but only when its supported code family and radio frequency match the opener.

The table below gives a practical way to weigh the options without assuming every failure needs a new part.

Repair vs Replace Decision Matrix

A common universal keypad from LiftMaster, Genie, or Chamberlain may cost $30 to $60, according to the supplied troubleshooting data, and many install quickly when paired correctly. (Compatibility and replacement guidance) Don't use price alone as the deciding factor. If two repair attempts have failed in one season, replacement is usually the cleaner path, provided the model match is verified first.

When to Call a Garage Door Professional

A keypad problem belongs with a professional when the diagnosis reaches wiring, receiver electronics, or an unsafe door. Persistent failure after a fresh battery and brand-specific reprogramming is a clear reason to stop repeating the same sequence. Visible damage to low-voltage wiring, a logic board that keeps resetting, or a keypad that works only when the door is disconnected also points to a deeper fault.

Don't open the motor housing casually. The opener head contains line-voltage components, and the door system may also include springs under significant tension. Residential operators in major markets must meet UL 325 safety requirements, including photoelectric safety sensors, so an apparent access problem can sometimes involve an opener lockout or safety interlock rather than the keypad itself. (UL 325 safety-device guidance)

A qualified technician can test the receiver board, antenna wire, travel limits, wall console, keypad compatibility, and door movement during one visit. That matters when the keypad is only one symptom of a larger opener or door problem.

For Northeast Ohio homeowners, service companies offer keypad and opener repairs across Cleveland, Akron, and Canton, including same-day availability in some areas. Ask for a written estimate, confirmation that the technician can program your brand and model, and a parts warranty. Property managers and owners of unusual structures can also review container garage advice from Quickfit Container Accessories when access hardware is installed in a converted or nonstandard garage.

Calling for help isn't a last resort. Once the quick checks fail, professional testing is often the fastest route to a reliable door.

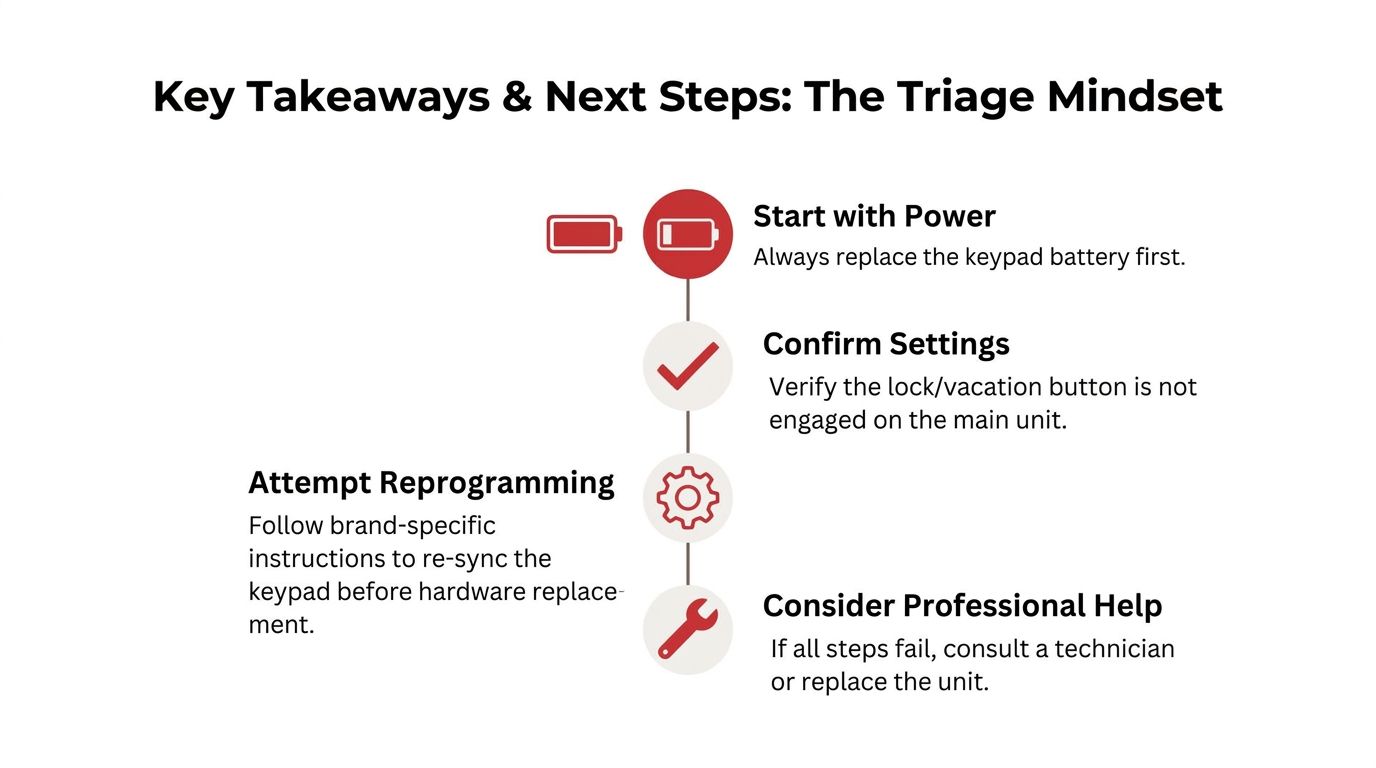

Key Takeaways and Next Steps

Use a triage-first approach when your garage door opener keypad isn't working:

• Start with power. Install the correct fresh battery and inspect the contacts for corrosion or looseness.
• Confirm settings. Check that the wall-console lock or vacation mode isn't blocking outside access.
• Test another control. A working remote or wall button narrows the fault to the keypad, its programming, or compatibility.
• Reprogram by brand. Follow the correct LiftMaster, Chamberlain, or Genie sequence, and observe the opener's confirmation light.
• Check the environment. Test for LED interference, cold-related battery weakness, moisture, and nearby wireless congestion.
• Know when to stop. Repeated failures, damaged wiring, receiver symptoms, or uneven door movement call for professional inspection.

Keep the opener model number available before ordering parts or booking service. Security+ 2.0, Intellicode, CodeDodger, and older fixed-code systems don't all accept the same keypad. Keep your fingers clear of the door and test the reverse-safety feature monthly. Freeze-thaw weather can worsen wear in outdoor wireless components and wiring, so don't postpone service once the basic checks stop producing results.
