You press the wall button, the garage door moves, and the opener makes its usual sound. But the garage stays dark. Before you buy a new opener or start replacing random parts, use the light's timing behavior as a diagnostic clue. A garage door opener light not working can involve a bulb, socket, power supply, wall control, wiring, timer circuit, or logic board.
The fastest approach is to check the simple items first, then use the 1.5-minute timer test to separate a control-circuit fault from a board problem. Work with the opener unplugged whenever you touch the bulb socket or wiring, and stop immediately if you see sparks, melted plastic, scorch marks, or repeated breaker trips.

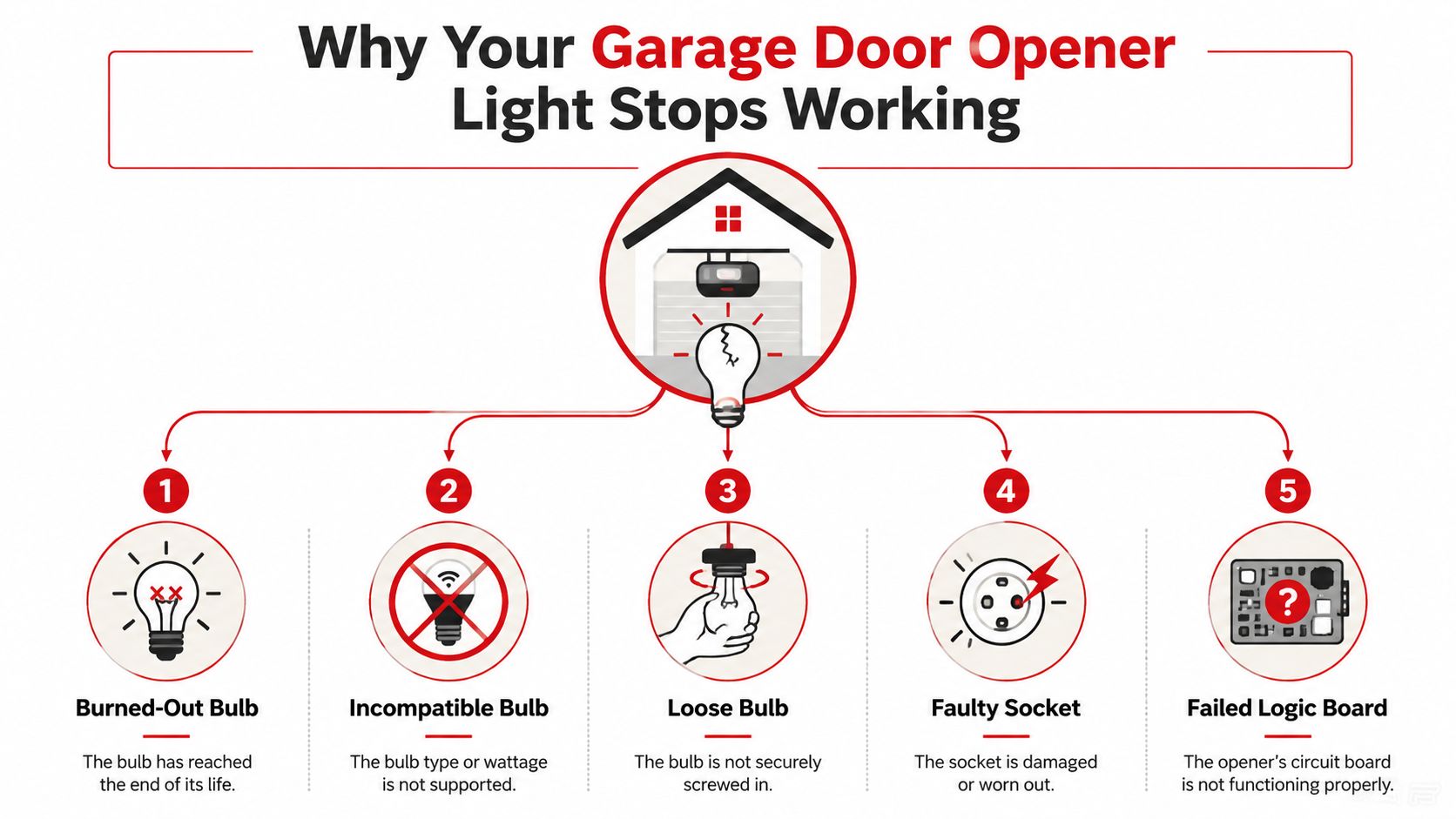

Why Your Garage Door Opener Light Stops Working
You press the wall button, the door operates, and the opener still leaves the garage dark. Start with the bulb, but do not stop there. The light circuit can also involve the socket, wall control, low-voltage wiring, timer, relay, or logic board. The 1.5-minute timer test helps separate a simple lamp problem from a control-circuit fault. Chamberlain's light troubleshooting guidance explains the timing behavior.
Check these failure points in order:
- Burned-out bulb: The filament may be broken, or the lamp may have failed internally.
- Incompatible bulb: An LED may work in a household fixture but interfere with the opener's radio system, exceed clearance, or react poorly to heat.
- Loose or incorrectly installed bulb: A poor connection at the base can make a working lamp appear dead.
- Faulty socket: Corrosion, bent contacts, cracked plastic, or overheating can interrupt power.
- Control or logic-board fault: The wall button, low-voltage wiring, timer circuit, relay, or logic board can fail even with a known-good bulb.
Power can be the cause too. A tripped breaker, loose plug, or failed outlet may shut down the entire opener. If the door still runs while the light stays off, concentrate on the lamp, socket, timer, and light circuit. If the opener is completely dead, check its power supply first.
Safety sensors usually do not operate the overhead lamp directly. They can still complicate the diagnosis because a sensor fault may prevent the door from closing and make opener indicators flash. Verify power and bulb compatibility, inspect the socket, run the timer test, then examine sensors and internal components. Unplug the opener before touching the bulb socket or wiring, and leave the motor housing closed unless you are trained to work inside it.
The Right Bulb for Your Opener and Why It Matters
The correct replacement bulb has to fit both the socket and the opener's electrical limits. Chamberlain says its openers are designed and tested for A19 incandescent bulbs and similarly sized CFL bulbs, with a maximum bulb size of 2.375 inches in diameter and 4.43 inches in length. Chamberlain's bulb-size guidance is useful when a large decorative or smart bulb physically fits poorly inside the lens.
Technology also changes the trade-offs. Incandescent lamps are broadly compatible, but they consume more energy, create more heat, and need replacement sooner. Halogen lamps produce bright light but still bring heat and compatibility concerns. LEDs generally run cooler and use less energy, but a poorly shielded LED may interfere with remote operation. Opener-specific LEDs are designed to reduce that risk.
| Bulb Type | Typical Lifespan | Efficiency | Compatibility Considerations |
|---|---|---|---|
| Incandescent | About 1,000 hours | Lowest of the listed options | Usually broadly compatible, but produces more heat |
| Halogen | Around 2,000 hours | Better than incandescent, but still heat-producing | Check the opener's rating and housing clearance |
| Opener-compatible LED | About 25,000 hours | About 85% more efficient than incandescent | Choose a lamp intended for garage door openers |
| Wi-Fi LED | Varies by product | LED-level efficiency | Smart features, heat buildup, clearance, and interference can matter |
The lifespan and efficiency figures in the table come from Precision Door's opener-lighting guidance. The same source notes that incandescent lamps typically last about 1,000 hours, halogen lamps about 2,000 hours, and opener-compatible LEDs about 25,000 hours. A separate garage-door reference notes common limits of 10W for LED bulbs and 100W for incandescent bulbs, but your opener's manual and label take priority. Garage Door Guide's bulb guidance explains why exceeding those limits can create problems.
Before installing anything, match the base, voltage, bulb shape, maximum wattage, and approved technology. If the opener became unreliable right after an LED retrofit, remove the new lamps and retest before blaming the opener. That simple comparison often exposes a compatibility issue.
For more details on opener lighting choices and installation considerations, see this guide to garage door opener light options.

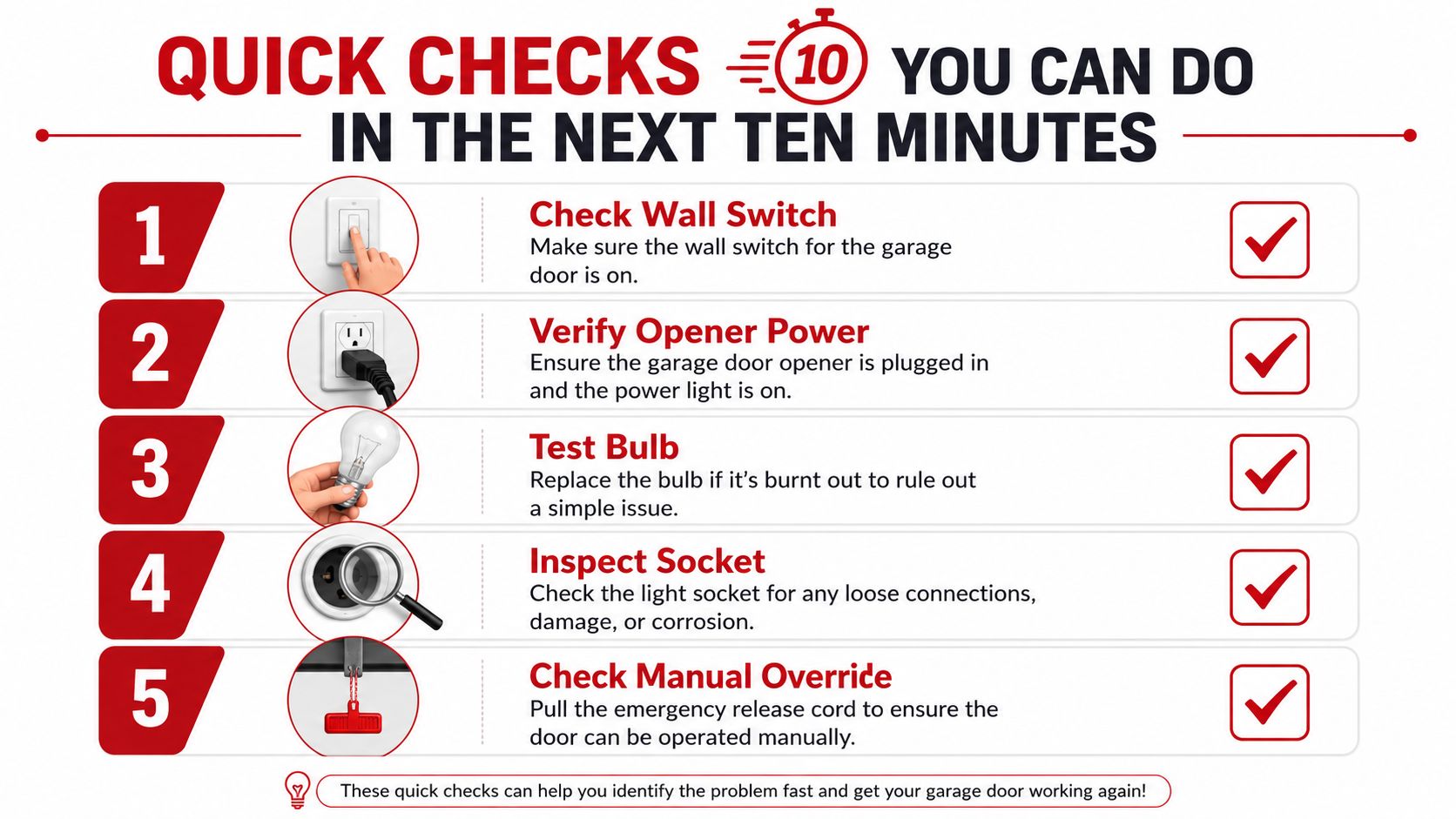

Quick Checks You Can Do in the Next Ten Minutes
Start at the wall control. Press it once and watch both the door and opener. If the door moves normally while the lamp stays dark, the unit has power and the light circuit deserves attention. If neither the door nor lamp responds, check the opener's power before touching the bulb.
Confirm that the opener is plugged directly into a working outlet. Don't diagnose through an extension cord, power strip, or questionable receptacle. Reset a tripped breaker once. If it trips again, leave it off and call a qualified technician instead of repeatedly resetting it.

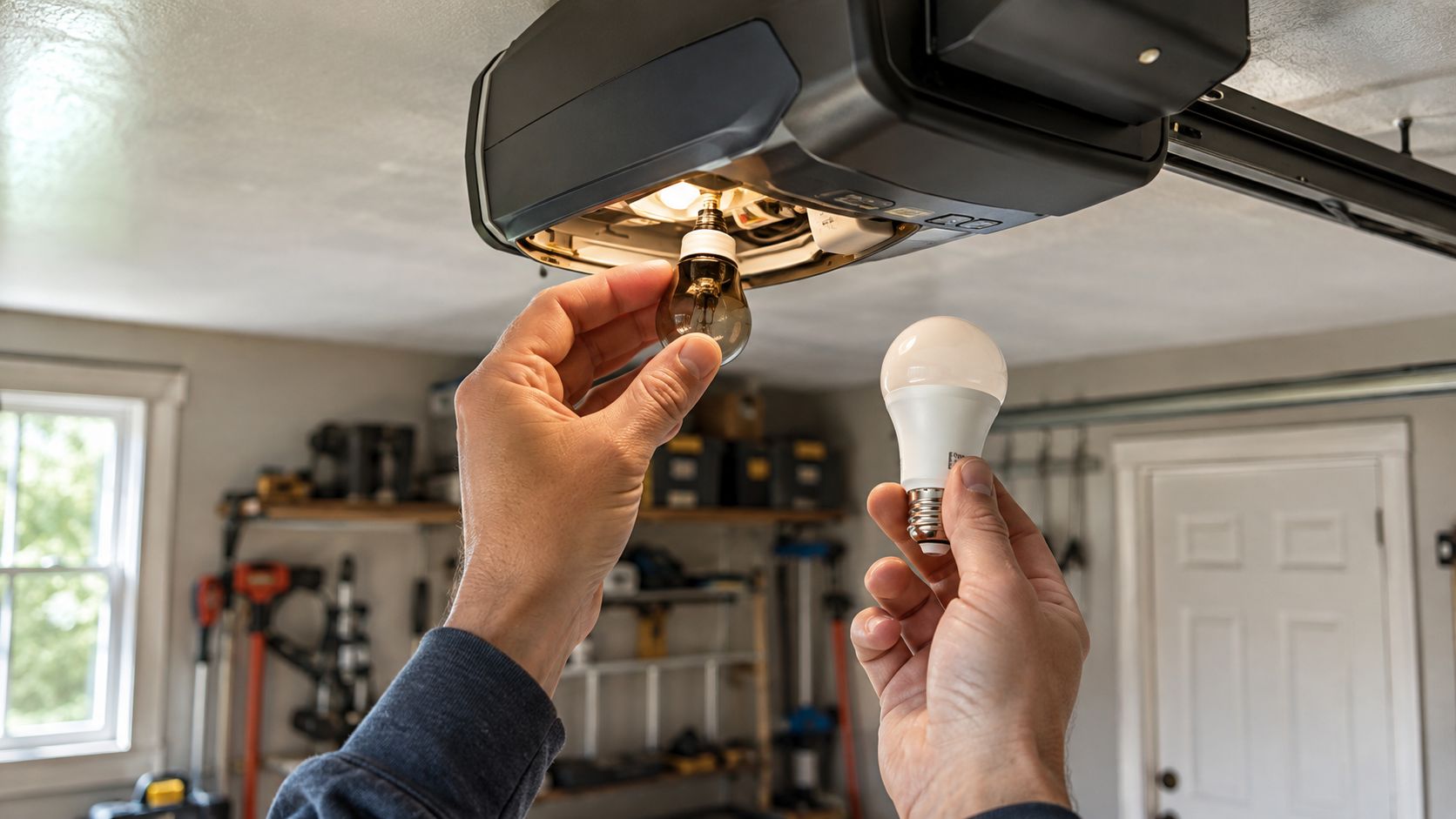

Inspect the lamp before the socket
Unplug the opener before removing the bulb. Look for a broken filament, darkened glass, a loose base, or signs of overheating. If you have a known-good lamp with the correct base and rating, test it in the opener. You can also test the suspect bulb in another suitable fixture, provided its rating matches that fixture.
A replacement that fits the threads can still be wrong for the opener. Check the manual or label for bulb type, maximum wattage, and physical dimensions.
Look closely at the socket
With power disconnected, inspect the socket for corrosion, a bent center contact, cracks, discoloration, or melted material. Light surface corrosion may respond to a dry brush or an electrical-contact cleaner labeled safe for the socket material. Let the socket dry fully before reconnecting power.
A loose or heat-damaged socket shouldn't be forced back into service. Socket replacement is safer than bending contacts aggressively or continuing to run a lamp in a connection that arcs.
Safety stop: Burning smells, sparks, melted plastic, exposed wiring, and repeated breaker trips are reasons to stop testing and arrange professional service.
Restore power only after the bulb and socket are secure. If the opener runs but the light remains off, the next suspects are the timer, wall control, wiring, or logic board. If the whole unit remains dead, return to the outlet and electrical-supply diagnosis.
The 1.5-Minute Timer Test for the Wall Control and Logic Board
The light's automatic delay gives you more information than a simple on-or-off check. Chamberlain uses a programmed delay of about 1.5 minutes as a troubleshooting milestone. When the light comes on and then shuts off within that window, the control circuit and timer behavior can help identify where the fault sits. The Chamberlain troubleshooting flow uses this distinction to separate wall-control or wiring problems from a likely logic-board failure.
First, install a compatible known-good bulb and restore power. Activate the opener from the wall control, then watch the lamp and listen for the relay or normal switching sound. Record whether the lamp never comes on, flickers, comes on briefly, or stays illuminated beyond the programmed delay.
What the timing tells you
If the light comes on and turns off after about 1.5 minutes, the fault is more likely to involve the wall control or its wiring than the lamp itself. That result says the opener can switch the light circuit, which makes a board replacement premature.
If the light stays on instead of shutting off, the logic board becomes the stronger suspect. A failed timer or relay can leave the lamp energized, while a board fault can also prevent normal light activation. Don't assume the bulb is responsible solely because the symptom appears at the light.
For a deeper isolation test, disconnect power, remove the low-voltage door-control wires from the opener motor head, and restore power. Use the manufacturer's approved short-wire test at the control terminals, or follow the exact procedure for your model. Chamberlain specifically recommends a known-good short wire test to distinguish a defective wall control from a wire problem.
The purpose of this test is isolation, not repair. If the result points to the motor head or logic board, stop before opening the housing.
If the light behaves normally with the wall control circuit isolated, inspect the wall button and low-voltage cable. If the failure remains, the logic board or internal light relay is more likely. Avoid blind part swapping, especially when a board is expensive or model-specific.
How to Tell a Sensor Problem From a Light Problem
Photo-eye sensors protect the closing path. They don't normally illuminate the garage, so a sensor fault rarely causes a dead overhead lamp. The confusion happens because both systems report through the opener, and a sensor problem can stop the door while the homeowner is also watching the opener light.
Start with the sensor indicators near the bottom of each door track. A steady light generally means the beam is clear, while blinking or absent indicators point toward blockage, misalignment, dirt, power loss, or wiring trouble. One troubleshooting reference notes that both sensors being dark usually indicates disconnected power or damaged low-voltage wiring, rather than a simple alignment issue. Overhead Door Company of Huntsville's sensor guide outlines these indicator patterns.
Read the indicators for your opener
Indicator colors vary by model and brand. Don't rely on a color chart from a different opener without checking the manual.
| Brand | Normal LED State | Misaligned or Blocked State |
|---|---|---|
| LiftMaster | One sending indicator is typically green, with the receiving indicator showing a steady aligned signal according to the model | Blinking or absent indicator, or a flashing diagnostic light |
| Chamberlain | Usually a steady sending and receiving indication when the beam is clear | Blinking or absent sensor indication |
| Genie | Steady indicators generally show power and alignment | Blinking, absent, or fault indication can point to blockage or wiring |
| Craftsman | Use the model manual to confirm the normal sending and receiving colors | Flashing or absent indicators commonly require alignment, cleaning, or wiring checks |
Keep the inspection simple. Wipe both lenses with a soft cloth, remove boxes or debris from the beam, and check that the brackets haven't been bumped. If your model permits adjustment, loosen the wing nut slightly, nudge the sensor until the indicator becomes steady, then retighten it.
Inspect the low-voltage wires for cuts, loose terminals, or rodent damage. Never bypass the sensors to make the door operate. If the sensor indicators look normal but the opener lamp remains dead, return to the bulb, socket, and timer diagnosis rather than continuing to adjust the eyes.
For a model-specific walkthrough, use this garage door sensor troubleshooting guide.
When the Opener Board or Wiring Is the Real Culprit
A deeper electrical fault becomes more likely when the bulb and socket are sound, the opener has power, and the timer test doesn't produce normal behavior. Watch for a lamp that never engages, glows faintly, buzzes, or responds inconsistently. Burning odors, scorch marks, a buzzing transformer, a tripped GFCI, or visible damage around the socket and harness are hard-stop signs.
Inside the motor head, a logic-board relay switches power to the lamp. Age, power events, heat, and damaged wiring can affect the relay, solder joints, transformer, or harness. Rodent damage can also interrupt low-voltage control wiring and create symptoms that look like a failed wall button.
Know where homeowner testing ends
Unplug the opener before any inspection. Don't touch capacitor terminals inside the housing, even after disconnecting the cord, and don't bypass safety sensors. The motor head contains electrical components that aren't suitable for casual trial and error.
A technician will usually need the opener model, serial information, approximate manufacture date, symptom sequence, and any recent bulb or power changes. That information helps determine whether a board, socket, wiring harness, or complete opener is the sensible repair.
A board that fails after a bulb change may still have a bulb-compatibility or heat problem behind it. Fixing only the board can leave the original cause in place.
If you manage rental properties or compare repair proposals, it also helps to spot red flags in bids, such as vague descriptions, unexplained parts, or a board recommendation without diagnostic reasoning. For safe background on the wiring side, review this guide to garage door wiring.
Don't open the housing if you smell burned insulation, see melted plastic, or hear persistent buzzing. Those symptoms call for qualified electrical and garage-door service, not another bulb experiment.
Putting It All Together and Getting Local Help in Northeast Ohio
Start with the basic sequence: confirm the outlet and breaker, verify that the opener responds, install a correctly rated bulb, inspect the socket, and run the 1.5-minute timer test. That timer separates a bulb or socket fault from a problem involving the wall control, wiring, or logic board. Check the sensor indicators and low-voltage wiring afterward. If the opener has power and those checks pass, stop swapping parts and arrange a professional evaluation.
For planning purposes, repair categories may fall into these ranges:
| Repair | DIY Cost | Pro Service Cost |
|---|---|---|
| Replacement bulb and socket | $10 to $25 | Included in service or priced by the technician |
| Wall control | $40 to $90 | $40 to $90 |
| Logic board swap | $90 to $180 | $90 to $180 |
| Full service call | Not applicable | $120 to $300 |
The final price depends on the opener model, access, parts availability, and the confirmed fault. Before a board is replaced, ask whether the charge includes diagnosis, labor, parts, or follow-up work.
Northeast Ohio conditions can affect the inspection. Lake-effect winter cold can make plastic and wiring less forgiving. Road salt and moisture may corrode exterior sensor connections and exposed hardware, while power fluctuations in the Cleveland area can stress opener electronics over time. These conditions do not prove a board failure, so repeated bulb changes are still a poor substitute for testing.
Danny's Garage Door Repair provides 24/7 service across Cleveland, Akron, and surrounding suburbs, with a free diagnostic call, stocked service vans, and a warranty on parts and labor. The company handles opener troubleshooting and broader garage-door repairs, allowing one technician to assess the light, sensors, wiring, and door operation together.
Book service when the bulb and socket are good, opener power is reliable, the timer test points beyond the wall control, or the sensor LEDs remain abnormal after cleaning and alignment. Further guessing can turn a contained light failure into unnecessary damage.
If the light remains dark after these checks, contact Danny's Garage Door Repair for a focused diagnosis instead of replacing more parts. Visit Danny's Garage Door Repair to request help with opener lighting, control wiring, sensor faults, or a complete garage-door service call.
