You press the wall button, the garage door rises just far enough to create an awkward opening, then stops. Sometimes it reverses. Sometimes the opener hums while the door barely moves. A garage door that opens partially isn't automatically a failed motor. The trigger may be a dirty photo-eye, a binding roller, a weak spring, an environmental change, or a travel limit that no longer matches the door's actual movement.
Treat the opener as a safety system first and a lifting motor second. A careful diagnosis can prevent you from increasing force settings when the problem is a dangerous mechanical fault.
Why Your Garage Door Stops Mid-Travel
You're already late for work. The door starts upward, pauses near the middle, and leaves your vehicle trapped inside. You press the button again, but the opener either stops at the same point or sends the door back down. That behavior feels random, but it usually falls into one of three categories: safety logic, mechanical resistance, or incorrect travel limits.
Modern residential openers are designed to stop or reverse when they detect a problem. The Consumer Product Safety Commission's garage door opener rules required openers manufactured on or after January 1, 1991 to meet UL 325 entrapment protection requirements. By the 1993 rule, new openers had to use one of three protective methods, a constant-pressure close button, an electric-eye sensor, or a door-edge sensor that stops and reverses the door before contact rather than only after impact.
That safety response can be useful even when no person or object is in the doorway. A roller may bind in a damaged track, a spring may no longer counterbalance the door, or a limit setting may tell the motor to stop before the door reaches the header. Misaligned photo eyes can also create an obstruction fault that prevents a normal cycle, including when the door is trying to open.
Read the door's behavior
The stopping pattern gives you a useful first clue:
- Stops at the same point every time: An incorrect open limit or a repeatable mechanical obstruction is more likely.
- Motor runs, but the door barely moves: Suspect heavy door load, a broken spring, a slipping cable, or a disconnected trolley.
- Reverses after moving a short distance: Resistance sensing or a photo-eye fault may be interrupting the cycle.
- Works in the morning but fails in bright afternoon sun or extreme heat: Look for an environmental trigger before replacing the opener.
A prior garage door opening problem guide can help you compare related symptoms, but don't skip the physical balance test. The opener shouldn't be forced to compensate for a door that can't move smoothly by hand.
A Step-by-Step Diagnostic Sequence
Start with the simplest checks and move toward mechanical testing. This sequence matters because limit adjustments can hide a broken spring, while force adjustments can make an unsafe door appear to work temporarily.
Begin with power
Check whether the opener has power at the receptacle. Confirm that the logic board or status light is active, and check the wall control, remote, and any circuit protection serving the garage. If the unit has no power, limit settings and sensors aren't the immediate issue.
If the motor has power but the door only opens partway, continue without repeatedly cycling it. Repeated attempts can add heat and strain to an already overloaded motor or damaged drive system.
Inspect the photo eyes
Find the small sensors mounted near the bottom of the vertical tracks. Clean both lenses with a soft, dry cloth, remove boxes or stored items from the beam path, and check that the mounting brackets haven't shifted. The indicator lights should be solid rather than flickering or showing a fault pattern.
Bright sunlight can overwhelm a receiving sensor at certain times of day. Seasonal heat can also expand metal components and make a tight track bind. If the door fails only under those conditions, record when it happens and whether shading the receiving eye changes the symptom. Don't permanently bypass the sensors.
Disconnect and test the door
Close the door as far as it can safely go, then use the red emergency release cord to disconnect the trolley. Lift the door by hand through its range. Keep your feet clear, don't stand beneath a moving door, and stop if the panels shift, the cables loosen, or the door feels dangerously heavy.
A balanced door should move smoothly and remain near a partially open position rather than drifting sharply upward or dropping. If it binds, feels heavy, or won't stay in place, fix the mechanical cause before touching opener settings.
| Symptom | Likely Cause |
|---|---|
| Opener has no lights or response | Receptacle, circuit, wiring, or logic-board power issue |
| Sensor LEDs are dirty, dim, or inconsistent | Photo-eye obstruction, alignment, wiring, or sunlight interference |
| Door feels heavy when disconnected | Spring, cable, or balance problem |
| Door moves smoothly by hand but stops at one repeatable point | Travel limit or localized track obstruction |
| Motor strains while the door resists | Mechanical binding or excessive door load |
Practical rule: If the door doesn't pass the manual balance and smooth-travel check, don't raise the force setting.
Inspecting Tracks, Rollers, and Cables
A clean sensor beam won't overcome a bent track or a roller that is trying to climb over an obstruction. Inspect the door with the opener disconnected so you can see and feel resistance without the motor masking it.
Start with the vertical tracks beside the door. Look for dents, crushed sections, loose mounting hardware, leaves, grit, and anything that narrows the roller path. Then follow each track into the horizontal section near the ceiling. A door that rises unevenly, scrapes one side, or jerks at the curve may have an alignment or roller problem.

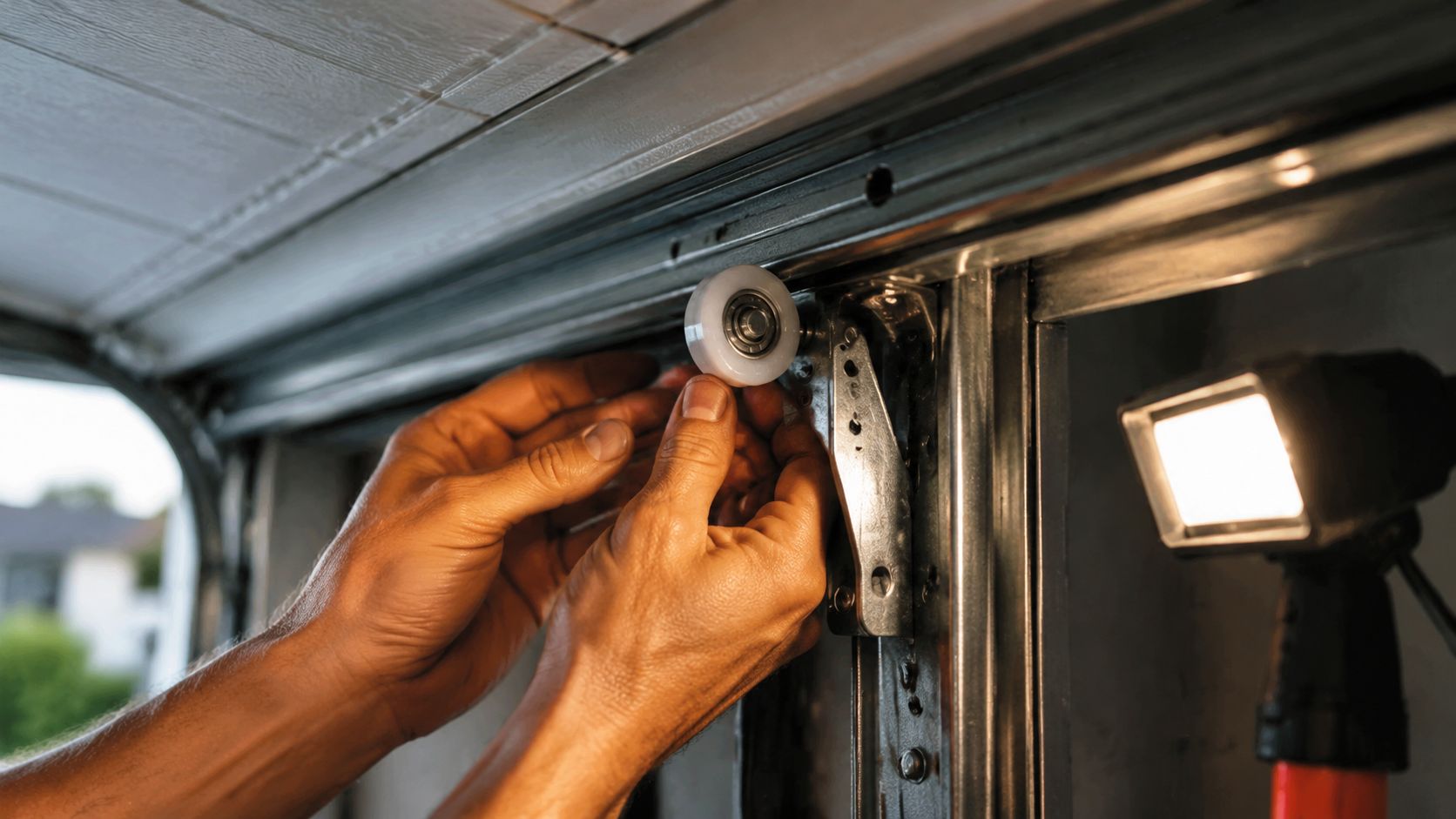

Check the rollers without forcing them
Worn rollers may have flat spots, cracked edges, seized bearings, or excessive side-to-side play. Watch each roller as someone slowly lifts the door by hand. A roller should follow the track rather than wobble, jump, or grind.
Use a garage-door-safe silicone lubricant on roller bearings, hinges, and spring contact points when appropriate. Apply a small amount to the moving joint, then cycle the door manually and wipe away drips. Keep grease and thick oil out of the tracks. Lubricant on the track can collect grit and create a sticky surface instead of reducing friction.
Treat cables as a safety inspection
Look at the lifting cables near the bottom brackets and drums. Fraying, slack, corrosion, a cable that has come off its drum, or a door that hangs crooked indicates a serious load or alignment issue. Don't pull on a loose cable or try to wind it back by hand.
The opener may stop because it senses the extra resistance created by a damaged roller, cable, or track. That doesn't mean the sensor itself caused the problem. Safety logic often reacts to the mechanical fault it detects.
A door that moves freely only after you push past a tight spot still has a problem. Smooth travel means consistent movement through the full range, not a door that can be forced open with enough effort.
Adjusting Travel Limits and Force Settings
Only adjust opener programming after the door passes the manual test. If the door moves smoothly, stays balanced, and the sensors show normal operation, an incorrect open-travel limit becomes a reasonable next suspect.
The travel limit tells the opener where the door should stop. On older units, adjustment may use up and down limit screws. Newer systems may use buttons, a digital menu, or a programming sequence specific to the manufacturer. The correct procedure depends on the opener model, so use its manual rather than guessing from another brand.
Set the open limit carefully
If the door stops short at the same upper point while moving easily by hand, make a small adjustment to the up limit. Test the door after each change. The goal is full usable opening without pushing the door into the header, stretching cables backward, bending panels, or making the opener carriage strain against the powerhead.
A sectional door should open to its intended upper position without excessive pressure. Don't turn the limit repeatedly while the door is mechanically tight. For more detail on how the limit mechanism functions, see this guide to the garage door opener limit switch.
Leave force settings alone unless the manual directs you
Force settings control how much resistance the opener tolerates before it stops or reverses. Increasing force can make a door travel farther, but that apparent success may come at the cost of hiding a broken spring, binding roller, or damaged cable.
The opener's reversing system exists to limit crushing and entrapment risk. The CPSC safety explanation states that residential openers must have reversing systems, and the safety framework uses both motor response and a secondary non-contact sensor. A separate UL 325 safety overview describes those two independent layers as inherent auto-reverse protection and a secondary sensor such as infrared photo eyes or an edge sensor.
After any limit change, test the complete cycle with the opening clear. If the opener still stops, strains, or reverses, restore the prior setting and return to mechanical diagnosis rather than adding more force.
Identifying Spring Tension Issues
Springs counterbalance the door so the opener doesn't carry its full weight. When a spring breaks or loses effective tension, the door may open only partway, feel unusually heavy, or drift down after you lift it manually. A properly balanced door should stay near the midpoint with little movement when disconnected from the opener, as described in this garage door balance testing guidance.
The symptom can look like an opener fault because the motor still runs. The opener detects resistance, then stops or reverses to protect the system. That response is different from a clear obstruction. An obstruction usually appears at a particular location, while a spring or cable load tends to make the entire lift feel heavy or uneven.
Separate spring symptoms from sensor symptoms
A bright beam of sunlight can interfere with a photo-eye receiver, especially when the sun reaches the sensor directly. Extreme heat can also cause metal parts to expand and bind, so a door may work in the morning and stop during the hottest part of the day. These intermittent patterns can lead homeowners to replace an opener when the underlying issue is alignment, clearance, or environmental interference.
Look above the door for a torsion spring mounted on a shaft, or along the horizontal tracks for extension springs. A visible gap in a torsion spring, a stretched or separated extension spring, a loose cable, or a crooked door requires professional attention. Don't test spring tension by touching the coils, adjusting winding hardware, or removing brackets.
The garage door spring inspection guide provides additional context, but the practical boundary is simple. Cleaning lenses and observing movement are reasonable homeowner checks. Spring adjustment and cable repair are not routine screwdriver jobs because stored spring energy can cause severe injury.
When to Call Danny's Garage Door Repair
Use the diagnostic sequence as a stopping point, not a challenge to keep adjusting parts indefinitely. Before calling anyone, note whether the opener has power, whether both sensor lights are solid, where the door stops, whether it reverses, and how the door behaves when disconnected. Those details help a technician separate an electrical fault from a balance or track problem.
A homeowner checklist
- Power: Confirm the receptacle and opener indicators work.
- Sensors: Clean the lenses, clear the beam, and verify stable alignment.
- Manual movement: Disconnect the trolley and check for smooth travel.
- Balance: Notice whether the door stays partially open or drifts.
- Hardware: Look for bent tracks, damaged rollers, frayed cables, and a crooked door.
- Limits: Adjust only after the mechanical checks pass.
- Force: Don't increase resistance settings to overpower a heavy door.
- Environment: Record whether heat, moisture, or direct sunlight changes the failure.
Stop troubleshooting and arrange service if a spring is broken, a cable is snapped or off the drum, the door has come off its track, panels are severely crooked, or the opener continues to fail after safe resets and sensor checks. Don't operate a door that looks ready to fall, and don't stand beneath a partially supported door.
