That sharp squeal when the door starts moving. The scraping sound halfway up. The side that hangs lower than the other when the door closes. Most homeowners don't notice the pulley system until it starts asking for attention the loud way.
A bad pulley can turn a smooth door into a jerky, cable-chewing problem fast. The repair is manageable in some setups, but only if you respect the tension in the springs and understand why alignment matters as much as the part itself. A pulley swap done carelessly can create a bigger problem than the worn pulley you started with.
Is Your Garage Door Screaming for Help

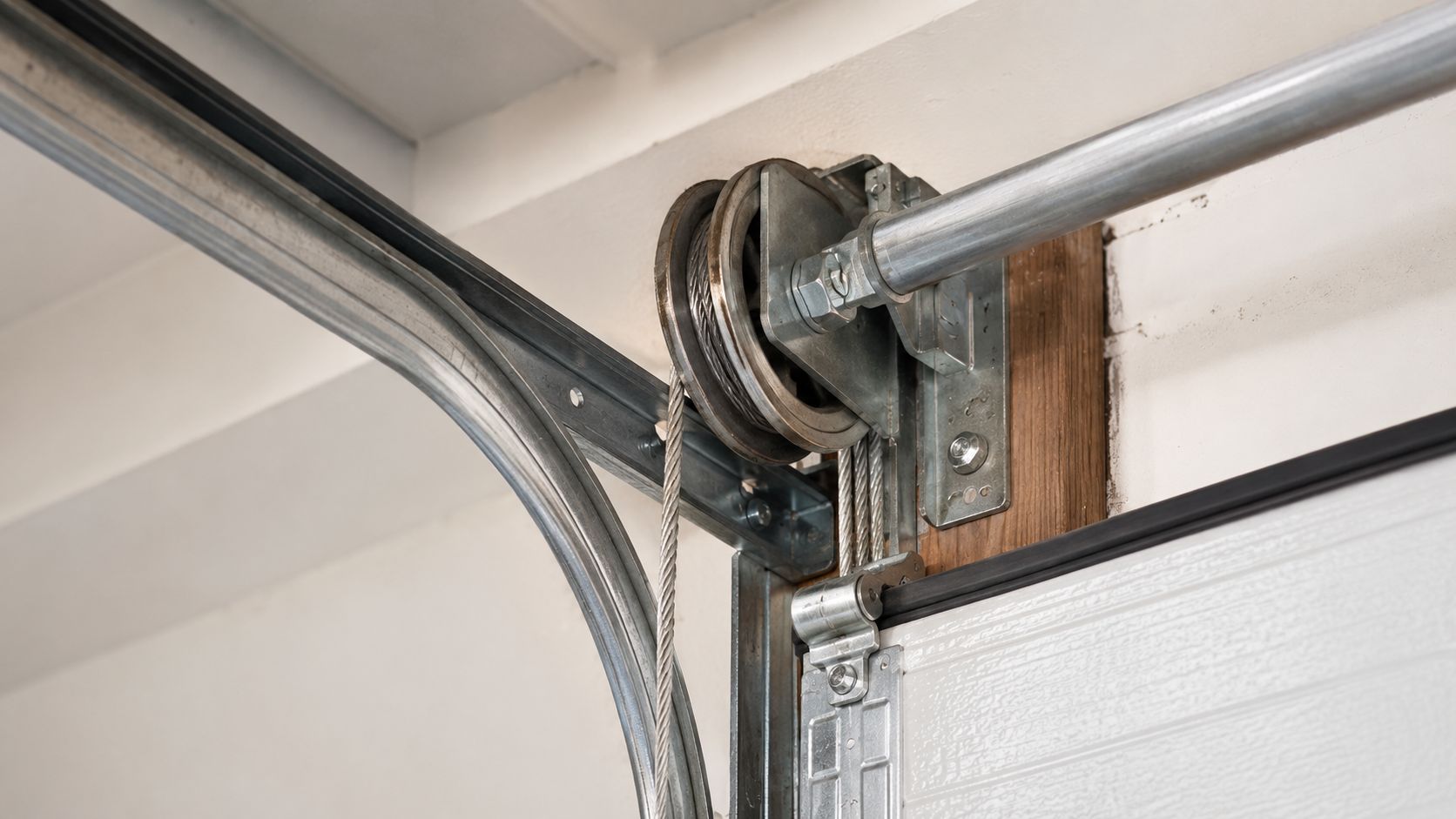

Noise is usually the first clue, but it shouldn't be the only one you trust. A garage door pulley can squeal because the bearing is dry, bind because the wheel is worn, or start chewing into the cable because the pulley has shifted out of plane. The sound tells you something is wrong. The visual inspection tells you what.
What to look for before you grab a wrench
Stand inside the garage with the door fully closed and the opener unplugged. Look at both sides, not just the noisy side. On a typical residential extension-spring setup, most systems use four pulleys total, with two stationary pulleys near the top of the track and two spring-end pulleys attached to the extension springs, one on each side, as outlined in this garage door pulley overview.
The warning signs that point to pulley trouble are specific:
- Loose or dangling lifting cables that don't stay seated where they should
- A door that wobbles or shakes during travel
- Uneven closing, such as one side stopping short and leaving a gap at the bottom
- Frayed cable edges or pulley grooves that look chewed up
Those symptoms are described in this garage door cable repair guide, and they match what technicians see in the field all the time.
If the cable is already frayed, stop running the door. Every cycle can make a simple pulley repair turn into a cable failure.
How to separate pulley issues from other problems
A pulley problem usually shows itself through cable behavior. Watch the cable path while the door moves by hand. If the cable rides hard against one side of the pulley, jumps in the groove, or looks twisted, the pulley is suspect. If the door is noisy but the cable path stays clean and the pulleys spin true, the issue may be elsewhere.
A few quick checks help:
- Spin test by hand. With tension safely removed only, the pulley should rotate smoothly.
- Groove check. The cable should sit neatly in the groove, not climb the edge.
- Bracket check. A bent bracket can mimic a bad pulley because it changes the cable angle.
- Balance clue. If the whole door feels unsafe or stuck, treat it like an urgent problem and use an emergency garage door repair checklist before trying anything else.
If one pulley has failed from wear, look hard at the others. Pulleys age as a group more often than people expect.

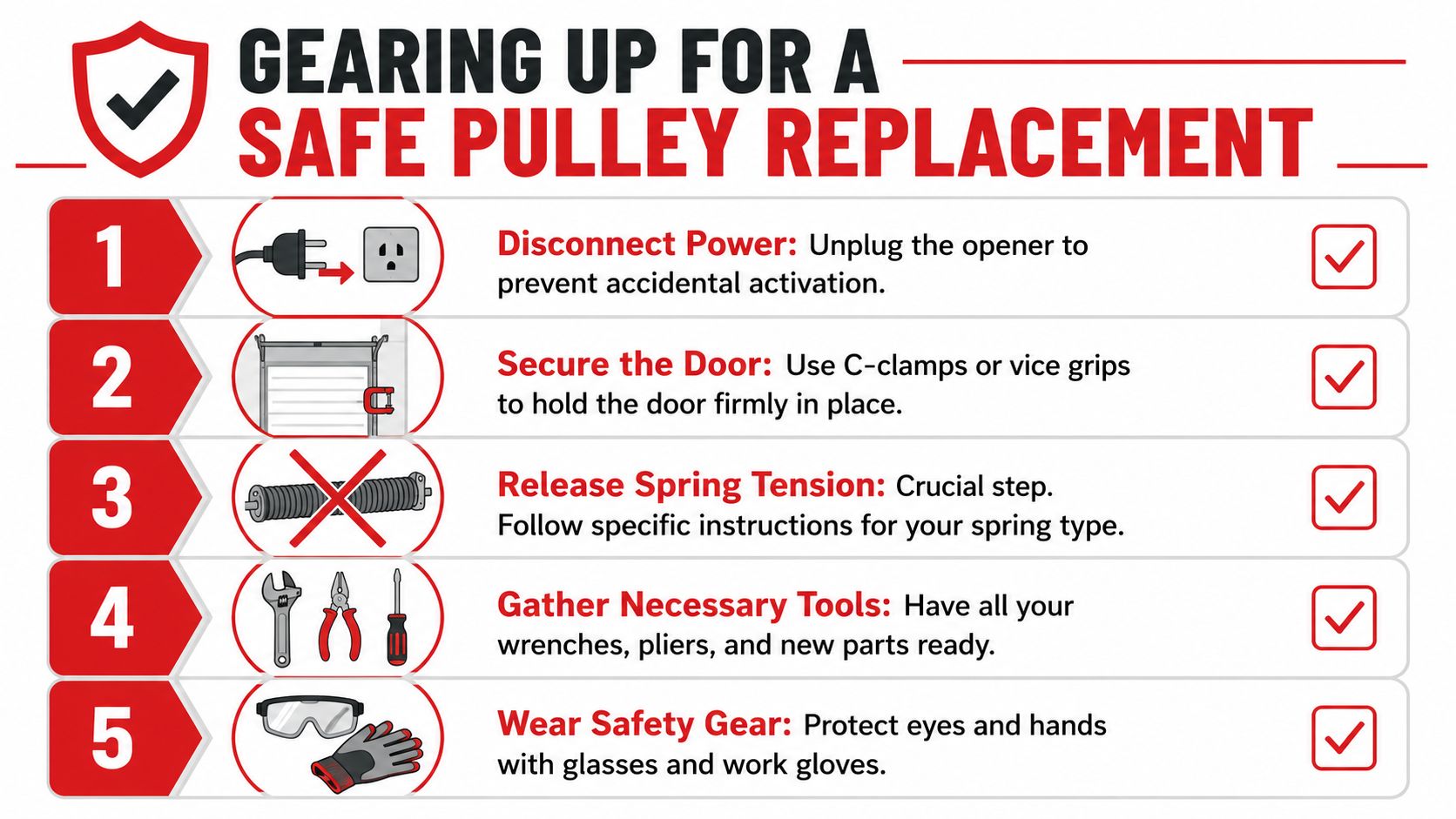

Gearing Up for a Safe Pulley Replacement
This job starts long before the first bolt comes out. The dangerous part isn't turning a wrench. It's underestimating spring tension, using the wrong replacement pulley, or getting halfway through and realizing you forgot the clamp that keeps the door from moving.
Your pre-flight checklist
If you have an extension-spring door and you're proceeding carefully, lay out everything first. Don't improvise with random hardware.
| Item | Description | Why You Need It |
|---|---|---|
| Replacement pulley or matched pulley set | Correct diameter, groove profile, and bearing style for your door | Wrong size changes cable tracking and load path |
| Replacement cable if existing cable shows wear | Proper length and spec for your system | A fresh pulley won't save a damaged cable |
| Socket set and box-end wrenches | Include sizes that fit your bracket hardware | You need controlled removal, not rounded bolts |
| Locking pliers or C-clamps | Heavy-duty clamps for the track | They keep the door from shifting unexpectedly |
| Work gloves | Snug-fitting, cut-resistant if possible | Protects your hands from frayed cable strands |
| Safety glasses | Full eye protection | Rust, debris, and hardware can drop without warning |
| Stepladder | Stable ladder tall enough for comfortable access | Bad footing leads to bad decisions |
| Marker or paint pen | Marks bracket position and cable routing | Helps you reinstall in the same plane |
| Tape measure or straightedge | For checking pulley position and alignment | Alignment is the whole game on this repair |
| Shop light | Bright directional lighting | Shadows hide cable twist and bracket bend |
If your access is poor, a solid 16 ft ladder guide can help you choose something safe enough for overhead work.
Safety steps that aren't optional
The standard technician sequence is simple for a reason. Disconnect power to the opener. Secure the door fully open with clamps or locking brackets. Remove spring tension. Then remove the retaining bolts and replace the pulley in the exact same hole and plane as the original.
That sequence matters because each step removes one source of stored energy or unwanted movement.
Practical rule: If the spring still has meaningful tension on it, you are not ready to remove pulley hardware.
A few homeowner mistakes cause trouble fast:
- Skipping the opener disconnect. Someone hits the wall button and the door moves while your hands are in the system.
- Trusting the open door without clamps. Open doesn't mean secure.
- Buying by appearance. Two pulleys can look close enough on a store shelf and still track the cable differently.
- Working on a torsion setup without proper tools. That's where many DIY jobs should stop.
Match the part, not the guess
Take the old pulley down only after you've documented cable routing and bracket position. Compare diameter, groove depth, bearing style, and hole size. If the replacement changes how the cable enters or exits the pulley, you're setting yourself up for poor tracking even if the door seems to work at first.
The Step-by-Step Pulley Replacement Process
The part swap is straightforward. The hard part is doing it without changing the geometry of the system. Most callback work on pulley jobs comes from alignment errors, not from defective parts.
Lock the system down first
Unplug the opener. Pull the emergency release only if you understand how your door is currently being supported. Raise and secure the door in the safe position for your setup, then clamp the tracks so the rollers can't move.
Now remove spring tension according to the spring type. On extension-spring systems, the goal is to relax the spring enough that the pulley hardware can come apart without the cable trying to snap everything back into place. If you can't clearly tell whether tension is off, stop there.
Document the old setup before removal
Take clear photos from the front and side. Mark the bracket location with a paint pen. Note which face of the pulley is outward and how the cable sits in the groove.
These details matter because technicians don't just replace a pulley. They restore the cable path.
A smart habit is to check three things before loosening anything:
- Cable plane. Does the cable run straight into and out of the pulley?
- Bracket condition. Is the mounting hole wallowed out or bent?
- Neighbor parts. Is the opposite-side pulley worn in the same way?

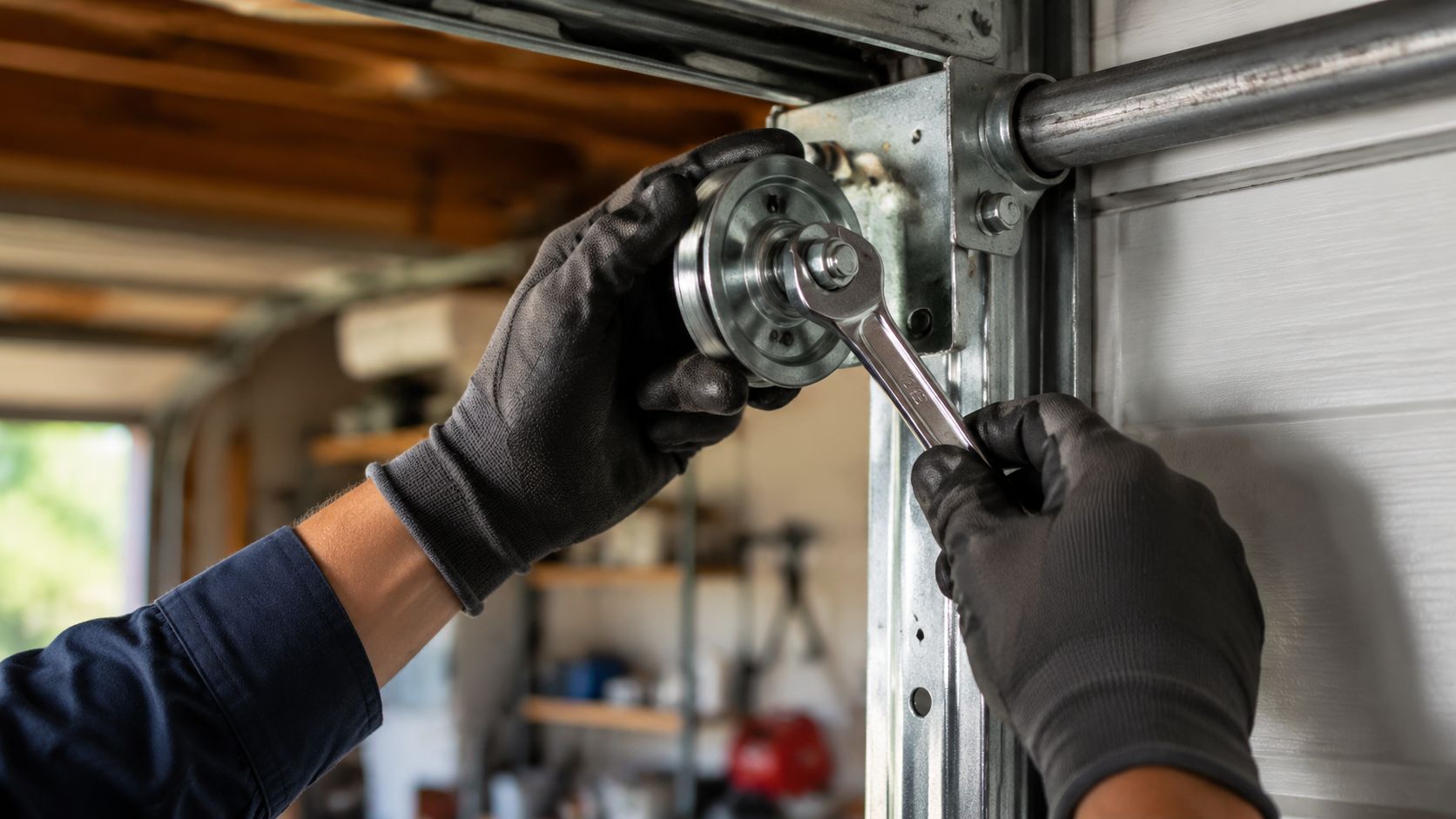

Remove the old pulley and inspect the hardware around it
Once the system is safe, remove the retaining bolt from the pulley bracket. The commonly used hardware size is often 9/16-inch or M14 in standard service procedures. Slide the pulley out and inspect the bolt, spacer, and bracket hole.
If the bracket is bent or the bolt is grooved from wear, don't ignore that. A new pulley installed on damaged mounting hardware can still wobble.
Replace what is worn, not just what is noisy.
If the cable shows broken strands, flattening, or shiny wear spots, this becomes a cable-and-pulley job. That's a different level of repair than a basic wheel swap.
Install the new pulley in the same plane
Set the new pulley into the exact same mounting point and orientation as the original. Route the cable carefully into the groove and make sure it doesn't cross, twist, or ride the flange. Tighten the hardware firmly, but don't crush the bearing by over-tightening if the assembly relies on free rotation.
Misalignment often causes many DIY repairs to go sideways. Industry field data says 60–70% of pulley-related call-backs are due to misalignment rather than part failure, and when a new pulley is installed even 3–5 mm out of vertical alignment, cable tracking degrades and wear on rollers and springs can increase by 25–40% within six months, according to this field-data summary on pulley alignment.
That's why I tell homeowners to slow down here and treat alignment as the repair, not the afterthought.
How to check alignment like a pro
Use a straightedge or a tightly pulled string line to compare the pulley path with the cable's natural line of travel. Look from the front and from the side. The pulley should sit where the cable enters and exits without rubbing the sidewall.
A good final check includes:
- Side view. The pulley should not lean inward or outward.
- Front view. The cable should sit centered in the groove.
- Slow hand cycle. Move the door carefully and watch the cable track.
- Listen for scrape. Scraping means the cable is telling you the path is wrong.
- Compare both sides. A door may move with one side slightly off, but it won't wear evenly.
If your cable is already suspect, review a dedicated garage door cable repair guide before putting the door back into service.
Re-tension, test, and watch the first cycles
Restore spring tension carefully for your system. Remove clamps only when everything is back together and you're ready to test. Run the door by hand first if possible. Watch both cables. They should stay seated, move evenly, and keep the door level.
Then reconnect the opener and cycle the door while standing clear. If the door shakes, the cable wanders, or one side lags, stop and correct it before normal use.
Common Pitfalls and How to Avoid Them
Most bad pulley repairs don't fail right away. Their failure is insidious. The door opens, the homeowner feels done, and then the cable starts wearing because one small detail was off.
The part looked close enough
That's a trap. A pulley that seems similar can still have the wrong groove profile, bearing style, or offset. The cable may ride, but not cleanly. If you reused old hardware and changed only the wheel, double-check that the new assembly still lines up exactly where the old one ran.
You replaced one pulley and ignored the rest
That can work, but it often doesn't last. When one pulley has worn enough to squeal or bind, the others may be near the same point. On matched systems, one fresh component beside tired hardware can expose the weakness of the remaining parts.
You fixed the symptom, not the cause
A pulley often gets blamed for problems caused by a bent bracket, failing cable, or tired spring. If the new pulley still tracks badly, don't keep running the door hoping it will settle in. It won't. The system is telling you another part is steering the cable wrong.
A pulley should guide the cable, not fight it.
You skipped the final hand test
A powered test hides too much. The opener can drag a door through a bad cable path long enough to fool you. Cycle it slowly by hand first and look at the cable the whole time. If the cable climbs, twists, or scuffs the pulley edge, go back and correct the alignment before you trust the opener.
A careful repair is usually slower than a rushed one. It's also the one you only do once.
Keeping Your Garage Door Healthy After the Fix
A pulley replacement buys you time only if the rest of the system gets basic attention afterward. Homeowners often think of this as a one-and-done repair. It's better to treat it as a reset point.
What to check during normal upkeep
Every so often, look at the cables, pulleys, rollers, and brackets while the door is closed. You're checking for fresh fraying, rubbing marks, wobble, or hardware that has started shifting. If the door sounds different than it did after the repair, that change matters.
For lubrication, focus on the parts that are meant to move and avoid soaking everything in heavy grease. Too much product attracts dirt and can hide developing wear.
Northeast Ohio winter-proofing matters
In Greater Cleveland, garages deal with cold snaps, thawing, moisture, and salt-laden grime. That mix is hard on pulley bearings. Independent mechanical engineering studies on sealed vs. open-bearing pulleys under repeated temperature cycles show that grease degrades faster and clearances grow under daily cycling between sub-zero and above-freezing temperatures, a pattern noted in this climate-related garage door repair discussion.
That means local maintenance should be seasonal, not generic.
A simple Northeast Ohio checklist helps:
- Before winter inspect pulley spin and cable condition
- During winter use a lubricant appropriate for cold conditions and apply it lightly
- After snow season clean away grime and residue that collect around lower hardware
- During spring listen for bearing noise that returns after freeze-thaw swings
Sealed-bearing pulleys generally hold up better in rough garage conditions than neglected open-bearing parts. The main point is consistency. A few minutes of inspection can catch the next failure before the cable pays for it.

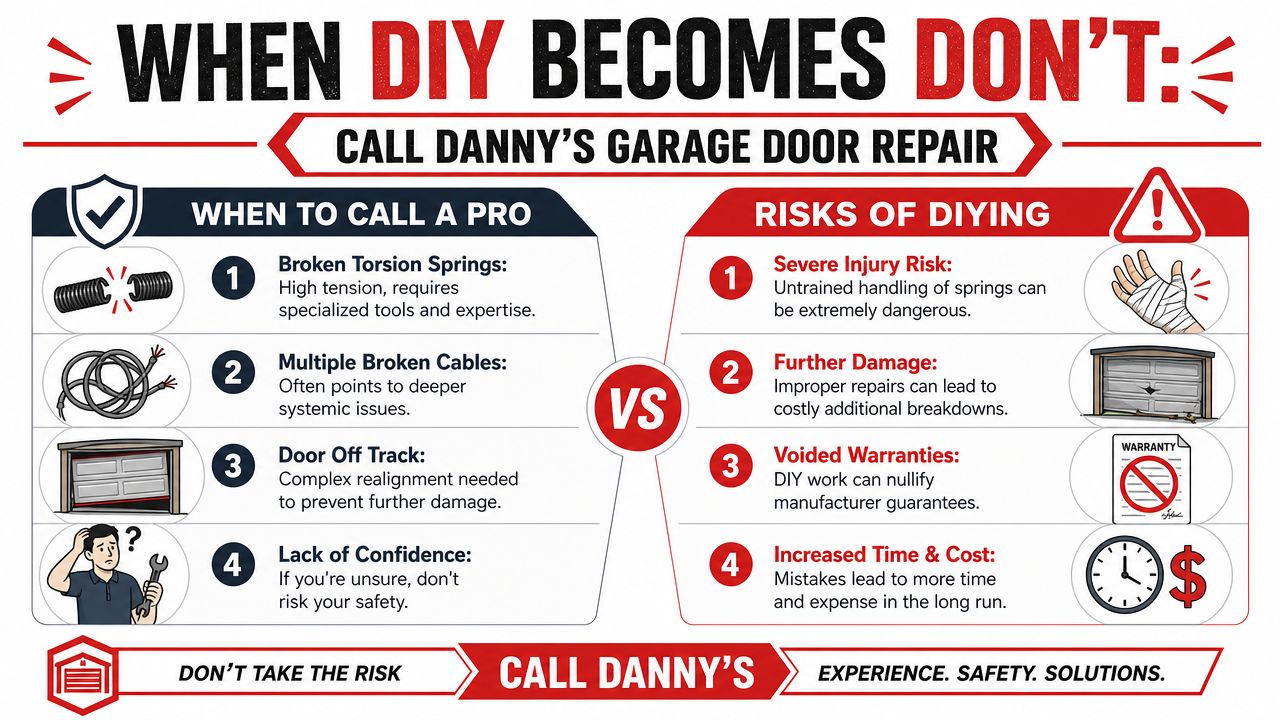

When DIY Becomes Dont Call Dannys Garage Door Repair
There's a line between a careful homeowner repair and a job that has turned into a risk. The smart move is knowing where that line is.
Stop and call for help if these show up
Set the tools down if you run into any of these:
- Torsion spring tension you're not trained to release
- Multiple broken parts at once, such as cable damage plus pulley wear plus bent brackets
- A door that has come off track
- Uncertainty about re-tensioning or balancing
- A door that still runs unevenly after the pulley is replaced
At that point, the repair is no longer about one worn component. It has become a system problem.
Professional help also makes sense when the economics are close. When pulley replacement is bundled with spring and cable work, the average repair ticket in the U.S. runs about $180–250, which is often a fair trade for avoiding injury, repeat failure, and extra damage. If your garage issue is part of a bigger property recovery after impact, water, or structural trouble, this guide to hiring property restoration experts is a useful resource for figuring out which specialist belongs on the job first.
The goal isn't to prove you can do every repair yourself. The goal is a safe door that opens, closes, and stays aligned.
