Choosing a new garage door isn't just about color and style; it all starts with one simple question: What size do I need?
Get this wrong, and you could be looking at everything from annoying drafts to a much bigger installation bill than you planned for. The good news is, for most homes, the answer is pretty straightforward. The most common sizes are 8 or 9 feet wide by 7 feet high for a single-car garage and a roomy 16 feet wide by 7 feet high for a double.
What Are Standard Garage Door Sizes?
When we talk about "standard" sizes, we're really talking about the off-the-shelf dimensions that manufacturers have been producing for decades. These are the sizes that fit the vast majority of homes, and sticking with them is usually the quickest and most cost-effective way to get a new door.
For years, the classic single-car garage has been a fixture in American homes. The most common garage door in the country—especially in Northeast Ohio communities like Cleveland and Pepper Pike that Danny's Garage Door Repair serves—is the standard 8-foot-wide by 7-foot-high single door.
This trusty size became the go-to for about 85% of single-vehicle garages built during the post-WWII housing boom. Think about it: over 13 million new homes shot up by 1960, and many had these compact garages designed for the smaller cars of the era, like the Ford Falcon or Chevy Corvair. You can dive deeper into garage door industry trends to see just how much things have evolved since then.
Here’s a quick breakdown of what you'll find when you start shopping.
Quick Guide to Standard Residential Garage Door Sizes
This table sums up the most common "off-the-shelf" sizes you'll find for single and double garages, giving you a clear idea of what might work best for your vehicles.
| Door Type | Standard Widths | Standard Heights | Best For |
|---|---|---|---|
| Single-Car | 8 ft, 9 ft, 10 ft | 7 ft or 8 ft | Compact cars, sedans, small SUVs |
| Double-Car | 16 ft, 18 ft | 7 ft or 8 ft | Two standard vehicles, trucks, large SUVs, extra storage |
As you can see, while there are a few options, most homes will fall into one of these common categories.
Single-Car Garage Doors
A single-car door is built to do one job: let one vehicle pass through easily. While the classic 8-foot width has been the standard for a long time, newer homes often lean toward a 9-foot door to better accommodate today's wider cars, trucks, and SUVs.
Your main options will be:
- 8 feet wide x 7 feet high: The old standby. It’s a perfect fit for smaller cars and sedans.
- 9 feet wide x 7 feet high: This has become the new favorite. That extra foot gives you more room for side mirrors and makes pulling in and out much less stressful.
- 10 feet wide x 7 feet high: You won't see this one as often, but it's a great choice if you have a wider vehicle or just want some extra elbow room for storage along the garage walls.
Double-Car Garage Doors
For families with more than one car or anyone who needs serious storage space, a double-car garage is the way to go. These doors give you plenty of room to park two vehicles side-by-side without playing bumper cars.
A double garage door isn't just for two cars. Many homeowners in Northeast Ohio choose this size for pure flexibility—it gives you room for one vehicle plus a workshop, lawn equipment, or all that stuff you promised you'd put in the attic.
The most popular double door sizes are:
- 16 feet wide x 7 feet high: This is the undisputed champion of double doors. It comfortably fits two standard-sized vehicles without any fuss.
- 18 feet wide x 7 feet high: A smart upgrade that offers a little more breathing room, which is perfect if you're parking larger SUVs, minivans, or trucks.
While 7 feet remains the standard height for most residential doors, we're seeing more and more homeowners opt for an 8-foot height. It’s a practical choice for taller vehicles, especially if you have a roof rack or a lifted truck.
How to Measure Your Garage Door Like a Pro
Before you start picking out colors or deciding on window inserts, you've got to tackle the most critical step: getting the right measurements. It's like getting fitted for a new suit—you wouldn’t just guess your size, and the same goes for your garage door. A few simple, accurate numbers are all that separate you from a door that fits and functions perfectly.
So, what’s the biggest rookie mistake I see? People measure their old garage door. Don't do it! Your old door might have warped or been installed incorrectly. Instead, you need to measure the finished door opening—the actual space the new door has to operate in.
Grab a tape measure and something to write on. Let’s walk through the five measurements that matter.
The Five Essential Measurements
Nailing these five numbers is the secret to a smooth installation. Make sure you take every measurement in inches.
- Opening Width: Start by measuring the width of the garage door opening. Go from the inside of the left door jamb to the inside of the right one. I always recommend measuring at the widest point to be safe.
- Opening Height: Next, measure from the finished floor all the way up to the bottom of the header (the top of the door opening). This gives you the clear vertical space you have to work with.
- Sideroom (or Jamb Space): This is the wall space on either side of the opening. Measure from the edge of the opening to the nearest obstruction, like a wall or a pipe. You need this room for the vertical tracks to be mounted. Check both the left and right sides.
- Headroom: Look above the door opening. Measure from the top of the opening up to the ceiling or the lowest hanging object, which could be a beam, pipe, or ductwork. This measurement is non-negotiable; it determines the type of track and spring system your garage can accommodate.
- Backroom (or Depth): Finally, measure how deep your garage is. Start at the opening and measure straight back until you hit a wall or another obstruction. This confirms there's enough space for the door to travel back and open completely.

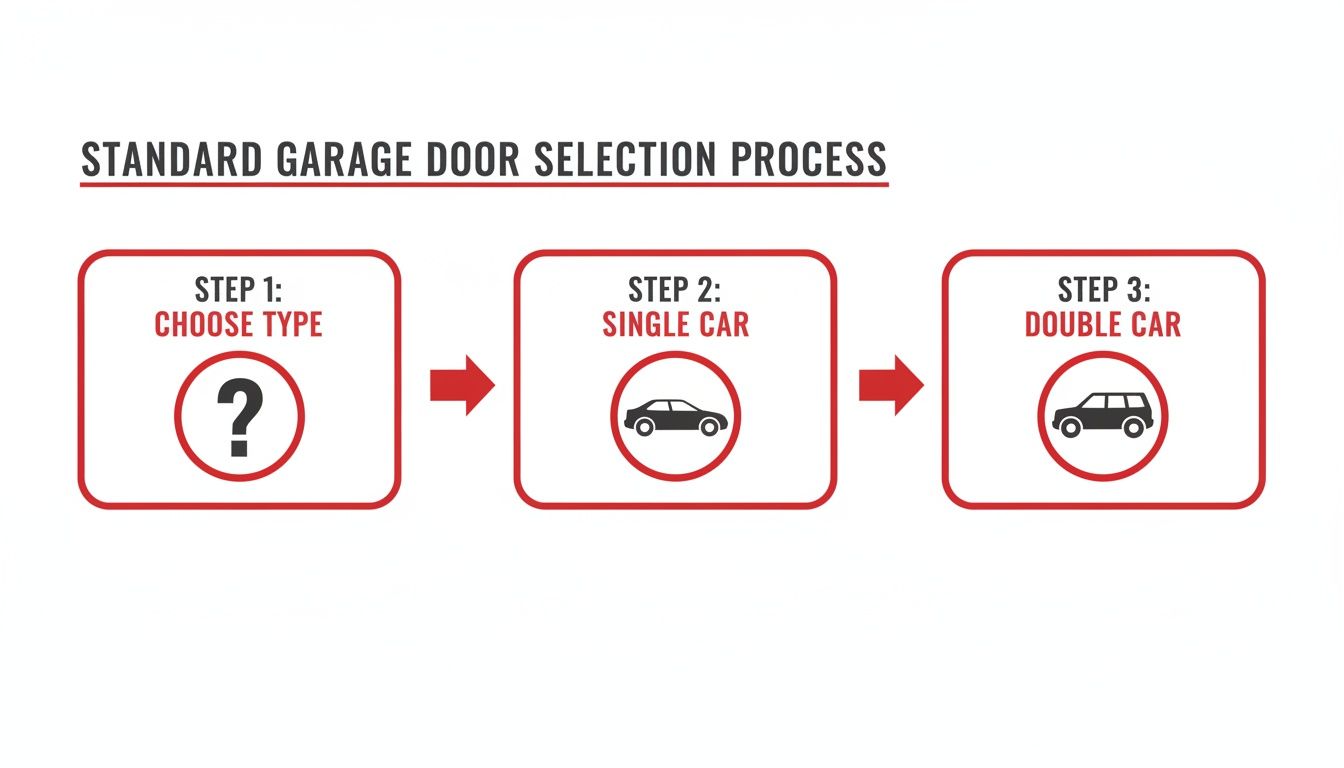

This quick visual guide breaks down the selection process for common door sizes.
As you can see, it starts with a basic choice: a single-car door for smaller vehicles or a double-car door for trucks, SUVs, or two cars.
Why Every Inch Matters
It might feel like overkill, but trust me, each of these numbers is crucial. For instance, a standard torsion spring system—the workhorse of the industry—usually needs at least 12 inches of headroom. If you have less, it’s not a dealbreaker, but you’ll need a special low-headroom track kit. That's something your installer needs to know before they show up.
A measurement that’s off by even half an inch can cause major headaches. A door that’s too small will leave gaps for drafts and critters, while one that’s too big simply won’t fit, period. That mistake can lead to costly delays and a lot of frustration.
Getting these measurements right from the get-go saves everyone time and money. It ensures the right door, tracks, and hardware are ordered on the first try. And if you’re framing a new garage, understanding how to frame for a garage door correctly is just as important as picking the door itself.
Sizing for Double Car and Commercial Doors
While a single-car garage gets the job done, many of us here in Northeast Ohio have larger garages that call for bigger doors. If you're parking two cars or need that extra room for a workshop, you’re looking at a double-car door. The go-to sizes are typically 16 feet wide by 7 feet high, with the slightly more generous 18 feet by 8 feet model gaining popularity.
This brings up a classic debate: one big door or two smaller ones? A single large door gives you the ultimate flexibility for parking, which is a lifesaver when you're trying to angle in a big truck or SUV. It also gives your home a clean, expansive look. On the other hand, two single doors can create a more traditional, carriage-house feel and offer a practical backup—if one opener decides to quit, you can still get the other car out.
From Homes to Businesses
The need for the right garage door size doesn't stop at the driveway. Local businesses, warehouses, and light-commercial buildings have their own set of demands. These doors have to be tough enough for constant use and big enough for everything from delivery trucks to forklifts.
For these applications, the dimensions pick up right where residential doors leave off:
- Widths: You'll commonly see doors ranging from 10 feet to over 24 feet.
- Heights: These can be 10 feet, 12 feet, 14 feet, or even taller, all depending on ceiling clearance and what kind of vehicles need to get in and out.
When you get into these larger sizes, sectional doors are the undisputed champs. They’ve pretty much replaced older roll-up or tilt-up styles because they're far more secure and way better at keeping the heat in.
Speaking of dominance, sectional garage doors in standard double-car sizes, like 16 feet wide by 8 feet high, now make up over 60% of all installations worldwide. This isn't just a small shift; it's reshaping the entire $22 billion industry.
And it’s not hard to see why. Here in North America, their popularity skyrocketed after 2000, largely because their superior insulation can knock 15-25% off heating and cooling bills. Plus, they work beautifully with smart openers, a feature that 45% of new U.S. homes are now including. To see how these numbers are stacking up, you can dive into the data on the global garage door market.
Why Sectional Doors Rule Larger Openings
For both big residential garages and commercial spaces, the practical benefits of sectional doors are just too good to pass up. Their panel design makes them incredibly sturdy and well-insulated, which is a huge advantage during a brutal Cleveland winter.
They also pair perfectly with today's heavy-duty smart openers, making them ideal for places with a lot of traffic. So whether you’re a homeowner with a three-car setup or a business owner with a small fleet, the right-sized sectional door delivers the convenience, security, and efficiency you need. It’s about making sure your door system is built to handle the job, no matter the scale.

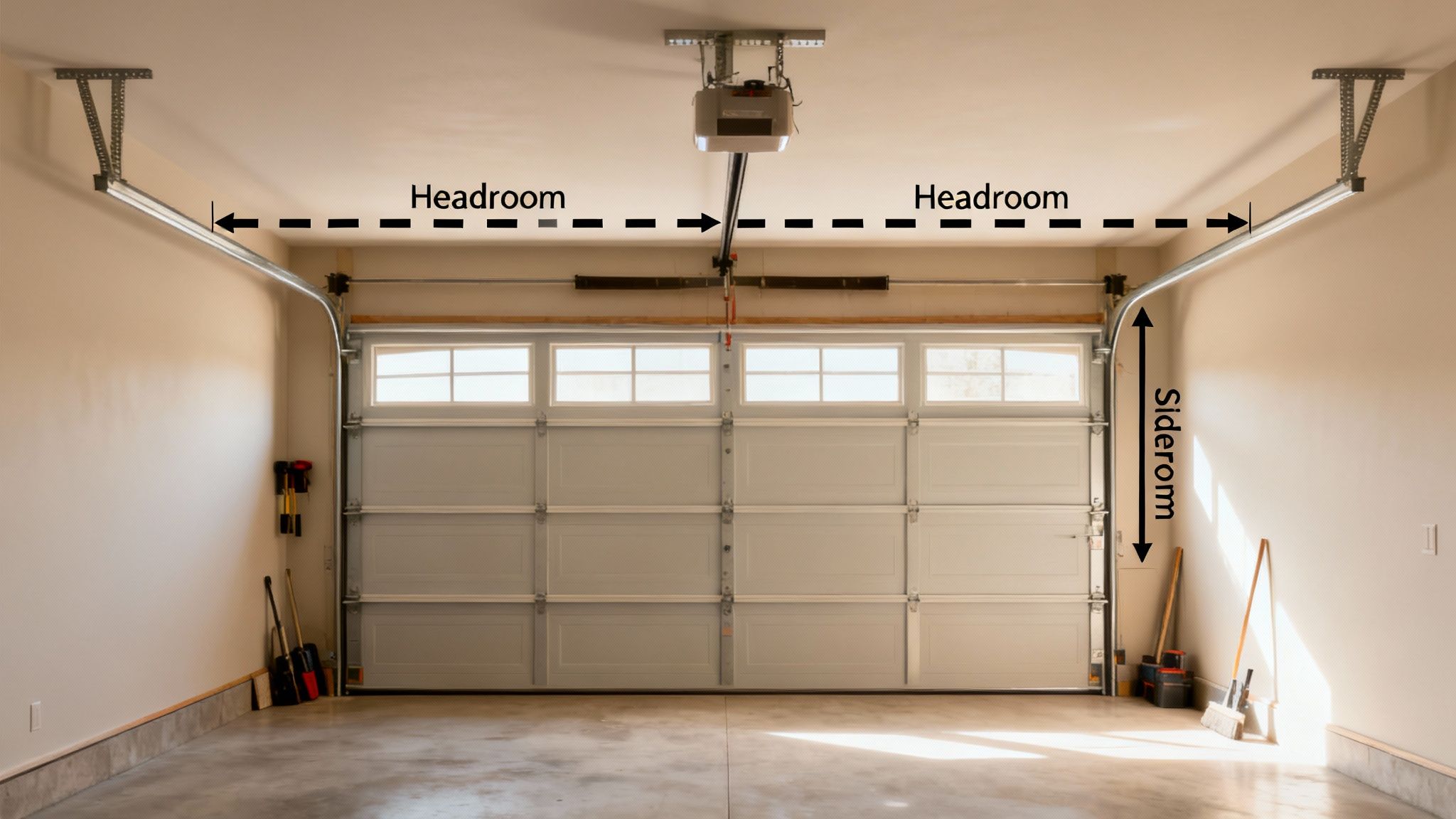

Why Headroom and Sideroom Are a Big Deal
So, you’ve measured the width and height of your garage door opening. That’s a great first step, but it’s really only half the story. The secret to a garage door that runs smoothly and safely for years to come is all about the space around the opening. This is where headroom and sideroom enter the picture, and trust me, ignoring them is a recipe for disaster.
Think of it this way: headroom is the breathing room your door needs above the opening. It’s where the springs and top section of the door tuck away when it’s open. Sideroom is the necessary wall space on either side for mounting the vertical tracks. Without enough of both, a standard installation just isn't happening.
These aren't just polite suggestions from an installer; they're the hard-and-fast requirements that determine what kind of hardware system will even work in your garage.
Understanding Clearance Requirements
For a standard, run-of-the-mill installation, the rules are pretty straightforward but non-negotiable. Your installer needs solid ground, so to speak, to mount all the components that do the actual work of lifting that heavy door.
Here’s what you absolutely need for most residential doors:
- Standard Headroom: You'll want a minimum of 10 to 12 inches of clear, unobstructed space above the top of the door opening. This is the sweet spot for a standard torsion spring system to work flawlessly.
- Standard Sideroom: You need at least 3.75 inches of wall space on each side of the opening. This is where the vertical tracks that guide the door’s rollers get bolted to the wall. For beefier, heavier doors, that requirement can jump to 5.5 inches.
Now, having less than this doesn't automatically disqualify you from getting a new door. It just means we have to get a little more creative with the solution.
Forgetting to account for headroom is one of the most common—and costly—mistakes we see homeowners make. It can force you into buying expensive custom tracks or a different opener, and in a worst-case scenario, it can stop an installation dead in its tracks.
What Happens When Space Is Tight
Okay, so you just measured and realized you don't have that magic 12 inches of headroom. Don’t panic! This is incredibly common, especially in older homes or garages with unique ceiling designs. The good news is, we have solutions.
A low-headroom track kit is the go-to fix. This clever piece of hardware essentially re-engineers the top track and spring setup to function in as little as 4.5 inches of headroom. Instead of the springs sitting right above the door, the system gets pushed deeper into the garage.
Another fantastic option for tight spots is a jackshaft opener. Unlike a traditional opener that hangs from the ceiling, these mount neatly on the wall right next to your door, turning the torsion bar directly. This frees up all that overhead space, making it a perfect match for garages with low ceilings or obstructions like pipes or beams.
Navigating Custom Garage Door Sizes
What happens when your garage opening just doesn't play by the standard rules? This is a common story in many older Northeast Ohio homes, from historic properties in Chagrin Falls to mid-century houses in Beachwood with unique dimensions. The same goes for any custom-built house or a garage designed to house a special hobby.
This is exactly where custom garage door sizes save the day. An unusual opening doesn't mean you're stuck with ugly, limited, or ill-fitting options. In fact, think of it as an opportunity to get a door that perfectly matches your home's unique character.
When a Custom Door Is the Answer
While most modern homes stick to standard sizes, there are plenty of situations that absolutely call for a custom-built solution. Maybe your garage was built for a specific purpose that demanded extra height or width, or maybe it's just a quirk of an older build.
Common reasons you might need a custom size include:
- Recreational Vehicles: Garages built to house an RV, camper, or boat often need doors that are 10 to 16 feet tall.
- Oversized Trucks or Equipment: If you drive a lifted truck, a commercial van, or need to move large workshop machinery, a standard 7-foot door simply won’t cut it.
- Historic Homes: Older properties were often built long before modern vehicle sizes became the norm, frequently resulting in odd-sized openings that don't conform to today's standards.
- Architectural Design: Some homes feature beautiful arched or angled openings that demand a custom-fit door to preserve the original design.
An odd-sized opening isn’t a problem; it’s just a puzzle waiting for the right solution. With expert guidance, a custom door can provide a perfect, weather-tight seal that looks like it was always meant to be there.
The Custom Ordering Process
Ordering a custom door is a pretty straightforward process, but it’s one that requires absolute precision and a bit of patience. The most critical first step is getting an exact measurement from a professional. They’ll confirm every dimension down to the fraction of an inch to guarantee a perfect, snug fit.
From there, you’ll work with them to choose the material, style, and features you want. Since the door is being made just for you, this is your chance to customize everything—windows, hardware, and colors—to match your home perfectly. Given our varied Ohio weather, it's also a great time to learn about the pros and cons of insulated vs. non-insulated garage doors for your project.
Just keep in mind that lead times for custom doors are longer than for in-stock sizes, typically running 6 to 12 weeks. The cost is also higher, usually about 15-30% more than a comparable standard door because of the specialized manufacturing. But the result is a high-quality door that seamlessly integrates with your home’s unique structure and seriously boosts its curb appeal.
Common Sizing Mistakes You Can Avoid
Getting the right garage door size seems straightforward, but a small miscalculation can quickly spiral into a big, expensive headache. Over the years, we've seen just about every mistake in the book. Knowing what to watch out for is half the battle.
One of the most common slip-ups we see is ordering a door based on the rough opening measurements. The rough opening is the raw, unframed hole in your wall. Your door actually needs to fit inside the finished space after the trim and jambs are in place. This simple mix-up can leave you with a door that's just a bit too big, turning a simple installation into a real mess.
Another classic blunder is failing to account for a sloped garage floor. If your concrete isn't perfectly level—and it rarely is—measuring the height in just one spot is a recipe for trouble. A door that fits perfectly on the high side could leave a massive gap on the low side, basically rolling out the welcome mat for critters and cold drafts.
Misjudging Your Clearance Needs
Even if you nail the opening measurement, you can still run into issues if you forget about the space around the door. This is where clearance becomes absolutely critical for a system that actually works.
A couple of clearance mistakes we see all the time include:
- Forgetting Headroom for an Opener: It's easy to measure your headroom and see that you have enough space for the door and its tracks. But what about the opener? People often completely forget to budget space for the overhead motor and rail, forcing a last-minute, and often more expensive, switch to a wall-mount opener.
- Ignoring Side Obstructions: You might have the required sideroom on paper, but have you checked for what's actually in that space? Pipes, shelving units, or a fuse box can easily block the spot where the vertical tracks need to go. Always do a physical check for obstructions.
A small measurement error is never just a small problem. It often means reordering parts, paying for extra labor, and dealing with delays—all of which could have been avoided with a few extra minutes of careful measuring.
The absolute best way to sidestep these problems is to live by the old rule: measure twice, cut once. In this case, measure everything twice—or even three times—before you ever place that order. A little extra precision upfront guarantees your new garage door will fit and work perfectly from day one.
Still Have Questions About Garage Door Sizes?
Even after getting the tape measure out, a few questions always seem to pop up. Let's tackle some of the most common ones we hear from homeowners trying to get the right fit.
Will My Truck or SUV Actually Fit?
Good question. For the most part, a standard 7-foot-high garage door will clear most SUVs and pickup trucks rolling off the factory line.
But here’s the catch: once you add a lift kit, beefier tires, or a roof rack for your kayaks, all bets are off. If your vehicle is modified, you'll almost certainly need to step up to an 8-foot-high door. The only way to know for sure is to measure the vehicle itself from the ground to its highest point. Don't guess on this one!
Can I Swap Two Single Doors for One Big Double Door?
You absolutely can, and it's a fantastic upgrade. Many homeowners get tired of navigating that center post between two small doors.
Removing that post and replacing two single doors with one double door is a common project. It does involve some structural work—a new, wider header has to be installed to carry the load properly. It’s a bit more involved than a straightforward replacement, but the result is a much more open, functional, and modern-looking garage.
What if I'm Short on Headroom?
Don't worry, a low ceiling doesn't mean you're stuck. If you don't have the standard clearance, we have a couple of clever workarounds.
A low-headroom track system is designed specifically for these situations, allowing the door to hug the ceiling more tightly. Another great option is a jackshaft opener. Instead of a bulky motor hanging from the ceiling, this type of opener mounts neatly on the wall right beside the door, freeing up all that overhead space. If you're wondering how these options might affect the overall price, take a look at our guide on the cost of a new garage door.
For our neighbors in Northeast Ohio, if you're still scratching your head or just want an expert to handle the measurements, the team at Danny's Garage Door Repair is here to help. Get a free, no-pressure estimate by visiting us at https://garagedoors101.com.
