You press the garage door opener, hear a sharp bang, and watch the door rise only a few inches before stopping. Or the door opens, but it suddenly feels far heavier when you try to lift it by hand. Those moments often point to a tired, broken, or poorly balanced spring system.
A garage door spring inspection helps you catch warning signs before a failure leaves the door stuck or creates a serious hazard. You can safely perform a visual check and a carefully controlled balance test. You should not wind, loosen, adjust, or replace a spring yourself. These components store substantial energy, and the boundary between observation and repair matters.
Why Garage Door Spring Inspections Matter for Your Safety
A door that feels unusually heavy during a careful hand check deserves attention. Springs counterbalance the door so the opener and lifting hardware do not carry its entire weight. As spring tension changes, the door may become uneven, noisy, or harder to control, and the added strain can affect cables, rollers, tracks, and the opener.
The safety risk is real. A medical review reported that someone struck in the eye by a garage door spring appears to face about a 50% chance of an open-globe injury (NIH medical review). Consumer injury summaries report that finger and head injuries account for 50% of garage-door-related injuries over a five-year period, while hand and face injuries add another 21.7% (garage door spring safety summary).
What an inspection can reveal
A safe homeowner check can document several conditions:
- A broken coil: A visible separation commonly indicates torsion spring failure.
- Poor balance: The door may drop, rise, or drift instead of remaining near halfway.
- Uneven travel: One side can move faster or hang lower than the other.
- Corrosion and deformation: Rust, scoring, or distorted coils may indicate weakened metal.
- Usage-related fatigue: A spring can look intact while approaching its rated cycle limit.
Standard torsion springs are commonly rated for about 10,000 cycles. With average residential use of roughly four open-and-close cycles per day, that can mean about seven to ten years. Heavier use reduces service life, so combine calendar age with cycle estimates and balance results rather than relying on appearance alone (spring cycle-life guidance).
Safety boundary: Homeowners can observe, record conditions, and perform a controlled balance test. Spring adjustment, winding, cable removal, and replacement require a trained technician.
A visual check every few months may help you schedule service before the door becomes unusable. It cannot confirm that a spring is sound, because internal fatigue may develop without an obvious exterior defect. Stop at observation and controlled testing. Leave stored-energy work to a professional.
Safety Precautions and Tools You Need Before Starting
Start by making the garage a controlled work area. Keep children, pets, vehicles, and other people away from the door while you inspect it. Don't begin if the door is moving, partially supported, off its tracks, or showing an obvious broken spring.
Prepare the opener and work area
Close the door fully before disconnecting the opener. Pull the emergency release cord to separate the opener carriage from the door, then disconnect the opener from its power source so nobody can activate it while you're working. If the opener can't be safely isolated, stop and arrange professional service.

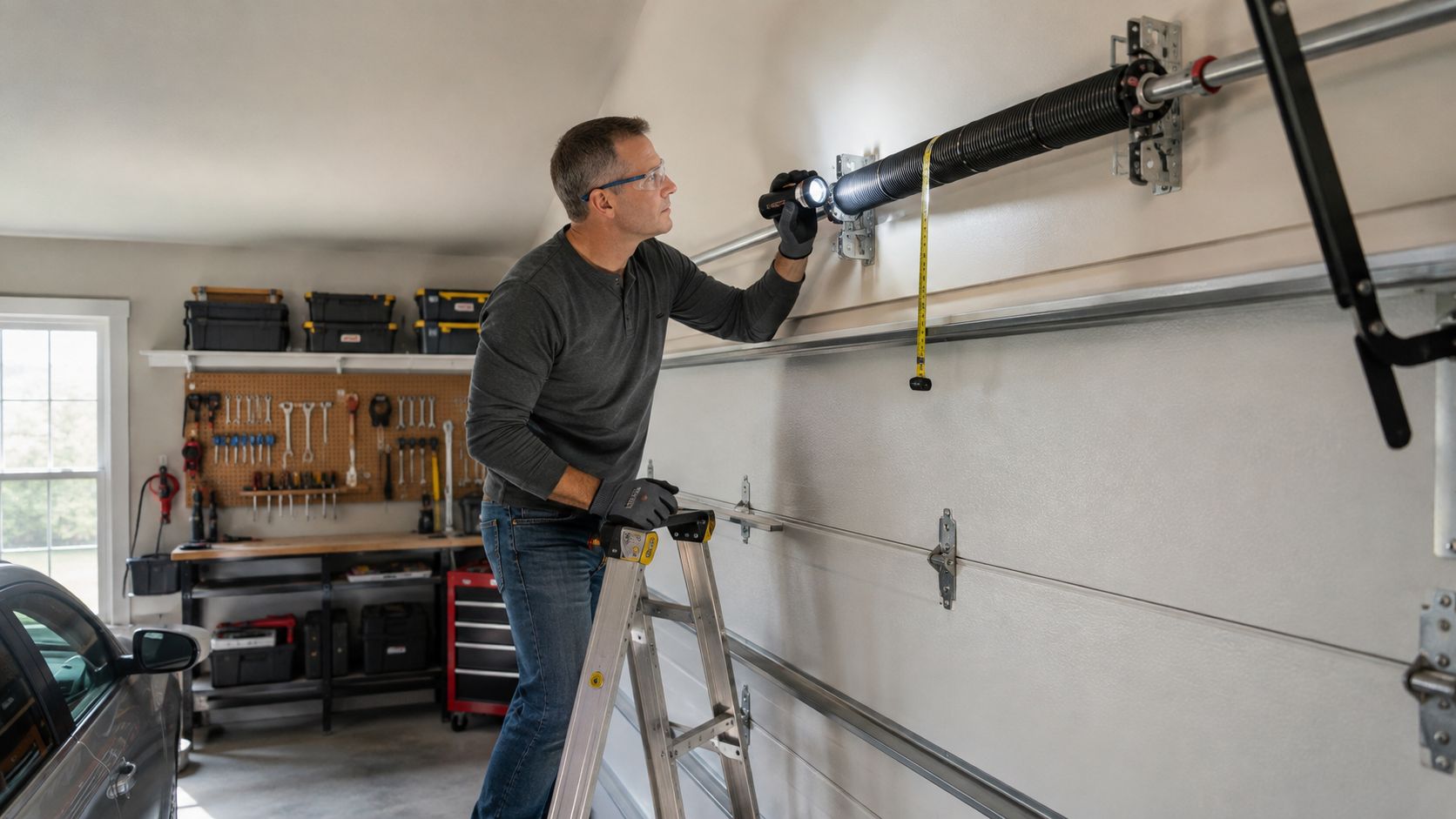

Wear safety glasses and work gloves, but remember that protective equipment doesn't make spring adjustment safe. Use a flashlight or headlamp to examine coil gaps, cable seating, and hardware. A sturdy stepladder and tape measure can help you see and record conditions, but don't place yourself under an unstable or partly open door.
Your homeowner inspection kit should stay simple:
- Sturdy stepladder: For visibility only, never as a platform for spring work.
- Safety glasses: Protect your eyes during close visual observation.
- Work gloves: Reduce contact with sharp edges and rusty surfaces.
- Flashlight or headlamp: Illuminate spring coils and mounting hardware.
- Tape measure: Record relaxed spring length or door dimensions for a technician.
Tools that stay off the spring
Don't use winding bars, locking pliers, vice grips, screwdrivers, or improvised rods to change tension. A garage door spring winding tool guide may help explain why these tools exist, but owning a tool doesn't qualify you to use it on a loaded spring.
Torsion springs can release rotational force suddenly. Extension springs can stretch and snap, and their containment cables must be present and intact. If the cable is missing, loose, or damaged, don't operate the door. Your role is observation and simple testing, never physical manipulation of spring hardware.
Visual Wear Indicators on Torsion and Extension Springs

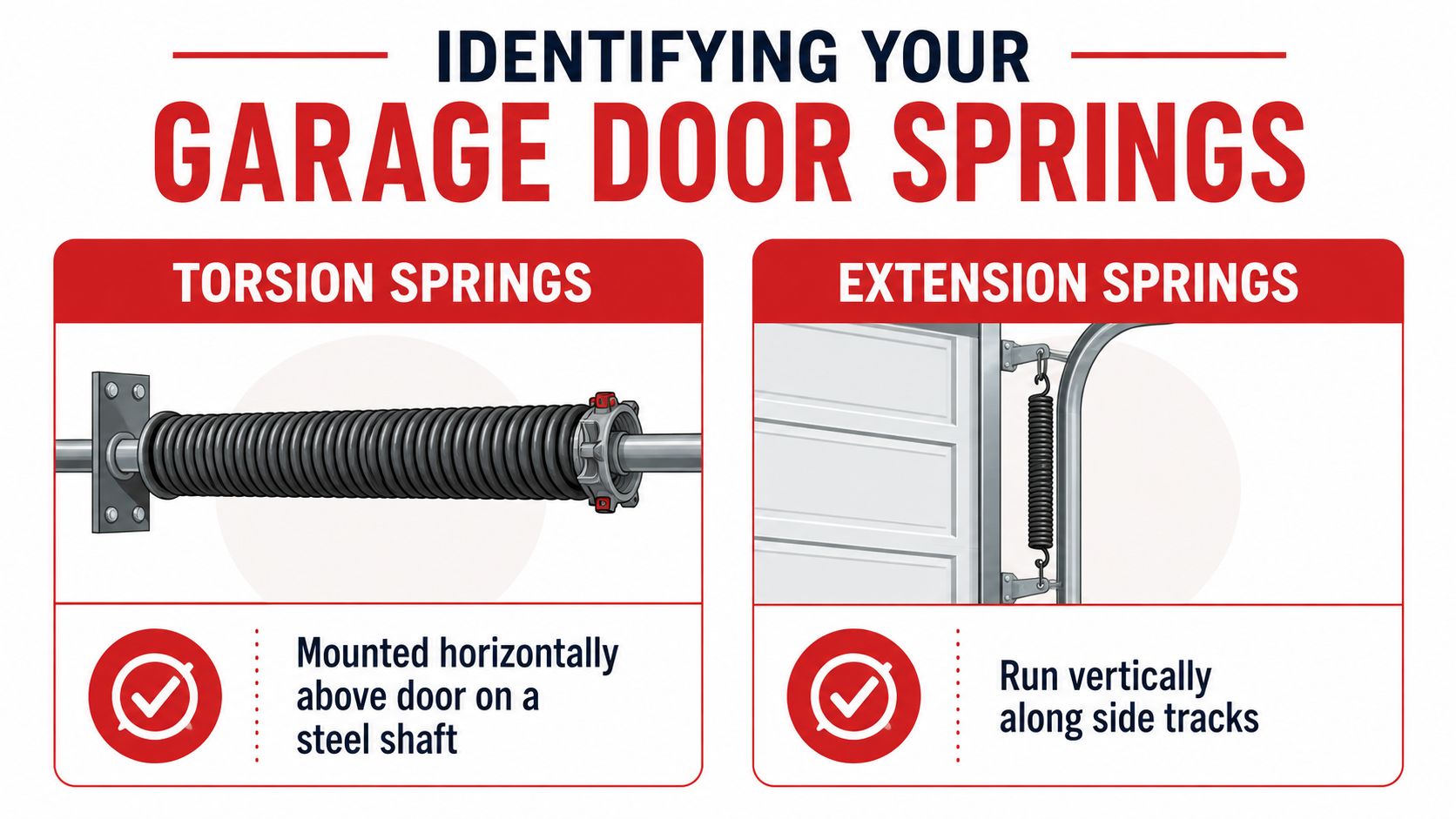

Start by identifying the spring system. Torsion springs sit horizontally above the door on a steel shaft. Extension springs run beside the tracks and stretch as the door moves. The hardware differs, but a homeowner's inspection should remain visual. Do not handle loaded springs or their fittings.
Torsion spring checks
From a safe position, use a flashlight to examine the coils. Even spacing and an unbroken profile are reassuring, but they do not prove the spring has full service life. A broken torsion spring usually leaves a visible gap, often about one to two inches, and may have failed with a loud bang. Review these broken torsion spring signs if you need help distinguishing a break from surface wear.
Look for:
- Coil separation: A clear gap indicates a break, not routine wear.
- Rust or pitting: Light discoloration deserves monitoring. Deep corrosion can weaken the wire.
- Scoring or deformation: Scratches, flattened coils, or stretched sections indicate stress.
- Cone and hardware movement: Look for slippage near the winding cone and set-screw area. Do not touch or tighten anything.
- Cable seating: Lift cables should sit correctly on their drums, without visible fraying or slack.
A clean, continuous spring can still be nearing fatigue. Visual inspection can identify obvious damage, but it cannot measure remaining cycle life. The manual balance test and a technician's assessment determine whether the door is still properly supported.
Extension spring checks
Extension springs should show reasonably uniform coils, with no severe stretching, damaged hooks, or heavy corrosion. Check the safety containment cable that runs through each spring. A frayed, detached, or missing cable is a stop-use condition until a professional evaluates the door.
Inspect the pulleys and attachment points from the floor or another stable position. Worn pulley hardware, loose connections, and cables that track poorly may indicate a system problem rather than a spring-only fault. This torsion versus extension spring reference explains the design differences that affect inspection points and repair risk.
A broader garage check may include floor preparation. Guidance on a professional epoxy garage floor install can help with that separate project, but floor work should wait if the spring is damaged or the door is unstable.

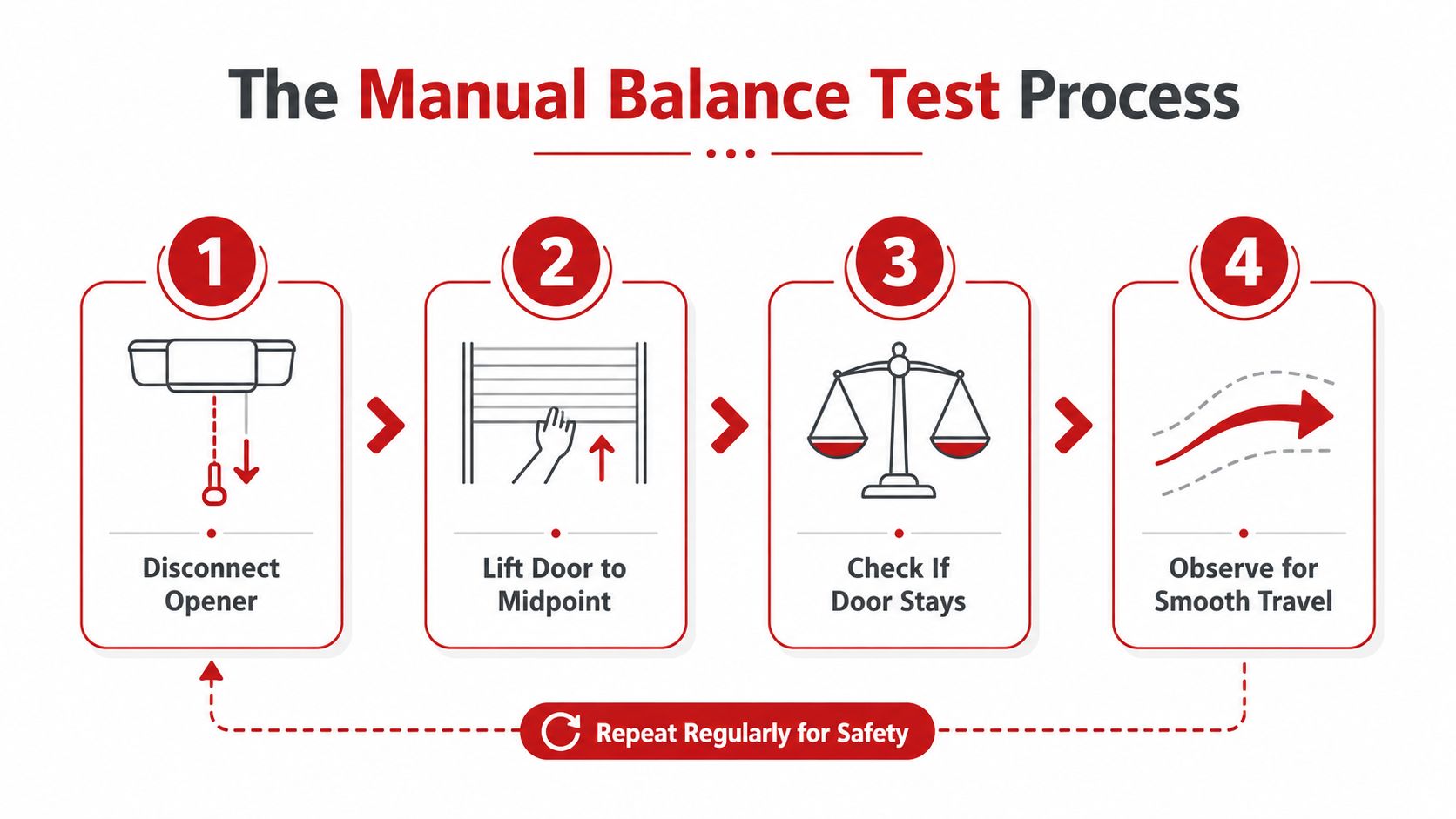

How to Perform the Manual Balance Test
The balance test reveals more than a quick look at the coils. It verifies whether the spring system is counterbalancing the door, which is the condition that protects the opener and ensures the door travels predictably.
Close the door completely first. Disconnect the opener with the emergency release cord, confirm that the door is stable, and stand to the side rather than directly in its path.
Test the door in controlled stages
- Lift the door by hand. Raise it slowly to about halfway open, roughly three to four feet above the floor for many residential doors. Use both hands and stop if it binds, feels dangerously heavy, or moves unevenly.
- Release it carefully. A properly balanced door should remain near that position with little drift. It shouldn't free-fall, climb, or require you to fight its weight.
- Listen and observe. Grinding, scraping, jerking, or a crooked rise can point to spring imbalance, track resistance, roller problems, cable issues, or more than one fault.
- Record the result. If the door remains stable and moves smoothly, note that outcome. If it drops or rises, stop using the opener and arrange an evaluation.
A door that drops suggests insufficient counterbalance. A door that rises by itself suggests excessive tension. Either result means the system needs professional assessment, not a quick turn of a set screw.
You can observe the door at quarter-open, halfway, and three-quarter-open positions if it moves smoothly and safely. Don't force the test when the door is damaged or the spring visibly broken. Common symptoms such as a door that feels extremely heavy, opens only a few inches, or falls quickly during closing are recognized warning signs of spring trouble (spring failure symptoms).
Using Cycle Life Math to Predict Spring Lifespan
A spring can look clean and still be close to its service limit. Cycle life measures one complete opening and closing sequence, so the useful question is how often the door operates, not only how old the spring appears.
Estimate the door's workload by multiplying average daily cycles by 250 days, then by 10 years, following the planning formula described by Garaga (torsion spring cycle formula). Count one full open-and-close sequence as one cycle. Include trips by every driver, deliveries, and repeated opener use during the day.
Use the result to compare replacement options:
| Daily cycles | 10,000-cycle spring | 20,000-cycle spring | 25,000-cycle spring |
|---|---|---|---|
| 4 | About 7 to 10 years | Longer than a standard-cycle spring | Longer still, depending on use |
| 6 | About 4.5 years | Qualitatively longer service life | Qualitatively longer service life |
| 8 or more | About 3 years or less | Qualitatively longer service life | Qualitatively longer service life |
The table helps identify when a higher-cycle spring may better match the household's workload. A quiet household with limited door movement may not need the added capacity. A home business, multiple drivers, or frequent deliveries can justify discussing a higher-cycle option with a technician because the spring will accumulate cycles faster.
Cycle math also changes how you interpret a visual inspection. A spring with little visible corrosion may still have substantial fatigue if its estimated cycle count is near the rating. Conversely, a newer spring that already shows a gap, severe corrosion, or other damage should not be kept in service just because the calculation looks favorable.
Before selecting a replacement, have a technician verify the spring's wire diameter, inside diameter, relaxed length, coil count, and rated torque. Those details determine whether the proposed spring matches the door. Cycle estimates help with planning, but they do not authorize a homeowner to adjust spring tension or replace the assembly.

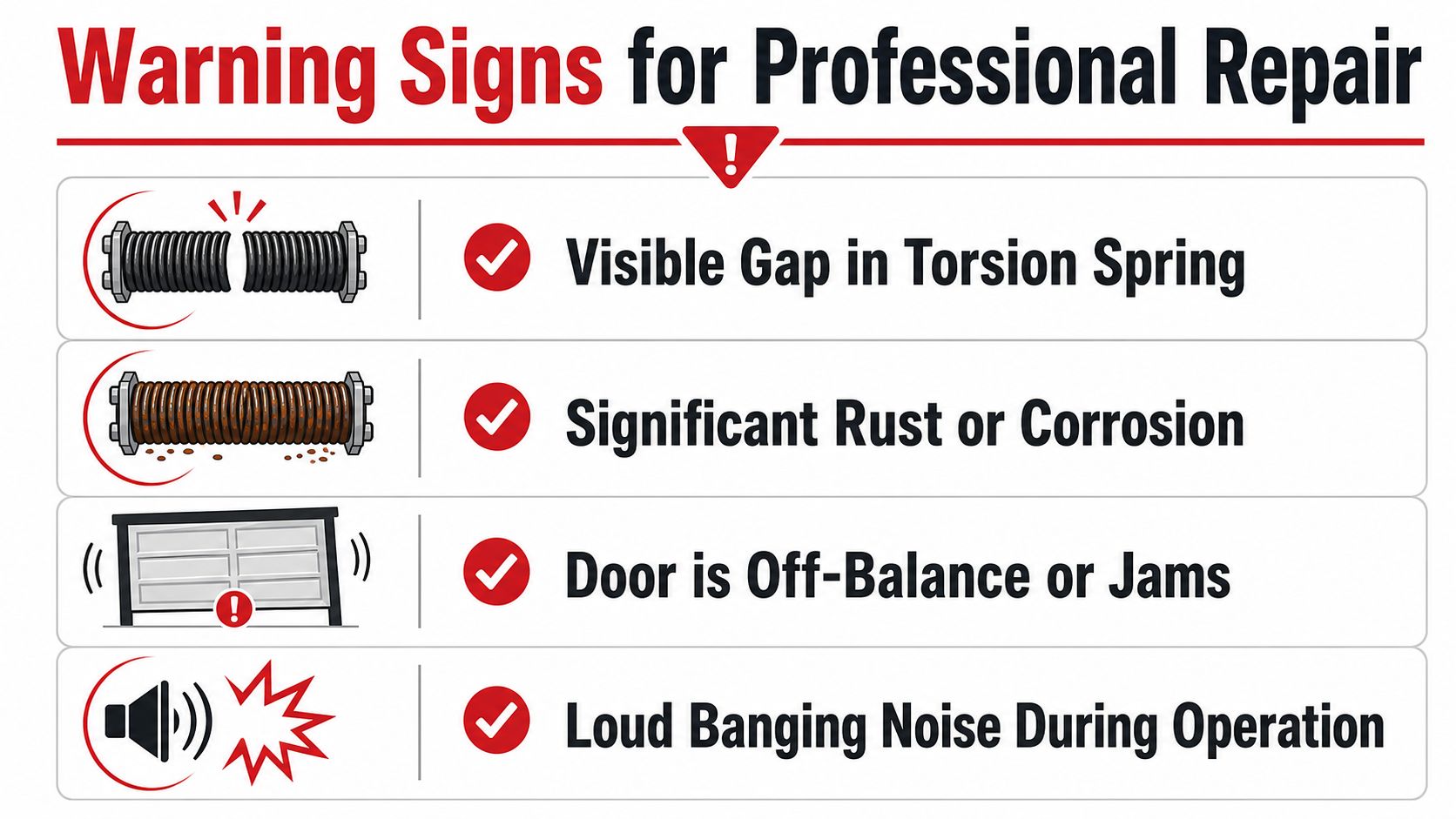

Warning Signs That Require Professional Repair
Some inspection findings aren't invitations to investigate further. They're stop signs. Once you see a broken coil, damaged cable, severe corrosion, or a door that won't balance, leave the spring assembly alone and keep the opener disconnected.
Stop when the hardware shows failure
A visible gap in a torsion spring means the spring has separated and no longer provides reliable counterbalance. Loud popping or banging can indicate a snapped spring or a cable slipping from its drum. A door that hangs lower on one side can place uneven stress on tracks, rollers, cables, and brackets.
Frayed or loose lift cables deserve the same response. The cables help transfer spring force and support controlled travel, so a damaged cable can worsen quickly when the door moves.
Use this decision rule:
- Visible gap: Don't operate the door or touch the coil.
- Severe rust or pitting: Stop if corrosion has damaged the spring wire.
- Door imbalance: Don't compensate by changing spring tension.
- Cable damage: Keep people clear and request service.
- Sudden heavy lifting: Don't rely on the opener to overcome the problem.
- Loud bang or snap: Treat it as a possible spring or cable failure.
Do not test a damaged door repeatedly. Each cycle can load compromised hardware and create more opportunity for a sudden release.
Neutral home-maintenance resources, including East Texas home inspection guidance, can help homeowners understand why high-tension components deserve careful documentation and professional evaluation. For spring-specific failure causes, this garage door spring breakage guide offers additional background.
A professional doesn't just replace whatever looks damaged. The technician should verify the spring type, dimensions, torque requirements, cable condition, mounting hardware, door balance, and opener safety. Replacing one component without finding the reason for uneven loading can leave the underlying problem in place.
When to Schedule Service with Danny's Garage Door Repair
A practical maintenance rhythm keeps the inspection simple. Perform a visual check every three months, test the balance twice a year, and schedule a professional tune-up annually. Increase attention when the door cycles heavily, the installation is older, or the door develops noise, hesitation, uneven movement, or unusual weight.
Professional service becomes the right choice when the spring has a visible gap, the balance test fails, the cycle estimate approaches the rated limit, or cables and hardware show damage. Don't wait for the door to become completely inoperable. A failed spring can leave your vehicle trapped inside, prevent access to a property, and place extra strain on connected components.
Before calling, write down what you observed:
- Spring type: Torsion above the door or extension beside the tracks.
- Door details: Approximate width, height, and material.
- Symptoms: Bang, gap, rust, imbalance, heavy lifting, or cable damage.
- Usage pattern: Light residential cycling or frequent daily operation.
- Installation information: Any date, invoice, label, or prior service record.
Danny's Garage Door Repair provides spring repair and replacement, full garage-door inspections, lubrication, safety tune-ups, and emergency service for homes and light-commercial properties in Greater Cleveland and Northeast Ohio. During a service visit, expect an assessment of the spring system and related hardware, an explanation of the findings, and a repair quote before work proceeds. Scheduling ahead of a failure also gives you more control over timing and replacement choices.
Home sellers may also find broader garage preparation useful, including this guide on how to stage a garage to sell faster. A clean, functional garage starts with safe mechanical equipment, not cosmetic improvements alone.
Book a garage door spring inspection today if your door shows any warning sign or the cycle estimate suggests it's nearing its limit. A short professional evaluation can identify the spring, cable, balance, and opener issues that a visual check can't confirm.
Danny's Garage Door Repair offers professional spring inspections, balance testing, spring and cable replacement, safety tune-ups, and emergency garage door service across Greater Cleveland and Northeast Ohio. Visit Danny's Garage Door Repair to request an inspection and get clear next steps before a spring failure leaves your door unsafe or unusable.
