You've got a garage door that's acting up, the spring looks questionable, and the idea of fixing it yourself feels cheaper than calling for help. That's exactly where a garage door spring winding tool matters, because the wrong tool, or the wrong fit, turns a routine job into a high-risk one fast. The trick isn't just winding the spring, it's matching the tool to the spring, the clearance, and the method that belongs on your door.

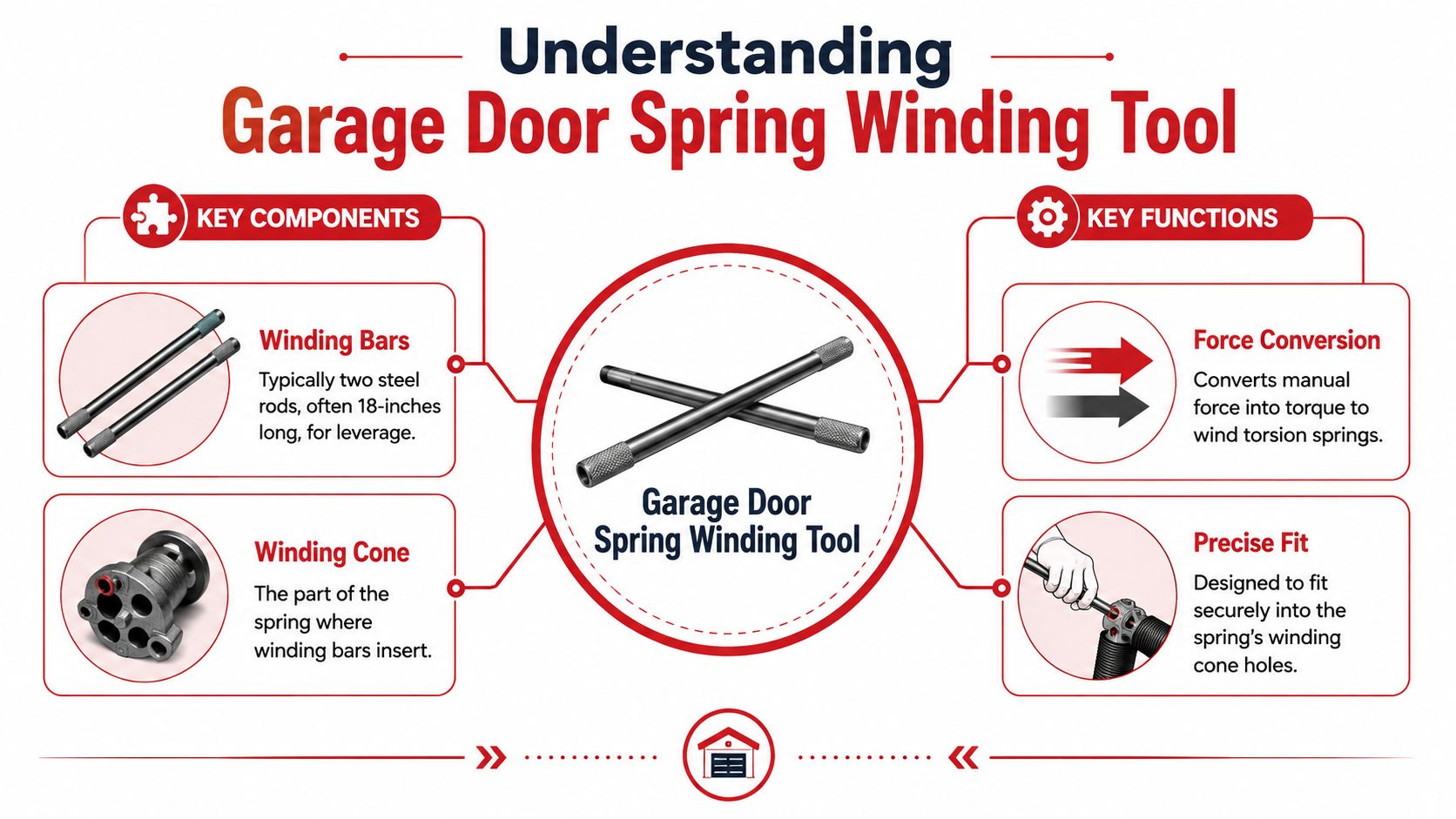

Understanding Garage Door Spring Winding Tool
A garage door spring winding tool gives you controlled access to a torsion spring that stores enough force to punish a sloppy turn. On service calls, the difference between a proper winding bar and an improvised substitute shows up fast, especially on the final turns where the spring load is highest. The standard approach uses 18-inch winding rods inserted into winding cones so the technician can apply tension with control, a setup explained in engineering analysis from the University of Nebraska–Lincoln.
What the tool does
On a torsion system, the tool provides mechanical advantage and keeps the spring moving in a controlled way without slipping. Standard residential winding bars are typically solid steel rods, usually 18 to 24 inches long, and common cone holes are set up so the spring advances in quarter-turns, with some bars sold in 1/2-inch or 5/8-inch diameters (garage-door spring winding bars safety guide).
Fit matters more than a lot of homeowners expect. A bar that is too small can wobble in the cone, and a bar that is too large can bind before the turn is complete. Either problem makes the job harder to control. A purpose-built winder, or a drill-driven system, still has to match the cone geometry and shaft clearance on the door.
Practical rule: the right tool is the one that seats cleanly in the cone and stays controlled through every quarter-turn.
Winding bars vs powered systems
A standard pair of bars still makes sense on many residential torsion jobs. On some doors, drill-driven winders are set up to speed controlled winding, which helps when the spring rating and the door layout allow it. For a quick primer on the spring itself, see what a torsion spring garage door is.
Compatibility is the decision that separates a smooth job from a frustrating one. Homeowners often assume all “winding tools” are interchangeable, but the spring diameter, shaft size, and available clearance can rule a tool in or out before the first turn. I see that mismatch a lot in the field, and it is one of the reasons technicians check the setup before touching the cone. Choosing the tool first saves time, avoids forced fits, and lowers the chance of a slip at the start of the wind.
Recognizing Safety and Legal Licensing Considerations
A torsion spring can injure hands, eyes, or face if the bar slips or the spring releases unexpectedly. This warning reflects the physics of a part built to store and release force in a controlled way. Manufacturers rate torsion springs for 10,000 to 15,000 cycles, with warranties of 3 to 7 years, which is why precise tensioning and licensed service matter if you want the system to last as long as intended (garage door history).
A lot of DIY guides stop at the mechanics and never mention local rules. In Northeast Ohio, licensing and code compliance can matter just as much as torque control, because a spring job done wrong can fail a warranty, create liability, or run against municipal requirements. For a closer look at the repair side of torsion work, the garage door repair torsion spring page is a useful companion, and the homeowner's guide to spring repair also gives a practical overview of the work homeowners are often trying to understand.
Why the legal side matters
Licensed technicians do more than bring the right tools. They also work within the expectations of insurance, local code, and service documentation. That matters on spring jobs because the system is under load before the door even moves, and a mistake can create damage that is not limited to the spring itself.
A spring replacement ends when the door runs evenly, the hardware is secure, and the work matches the local rulebook.
A technician also checks whether the winding tool fits the cone and matches the door setup before the first turn. That tool compatibility is part of safety, and it is one of the spots where homeowners lose time by forcing a tool that should have been ruled out at the start. Danny's Garage Door Repair in Northeast Ohio sees these cases often, including calls where a homeowner has the wrong winding setup and needs a safer path to finish the job or stop it before damage spreads.
If your municipality requires licensed spring work, or if the service requirements tied to your door are unclear, do not guess. The risk is higher than the money saved by trying to push through without confirming the rules.
Preparing for Winding Your Torsion Springs
Preparation is where most avoidable mistakes start. Before any winding tool touches the cone, clear the work area, keep the door stable, and match the tool to the spring rating before you commit to tension. Surewinder tools handle springs up to 127 IPPT (1,020 in-lbs) and 8 turns, while a heavy-duty corded drill is needed above 65 IPPT for safe, controlled winding (CPWR construction solutions).
What to gather before you touch the spring
Start with the basics, then confirm the door's layout and the tool's fit.
- Eye protection: Wear safety glasses any time you're near the cone or bars.
- Hand protection: Use sturdy gloves for grip and to reduce cut risk.
- Foot protection: Wear solid boots, because dropped tools and shifting hardware happen.
- Measured clearance: Confirm there's enough room between the shaft and wall for the tool to work without crowding.
- Correct drive setup: A standard 1/2-inch hex drive socket works with some cordless drill systems, but only when the tool and spring are within the stated limits (AceWinder residential product page).
The drill matters, but only within the tool's limit. A stronger drill does not make the setup safer if the winding system was not built for that load, and it can make control worse when the cone starts to take tension. An impact driver is the wrong choice here, and the manufacturer guidance is clear about avoiding it.
Match the tool to the spring
Spring size and torque rating come first. If the spring is above the tool's range, force is the wrong answer. Switch tools or hand the job off before tensioning begins, because that is the point where small compatibility mistakes turn into hard stops.
Tool choice also affects the legal side of the job. If local rules require licensed spring work, or if the service requirements tied to the door are unclear, confirm that before starting. DIY guides often skip that step, but service calls in Northeast Ohio show how fast a mismatch can turn into a stalled repair, extra damage, or a call to Danny's Garage Door Repair for a safer finish. For homeowners comparing repair options, Bulls Eye Repair's homeowner's guide to spring repair is a useful read because it helps frame the decision before anyone starts loosening hardware.
Performing a High-Level Winding and Unwinding Workflow
A torsion spring does not forgive guesswork. The shaft has to stay secured, the cone has to stay aligned, and every move has to stay deliberate if the job is going to stay controlled. In the field, that usually means matching the tool to the spring, checking local licensing rules before tensioning begins, and deciding early whether the job belongs in a homeowner garage or with a licensed tech. For homeowners comparing repair options, the homeowner's guide to spring repair is a useful read because it helps frame the decision before anyone starts loosening hardware.

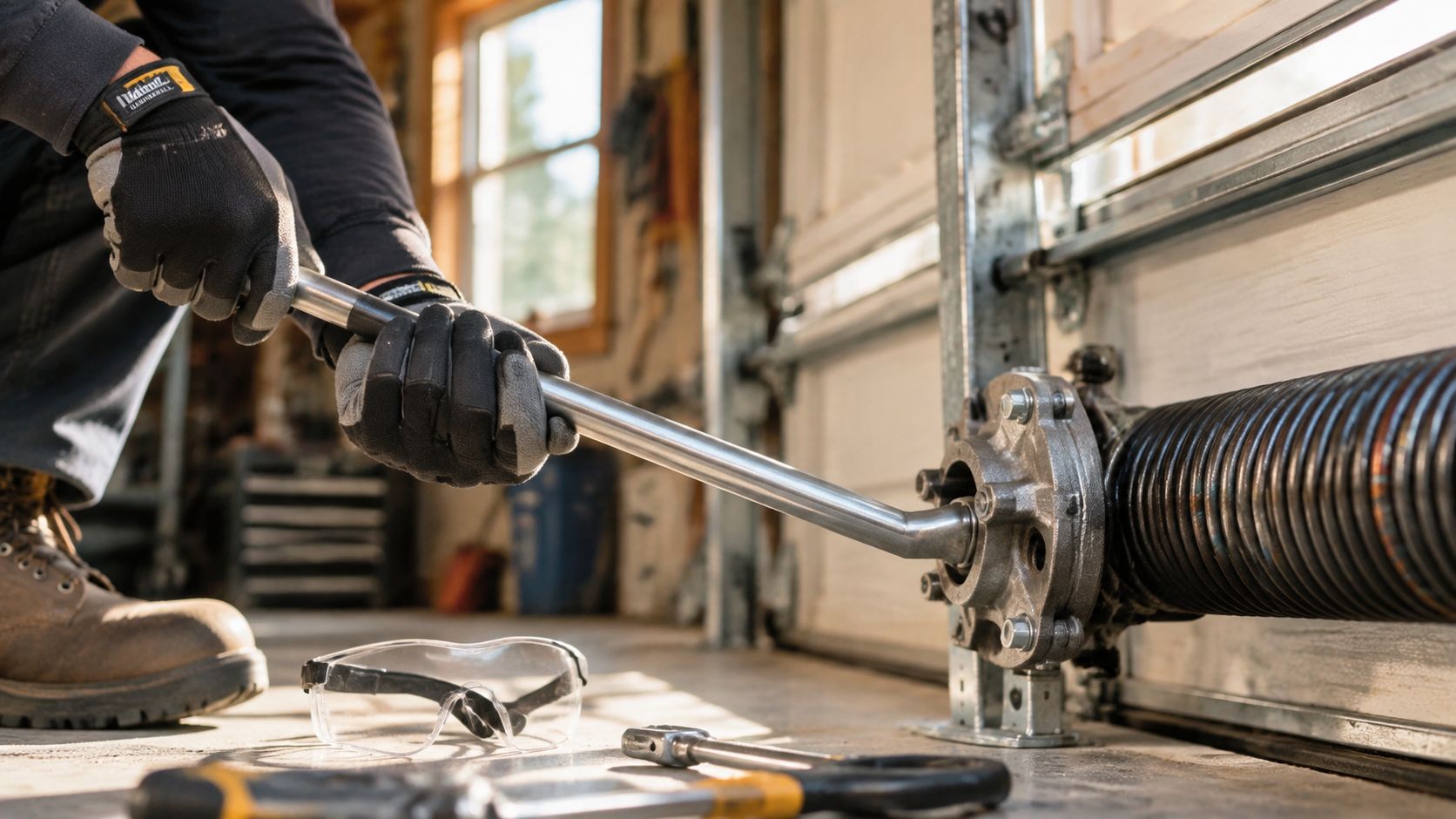

The sequence that keeps control in your hands
- Secure the shaft. The torsion shaft has to stay stable so the cone does not rotate unexpectedly.
- Make each quarter-turn on purpose. Insert the winding bar, keep your body out of the line of fire, and advance the spring in controlled steps.
- Check the cone alignment often. If the cone starts to sit wrong, stop and correct it before more tension goes on.
- Inspect the whole setup as you work. Hardware, cables, and balance all need to look right before the door goes back into service.
The mistake I see most often is rushing the middle of the job. Manual bars give direct feedback, but they also take more time and more effort. Drill-driven tools can shorten winding time on compatible setups, but that only helps when the tool, the spring, and the work rules all line up. When they do not, the safer choice is to stop and reassess instead of forcing the next turn.
When to stop mid-process
Stop immediately if the bar feels loose in the cone, the shaft shifts, or the spring starts to look uneven under tension.
That is also the point where a proper spring replacement workflow matters. If the door needs a full check, the overhead door spring replacement guide gives homeowners a better picture of the whole repair process, not just the winding step.
Common Mistakes and PPE Essentials
The errors that cause trouble on torsion work are usually ordinary ones, which is what makes them risky. A winding tool that does not fit the cone, a cramped work area, or the wrong drill setup can turn a controlled job into a slip hazard fast. As noted earlier, winding bars need to match the spring hardware closely, because the wrong size can leave the bar loose in the cone and increase the chance of tool slip.
The mistakes that show up most often
- Mixing bars and cones: If the bar does not seat cleanly, the cone can shift while tension is being added.
- Ignoring clearance: A wall, shelf, or other obstruction leaves little room if the tool moves unexpectedly.
- Over-torquing springs: Too much force can damage the spring and make the door balance worse.
- Using an impact driver: Impact tools add shock, which works against controlled winding.
- Skipping balance checks: A door that does not travel evenly needs correction before it goes back into service.
PPE is part of the job, not an extra. Safety glasses help protect against recoil and debris, gloves improve grip, and sturdy footwear gives you a better chance of staying stable if hardware drops or your stance changes suddenly. Those basics do not make the work safe by themselves, but they do lower the risk when something goes wrong.
Safer alternatives when the setup is wrong
Sometimes the right call is to stop and reassess. If the cone will not accept the bar cleanly, if the spring is outside the tool's torque range, or if the hardware shows wear, a licensed technician is the better option. That choice avoids tool damage, wasted time, and a half-finished repair that still leaves the door out of balance.
A practical service option in Northeast Ohio is Danny's Garage Door Repair, which handles spring replacement, opener work, and emergency repairs when the door needs professional attention. That kind of help matters most when the hardware does not match the DIY plan.
When to Call Danny's Garage Door Repair
If the door is traveling unevenly, the spring looks rusted, or the job is drifting into code uncertainty, that's the point to bring in a pro. Spring work is one of those repairs where the savings disappear fast if the tool slips or the balance is off. Danny's Garage Door Repair serves Greater Cleveland with licensed, bonded, and insured service, plus 24/7 response, free estimates, and spring replacement for residential and light-commercial doors.
When a winding tool no longer matches the spring, the fix isn't to force the job. It's to hand it to a technician who can inspect the whole system, set the tension correctly, and get the door back into safe operation without another round of trial and error.
