Ever look at the space above your garage door and feel like it's just… wasted? If you've ever dreamt of installing a car lift, building a loft for storage, or even setting up a golf simulator, you've probably run into the same problem: the garage door tracks are in the way.

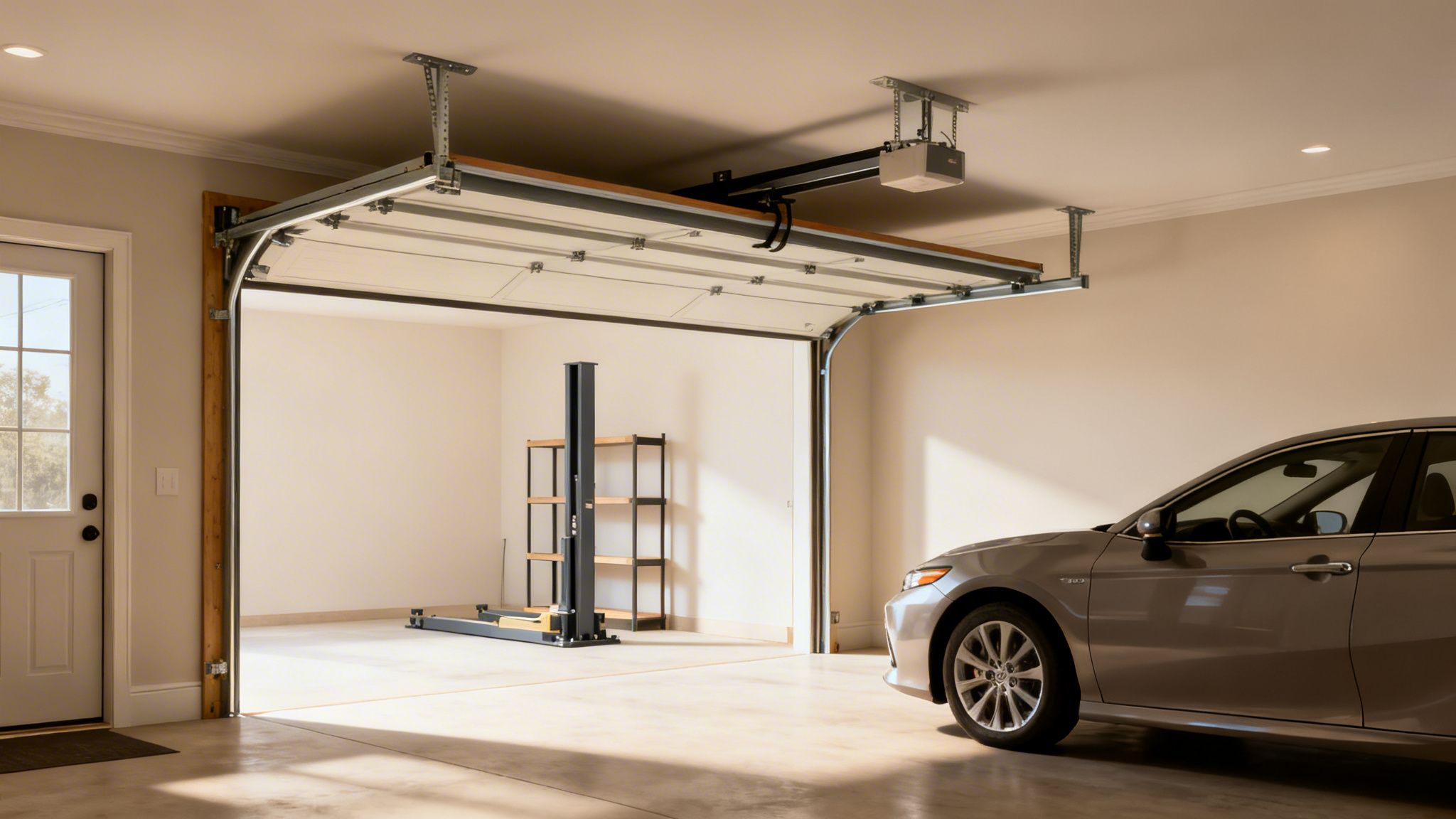

That’s where a high-lift garage door system comes in. It’s a clever modification that reclaims that valuable overhead space by raising the entire track system closer to your ceiling.
What Exactly Is a High-Lift Garage Door System?
Go take a look at your current garage door. Chances are, the metal tracks curve just a few feet above the opening, sending the door to run low across the middle of your ceiling. This works fine for parking a car, but it creates a huge, unusable dead zone up high.
A high-lift system changes that entire path. Instead of making that low turn, the door travels much farther up the wall before the tracks curve back. The horizontal tracks then run parallel to your ceiling, tucked way up and out of the way.
Think of it like this: A standard garage door is like a low overpass cutting through your garage. A high-lift system raises that overpass, clearing the space underneath for taller vehicles or anything else you can imagine.
This is the key to unlocking your garage's true potential. It's about transforming a simple parking spot into a truly functional, multi-purpose space.
The Key Components of a High-Lift System
Making this happen isn't just about bending the tracks. A high-lift conversion is a complete re-engineering of the door’s mechanics, involving a few critical parts.
- Extended Vertical Tracks: The foundation of the system. These longer tracks allow the door to climb higher up the wall before it makes the turn.
- High-Lift Cable Drums: These aren't your standard drums. They are larger and specifically designed to manage the increased travel distance of a high-lift door.
- Longer Lifting Cables: Pretty straightforward—to lift the door higher, you need longer, properly rated steel cables.
- Recalibrated Torsion Springs: This is crucial. The springs must be professionally calculated and wound to perfectly counterbalance the door's new weight distribution and path. An improper spring setup is both ineffective and dangerous.
The goal is to maximize headroom—that’s the clear, usable space you gain between the top of the open door and the ceiling. With a high-lift track and the right opener, you can finally turn your garage into the workshop, showroom, or ultimate storage area you've always wanted.
Is a High Lift Conversion Right for Your Garage?
So, is a high-lift system something you actually need? For some people, it’s a total game-changer. For others, a standard door setup is perfectly fine. Let's dig in and see where you land.
A high-lift conversion goes from a "nice-to-have" upgrade to a "must-have" solution in a few key scenarios. The most common reason people call us is because they want to install a two-post or four-post car lift.
If you're a car enthusiast who wants to work on your vehicles at home, a standard garage door track is an absolute deal-breaker. It sits exactly where the lift needs to go. A high-lift system is really the only way to get the vertical clearance you need.
Questions to Ask Yourself
This decision comes down to how you plan to use your garage. Ask yourself a few practical questions.
- Do I need to park a tall vehicle inside? Think about a work van with a ladder rack, a lifted truck, or a small Class B RV. A high-lift door can give you those critical extra inches of clearance.
- Am I planning to add a car lift? As we just covered, this is the clearest sign. There's no other way to fit a car lift safely in most residential garages.
- Do I need serious overhead storage? If you've been dreaming of building a sturdy storage loft, a high-lift conversion is what clears the way.
- Am I just plain out of space? If you feel cramped and wish you had more room for a home gym, woodworking hobby, or even a golf simulator, maximizing your vertical space can completely transform how your garage feels and functions.
If you found yourself nodding "yes" to any of these, a high-lift conversion is almost certainly a smart investment. It’s a specialized solution designed to solve exactly these kinds of problems.
To put it in perspective, here's a quick comparison.
High Lift vs. Standard Garage Door Systems
| Feature | Standard Garage Door System | High Lift Garage Door System |
|---|---|---|
| Door Track Path | Curves quickly, running parallel to the ceiling about 8-12 inches below it. | Extends vertically up the wall before curving to run just 2-3 inches below the ceiling. |
| Opener Type | Typically uses a ceiling-mounted trolley opener (chain, belt, or screw drive). | Requires a wall-mounted jackshaft opener to accommodate the high track. |
| Primary Goal | Basic, reliable opening and closing of the garage door. | Maximize vertical clearance and free up overhead space. |
| Best For | Standard vehicle parking and general storage. | Car lifts, tall vehicles (vans, lifted trucks), and overhead storage lofts. |
| Installation | Standard, less complex. | More complex; requires custom tracks, longer cables, and precise calculations. |
As you can see, the choice depends entirely on your goals. One isn't inherently "better" than the other—they just serve very different purposes.
Are There Any Alternatives?
It's also important to know all your options. The main point of a high-lift system is to get the door and tracks as close to the ceiling as possible. But what if your only goal is to get rid of that opener rail running down the middle of your garage?
If that's the case, but you don't need the extra vertical clearance for a lift, you have another great option. You can pair a standard track system with a jackshaft opener.
This setup mounts the opener on the wall next to your door, clearing the entire ceiling area without the added cost and complexity of a full high-lift conversion. Just remember, it won't give you that extra door height. Understanding this distinction is key to choosing a solution that fits your needs and budget.
To truly get why a high-lift system can be such a game-changer, it helps to take a quick trip back in time. The sleek, space-saving doors we have today are the product of more than a century of smart problem-solving.
Picture this: it’s the 1920s. Your new car is your pride and joy, but it’s tucked away behind a set of heavy, old-fashioned barn doors that swing outward. Then, a huge snowstorm dumps a foot of snow overnight. Come morning, you first have to shovel out a massive arc just to get the doors to budge.
The Birth of the Overhead Door
That exact headache is what sparked one of the biggest innovations in home design. In 1921, an inventor named C.G. Johnson came up with the first-ever sectional overhead door. Instead of swinging out into the snow, his door lifted straight up and tucked itself away along the ceiling. Just like that, a blizzard could no longer hold your car hostage.
This wasn't just a new door; it was a completely different way of thinking about how we use our garages. It fixed a very real, practical problem and laid the groundwork for the modern American garage we know today.
The convenience was a hit. A few years later, in 1926, Johnson followed up with the first electric garage door opener, built to work with his sectional doors. This automated the whole process, making it effortless to open what were still very heavy doors. You can actually read more about that evolution from manual to smart systems on the Welborn Garage blog.
That powerful duo—the sectional door and the electric opener—became the standard. The idea of lifting a door vertically to save space was officially born, and it’s the direct ancestor of today's high lift garage door openers. These modern systems are simply the next step in that legacy, taking the concept of vertical lift to its maximum potential to give you back every possible inch of garage space.
The Technical Side of a High Lift Installation
Thinking a high-lift conversion is just a matter of swapping out the opener is a common and dangerous misunderstanding. It's not a simple parts swap; it's a fundamental change to the entire geometry of your garage door system. This is why it’s a job for a seasoned professional, not a weekend DIY project.
The process starts with careful measurements. A technician will measure the headroom in your garage—the clear space between the top of your door opening and the lowest point on the ceiling. This single number dictates everything else, determining exactly how high your door can travel.
Why the Whole System Needs an Overhaul
Once that maximum lift height is calculated, the real engineering begins. A high-lift track changes the door's path so dramatically that the original hardware is no longer just wrong—it’s unsafe.
To get the job done right, an installer has to re-engineer the core components:
- New Torsion Springs: These are the most critical safety feature. The springs must be completely recalculated and replaced to perfectly balance the door's weight along its new path. Using the old springs is a recipe for disaster.
- Larger Cable Drums: Standard drums can't handle the extra cable needed for the added height. A high-lift conversion requires larger, specialized drums that let the cables wind smoothly.
- Longer Lifting Cables: It's simple physics. To travel higher up the wall, the door needs longer, heavy-duty steel cables to make the journey safely.
Crucial Safety Warning: A typical garage door can weigh several hundred pounds. The torsion springs hold that immense weight under extreme tension. If an improperly sized spring snaps or an installation is done incorrectly, the door can come crashing down, causing serious injury or catastrophic damage.
This is why it's so important to trust experts for this complex work. It’s not just about getting more room; it’s about making sure your garage is a safe place for your family.
Of course, the opener itself plays a huge role. While it's sometimes possible to modify an existing trolley-style opener, the best and most common solution for a high-lift system is a jackshaft opener. These powerful units mount directly on the wall next to the door, turning the torsion bar itself. This gets rid of the ceiling-mounted rail and motor completely.
If you want to dive deeper, you can learn more about how a jackshaft garage door opener works in our detailed guide. It's the cleanest setup and gives you back 100% of your overhead space.
Knowing these technical details helps you have a smart conversation with your installation pro. You'll understand why certain parts are non-negotiable and see why trusting an expert is the only way to get a safe, reliable system.
Choosing the Best Opener for Your High Lift System
Once your new high-lift tracks are installed, what’s going to power this thing? A standard garage door opener probably won't cut it, which usually narrows the choice down to two options—a beefed-up trolley opener or a specialized jackshaft opener.
You can sometimes make a traditional, ceiling-mounted trolley opener work. The catch is that it needs to be a heavy-duty model fitted with a much longer rail to account for the door's new travel path.
But that kind of defeats the purpose, right? You'd still have a motor and a long metal track running through the middle of all that beautiful overhead space you just created.
The Gold Standard: The Jackshaft Opener
That’s where the jackshaft opener, often called a wall-mount opener, becomes the hero. Instead of dangling from the ceiling, this compact motor mounts neatly on the wall right next to your garage door. It connects directly to the torsion bar that lifts the door.
The result? No more overhead hardware. Your ceiling is completely clear and ready for that car lift or custom storage. For anyone serious about maximizing every last inch of vertical space, the jackshaft is hands-down the best way to go. As a bonus, they're known for being incredibly quiet.
A professional installation is more than just hanging an opener; it’s a coordinated process to make sure the entire system works together perfectly.
From the initial measurements to matching the springs and finally installing the opener, every component has to be precisely calibrated for a system that’s both safe and reliable.
Don't Forget Modern Safety Features
No matter which opener you land on, modern safety features are a must. The industry took massive steps forward with safety regulations back in the 1970s and 1980s. This led to photoelectric sensors—the little "photo-eyes" near the floor—becoming mandatory on all new openers by 1993.
These sensors are critical, especially on a heavy high-lift door. They've been credited with reducing serious entrapment injuries by a staggering 95%. You can learn more about how these life-saving features came to be at Garage Door Specialist.
If you're curious about other quiet and powerful motors for a more standard garage setup, take a look at our guide to the best belt drive garage door openers.
How to Budget for Your High Lift Conversion
Alright, let's talk about what a high-lift conversion actually costs. It’s one of the first questions homeowners ask, and it’s a smart one. A high-lift project is a big step up from a standard opener replacement because it involves re-engineering the entire system.
Think of it less like buying a new gadget and more like a custom renovation for your garage. The final price tag is a sum of a few key parts.
Key Cost Components
The High-Lift Conversion Kit: This is the core of the project. It includes specialized hardware like taller vertical tracks, heavy-duty cables, and larger drums. Most importantly, it requires a brand-new, professionally engineered torsion spring system designed to handle the new travel path safely.
The New Opener: To truly capitalize on your newfound ceiling space, you need an opener to match. A jackshaft opener is the gold standard here. Since it mounts on the side wall, it leaves the ceiling completely clear. A heavy-duty trolley opener with a longer rail is a possible alternative, but it's not the ideal solution.
Professional Installation Labor: This is not a weekend DIY project. The labor cost reflects the technician's expertise in precise measurement, system design, and the safe installation of components under extreme tension. You're paying for experience and peace of mind.
It's helpful to view this as an investment in your home’s functionality and value. A specialized garage with a car lift or extensive storage can be a massive selling point that sets your property apart.
The upgrade pays you back in daily utility and can deliver a real return when it’s time to sell. While the final price depends on your specific door and garage, knowing these components gives you a clearer financial picture. For a more detailed look at general opener pricing, check out our guide on garage door opener installation costs.
Your High-Lift Questions, Answered
It's natural to have questions when you start looking into high-lift garage door systems. Here are the straightforward answers you need.
How much ceiling height do I need for a high lift?
As a rule of thumb, you'll need at least 15 inches of headroom—that's the space between the top of your garage door opening and the ceiling. A standard setup typically only requires about 12 inches.
Thinking about a full vertical lift, where the door goes straight up the wall? For that, you’ll need a ceiling height that’s at least the height of your door, plus about another foot for hardware. The only way to know for sure is to have an experienced technician measure your space.
Can I install a high-lift conversion myself?
In a word: no. We can't stress this enough—this is not a DIY project. A high-lift conversion isn't just swapping parts; it's a complete re-engineering of the counterbalance system. The springs are under immense tension, holding hundreds of pounds of force.
It only takes one small mistake with those high-tension springs for things to go terribly wrong. A snapped cable or a loose spring can cause catastrophic damage to your property and lead to severe injury. For your safety, always leave this job to a licensed and insured professional.
Is a jackshaft opener my only option?
While a jackshaft (or wall-mount) opener is the perfect partner for a high-lift system, it’s not the only choice. Its major advantage is that it mounts on the side of the door, completely clearing up the overhead space you’re trying to gain.
That said, a heavy-duty, ceiling-mounted trolley opener with an extra-long rail can sometimes work as a more budget-friendly alternative. The best option really comes down to your goals for the space and your budget.
Does a high-lift system add property value?
It absolutely can. For the right buyer, it's a game-changing feature. Think about car enthusiasts dreaming of a two-post lift, small business owners with work vans, or anyone desperate for more storage space.
A high-lift garage offers real, practical utility that makes your home stand out. It’s a functional upgrade that can significantly boost your home's appeal and value on the market.
