If your garage feels like an icebox every January, you're not imagining it. In Northeast Ohio, the garage door is often the biggest weak spot in the whole space, and when that cold air sits right next to your kitchen, mudroom, or the bedroom above the garage, you feel it inside the house too.
A lot of homeowners shop for an insulated door and stop at one number. R-value matters. It matters a lot. But around Cleveland, the full story is bigger than the sticker on the brochure. The best results come from matching the right insulation level with tight weather sealing, solid construction, and a clean installation.

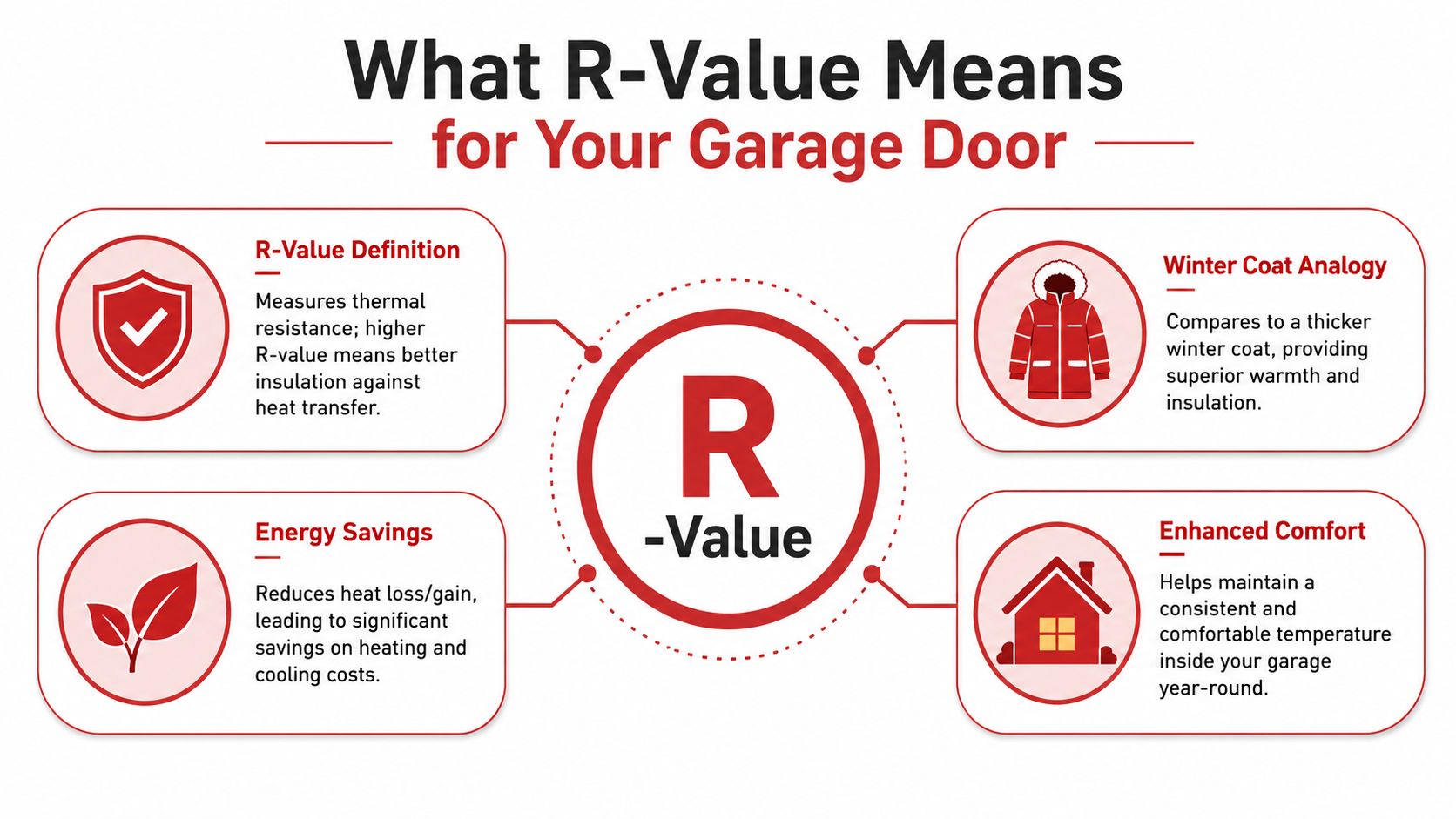

What R-Value Means for Your Garage Door
Think of R-value like the rating on a winter coat. A heavier, better-built coat slows down heat loss better than a thin windbreaker. A garage door works the same way. The higher the R-value, the better the door resists heat moving through it.
That's why the baseline is so important. A standard, non-insulated garage door has an R-value of exactly 0.0, which means it offers zero thermal resistance and acts as a major thermal breach in the home, performing worse than even uninsulated walls at R0.3 to R0.5 (Thermadoor).
What the numbers actually mean
When you see a garage door listed as R-8, R-12, or R-16, you're looking at how well that door slows heat flow. Bigger number, better resistance.
Here's a simple way to picture it:
- Lower R-values: Better than a bare metal door, but still limited in cold winters.
- Mid-range R-values: A practical step up for many attached garages.
- Higher R-values: Better suited when comfort matters more, like a garage under a bedroom, a workshop, or a home gym.
Practical rule: If your garage is attached to the house, don't think of insulation as a luxury. Think of it as part of the home's outside wall.
Where people get tripped up
Many homeowners assume all insulated doors are roughly the same. They aren't. The insulation type, door construction, and edge sealing all affect how the door performs in real life.
If you want a deeper primer on the basics, this guide on garage door R-value basics helps break down the terminology. And if you've ever wondered why insulated windows feel so different from older ones, this quick explanation of what is double glazing is a useful comparison because the comfort principle is similar. Better resistance to heat transfer usually means a steadier indoor environment.
A high R value garage door won't turn your garage into a finished living room by itself. But it can make the space far less drafty, less extreme, and easier to live next to.
Why a High R-Value Matters More Than You Think
A common starting point is energy bills, which makes sense. But the day-to-day benefits are what usually make homeowners happy after the door is installed.
In Cleveland winters, the biggest comfort complaint isn't always the garage itself. It's the room above it, the wall beside it, or the cold floor just inside the entry door. A better-insulated garage door helps reduce those sharp temperature swings, so the rest of the house feels less stressed by the outdoor weather.
Comfort that carries into the house
If your garage shares walls or ceilings with living space, the door affects more than the garage. A stronger insulated door helps buffer the temperature in that whole zone.
That matters when you have:
- A bedroom over the garage: These rooms often run colder in winter and hotter in summer.
- A laundry or mudroom nearby: Those spaces tend to feel the garage temperature first.
- A finished bonus area: Even if it's not fully conditioned, it becomes easier to use.
A garage door is a huge moving wall. When that wall is better insulated, nearby rooms usually feel the difference first.
Quieter mornings and a sturdier door
Insulated doors also tend to sound better. Not just the opener noise, but the door itself. Multi-layer doors usually rattle less, flex less, and soften outside sound better than thin single-layer doors.
That's one reason people upgrading from an older pan door often say the new one feels more solid. They're not wrong. A thicker insulated door typically has more structure, so it resists dents and everyday abuse better too.
Why the “highest number” isn't always the best buy
There's also a practical side to this. Some homeowners chase the biggest R-value available, even when their garage use doesn't justify it.
A detached garage used only for parking may not need the same level of insulation as a workshop. On the other hand, if you spend weekends in the garage, store temperature-sensitive items, or have living space above it, a high R value garage door makes a lot more sense.
The key is matching the door to how you use the space. That gives you better comfort, quieter operation, and a door that generally feels more substantial every time it opens and closes.
Choosing Your Insulation R-9 to R-18 and Beyond
Once you know you want an insulated door, the next question is what kind. Many brochures often become unclear. They show a nice R-value, but they don't explain how the door is built.
The two insulation types you'll see most often are polystyrene and polyurethane. They don't perform the same way, and they don't feel the same in use.

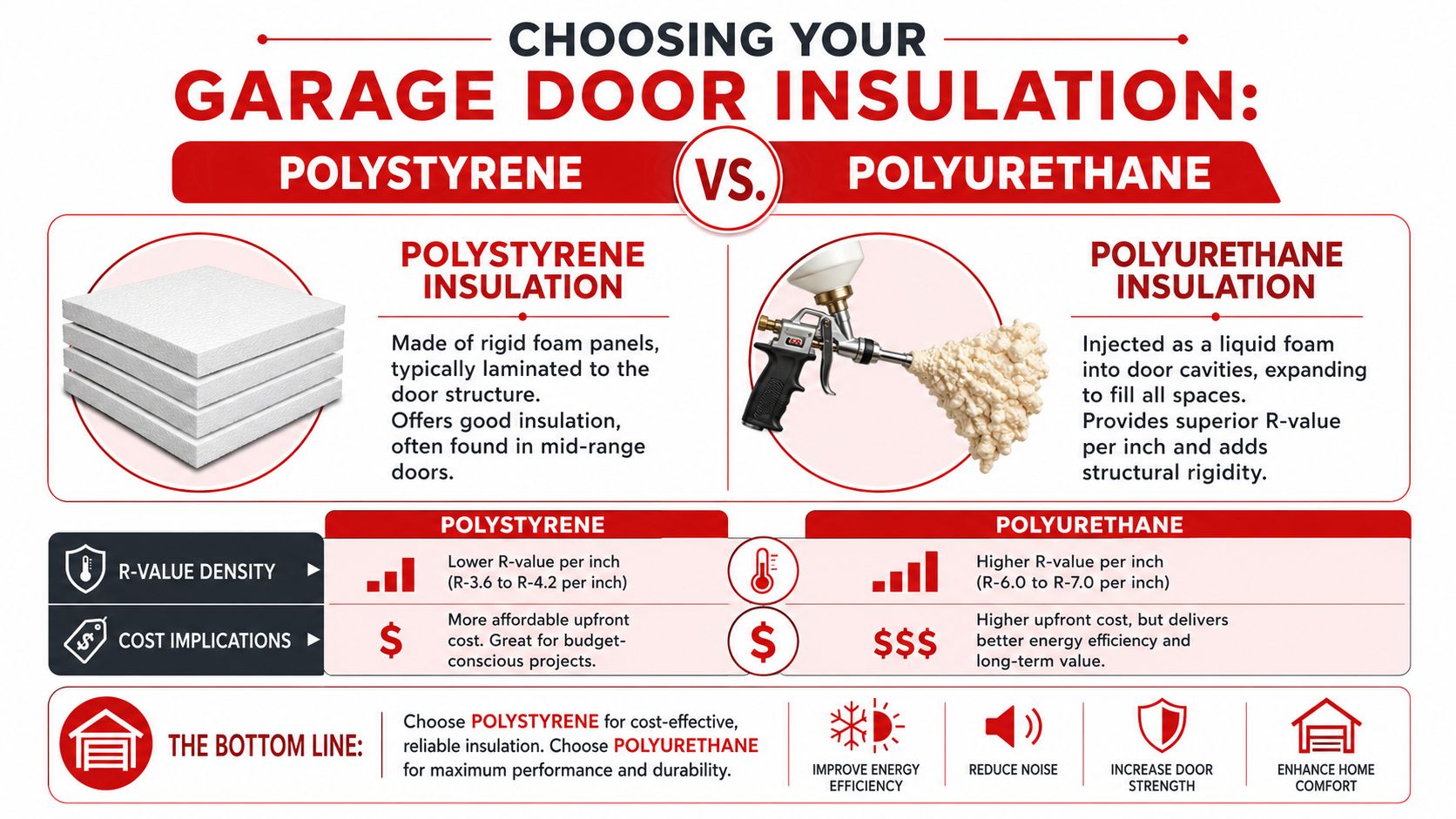

Polystyrene vs polyurethane
Polystyrene is the more basic option in many insulated doors. It's often used in mid-range models and typically lands in the R-9 to R-13 range.
Polyurethane is the premium option. High R-value doors in the R-14 to R-18+ range use polyurethane foam injection, which has a density of about 1.8 to 2.0 lbs/ft³ and fills the panel cavity to eliminate air gaps, leading to lower heat transfer than EPS insulation (Cunningham Door).
Why the insulation method matters
A rigid foam insert can help, but injected polyurethane bonds to the steel skins and creates a more continuous barrier. In plain English, it fills the space better and usually makes the door stronger and quieter.
That gives you a few practical trade-offs:
- Polystyrene doors: Usually a better fit when budget is the priority and you still want a noticeable step up from an uninsulated door.
- Polyurethane doors: Better when you want stronger thermal performance, a stiffer panel, and a more premium feel.
- Higher-end sandwich doors: Often combine steel, insulation, and interior backing for the best overall comfort and durability.
Garage Door Insulation at a Glance
| Insulation Type | Typical R-Value Range | Construction | Best For |
|---|---|---|---|
| Non-insulated | R0.0 | Single-layer door with no insulation | Detached garages where comfort isn't a priority |
| Polystyrene | R-9 to R-13 | Rigid foam insulation in door sections | Attached garages needing a practical middle-ground option |
| Polyurethane | R-14 to R-18+ | Injected foam bonded within the door panel | Workshops, home gyms, and homes prioritizing comfort |
How I'd think about the ranges
Here's the practical version.
An R-9 door is often the value choice. It gives you a real upgrade from a bare door without jumping too far in price.
An R-12 to R-16 door is where many attached garages land comfortably. It's a strong middle ground if your garage sits under living space or you spend time out there.
An R-18+ door is usually for homeowners who want top-end construction, use the garage more actively, or don't want to compromise.
Don't buy insulation by number alone. Ask what's inside the door, how the panels are built, and whether the inside face is fully backed.
That last part matters more than people think. A three-layer steel-insulation-steel or steel-insulation-vinyl-backed door often feels tighter and more refined than a thinner door with a flashy number in the brochure.

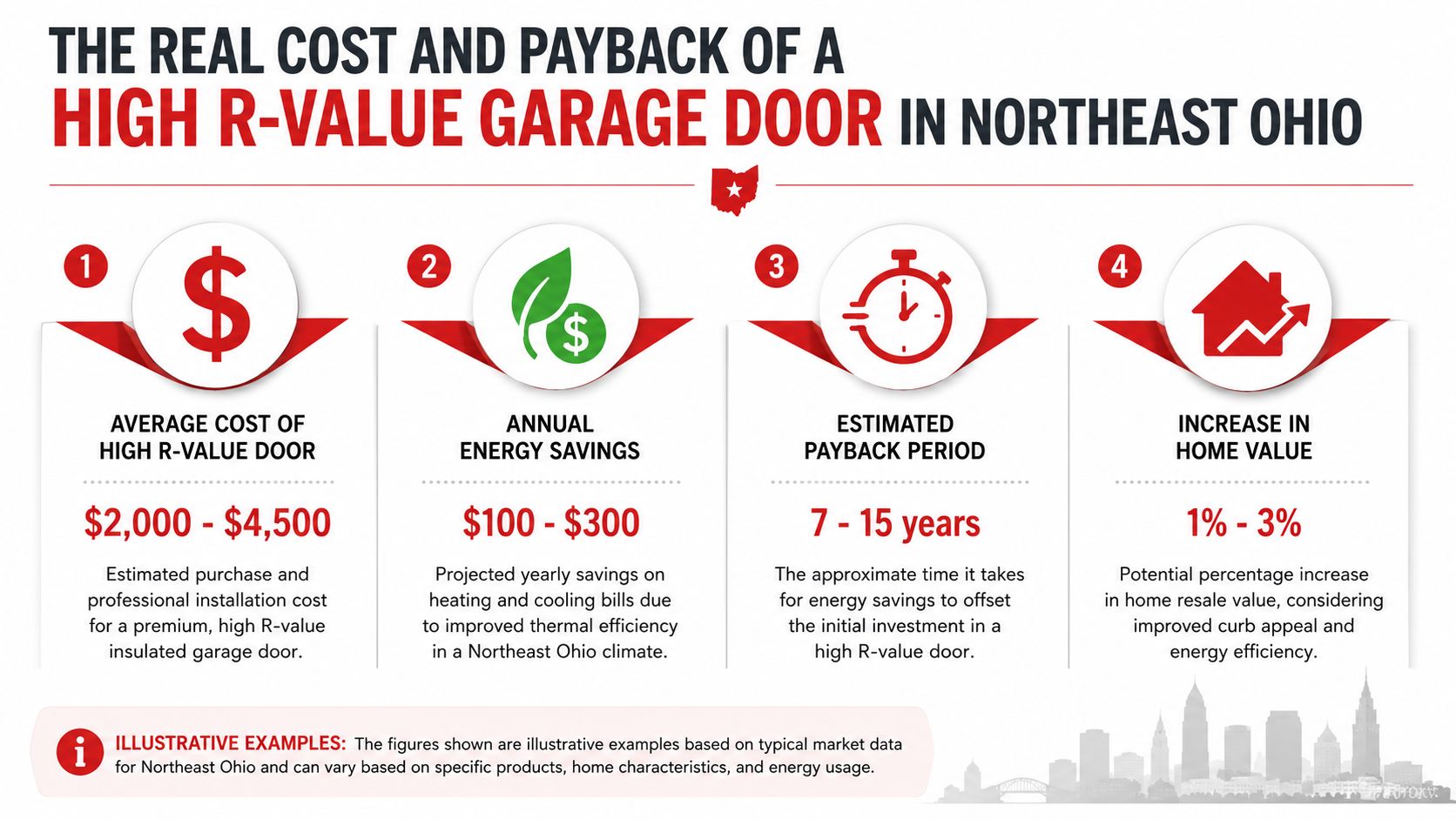

The Real Cost and Payback in Northeast Ohio
On a January morning in Cleveland, the price difference between garage doors is easy to see on the quote. The payoff is harder to see until that garage stops feeling like a walk-in freezer every time the wind kicks up.
Insulated garage doors do cost more upfront. For many attached garages, though, the added cost can make sense if the old door is a thin single-layer model or if the rooms beside or above the garage always run cold.
What affects payback most
A lot of homeowners expect the highest R-value door to give the fastest return. In practice, the biggest jump is usually from no insulation to decent insulation, not from good insulation to the most expensive option on the board.
That makes sense if you picture winter heat loss like water leaving a bucket. If the bucket has a huge hole, fixing that first changes everything. Making a small hole even smaller still helps, but the savings come more slowly. Garage doors work the same way. Going from an uninsulated door to an insulated one can noticeably improve comfort. Going from R-9 to R-16 can still be worthwhile, but the financial return is often more gradual.
Why Northeast Ohio changes the math
Our climate adds two wrinkles.
First, attached garages matter more than detached ones because the garage shares walls, ceilings, and sometimes ducts with the house. Heat lost in the garage can affect the rooms next to it.
Second, cold wind in Northeast Ohio exposes weak spots fast. A high R-value panel helps, but if the perimeter seals are worn, part of what you paid for leaks away at the edges. That is why payback here is not just about the insulation number on the brochure. It is also about how tightly the whole door system closes.
The U.S. Department of Energy explains that insulation slows heat flow, while air sealing cuts drafts and unwanted air movement. Both matter for energy performance in a home (Department of Energy guide to insulation and air sealing). For a garage door, that means a mid-range insulated door with good weatherstripping can be the smarter buy than a premium-rated door installed over gaps and a rough floor.
Replace or retrofit
If your current door is old, loud, dented, or shaky, replacement usually gives you more for the money than a retrofit kit. Foam panels added to the back of an aging door can improve the center of the panel, but they do not upgrade the hinges, track, section strength, or the way the door seals against the opening.
That matters more than many buyers expect.
A new insulated door often brings several benefits at once. Better panel insulation. Better fit. Better bottom seal contact. Quieter operation. Those upgrades work together, which is why the comfort improvement often feels bigger than the R-value number alone would suggest.
If you want a side-by-side budget comparison, this breakdown of insulated garage door costs is a good place to start. And if you are looking at the whole house, not just the garage, this home energy saving advice can help you weigh the door alongside attic insulation, draft sealing, and HVAC efficiency.
Beyond R-Value Air Sealing Is Your Secret Weapon
This is the part most garage door articles miss. Insulation inside the panel matters, but the gaps around the door matter too. In Northeast Ohio, wind finds every weak spot.
A high R value garage door can still underperform if cold air is slipping in at the bottom seal, the side weatherstripping, or the top header.
Why air leaks can beat insulation
Data shows that air sealing often delivers 2 to 3 times more energy impact than insulation alone, and even an R-18 door with poor perimeter sealing can lose more heat than an R-9 door with tight gaskets, especially in windy climates like Northeast Ohio (Green Building Advisor).
That lines up with what homeowners see every winter. The door may be “insulated,” but if daylight shows under the bottom edge or the side seal is flattened, cold air keeps pouring in.
What to check on the actual door
Look at these parts before you get too excited about the panel rating:
- Bottom seal: This should sit evenly on the floor without gaps.
- Side and top weatherstripping: Cracked or stiff vinyl lets air move fast.
- Door fit: A slightly out-of-level or poorly adjusted door won't compress the seals correctly.
- Panel joints: On some doors, the meeting points between sections can leak more than people expect.
A tight garage door often feels warmer even before you upgrade the insulation, because moving air is what people notice first.
U-factor deserves a quick mention
R-value looks at resistance to heat flow. U-factor looks at thermal transmittance through the assembly and is often a better real-world metric because it reflects more of the whole door, not just the insulated panel center.
For homeowners, the takeaway is simple. Ask about sealing and whole-door performance, not just the biggest R-value on the sheet. If you've ever looked into duct sealing, the principle is similar. Stopping unwanted air movement can change comfort faster than adding more material alone.
Hiring a Pro for Your High R-Value Door Installation
The best insulated door in the catalog can still disappoint if it's installed poorly. I've seen good doors dragged down by bad track setup, uneven spring balance, and weatherstripping that never sat right from day one.
If you're getting estimates around Cleveland, ask direct questions before signing anything.
Questions worth asking
- How often do you install insulated doors? Experience with heavier, multi-layer doors matters.
- Will you check floor level and seal contact? A door can be perfect on paper and still leak if the floor dips.
- What weatherstripping is included? Don't assume the quote covers perimeter sealing.
- Will you review panel construction with me? You want to know what's inside the door, not just the advertised rating.
- Are you licensed, bonded, and insured? Basic, but important.
- What warranty applies to the door and the installation? Those are not always the same.
What a solid estimate should include
A proper quote should spell out the door model, insulation type, hardware, track or spring work if needed, and the sealing components. If the estimate is vague, the finished job often is too.
Watch for red flags such as a contractor who only talks about the highest R-value, skips over seal details, or won't explain why one model fits your garage better than another.
Good installation work is part mechanical and part weatherproofing. You need both.
If you want to see what professional insulated door work should involve, this page on insulated garage door installation gives a useful overview of the process and what to expect.
Cleveland Homeowner FAQs About Insulated Doors
Homeowners around Chagrin Falls, Brunswick, Beachwood, and Pepper Pike tend to ask the same smart questions. Here are the straight answers.
What R-value should an attached garage have in Cleveland
For attached garages in cold climates like Cleveland, industry benchmarks recommend a minimum of R-10, while R-12 or higher is considered optimal and can reduce heating bills by up to 15 to 20 percent when the garage is temperature-controlled. Workshops and home gyms should have at least R-16 to help maintain stable temperatures (Garaga).
Is R-16 overkill for a detached garage
Sometimes yes, sometimes no. If you only park cars and don't spend time out there, you may not need that much insulation. If the detached garage is a workshop, hobby space, or home gym, the added comfort can absolutely be worth it.
Does Lake Erie humidity affect insulation choice
Yes, it can. In humid conditions, the insulation material and construction method matter. Polyurethane is often favored in higher-end doors because it forms a denser, more continuous barrier, while some lower-end insulated constructions may not hold performance as well over time. That's one reason I'd pay close attention to door build quality, not just the headline rating.
Should I focus on R-value or U-factor
If you have to choose one number to start with, most homeowners look at R-value because it's easier to compare. But if a manufacturer provides a whole-door U-factor, that can give you a better sense of real-world performance.
Will an insulated door make my garage fully heated
No. It slows heat transfer. It doesn't create heat. The garage will still follow outdoor conditions, just less aggressively. The space usually becomes more stable, less drafty, and easier to keep comfortable if you already have some form of heating.
What matters most if I want the best result
Three things working together:
- The right insulation level: Match it to how you use the garage.
- Tight air sealing: Often determines the success or failure of many upgrades.
- Proper installation: Even good materials won't perform right if the door doesn't fit and seal correctly.
If you're ready to compare insulated options for your home, Danny's Garage Door Repair can help you sort through real-world choices, not just brochure numbers. They serve the Greater Cleveland area with free estimates, clear explanations, and practical recommendations for homeowners who want a quieter, tighter, more comfortable garage door setup.
