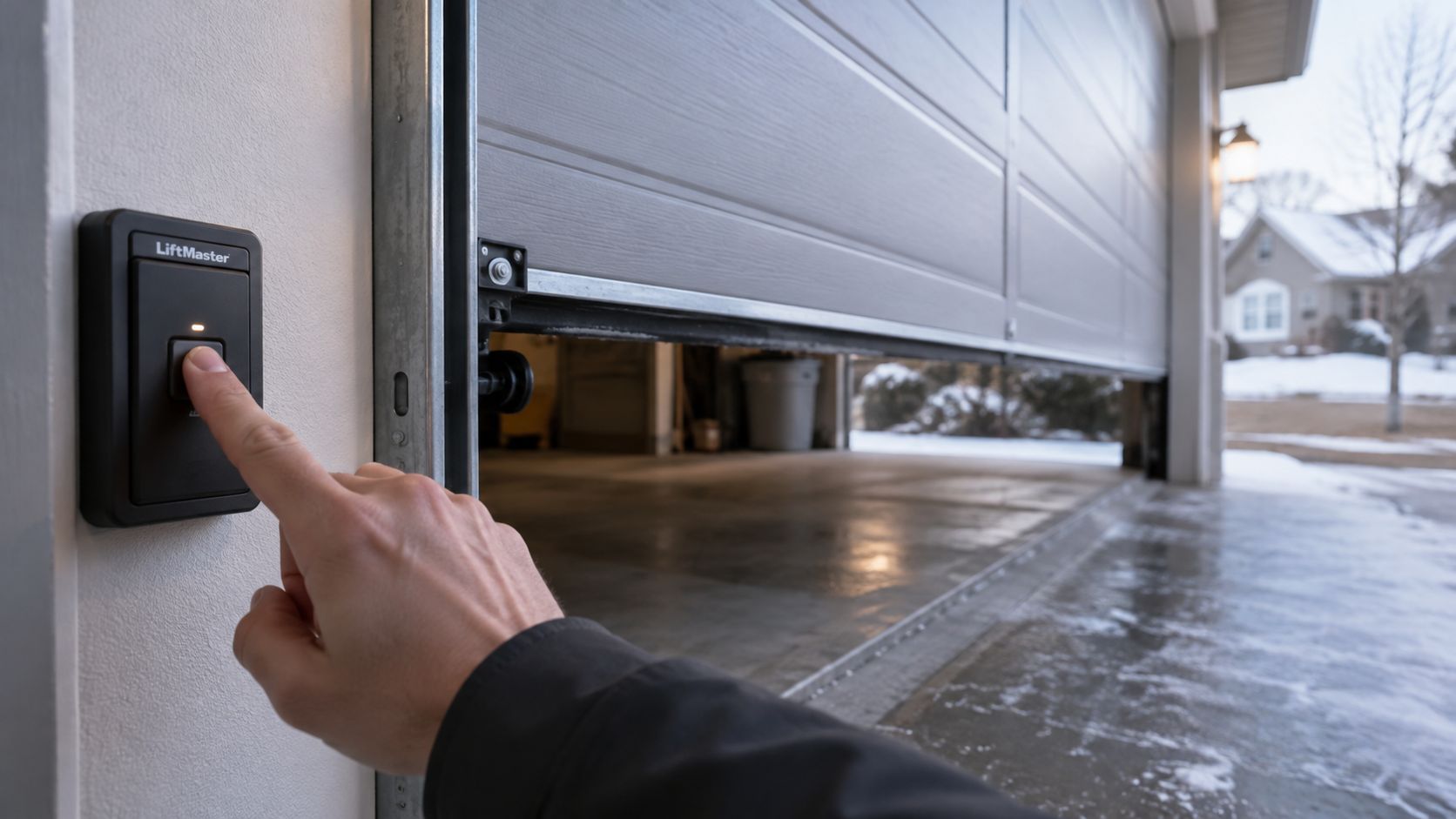

You press the wall button on a cold morning, the garage door starts down, then suddenly reverses. You're already running late, and now the car is trapped inside while the door stands open. The motor and springs get blamed first, but the problem is often much smaller: the garage door safety sensors mounted near the floor.
So, how do garage door sensors work? They create an invisible safety zone across the opening. If the opener loses that signal while the door is closing, it assumes something is in the way and stops or reverses. Once you understand the sensor pair, the opener's other safety layers, and the common failure points, a door that won't close becomes much easier to diagnose.
Why Your Garage Door Refuses to Close
The first clue is usually the motion itself. The door begins descending normally, then returns to the fully open position without touching anything. That behavior often means the opener has detected a problem in its entrapment-protection system, not that the springs or motor have suddenly failed.
In the United States, residential automatic garage door openers have required an external entrapment-protection device since January 1, 1993. The federal standard adopted the safety requirements of UL 325, which recognizes photoelectric eyes and sensing edges as approved protection devices. You can review the historical development of those requirements in UL 325's entrapment-protection history.
The opener is waiting for an all-clear signal
A typical system has one sensor on each side of the opening. One sends an infrared beam, and the other receives it. When the receiver confirms that the beam is present, the opener can continue its closing cycle.
If a child, pet, storage bin, vehicle bumper, or even debris interrupts that beam, the opener loses the all-clear signal. It then refuses to close or reverses the door, depending on when the interruption occurs. The sensors act as hidden gatekeepers, checking the floor-level path before the door is allowed to move downward.
A failed sensor system can look like several other garage door problems. The motor may sound normal. The door may open without hesitation. The springs may still be intact. That's why starting with the photo eyes is often the quickest diagnostic move.
The parts are simple, but each has a specific job. The next step is understanding how the infrared signal travels, what the receiver is checking, and why a small alignment problem can keep the entire door from closing.

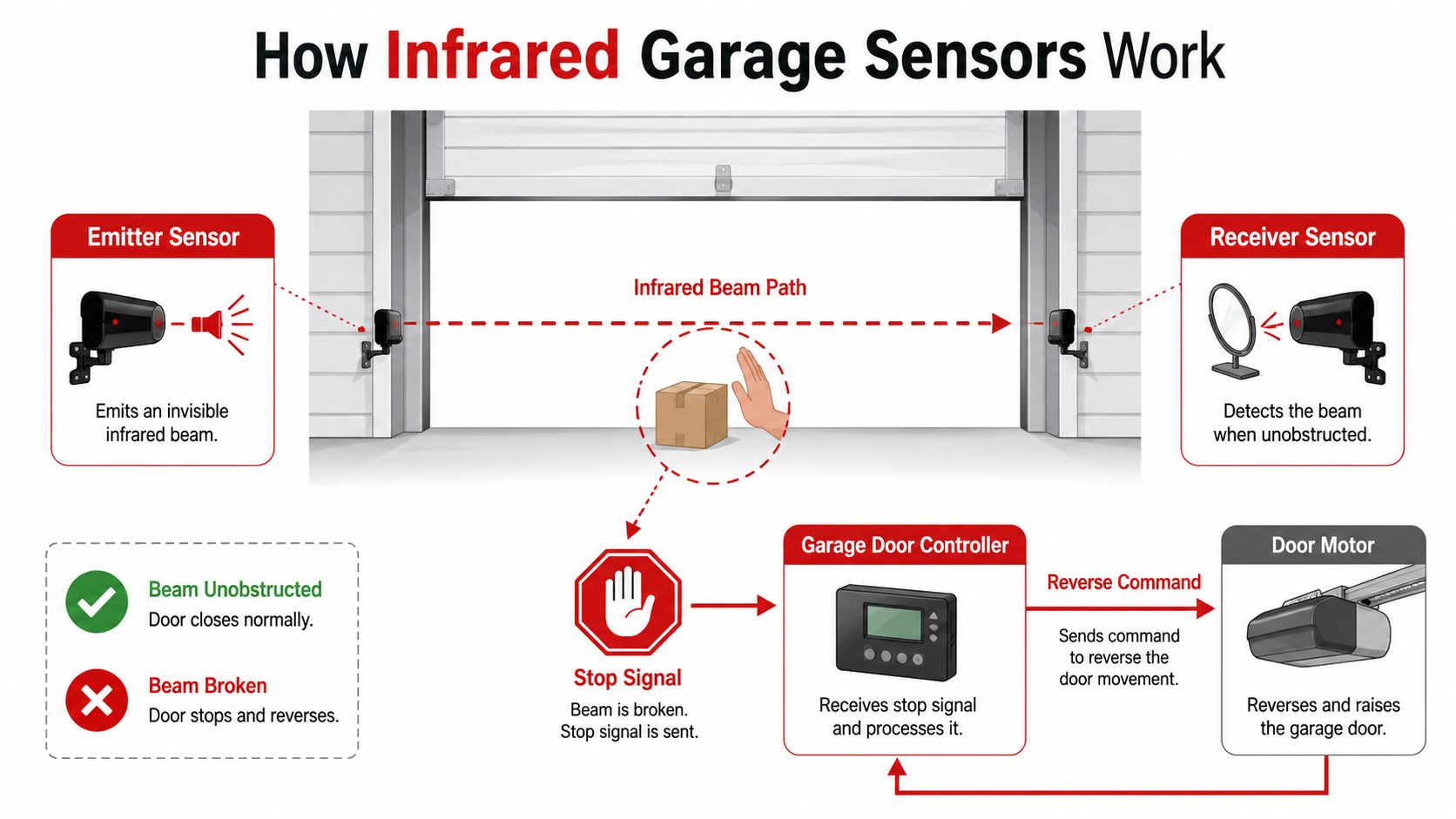

The Infrared Beam System Explained
Think of the sensor pair like a flashlight and a friend standing across a dark yard. One person points the flashlight, while the other confirms that the light reaches them. A garage door sensor works similarly, except the beam is invisible infrared light and the receiver constantly checks whether the signal remains intact.
The emitter sensor contains an infrared LED that sends the beam across the opening. The receiver sensor contains a light-sensitive component, commonly described as a phototransistor, that detects the incoming signal. Lens covers focus and protect the optical components, while low-voltage wires connect both units to the opener's motor head and logic board.
Typical hardware uses a 940 nm infrared wavelength, with low-voltage components commonly designed around a 12–24V AC/DC supply. Some systems use modulation near 1.92 kHz to help distinguish the intended signal from ambient infrared noise, including sunlight and reflections. These specifications come from published sensor hardware information at this infrared beam sensor reference.
What happens during a closing cycle
When the beam is uninterrupted, the receiver sends a continuing signal to the opener's control logic. The opener interprets that signal as a clear path and permits the door to close.
When something crosses the beam, the receiver stops reporting continuity. The logic board responds by stopping or reversing the door. That object might be a person or pet, but it could also be a trash can, a broom, a toy, or a leaf caught between the sensors.
Photoelectric sensors sit very low, generally no higher than 6 inches above the floor, so the beam covers the area where a person, pet, or object is most likely to become trapped. Mounting guidance and the role of that low sensing plane are described in UL 325 photoelectric sensor testing guidance.
Practical rule: A sensor light that changes when you gently move the bracket is telling you the beam is unstable, not that the opener motor is weak.
Indicator lights provide the first useful clue. A steady light generally indicates that the sensor has power and a usable signal. A blinking, amber, or dark light can point to obstruction, misalignment, wiring trouble, or another fault. If you're working near the opener wiring, use the garage door sensor wiring guide before making any changes.
The beam itself isn't a parking aid. If you want help positioning a vehicle inside the opening, a separate garage parking laser setup serves that purpose. It doesn't replace the safety sensors, because parking assistance and entrapment protection solve different problems.
Layered Safety Standards and the 2024 Update

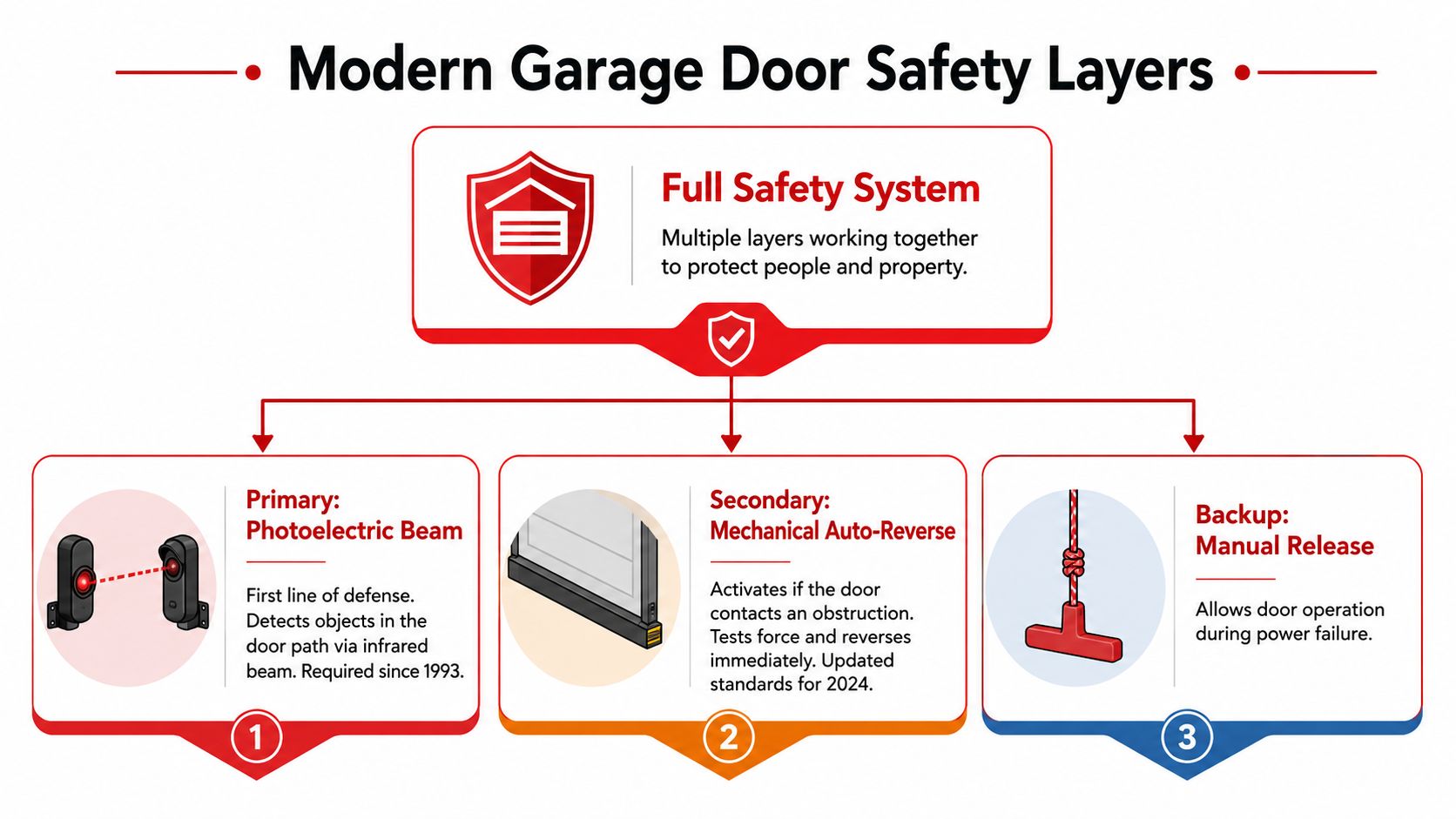

A modern garage door doesn't rely on one safety feature. It uses a layered entrapment-protection system, with each layer addressing a different failure or obstruction condition.
The photoelectric beam is the first layer. It detects an obstruction before the door makes contact, provided the object crosses the beam. The opener also has an inherent auto-reverse function, which is the primary protection built into the door's operating logic. A secondary photo-eye or sensing-edge system provides additional protection, as described in UL 325 garage door safety guidance.
Three safety layers work together
- Photoelectric protection: The beam detects an obstruction near the floor and tells the opener not to continue closing.
- Auto-reverse protection: The opener monitors the door's movement and reverses when its operating conditions indicate an obstruction or unsafe resistance.
- Sensing-edge protection: A pressure-sensitive edge at the bottom of the door can respond when the closing door physically contacts an object.
The photo eyes aren't the whole system. For example, an object can enter the door's travel area after the beam has already been cleared. A sensing edge can provide another response if the door then makes contact. The opener's control logic evaluates these safety inputs as part of the complete closing cycle.
Federal requirements also recognize either an optical sensor or a sensing edge as the external entrapment-protection device. The system is designed to reduce crush and entrapment risk by stopping or reversing movement instead of allowing the door to continue blindly.
The compliance process is more technical than a simple button test. UL 325 testing evaluates reversal at three floor points across the opening. It uses a 6-inch by 12-inch obstruction positioned 1 foot in from each side and at the midpoint, and it also includes a moving cylindrical test object swung through the beam. Those test conditions explain why sensor location, alignment, and response matter.
What changed in 2024
In May 2024, the U.S. federal garage-door safety standard was updated through 16 CFR Part 1211, aligned with UL 325. The update requires residential openers and replacements to include photoelectric sensors and edge sensors that reverse the door when an obstruction is detected. The broader context is summarized in this garage door sensor safety update.
That matters during opener replacements and repairs in older homes. A replacement sensor must work with the opener and preserve the intended safety architecture. If the photo eyes appear normal but the door still reverses, the fault may involve the sensing edge, control logic, or wiring rather than the optical pair itself.

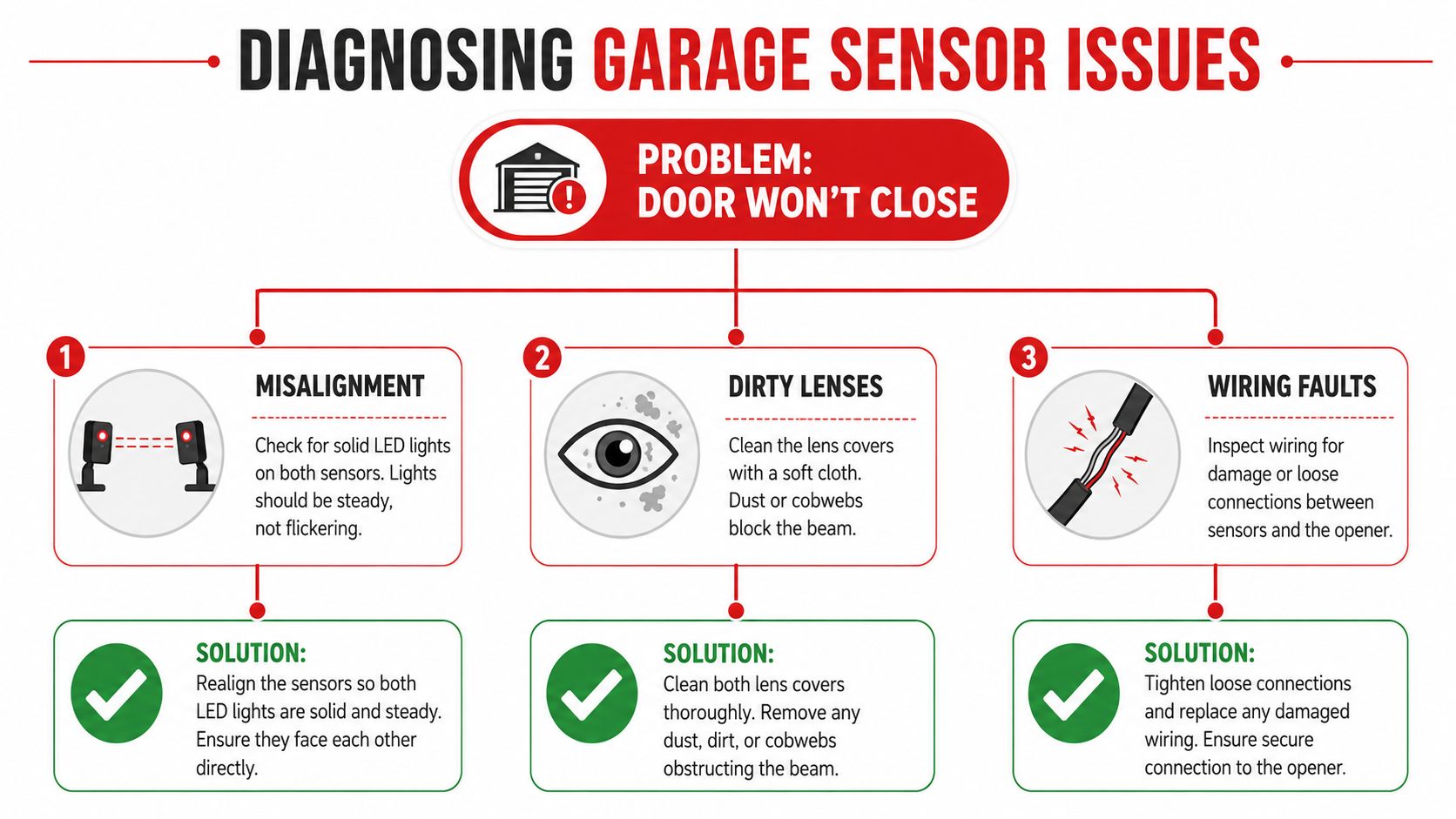

Common Sensor Failures and How to Diagnose Them
Most sensor trouble falls into a few practical categories. Start with the simplest explanation before reaching for a meter or ordering replacement parts.
Start with the indicator lights
Stand clear of the door and look at both sensor LEDs. A steady light usually means the sensor has power and is receiving a stable signal. A blinking or dark light suggests that the beam is blocked, the units aren't aligned, or the electrical connection has a problem.
Misalignment happens easily. A car bumper, basketball, broom, or stored item can bump one bracket. Seasonal movement around the structure can also change the relationship between the two mounts. The sensors don't have to look dramatically crooked to lose a dependable line of sight.

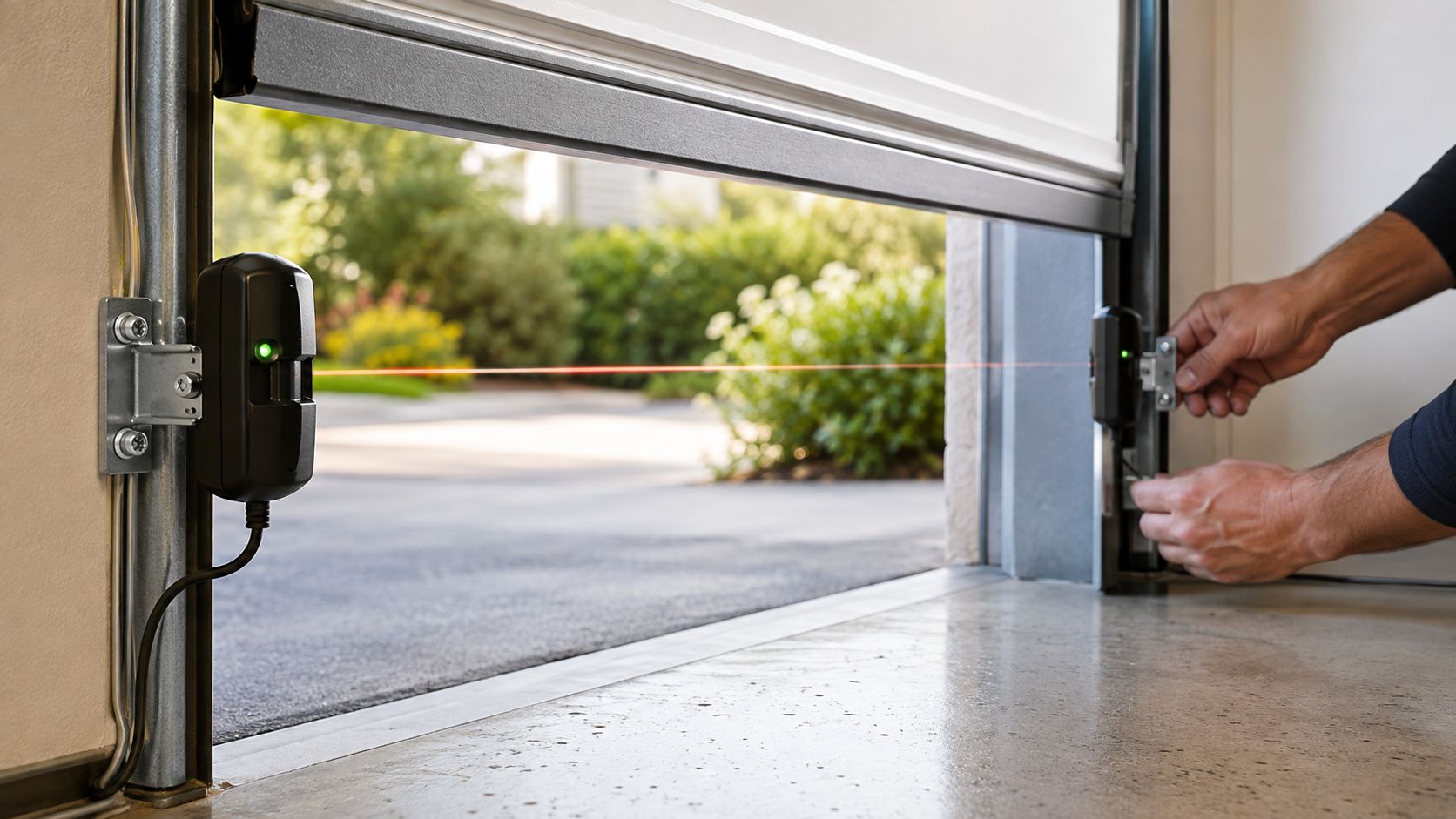

Gently hold or adjust the bracket until both sensors face each other directly and the lights remain steady. Don't force a bent bracket back into place if the metal or plastic has cracked.
Clean the lenses and clear the path
Dust, cobwebs, moisture residue, and grime can interrupt the beam even when the brackets are perfectly aligned. Wipe each lens with a soft microfiber cloth. If you use glass cleaner, apply a small amount to the cloth rather than soaking the sensor housing.
Then inspect the floor area between the sensors. A leaf or loose piece of packing material can sit directly in the beam path. Move stored objects away from the opening so you can test the system without another obstruction creating a false diagnosis.
Inspect wires carefully
Low-voltage sensor wires can loosen, fray, or become damaged by pests. Check the visible run from each sensor toward the opener. Look for pinched insulation, chewed sections, loose terminal connections, and corroded splices.
If visual inspection doesn't reveal the problem, a technician can use a multimeter to check continuity through the sensor wiring. Homeowners comfortable with electrical testing should still disconnect power according to the opener manufacturer's instructions and avoid touching spring, motor, or control-board components.
Bright sunlight can also interfere with a receiver at certain times of day. A small shade or a slight repositioning may help, but don't point the sensors away from each other to solve the problem. The beam must remain straight across the opening.
For a more detailed homeowner checklist, use the garage door sensor troubleshooting guide.
Photo Eyes Versus Smart Tilt Sensors
Photo eyes and smart tilt sensors monitor different conditions. A photo-eye pair checks whether a beam remains intact across the lower part of the garage opening. A tilt sensor measures the position or angle of the door panel and can report whether the door is open, closed, or moving outside its expected position.
That distinction matters when someone asks why a tilt sensor can't replace the traditional pair. A tilt sensor can provide useful position monitoring and app alerts, but it doesn't create the same floor-level optical barrier. The photo-eye system remains the recognized external entrapment-protection method for modern residential openers.
| Feature | Photo-Eye Sensors | Smart Tilt Sensors |
|---|---|---|
| Primary job | Detects an interruption across the door opening | Monitors the door's position or angle |
| Sensing method | Invisible infrared beam between paired units | Movement and position sensing on the door |
| Best at detecting | People, pets, boxes, and objects crossing the beam | Unexpected door position, movement, or open-door status |
| Main limitation | Only sees objects that interrupt the beam's path | Doesn't replace floor-level entrapment protection |
| Typical use | Required safety layer for automatic closing | Security monitoring and smart-home awareness |
| Relationship | Protects the closing path | Complements, rather than replaces, the safety system |
A hanging bicycle handlebar, ceiling-mounted item, or obstruction outside the narrow beam path may not trigger a photo eye. A tilt sensor may provide useful information about unexpected door movement, but it still doesn't perform the same optical safety check.
Smart garage features also bring privacy, connectivity, battery, and installation questions. If you're comparing connected home hardware, learning what a smart lock service includes can help clarify the difference between installing a device and integrating it into a broader property-security plan.
In August 2026, Abode launched a Garage Tilt Sensor with a stated battery life of up to 10 years, according to garage door safety sensor guidance. That product illustrates the direction of smart monitoring, but a tilt sensor should be treated as an addition to, not a substitute for, properly functioning photo eyes and the opener's built-in reversal protection.
Monthly Testing and Maintenance Routine
A monthly check takes only a few deliberate steps and gives you a clearer picture of whether the safety system is responding as designed. Test the door when the opening is clear, and never place your hands or body under a moving door.
Test the two reversal functions
First, place a roll of paper towels or a 2-by-4 board flat on the floor in the door's path. Close the door using the opener. It should reverse within two seconds of contacting the test object, as outlined in this garage door sensor testing guide.
Next, test the photo-eye response. Start the closing cycle, then pass a broom handle through the beam path without standing beneath the door. The door should stop and reverse immediately when the beam is interrupted.
Inspect the system
Use this short checklist after the functional tests:
- Clean the lenses: Remove dust, cobwebs, and moisture film with a soft cloth.
- Check the LEDs: Both lights should remain steady rather than flickering.
- Review the brackets: Confirm that neither sensor has shifted or loosened.
- Trace the wiring: Look for fraying, pinch points, pest damage, or loose connections.
- Clear the opening: Keep tools, toys, leaves, and stored items out of the sensing area.
- Record the result: Note the date and outcome in a phone note or household maintenance log.
The sensor's environmental limits also matter. Published hardware may list a detection range around 15 meters and an IP55 weather rating, while manufacturers note that rain, dust, and similar conditions can reduce effective range by up to 30%. Those limits explain why a system may behave differently during wet or dusty weather and why cleaning and stable mounting remain important.
If either safety test fails, stop using automatic closing until the cause is identified. A door that closes reliably one day can still have an intermittent wiring or alignment problem that appears later.
When to Call a Professional for Sensor Repair
Cleaning the lenses, clearing the beam, gently correcting alignment, and checking visible connections are reasonable first steps. Stop there if the lights continue blinking, one sensor remains dark, or the door reverses with no obstruction present.
Persistent trouble can involve damaged wiring inside the wall, a short circuit, a failing control module, or a logic-board fault. Those problems require electrical diagnosis, and a technician can test voltage, continuity, alignment, and opener response without guessing at replacement parts.
The 2024 federal update also makes compatibility important when an older opener receives replacement sensors. A mismatched aftermarket component may not preserve the opener's intended safety operation, so the replacement should match the opener and its approved entrapment-protection design.
Call promptly if: The door reverses when the path is clear, the sensor signal cuts in and out, or either bracket or wire is visibly damaged.
