Is your garage door acting up? Before you blame the opener, let's check the real workhorses: the springs. There’s a quick way to know for sure if they're the problem, and it's the first thing any pro does. It’s called a balance test.
First, pull the red cord to disconnect your automatic opener. Now, lift the door by hand until it’s about halfway open and carefully let it go. If it stays put, your tension is probably fine. But if it slams shut or flies open, you've found the issue—the springs need adjusting.
Diagnosing Your Garage Door Balance Problem
It’s easy to think the garage door opener does all the heavy lifting, but the springs are the true muscle of the operation. They are wound under incredible tension, perfectly calibrated to counterbalance the door's weight. When that balance is off, you’ll start to see some clear warning signs.
Think of it like a seesaw. When it's balanced, lifting the door is easy. When it's not, the whole system struggles, putting a huge strain on your opener and creating a safety hazard.
Signs Your Garage Door Tension Needs Adjustment
Not sure what to look for? This table breaks down the most common symptoms I see out in the field. If any of these sound familiar, your door's tension needs immediate attention.
| Symptom | What It Means (Likely Cause) | Potential Risk |
|---|---|---|
| Door feels incredibly heavy | The springs have lost tension and are no longer supporting the door's weight. | Extreme strain on the opener motor, which can cause it to burn out. High risk of injury if lifted manually. |
| Door slams shut or drops fast | The springs are too loose and can't hold the door's weight. | Can cause serious injury to a person or pet, or damage anything in its path. Damages door panels and the floor. |
| Door flies open or won't stay closed | The springs are too tight, overpowering the door's weight. | Puts excessive force on the door's top panel, hinges, and the opener's trolley, leading to premature failure. |
| Door looks crooked or has a gap | One spring has more or less tension than the other, or a cable is off-track. | The door can get stuck or bind in the tracks, causing significant damage to the tracks, rollers, and panels. |
Catching these signs early can save you from a much bigger, more expensive repair down the road.
Your average garage door can weigh anywhere from 80 to 350 pounds. Those springs are built to handle that weight for about 10,000 cycles, which usually works out to 7 to 10 years of use. But when the tension is wrong, that lifespan gets cut short.
This isn't just about convenience; it's a major safety issue. Poorly maintained garage doors contribute to over 1,600 injuries in the U.S. each year, and many are directly tied to spring problems. To learn more about the professional safety standards we follow, you can check out these garage door insights on rjgaragedoorservice.com.
Identifying Your Spring System
Before you can figure out how to adjust garage door tension, you have to know which type of spring system you have. The adjustment process is completely different for each, and getting it wrong is dangerous.
-
Torsion Springs: These are the modern standard. You’ll find one or two large springs mounted on a metal shaft right above the door opening. They work by twisting (applying torque) to lift the door.
-
Extension Springs: This is an older design. You’ll see two long springs running parallel to the horizontal tracks, one on each side. They work like giant rubber bands, stretching as the door closes to store energy.
Key Takeaway: Correctly identifying your spring system is the most important first step. Torsion springs require special winding bars and a healthy respect for the tension they hold. Extension springs are adjusted in a completely different way. Mixing up the procedures is incredibly dangerous.
Your Pre-Adjustment Safety Checklist
Before you grab a single tool, let’s talk seriously about safety. This isn't just a disclaimer; it's the most critical part of this guide. The springs on your garage door are under immense tension and store a massive amount of energy. Underestimating them is a mistake you only make once.
Think of these next few steps as your pre-flight check. Skipping any of them is not an option if you want to get this done without getting hurt.
Essential Safety Preparations
First, kill the power. Go to your garage door opener and unplug it from the wall. Don’t just flip a switch. Unplugging it completely ensures no one can accidentally hit the remote while you're working.
Next, lock the door down. With the door fully closed, clamp a C-clamp or a pair of locking Vise-Grips onto each door track, right above one of the bottom rollers. This simple step acts as a physical block, preventing the door from flying up if a spring releases unexpectedly.
Crucial Tip: Never, ever try to adjust torsion springs with the door open. The door must be fully closed to take the tension off the springs. For extension springs, it's the opposite; the door needs to be propped securely open to relax the spring for adjustment.
Gear up with the right personal protective equipment (PPE). A solid pair of safety glasses is non-negotiable. A good pair of work gloves will protect your hands from sharp metal and give you a better grip. Since you'll likely be on a ladder, it's also smart to review how to use working at height safety equipment to avoid a fall.
Gathering the Right Tools for the Job
Having the proper tools ready to go is half the battle. Scrambling for the right wrench mid-job is how accidents happen. What you'll need depends on your spring system.
For Torsion Spring Systems You Will Need:
- Two Winding Bars: This is the big one. They must be the correct diameter for your springs, typically 1/2" or 5/8". Do not substitute anything for these. Using screwdrivers or rebar is a recipe for disaster. They will slip or break, and the spring will release its energy violently.
- Wrenches or a Socket Set: You'll need the right size to loosen the set screws on the winding cone, usually a 7/16" or 1/2" wrench.
- A Sturdy Ladder: Make sure it’s on solid, level ground.
- Tape Measure & Marker: For tracking your adjustments accurately.
For Extension Spring Systems You Will Need:
- Adjustable Wrench: This will help you reposition the spring hook.
- A Sturdy Ladder: Again, make sure it's stable.
- Heavy-Duty Pliers: Can be very helpful for gripping the S-hook.
With your safety gear on, the door secured, and your tools ready, you can move forward. This kind of preparation is a cornerstone of any good garage door maintenance plan and is key to doing this job safely.
How to Adjust Torsion Spring Tension
Okay, let's get to the main event: the torsion springs. These are the big springs on a metal shaft right above your closed garage door. This job demands your full attention and the right tools. But if you take it one step at a time, you can do it safely.
First, run through that safety checklist again. Power off, door clamped, safety gear on. These are non-negotiable.

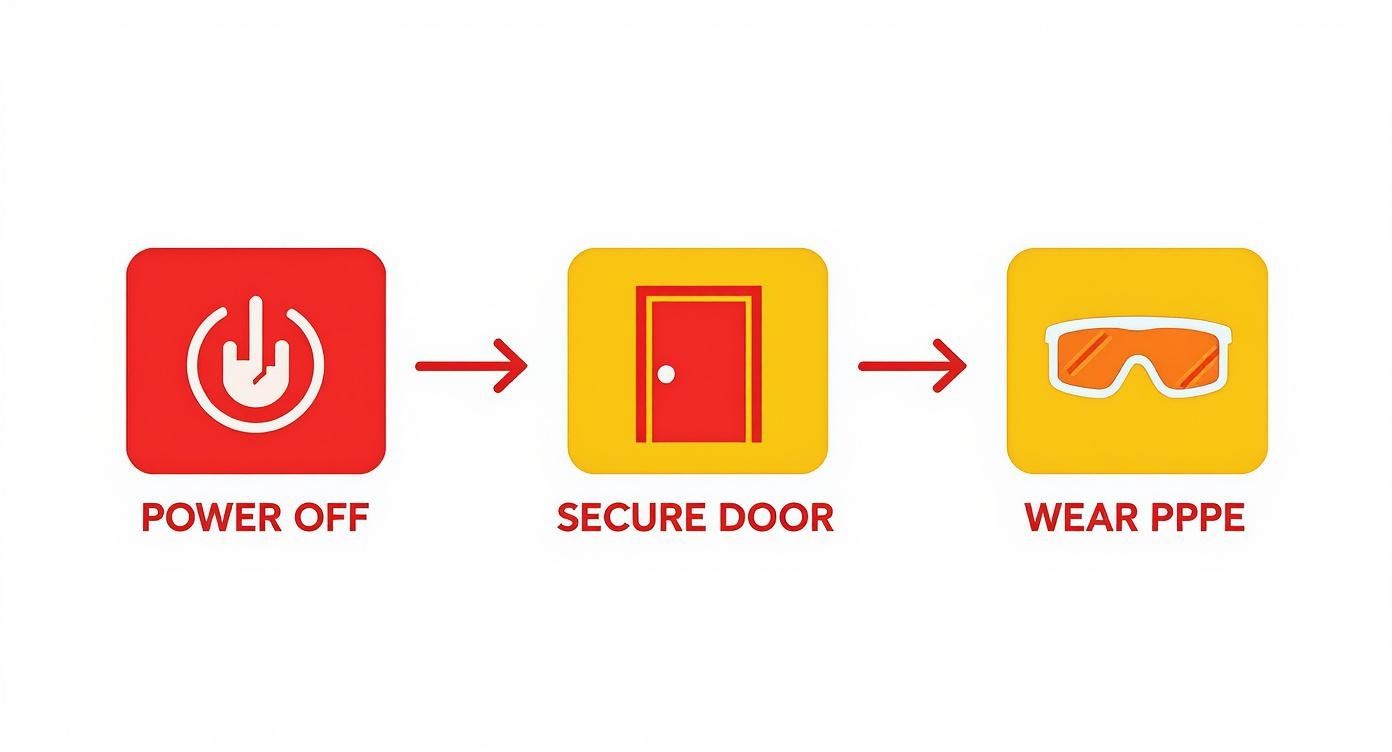

This sequence sums it up perfectly: unplug the opener, clamp the door, and gear up. It’s the foundation for a safe adjustment.
Finding Your Way Around the Torsion System
Before you adjust anything, you need to know the key parts. Look at the spring system. One end is locked into a stationary cone bolted to the center bracket. The other end, the one we’re interested in, is attached to the winding cone. This is the piece you'll be adjusting.
The winding cone has holes for your winding bars and is held to the shaft with two set screws. These small screws keep all that spring tension locked in place.
Mark Your Starting Point for a Clear Reference
Here’s a trick that makes this whole process easier. Grab some chalk or a marker and draw a straight line down the entire length of the spring.
This simple mark is your guide. As you wind or unwind the spring, that line will spiral, showing you exactly how many quarter-turns you’ve made. It takes the guesswork out and is essential for making sure both springs are adjusted equally.
Expert Insight: The modern torsion spring system has been the industry standard since the 1950s because it offers more precise control. For a typical 16-foot door, the combined tension can easily exceed 200 pounds. Since about 30% of all garage door repairs are spring-related, knowing how to adjust them is a crucial skill. You can learn more from these garage door facts at bcsoverheaddoortx.com.
Carefully Taking Control of the Tension
Time to get hands-on. Insert your first winding bar into a hole at the bottom of the winding cone, around the 6 o'clock position. Make sure it slides in all the way. Now, hold it firmly and feel the spring's tension.
While keeping a solid grip on that first bar, use your wrench to loosen the two set screws on the winding cone. You'll likely hear a "pop" as the tension transfers to the bar in your hand. Be ready for this force. You are now in full control of the spring's stored energy.
With the screws loose, you can feel the real power of the spring. The goal isn't to let it unwind, but just to get a feel for the force you're controlling.
Making Adjustments One Quarter-Turn at a Time
Adjusting torsion spring tension is about small, deliberate increments. The industry standard is a quarter-turn (90 degrees) at a time.
- Door feels heavy? You need to add tension. Push the winding bar up a quarter-turn, from the 6 o'clock to the 9 o'clock position.
- Door flies open? You need to remove tension. Carefully let the winding bar move down a quarter-turn, from 6 o'clock to 3 o'clock.
Now, with the first bar holding the new position, insert your second winding bar into the next available hole (now at the 6 o'clock spot). Only when that second bar is secure can you safely remove the first one. This leapfrogging technique is crucial—it ensures you never lose control.
Repeat this process one quarter-turn at a time. This is not a race. Slow and steady is the way to go.
Locking It In: Securing the Winding Cone
Once you've made your adjustment, you need to lock it down. Holding the winding bar firmly in place, use your free hand to retighten the set screws.
Get them snug and secure. A good rule of thumb is to tighten them another half-turn after they first touch the shaft. This ensures they won't slip.
After the screws are tight, you can carefully remove the winding bar. If you have a second spring, repeat this exact same process on the other side. It is critical that both springs have the identical number of turns.
Finally, do the balance test again. If it’s still off, repeat the adjustment process, adding or removing another quarter-turn until the door floats perfectly.
Getting the Tension Right on Extension Springs
If you see long, skinny springs running alongside the horizontal tracks, you're dealing with an extension spring system. Adjusting these is much different from torsion springs and is a bit more approachable for a DIYer. But don't get complacent—the risks are just as real if you don't follow the proper safety steps.
The number one rule for extension springs is that the garage door must be fully open before you touch anything. This is the complete opposite of a torsion spring job. Opening the door fully relaxes the springs, taking all the stored energy out of them so you can work safely.
Know Your Hardware: The Parts of an Extension Spring Setup
Let’s do a quick anatomy lesson. You'll be working with a few key pieces:
- The Extension Spring: The long, coiled spring that does the lifting.
- The Safety Cable: This is a non-negotiable safety feature. It's a steel cable threaded through the middle of the spring, designed to contain it if it breaks.
- The Pulley & S-Hook: One end of the spring connects to a pulley and cable system. The other end uses an S-hook to attach to the track hanger.
- The Adjustment Bracket: This is your target. It's the metal bracket on the track support with a series of holes for the S-hook.
Do a quick check of that safety cable. Is it frayed, rusted, or missing? If so, stop right now. That cable is the only thing stopping a broken spring from whipping across your garage. It must be in good shape.
The Adjustment Process, Step by Step
You've got your safety glasses and gloves on, and the door is all the way up. The next crucial step is to secure it by putting a C-clamp tightly on each track just below the bottom rollers. This guarantees the door can't slide down while you're working.
The adjustment itself is pretty straightforward. You're simply moving the S-hook that connects the spring to the track's adjustment bracket.
- Need more lift? (Door feels heavy): Move the S-hook to a hole that's further away from the garage door. This stretches the spring more, giving it extra lifting power.
- Is the door flying open? (Too much tension): Move the S-hook to a hole that's closer to the door. This will reduce the stretch and dial back the force.
A sturdy wrench or pliers will give you the leverage to pop the S-hook out and move it. I always recommend moving it just one hole at a time—it makes a bigger difference than you might think.
The Golden Rule of Adjustments: Whatever you do on the left side, you must do the exact same thing on the right side. If you don't, the door will lift unevenly. This puts immense stress on the panels, rollers, and tracks, leading to bigger problems. Balance is everything.
Torsion vs Extension Springs Adjustment at a Glance
Seeing the core differences side-by-side helps drive home why the safety procedures are so different for each system.
| Aspect | Torsion Spring System | Extension Spring System |
|---|---|---|
| Door Position for Adjustment | Must be fully closed | Must be fully open and secured |
| Key Tools | Winding bars, socket set | Adjustable wrench, pliers |
| Adjustment Method | Winding or unwinding the spring cone on the shaft | Moving an S-hook on a track bracket |
| Primary Safety Concern | Extreme rotational force (torque) on the winding bars | A spring snapping if the safety cable is missing |
Once you've made the same adjustment on both sides, carefully remove the clamps and run the balance test again. Gently lower the door to waist-high and let go. If it hovers, your work is done. If not, just repeat the process: open the door, clamp it, and make another one-hole adjustment until it's perfect.
Performing the Final Balance Test
You've done the hard work. Now for the moment of truth. This final balance test is crucial—it confirms your adjustments were successful and you're not about to strain your garage door opener.
First, make sure the opener is still disengaged. Manually lift the door to about waist-high. Take a deep breath and let go. What happens next tells you everything.
Reading the Results of Your Balance Test
A perfectly balanced door will just hang there. It might drift an inch or two, but it should mostly stay put. If that’s what happens, congratulations. Job well done.
If the door has other ideas, you've got a clear signal on what to do next:
- Door drifts up? You’ve got a little too much tension. The springs are overpowering the door's weight.
- Door sags or drops? There isn't enough tension. The springs need a bit more power.
Why This Matters: An unbalanced door forces your opener's motor to work overtime. A door that's too heavy can burn out the motor, while one that's too light can cause the cables to jump off the drums. Getting the balance right is key to a long life for your opener and follows basic motor protection principles.
Making the Final Micro-Adjustments
If your door didn't pass the test, don't worry. The final tweaks are usually small. Go back and repeat the adjustment steps, but this time, think in smaller increments. Add or remove just a quarter-turn on a torsion spring, or move an extension spring hook by only one hole.
It can feel a bit repetitive, but these tiny changes are how you dial in that perfect balance. After each tweak, run the balance test again. Keep at it until the door floats in place.
For a deeper dive, our guide on how to balance a garage door has some great info. Once the door holds its position, you can confidently reconnect the opener.
When It's Time to Call in a Professional
Knowing how to adjust your garage door tension is a great skill, but knowing when to call for help is just as important. Some issues go beyond a simple DIY adjustment and are clear signs you need an expert.
If you spot any of these red flags, it's time to put down the tools and pick up the phone.
Don't Ignore These Warning Signs
The biggest warning sign is a broken or cracked spring. A broken spring has violently released all its energy. You can't "adjust" it—it needs to be replaced. This is a dangerous job that requires special tools and know-how to do safely.
Also, keep a sharp eye on the cables. If you see frayed or snapped cables, that's another hard stop. The cables and springs work as a team. When a cable is compromised, it could fail at any moment, letting the door slam shut.
Here are a few other times you need a pro:
- The door is way off its tracks. Trying to force a door back into its tracks can wreck the rollers, bend the tracks, and damage the door panels.
- You heard a loud "bang!" from the garage. That unmistakable sound is almost always a torsion spring snapping.
- There’s damage everywhere. If you're looking at bent tracks, busted rollers, and dented panels, a tension adjustment is just a band-aid on a bigger problem.
Seriously, trying to tackle these major repairs on your own is a huge gamble. The risk of getting badly hurt or causing hundreds of dollars in extra damage is just too high.
There’s a reason the garage door repair market is on track to hit USD 6,500 million globally by 2025. Most of that growth comes from specialized jobs like spring and cable replacement that homeowners wisely leave to experts. You can see more data about the garage door repair market on archivemarketresearch.com.
If you want to learn more about why springs fail, check out our guide on when to replace garage door springs. A service call is a small price to pay for your safety and peace of mind.
Common Questions About Garage Door Tension
You've adjusted your garage door, but you might still have a few questions. That's normal. Let's tackle some of the most common things people ask after adjusting their garage door springs.
How Often Should I Check My Garage Door's Balance?
A good rule is to perform a balance test twice a year. I tell my customers to tie it to changing the clocks for daylight saving time. It's an easy way to remember.
That said, don't wait if you notice something is wrong. If the door suddenly feels heavy or starts making new noises, test the balance right away. Catching small changes early can prevent a major repair.
Can I Just Adjust the Tension on One Spring?
Technically, you can, but you absolutely shouldn't. Garage door springs are a matched set; they're installed together and wear out at roughly the same rate. If one spring feels weak, its partner is likely not far behind.
When you only adjust one spring, you throw the door off balance. This puts a ton of stress on the rollers, tracks, and hinges. To keep your door running smoothly and safely, always adjust both springs equally. The goal is perfect, even balance.
A Crucial Note on Tools: Never, ever attempt to adjust torsion springs without proper winding bars. These are made from hardened steel to handle the incredible torque. Using a screwdriver, a piece of rebar, or anything else is an invitation for disaster. Those makeshift tools can slip or snap, leading to severe injuries.
If you've gone through the steps and your door still isn't quite right, or if you've found a bigger issue, there's no shame in calling a pro. For fast, reliable service in the Cleveland area, reach out to Danny's Garage Door Repair for a free estimate at https://garagedoors101.com.
