Is your garage door groaning, shuddering, or just sounding angry every time it moves? That's not just a noise; it's a cry for help. An unbalanced door forces your automatic opener to do the heavy lifting, putting a huge strain on the motor, gears, and drive chain. It’s a surefire way to burn out the opener, leaving you with a hefty and unexpected repair bill.
Balancing a garage door is all about adjusting the spring tension until it perfectly counters the door's weight. The goal is simple: when you open the door halfway by hand, it should stay put, feeling almost weightless. Get this right, and you'll spare your opener from unnecessary strain, which means a longer life for the motor and a safer door for your family.
Why a Balanced Garage Door Is So Important
The springs are the real workhorses of your garage door system. Whether you have the big torsion springs mounted on a bar above the door or the long extension springs running alongside the tracks, their one job is to perfectly offset the door's massive weight.
The Role of Springs in Balancing
When everything is working correctly, the door feels surprisingly light. The springs are dialed in to hold the door’s entire weight in equilibrium, so your opener just has to give it a little push to get things moving.
But when that balance is off, the whole system is compromised. The opener is suddenly forced to hoist hundreds of pounds up and drag it back down—a job it was never built for. This constant struggle grinds down every single component, from the motor's internal workings to the drive belt itself.
Telltale Signs of an Imbalance
So, how do you know if your door is out of whack? The signs are usually pretty obvious once you know what to look for.
- It Slams Shut: The door doesn't close gently; it comes down hard and fast.
- It's Hard to Lift Manually: Disconnect the opener and try to lift it. Does it feel like a dead weight?
- It Won't Stay Put: Open it halfway and let go. A balanced door will hang in place, but an unbalanced one will creep up or slide back down.
- You See Uneven Gaps: When the door is closed, you might notice the gap at the bottom is crooked.
The difference in effort is stark. A properly balanced door should take less than 10 pounds of force to lift by hand. An unbalanced one can feel like you're trying to lift 30 pounds or more. That’s not just difficult—it’s a serious safety hazard if it were to slam shut.
Keeping a garage door balanced is non-negotiable, especially when you realize most doors weigh between 150 to 300 pounds. Industry data from Coherent Market Insights confirms how vital this kind of upkeep is, projecting that repair and maintenance will account for a huge chunk of the garage door service market.
Your Essential Safety and Tool Checklist
Before you even think about touching a single bolt, let's have a serious talk about safety. Adjusting garage door springs is one of the riskiest jobs a homeowner can tackle. There is absolutely no room for error or cutting corners here.
Your first step is simple but non-negotiable: unplug the automatic garage door opener from the wall outlet. No exceptions. This completely removes the risk of the motor unexpectedly engaging while you're working.
Next, you'll need to separate the door from the opener. Find the red emergency release cord—it’s that rope with a plastic handle dangling from the opener's track—and give it a firm pull. This lets you operate the door by hand, which is essential for the balance test.
Gearing Up for the Job
Having the right tools isn't just about convenience; it’s about doing the job safely. Trying to improvise with the wrong equipment is a recipe for disaster.
Before you start, make sure you have everything on this list. Think of it as your pre-work inspection—getting organized now will make the whole process smoother and safer.

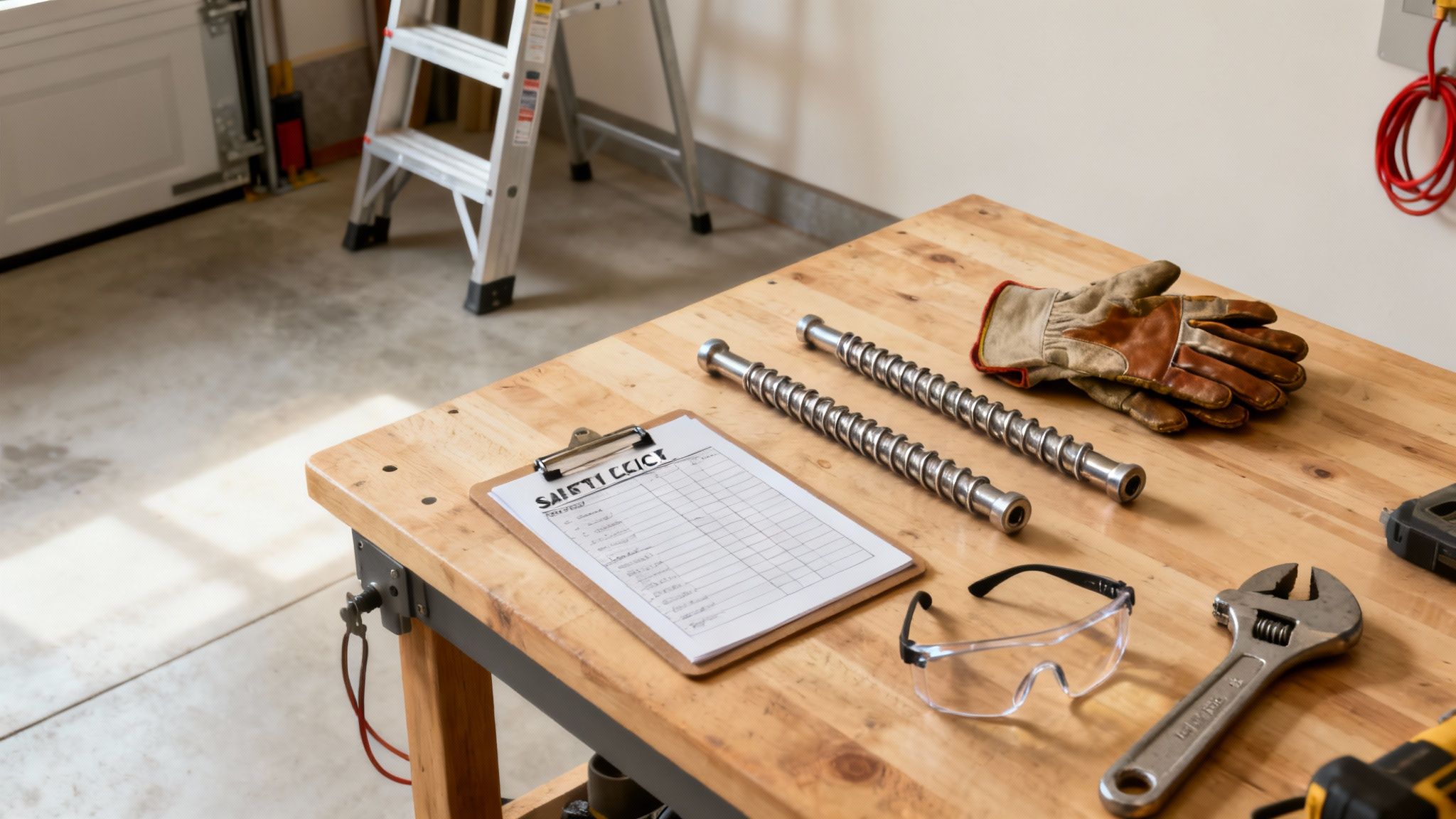

Essential Tools and Safety Gear Checklist
| Item | Why It's Essential | Where to Get It |
|---|---|---|
| Safety Glasses | Protects your eyes from debris or a snapping cable or spring fragment. | Hardware Store |
| Thick Work Gloves | Prevents cuts from sharp metal edges and improves your grip on tools. | Hardware Store |
| Steel Winding Bars | The ONLY tool for adjusting torsion springs. Solid steel rods that fit the winding cones perfectly. | Specialty Garage Door Supplier / Online |
| Sturdy A-Frame Ladder | Provides a stable platform so you can work comfortably without overreaching. | Hardware Store |
| Adjustable Wrenches & Socket Set | Needed for loosening and tightening the nuts on spring brackets and winding cones. | Home Toolbox / Hardware Store |
| Locking Pliers (Vise-Grips) | A critical safety tool used to clamp onto the torsion bar or track to prevent sudden door movement. | Hardware Store |
Having every one of these items on hand isn't optional. It’s the minimum requirement for tackling this job without putting yourself at risk.
A Note on the Most Critical Tool
I want to emphasize one item on that list: the steel winding bars. These are purpose-built for this job. Never, ever attempt to use screwdrivers, tire irons, or pieces of rebar. These makeshift tools can easily slip out from the spring’s winding cone under immense pressure, turning them into dangerous projectiles.
Think of this prep work as your pre-flight check. Skipping a safety step here is like a pilot ignoring a warning light—it's a gamble that's simply not worth taking. These checks are a core part of any good garage door maintenance routine for a reason.
Once you have your gear laid out and your safety equipment on, you're ready to see if your door is actually out of balance.
The Garage Door Balance Test: What to Look For
Alright, this is where the rubber meets the road. With the opener disconnected, we're going to manually test the door to see exactly what we're working with. This simple hands-on test is the single most important diagnostic you can do—it tells you everything you need to know about your spring tension without any guesswork.
The idea is simple: you’ll lift the door to a few different heights and watch how it behaves. Its reaction—whether it stays put, creeps up, or slams down—is the key to understanding how to get it perfectly balanced.
Testing the Three Key Positions
Grab the door from the bottom and get ready to lift. We're going to check three specific points to get a full picture of the balance.
- The One-Foot Mark: Gently lift the door about a foot off the ground and carefully let go. A well-balanced door will hang right there. If it crashes back down, your springs are too loose and aren't providing enough lift.
- The Midpoint: Now, raise the door to about your waist—roughly halfway up. This is the most crucial test point. Again, it should just hover in place, feeling almost weightless in your hands. If it starts to float upward, the springs are too tight. If it sags or drops, they're too loose.
- The Three-Quarters Mark: Finally, push the door up until it's about three-quarters of the way open and release it. It should stay put here as well. If it continues to coast upward toward the fully open position on its own, your springs are definitely wound too tight.
The Golden Rule: A perfectly balanced door stays exactly where you leave it. Any movement at all, up or down, means an adjustment is needed. A door that slams shut from any position is a serious safety hazard and needs immediate attention.
This isn't just about convenience; it's a critical safety feature. Some estimates suggest that over 20,000 emergency room visits each year are linked to garage door accidents, many caused by unbalanced doors crashing down. On top of that, an imbalanced door can put up to 50% more strain on your automatic opener, drastically shortening its lifespan. You can dig deeper into these garage door market insights from Fortune Business Insights.
Reading the Results
Now that you've run the test, you know exactly what needs to happen next. Your door’s behavior will fall into one of three camps:
- The Door Slams or Drifts Down: A clear sign the spring tension is too weak. You'll need to tighten the springs to add more lifting power.
- The Door Drifts Up: The opposite problem—the spring tension is too strong. You’ll need to carefully loosen the springs.
- The Door Stays Put: Perfect! Your door is balanced. You can reconnect the opener and call it a day.
Having this information is everything. You're no longer guessing—you have a clear diagnosis and know exactly what you need to do to fix it.
Adjusting Torsion and Extension Springs
Alright, you've done the balance test and know which way your door is leaning. Now comes the hands-on part: making the actual adjustments. This is where you need to be precise, patient, and above all, safe.
How you balance the door depends entirely on which type of springs you have—torsion or extension. The methods are worlds apart, so let’s tackle them one by one.
Remember the golden rule here: small, incremental changes. It’s far better to make a small tweak and re-test than to go too far and have to dial it all back.

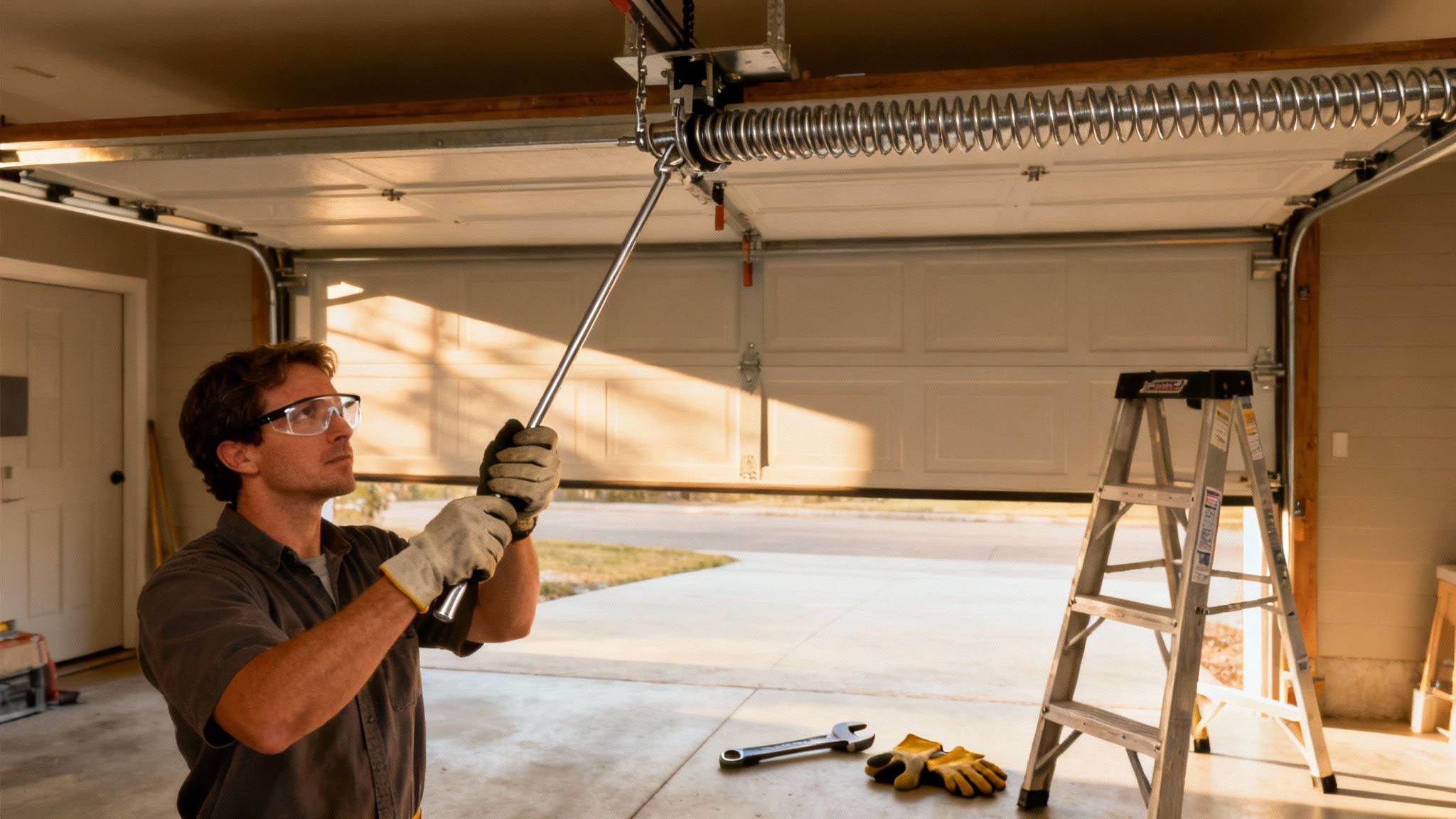

Fine-Tuning Torsion Springs
I can't stress this enough: adjusting torsion springs is a dangerous job if you're not careful. The tension they hold is immense. Before you touch them, double-check that you have the right tools: a set of proper winding bars (not screwdrivers!), wrenches, and your safety glasses.
First, make sure the door is fully closed and the opener is disengaged. Now, grab a pair of locking pliers and clamp them tightly onto the vertical track, right above one of the bottom rollers. This is your safety net—it'll stop the door from shooting open while you're working on the spring.
Next, find the winding cone at the end of the spring. You'll see it has a few holes for the winding bars and two set screws that lock it onto the main torsion bar. Using the right-sized wrench, carefully loosen these two set screws.
Now, take one of your winding bars and push it firmly into one of the bottom holes on the cone. Get a feel for the spring's tension. With a solid grip on that first bar, insert the second winding bar into the next hole up. At this point, you are in complete control of the spring’s tension.
- To Tighten (if the door was heavy): You'll need to add tension. Push the top winding bar upward a quarter of a turn (90 degrees). Then, bring the bottom bar up to the next hole to hold that new position.
- To Loosen (if the door was light): You'll be releasing tension. Carefully let the top bar move down a quarter of a turn. Then, move the bottom bar down to the next hole to secure it.
After just one quarter-turn adjustment, firmly retighten both set screws. Only then should you remove the winding bars and the locking pliers. Now, run the balance test again. Keep repeating this process—one quarter-turn at a time—until that door hangs perfectly balanced at the halfway point.
This infographic shows exactly what you're aiming for after each adjustment.
A perfectly balanced door shouldn't have a mind of its own. It should stay right where you leave it.
Adjusting Simpler Extension Springs
If your garage has extension springs—the ones that run along the sides of the horizontal tracks—you can breathe a little easier. This job is much simpler and safer. The key difference is that all adjustments are made with the garage door fully open, which takes all the tension off the springs.
Start by propping the door securely in the fully open position. A good pair of locking pliers clamped on the track right below a roller works great for this. Look at where the spring’s cable attaches to the track bracket; it's usually held by an S-hook or a cable clip through a series of holes.
To change the tension, all you have to do is move that attachment point.
If your door was heavy and kept drifting down, you need more tension. Just move the S-hook or clip to the next hole further away from the door itself. This shortens the effective length of the cable and gives the spring more pull.
On the other hand, if the door was too light and wanted to fly up, you'll do the opposite: move the clip to a hole closer to the door to decrease tension.
Whatever you do, make sure you adjust both the left and right springs by the same amount. If you don't, you'll end up with a crooked door. After you've made your change, carefully lower the door and run the balance test again.
Sometimes, no amount of adjusting will fix the problem if the springs are just old and worn out. If you see rust, corrosion, or visible gaps in the coils, it might be time for a new set. You can learn more about the warning signs in our guide on when to replace garage door springs. It's always smarter to replace worn parts than to wait for them to break.
Red Flags: When to Call a Professional
Knowing your limits is probably the most important skill for any DIYer. This is especially true when you're dealing with something as powerful as a garage door. While tweaking the balance is often doable, there are some clear red flags that mean it's time to put the tools down and call a pro. Pushing past these warning signs isn't just a risk to your door—it's a gamble with your safety.
If you spot lift cables that look frayed, thin, or are starting to unravel, stop what you’re doing. Those cables are holding back an incredible amount of force, and if one lets go, the results can be catastrophic. Our guide on how to fix a garage door cable walks through the process, but honestly, this is a job best left to someone with experience.
The same goes for the springs. Take a hard look at them. See any visible gaps in the coils of a torsion spring? Are your extension springs looking rusty, stretched out, or corroded? Those are all signs of serious metal fatigue. The spring is on its last legs and could snap at any moment.
Obvious Signs of Serious Trouble
Sometimes, the problem is way bigger than a simple balance adjustment. Certain issues point to deeper mechanical problems that need specialized tools and a trained eye to fix correctly and safely.
Here’s what to look out for:
- A Severely Crooked Door: If your door is hanging noticeably lopsided, you might have a snapped cable or a major track issue.
- Damaged or Bent Tracks: Any dents or bends in the metal tracks will stop the rollers from moving freely, putting a huge strain on the opener and springs.
- Broken or Worn-Out Rollers: Check the little wheels that run in the tracks. If they're cracked, wobbly, or seized up, they need to be replaced.
- Loud, Persistent Grinding Noises: A well-maintained door should operate pretty quietly. It's important that homeowners are recognizing a grinding sound as a serious problem, as it often means failing gears or motor components.
A broken spring is never a DIY job. The stored energy in a torsion spring is powerful enough to cause severe injury or worse. If you see that tell-tale gap in the spring coil, your only move should be to call a certified technician.
There's a good reason the professional garage door service industry is booming. A huge chunk of that is from repairs and maintenance like spring replacements that homeowners wisely leave to the experts. Calling a pro isn't admitting defeat; it's making the smartest, safest choice for your home.
Got Questions About Balancing Your Garage Door?
Let's tackle some of the most common questions I hear from homeowners about their garage doors. Understanding these points will give you a ton of confidence when it comes to maintaining what is likely the biggest moving object in your house.
How Often Should I Check My Door's Balance?
A good rule of thumb is to perform the manual balance test at least twice a year. I usually tell people to tie it into their other seasonal chores—think spring cleaning and fall prep.
Why so often? The springs are under constant tension and, over thousands of cycles, they naturally lose some of their oomph. Checking it regularly helps you catch an imbalance early, long before it puts a ton of unnecessary strain on your opener motor.
What Specific Noises Point to an Imbalance?
Your garage door will definitely talk to you if something's wrong. While any new, loud noise is worth investigating, a few sounds are dead giveaways for an imbalance.
- A Strained, Groaning Opener: This is the classic sign. You'll hear the motor grunting and straining to lift a door that has become a dead weight.
- Loud Banging or Popping: This often happens when a heavy, unbalanced door drops suddenly during travel, causing the rollers to slam hard against the track joints.
- Squealing That Gets Worse: If you hear a squeak that changes in pitch or gets louder as the door rises, it could be the springs crying out under an uneven and excessive load.
A healthy, balanced door should have a consistent, low hum. The second you hear a new grinding, groaning, or banging noise, stop what you're doing. Disengage the opener and do the manual balance test right away.
Is It Possible to Make the Springs Too Tight?
Absolutely. And honestly, it’s just as bad as having them too loose. If the springs are overtightened, the door will be "hot" and want to fly open. You'll know this is the case if you do the balance test and the door drifts upward on its own from the halfway point.
This creates a whole different set of problems. It forces the opener to work overtime to pull the door down against the spring tension. It can also cause the door to slam into the top of the track when opening, which is not good for the door or the opener. That's why I always stress making small, quarter-turn adjustments at a time, testing after each one.
Should a Balanced Door Be Easy for Anyone to Lift?
Yes, that’s the entire principle behind the system. The springs are designed to perfectly counteract the door's weight, making it feel practically weightless. A properly balanced door should only take about 10 pounds of force to lift by hand.
Think about it this way: in an emergency or a power outage, most adults should be able to lift the door without a struggle. If you have to heave and strain with all your might to get it open, the springs aren't pulling their weight—literally. That's a sign of a dangerously unbalanced door.
FAQ Quick Reference
| Question | Short Answer |
|---|---|
| How often should I test the balance? | At least twice a year, typically in spring and fall. |
| What's the main sign of imbalance? | The opener motor straining or groaning loudly when lifting the door. |
| Can springs be too tight? | Yes. The door will want to fly open and will drift upward during a balance test. |
| How heavy should a balanced door feel? | Nearly weightless—it should only take about 10 lbs of force to lift manually. |
Hopefully, these answers clear things up. A well-balanced door isn't just a convenience; it's a critical safety feature.
If you've gone through the tests and adjustments but something still feels off, or if you'd just rather have an expert handle it, Danny's Garage Door Repair is here to help. Our team provides fast, professional service across the Greater Cleveland area to get your door perfectly balanced and operating safely. Contact us for a free estimate.
