When your garage door starts acting up—hanging crooked, getting stuck, or slamming shut—a broken cable is often the culprit. These cables do the heavy lifting, and when one fails, the whole system can go haywire. Before you break out the toolbox, though, it's smart to confirm that a cable is actually the root of the problem.
Is a Broken Cable Really the Problem?
So, you think you've got a bad garage door cable. It’s a solid guess, but let’s be sure. Jumping the gun and starting a repair without a proper diagnosis can lead you down a rabbit hole, wasting a perfectly good afternoon on a fix that doesn't solve anything. A quick, and most importantly, safe visual check is where you should always begin.
Thankfully, the signs of a failing cable are usually pretty obvious once you know what to look for. The most common symptom is a door that hangs crooked, with one side dipping lower than the other. This is a dead giveaway. It means one of the two cables has snapped or slipped, forcing the other to take on a load it can't handle alone.
Common Signs of Cable Failure
You might also find the door gets jammed halfway up or just refuses to open at all. That's because the cables and springs work as a team to counterbalance the door's massive weight. Take one cable out of the equation, and the system is thrown completely off balance. Your garage door opener simply isn't strong enough to lift that much dead, unbalanced weight.
Keep an eye out for these tell-tale signs:
- A Crooked Door: This is the big one. If one side of the door is clearly higher than the other, you've almost certainly got a snapped or detached cable.
- Visible Fraying or Damage: Get a good look at the steel cables running up both sides. See any broken wire strands, rust spots, or sharp kinks? That's a cable on its last legs, about to fail completely.
- Loose or Slipped Cables: Sometimes the cable is still in one piece but has gone slack. You might see it hanging loosely or find that it has unspooled entirely from the circular drum at the top.
Important Safety Note: If you spot any of these issues, stop using the door immediately. Don't try to open it manually or with the remote. Forcing a damaged door to operate can cause a catastrophic failure and is a serious safety risk.
For a deeper dive into the inspection process, check out our complete guide on how to inspect a garage door. It provides a full checklist that will help you confidently identify problems with cables, springs, and rollers. Knowing exactly what you're up against is the first step to getting the right fix.
Gathering Your Tools and Safety Gear
Before you even think about touching those garage door cables, we need to have a serious talk about your setup. This isn't a job where you can just "wing it" with whatever's in your toolbox. The springs and cables on your garage door are under an incredible amount of tension, and your safety hinges on having the right gear and a solid plan.
Let's get one thing straight from the start: If you have a torsion spring system—that's the big spring mounted on a bar above the door—you absolutely must have a proper set of winding bars. I can't stress this enough. Trying to use screwdrivers, a piece of rebar, or anything other than the correct tool is a recipe for disaster. It's one of the fastest ways to end up in the emergency room.
Your Essential Tool Kit
Do yourself a favor and get everything you need laid out and within arm's reach before you start. The last thing you want is to be halfway through a critical step, with the door in a precarious position, only to realize you're missing the right socket. It's not just frustrating; it's dangerous.
Here’s what your workspace should look like:
- Winding Bars: Again, for torsion springs only. Double-check that they're the correct diameter for the winding cones on your specific spring.
- Vise Grips or C-Clamps: You'll want at least two. These are for clamping the roller track, effectively locking the door in place so it can't suddenly move on you.
- Socket Wrench Set: Indispensable for loosening the set screws on the cable drums and the bolts on the bottom brackets.
- A Solid Ladder: No wobbly chairs, please. A sturdy stepladder or ladder is crucial for safely reaching the overhead components.
- Replacement Garage Door Cables: Make sure you've bought the right ones. Cables are rated for specific door heights and weights, so confirm you have the correct length and thickness.
My Two Cents: Always, and I mean always, replace cables in pairs. If one side snapped, the other cable has seen the exact same amount of work and is likely on its last legs. Replacing both at the same time is the only way to ensure your door stays balanced and operates safely.
Your Pre-Repair Safety Checklist
Having the right tools is just step one. Following the correct safety procedures is what separates a successful DIY repair from a statistic. A 2022 report noted that over 13,000 people are injured by garage doors every single year. Let's make sure you aren't one of them.
Before a single bolt is turned, you have to completely remove all power and stored energy from the system. Start by unplugging the garage door opener from the wall outlet. If it’s hardwired, flip the corresponding breaker in your circuit panel. This makes it impossible for someone to accidentally hit the remote and activate the door while you're in the line of fire.
With that done, it's time to run through a non-negotiable safety checklist. Think of this as your pre-flight inspection before you get to work.
| Safety Action | Why It's Critical | Required Gear or Tool |
|---|---|---|
| Unplug the Garage Opener | Eliminates the risk of the motor engaging unexpectedly, which could be catastrophic while components are loose. | None |
| Clamp the Door Tracks | Acts as a physical lock, preventing the door from crashing down if a spring or another component fails. | C-Clamps or Vise Grips |
| Wear Protective Gear | Protects your eyes from flying debris if a part breaks under tension and saves your hands from sharp metal edges. | Safety Glasses & Gloves |
| Release Spring Tension | This is the most critical step. It safely neutralizes the immense stored energy in the springs. | Winding Bars (for Torsion) |
Completing every item on this list is mandatory. It ensures you've created the safest possible environment before you begin the delicate process of handling high-tension components. Now, with your gear in place and your safety checks done, you're ready to tackle the job.
Let's Get That Broken Cable Replaced
Alright, you've got your tools ready and the area is prepped. Now for the real work. Replacing a garage door cable requires a steady hand and some patience, but if you take it step-by-step, you'll get it done right. The absolute first and most important move is to deal with the incredible amount of energy coiled up in those springs.

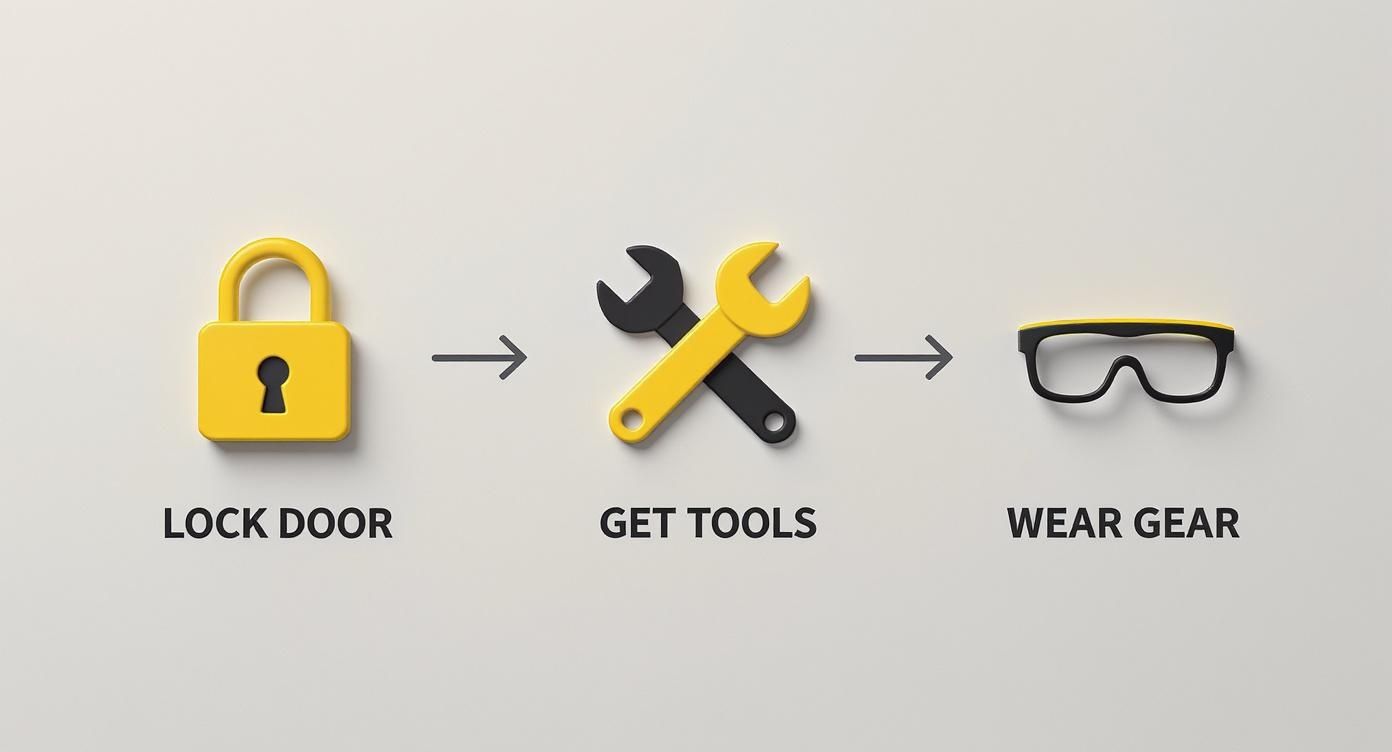

This graphic lays out the three non-negotiable safety steps: locking the door, getting your tools together, and gearing up with protective equipment.
Running through this sequence creates a safe workspace before you even think about touching a part that’s under tension. After you’ve safely unwound the springs and all the tension is gone, you can finally focus on that frayed or broken cable. This is where your socket wrench gets its moment to shine.
Getting the Old, Damaged Cable Out
Start down at the bottom of the door. You’ll see the cable is usually held in place on a bottom bracket with a looped end. You'll need to carefully unhook or unbolt it to free it from the door. Pay close attention to how it's attached—you'll be doing the exact same thing in reverse with the new one.

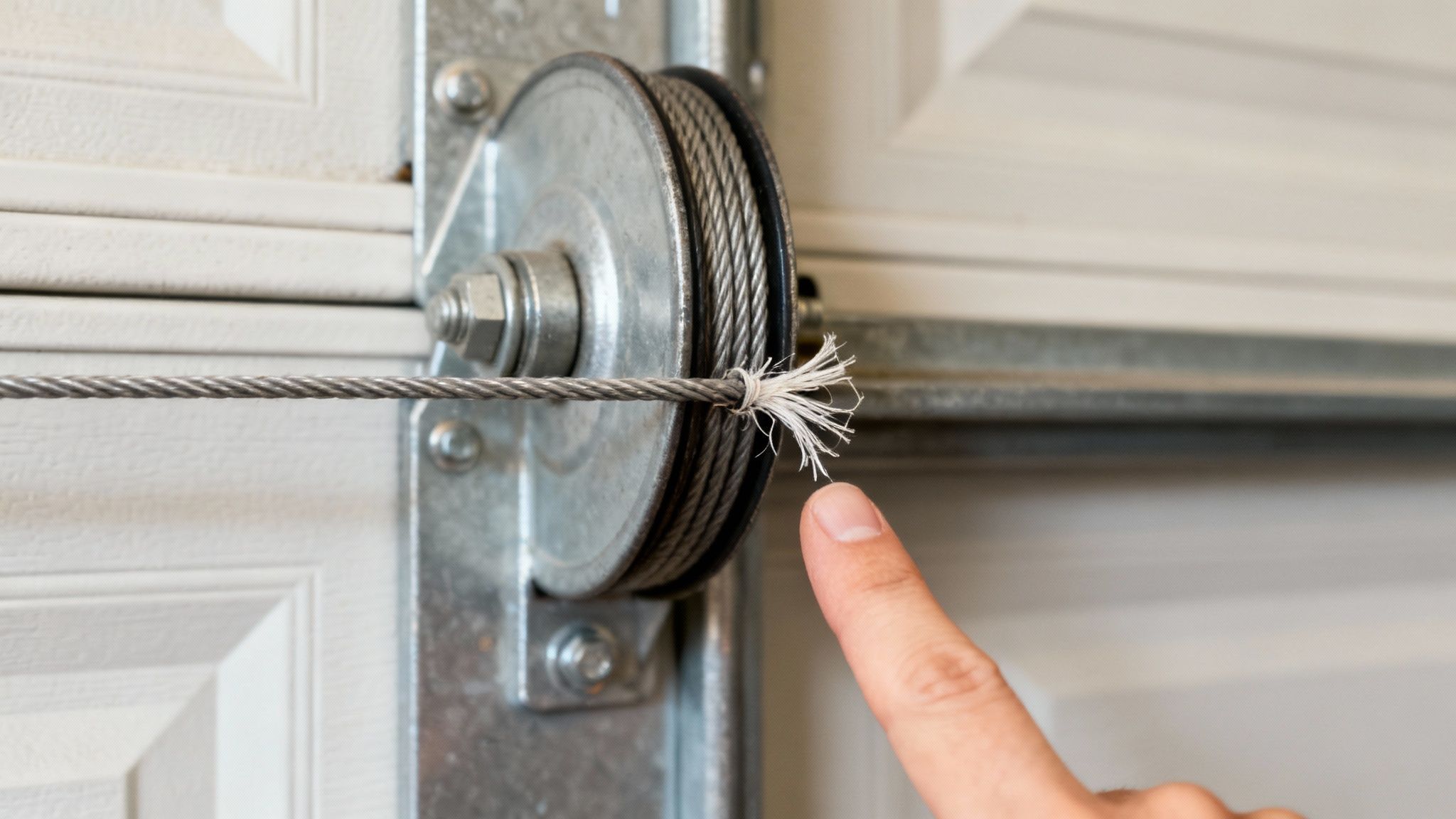

From there, follow the cable up to the drum, which is that grooved wheel near the spring shaft at the top. The cable is anchored to this drum, usually with a small set screw. Loosen that screw just enough to wiggle the old cable free. Now you can unwind the whole thing and get it out of your way.
A Pro's Trick: Before you loosen the drum, grab a marker and draw a line across both the drum and the torsion shaft it’s on. This little trick is a lifesaver—it gives you a perfect visual guide for aligning the drum later, which helps tremendously in getting the tension right.
Putting the New Garage Door Cable In
With the old cable gone, it's time to thread the new one. Begin by feeding the tip of the new cable into the little slot on the cable drum. Push it all the way through, then tighten down the set screw to hold it in place. You want it nice and snug, but don't go crazy and overtighten it, as you could damage the new cable strands.
Next, carefully start winding the new cable onto the drum. The key here is to make sure it sits perfectly inside the grooves. This is non-negotiable for smooth operation; if the cable isn't seated right, it can pop off track later. Keep a bit of tension on the cable with one hand as you guide the other end down to the bottom corner of the door.
Once it's routed, attach the looped end to the same spot on the bottom bracket where the old one lived. Give it a little tug to make sure it's secure. Now, do this exact same process on the other side of the door. Remember the golden rule: always replace both cables at the same time, even if only one looks bad.
If you're having trouble getting the door secured to begin with, you'll need a different approach. For some guidance on that, you can learn more about how to manually open a garage door from our other guide.
Winding and Securing Your New Cables
Okay, so now you have two brand-new cables attached, but they're just hanging there. The next, and most delicate, part is re-tensioning the system. This means using your winding bars to carefully wind the torsion spring back up. This is where your full focus is required.
You need to wind the spring back to its original tension. A good baseline for a standard 7-foot-tall door is around 30 quarter-turns (which is 7.5 full rotations). If you have a taller 8-foot-tall door, you're looking at closer to 34 quarter-turns (or 8.5 full rotations).
As you do this, keep an eye on a few things:
- Check the Drums: Glance up and make sure both cables are staying perfectly seated in their drum grooves.
- Look for Even Tension: The cables should pull equally taut as you add tension. There shouldn't be any sag on one side.
- Tighten Everything Down: Once the spring is fully tensioned, lock it onto the shaft by tightening the set screws on the winding cone. Then, double-back and firmly tighten the set screws on both cable drums.
With the new cables installed and the springs re-tensioned, the heavy lifting is over. The last piece of the puzzle is to fine-tune the door's balance to make sure it all works smoothly and safely.
Adjusting Tension for a Balanced Door
Getting that new cable on is a big step, but don't close your toolbox just yet. We've reached the final, and most critical, part of the job: balancing the door. This is where you fine-tune everything to make sure the door operates smoothly and safely for years to come. A perfectly balanced door doesn't just feel better to use; it also drastically reduces wear and tear on your opener.
Think of it like tuning a guitar. If one string is way too tight and another is loose, you're not going to get a good sound. It's the same principle here. Uneven cable tension will cause the door to hang crooked, scrape its way up the tracks, and eventually lead to a whole new set of problems.
Fine-Tuning the Cable Tension
Once you've put the tension back on the spring, stand back and give the door a good, hard look. Is it sitting perfectly flush with the garage floor? If you see a gap on one side, that's a dead giveaway the cable on that side is wound a little too tightly.
To fix it, you’ll have to unwind the spring again (I know, it's a pain, but it's the only safe way). Then, slightly loosen the set screw on the drum for that tight cable, introduce just a tiny bit of slack, and lock it all back down.
This part of the process is more art than science. It takes patience. You'll likely go back and forth a few times—making a small adjustment, re-tensioning the spring, and checking your work. Don't rush it. Taking your time here will save you massive headaches down the road.
Crucial Tip: I can't stress this enough: Never, ever mess with a cable or drum while the springs are under tension. That's how you get seriously hurt. Always unwind the springs before making these fine-tune adjustments. Safety first.
The Ultimate Balance Test
So, how do you know when you've finally got it right? There’s a simple test that every pro uses to confirm a perfectly balanced door. It’s the only way to be 100% sure. Just make sure your opener is still disengaged from the door.
Here’s how to do it:
- Lift the Door Manually: Grab the bottom of the door and lift it to about halfway open—around waist or chest height.
- Hold it Steady: Get a good grip and let it settle for a second.
- Let Go Carefully: Gently release your hold, but stay ready to catch it just in case.
Now, just watch. The door will tell you exactly what to do next.
- It Stays Put: If the door hangs in mid-air, maybe drifting less than an inch, you've nailed it. Perfect balance.
- It Slams Down: If the door starts dropping, the spring doesn't have enough tension. You'll need to carefully add another quarter-turn of tension.
- It Flies Up: If the door shoots upward, you've got too much tension. You’ll need to do the opposite and safely release a quarter-turn of tension.
For a more in-depth guide on this process, check out our complete walkthrough on how to balance a garage door.
Once your door passes this balance test, you’re on the home stretch. Go ahead and reconnect the garage door opener, plug it in, and run a few test cycles. Listen for any weird grinding or scraping sounds and watch the cables to make sure they're spooling evenly onto the drums. If it all looks and sounds good, you can officially call this job a success.
When It's Time to Call in a Professional
Even the best guide has its limits, and so does DIY. Knowing when to put down the tools and pick up the phone is just as important as knowing how to do the repair yourself. This isn't about admitting defeat; it’s about making a smart call for your own safety and making sure the job is done right.
If you’re looking at a high-tension torsion spring system for the very first time, I strongly suggest you pause. The amount of energy coiled up in those springs is no joke, and one wrong move can be incredibly dangerous. A pro has the right tools and, more importantly, the muscle memory from years of experience to handle that risk.
Red Flags That Mean "Stop and Call a Pro"
Sometimes, a snapped cable is just the tip of the iceberg. If you spot any of these issues along with the bad cable, it's a clear signal that the problem goes deeper than a simple DIY fix.
- A Broken Spring: This is the big one. If you can see a clean break in one of the springs above your door, the game has changed. Replacing a spring is a whole different beast that requires precise calculations based on your door's exact weight and size.
- A Seriously Jammed Door: Is the door completely stuck, maybe even halfway off its tracks? Trying to force it can bend panels or wreck the tracking system. A technician can diagnose what's actually causing the jam.
- Multiple Broken Parts: You've got a frayed cable, but you also see a cracked roller and a bent section of track. This isn't just one part failing; it's a sign of a larger system-wide problem that needs an expert eye.
A professional technician brings more than just a truck full of tools. They offer a warranty on their labor and parts, giving you peace of mind. They also have the experience to spot a subtle issue that might cause another breakdown just a few months down the road.
There's a reason garage door repair is such a big industry. In fact, it's a major part of the home services market, with North America alone accounting for about 40% of the global market share. You can see more data on the global garage door services market on verifiedmarketreports.com.
If the job feels too big or too dangerous, trust your gut. It's always better to start the process of finding a qualified professional than to risk injury or further damage.
Answering Your Top Garage Door Cable Questions
After you've wrapped up a repair, it’s natural to have a few questions pop into your head. Getting these details sorted out is key to making sure your repair holds up and you know how to prevent future issues. Let's tackle some of the things people ask most often.
Is It Okay to Just Replace the One Broken Cable?
I get this question all the time, and my answer is always a hard no. You absolutely must replace garage door cables in pairs.
Think about it: even if only one cable snapped, its partner has gone through the exact same number of cycles and stressful conditions. It's just as worn out. If you only replace one, you're creating an unbalanced system. This will make your door lift crookedly, put immense strain on the new cable, and cause it to fail much, much sooner.
My Two Cents: It's like replacing just one brake pad on your car. You just don't do it. For the sake of safety and getting the job done right the first time, changing both cables is the only way to go.
What's the Lifespan of a Garage Door Cable?
A good set of professionally installed garage door cables should give you 8 to 15 years of service, assuming you're doing basic maintenance.
However, where you live plays a huge role. If you're in an area with high humidity or where road salt gets kicked up into the garage during winter, rust and corrosion can cut that lifespan down significantly. That's why giving them a quick look-over a few times a year is so important—it lets you spot the rust or fraying before the cable gives out unexpectedly.
