Learning how to frame for a garage door boils down to three key parts: getting the rough opening measured just right, building a header that’s strong enough for the job, and putting together the king and jack studs to carry the load. Getting this right is the bedrock of a good installation—the kind that makes for a smooth, safe, and long-lasting door.
Why Your Garage Door Frame Matters More Than You Think
Before you even touch a circular saw, let's talk about why this frame is the unsung hero of your whole garage. It’s not just a hole in the wall. You're building a structural support system designed to handle the stress of a heavy, moving object, day in and day out, for years.
Especially here in Northeast Ohio, where we deal with everything from heavy snow loads to sticky, humid summers, a weak frame is a recipe for disaster. The wood can twist and warp under pressure, and that's when you see doors that stick, grind, or even pop off their tracks. Those are dangerous, expensive problems that all point back to a shaky foundation.

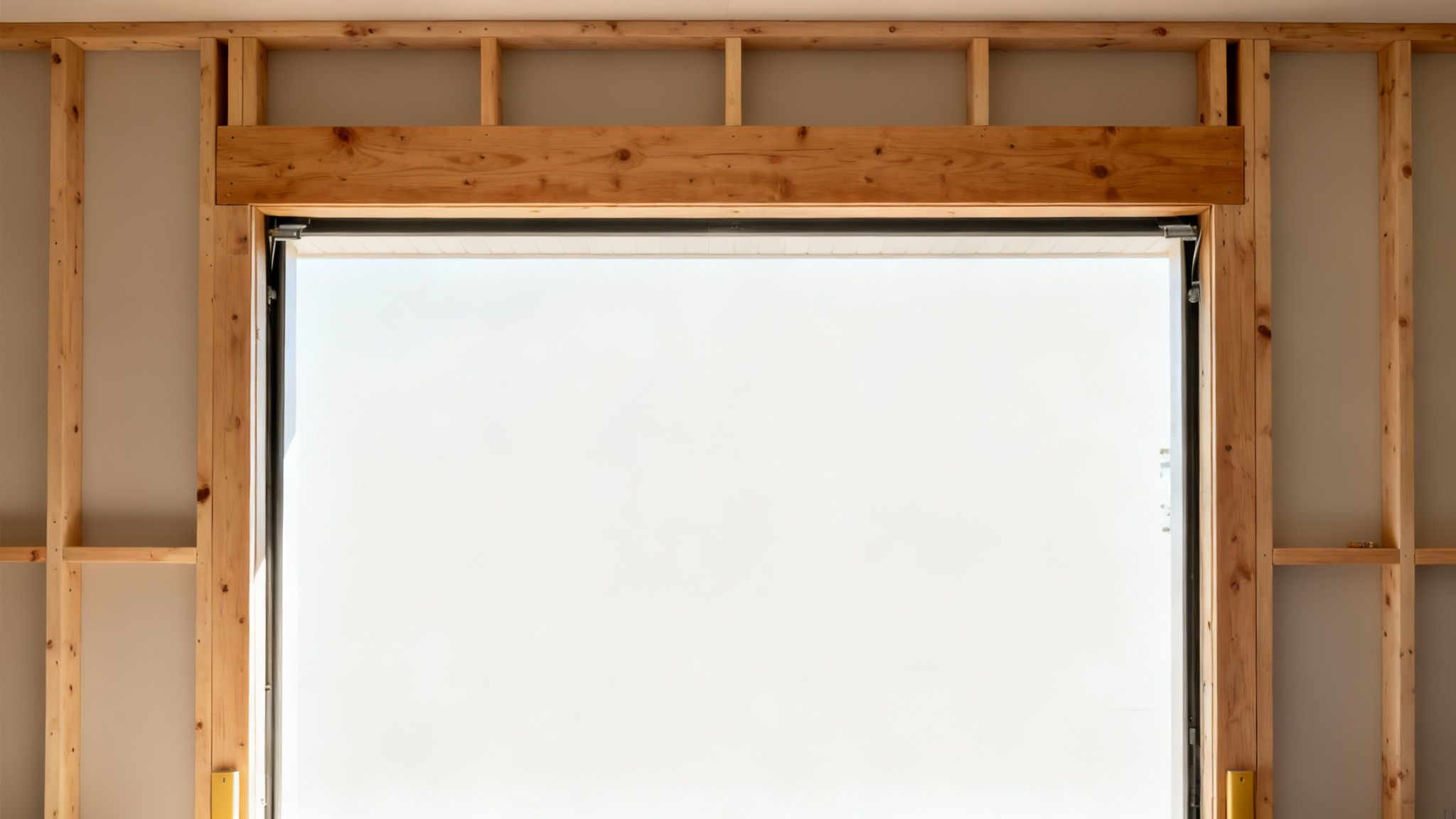

The Anatomy of a Solid Frame
A proper garage door frame isn't just a couple of 2x4s. It’s an engineered assembly, and every single piece has a crucial role to play. Knowing what each part does makes it a lot clearer why the little details matter so much.
- The Header: This is the big horizontal beam running across the top of the opening. Its main job is to carry the weight of the wall, roof, and any snow load above it, preventing everything from sagging down onto the door.
- Jack Studs: Sometimes called trimmers, these are the vertical supports tucked directly under each end of the header. They're responsible for transferring that massive load straight down to the foundation.
- King Studs: These are the full-height studs that run from the floor's bottom plate to the wall's top plate. They stand shoulder-to-shoulder with the jack studs, locking the entire header assembly into the main wall structure.
Getting this framing right from the start ensures your door operates smoothly, seals properly against the weather, and protects your home. It’s the difference between a weekend project and years of headaches.
The simple truth is, a lot of future garage door problems start with bad framing. In the U.S., which accounts for over 36% of the global market for overhead doors, shoddy framing is the root cause of an estimated 15-20% of all service calls. You can dive deeper into these garage door market trends and insights to see just how common these issues are.
Getting Your Gear Together and Sizing the Rough Opening
Ask any seasoned builder, and they'll tell you the same thing: a project is won or lost before you even make the first cut. Getting your tools and measurements squared away first is the only way to avoid a weekend full of headaches and extra trips to the hardware store.
Let's walk through exactly what you'll need.
Your Essential Tool Checklist
You probably have most of this stuff in your workshop already, but a couple of these items are non-negotiable for framing.
- Measuring Tools: Don't even think about starting without a good tape measure, a framing square, and a solid 4-foot level.
- Cutting Tools: A circular saw is your workhorse here. Make sure it's fitted with a sharp framing blade for clean, straight cuts.
- Assembly Tools: A framing nailer will make your life a whole lot easier, but a trusty framing hammer gets the job done too. A drill is also handy for pilot holes.
- Safety Gear: This isn't optional. You need safety glasses and a good pair of work gloves.
Once your tools are lined up, it’s time to think about lumber. For the bottom plate—the piece that sits directly on your concrete slab—you must use pressure-treated wood. Here in Northeast Ohio, moisture wicking up from the foundation will rot a standard 2×4 in no time. For everything else (studs, header, etc.), regular dimensional lumber like pine or fir is perfect.
Calculating the Rough Opening
Pay close attention here, because this is the single most important measurement of the entire project. The rough opening is the raw, wood-to-wood opening your garage door will eventually fit into. If you get this wrong, nothing else will line up correctly.
Thankfully, the formula is pretty simple for most residential sectional doors.
Rough Opening Width = The garage door's actual width.
So, if you bought a 9-foot wide door, you need a 9-foot wide rough opening. Easy enough.Rough Opening Height = The garage door's actual height + 1 ½ inches.
For a standard 7-foot tall door, your rough opening height needs to be 7 feet and 1 ½ inches.
That extra inch and a half at the top gives you the necessary wiggle room for the top wood jamb and ensures the door operates smoothly without scraping. While this rule of thumb is solid for most doors, I always tell people to check the manufacturer's spec sheet just to be safe. If you haven't settled on a size yet, our guide to typical residential garage door sizes is a great place to start.
Calculating Your Garage Door Rough Opening
To make it even simpler, here's a quick reference table. Just find your door size and you'll have the exact dimensions you need for framing.
| Garage Door Size (Width x Height) | Required Rough Opening Width | Required Rough Opening Height |
|---|---|---|
| 9 ft. x 7 ft. | 9 ft. | 7 ft. 1 ½ in. |
| 16 ft. x 7 ft. | 16 ft. | 7 ft. 1 ½ in. |
| 10 ft. x 8 ft. | 10 ft. | 8 ft. 1 ½ in. |
With these numbers in hand, you’re ready to mark your plates and start laying out the new wall.
Constructing the Side Supports and Header
You’ve got your rough opening dimensions figured out and your layout marked on the sole plate. Now it’s time to start cutting lumber and building the guts of the frame that will support your new garage door. This is where meticulous work pays off big time. A square cut and a perfectly plumb installation now will save you a world of frustration down the road.
First up, let's talk about the vertical supports. You'll need two main components for each side of the opening: the king studs and the jack studs.
King Studs and Jack Studs: The Unsung Heroes
The king studs are the easy part—they're the full-length studs running from the bottom plate all the way to the top plate of the wall. They act as the main anchors for the whole assembly.
The real workhorses are the jack studs, sometimes called trimmers. These are the shorter studs that get nailed to the inside face of the king studs. Their entire job is to hold up the massive weight of the header, transferring that load directly down to the foundation. Measure from the bottom plate up to the mark where the bottom of your header will sit, and cut your jack studs to that exact length. Your framing square is non-negotiable here; every single cut needs to be a perfect 90 degrees.
Once cut, you'll nail the jack stud directly to the king stud, creating a super-strong, laminated post that ties the header securely into the rest of the wall framing.
Building a Rock-Solid Header
The header is arguably the most critical structural piece in this whole project. It’s the heavy-duty beam that spans the entire width of the opening, carrying the weight of everything above it—the wall, the roof, and any potential snow load. For most residential garage doors, you can build a perfectly adequate header yourself.
The go-to method is creating a "sandwich" with a 1/2-inch piece of OSB or plywood pressed between two pieces of beefy dimensional lumber, like 2x10s or 2x12s. This creates a beam that is 3 ½ inches thick, matching the depth of a standard 2×4 wall and ensuring everything sits flush.
- Cut Your Lumber: Take the width of your rough opening and add 3 inches to it. Why? This extra length gives the header 1 ½ inches of "bearing" on top of the jack studs on each side. It needs to rest fully on them. Cut your two large boards and the plywood spacer to this precise length.
- Assemble the Sandwich: Lay one of the big boards flat. Run a generous S-pattern of construction adhesive across it, then carefully place the plywood spacer on top, making sure all the edges are perfectly aligned. Apply another bead of adhesive to the plywood, and finish by placing the second big board on top.
- Nail It Down: Grab your framing nailer and nail the pieces together from both sides. Drive nails in a staggered pattern about every 12-16 inches to clamp the whole thing together into one solid beam.
A well-built header isn't just a good idea—it's a structural necessity. It's what keeps the wall from sagging and crushing your door. Without it, the door would eventually bind, stick, or get knocked completely out of alignment.

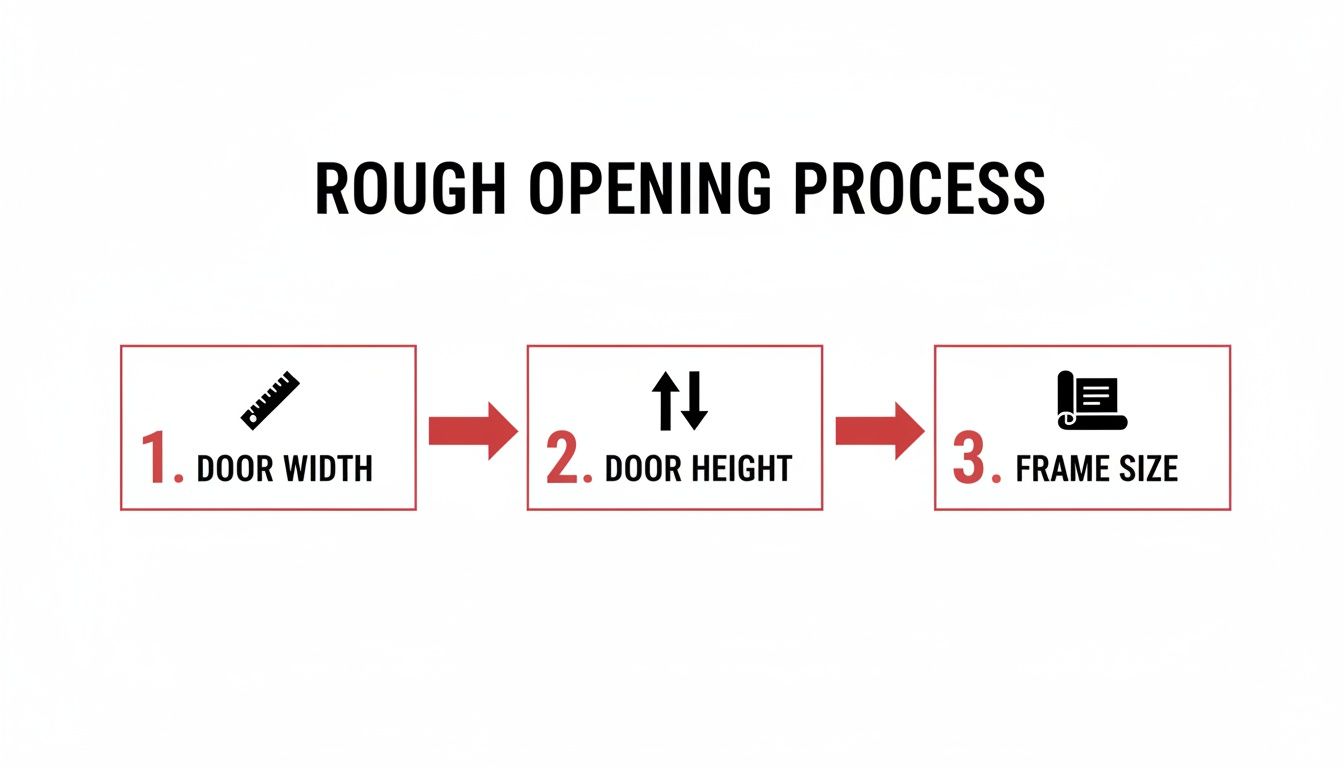

This simple flowchart helps visualize how all these measurements come together.
Seeing the relationship between the door size, rough opening, and final frame size makes the whole process much clearer. Once these components are cut and assembled, you're ready to put the puzzle together. If you want to get a better feel for the bigger picture, it helps to understand the basics of how to frame exterior walls in general.
Assembling the Frame and Adding Final Touches
Alright, you’ve got your header built and the king and jack stud assemblies are ready to go. Now it’s time to put the whole puzzle together. This is the moment where all that careful prep work really starts to pay off.

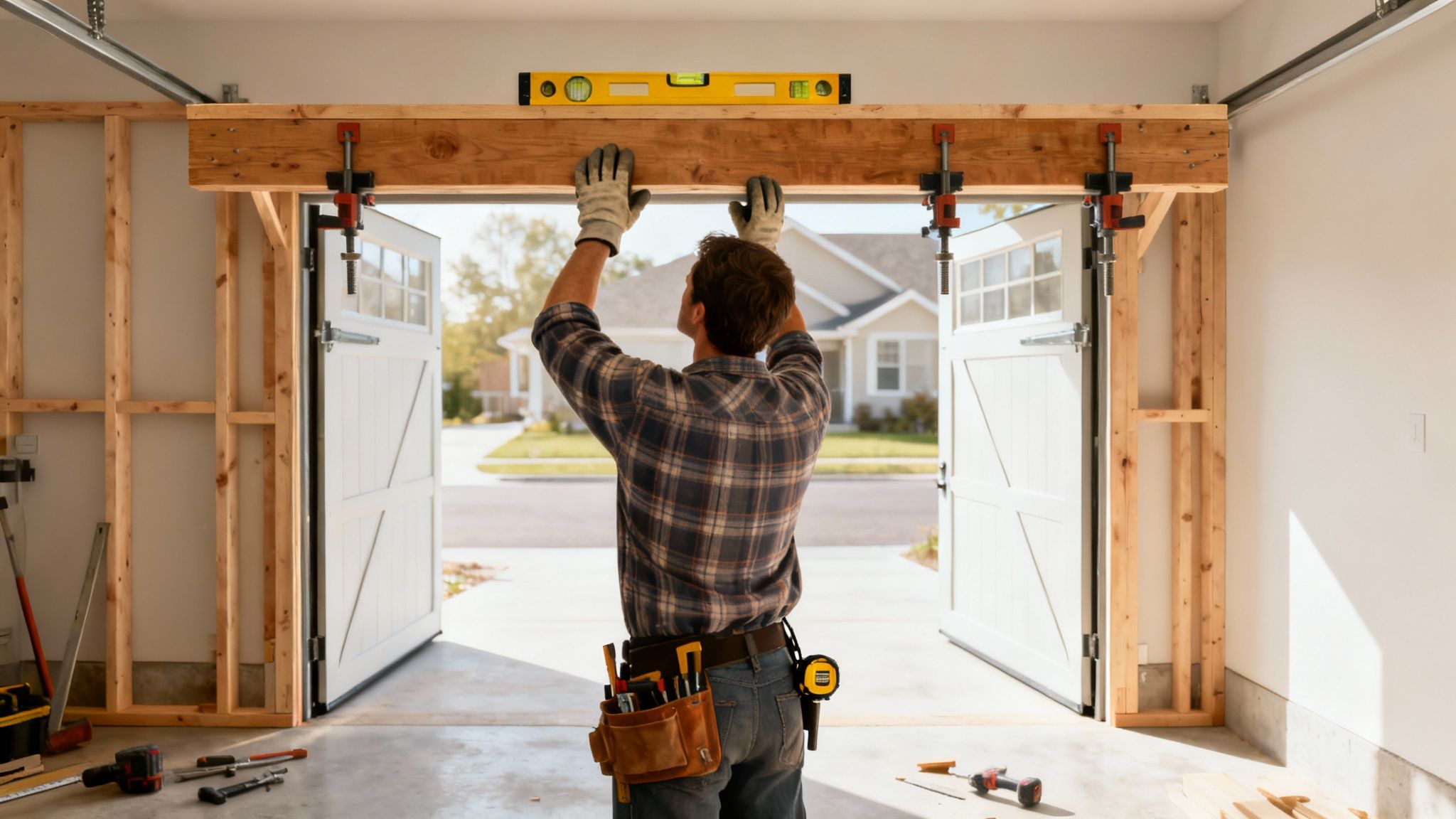

Heads up: getting the header in place is almost always a two-person job. Don't try to be a hero and lift that heavy beam by yourself—grab a buddy.
Carefully lift the header and rest it squarely on top of your jack studs. Your 4-foot level is your best friend for this part; check that the header is perfectly level across its entire length. Once you're happy with the position, drive nails through the king studs directly into the ends of the header to lock it in. After that, toenail the jack studs up into the bottom of the header for that extra layer of support.
Nailing Patterns for Maximum Strength
How you nail everything together is incredibly important. You’re not just tacking pieces of wood together; you’re building a structural unit that has to carry a serious load. I always recommend using a staggered nailing pattern to secure the header and studs. This simple technique prevents the wood from splitting and creates a much stronger bond.
A good rule of thumb is to drive three to four 16d nails through the king stud into both the jack stud and the header.
This assembly isn't just holding up a bit of drywall; it's supporting the weight of your wall and roof. Proper nailing ensures that the load is transferred evenly and safely all the way down to the foundation.
For a standard 16×7 foot opening, a frame using doubled 2×10 headers resting on king and jack stud pairs is pretty typical. The absolute key is ensuring the entire assembly is plumb—perfectly vertical—to within 1/4 inch over 8 feet. This precision is critical. In fact, service data shows that a shocking 22% of garage door misalignments stem from framing errors. Getting a peek at the broader garage and overhead doors market really drives home how crucial a proper installation is from the very first step.
Installing Jambs and Exterior Trim
With the rough frame secure, you can move on to the finishing touches. The wood jambs are the finished pieces of lumber (usually 2x6s or 2x8s) that you'll attach to the inside face of the frame. This is the surface you’ll see from inside the garage and, more importantly, it's where the garage door tracks get mounted.
Start by cutting the top jamb to fit snugly between the side jambs. Nail it into the header, making sure it's flush with the interior wall surface. Then, do the same for the side jambs. Next up is the exterior trim, which you might hear called brickmould. This decorative trim is what covers the gap between your siding and the frame, giving you that clean, finished look.
Weatherproofing Your New Frame
Living in Northeast Ohio, I can tell you this final step is completely non-negotiable. Water is the number one enemy of any wood frame, and a little prevention right now will save you from major rot repairs down the road. You need to create a weather-tight seal.
Here’s how to get it done right:
- House Wrap: Before you even think about installing the exterior trim, make sure your house wrap is handled correctly. Cut an "I" shape in the wrap covering the opening, then fold the flaps inward and staple them securely to the inside of the frame.
- Flashing: Install metal or self-adhering flashing over the top piece of your exterior trim. This L-shaped piece is your first line of defense, directing rainwater out and away from the top of the opening so it can’t seep behind the trim.
- Caulking and Sealing: Once the trim is on, run a continuous bead of high-quality exterior caulk where the trim meets the siding. This seals any and all remaining gaps.

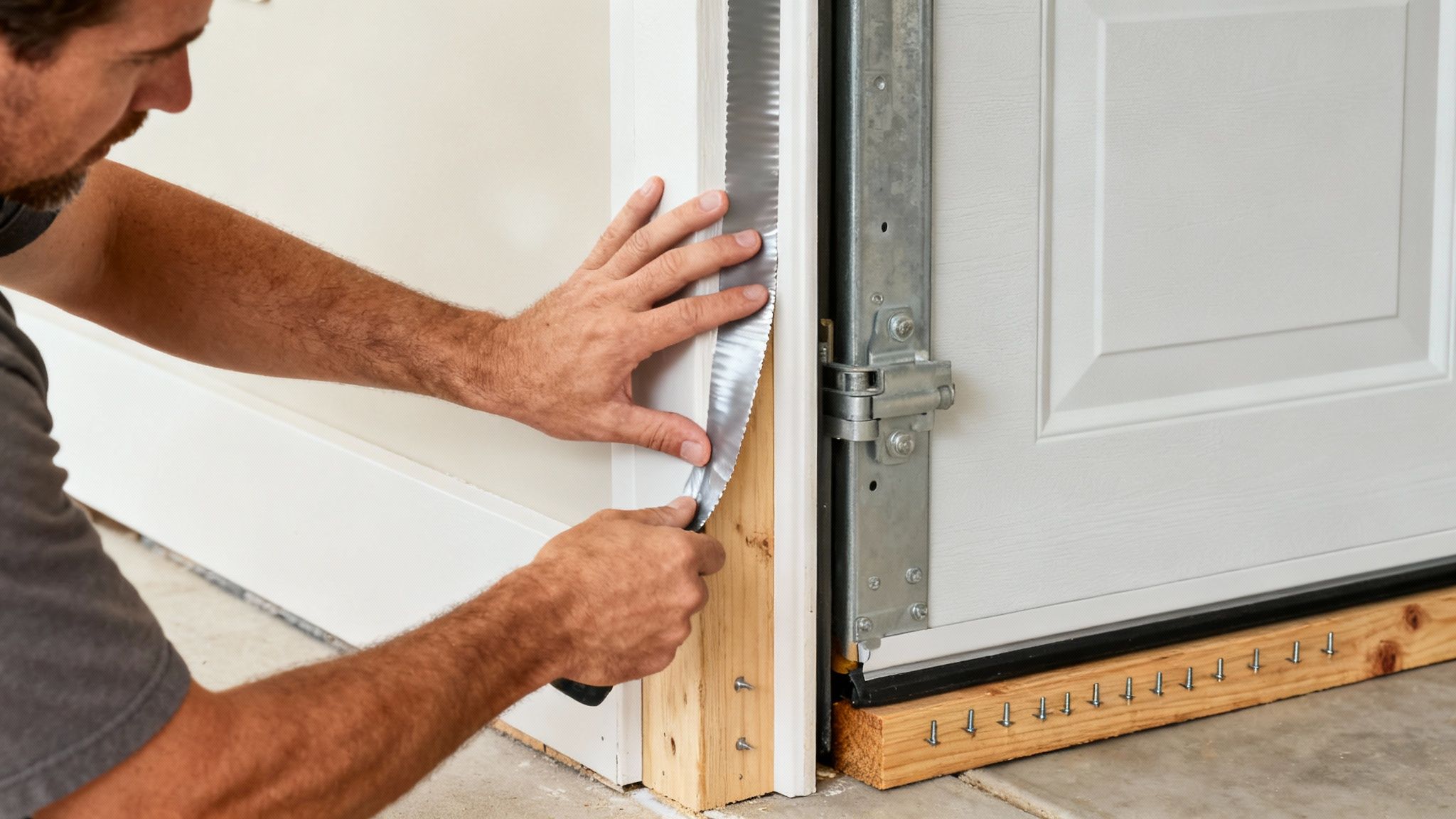

The very last step is adding weather stripping around the perimeter to create the final seal against drafts and moisture. If you need a little more guidance on that part, our detailed guide on how to install garage door weather stripping walks you through the whole process. With that done, your frame is officially ready for a new door.
Common Framing Mistakes and How to Avoid Them
Even with the best plan, things can go sideways when you're framing a garage door. Over the years, I've seen a few common missteps that turn a straightforward weekend project into a massive headache. Let's walk through them so you can get it right the first time.
The most frequent mistake, by far, is making the rough opening too snug. It’s an easy trap to fall into. You measure the new door, then frame the opening to those exact dimensions. The problem is, that leaves zero wiggle room for the wood jambs and the vinyl weatherstripping. The result? A door that scrapes, binds, or just won't fit at all. Always, always stick to the formula: frame the opening to the exact width and height of the garage door itself. The jambs and trim will mount to the face of the framing later.
Skimping on the Header
Another critical error is underestimating the header. I once got a service call out in Chagrin Falls where a homeowner had used a couple of 2x6s to span a 16-foot double door opening. Less than a year later, that header was visibly sagging in the middle, putting a ton of stress on the top of the door and the opener.
An undersized header simply can't handle the weight of the wall and roof above it. This leads to serious structural problems that are way more expensive to fix than just using the right lumber from the get-go.
My advice? When in doubt, go bigger on the header. The small extra cost for a beefier beam is cheap insurance against major structural failure down the road. A sagging header isn't just an eyesore; it's a genuine safety hazard.
This really boils down to good quality control. Making sure your garage door frame is structurally sound requires paying close attention to these details. For anyone tackling a bigger project, it can be helpful to follow a comprehensive construction quality control checklist to keep your work up to snuff.
Knowing When to Call a Professional
Sometimes, the biggest mistake is not admitting a project is over your head. I can’t stress this enough: if your garage wall is load-bearing, you need to bring in an expert.
- Structural Risks: Messing up the framing on a load-bearing wall can compromise the integrity of your entire house. The risk of a collapse is very real, and the stakes are just too high.
- Code Compliance: Local building codes, especially around here in places like Pepper Pike, have strict requirements for headers in load-bearing walls. A pro will know exactly what’s needed to pass inspection.
- Complex Calculations: Figuring out the right size for an LVL (Laminated Veneer Lumber) beam or a steel header isn't simple math; it requires engineering calculations that are well beyond a typical DIY guide.
If you have any doubt whatsoever about structural loads or what the local code demands, it’s always smarter—and safer—to call in a pro. A professional consultation is a small investment that buys you a whole lot of peace of mind.
Remember, a poorly framed opening often leads to other problems down the line. One of the big ones is a door that won't stay balanced, which creates its own set of safety issues. Learning how to balance a garage door is a completely different skill, but it all starts with a solid, square foundation.
Common Questions We Get About Framing a Garage Door
When you're tackling a project like framing a garage door, a few questions always seem to pop up. Over the years, we've heard just about all of them from homeowners across Northeast Ohio. Here are the most common ones, with some straight-to-the-point answers to keep your project on track.
What Size Header Do I Need for My Garage Door?
This is a big one, and the answer is: it depends entirely on the width of your door and what’s sitting on top of that wall. For a basic, non-load-bearing wall with a standard 9-foot wide door, you can usually get by with a header built from two 2x8s sandwiched together.
But when you jump up to a 16-foot double door, you’re looking at a much bigger span, so you'll need to upgrade to at least two 2x12s. Now, if that wall is load-bearing—meaning it's holding up the second floor or the roof trusses—the game changes completely. In that case, you absolutely must consult an engineer or your local building code. They’ll almost certainly require a beefy Laminated Veneer Lumber (LVL) beam to handle the weight safely.
Don't ever guess on the header size. It's the backbone of the entire opening. If you're even slightly unsure about the load, always go bigger and stronger. It's cheap insurance against a major structural failure.
Do I Have to Use Pressure-Treated Wood for the Whole Frame?
Nope, and that's a good thing for your wallet. You only need to use pressure-treated lumber for one specific part: the bottom plate, often called the sill plate.
This is the only piece of wood that will be in direct contact with your concrete slab. Concrete is like a sponge for moisture, and standard lumber will rot out in no time. The chemicals in pressure-treated wood prevent that from happening. Everything else—your king studs, jack studs, cripples, and the header—can be standard, untreated SPF (spruce-pine-fir) lumber.
Can I Just Reuse My Old Garage Door Frame?
You can, but you need to play detective first. Before you even think about it, give that old frame a serious inspection from top to bottom.
- Hunt for damage: Look for any hint of rot, water stains, splintered wood, or termite tunnels. The most common trouble spot is the bottom six inches of the jambs where they meet the concrete.
- Break out the tape measure: Don't assume the old opening is the right size for your new door. Measure the height and width and check it against the manufacturer's rough opening specs.
- Check for square: Grab your 4-foot level and make sure the jambs are perfectly plumb (vertical) and the header is perfectly level (horizontal). An out-of-square frame will cause nothing but headaches for the new door.
Honestly, while reusing a frame might save you a couple of hours, it's usually better to just start fresh. Building a new frame is the only way to guarantee it's perfectly sized, square, and solid, which is exactly what you need for a smooth-running garage door.
