You probably use your garage door opener without giving it a second thought. You tap the remote, the door moves, and you head out to work or pull back into the driveway at night.
Then one day it hesitates, reverses, or does nothing at all. That's usually when people start wondering how to garage door openers work, and why a system that feels so simple has so many parts working together.
The good news is that the basic idea isn't hard to understand. A garage door opener is really a combination of smart electronics, a guided drive system, and springs that do most of the heavy lifting. Once you see the job each part handles, the whole thing starts to make sense.
The Everyday Magic of Your Garage Door Opener
A garage door opener feels a little like cheating physics. You press a small button in your car, and a large door made of steel, wood, or aluminum glides up with very little drama. It looks like the opener is lifting the entire door by brute force.
That's the part that confuses most homeowners.
The opener motor usually isn't acting like a crane. It's closer to a traffic controller. It starts the motion, guides it, and stops it at the right spots. The system works so smoothly because the door was designed to be balanced.
Why it feels effortless
Think about pushing a child on a swing. You don't pick up the whole swing set. You give it a small, well-timed push, and the motion continues because the system is already working with you.
A garage door works in a similar way. The opener provides controlled movement, but the door's spring system is what makes the weight manageable. That design is intentional. If the motor had to dead-lift the whole door every time, the opener would need to be much larger, louder, and under far more strain.
Most people assume the opener does the heavy lifting. In a properly working system, the springs carry most of that load and the opener mostly guides the travel.
Why understanding the system helps
This matters for more than curiosity. It explains why certain problems happen.
If the springs are out of balance, the opener struggles. If the remote signal gets interrupted, the motor never gets the message. If the safety sensors see something in the opening, the door reverses even when nothing seems obviously wrong.
That's why homeowners who understand the basics usually troubleshoot faster. They stop guessing and start asking the right question. Is this a signal problem, a moving-parts problem, a balance problem, or a safety-system problem?

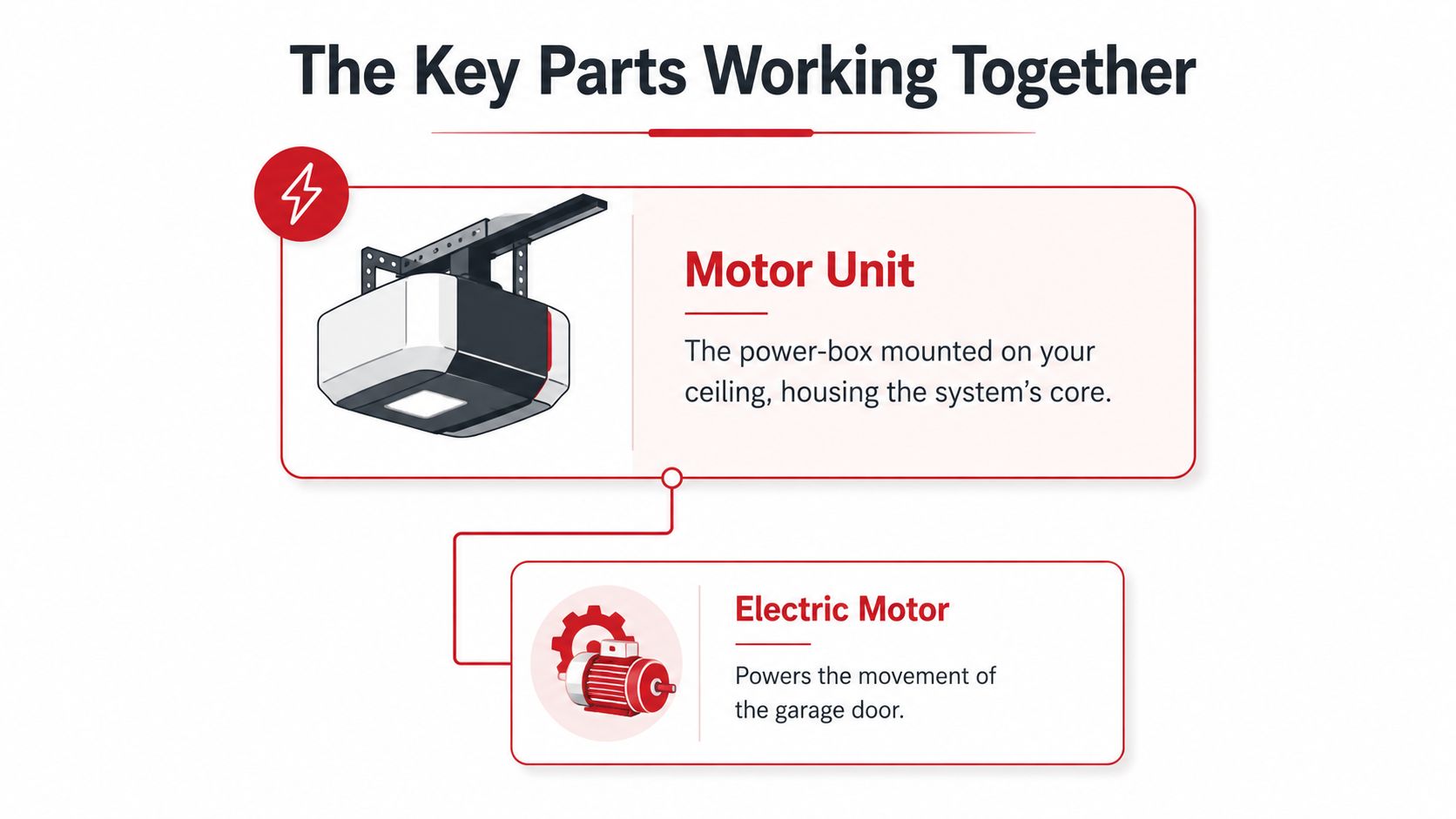

The Key Parts Working Together
A garage door opener works best when you think of it as a team, not a single machine. Each part has one job, and the whole system depends on those jobs lining up correctly.
The ceiling unit and what it actually does
The opener unit mounted to the ceiling is the hub of the system. Inside that housing are the electric motor, the logic board, and the radio receiver that listens for commands from your remote or wall button.
When homeowners want to understand this part better, it helps to look at the role of the garage door opener motor. The motor supplies motion, but it works as part of a larger system rather than doing all the lifting on its own.
The drive mechanism and trolley
Running out from the opener is a rail. Along that rail, a trolley moves back and forth. The trolley connects to the garage door with a metal arm.
Depending on your opener, the rail is powered by one of these drive types:
- Chain drive uses a metal chain, a lot like a bicycle chain.
- Belt drive uses a rubber belt for quieter travel.
- Screw drive uses a threaded steel rod that turns to move the trolley.
The basic job is the same in every case. The motor turns the drive system, and that drive system moves the trolley. The trolley then pushes or pulls the door.
The remote and wall control
Your remote and wall button are the command side of the system. They tell the opener when to start.
That sounds simple, but it matters because a garage door opener has to distinguish your signal from other nearby signals. The opener doesn't just react to any random radio noise. It reacts to a valid command from a paired control.
The springs are the unsung hero
This is the part many people never hear until something breaks. Garage door openers rely on a counterbalance spring system to offset the majority of the door's weight, meaning the electric motor provides only the force necessary to control the door's travel. This design ensures that even in manual operation, the door remains balanced and manageable, while the opener's primary function shifts to "cruise control" managing the opening and closing limits, as explained in this overview of garage door opener operation.
A good analogy is a stretched bow. When the door closes, the springs store energy. When the door opens, that stored energy helps lift the door. The opener mainly manages direction and travel, not raw lifting force.
Practical rule: If a door is properly balanced, the opener's job is much easier. If the door is badly out of balance, the opener may still try to move it, but it's working much harder than it was designed to.
Comparing Opener Types Chain Belt Screw and Jackshaft
Not all openers move the door the same way. The main difference is the drive system, and that choice affects noise, feel, maintenance, and where the opener can be installed.
What the common drive types feel like in real life
A chain drive is the old reliable option. It uses a metal chain to move the trolley, much like a bike chain moves a bicycle. It's durable and practical, but you'll hear it. If the garage sits below a bedroom, that extra noise may matter.
A belt drive uses a rubber belt instead of metal chain links. According to Continental Door's opener guide, belt drives use a rubber belt for smoother, quieter operation ideal for residential settings. Chain drives use a metal chain for excellent durability but more noise. Screw drives feature a rotating steel screw with moderate noise and fewer parts. Horsepower ratings typically range from 1/3 HP for single-car doors to 1 ½ HP for larger, heavier overhead doors. That's why belt drives are so popular in attached garages.
A screw drive works differently. Instead of a chain or belt, the motor turns a long threaded steel screw. The trolley rides along that screw. Fewer moving parts can mean a simpler setup, and the sound usually lands somewhere between belt and chain.
Where jackshaft openers fit
A jackshaft opener doesn't use the usual center rail and trolley layout. It mounts beside the door and turns the torsion bar directly. That makes it a strong choice when the ceiling space is blocked by storage, lighting, or a high-lift setup.
If you want a closer look at that style, this guide on what a jackshaft garage door opener is breaks down how side-mounted systems differ from standard ceiling-mounted openers.
Garage Door Opener Drive Type Comparison
| Drive Type | Noise Level | Cost | Best For |
|---|---|---|---|
| Chain | Higher | Usually more budget-friendly | Homeowners who want durability and don't mind noise |
| Belt | Lower | Usually higher than chain | Attached garages and homes where quiet operation matters |
| Screw | Moderate | Varies by model | Homeowners who want fewer moving parts |
| Jackshaft | Low in many setups | Usually premium | Garages with limited ceiling space or layout challenges |
How to choose without overthinking it
For most homeowners, the decision comes down to this:
- Choose chain if durability and value matter most.
- Choose belt if quiet operation matters most.
- Choose screw if you prefer a simpler mechanical layout.
- Choose jackshaft if your garage layout makes a ceiling rail inconvenient.
The opener type doesn't change the basic purpose. It changes how that purpose gets carried out.
From Your Remote to a Moving Door

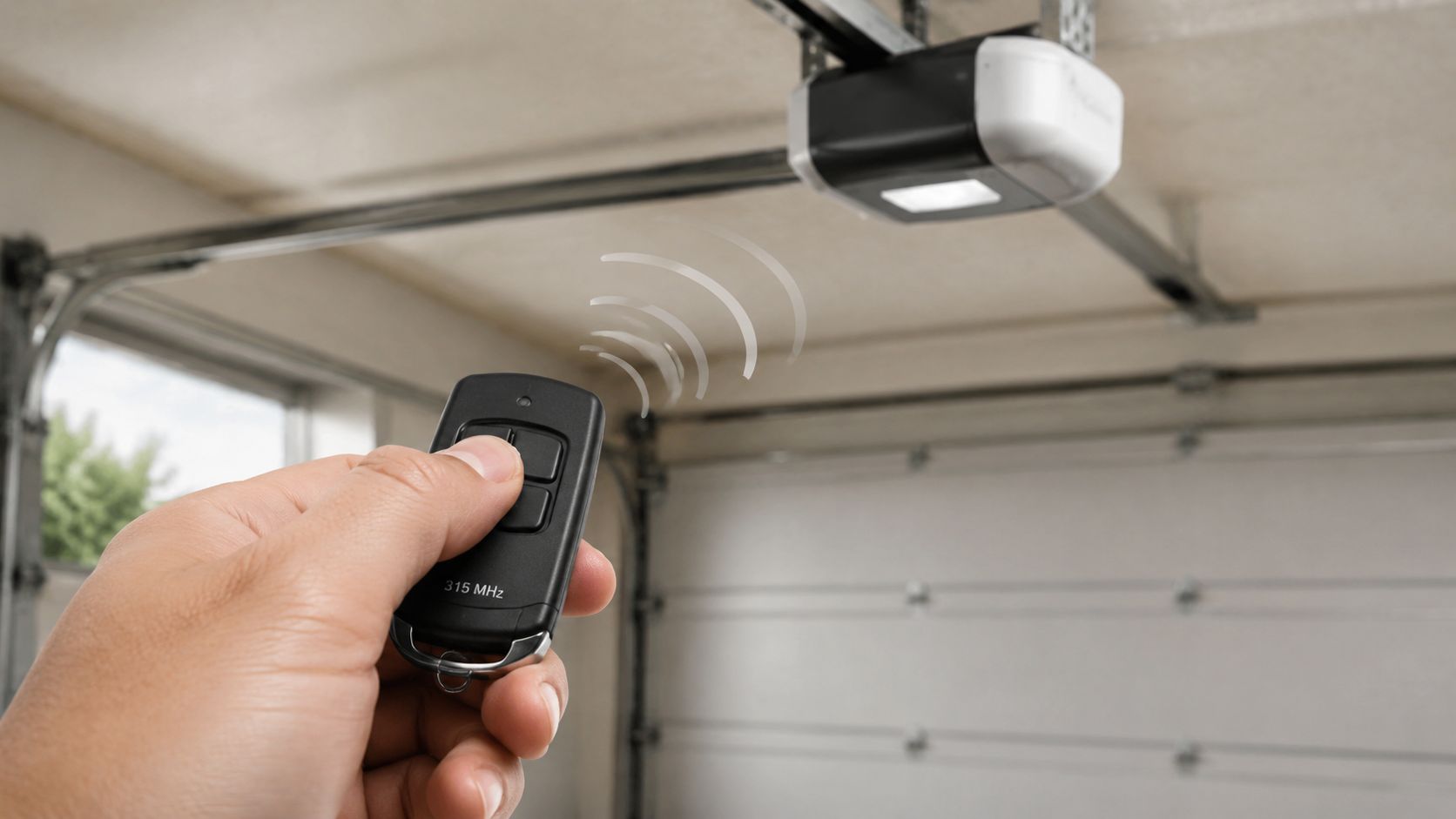

The motion starts long before the door moves. It begins with a signal.
Step one is a radio message
When you press your remote, it sends a radio signal to the receiver inside the opener. Modern garage door openers operate on 315 MHz or 390 MHz, and modern systems use a rolling code setup with up to one trillion unique codes, as described in A-1 Garage Doors' explanation of opener operation.
That's why your remote isn't just broadcasting a simple fixed command over and over. The opener and remote stay in sync, and the code changes each time you use it.
If you want a deeper look at that security side, this article on rolling code garage door opener systems explains why newer openers are much harder to defeat with replay tricks.
Why rolling code matters
Older-style thinking says, “If the remote sends the same signal every time, couldn't someone copy it?” That's exactly the problem rolling code technology was designed to prevent.
If the receiver gets a code that doesn't match the expected synchronized sequence, the opener won't run. So the system isn't only listening for a frequency. It's checking whether the signal is the right one at that exact moment.
A garage door opener only moves after two things match. The frequency has to be right, and the security code has to be the one the receiver expects.
Then the mechanical side takes over
Once the opener accepts the signal, the logic board tells the motor to start. The motor turns the drive system, which moves the trolley along the rail. The trolley is connected to the top of the door by an arm, so that sliding motion becomes door motion.
Many people expect the story to become complicated at this point, but it really doesn't. The opener creates controlled travel. The rail gives that travel a path. The arm transfers the movement to the door. The springs make the door light enough for all of this to work smoothly.
That chain of events is the heart of how to garage door openers work. A secure command arrives, the motor reacts, the drive system moves, and the door follows a guided path.
The Critical Safety Systems You Need to Know
Garage doors are large moving objects. That's why safety systems are not optional extras. They're central to how modern openers are built.

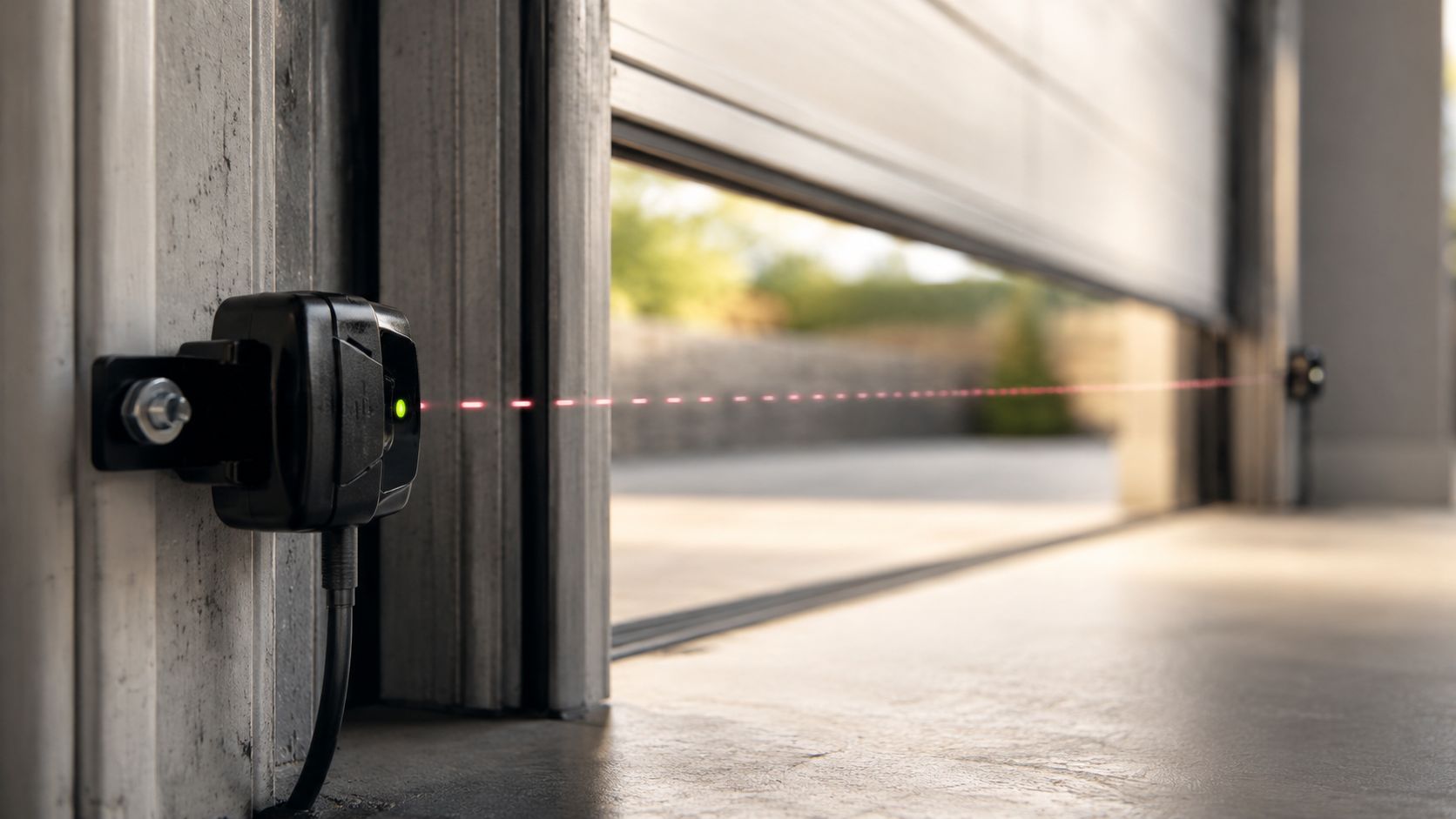

The photo eyes near the floor
The most important safety feature for most homeowners to understand is the photo-eye sensor system. These are the small devices mounted on each side of the garage door opening near the floor.
As explained in this demonstration of garage door safety systems, a protector system or photo-eye sensor that projects a light beam across the garage door opening is a mandatory safety feature. If anything interrupts this beam, the system automatically reverses the door to protect the object or person.
So if your door starts down and suddenly goes back up, the opener may be doing exactly what it should do.
What usually blocks or disrupts the sensors
Homeowners often expect a major obstruction, like a trash can or bicycle, to be the only thing that triggers reversal. In reality, smaller issues can do it too.
- A bumped sensor can point slightly away from the other side.
- Dust or spider webs can interfere with the sensor lens.
- Stored items near the opening can get into the beam path.
- Loose mounting hardware can let a sensor drift out of alignment.
If a door closes partway and reverses, check the sensors before assuming the opener itself has failed.
Other protection built into the system
Modern openers also use force monitoring. If the door meets resistance during travel, the opener may stop or reverse rather than keep pushing. That gives the system a second layer of protection beyond the photo eyes.
There's also the manual emergency release cord, usually a red handle hanging from the trolley. Pulling it disconnects the opener from the door so you can move the door by hand during a power outage or a malfunction.
A simple homeowner check is worth doing from time to time:
- Watch the sensors and make sure they appear secure and unobstructed.
- Test the reversal behavior by closing the door while the opening is clear and observing whether it behaves normally.
- Know where the emergency release is before you need it in the dark or during bad weather.
Safety systems can be annoying when they stop the door for no obvious reason. But that annoyance is better than a door that closes on a person, pet, or object.
Simple Checks and When to Call a Professional
When an opener starts acting strange, don't jump straight to “the whole thing is dead.” A lot of problems come from a short list of common issues, and a few simple checks can save you time.
Start with the easy tests
If the remote doesn't work, try the wall button. If the wall button works, the issue may be with the remote, its battery, or radio interference rather than the opener motor.
If the door begins to close and then reverses, inspect the photo eyes. Look for dirt on the lenses, something stored in the beam path, or a sensor that got nudged out of position.
One overlooked cause deserves special attention. According to industry diagnostics discussed in this troubleshooting video, 77% of “sometimes works, sometimes doesn't” cases are traced to LED light interference or sensor misalignment. That's a big reason intermittent opener problems can feel so confusing.
The LED bulb problem homeowners miss
This catches people off guard because the opener itself may seem fine. The remote battery may also be fine. But certain LED bulbs can create radio interference that blocks or weakens the remote signal.
A quick real-world test is simple:
- Turn the garage light off and try the remote again.
- Stand at a normal distance where you usually operate the door.
- Watch for a pattern where the remote works better with the light off.
If that happens, you may not need a repair at all. You may just need a different, non-interference bulb or to correct sensor alignment.
Worth checking first: Intermittent opener problems often come from signal interference or sensor issues, not a failed motor.
Know where DIY should stop
Some garage door problems are not homeowner projects.
Stop using the door and call a qualified technician if you notice any of these:
- Broken spring visible above the door or along the track
- Frayed or loose cable near the drums or lower brackets
- Door off track or hanging unevenly
- Grinding or banging noises that suggest a mechanical failure
- Door too heavy to lift manually after disengaging the opener
Springs and cables operate under high tension. Those parts can injure someone badly if handled the wrong way. The safe move is to leave those repairs to a licensed and insured professional.
