Feeling a chilly draft creeping in under your garage door? That's more than just annoying—it's your hard-earned money slipping away as wasted energy. Learning how to install garage door weather stripping is one of the easiest and most effective DIY projects you can tackle to make your garage more comfortable and trim those utility bills.
Why a Good Seal on Your Garage Door Matters
Think about it: the gaps around your garage door are basically tiny, open windows. When that seal is cracked, brittle, or just plain gone, you've got a direct line for outside air, rain, and all sorts of pests to come right in. We're not just talking about a few leaves; it's about protecting your home and everything inside it.
A solid seal is your garage's first line of defense, and it packs a bigger punch than you might think.
- Boosts Energy Efficiency: Sealing those gaps stops drafts cold, which helps keep the temperature in your garage stable. If your garage is attached to your house, this takes a surprising amount of pressure off your home’s HVAC system, which means less energy use.
- Protects Your Belongings: A tight seal is key for keeping moisture and rainwater from sneaking under the door. This simple barrier can prevent serious water damage, rust on your tools, or musty mold growth on anything you've got stored.
- Keeps Pests Out: To a mouse or a cockroach, a tiny gap under the door is a wide-open invitation. A properly sealed garage door is a basic part of pest control and helps you prevent roaches by sealing entry points.
The Impact on Your Home's Climate
The difference a new weather seal can make is often surprising. A standard garage door might have 68 linear feet of gaps around its perimeter. Not sealing that is like leaving a window cracked open all winter.
In one real-world test, a homeowner found their garage's internal temperature jumped from a chilly 45°F to a much more comfortable 65°F just from installing new weather stripping. It’s a small fix with a huge payoff.
A well-sealed garage door acts as a crucial buffer zone between your home and the outdoors. It makes adjacent rooms more comfortable and prevents your conditioned air from escaping.
If you really want to take your garage's climate control to the next level, pairing new weather stripping with good insulation is a powerful combo. For a deeper dive, check out our guide on https://garagedoors101.com/how-to-insulate-your-garage-door/. Taking this on over a weekend can protect your home, slash your energy bills, and make the whole space more usable year-round.
Choosing the Right Weather Seal for Your Door
Walking into the weather stripping aisle at a home improvement store can feel a bit overwhelming. With rolls of rubber and vinyl everywhere, how do you know which one is right for your garage?
Don't worry, it's simpler than it looks. The key is to match the seal to your door, your climate, and the condition of your garage floor. The three main types you'll work with are bottom seals, vinyl stop molding for the top and sides, and threshold seals. Each does a different job, and sometimes you'll need a combination to get that perfect, airtight seal.
Understanding the Different Seal Types
Let's cut through the jargon. Knowing what to ask for makes the whole process a lot smoother.
-
Bottom Seals: This is that flexible strip running along the very bottom edge of your garage door. It's your main defense against drafts, rain, and pests. These seals are designed to slide into a metal channel, called a retainer, that's attached to the door.
-
Vinyl Stop Molding: This type of seal is for the top and sides of the door frame itself. It's usually a rigid piece of PVC or wood with a flexible vinyl flap. As the door closes, it presses snugly against this flap, creating a tight seal around the entire perimeter.
-
Threshold Seals: Think of this as a mini speed bump you glue directly to the garage floor, right where the door comes down. It forms a highly effective barrier that stops wind-driven rain and can solve issues with larger gaps from uneven concrete.
To get the right bottom seal, you absolutely have to know what kind of retainer you have. Before you head to the store, take a small cutting of your old seal or just snap a clear picture of the end of it. You're looking for its profile—is it a "T" shape, a "U" shape, or a simple round bead? This shape is what slides into the track.
My Two Cents: Don't ever try to force a seal with the wrong profile into your retainer. I've seen people try it, and it never works out. It won't sit properly, it'll fail in a few months, and you'll just have to do the job all over again. Matching the profile is the most critical step for a lasting repair.
A Quick Comparison
To help you visualize the options, here's a quick rundown of the most common seal types you'll run into.
Weather Stripping Seal Type Comparison
| Seal Type | Best For | Material | Installation Difficulty |
|---|---|---|---|
| Bottom Seal | Sealing the gap between the door and the floor. | Vinyl or Rubber | Easy to Moderate |
| Stop Molding | Sealing the top and side perimeter of the door. | PVC/Wood & Vinyl | Moderate |
| Threshold Seal | Stopping wind-driven rain and sealing large gaps. | Rubber | Moderate |
| Brush Seal | Keeping out dust, debris, and pests in commercial settings. | Aluminum & Nylon | Moderate to Hard |
Each seal has its place, and as you can see, a combination is often the best solution for a completely sealed garage.
Picking the Right Material for Your Climate
The material your seal is made from really matters, especially if you deal with tough weather. Your main choices will be vinyl and rubber, and they aren't the same.
Vinyl is a fantastic all-around option. It's affordable, holds its shape well, and is durable enough for most situations. It's the go-to for stop molding and works just fine for bottom seals in more moderate climates.
But, if you live somewhere that sees freezing winters, rubber is the only way to go for your bottom seal—specifically, EPDM rubber. This material stays soft and flexible even when the temperature plummets. Vinyl, on the other hand, can get stiff and brittle in the cold, which often leads to it cracking and failing. That flexibility is what lets the seal conform perfectly to your garage floor all year long, which is a crucial part of learning how to winterize your garage door the right way.
Gathering Your Tools and Prepping the Door
A professional-looking job starts long before you touch the new seal; it’s all in the prep work. Honestly, rushing this part is the number one reason I see DIY installations fail. Taking a little extra time to gather your supplies and get the door surface spotless will make the final installation go much smoother and help the new seal last for years.
Think of it like painting a room—you wouldn't just slap a new color on a dirty, peeling wall, right? The same logic applies here. Getting rid of all that old adhesive, dirt, and grime is what allows the new seal to bond correctly and create a truly weatherproof barrier.
Your Essential Tool and Supply Checklist
Before you start pulling things apart, do a quick inventory to make sure you have everything you need. There’s nothing worse than getting halfway through a project only to realize you have to make a run to the hardware store.
Here’s a simple list of what you’ll likely need:
- Your new weather stripping: Double-check you have enough length and the correct profile for your specific door.
- Measuring tape: For accurate cuts. No guesswork.
- A sharp utility knife or heavy-duty scissors: A clean, straight cut is crucial for a tidy finish.
- Work gloves: Protect your hands from sharp metal edges and grime.
- A putty knife or flathead screwdriver: These are great for prying out old, stubborn seals and scraping away gunk.
- Rags and a cleaner/degreaser: For wiping down the retainer tracks and the door frame.
- Safety glasses: Always a good idea to protect your eyes.
Depending on the type of seal you're installing, you might also need a pry bar for removing old stop molding or a caulking gun if you're putting down a threshold seal.
Prepping the Door for a Perfect Fit
With your tools laid out, it’s time to get the door ready. Start by opening the garage door all the way and, for safety, unplug the automatic opener. You need to make absolutely sure the door can't move while you’re working on it.
Pro Tip: I always clamp a pair of locking pliers (like Vise-Grips) onto the door track just below one of the rollers. It acts as a simple but effective physical stop and gives me peace of mind that the door isn't going anywhere.
Next, focus on getting every last bit of the old weather stripping out. If it's old and brittle, it’ll likely crack and break off in frustrating little pieces. Just be patient and use your putty knife to scrape out any stubborn sections stuck in the retainer track.
Once the old seal is gone, it's cleaning time. Use a good degreaser and a rag to meticulously wipe down the bottom of the door and inside the retainer channels. Any lingering dirt, oil, or old adhesive will prevent the new seal from sliding in smoothly and seating correctly. This cleaning step is a small part of a larger maintenance routine that can seriously extend the life of your door. You can learn more about this in our comprehensive guide on how to maintain your garage door.
With a clean and prepped surface, you're officially ready to install.
How to Install Bottom and Threshold Seals
With your door prepped and ready, it’s time for the hands-on part. Installing the bottom seal and the threshold are the two most critical steps for stopping drafts and keeping water out of your garage. Let's tackle the door seal first, then we'll move on to the threshold on the floor.
This quick overview breaks down the prep work—from gathering your gear to cleaning the surface—before you even touch the new seal.
As you can see, a good installation is all about methodical prep. Gathering, removing, and cleaning properly sets you up for success.
Installing the Bottom Seal on the Door
Your new bottom seal needs to slide into the retainer tracks on the bottom edge of the garage door. This can be surprisingly tricky, as the fresh rubber or vinyl tends to create a lot of friction.
My Favorite Trick: A little dish soap or some silicone spray lubricant works wonders here. I just apply a small amount inside the retainer tracks and along the T-shaped edges of the new seal. This simple step makes it much easier to slide the stripping into place without it bunching up or fighting you the whole way.
Start by feeding one end of the new seal into the tracks. This is really a two-person job if you can swing it. Have one person feed the seal into the channel while the other gently pulls it from the far side. Move in small sections at a time, making sure the seal doesn't get twisted or snagged.
Once you’ve pulled the seal all the way across, you’ll have some excess hanging off each end. Don’t cut it flush with the door just yet!
- Leave about an extra inch of seal on each side.
- Tuck this excess back into the hollow part of the seal itself.
- This creates a small "bun" at each end that's surprisingly effective at blocking drafts from sneaking around the corners.
After tucking the ends, lower the door and check your work. The bottom seal should compress just slightly against the floor, creating that perfect, tight barrier you're looking for.
Laying Down a Threshold Seal for a Watertight Barrier
If your garage floor is a bit uneven or you're constantly dealing with wind-driven rain, a threshold seal is your best defense for a completely dry garage. This is a heavy-duty rubber strip that glues directly to the concrete.
First, you need to find its perfect position. Close the garage door completely and lay the threshold on the floor just behind the bottom seal. The goal is to have the garage door land on the sloped part of the threshold, compressing it slightly—not on its highest point. Once you have it placed just right, trace both sides with a pencil right onto the concrete.
With your lines drawn, open the door back up. Apply a generous zigzag bead of heavy-duty construction adhesive between your pencil marks. Don’t be stingy here; you need a permanent bond that can handle a car driving over it day after day.
Press the threshold firmly down into the adhesive, making sure it’s perfectly aligned with your marks. Have a rag handy to wipe away any excess that squeezes out.
Finally—and this is crucial—let the adhesive cure completely. Close the garage door down onto the threshold and leave it totally undisturbed for at least 24 hours. Driving over it too soon will break the bond and all your hard work will be for nothing.
How to Install Stop Molding on the Top and Sides
A good bottom seal is a great start, but if you really want to lock down your garage against the elements, sealing the top and sides is a must. This is where stop molding—that vinyl or wood trim with a flexible flap—comes in. It creates a complete perimeter seal around the door frame for a truly weatherproof finish.
Installing it is a project most homeowners can tackle in an afternoon. The real secret is careful measurement and precise positioning. You want that perfect, draft-free fit without making the door struggle to close.

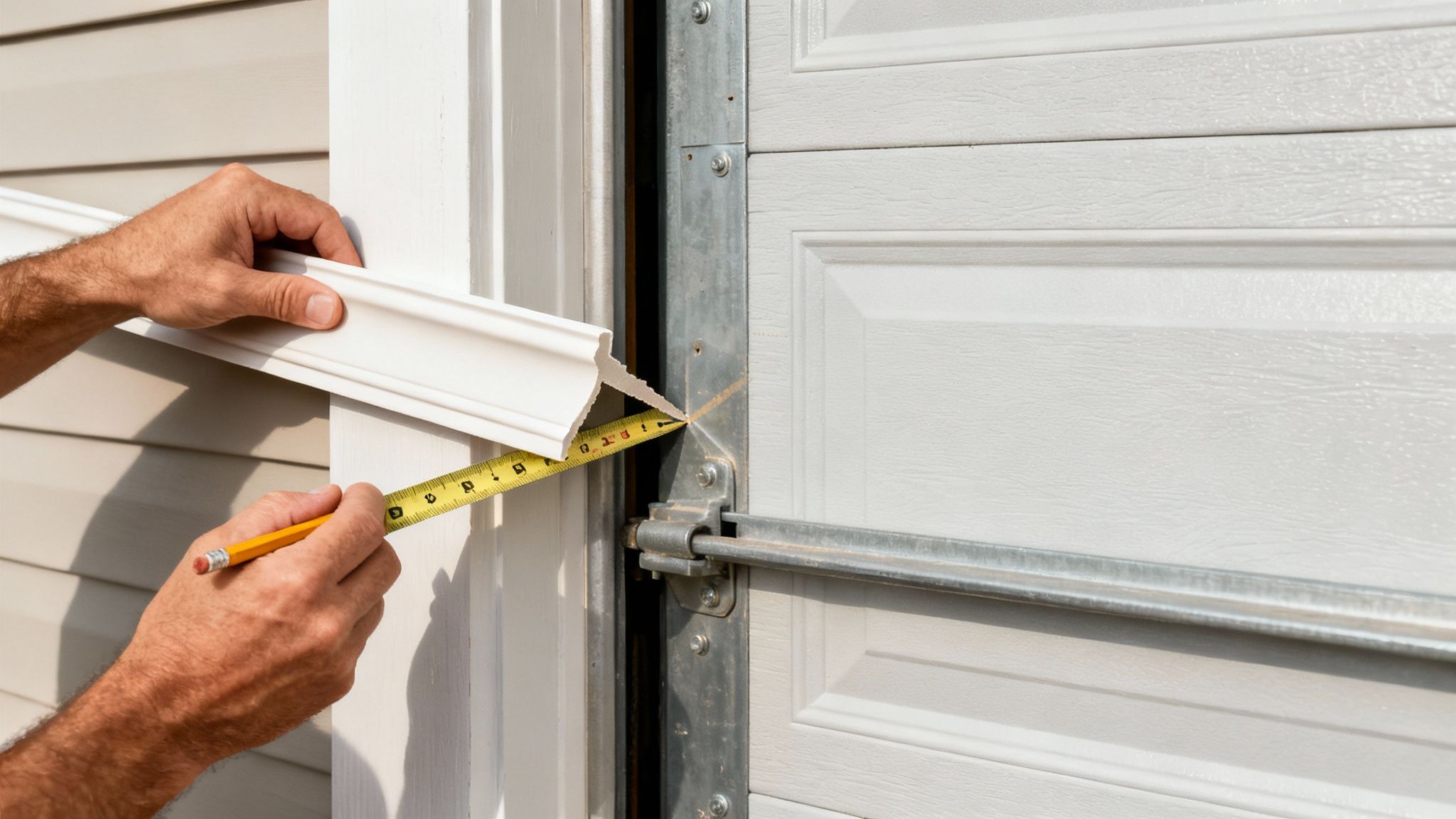

Measuring and Cutting for a Professional Finish
This is one of those times where "measure twice, cut once" really pays off. Start with the top piece that runs along the garage door header.
With the garage door fully closed, measure the width of the door opening, from the inside of one side jamb to the inside of the other. Transfer that measurement to your new piece of stop molding and mark your cut line.
For those clean, professional-looking corners, you’ll want to make a 45-degree miter cut. If you have a miter saw, this is a breeze. If not, a simple miter box and a hand saw get the job done just as well. Cut both ends of the top piece at opposing 45-degree angles.
Repeat the process for the two side pieces. Measure from the garage floor up to the bottom edge of where your top piece will sit. Cut the top end of each side piece at a 45-degree angle so it fits perfectly against the top molding, creating a nice, tight corner.
Attaching the Molding for a Perfect Seal
With your pieces cut, it's time to install them. The key is to position the flexible flap so it just barely kisses the outside face of the garage door when it's closed.
A word of caution: Don't press the molding too tightly against the door. If that flexible flap is bent back hard, it creates a lot of friction. This can strain your opener and might even cause the door to bind or reverse. You're aiming for light, consistent contact all the way around.
Start with the top piece. Get it into position and tack it in place with a couple of finishing nails, one near each end. Don't drive them all the way home yet—this gives you wiggle room for adjustments.
Next, tack the side pieces in place, making sure your mitered corners line up cleanly. With everything temporarily tacked up, open and close the door a few times. You should feel a slight, consistent drag, but the door shouldn't stick or sound like it's straining.
Final Securing and Finishing Touches
Once you're satisfied with the position, you can secure the molding permanently. Use galvanized nails or, even better, exterior-grade screws to fasten the molding to the door frame. I like to place a fastener every 12 to 16 inches; this prevents the trim from warping or developing gaps over time.
For a truly finished job, run a thin bead of exterior-grade caulk along the mitered joints and the seam where the molding meets the door frame. This final step seals any tiny remaining gaps and gives your work a polished look that will protect your garage for years.
Common Questions About Garage Door Weather Stripping
Even a straightforward project like installing weather stripping can have its tricky moments. It's totally normal for questions to pop up mid-job. To help you move forward with confidence, here are the answers to some of the most common things people ask.
Think of this as your quick-reference guide to solve problems before they start.
How Often Should I Replace My Seals?
This is the number one question I get, and the honest answer is: it depends. There’s no magic number. How long your weather stripping lasts really comes down to your local climate and how much you use your garage door.

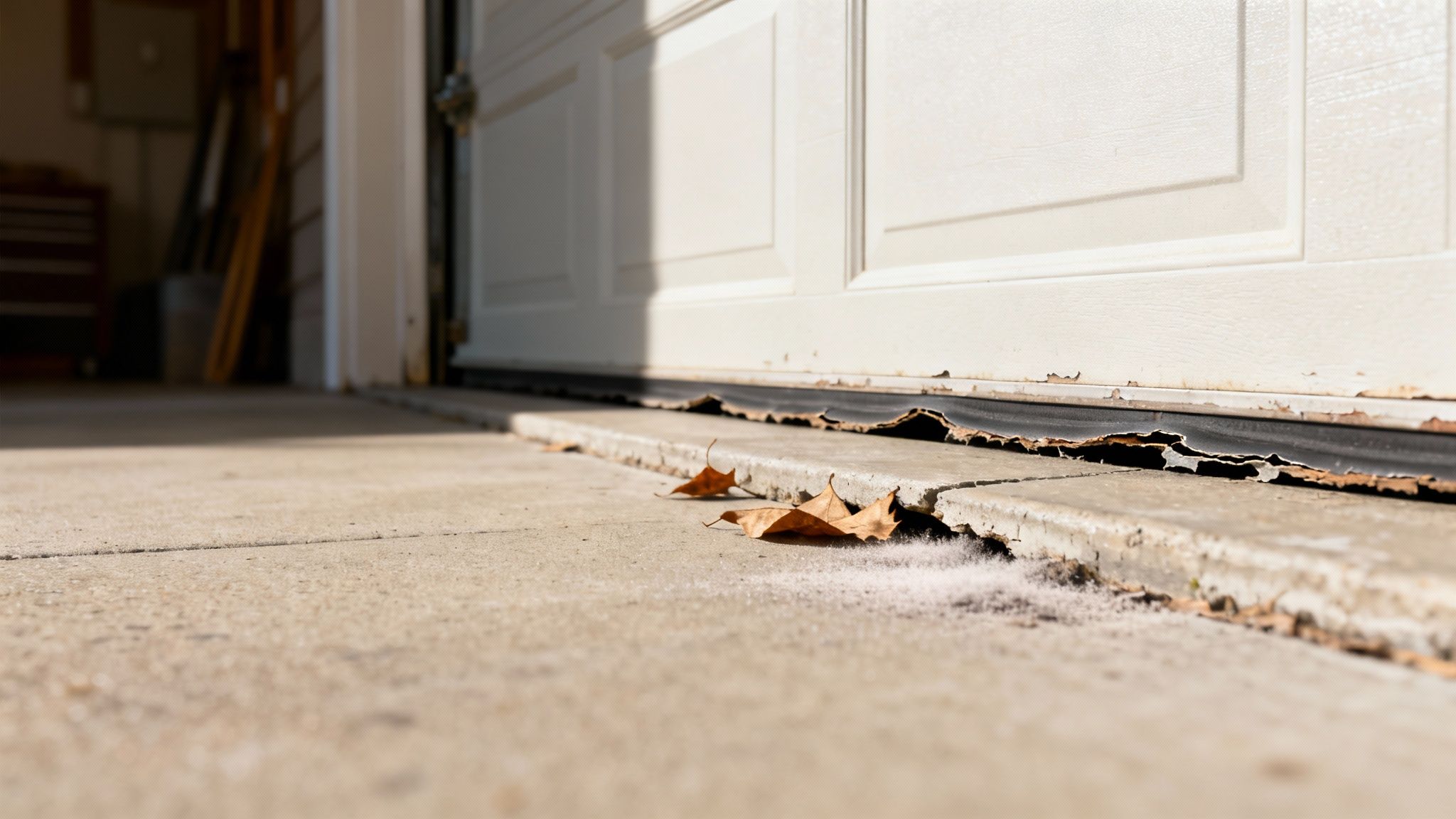

As a general rule, give your seals a good look-over at least once a year. You're looking for the classic signs they're past their prime:
- Cracking or Brittleness: If the rubber or vinyl feels hard and inflexible, its sealing days are over.
- Visible Gaps: Close the door during the day and turn off the lights inside. See any daylight peeking through? That's an open invitation for drafts, water, and pests.
- Flattening: A good seal should be soft and compress to fill gaps. If yours looks like a pancake, it’s not doing its job anymore.
A quality seal can last anywhere from 5 to 10 years. But if you live somewhere with blistering sun or brutal winters, you might be doing this job more often. Keeping those seals in good shape is a huge part of energy efficiency, especially for attached garages. You can learn more about how proper sealing impacts your home's energy costs on homewyse.com.
What's the Best Material for Weather Stripping?
Choosing the right material is half the battle for a long-lasting, effective seal.
For that critical bottom seal that meets the concrete, I almost always recommend a high-quality, flexible EPDM rubber. It's the gold standard. Unlike cheaper vinyl, EPDM stays soft and pliable even when the temperature drops below freezing, which means you get a tight seal all year round.
For the stop molding that frames the top and sides of the door, vinyl is a fantastic and durable choice. It's rigid enough to hold its shape but has a flexible flap that creates the consistent, light pressure you need to block drafts.
Here's a pro tip: Don't install the stop molding too tightly against the door. You're aiming for a gentle touch, not a death grip. If that flexible flap is pressed too hard, it can make your opener strain and might even trigger the safety reverse. A quick test is to close the door and try to slip a piece of paper between the flap and the door—you should feel just a little bit of resistance.
Can I Use the Same Seal for the Bottom and Sides?
Simply put, no. These seals are designed for totally different jobs. The bottom seal is thick and built to compress and conform to an uneven garage floor. The stop molding for the sides and top is a more rigid piece with a thin, flexible flap made to press lightly against the flat face of the door.
If you try to use one for the other's job, you'll end up with a lousy seal and a whole lot of frustration.
If you've given it your best shot but are still losing the battle against drafts, or if you'd just rather have an expert handle it, Danny's Garage Door Repair is ready to help. We can get your garage sealed up tight in no time. Give us a call for a free estimate at https://garagedoors101.com.
