Programming your car's built-in HomeLink system is usually a quick job, but a little prep work goes a long way. Think of it as a two-stage process: first, you'll teach your car your handheld remote's signal. Then, for most modern openers, you'll introduce the car to the garage motor itself to finalize the connection.
With the right steps, you can be done in under five minutes.
Your Quick Guide to HomeLink Setup
Getting your HomeLink buttons working is one of those small victories that just makes life easier. Before you start pressing buttons, let’s make sure you have everything lined up for a smooth, frustration-free setup.
First things first, you'll want to wipe any old programming from the system. This is especially important if you just bought the car or moved into a new place. Clearing the memory ensures you’re starting with a clean slate and avoids any conflicts from old codes.
Know Your System Type
The most important thing to figure out is whether your garage door opener uses a rolling code or a fixed code. This one detail changes the programming steps significantly.
So, how can you tell? Most garage door openers made after 1996 use a rolling code for security, which means the code changes every time you use it. Fixed code systems, common in older models, use the same signal repeatedly.
Here’s a simple table to help you figure out which system you have. This will tell you if you need to complete the final, crucial step of pressing the "Learn" button on the motor unit itself.
Is Your Opener Rolling Code or Fixed Code?
| System Type | Key Indicator | What This Means For Programming |
|---|---|---|
| Rolling Code | Your garage door motor has a "Learn," "Smart," or "Program" button (often with a small LED light). | You must press this button on the motor to complete the final sync with your car. |
| Fixed Code | The motor unit does not have a "Learn" button. Programming is done entirely from your handheld remote. | You won't need a ladder or access to the motor. The process is simpler and finishes inside the car. |
Once you know your system type, you can be sure you're following the right set of instructions and won't get stuck wondering why the final step isn't working.
Gather Your Tools
Don't get caught running back and forth. Grab these three things before you begin:
- Your original garage door remote: Pop a fresh battery in it. A weak remote signal is the number one reason HomeLink programming fails.
- A sturdy step ladder: If you have a rolling code system, you'll need this to safely reach the "Learn" button on the motor unit mounted on your garage ceiling.
- Your car's owner's manual: It’s the best source for finding vehicle-specific details about your car’s HomeLink buttons.
The HomeLink system has been around since 1995, and today it’s a standard feature in over 83 million vehicles from brands like Toyota, Honda, and Ford. Its widespread adoption, as noted in this garage door opener market report, means these programming steps are pretty universal.
Quick Tip: Park your car just outside the garage, facing the door. This position gives you the strongest, clearest signal path between the car, your remote, and the garage motor unit. It's a small detail that prevents a lot of headaches.
Pairing HomeLink with a Modern Rolling Code Opener
If your garage door opener is from the last 20 years or so, you're almost certainly dealing with rolling code technology. It's a fantastic security feature that changes the access code with every use, but it does add one extra step to the programming process. Don't worry, it’s not as complicated as it sounds.
The whole process is really done in two phases. First, you'll teach your car's HomeLink system to recognize your handheld remote's signal. Then, you’ll introduce your car to the garage door motor itself to make the connection official.

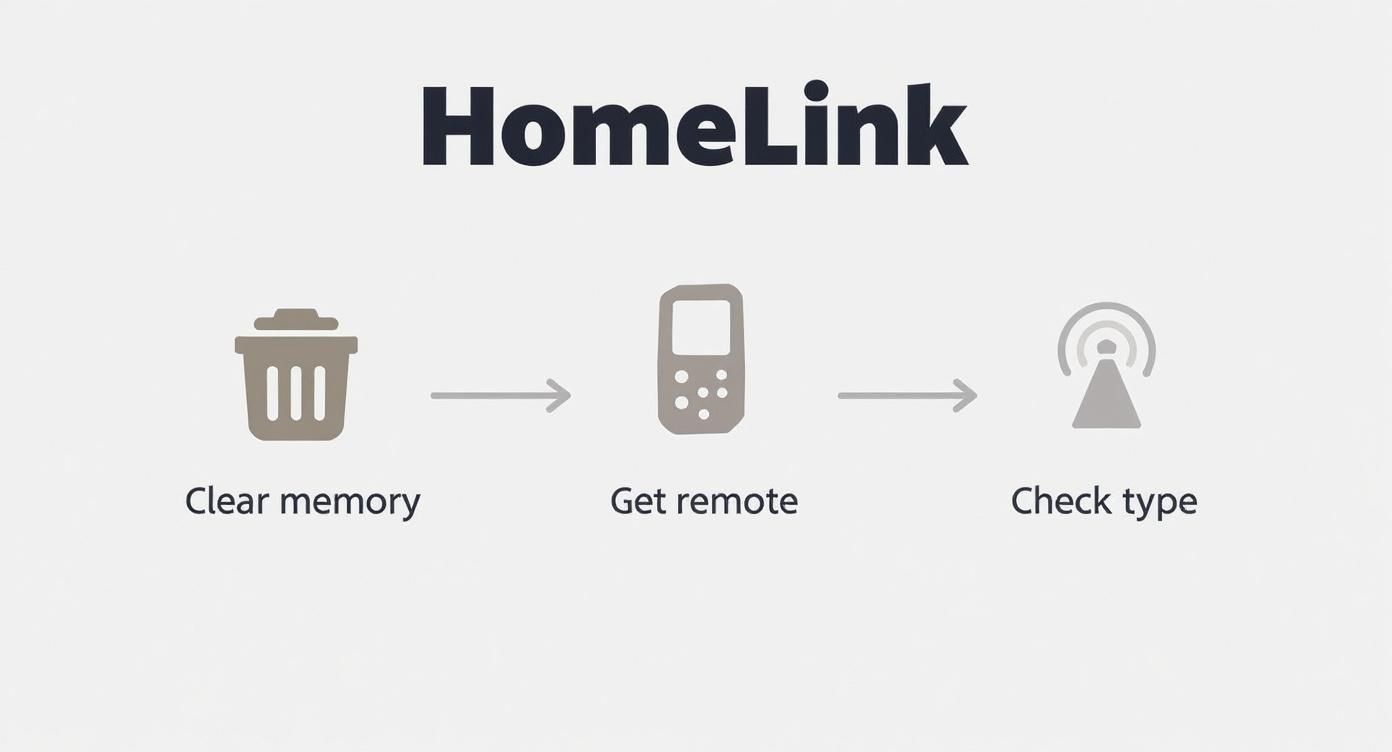

This quick overview shows you what to get ready before you start the sync.
Starting with these prep steps ensures you have a clean slate, the right tools, and a clear idea of which programming path to take for your particular opener.
Step 1: Training Your Car's HomeLink
Grab your original garage door remote and head out to your car. Start by pressing and holding the HomeLink button in your car that you want to program.
While you're still holding it down, grab your handheld remote and hold it a few inches away. Now, press and hold the button on that remote. Keep both buttons held down until you see the indicator light on your car's HomeLink system change its pattern—it will go from a slow, lazy blink to either a rapid flash or a solid light.
That change is the "aha!" moment. It confirms your car has successfully captured the remote's frequency. You can let go of both buttons. Part one is in the books.
Pro Tip: The clock starts ticking the second you press the "Learn" button on the motor. You usually only have about 30 seconds to get back in your car and press the button. This is where a helper comes in handy—one person on the ladder and one in the car makes this step a breeze.
Step 2: Syncing to the Motor
Alright, time to finalize the connection. You'll need that ladder to safely get up to the main motor unit mounted on your garage ceiling.
Find the "Learn" or "Smart" button. It’s almost always a small square or round button, often right next to where the antenna wire hangs down. There's usually a little LED light next to it, too.
Press and immediately release that button. The LED should light up or start flashing, letting you know it's in pairing mode. Now, hustle back to your car and press the HomeLink button you just programmed for about two seconds, then release. You might need to repeat this press-release sequence a couple of times. When the garage door starts to move, you’ve done it!
If you want to explore programming for other types of openers, our guide on how to program a new garage door opener has some great, specific advice. Getting this right is all about a bit of timing and paying attention to those little flashing lights.
Programming HomeLink for Older, Fixed Code Openers
If you're working with an older garage door opener, particularly one made before the mid-1990s, you probably have a "fixed code" system. Good news—programming your HomeLink for these is about as simple as it gets. You can leave the ladder in the garage for this one.
The entire setup happens right from the driver's seat and usually takes less than a minute. All you need is the original remote that came with your garage door opener.
Capturing the Remote's Signal

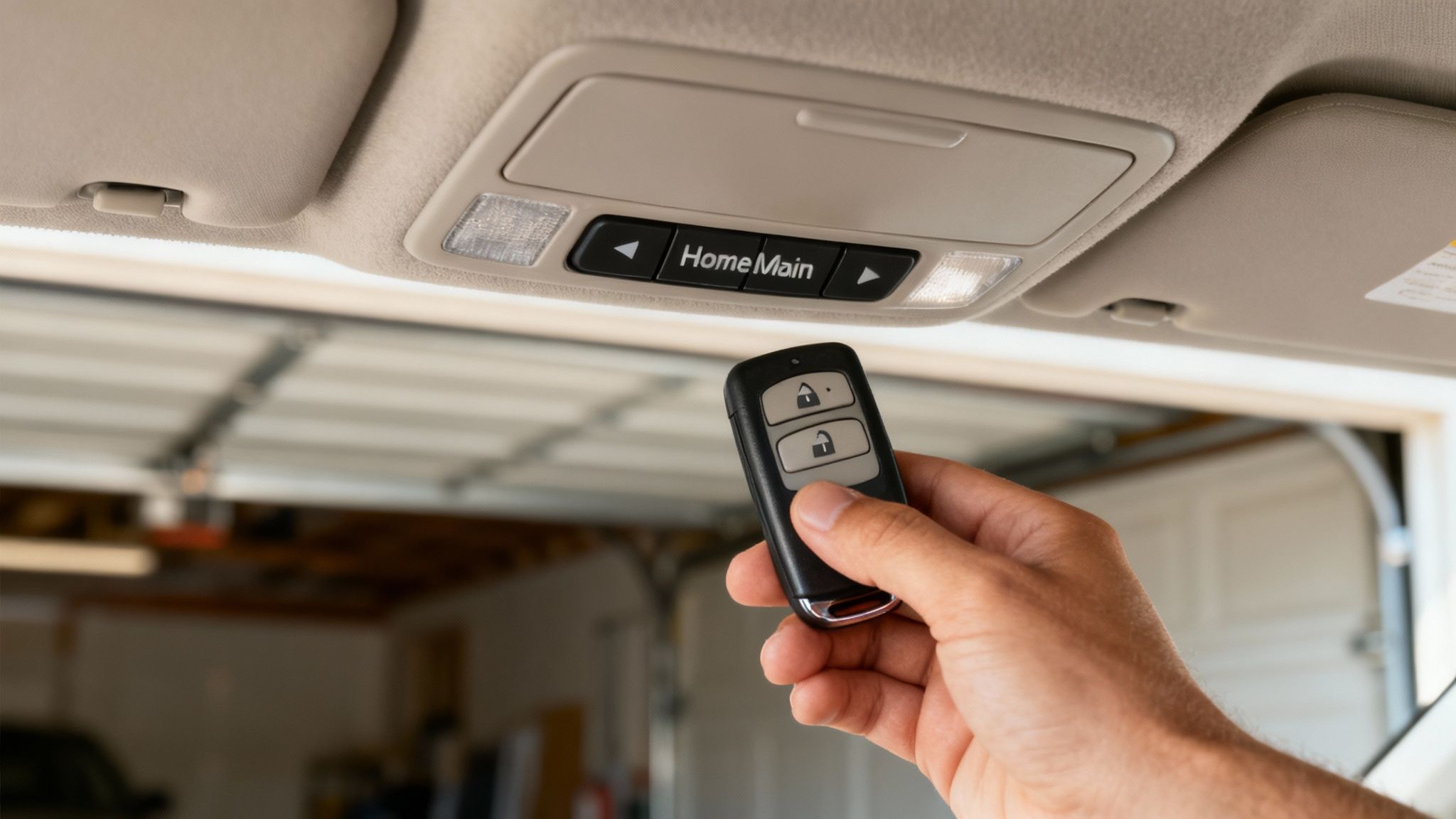

First, grab your garage remote and hold it about 1 to 3 inches away from the HomeLink buttons in your vehicle.
Next, press and hold the HomeLink button you wish to program. Don't let go yet.
While still holding the HomeLink button, press and hold the button on your handheld remote. You'll need to keep both buttons pressed down at the same time.
Keep an eye on the indicator light on your HomeLink system. It will start blinking slowly, but what you're waiting for is a change. Once it successfully grabs the code from your remote, the light will either start flashing rapidly or turn solid.
The rapid flash is the key. That’s your confirmation that HomeLink has successfully learned the code from your remote. Once you see that fast blinking, you can let go of both buttons.
And that’s all there is to it! Press the HomeLink button you just programmed to test it out. Your garage door should spring to life. This super-simple process is one of the nice perks of working with older fixed code systems.
Solving Common HomeLink Programming Problems
Even when you follow the instructions to the letter, sometimes the programming just refuses to stick. It’s a common frustration, but don't worry—nearly every issue has a surprisingly simple fix. If your HomeLink button isn't cooperating, let's walk through the most frequent culprits I see in the field.
One of the top reasons programming fails is a weak signal from your original garage door remote. Before you tear your hair out, try putting a fresh battery in that little clicker. A dying battery often has just enough juice to open the door but not enough to send a clean, strong signal for the HomeLink system to capture.
This one simple swap solves the problem more often than you'd think. Once you have a new battery in, go back to the first step and try again, holding the remote about 1-3 inches from your car's HomeLink buttons.
When the Sync Fails at the Motor
Okay, so your car successfully learned the remote's signal, but it’s failing at the last hurdle—syncing with the garage door motor itself. This is where you press the "Learn" button on the motor unit, rush back to your car, and… nothing. If this sounds familiar, the issue is almost always timing.
Most garage door openers only give you a 30-second window to complete the sync. That’s not a lot of time, especially if you’re climbing down a ladder and hopping into the driver's seat. The easiest solution? Grab a helper. Having one person on the ladder and one in the car makes this step a breeze and eliminates that frantic dash against the clock.
Pro Tip: If the sync fails after you press the "Learn" button, timing is the most likely suspect. That 30-second window closes fast, so be ready to press the programmed HomeLink button in your car immediately.
If timing isn't the issue, there might be something else in the air—literally. Radio frequency (RF) interference can be a sneaky problem, and one of the biggest offenders might surprise you.
The Problem with LED Lights
Believe it or not, certain LED light bulbs can mess with your garage door opener’s signal. The circuitry in some bulbs emits radio frequencies that can jam the signal from your remote or HomeLink system. If you have an LED bulb screwed into the light socket on your opener motor, it could be the source of all your headaches.
Here’s a quick way to test this theory:
- Unscrew the light bulb from the opener motor.
- Try the "Learn" button synchronization process again.
- If it suddenly works, you've found your culprit.
If the bulb was the problem, you don't have to go back to the dark ages. Just look for specialty "low-interference" or "garage door opener compatible" LED bulbs. They're designed specifically to prevent this kind of signal disruption. If your opener is still acting up, our in-depth guide to garage door opener troubleshooting has plenty of other solutions to explore.
Taking HomeLink to the Next Level
So, you’ve successfully programmed your main garage door. Nice work! But what about those other buttons on your HomeLink panel? They aren't just for decoration. You can use them to control a whole range of other devices, from the security gate at your community entrance to compatible smart lights in your home.
The process is a breeze. Just follow the same programming steps you used for your garage door, but assign each new device to its own button. Think of it as your new universal remote—one that finally lets you declutter your car's visor and glove compartment.
What if My Opener Is Just Too Old?
Now, let's talk about a common roadblock. You've followed every instruction, watched every video, and your garage door opener still refuses to pair with your car. If you're dealing with an older opener, you might be facing a technology gap. It simply might not be compatible with the modern rolling code technology in your vehicle's HomeLink system.
Before you start shopping for a brand-new opener, there's a much easier and cheaper solution to try.
You probably just need a HomeLink Compatibility Bridge.
This little gadget is a lifesaver. It plugs into any power outlet in your garage and acts as a translator between your old opener and your new car. It effectively modernizes your opener's signal without needing a full, expensive replacement.
Think of the bridge kit like a universal adapter for a foreign country. It bridges the communication gap, allowing your old opener to understand the signals from your new car.
Installing the bridge is simple—you just program your car's HomeLink button to the bridge itself, and the bridge takes care of the rest. This kind of retrofit solution is becoming incredibly common. In fact, the market for these kits was recently valued at USD 1.24 billion and is climbing, which shows just how many people are using this simple fix. You can get more details on the HomeLink retrofit kit market on growthmarketreports.com.
Of course, if your opener is truly on its last legs and you decide a full replacement makes more sense, we've got you covered. Be sure to check out our guide on how to choose a garage door opener to find the perfect one for your home and needs.
Still Have Questions About HomeLink?
Getting your HomeLink set up is one thing, but you might still have a few questions pop up as you start using it. Let's run through some of the most common ones I hear from homeowners.
How Do I Wipe My Car's HomeLink System Clean?
Thinking about a fresh start? Maybe you just bought a used car or can't seem to shake a programming glitch. The best way to begin with a clean slate is to perform a master reset.
Just press and hold the two outer HomeLink buttons. You'll need to keep them held down for about 20 seconds. The indicator light will eventually start flashing rapidly—that's your cue that all old codes have been erased. Now you're ready to program from scratch.
Will HomeLink Work if My Car Isn't Running?
Probably not, and that's a good thing! Most vehicles require the ignition to be in the "on" or "accessory" position for HomeLink to work.
This is a built-in security feature. It's designed specifically to stop someone from breaking a window and opening your garage. Your car owner's manual will have the final say, as some models might differ, but this is the standard for a reason.
Why This Matters: This "ignition on" rule is a simple but effective security layer. It makes sure that only someone with access to the car's keys can actually operate the garage door, which adds a lot of peace of mind.
Can I Program More Than One Garage Door?
Absolutely! This is where HomeLink really shines. Most systems give you three buttons, and each one can be programmed to a different device. No more juggling a bunch of clunky remotes.
For example, you could set it up like this:
- Button 1: Your main garage door.
- Button 2: The gate to your community.
- Button 3: A second garage door or even compatible outdoor lighting.
You just follow the same programming steps for each button. It’s a fantastic way to consolidate all those openers into one convenient spot.
