Replacing your garage door weather seal is one of those surprisingly simple DIY projects that makes a huge difference. You're basically just pulling out the old, worn-out rubber strip from the bottom of your door and sliding a new one into the track. It's a quick fix that stops drafts and water in their tracks, and you can usually knock it out in less than an hour with just a few basic tools.

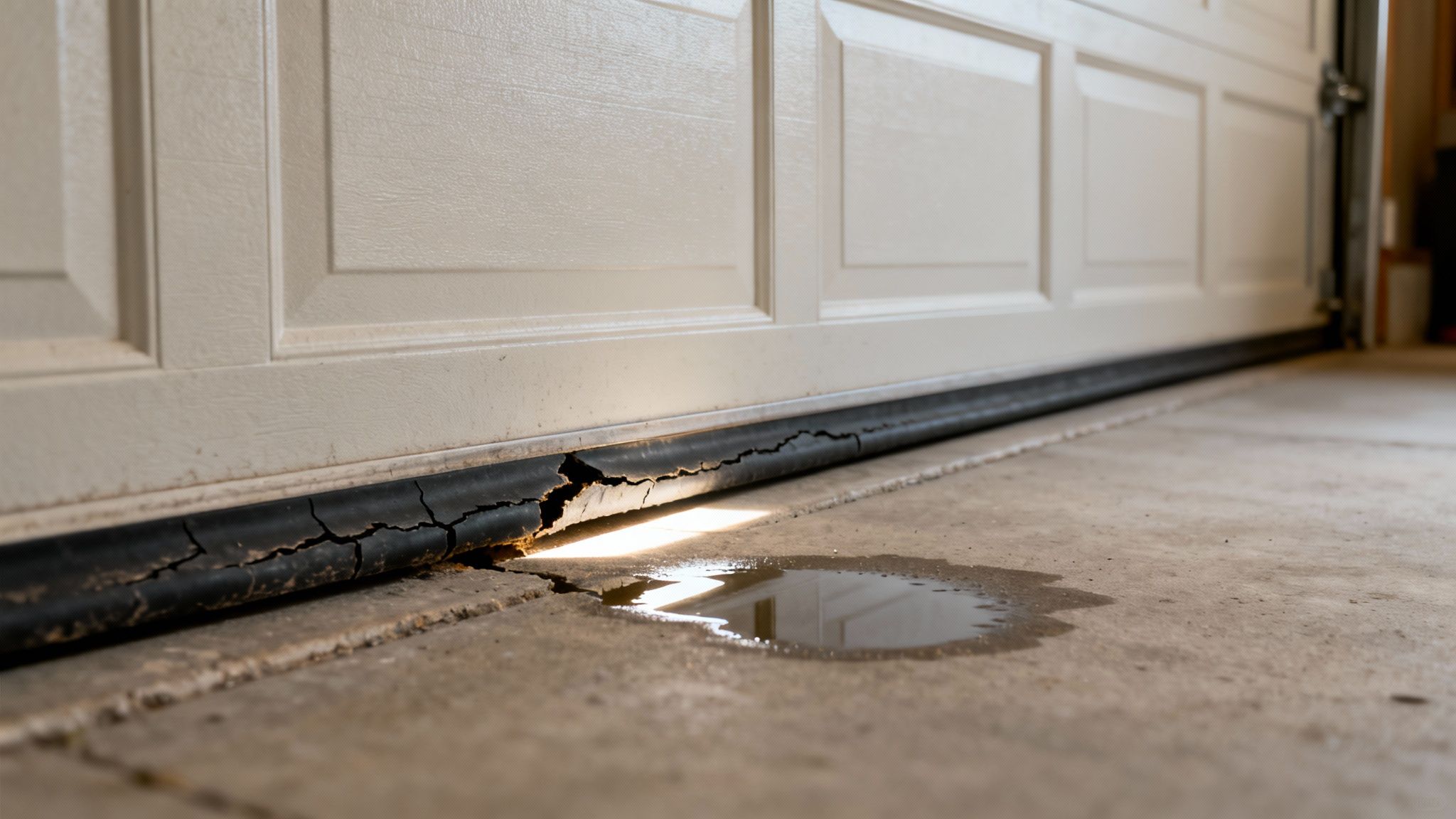

Signs Your Garage Door Weather Seal Needs Replacing
That cold draft you feel every time you walk into the garage? Or that annoying little puddle that appears after it rains? That's more than just a nuisance—it’s a clear signal that a critical barrier on your home has failed. The weather seal on your garage door is its first line of defense, and once it starts to go, you're looking at bigger problems than just a bit of a chill.
After years of being squashed against the concrete and blasted by Northeast Ohio weather, that rubber or vinyl strip just gives out. It cracks, flattens, tears, or gets so brittle it might as well not be there. This creates an open invitation for pests, rain, snow, and summer heat to waltz right into your garage.
Spotting the Obvious Problems
The most common signs are really easy to see once you know what to look for. Just take a minute to crouch down and get a good look at the seal along the bottom edge of your door.
Here’s what you’re looking for:
- Visible Cracks and Tears: Any splits, holes, or gaps in the rubber mean it’s no longer doing its job. The seal has to be continuous to work.
- Brittleness and Flattening: Go ahead and feel it. If the seal is hard and inflexible instead of soft and pliable, it's lost its ability to conform to the tiny imperfections in your garage floor.
- Pest Intrusions: Finding spiders, insects, or—worse—mice in your garage is a dead giveaway that they’ve found a superhighway under your door.
Pro Tip: The Light Test
The easiest way I know to check a seal’s integrity is the 'light test'. Close the garage door during the day and turn off all the lights inside. If you see daylight peeking through underneath, your seal is shot. It’s that simple.
Beyond the usual wear and tear, don't forget that severe weather can do a number on your home's exterior. Learning to recognize the signs of hail damage to your home is smart, as a big storm can easily shred a garage door seal without you realizing it.
Why a Failing Seal Matters
Putting this off does more than just let in a draft. A bad seal can lead to water damage on your garage floor, start to rot the bottom panel of a wooden garage door, and even run up your energy bills by letting heated or cooled air escape. Catching these warning signs early is the first step to protecting your garage and making it a comfortable, efficient part of your home again.
Choosing the Right Replacement Weather Seal
Walking into a hardware store and seeing a wall of different weather seals can feel pretty overwhelming. Let's break it down and make this simple.
Figuring out which replacement seal you need really comes down to one thing: the shape of the metal retainer track on the bottom of your garage door.
Before you head to the store, do yourself a huge favor. Cut off a small sample of your old seal to take with you, or at the very least, snap a clear photo of its cross-section. This little bit of prep work will save you from the classic mistake of buying the wrong part and making a frustrating second trip.

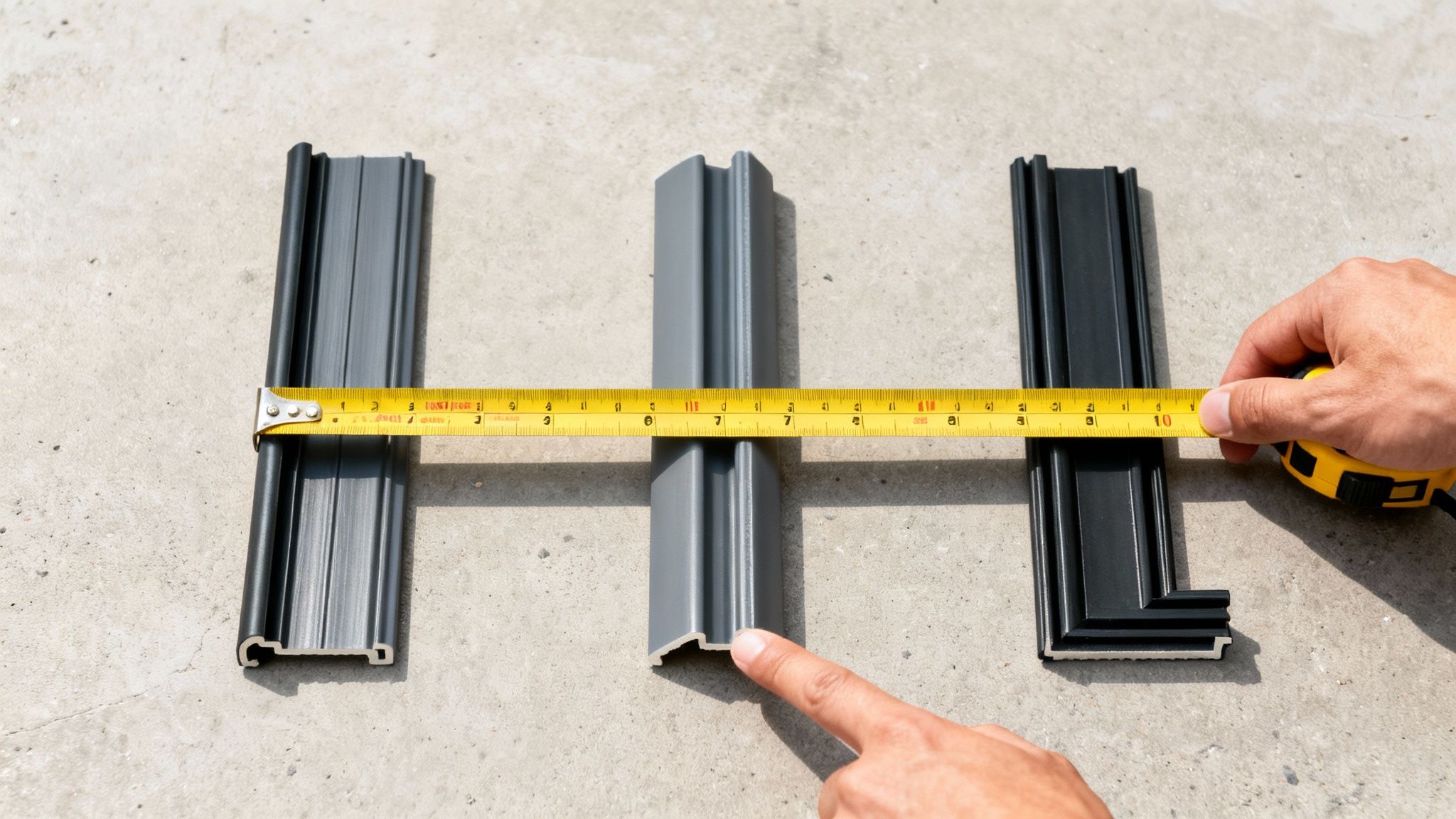

Identifying Your Seal Profile
Most residential garage doors use a seal that slides into one or two channels, or tracks. The part that actually slides into that track determines the seal's "profile."
Here are the most common types you’ll run into:
- T-End Seals: These look just like the letter "T" on both ends. They're designed to slide into two parallel channels on the retainer. This is probably the most common style out there.
- Bead-End Seals: Instead of a "T" shape, these have a small, round bead on the end that fits snugly into a C-shaped channel.
- L-Shaped Seals: As the name suggests, these have a single L-shaped flange that slides into a track on just one side.
The goal is to match the profile exactly. A T-end seal won’t fit in a bead-end track, and vice-versa. Getting this right is the most critical part of choosing your replacement.
Comparing Seal Materials
Once you’ve got the shape figured out, you'll need to pick a material. The two main players are vinyl and rubber, and each has its pros and cons, especially for dealing with Northeast Ohio weather.
A good bottom seal is a serious energy saver. The global market for garage door weatherstrips is valued at over $335 million for a reason—a quality seal can block up to 99% of airflow. This simple part prevents common air infiltration and water damage issues that often start showing up after just 5-10 years.
To help you decide, here's a quick look at the pros and cons of the most common materials.
Weather Seal Material Comparison
A quick look at the pros and cons of common garage door weather seal materials to help you choose the best option for your home.
| Material Type | Best For | Lifespan | Pros | Cons |
|---|---|---|---|---|
| Vinyl (PVC) | Budget-conscious homeowners in moderate climates. | 5-10 years | Inexpensive, widely available, easy to install. | Can become stiff and brittle in extreme cold, prone to cracking over time. |
| Rubber (EPDM) | Durability and performance in harsh weather, especially cold. | 10-20 years | Stays flexible in freezing temps, excellent durability, long-lasting. | More expensive than vinyl, can be stiffer to install. |
| Silicone | Premium applications where longevity is the top priority. | 20+ years | Superior flexibility and lifespan, withstands extreme temperature swings. | Highest cost, may be harder to find locally. |
| Thermoplastic Elastomer (TPE) | A balance of performance and value, a "best of both worlds" option. | 10-15 years | Combines the durability of rubber with the flexibility of plastic. | Mid-range cost, less common than vinyl or rubber. |
Ultimately, for our climate, rubber is usually the smart investment. It might cost a bit more upfront, but its ability to stay flexible when the temperatures drop below freezing means it will last much longer.
While this guide focuses on garage door weather seals, understanding the broader context of building seals can be beneficial; you might find insights into the general function of building seals. This knowledge helps appreciate how these components protect our homes from the elements.
A Practical Guide to Replacing the Bottom Seal
Alright, you've figured out the old seal has seen better days and you've got the perfect replacement in hand. Now for the fun part. Don't worry, replacing the bottom seal on your garage door is one of those jobs that looks more intimidating than it actually is. Most homeowners can knock this out with just a few basic tools and a bit of patience.
Before you dive in, let's get your gear lined up. You won't need a trip to the hardware store for anything fancy.
- Pliers or a Flathead Screwdriver: You'll need one of these to carefully pry open the ends of the metal track that holds the seal. It also helps with yanking out the old, stubborn bits.
- Utility Knife or Heavy-Duty Scissors: For getting a clean, perfect cut on the new seal.
- Silicone Spray Lubricant: This is the secret weapon, trust me. A quick spray inside the tracks makes sliding the new seal in about ten times easier.
- A Helper (Optional but Recommended): You can definitely tackle this solo, but having an extra set of hands to help feed the new seal into the track makes the whole process go a lot smoother and faster.
With your tools at the ready, you can get started on the takedown.
Getting the Old Weather Seal Out
First thing's first: raise your garage door to a comfortable height where you're not hunching over or reaching up too high—chest level is usually perfect. Unplug the garage door opener and, as a critical safety step, clamp a pair of locking pliers onto the track right above one of the rollers. This ensures the door can't slam down while you're working on it.
Now, get a good look at the metal retainer running along the bottom edge of the door. The old seal is held in place by two channels inside this retainer. You’ll probably notice the ends are crimped or pinched shut. That's by design, to keep the seal from sliding out over time.
Using your pliers or a flathead screwdriver, gently bend those crimped ends back open. You don't need to go crazy, just open them up enough to create a clear path. Once that's done, grab one end of the old seal and start pulling. If it's old and brittle, it might put up a fight, but it should slide out. A little tug-of-war might be required.

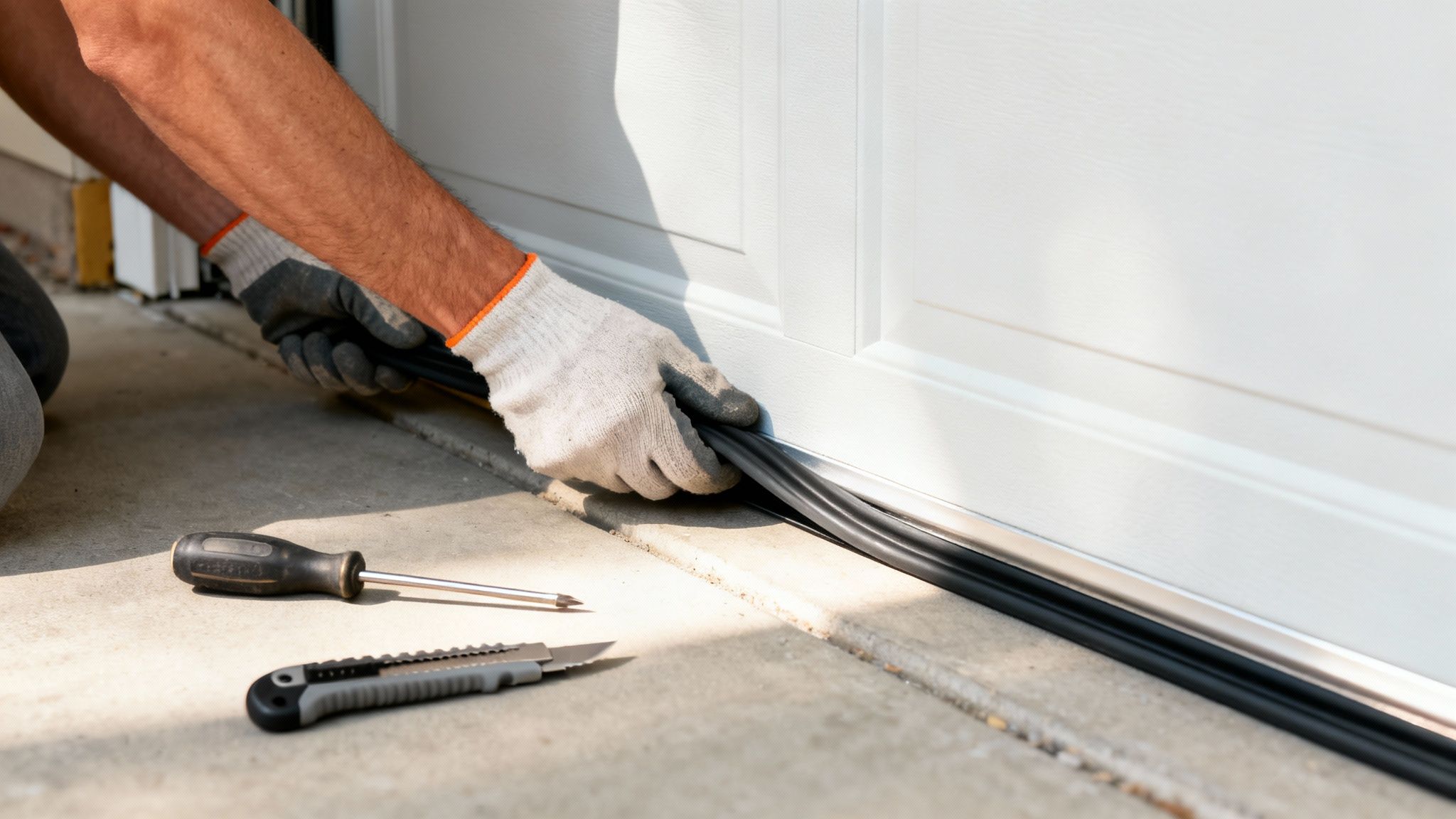

Sliding in the New Seal
With the old seal out of the way, take a second to clean out the retainer channels. You'd be surprised how much dirt and gunk can get packed in there, and a clean track is your best friend for a smooth installation.
This is where that silicone spray becomes your hero. Give the inside of the channels a light but even coat along the entire length. Seriously, don't skip this. It cuts down the friction and can turn a frustrating wrestling match into a simple, two-minute job.
Now, grab your new seal and your helper, if you have one. Align one end of the seal with the opening in the track. One person can feed the "T" shaped edges of the seal into the channels while the other person stands at the far end of the door and gently pulls it through. Just keep feeding and pulling until the seal runs a few inches past both sides of the door.
Pro-Tip: If you're flying solo, it's still totally manageable. Just feed a few feet of the seal in, walk over to the other side, pull it taut, and then go back and feed some more. It just takes a little more back-and-forth.
Once the new seal is all the way through, lower the door to see how it sits. You're looking for a nice, even cushion against the garage floor with no gaps. All that's left is to trim the excess seal flush with the edges of the door using your utility knife. Finally, grab your pliers and re-crimpt the ends of the retainer track to lock your new seal in place. For a deeper dive into sealing techniques, our guide on how to install garage door weather stripping has even more detail.
It's a good habit to give your seal a quick look every few months. A simple check can help you catch problems early, like pests trying to sneak in—an issue for about 25% of aging seals—or gaps that are letting in drafts and driving up your energy bills.
Upgrading Your Garage with Top and Side Seals
You’ve got the bottom of your door sealed up tight, and that’s a huge win. But to really create a weatherproof fortress, we need to look at the top and sides.
The vinyl or rubber trim that runs along the top and side jambs of your door frame—often just called the "door stop"—is just as important. When your garage door closes, this trim is designed to press snugly against the face of the door, acting as the final line of defense against drafts and driving rain.
Just like the bottom seal, this trim takes a beating from the sun and weather. Over the years, you'll see it get brittle, crack, warp, or even pull away from the frame, creating obvious gaps that let the elements right in. Good news is, replacing it is a pretty quick job that pays off big time.
Installing New Top and Side Seals
Getting this done is mostly a matter of careful removal and precise placement. You’ll start by gently prying off the old, worn-out trim. Grab a flat bar and work your way along the frame, taking care not to damage the wood underneath.
Once the old stuff is gone, it’s time to fit the new pieces.
Most of the replacement kits you'll find come with vinyl trim that you simply nail into place. The real trick here is getting the positioning perfect before you start hammering.
- Find the Sweet Spot: Hold a piece of the new trim against the frame and close the garage door. You're looking for the flexible flap on the trim to make light, even contact with the door's surface. That's what creates the seal.
- Don't Overdo It: If you push the trim too tightly against the door before nailing it, you'll cause it to bind, which can interfere with your door's operation. Too loose, and you've defeated the whole purpose. A gentle but firm press is what you're after.
- Nail It Down: Once you've got it positioned just right, use galvanized nails to secure the trim to the frame. A nail every 12 inches or so should do the trick.
This is also the perfect opportunity to address any other gaps you might notice around the frame. If you're running into bigger issues, our guide on how to seal garage door gaps has some more advanced tips.
Taking Sealing to the Next Level with a Threshold Seal
If you want the ultimate seal—especially if your driveway slopes toward the garage or the concrete is a bit uneven—a threshold seal is your best bet. This is a tough, beefy rubber strip that gets glued directly to the garage floor, right under the door.
I can't recommend a threshold seal enough for homes here in Northeast Ohio. It creates a physical dam that the bottom seal compresses against, making it nearly impossible for wind-driven rain and melting snow to get inside. It’s one of the single best upgrades you can make.
To install one, you'll need to get your concrete floor surgically clean. A good degreaser is essential here, because the adhesive needs a perfectly prepped surface to form a permanent bond. From there, you'll apply a heavy-duty construction adhesive, carefully lay the threshold down, and let it cure. The result is a bomb-proof seal that will keep your garage floor dry through the worst storms.

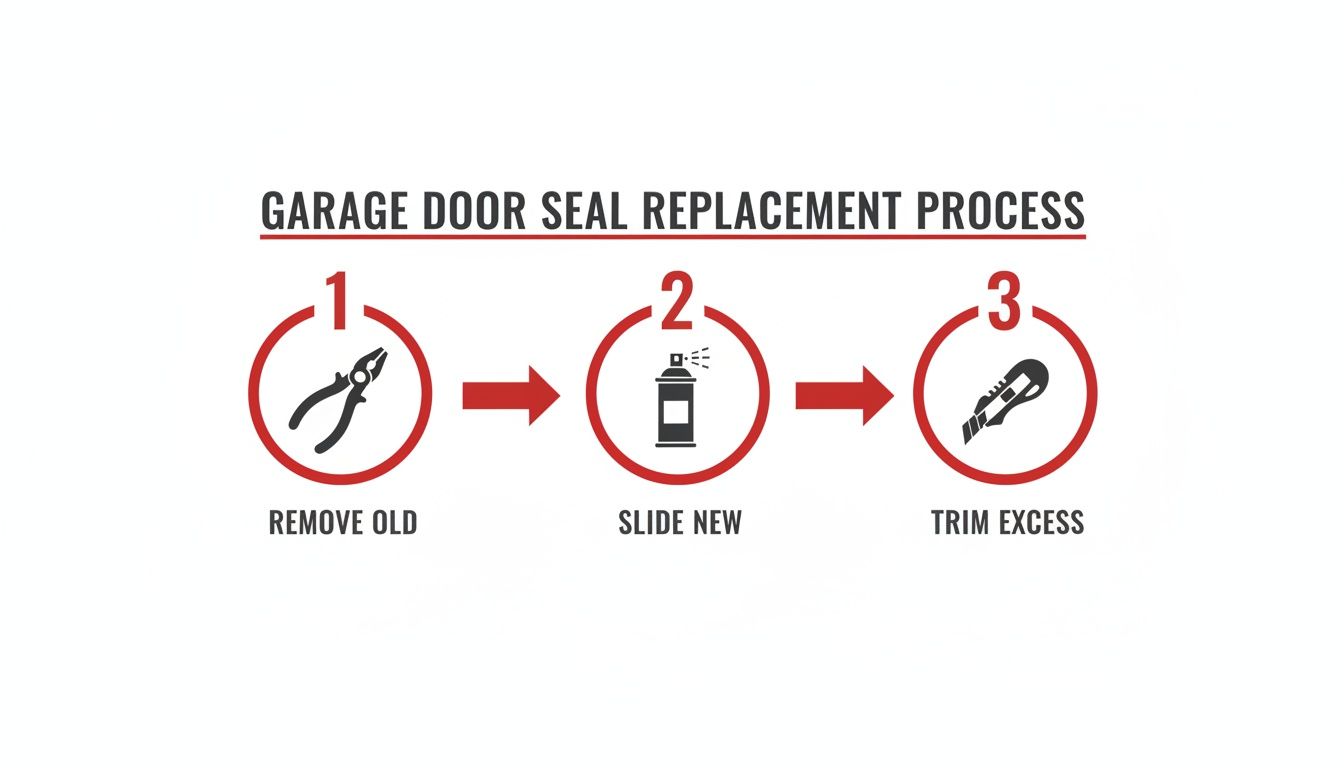

This quick infographic breaks down the basic process for most seal replacement jobs.
As you can see, it really just comes down to having a few basic tools and a bit of patience. And the payoff is real. An unsealed garage can be a major source of energy loss, driving your heating and cooling bills up. Taking an hour or two to replace these seals makes a tangible difference in your home's efficiency.
DIY Costs Versus Calling a Professional
So, what's this project actually going to cost? Deciding whether to replace your garage door weather seal yourself or call in a pro usually boils down to two things: budget and how comfortable you feel with the job. Let's run the numbers so you can make the right call.
Going the DIY route is, without a doubt, the most wallet-friendly option. Your main expense is materials, and thankfully, they're pretty affordable.
- Bottom Seals: A standard rubber or vinyl bottom seal for a single-car garage door will typically run you $20 to $50.
- Top and Side Seals: A full weatherstripping kit to seal the door frame usually costs between $30 and $70.
- Threshold Seals: These are a bit more of an investment, often ranging from $40 to $100 depending on the length and material quality.
Toss in a can of silicone lubricant, and you’re looking at a total DIY project cost of well under $100 for a basic bottom seal replacement. It’s one of those rare home repairs that costs very little but makes a huge difference.
When to Bring in the Professionals
Hiring a pro, as you'd expect, comes at a higher price. Having a professional replace your garage door weather seals typically costs homeowners between $200 and $600, with most jobs landing around the $350 mark. That said, the investment often pays for itself through lower energy bills—those drafts really do add up! You can dig into more cost specifics and energy-saving details over at Angi.com.
While part of that cost is labor, what you’re really paying for is expertise and peace of mind. And sometimes, that's the smartest move you can make.
Knowing your limits is the key to any successful home project. If you hit a snag that feels over your head, it’s always better to stop and call for help than to risk damaging your door.
You should seriously consider calling a professional if you run into any of these situations:
- The Retainer Track is Damaged: If the metal channel holding the seal is bent, rusted through, or broken, it needs to be repaired or replaced. That’s a job best left to someone with experience.
- Your Door is Warped or Damaged: A new seal won't do much good if the door itself is out of alignment, warped, or has a damaged bottom panel. A pro can diagnose the real issue and get your door operating safely again.
- You're Just Not Feeling It: Hey, there’s no shame in it. If you’re short on time or just aren't confident you can get a perfect, gap-free seal, calling for backup is a smart move. A pro will have it done quickly and correctly.
For a first-timer, plan on this taking about one to two hours for just the bottom seal. It's not a complicated job, but it's always smart to give yourself a little extra time so you're not rushing. If you're still on the fence, our article on why you should call a professional garage door technician has some more great points to consider.
Keeping Your New Weather Seal in Great Shape
Alright, the hard part is over—you've got a brand new seal installed! Now, a little bit of simple upkeep is all it takes to make sure that seal protects your garage for years to come.
Think of it like the tires on your car. You wouldn't just ignore them, right? The same goes for your seal. The single most important thing you can do is keep it clean. Just wipe it down with a cloth, some mild soap, and water a couple of times a year. This gets rid of the dirt, road salt, and general grime that can act like sandpaper and wear down the rubber.
A Few Minutes of Maintenance Goes a Long Way
Besides a quick cleaning, a little lubrication makes a world of difference, especially with the weather we get here in Northeast Ohio. Grab a can of silicone-based spray lubricant and give the seal a light coat every few months. This keeps the rubber pliable and resilient.
This simple step does two critical things:
- It stops the rubber from drying out and cracking during those hot, sunny summer months.
- Most importantly, it prevents the seal from freezing solid to your concrete floor in the winter—a surefire way to rip it right off the door.
I always tell my customers that five minutes of maintenance a year is the best insurance you can buy for your new seal. It’s a tiny bit of effort that prevents you from having to do the whole replacement job all over again in just a few years.
Get in the habit of giving it a quick look-over now and then. While most garage door weather seals last 5-10 years, you'd be surprised how proper maintenance can prevent up to 80% of premature failures. A quick visual check every season, plus that cleaning and lubrication, will help you get the absolute maximum life out of your seal. You can learn more about how proper care prevents premature seal failure and keep your garage protected.
If you spot any damage or just don't have the time for upkeep, give us a call. The team at Danny's Garage Door Repair is always here to help with professional tune-ups and repairs to keep your entire garage door system running smoothly. Visit us online at https://garagedoors101.com for a free estimate.
