Replacing your garage door is one of those home upgrades that makes a huge impact, but you don't want to jump into it unprepared. The difference between a smooth project and a weekend-long headache really comes down to good planning. You've got to start with a solid game plan: know your budget, measure everything twice, and be honest about whether this is a DIY job or one for the pros.
What to Know Before You Start Your Garage Door Replacement
So, you’ve decided it’s time for a new garage door. Good call. Whether the old one is beat up, hopelessly outdated, or just plain broken, a replacement can seriously boost your home's curb appeal and day-to-day function. But before you start ripping out the old tracks, let's pause and think it through. This isn’t like swapping out a light fixture; you're dealing with heavy components, tight tolerances, and high-tension springs that demand respect.
Taking the time to get the details right from the beginning will save you a world of frustration. This is a significant investment in your home, and it's a popular one—the garage door market is projected to hit USD 6.82 billion by 2025. Homeowners are realizing the value a quality door adds.
Start with Accurate Measurements
I can't stress this enough: getting your measurements right is the absolute most critical first step. Being off by even a little bit can mean ordering the wrong size door, which is a costly and time-consuming mistake you definitely don't want to make. Grab a tape measure and let’s get the key dimensions.
- Width and Height: Measure the finished garage door opening, from the left side to the right and from the floor to the top of the opening. This is your basic door size.
- Headroom: This is the clear space between the top of the door opening and your ceiling (or the lowest point of any obstruction, like a beam or pipe). For a standard track system, you’ll generally need at least 12-15 inches of headroom.
- Sideroom: Check the space on the walls next to the opening. You need a minimum of 3.75 inches on each side to mount the vertical tracks.
- Backroom: Measure the depth of your garage, from the door opening straight back to the rear wall. You have to make sure there's enough room for the door to travel all the way up and back.
Choosing the Right Door Material
The material you choose for your door impacts everything—its appearance, how long it will last, how much maintenance it needs, and how well it insulates. Here in Northeast Ohio, we get the full range of weather, from sticky, humid summers to brutal, icy winters, so picking a material that can stand up to the elements is a must.
Here are the most popular options I see in our area:
- Steel: This is the go-to for a reason. It's tough, doesn't require much upkeep, and comes in insulated versions. Modern steel doors also offer a ton of styles, including convincing wood-grain finishes.
- Wood: Nothing beats the classic, high-end look of real wood. Just know that it comes with a commitment to maintenance, like regular painting or staining, to keep it from rotting or warping in our climate.
- Vinyl: If you want something incredibly durable, vinyl is a fantastic choice. These doors are practically immune to dents and rust, making them one of the lowest-maintenance options out there.
- Fiberglass: This material can be molded to mimic the look of wood but is much lighter and easier to care for. It’s a great all-around choice for resisting dents and corrosion.
Budget and Timeline Considerations
A new garage door is a real investment, so it’s important to set a budget you're comfortable with from the start. The final price tag will depend on the door's size, material, style, and whether you decide to hire a professional for the installation. For a detailed look at what to expect, you can check out our guide on garage door replacement costs.
A seasoned pro can typically get a new door installed in about 3-6 hours. If you're tackling it yourself for the first time, be prepared to set aside an entire weekend. It’s a job where precision is key, and unexpected hiccups can happen.
Before you even order your door, it's also smart to double-check your garage's electrical setup. Ensuring your circuit is properly protected is a crucial safety step. If you're not sure, it's worth learning how to size circuit breakers to ensure everything is safe and reliable. A little bit of planning now prevents major problems down the road.
This is also the point where you need to make the big decision: Do you tackle this yourself or bring in an expert? There are pros and cons to both.
DIY vs Professional Garage Door Installation at a Glance
Use this quick comparison to decide the best path for your garage door replacement project.
| Factor | DIY Replacement | Professional Installation |
|---|---|---|
| Cost | Lower upfront cost (materials only). | Higher initial cost (labor & materials). |
| Time | 1-2 full days, potentially longer for beginners. | 3-6 hours for an experienced crew. |
| Tools | Requires specialized tools you may need to buy or rent. | Professionals arrive with all necessary tools. |
| Safety | High risk, especially with springs and heavy panels. | Professionals are trained and insured for safety. |
| Warranty | May void the manufacturer's warranty. | Installation is typically warrantied by the company. |
| Outcome | Risk of improper alignment, gaps, or operational issues. | Guaranteed professional fit, finish, and function. |
Ultimately, while the potential cost savings of a DIY project are tempting, the safety risks and precision required often make professional installation the smarter, safer bet. A job done right ensures your door works perfectly and safely for years to come.

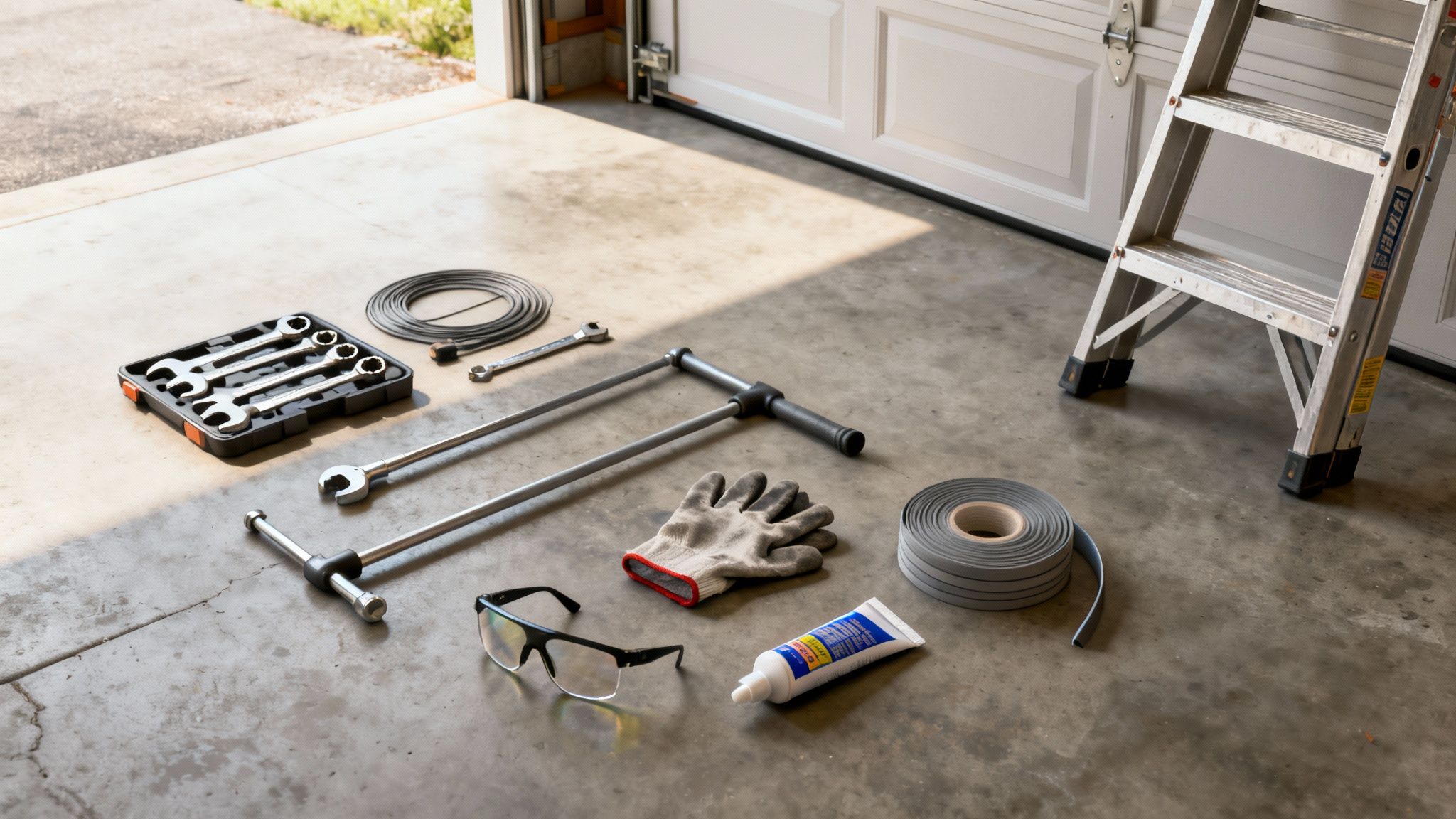

Getting Your Tools and Materials Ready
I've seen it a hundred times: a project grinds to a halt because someone's halfway through and realizes they're missing a critical tool. When you're tackling a garage door replacement, doing your prep work is everything. Laying out all your gear beforehand will make the entire job smoother, safer, and a whole lot less frustrating.
Before you even think about loosening a single bolt, get your supplies in order. This isn't just about being efficient; it's about not leaving your garage wide open to the world while you make a frantic run to the hardware store. Keeping your workspace tidy also makes a huge difference. If you need some pointers on that, check out this great guide on how to organize garage tools.
Your Must-Have Tool List
You probably have most of this stuff already, but a few tools are specific to this kind of work. Don't try to wing it with the wrong equipment—it’s just not worth the risk.
- Safety Gear (Don't Skip This!): These are non-negotiable. Get a good pair of sturdy work gloves to save your hands from sharp metal edges and safety glasses to protect your eyes. Steel-toed boots are a really smart move, too.
- The Basics: You’ll need a solid socket and ratchet set, a mix of Phillips and flathead screwdrivers, pliers, and a reliable tape measure. A rubber mallet also comes in handy for gently tapping parts into place without damaging them.
- Power Tools: A drill or impact driver is a lifesaver. It'll save your arms and a ton of time when you're dealing with all the bolts and screws involved.
- Ladders and Clamps: You'll absolutely need a sturdy ladder (maybe two), locking clamps to hold the door panels secure while you work, and a level to make sure those tracks are perfectly plumb and straight.
A Serious Warning on Torsion Springs: If your garage door has a torsion spring (the big spring on a metal bar above the door), you must use a set of proper winding bars to release the tension. I can't stress this enough: never try to use screwdrivers or anything else as a substitute. That's a recipe for disaster and can cause severe injury.
Materials You'll Need
Besides the new door kit, a few extra items will give you that professional finish and ensure everything works perfectly from the get-go. It’s best to grab these when you buy the door.
- Fresh Weatherstripping: Your kit should include some, but it's wise to have extra vinyl or rubber weatherstripping for the bottom of the door and around the frame. A good seal is key.
- The Right Lubricant: Pick up a can of silicone or lithium-based garage door lubricant. You'll need it for the rollers, hinges, and springs to keep things running quietly.
- Extra Fasteners: The new door will come with hardware, but you might discover the old lag screws holding the tracks are rusted or stripped. It’s smart to have a few new lag screws on hand just in case.
Getting all these items together first is your best move. It transforms what could be a chaotic weekend project into a manageable, step-by-step installation.
Taking Down Your Old Garage Door Safely
Alright, you’ve done your homework, gathered your tools, and you're ready to get your hands dirty. This is the moment where your focus needs to be 100% on safety. An old garage door is a beast—it's heavy, awkward, and held together by some seriously powerful springs. One wrong move here isn't just a mistake; it can lead to severe injury or a big hole in your wall. Let's walk through this the right way.
First thing's first, kill the power. Before you touch a single bolt, unplug the garage door opener from the wall outlet. If your opener is hardwired into the house, find the right breaker in your electrical panel and shut it down. The last thing you need is for that door to start moving on its own while you’re underneath it.
The Most Critical Step: Dealing with the Springs
Let's be blunt: this is, without a doubt, the most dangerous part of the entire job. Those springs are what do all the heavy lifting, and they are under an incredible amount of stored energy. This step alone is why most homeowners wisely decide to call a pro. There are two main types you'll encounter.
Torsion Springs (The Ones to Really Watch Out For)
If you see a big, coiled spring on a metal bar right above the door opening, you've got a torsion spring system. Releasing the tension from one of these requires specific tools and a very steady, respectful approach. This isn't a time for improvisation.
- Door Down: First, make sure the garage door is completely closed. This puts the most tension on the spring itself, but it takes the load off the cables.
- Get the Right Tools: You absolutely must use a pair of proper steel winding bars. These are designed to fit perfectly into the holes on the winding cone. Do not even think about using screwdrivers, a piece of rebar, or anything else. This is how catastrophic, life-altering accidents happen.
- Unwind Carefully: Slide a winding bar into a bottom hole of the cone until it clicks in securely. Holding it firmly, loosen the two set screws on the cone. You will immediately feel the massive torque of the spring trying to throw the bar—hold on tight. Let the bar rotate down a quarter turn (90 degrees). Now, insert your second winding bar into the next hole above it to hold the position.
- Leapfrog Down: With the second bar in place, you can safely remove the first one and repeat the process. It's a slow, methodical leapfrogging motion, one quarter-turn at a time, until all the tension is gone.
Extension Springs (Still Risky, But a Different Process)
These are the long, stretchy springs you'll see running parallel to the horizontal tracks on either side of the door.
- Door Up: For these, you do the opposite—open the door all the way. This lets the springs contract and releases almost all their tension. To be safe, clamp a pair of locking C-clamps or Vise-Grips tightly onto the vertical track, right below the bottom roller on both sides. This ensures the door can't unexpectedly slam shut.
- Disconnect: Now that the spring isn't stretched, you can safely unhook it from the track hanger and the pulley.
- Remove Safety Cables: Each extension spring should have a safety cable running through its center. Carefully unthread it. This little cable is a lifesaver, designed to contain a spring if it ever snaps. Make sure you install the new ones with your new door.
Honestly, if you read through this and feel even a hint of hesitation about the springs, just stop. The risk of a spring letting go is immense. A pro from a trusted company like Danny's Garage Door Repair can have this done safely in minutes. It's the smartest money you can spend on this project.
Removing the Door Panels and Tracks
With the spring tension completely and safely released, the rest of the job is much more straightforward. But don't get complacent; those door sections are still heavy and clumsy.
First, disconnect the opener's J-arm from the bracket on the top garage door panel. This is usually held on with a simple pin and cotter key or a couple of bolts.
Now you can start taking the door apart, one piece at a time. It’s definitely a two-person job.
- Top-Down Approach: Grab your drill or a socket set and start unbolting the hinges connecting the top panel to the second one.
- Get a Helper: As you free one side, have your partner support the panel's weight. Once all the hinges are disconnected, carefully lift the panel out, lower it, and get it out of the way.
- Rinse and Repeat: Just keep working your way down, removing one panel at a time until you get to the bottom section.
Once the panels are gone, all you have left is the metal skeleton—the tracks. They're just held on by brackets bolted to your garage's framing. Go ahead and unbolt everything, removing the vertical and horizontal sections. I always recommend keeping a few of the old bolts and brackets handy until the new door is fully installed. You never know when you might need to reference them.
And just like that, you have a clean slate, ready for your brand new door.
Installing Your New Garage Door Panels and Tracks
With the old door out of the way, you're looking at a clean slate. This is where your careful prep work really starts to pay off, and you finally get to see your new garage door take shape. Installing the new system is more than just bolting parts together—it's about precision. Taking your time here will mean the difference between a door that glides smoothly for years and one that’s a constant headache.
First things first, we need to get the new vertical tracks mounted. Think of these as the foundation for the entire assembly. If they aren’t perfectly straight and aligned, nothing else will fall into place correctly.
Setting Up the Vertical Tracks
Start by loosely attaching the new vertical tracks to the wood jambs framing your garage opening. Don't crank the bolts down just yet; you'll want a bit of play for adjustments. Make sure the bottom of each track is sitting firmly on the garage floor.
Now, grab your level. You need to ensure each track is perfectly plumb—absolutely straight up and down. This is non-negotiable. A track that leans even slightly will cause the rollers to bind, leading to a noisy, jerky door that wears itself out prematurely. Once you're positive it's plumb, go ahead and secure the mounting brackets to the wall.
A pro tip I've picked up over the years: use your level on both the face and the side of the track. This two-way check confirms it isn't tilted in any direction. It’s a small step that prevents some major headaches down the road.
Building the Door, Panel by Panel
Here comes the fun part: assembling the door itself. You’re going to build it from the ground up, starting with the bottom panel. This is definitely a two-person job, as these panels are heavier and more awkward than they look.
Get the bottom panel situated in the opening, making sure it's centered and perfectly level. If your garage floor has a bit of a slope—and most do—you might need to slide some shims under one side to get it just right. An unlevel bottom panel will throw off every single panel you stack on top of it.
With the first panel positioned, install the rollers into the bottom brackets and guide them into the vertical tracks. Then, attach the hinges along the top edge of the panel, following the manufacturer's layout.
Now, lift the second panel and set it onto the first. The groove on the bottom should nestle right onto the tongue of the panel below it. Secure the hinges to the second panel, pop in its rollers, and just keep repeating this process all the way to the top.
- Check for Level Often: After adding each new panel, put your level on top to make sure everything is still straight.
- Don't Over-Tighten: Snug up the fasteners, but don't go crazy. Over-tightening can strip the threads or even damage the door panel itself.
- Install Brackets as You Go: As you build upwards, you’ll be attaching the track brackets and supports to your wall framing along the way.
The market for these parts is huge. In fact, the global garage door replacement parts market was valued at an estimated USD 4.2 billion in 2025. This growth, fueled by the demand for durable metal components like hinges and rollers, shows just how many people are focused on maintaining their garage doors. You can see the full breakdown of this trend by checking out the full research on garage door replacement parts.
Attaching the Horizontal Tracks
Once all the panels are stacked, it's time to install the horizontal tracks—the ones that will guide the door overhead when it opens.
Attach the curved piece of the horizontal track to the top of the vertical track. Then, lift the back end and secure it to the ceiling supports you mounted to the joists. You'll want to build in a slight downward slope from the back of the garage toward the front opening—about a quarter to a half-inch drop is usually perfect. This little bit of an angle helps the door stay shut.
Use your level and tape measure to double-check that both horizontal tracks are at the exact same height and are perfectly parallel. Misaligned horizontal tracks are one of the most common reasons a garage door comes off its rollers. For a closer look at working with the panels themselves, take a look at our guide on how to replace garage door panels.
With the panels stacked and the tracks fully assembled, you have something that finally looks like a garage door. The structure is built, and you’re now ready for the most technical part of the job: connecting the springs and cables that will actually make it move.
Getting the Springs, Cables, and Opener Hooked Up
Alright, here we are. This is the part of the job where things get serious. Connecting and tensioning the springs isn't just technical—it's genuinely dangerous if you don't know exactly what you're doing. If the project has felt pretty straightforward up to now, this is where the difficulty really spikes.
Frankly, this is the make-or-break moment. The immense tension stored in garage door springs can cause severe injury. I always tell homeowners that if there's one step to call a pro for, this is it. But if you're committed to finishing the job yourself, you need to be laser-focused and follow every instruction to the letter.

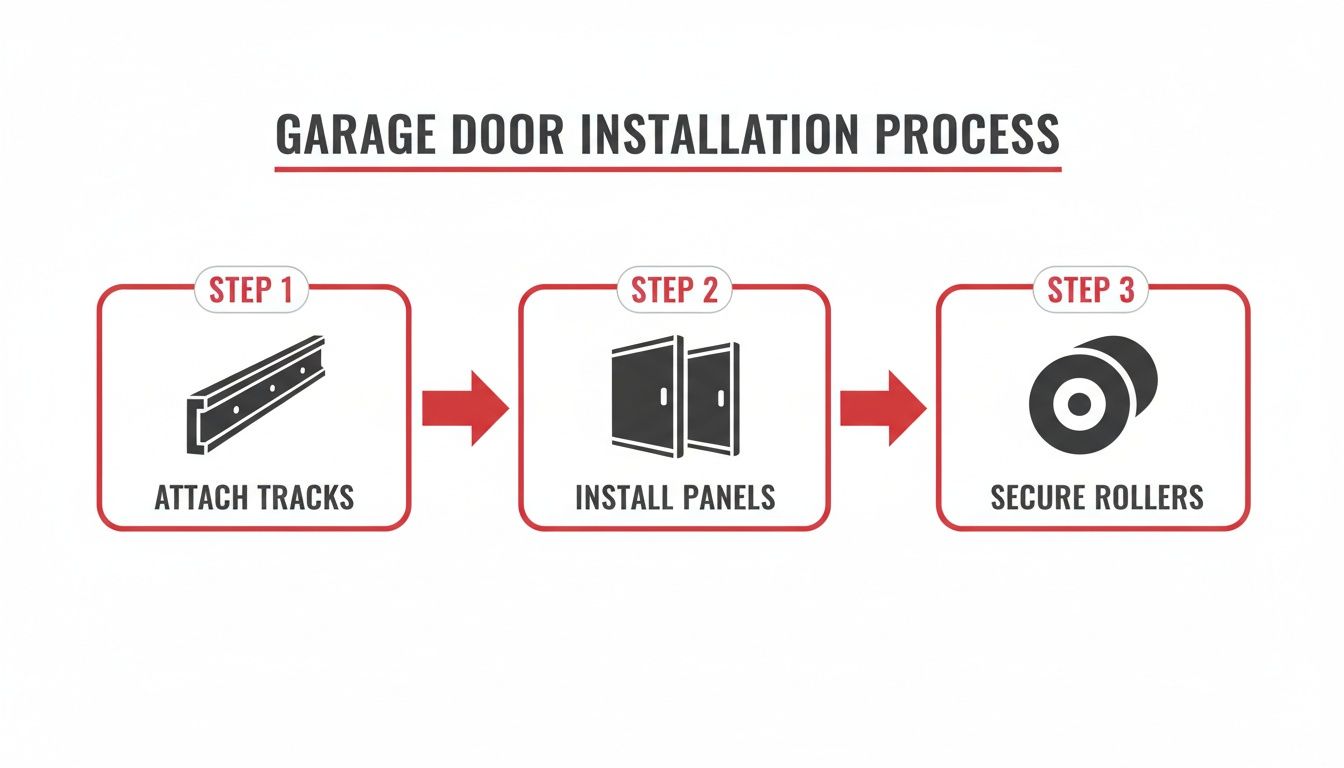

This diagram gives a good overview of the core installation steps, showing how the tracks, panels, and rollers all come together.
Visualizing the assembly helps make sense of how each component supports the next.
Mounting the Spring Assembly
With the door panels installed and in the closed position, it's time to tackle the spring assembly. For a torsion spring system, you'll start by sliding the torsion tube into the brackets you mounted above the door. The springs themselves go onto the tube next, and you have to pay close attention to their orientation—the winding cones are usually color-coded (often red for the left and black for the right) for a reason. Double-check your manual.
After the springs are in place, lock down the center bracket and secure the end bearing plates. The torsion tube needs to spin freely without much side-to-side movement. This assembly is the muscle of your entire system; it has to be set up perfectly. For a deeper dive into this crucial component, our guide on garage door torsion springs repair is a great resource.
Attaching and Tensioning the Lift Cables
Now, let's get the lift cables connected. These run from the bottom brackets on the lowest door panel up to the cable drums at each end of the torsion tube. Make sure the cable spools neatly into the grooves on the drum.
Pull the cables snug by hand before locking them onto the drums. Now for the most critical step: tensioning the springs. Using proper steel winding bars (never screwdrivers!), you'll turn the spring's winding cone a quarter turn at a time. The manufacturer's manual will specify the exact number of turns needed, which is typically around 7-8 full rotations. Don't guess.
This is where the real danger is. That spring is storing an incredible amount of force and will fight you every step of the way. Always keep one winding bar fully seated in the cone before you even think about moving the other one. Once you've reached the correct tension, tighten the set screws on the cone to at least one full turn past snug to lock it onto the tube.
Reconnecting and Calibrating the Opener
Once the door is manually balanced by the springs, you can bring the opener back into the picture. Reattach the J-arm from the opener trolley to the reinforced bracket on the top door panel.
Next up, you have to reprogram the opener's travel limits. This tells the motor where to stop when the door is fully open or closed. Most modern units have simple "up" and "down" buttons you just press and hold to set the new positions.
Finally, and most importantly, you need to test and adjust the safety force settings. Lay a 2×4 flat on the garage floor where the door closes. When the door makes contact with the wood, the auto-reverse mechanism should immediately activate and send the door back up. If it just sits there and tries to crush the wood, the force is set too high and needs to be reduced until it passes this simple test.
Got Questions? We've Got Answers
Even after laying out the whole process, it's natural to have a few more questions pop up. A garage door replacement is a significant project, and the little details matter. Here are some of the most common things we get asked by homeowners around Cleveland, along with some straight-shooting answers to help you out.
How Long Does This Actually Take?
This is probably the number one question we hear, and it really comes down to experience. For a seasoned pro, swapping out a standard garage door usually takes about 3 to 6 hours. We've got the process down to a science, which keeps things moving safely and efficiently.
If you’re a first-timer going the DIY route, be realistic and block out a full weekend. Don't try to cram it into a Saturday afternoon. You'll need plenty of time to safely take down the old door, get the new one installed just right, and then meticulously check all your alignments and balances. Rushing is a recipe for mistakes.
Can I Just Replace a Single Damaged Panel?
Maybe, but it's often not as simple as it sounds. If the damage is isolated and the manufacturer still produces that exact panel, it can be an option. The problem is, "close enough" doesn't work here—the new panel has to be a perfect match in weight, thickness, and style, or you'll throw the whole door's balance out of whack.
Then there's the cosmetic issue. Your existing panels have been sitting in the sun and weather for years, and their color has faded. A brand-new panel will almost always stick out like a sore thumb. It's always a good idea to have a pro take a look and give you an honest opinion on whether a single-panel fix is truly a viable solution for your door.
What's the Most Dangerous Part of a Garage Door Replacement?
Without a doubt, it's the garage door springs. It doesn't matter if you have torsion or extension springs; they are under an immense amount of tension, storing incredible energy.
If a spring is handled or released incorrectly, it can snap back with enough violent force to cause serious injury or significant damage to your property. This is the single biggest reason we tell homeowners to leave anything involving the springs to a trained professional. We have the right tools and, more importantly, the hands-on experience to handle that energy safely.
A professional technician isn't just following steps; they understand the physics of spring tension. They know how to safely release the energy from the old spring and precisely calibrate the new one—a critical skill that's honed over years, not learned from a YouTube video.
Will I Need a Permit for This Job?
That all depends on your local municipality. Some communities here in Northeast Ohio classify a full garage door replacement as a structural change, which means pulling a building permit is mandatory. Others don't require one at all.
Since the rules can be different from one town to the next, the smartest move is to call your local building department before you buy any materials or start the work. A five-minute phone call can save you a world of hassle and potential fines down the road.
