The remote clicks, the opener light responds, and the garage door stays still. That small failure can turn into a frustrating search for the right battery, remote, and button sequence. Before you assume the transmitter is broken, remember that how to reprogram a garage door opener remote is usually a compatibility job, not one universal button press.
Modern systems use a receiver and transmitter that must synchronize. Frequency, rolling-code generation, remote design, and the exact opener model all matter. The procedure below helps you identify the right path, avoid erasing useful settings, and recognize when the problem isn't programming at all.
Before You Touch the Opener
Successful reprogramming starts on the floor, not on the ladder. Collect the remote you want to program, the old remote if you still have it, the wall-mounted control panel, the opener model number, a fresh battery, and a sturdy step ladder. Keep the door area clear so you can test movement without standing beneath a moving panel.
Check compatibility before pressing the Learn button. Garage door systems commonly use 315 MHz or 390 MHz, and many older openers used 390 MHz while later models shifted toward 315 MHz. Chamberlain documentation identifies compatible remotes for 315 MHz or 390 MHz openers made after January 1, 1993, while Genie and Overhead Door guides list 315 MHz and 390 MHz Intellicode or CodeDodger systems from 1995 onward. You can review the frequency and technology details in the FCC equipment documentation.
Practical rule: A remote with the wrong frequency family won't become compatible because its buttons look identical.
Replace the battery in the replacement remote, and consider replacing the old remote's battery too. A weak battery can produce the same symptoms as a failed pairing, especially when the remote works only at very close range. Locate the opener's Learn, Program, or Set button near the motor head and antenna wire, then identify the nearby indicator LED.
The opener's history also matters. Fixed DIP-switch systems used static settings, while rolling-code systems became the major security direction in the 1990s. On a rolling-code opener, programming creates a synchronized relationship between the remote and receiver, rather than copying one permanent code.
The Universal Learn Button Workflow
Most modern openers use the same basic handshake. You place the receiver into a temporary learning state, then send the remote's identity while that state is active. The buttons and LED colors vary, but the logic is similar across Chamberlain, LiftMaster, Genie, and Raynor.

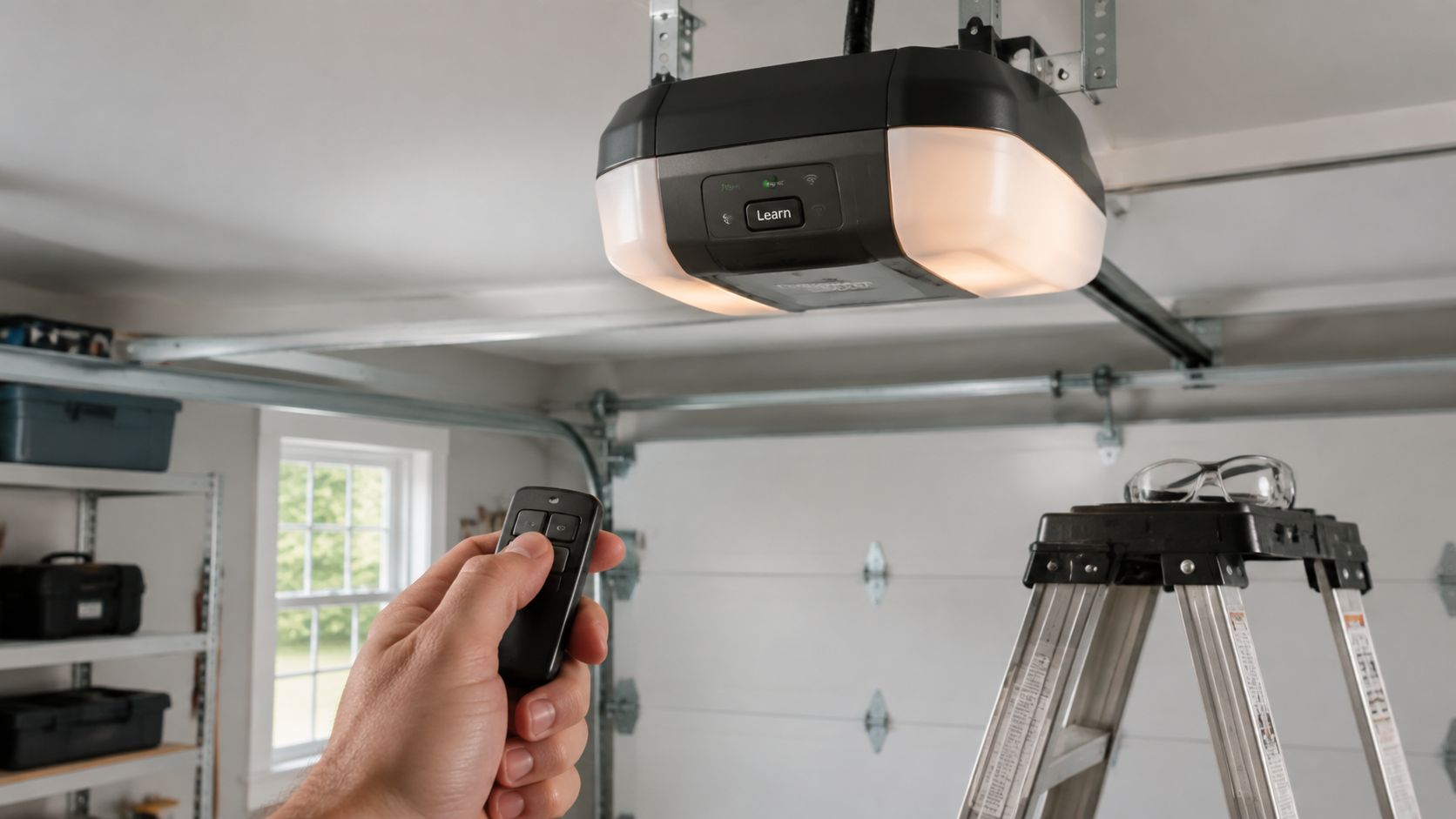

Prepare the receiver
Stand on the ladder with the remote within reach before activating programming mode. Press and release the Learn or Program button on the motor unit. Don't hold it unless the manual specifically tells you to, because a long hold can clear stored remotes instead of opening the enrollment window.
A nearby LED usually glows steadily or changes state when the opener is ready. Chamberlain states that openers with green, red, orange, or purple Learn buttons remain in accessory programming mode for 30 seconds before the Learn LED turns off, as described in its HomeLink programming instructions.
Send the remote signal
Within the active window, press and hold the button you want to use on the remote. Hold it long enough for the opener and rolling-code transmitter to exchange information, then release it when the opener light blinks, the LED changes, or you hear a click. A confirmation signal means the receiver accepted the remote's code.
If nothing happens, don't immediately press the Learn button again. The window may have closed, or the remote may be incompatible. Press the remote button only after the opener indicates that it is listening.
Some systems use a second-stage process for vehicle-integrated controls such as HomeLink. After activating the opener's Learn function, the vehicle button may need to be pressed and released within 20 seconds, and the sequence may need to be repeated up to 3 times, according to HomeLink training guidance.
Step away from the door's travel path before testing. Press the programmed button once and watch the entire cycle. If the door doesn't respond, stop and diagnose the pairing rather than repeatedly cycling the opener.
For a model-specific location guide, use the garage door opener Learn button reference.
Brand-Specific Reprogramming Steps
The Learn-button idea is shared across major brands, but the details can change enough to cause failed attempts. Chamberlain and LiftMaster often share color conventions, Genie uses Intellicode terminology, and Raynor may look familiar while requiring its own remote family.
Reprogramming Differences by Brand
| Brand | Learn Button Color | Activation Window | Notable Detail |
|---|---|---|---|
| Chamberlain | Yellow, purple, red, or green | Usually about 30 seconds | Match the remote to the opener's rolling-code generation and frequency |
| LiftMaster | Yellow, purple, red, or green | Usually about 30 seconds | Commercial and residential models can use different remote families |
| Genie | Often labeled Program or Set | Model-specific, commonly short | Intellicode systems may require repeated remote-button presses |
| Raynor | Color-coded Learn button | Usually about 30 seconds | The button scheme resembles Chamberlain, but Raynor remotes remain model-specific |
Chamberlain and LiftMaster
Find the colored Learn button on the motor unit, press and release it, and wait for the indicator LED to show that the receiver is ready. Press the selected remote button, hold it until the opener light blinks or the unit clicks, then release and test.
Post-2011 systems commonly use Security+ 2.0, and the remote must support that rolling-code generation. The broader opener timeline moved from 8–12 DIP switches on many 1984–1993 units to Billion Code, Security+, Security+ 2.0, and later Security+ 3.0 systems, as summarized in the garage door opener technology timeline. A modern remote won't necessarily program to an older receiver just because both carry the same brand name.
LiftMaster models may also be installed in light-commercial settings, where access control matters more than one handheld remote. If you're working with a LiftMaster unit, follow the model-specific sequence in this LiftMaster programming guide.
Genie and Raynor
For Genie, locate the Program or Set button, often behind the light cover or on the rear of the motor head. Press and release the control, activate the remote, and watch for the confirmation light. Older Intellicode models may require pressing the remote button three times to complete synchronization, so one press isn't always enough.
Raynor follows a similar color-coded Learn-button approach. Press and release the Learn button, wait for the indicator to glow steadily, then press and hold the handheld remote button until the opener lights blink. Raynor's instructions describe a 30-second learning period and a visible light response when the remote is accepted, as shown in this Raynor programming guidance.
Universal clone remotes create a separate problem. Clicker-style remotes with DIP switches may use a trim-pot or switch-setting process instead of the rolling-code Learn workflow. If the remote has physical code switches rather than a normal pairing button, use its own manual instead of repeatedly pressing the opener's Learn button.

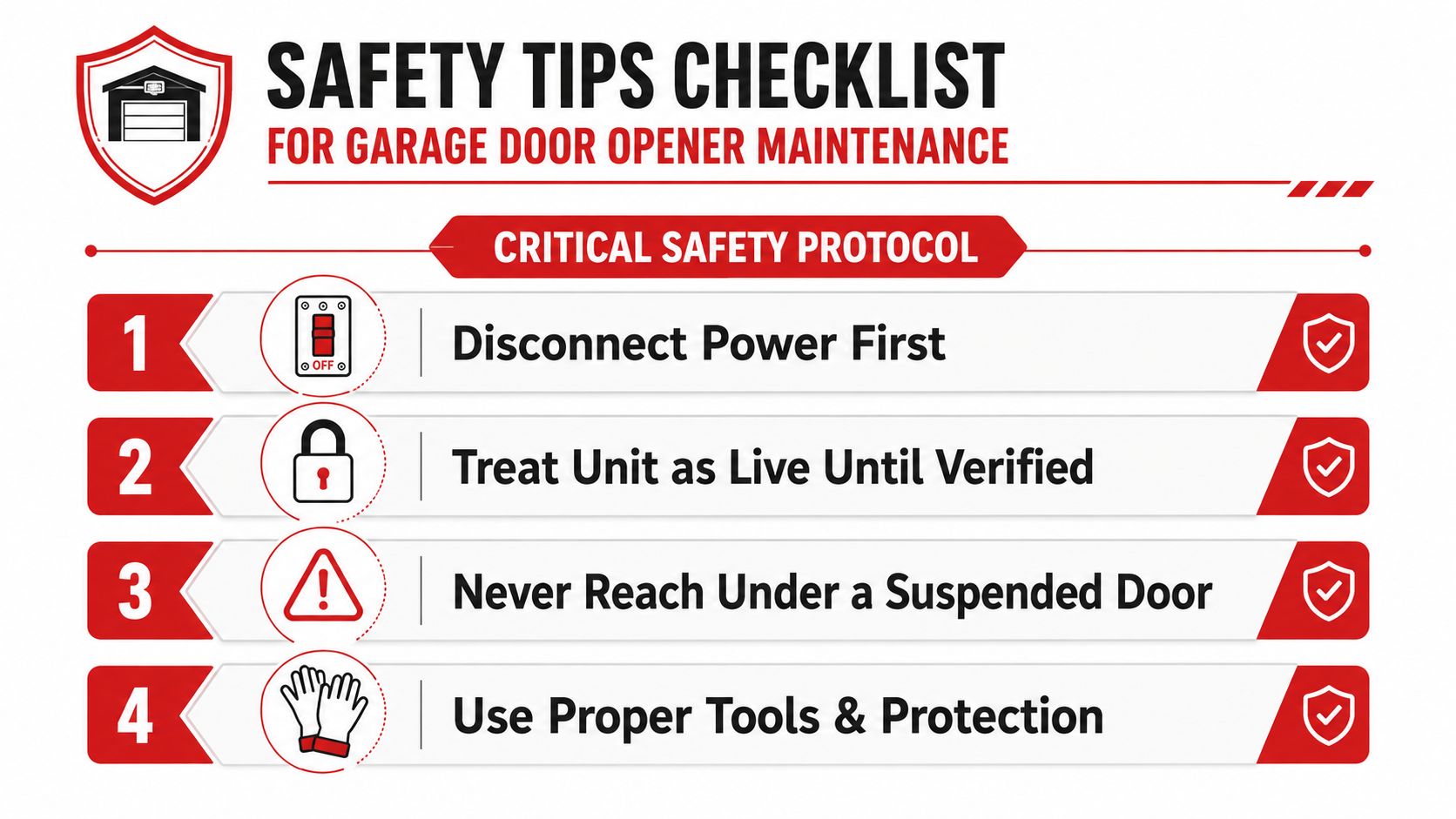

Safety Tips You Should Not Skip
Treat the opener as live machinery until you've verified its condition. Disconnect power at the breaker or unplug the motor unit before changing batteries or opening a housing, and never reach toward the door, trolley, springs, or rollers while another person is pressing a remote.
Use a stable step stool or ladder. Don't climb the opener rail, stand on the door, or use the torsion spring assembly as a handhold. Keep your body weight off the door, and wear safety glasses if you're clearing old codes or working around the motor housing.
Make the test area safe
Before testing, check that the travel path is clear of people, pets, vehicles, bicycles, and stored equipment. Keep children away from the programming area because an accidental button press can start the door.
Power down before replacing a battery to reduce the chance of short-circuiting the remote or opener electronics. If you see frayed wiring, burn marks, visible arcing, or smell something overheated, stop. Don't continue with programming, and don't open a sealed motor housing to investigate.
For access-control considerations, especially after losing a remote or moving into a property, review this guidance on garage door remote security. Clearing access can be useful, but the wrong reset sequence may remove every enrolled remote and keypad.
Troubleshooting When Programming Fails
When pairing fails, change one variable at a time. Start with compatibility, then move to power, timing, memory, and finally the receiver itself. Randomly holding buttons often makes diagnosis harder because it can close the learning window or erase stored devices.
Read the signal before replacing parts
A 315 MHz remote won't communicate with a 390 MHz opener. The frequency must match, and the rolling-code generation must match as well. A remote can look correct, light up, and still produce no response if its technology is wrong.
Next, fit a fresh battery and test the remote close to the opener. A battery that passes a simple continuity check can still fail under load, so the useful test is whether the transmitter produces a strong signal when the button is pressed.
Timing is the next suspect. Press and release Learn, then activate the remote promptly. Many systems close the enrollment window after 30 seconds, while independent manuals describe pairing windows that can be as short as 10–30 seconds, as noted in these remote programming technical instructions.
Use the LED as a diagnostic tool
| LED Pattern | Likely Cause | Recommended Fix |
|---|---|---|
| Steady glow | Learn mode is active | Press the remote button while the LED remains ready |
| Single blink or light flash | Remote code was accepted | Step clear and test the door |
| No change | Window closed, wrong remote, or weak battery | Repeat with a fresh battery and confirmed-compatible remote |
| Repeated blinking | Memory or reset condition may need attention | Consult the model manual before clearing codes |
| Light goes out before activation | Enrollment period expired | Start the Learn sequence again without holding the Learn button |
If the opener has old remotes stored, clear the memory only when you're prepared to re-enroll the devices you still need. This is particularly useful after a remote is lost, but it isn't the first fix for a weak battery or wrong frequency.
A known-good remote helps isolate the fault. If two compatible remotes fail while the Learn LED never responds, the receiver or logic board becomes more likely than the handset. If one remote works and another doesn't, focus on the failed remote's battery, frequency, code generation, or internal button.
When to Call a Garage Door Technician
Stop trying to reprogram the remote when the symptoms point to mechanical or electrical trouble. A motor head that hums without moving the door, a slipping chain, or a door that reverses during travel won't be repaired by another Learn-button attempt.
Call for help if the Learn button is missing, recessed beyond safe reach, or hidden behind a sealed panel. A cracked housing can also expose the electronics to moisture, and forcing the cover may damage the board or wiring.
A remote problem is usually safe to diagnose. A spring, cable, track, or electrical problem is a different job.
Don't run the opener if you see frayed wiring, burn marks, arcing, or signs of overheating. A tripped breaker combined with a burning smell needs electrical attention, not repeated resets.
An older opener may also lack support for modern rolling-code remotes. The North American technology progression from DIP switches to newer Security+ generations means replacement decisions depend on the receiver's age and design, not just the remote's brand. If the unit is beyond the practical support period, a compatible repair or opener upgrade may make more sense than forcing an unsuitable transmitter onto legacy electronics.
If you've checked the frequency, installed a fresh battery, respected the enrollment window, and still get no LED response, the receiver module deserves professional testing. A service visit is safer than guesswork around a logic board, door springs, or moving hardware.

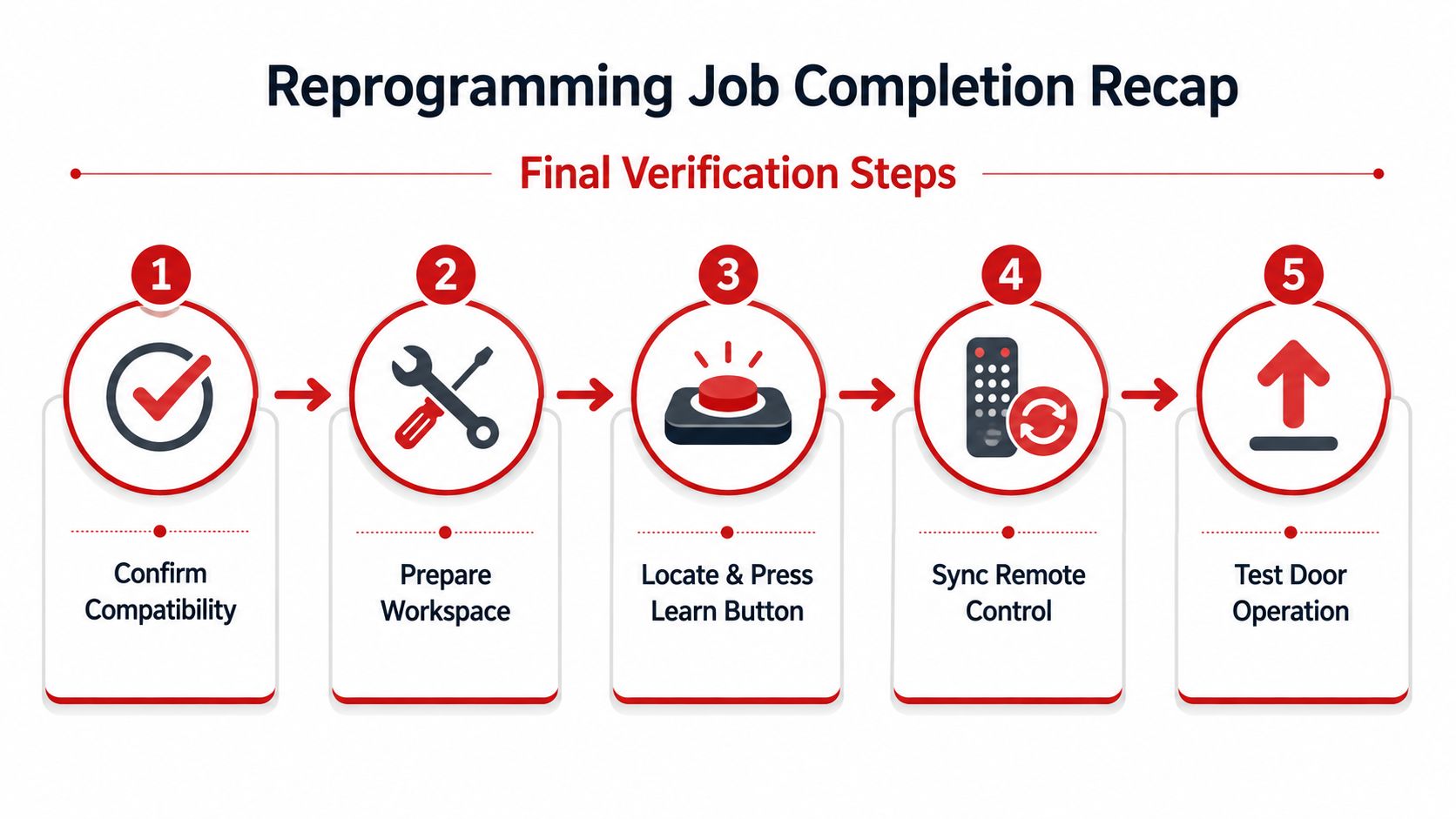

Wrapping Up Your Reprogramming Job
The reliable sequence is straightforward: confirm the frequency and rolling-code generation, prepare a clear workspace, locate the correct Learn or Program button, synchronize the remote, and test from a safe position. Chamberlain and LiftMaster commonly use colored Learn buttons, Genie uses Intellicode and Program or Set controls, and Raynor follows a similar color-coded process with its own remote line.
Test the remote at its normal operating range after pairing. If it works only inches from the opener, suspect the battery, antenna, interference, or receiver rather than assuming the programming succeeded fully. Clear old codes when a remote has been lost, but remember that a full memory reset means you'll need to enroll the devices you still use.
Keep the opener model number, a fresh battery, and a small ladder where you can find them. With the right preparation, most homeowners can complete a compatible remote pairing quickly, while persistent LED or movement problems are a clear signal to stop pressing buttons and investigate the hardware.
