The easiest way to see if your garage door sensors are on the job is to do a quick "interruption test." Just start closing your garage door like you normally would, and then wave something like a broom handle through the path of the sensors near the floor.
If everything is working correctly, the door should immediately stop its downward travel and reverse back to the open position. This simple check is your first and best way to confirm that your home's largest moving part has its most critical safety feature engaged.
Why Your Garage Door Sensors Need Regular Checkups
You’ve probably seen them a thousand times—those little black boxes mounted on each side of your garage door opening. They may not look like much, but they are genuine safety heroes. One box sends an invisible infrared beam to the other, creating a tripwire that protects the opening.
If anything—a pet, a child, your car bumper—breaks that beam while the door is closing, the opener’s logic board gets an instant signal to reverse course. This single feature prevents countless accidents and damage. Simply put, ignoring them is a major safety gamble.
Telltale Signs of Sensor Failure
So, how can you tell if your sensors are acting up? Thankfully, your garage door usually gives you some pretty clear signals that something is wrong. Look out for these common symptoms:
- The door won't close at all. This is the classic sign. You'll hit the button, the door will start down, travel a few inches, and then shoot right back up.
- Blinking lights on the sensors. The small LED lights on the sensor units themselves will often flash or go out entirely if they are misaligned or not getting power. A solid light is what you want to see.
- You have to hold down the wall button. If the only way to get the door to close is by keeping your finger pressed on the wall-mounted button, you're using the safety override. This is a direct sign the sensors are not functioning.
Before you find yourself with a door that won't close, it's a good idea to quickly check your sensors. When your garage door starts acting strange, these symptoms are often the first place to look.
Here’s a quick summary of what to look for:
Quick Sensor Failure Checklist
| Symptom | What It Likely Means | Action to Take |
|---|---|---|
| Garage door reverses immediately after starting to close. | The sensor beam is being interrupted or the sensors are misaligned. | Check for obstructions and try realigning the sensors. |
| Blinking LED lights on one or both sensors. | There is a power issue or a problem with alignment. | Check wiring connections and realign the sensors until lights are solid. |
| The door only closes when you hold the wall button. | The safety sensor system is being manually overridden, indicating a sensor fault. | This confirms a sensor problem. Perform alignment and electrical checks. |
This table should help you quickly diagnose the issue and decide on your next step.
Regularly checking your sensors is a key part of any good maintenance plan. For a deeper dive into what keeps your door running smoothly, you can learn about the benefits of a planned garage door maintenance program.
A bit of industry history: Believe it or not, the old-school way to test a garage door's safety reverse was to put a 2×4 flat on the floor in the door's path. If the door hit the wood and didn't reverse, it failed the test. As you can imagine, this "reverse-jam test" caused a lot of damage to doors and openers over the years. With modern safety standards and liability concerns, the industry has thankfully moved on to non-destructive methods, making the beam interruption test the gold standard for homeowners.
The Basic Obstruction Test Everyone Should Know
This is the first, and most important, safety check you can perform on your garage door. Honestly, it’s something you should get in the habit of doing every month. All you're doing is seeing if the door's safety sensors react properly when their invisible beam is broken. Best of all, you don’t need a single tool.
Think of it as a quick fire drill for your garage door—a simple test to make sure it will do its job and protect your family, pets, or vehicle from being hit by a closing door.
How to Run the Test
First, you'll need something to block the beam. I usually tell people to grab a cardboard box, a roll of paper towels, or even a soft toy. The key is to use something solid enough to break the beam but soft enough that it won't scratch the door if anything goes wrong.
With your object in hand, here’s what to do:
- Press your remote or wall-mounted button to start closing the door.
- As the door starts to travel down, place your object on the ground directly in the path of the sensors. It needs to be tall enough to fully block the beam.
- You can also carefully wave your foot through the beam, but please, never try to stop the door with your hands or any part of your body.
The instant the beam is broken, the garage door should immediately stop its descent and reverse all the way back up. If it does that, your sensors are working perfectly.
What the Results Tell You
If the door reverses, fantastic. You're good to go for another month.
But what if it keeps closing? If that door doesn't stop and reverse, you have a serious safety problem on your hands.
Important Takeaway: A door that fails this simple test is a major safety hazard. Unplug the opener or disengage it immediately. You'll need to operate the door manually until you get this fixed. This is non-negotiable—it prevents a potential accident while you figure out the root cause.
A failed test often points to misaligned sensors or a wiring problem. If you find yourself in this situation, our guide on what to do when your garage door will not close has the detailed troubleshooting steps you need.
From my experience in the field, I can tell you that dirty or misaligned sensors account for a huge number of service calls—somewhere between 20–35% of all "door won't close" complaints. It's a common issue, but luckily, it's also a very preventable one. A quick monthly check is all it takes to stay ahead of it.
Troubleshooting Common Sensor Problems Yourself
So, you tried the basic obstruction test, and the door didn't cooperate. Or maybe you've noticed one of those little sensor lights is blinking like it's trying to send you a message in Morse code. Don't sweat it. This is one of the most common garage door hiccups, and the fix is usually much simpler than you'd think. Most of the time, you can solve this yourself in just a few minutes.
Let's start with the easiest and most frequent culprit: a dirty sensor eye. It sounds almost too simple, but you'd be surprised how often a thin layer of dust, a piece of a leaf, or a well-placed spider web is the only thing keeping your door from working properly.
Start With a Simple Cleaning
Before you break out any tools, just grab a clean, soft microfiber cloth. Gently wipe the lens on both the sending and receiving sensors. You don't need any Windex or harsh chemicals for this—in fact, they can damage the lens. A quick, dry wipe is usually all it takes.
After you've cleaned them, glance at the small LED lights on the back of each sensor. If they're both glowing steadily, you've probably just fixed it. Run the obstruction test again to be sure.
If the lights are still off or blinking, it's time to check for the next likely suspect: physical blockages or a simple misalignment.
Check for Blockages and Bumps
Scan the area directly around both sensors. Has a shovel, a recycling bin, or a soccer ball rolled into the beam's path? Anything that breaks that invisible line of sight will prevent the door from closing as a safety measure.
It's also incredibly common for the sensor itself to get bumped. We've all done it—dragging a trash can or garden hose out, and whack. Even a tiny nudge can be enough to knock it out of perfect alignment, and "close enough" doesn't count here.

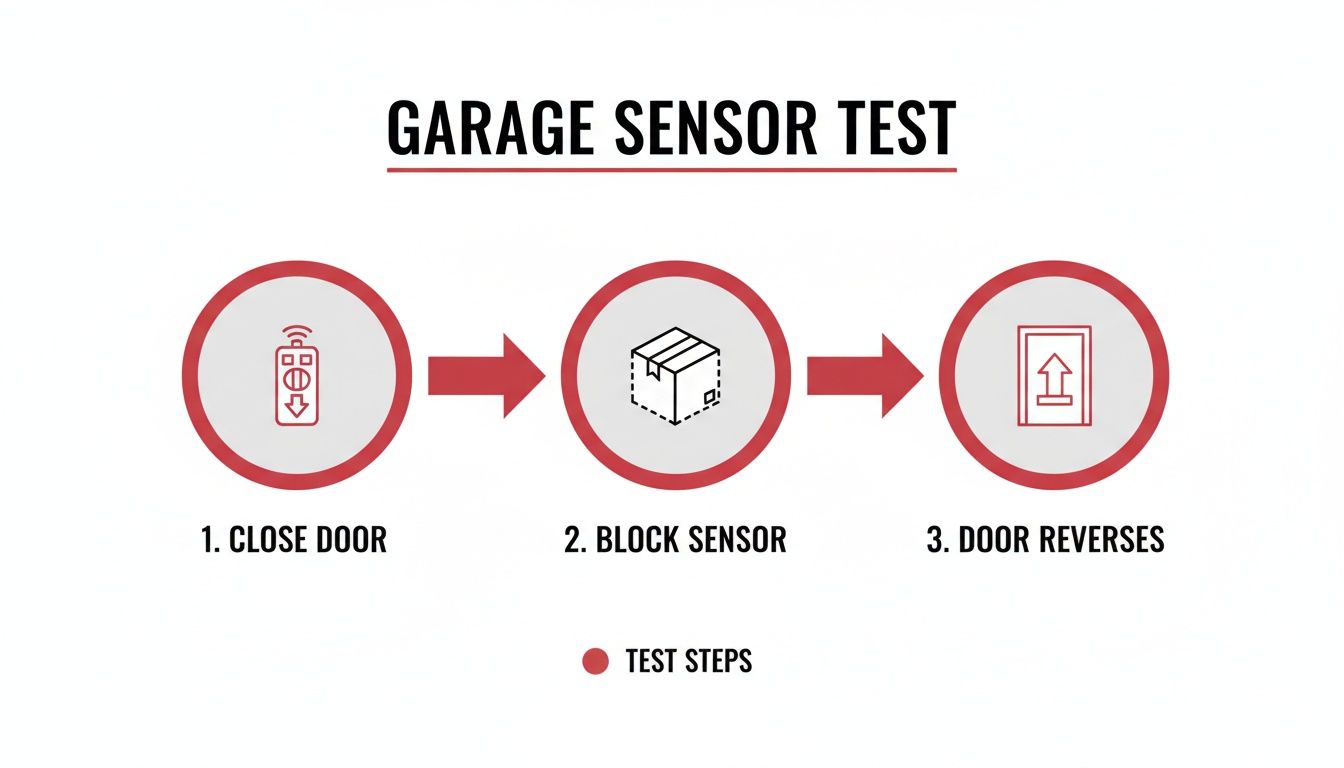

This is the core safety test in action, and it all hinges on a clear, perfectly aligned beam.
As you can see, the test only works if the sensors can detect the obstruction and tell the motor to reverse. If they're misaligned, that safety command never gets sent.
Perfecting the Sensor Alignment
Getting your sensors aligned is all about making sure they have a perfect, direct line of sight to each other. The LED lights on the units are your best guide. Typically, the sending sensor (usually with an amber/yellow light) will stay lit as long as it has power. The receiving sensor (usually with a green light) will only light up when it can clearly "see" the beam from the sender.
Pro Tip: Your goal is to get two solid LED lights, one on each sensor. A blinking or dead green light on the receiver is the classic sign of misalignment.
To fix it, just loosen the wingnut on the blinking sensor's bracket enough to let you pivot it. Slowly—and I mean slowly—adjust the sensor up, down, left, and right. You're playing a game of millimeters. Watch the LED light the entire time. The moment it turns solid, stop and hold it there while you tighten the wingnut.
Deciphering the Blinking Lights
Those little LED lights are your best diagnostic tool, but their codes can vary by brand. A solid light is almost always good, while a blinking light usually points to a problem like misalignment or a wiring issue.
Here’s a quick reference guide to help you decipher what the lights on your sensors are trying to tell you.
Sensor LED Light Codes and What They Mean
| Brand | Sending Sensor Light (Amber) | Receiving Sensor Light (Green) | Common Meaning |
|---|---|---|---|
| LiftMaster / Chamberlain | Solid On | Blinking | Misaligned or obstructed sensors. The blinking green light means it can't see the sender. |
| LiftMaster / Chamberlain | Solid On | Solid Off | No power to the green sensor, or the sensor is faulty. Check the wiring. |
| Genie / Overhead Door | Solid Red | Blinking Red | Sensors are misaligned or obstructed. The blinking red indicates it's not receiving the signal. |
| Craftsman | Solid On (Amber) | Blinking (Green) | Similar to LiftMaster; this indicates an alignment or obstruction issue. |
| Ryobi | Solid Yellow | Blinking Green | Misalignment or something is blocking the beam. |
While this table covers the most common brands, always double-check your owner's manual if you're unsure, as models can have their own unique codes.
Inspect the Wiring Connections
If cleaning and alignment haven't solved it, it's time for a quick wiring check. This sounds more intimidating than it is. Look closely at the wires where they connect to the back of each sensor. Over time, or from getting snagged, a wire can work its way loose from the terminal.
You'll see two small wires entering each sensor. Give each one a very gentle tug to confirm they're secure. If you find one that's loose, you'll need to reconnect it. Before you touch a single wire, unplug the garage door opener from the wall outlet. Safety first. If a wire is loose, you may need to strip a tiny bit of insulation from the end and re-insert it firmly into the terminal.
A Deeper Dive into Wiring and Power Issues
So, you’ve cleaned the lenses and tweaked the alignment, but the sensor lights are still stubbornly dark or flickering. It's time to put on your detective hat and check the wiring. This sounds more intimidating than it is—we’re just doing a simple visual check for anything obvious between the sensors and the main opener unit.
First things first: safety is non-negotiable. Before you touch a single wire, kill the power to your garage door opener. The quickest way is to just unplug the unit from the outlet on the ceiling. If you can't reach it, head to your breaker box and flip the switch for the garage.
Tracing the Wires from Sensor to Opener
With the power safely off, start at one of the sensors and trace its thin wire all the way back to the motor. These are low-voltage wires, but they're also surprisingly fragile.
Keep an eye out for any signs of damage along the path. These wires are often held in place with staples, and it’s not uncommon for a staple to be hammered in too aggressively, pinching or even cutting the wire inside the insulation.
Here's what you're looking for:
- Pinched or crushed spots: Check where staples are or where the wire bends sharply around a corner.
- Frayed or chewed wires: Garage pests can sometimes nibble on the insulation, exposing the delicate copper wire inside.
- Obvious breaks or cuts: It's amazing how easily a misplaced ladder or rake can snag and sever these little wires.
More often than not, this simple walk-through is all it takes to find the culprit. A damaged wire can't carry a reliable signal, which is a classic reason for misbehaving sensors.
Checking the Connections at the Motor
Next, follow those wires all the way to the back of the opener unit itself. This is their final destination. You'll find a terminal block where they connect, usually labeled for "safety sensors" or "photo eyes."
Give each wire a gentle tug. Do they feel secure? The constant vibration from the opener can sometimes wiggle a connection loose over the years. If one pops out, just strip a fresh bit of wire if needed, slide it back into the correct terminal, and tighten the screw until it's snug.
Pro Tip: A loose connection at the opener is one of the most common—and frustrating—causes of sensor problems. It can create an intermittent issue that works one day and fails the next. Simply making sure these connections are solid can save you a huge headache.
Signs of a Bigger Problem
If you’ve followed the wiring from end to end and all the connections are tight, but the sensors still won't power on, the problem might be deeper. The issue could be with the opener's logic board, which is essentially the unit's brain.
A failing logic board can stop sending power to the sensors entirely. This is where most DIY fixes come to a halt. If you’ve ruled everything else out, it’s time to accept that the opener itself might have an internal fault. Our guide on garage door opener troubleshooting can shed more light on these complex issues, but this is usually the point where it’s best to call in a pro.
Knowing When to Call a Professional Technician
I'm all for a good DIY fix—it's satisfying and can save you a few bucks. But when it comes to garage door sensors, it's crucial to recognize when you're in over your head. Pushing past your limits can turn a minor hiccup into a major headache.
If you've gone through all the basic troubleshooting—you've cleaned the lenses, double-checked the alignment, and confirmed the wiring is snug—but that door still won't close, it’s probably time to hang it up.
When a Pro Is Your Best Bet
There are a few tell-tale signs that scream "call a professional." One of the biggest is seeing visibly damaged wires. I'm not talking about a loose connection at the terminal; I mean frayed, chewed, or completely severed wires running along the wall. That’s more than a quick fix—it’s a safety issue.
Another major red flag is when you suspect the problem is buried deep inside the opener's logic board. Let's say you've confirmed the sensors are perfectly aligned and the wiring looks solid, but the LED lights are completely dead. No flicker, no light, nothing. This usually points to a problem inside the motor unit itself, and that’s not something you want to start poking around in without proper training.
Sometimes, you just run out of options. When you've tried everything you can think of, a door repair specialist can be a lifesaver. Their experience often lets them spot things the average homeowner would miss, saving you from a world of frustration.
Here's the real difference: A professional technician shows up with diagnostic equipment that goes way beyond a simple multimeter. They can test the electrical output right from the logic board, turning what was your best guess into a precise diagnosis.
This level of precision is becoming the new standard. Technicians are now using advanced tools to measure a door's closing force and reversal speed down to the fraction of an inch and millisecond. It's a far cry from a simple pass/fail test. These instrumented and algorithmic testing methods ensure your door isn't just working, but that it's meeting exact safety specifications.
At the end of the day, making that call isn't admitting defeat. It’s the smart move. It ensures the job is done right, keeping your family, your property, and your peace of mind safe.
Got Questions About Your Garage Door Sensors?
Even after going through the troubleshooting steps, you probably still have a few questions. That's perfectly normal. Let's tackle some of the most common ones we get from homeowners just like you.
Is It Okay to Just Bypass My Garage Door Sensors?
Let me be crystal clear on this: never, ever bypass your garage door sensors. While you might find a way to do it on an older model, you'd be disabling the single most important safety feature of your entire garage door system.
It's designed to prevent the door from coming down on a person, a pet, or your car. Bypassing it is like cutting the seatbelts out of your vehicle. Sure, the car still runs, but you've gotten rid of a feature that could save a life. The only real solution is to get them fixed or replaced.
Why Are the Little Lights on My Sensors Blinking?
A blinking light is your sensor's way of waving a red flag. In my experience, over 90% of the time, a blinking light on the receiving sensor (that's usually the green one) simply means they're knocked out of alignment and can't see each other.
A few other culprits could be:
- Something is physically blocking the invisible beam.
- The sensor's "eye" is dirty or has a spiderweb on it.
- You've got a loose wire or a bad connection somewhere.
Start with the easiest stuff first: check for blockages and try to realign them. If the lights go solid, problem solved. If they're still flashing after that, it's time to take a closer look at the wiring.
A Pro's Rule of Thumb: A blinking light usually points to an alignment or obstruction issue. A light that's completely out, however, often signals a deeper power or wiring problem.
What’s the Damage? How Much to Replace Garage Door Sensors?
The cost really depends on whether you're a DIYer or you'd rather have a pro handle it. If you're tackling it yourself, you can grab a new pair of sensors for anywhere between $25 and $100, depending on the brand.
If you bring in a technician, you're likely looking at a total bill between $150 and $250. That cost typically includes the parts, the professional installation, and a full safety check to make sure everything is tuned up and working correctly.
Can the Sun Really Mess with My Garage Door Sensors?
Oh, absolutely. Direct sunlight can definitely cause interference, and it's a more common problem than you might think, especially if your garage faces east or west.
Here’s what happens: the receiving sensor is looking for a very specific infrared beam. When bright, direct sunlight hits the lens at just the right angle, it can overwhelm the sensor, essentially blinding it. It can't see the beam from its partner, so the door won't close. This usually only happens at certain times of the day when the sun is low in the sky.
A couple of easy tricks usually solve this. You can try swapping the sender and receiver so the sun isn't hitting the receiver directly. Another great option is to install a pair of sun shields—they’re just little hoods that shade the sensor lenses.
If you've worked through these tips and your garage door is still giving you grief, don't keep fighting it. The team at Danny's Garage Door Repair provides expert, reliable service all over the Greater Cleveland area. Whether it's an emergency fix or just a routine safety check, we've got you covered. Visit us online to schedule your free estimate today!
