The garage door starts down, the opener lights blink, and then the door reverses. Nothing appears to block the opening, so it's tempting to blame the motor. In many cases, the problem is a loose sensor wire, mismatched conductors, a damaged cable, or a sensor pair that the opener can't monitor correctly.
Learning how to wire garage door sensors means more than matching two colors at the motor unit. The sensors are part of a monitored safety circuit. Their wiring, mounting height, beam alignment, and compatibility with the opener all determine whether the door can close safely.
Why Garage Door Sensor Wiring Matters
A garage door can stop halfway, reverse, or refuse to close even when both sensor housings look undamaged. In real installations, the fault often sits in the low-voltage wiring: a conductor loosened at the opener, a damaged cable, mismatched sensor terminals, or a sensor pair the opener cannot monitor correctly.
Modern photoelectric sensors use two devices mounted on opposite sides of the door. One sends an invisible beam across the opening, and the other receives it. If the beam is blocked, misaligned, or interrupted by a wiring fault, the opener should treat the condition as unsafe and stop or reverse the door.
The opener continuously checks this safety circuit. A sensor indicator may be lit while the circuit still provides no usable safety signal. Reversed polarity pairing, a loose strand, or a conductor landed on the wrong terminal can create that silent failure. Smart openers can add another compatibility issue, because some require approved monitored sensors rather than a visually similar replacement.
Practical rule: A sensor light being on doesn't prove the complete safety circuit works. Test the wiring, alignment, and reversal response together.
Federal safety rules changed automatic residential opener design in the early 1990s. The Consumer Product Safety Improvement Act of 1990 required openers manufactured on or after January 1, 1991, to meet entrapment-protection requirements. Later CPSC rules added protection for openers manufactured on or after January 1, 1993, following congressional action in response to 48 child entrapment deaths. The CPSC's final-rule summary explains that history.
That change is why modern residential systems use photoelectric or equivalent entrapment protection instead of relying only on motor reversal. The monitored low-voltage loop also reflects UL 325 requirements. DASMA's UL 325 guidance describes continuous monitoring of the sensor circuit.
For a closer explanation of sensor function and safety, read our guide to garage door safety sensors. A bypassed or incorrectly wired sensor circuit isn't a harmless shortcut. It removes a safety feature intended to keep the door from closing when the opener cannot confirm a clear beam.

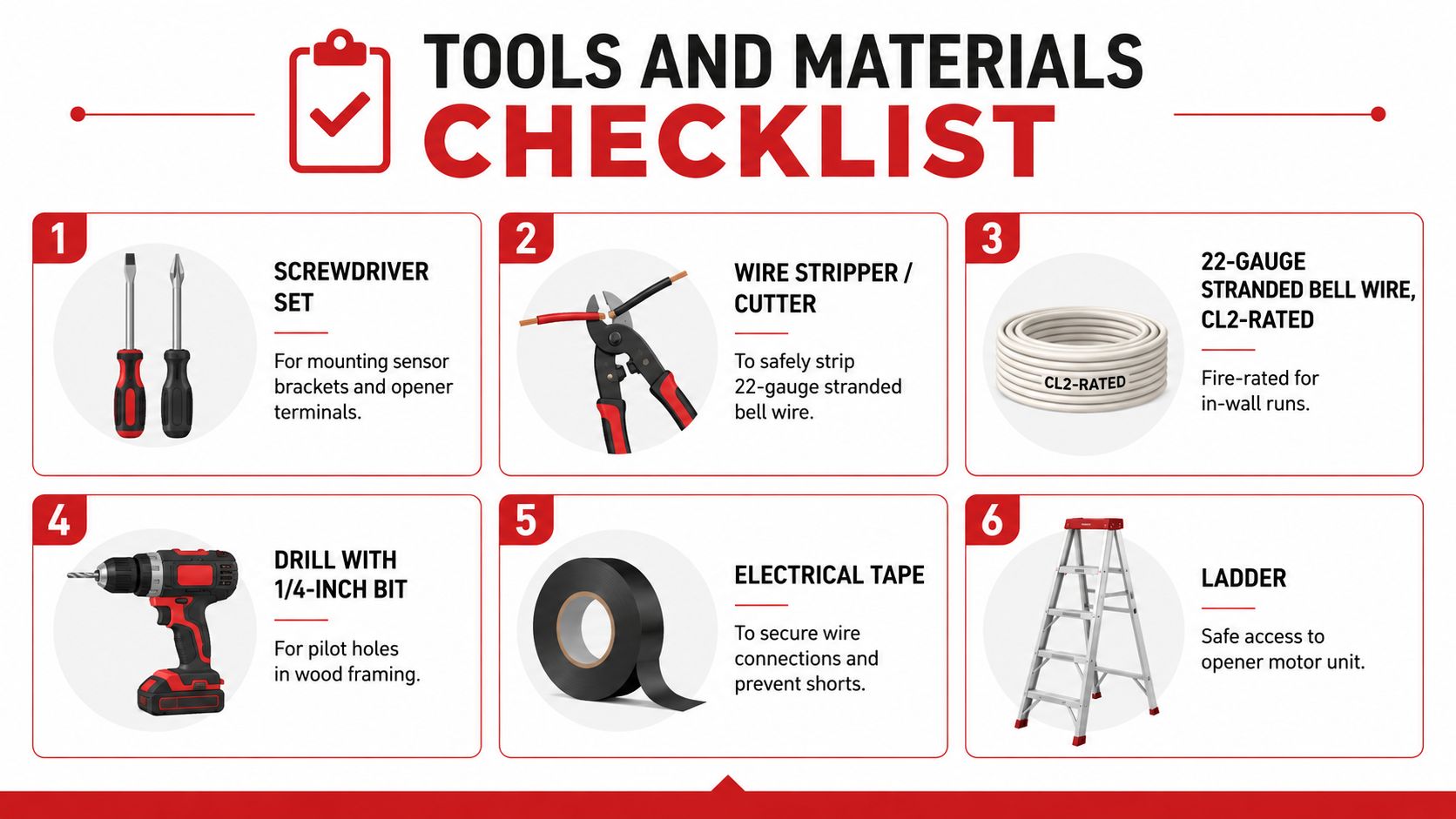

Tools and Materials You Need Before Starting
Good preparation prevents most wiring mistakes. Before opening the terminal cover, identify the opener brand and model, inspect the existing sensor cable, and check whether the replacement sensors are approved for that opener. Chamberlain, LiftMaster, Genie, Craftsman, and other brands can use similar-looking photo eyes while still requiring different terminals or compatible accessories.
Choose the cable for the route
For a typical exposed residential run, 22-gauge, two-conductor low-voltage wire is a practical choice. Industry guidance commonly specifies 22-gauge wire and recommends keeping the run at least 12 inches away from high-voltage lines to reduce interference. This photocell installation guidance covers that wiring approach.
Stranded 22-gauge bell wire is flexible and works well where the cable runs along the wall, door frame, or opener rail. For a permanent route inside a wall or ceiling, choose cable with a CL2 rating where required for the installation. CL2-rated cable is intended for certain in-wall low-voltage applications, which makes it a better choice than casually hiding ordinary exposed bell wire.
You'll also want:
- Wire stripper and cutter: Use a tool that can strip small low-voltage conductors without nicking the copper.
- Small flathead screwdriver: Opener terminal blocks often use small screws or spring-release slots.
- Level and tape measure: These help you set both sensors at the same height and keep their faces aimed directly across the opening.
- Electrical tape or wire nuts: Use suitable connectors to protect splices. Avoid loose twists covered only by tape.
- Mounting hardware: Keep brackets, screws, and track clips appropriate for the wall or door track.
- Ladder: Use stable access to the opener motor unit. Don't balance on a bucket or the top step of a small ladder.
Before touching a terminal, unplug the opener or turn off its circuit. The sensor circuit is low voltage, but the motor unit contains higher-voltage components, and the door can move unexpectedly if someone activates a control while you're working.
Before routing wire: Keep low-voltage sensor cable separated from high-voltage wiring, and protect it from door rollers, hinges, sharp track edges, and areas where a vehicle or tool can snag it.
If you're preparing materials for a property maintenance project, a clear handout can also help residents or tenants understand what work is being completed. Sendvo's collection of local business postcard ideas can be useful when you need a straightforward way to communicate service details.

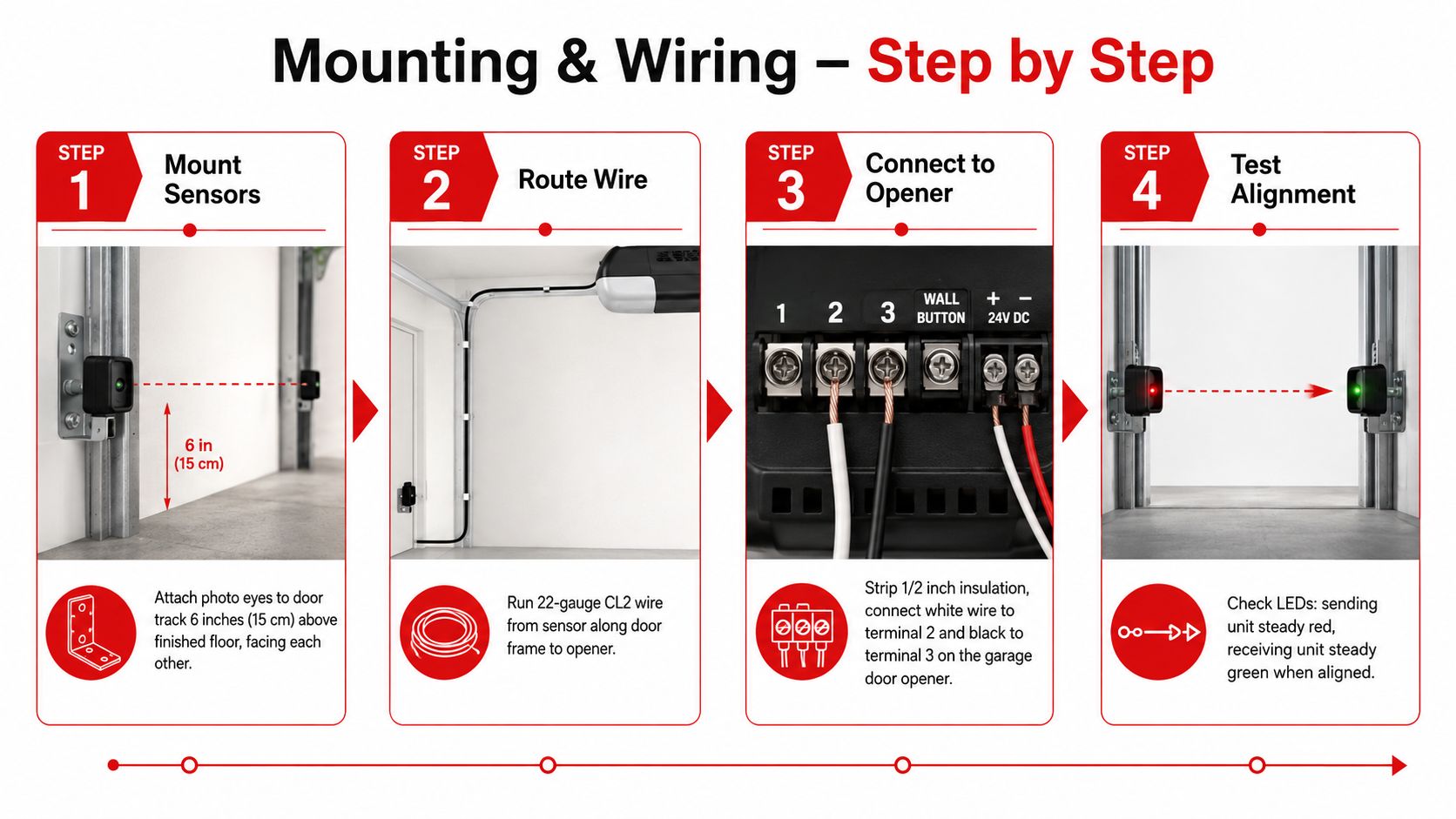

Mounting and Wiring the Sensors Step by Step

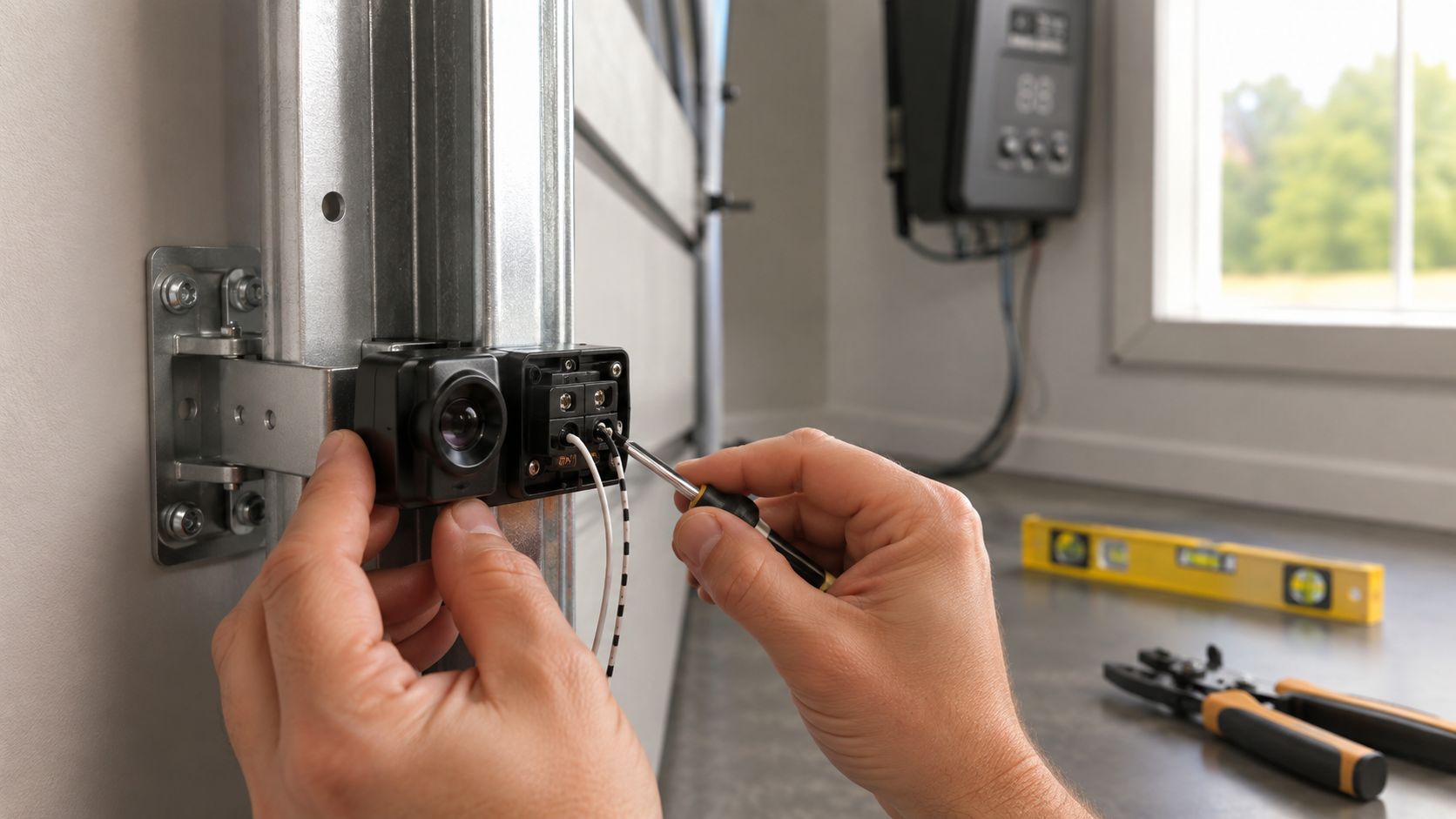

Start with the door closed and the opener powered off. Locate the photo eyes near the bottom of each vertical track or on secure mounting brackets beside the opening.
Set the sensor height first

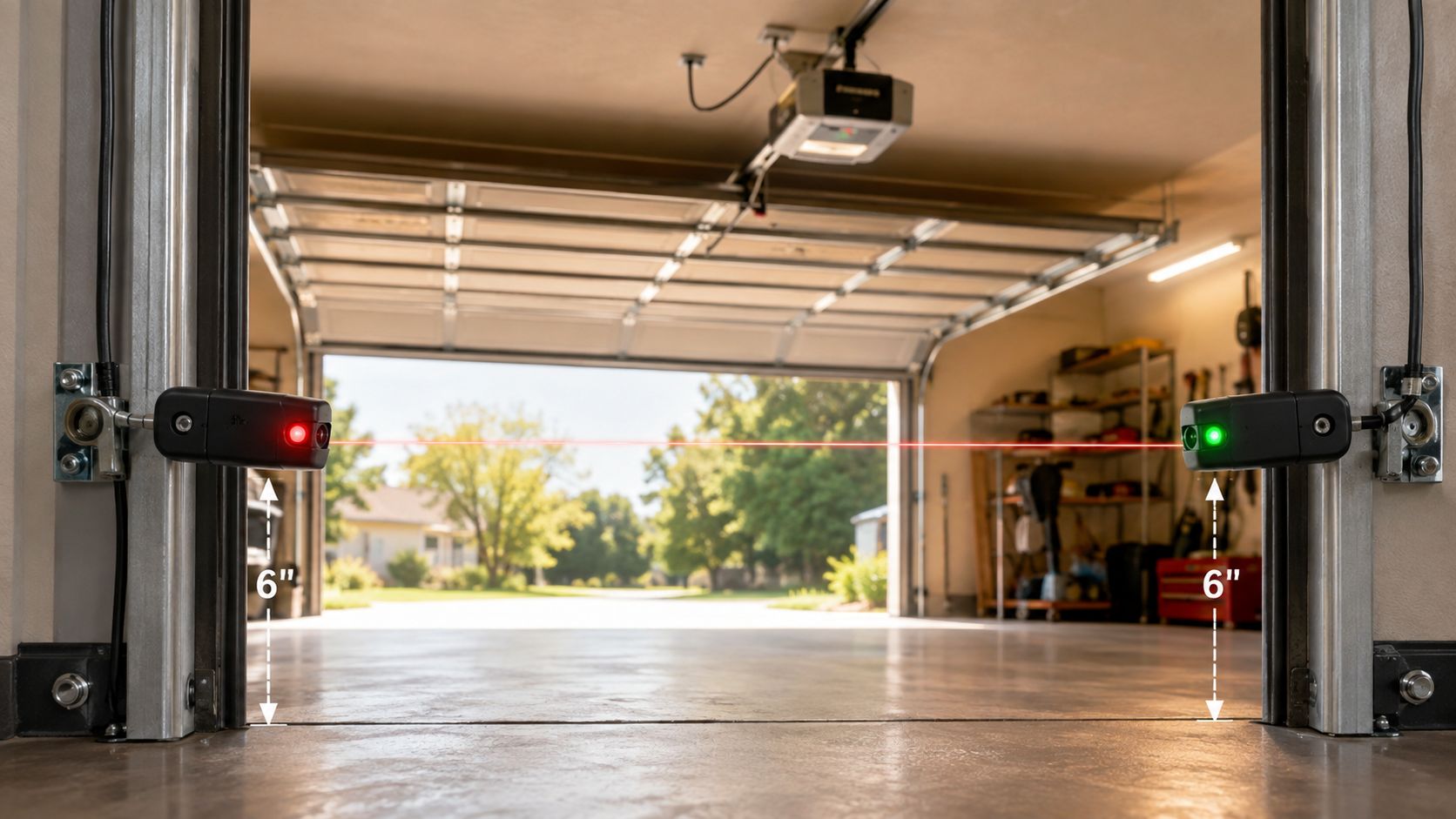

Mount both sensors 4 to 6 inches above the finished floor, with the beam facing directly across the door opening. Photoelectric sensors in residential operators must be no more than 6 inches above the finished floor, because a higher beam can miss a person, pet, or object lying low in the doorway. DASMA placement guidance explains this placement requirement.
Use a tape measure on both sides, then check the housings with a level. Tighten the brackets enough to prevent vibration, but don't crush or distort the plastic sensor bodies. The sending and receiving units need a clear path, so remove cobwebs, stored items, and anything that could interrupt the beam.
Route and preserve the wire pair
Run a two-conductor cable from each sensor to the opener. Secure the cable along the wall or track support, but keep it away from moving door hardware. Leave enough slack near each sensor for service, then protect exposed sections with clips or appropriate guards.
The important detail is conductor pairing. Keep the same conductor serving the common side of the sensor connected to the common side at the opener. Don't splice one color to a different color halfway along the route just because it reaches more easily.
At the sensor end, follow the manufacturer's markings. Many accessory-level sensor pairs are non-polarized, but the conductors still need to remain matched end-to-end so the circuit is consistent and easy to diagnose.
Land the conductors at the opener
Strip approximately 7/16 inch of insulation when the opener's instructions call for that length. Don't expose a long bare section that could touch the neighboring terminal.
A commonly documented arrangement joins the two solid-white conductors together for the common terminal and joins the two white-with-black-stripe conductors together for the sensor terminal. Those groups then land in the opener's designated white and gray or colored terminals. Performax's sensor wiring instructions show this paired-conductor method, while Chamberlain's wiring guidance identifies the solid-white and white-with-black-stripe terminal arrangement.
Push each conductor fully into its terminal and tug gently to confirm it's held. Loose inserts are a frequent silent failure. The opener should accept the sensor circuit without a bypass jumper. For more background on opener conductors and terminal layouts, see this guide to garage door wiring.
Aligning the Beam and Testing the Safety Circuit
Restore power only after the conductors are secured and the terminal cover is replaced. Stand clear of the door while checking both sensor indicators. The sending unit commonly shows a steady red light, while the receiving unit commonly shows a steady green light when it detects the beam. Exact colors vary by manufacturer, so use the opener manual when the indicators differ.
A blinking or dark indicator usually means the receiver is not getting a stable signal. Clear the beam path and clean both lenses with a soft cloth. Then loosen the bracket slightly and make small adjustments until the lights stay steady. A level can help position the housings, but the indicators provide the practical confirmation because they show whether the receiver sees the transmitter.
Tighten the brackets without moving the housings, then check the indicators again. Operate the door from a wall control or remote. A single successful closing does not complete the test. Interrupt the beam while the door travels down, using a solid object such as a piece of lumber held safely away from the moving panels and hardware.
The door should stop or reverse when the beam is broken. Modern photocell systems are described as requiring reversal within 2 seconds after detecting an obstruction, with UL testing protocols limiting the force to 400 pounds before reversal. Use the opener manufacturer's safety documentation to confirm the requirements for the specific model.
Test the function, not just the indicator: Steady LEDs show that the beam is detected. The interruption test confirms that the opener responds to the signal.
Sensor technology appears in many powered door systems, but the equipment is not interchangeable. General diagnostic information, such as elevator door sensor repair in Ohio, may help explain sensor behavior, but garage door sensors still must match the opener and its safety controls. Smart openers can also require a specific sensor family or approved wiring arrangement, so a clean beam and steady LEDs do not prove compatibility.

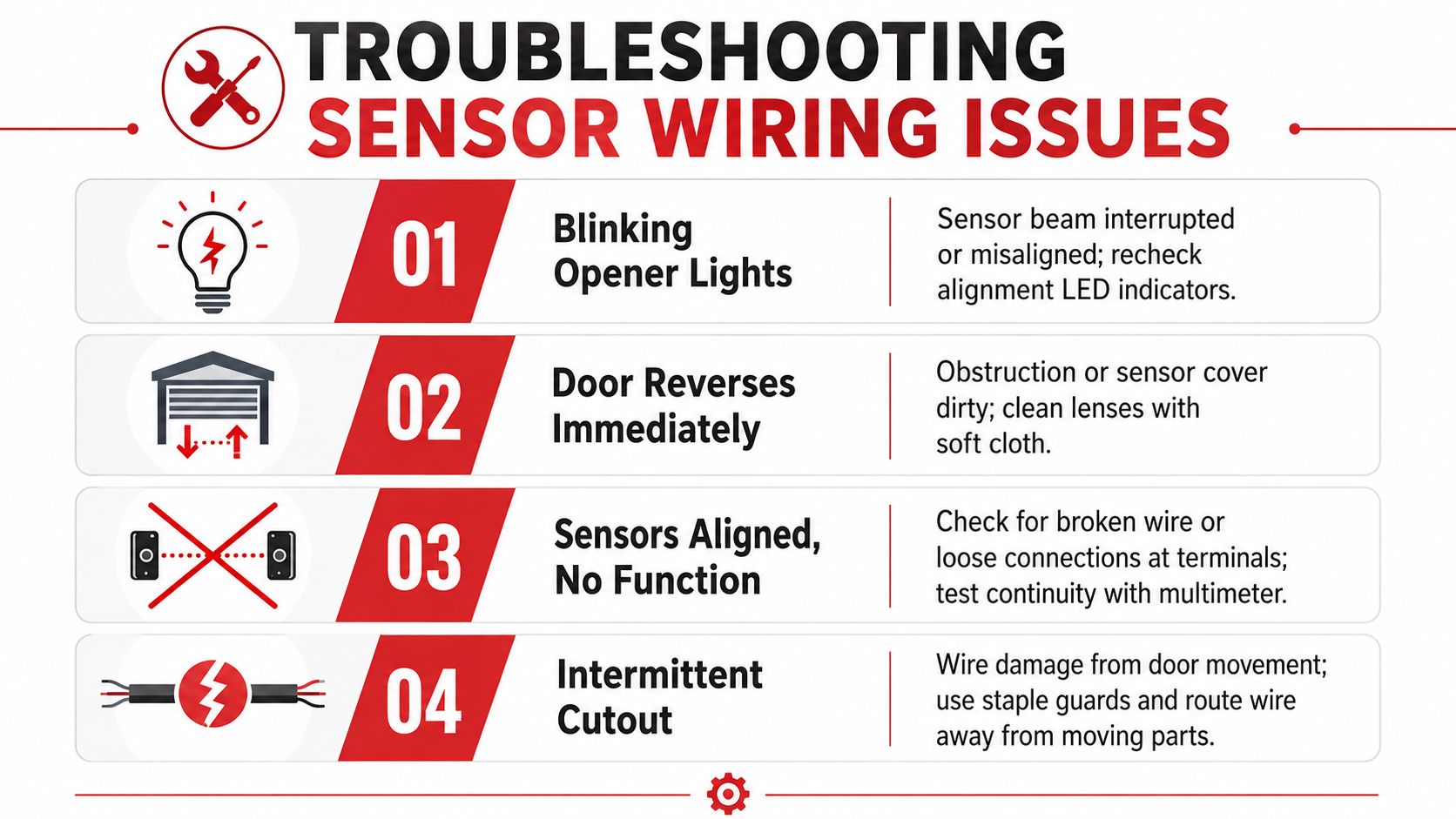

Troubleshooting Common Sensor Wiring Problems
A useful diagnosis starts with the symptom. Don't replace both sensors immediately when the actual fault may be a damaged cable or incompatible smart controller.
| Symptom | First suspect | What to inspect |
|---|---|---|
| Blinking opener lights | Interrupted or misaligned beam | Lens, bracket position, and LED behavior |
| Door reverses immediately | Obstruction or dirty sensor cover | Beam path and sensor faces |
| LEDs appear aligned, but the opener won't close | Wiring or terminal fault | Splices, conductor pairing, and terminal grip |
| Intermittent operation | Cable damage or a loose connection | The full route, especially exposed sections |
| Basic opener works, smart feature doesn't | Compatibility or accessory issue | Product requirements and sensor arrangement |
A sensor can look aligned while the circuit remains open. Inspect the cable near the sensor, along the wall, and at the motor unit. Look for crushed insulation, staples driven through the cable, corrosion, loose terminal inserts, and splices exposed to moisture. If you have a multimeter and know how to use it safely, continuity testing can help identify a broken conductor, but power must be disconnected before testing resistance or continuity.
Sunlight and debris can also confuse the receiving eye. Clean both lenses, remove leaves or stored objects from the beam path, and observe whether the problem changes as light conditions change. Don't tape over a sensor, install a bypass jumper, or force the wall control to close the door. Those actions hide the fault instead of restoring protection.
Smart and retrofit systems add another layer. An app-based controller may require a compatible sensor arrangement or an additional door sensor for app functionality. If the original opener operates correctly from its wall control but the smart system reports a sensor fault, the problem may be compatibility rather than alignment. The iSmartGate product documentation is an example of why the accessory requirements need to be checked before changing the existing sensor wiring.
For a more focused diagnostic sequence, use this garage door sensor troubleshooting guide. Work from the physical beam to the wiring, then to the opener and smart accessory. That order prevents unnecessary parts replacement.
When to Call a Professional for Sensor Issues
A DIY repair is reasonable when the problem is visible, limited to alignment or an accessible low-voltage connection, and the door passes the interruption test afterward. Stop and call a qualified technician if the sensors keep failing despite correct mounting and wiring, or if the cable runs inside a wall where replacing it would require uncertain cutting and splicing.
Older openers also deserve caution, especially when the unit predates modern entrapment-protection requirements or has no compatible monitored sensor input. A technician can determine whether the opener needs a compatible sensor set, a control-board repair, or replacement rather than another wiring attempt.
Don't work on springs, lift cables, drums, or other counterbalance components during a sensor repair. Those parts can release dangerous stored energy, and sensor troubleshooting doesn't require disturbing them. If the door exerts excessive force, fails to reverse reliably, moves unevenly, or creates an urgent safety risk, leave it disconnected and arrange professional service. Many garage door companies offer 24/7 emergency service for situations that can't safely wait.
