How to Install an Overhead Door: A Complete DIY Guide

Thinking about installing a new overhead door can feel like a big project. From my experience, though, a successful installation isn't about being a master builder—it’s all about getting the prep work right. If you nail the planning and measurements from the start, you'll save yourself a world of frustration.

What to Know Before You Begin

A smooth installation starts long before you pick up a wrench. This first phase is your blueprint. If you rush it, you might end up with a door that’s the wrong size or discover you don’t have enough clearance for the tracks, bringing the whole project to a grinding halt.

Taking your time here means that when installation day arrives, everything will fit together just as it should.

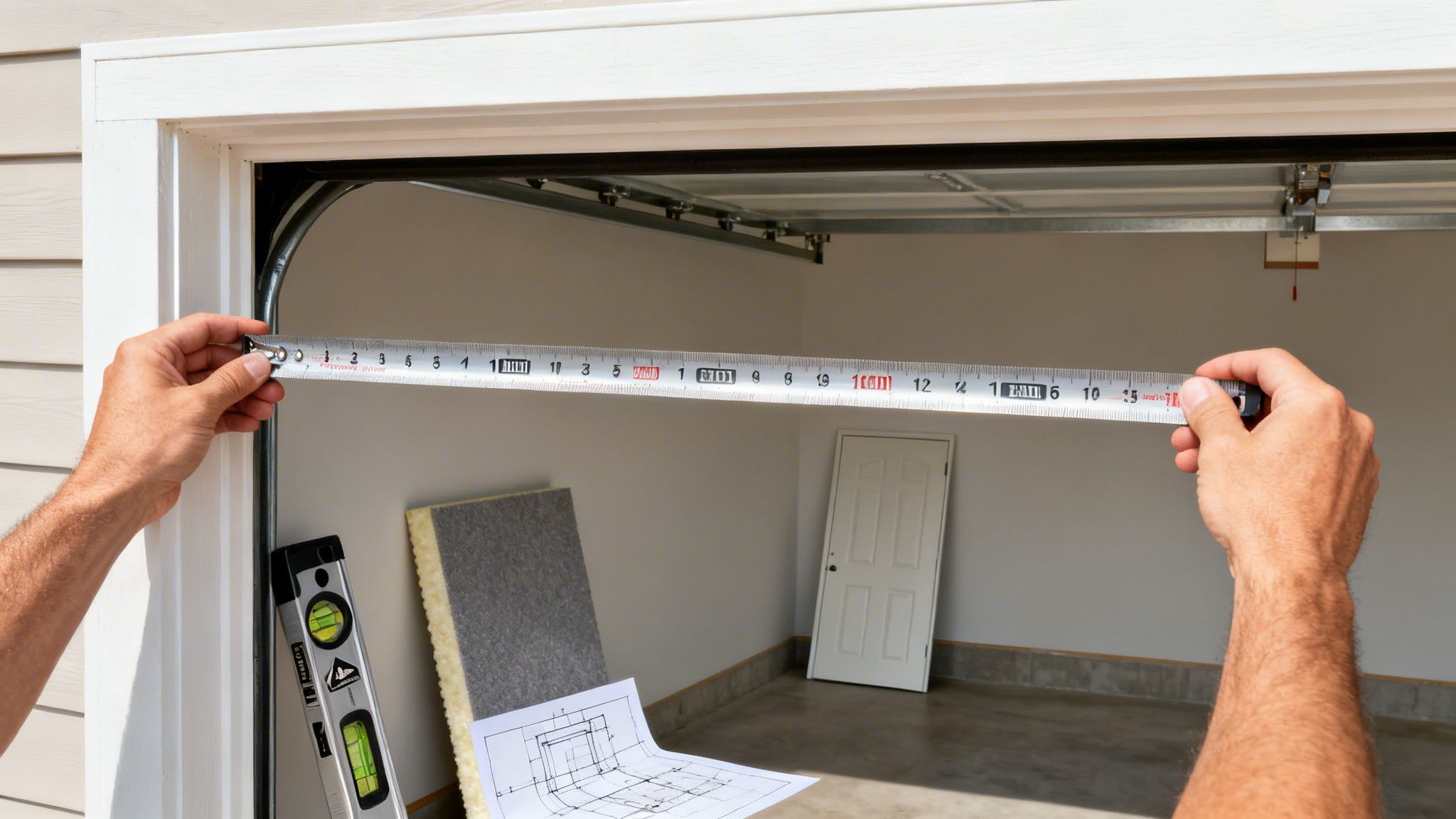

Measuring Your Garage Opening Like a Pro

Accurate measurements are absolutely non-negotiable. I've seen installations where being off by just a quarter of an inch caused major gaps and operational headaches. Grab a good tape measure and a notepad, because you'll need to capture a few key dimensions.

To make sure you don't miss anything, use this checklist to record your numbers. It’s the same one our pros use in the field.

Garage Door Measurement Checklist

Measurement Type	Your Measurement (Inches)	Required Minimum
Opening Width		Door Width
Opening Height		Door Height
Headroom		12-15" (for standard torsion spring)
Left Side Room		3.75"
Right Side Room		3.75"
Backroom		Opening Height + 18"

Having these figures in hand is the first step toward choosing a door that will fit and function perfectly for years to come.

My Two Cents: The old rule "measure twice, cut once" has saved me and countless homeowners from costly mistakes. It’s simple but true. Also, put a level on the floor where the door will sit. An uneven slab can wreck the bottom seal, letting in drafts and water. If the framing itself looks questionable, this guide on framing for a garage door is a great resource.

Choosing the Right Door for Your Home

With accurate measurements, you can start the fun part: picking the door. But it's about more than just finding a style you love. For those of us in Northeast Ohio, climate is a huge factor.

I almost always recommend an insulated steel door for our region. The steel stands up to our harsh weather, while good insulation—measured by its R-value—helps keep your garage more comfortable and can even trim your energy bills. A higher R-value provides more thermal resistance. Other materials like wood or composites look fantastic, but you’ll want to double-check their R-value and what it takes to maintain them.

A Bit of History and Budgeting

It's pretty amazing how far these doors have come. C.G. Johnson invented the modern overhead garage door back in 1921, completely changing the game from the old swing-out carriage doors that were a nightmare in the snow. As suburbs boomed after the war—by 1979, 62% of new homes had two-car garages—so did the need for reliable garage doors. It’s a legacy we’re proud to continue here at Danny's Garage Door Repair, serving Northeast Ohio since 2015.

Of course, before any big project, you have to think about the budget. Getting a handle on the potential cost to replace a door helps you plan realistically and decide if a DIY install makes sense for you. A clear financial picture from the start prevents any unwelcome surprises.

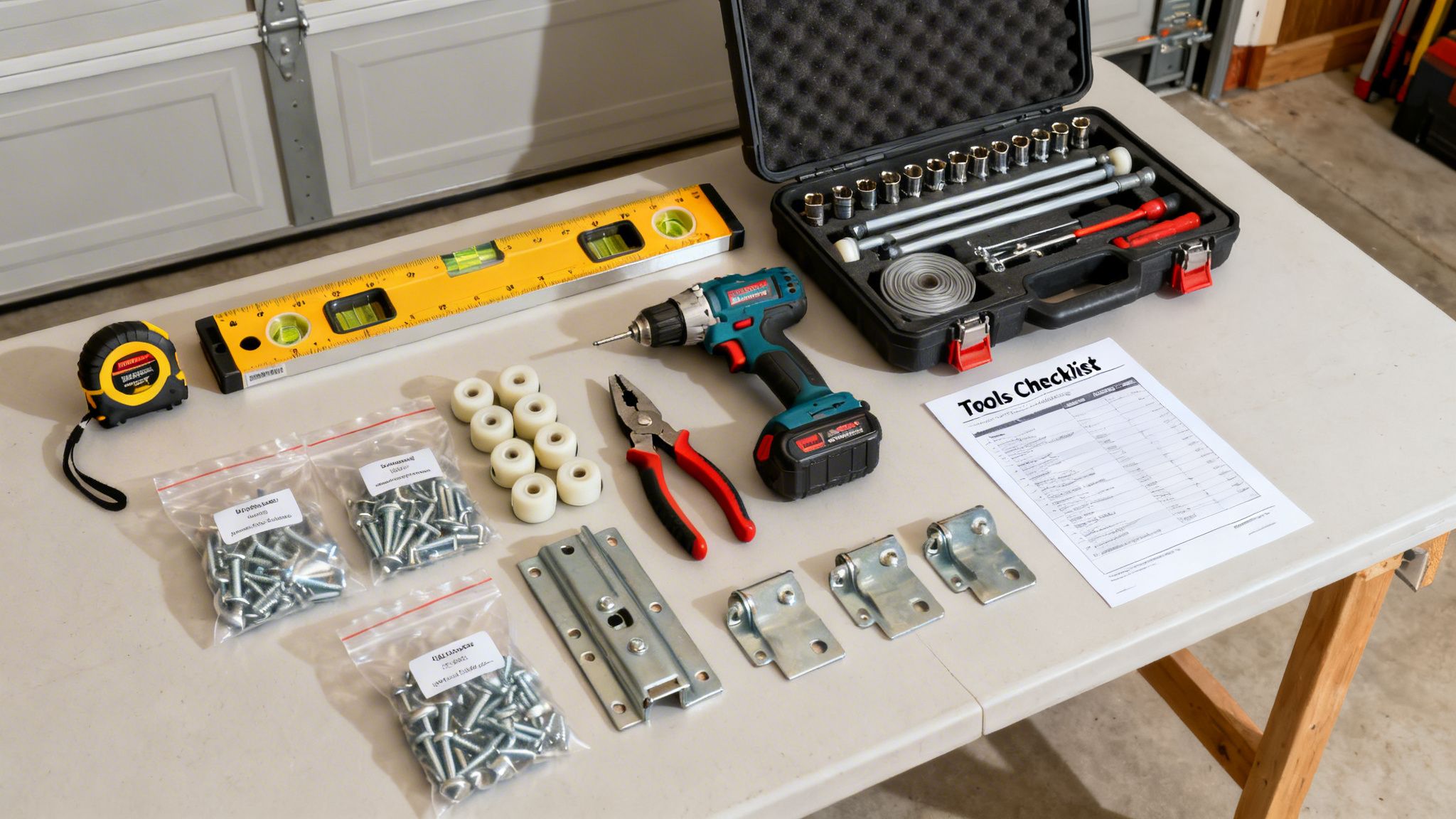

Gathering Your Tools and Materials

There’s nothing worse than stopping a project mid-stream to run out for a missing tool. We’ve all been there. A proper setup is the secret to a smooth installation, so let’s get your toolkit sorted out just like our pros do before they start a job.

Think of it as setting up your workshop for success. Having everything you need within arm’s reach makes the entire process go faster and, more importantly, safer.

Essential Tools for the Job

Most of these tools are probably already in your garage, but a few specialty items will make a world of difference. I can't stress this enough: don't cut corners here. The right tool can turn a huge headache into a straightforward task.

• Tape Measure: You measured once, but you'll need this to measure a dozen more times, confirming placements and alignments as you go.
• 4-Foot Level: Your whole installation hinges on getting the first panel perfectly level. A 4-foot level is the only way to guarantee the tracks will be perfectly plumb and the door will operate smoothly.
• Socket/Ratchet Set: This will be your best friend for tightening the dozens of nuts and bolts on brackets, hinges, and track assemblies.
• Cordless Impact Driver: This is a huge time and muscle saver. Driving lag screws into solid wood framing with a manual ratchet is a workout you don't need.
• Locking Pliers (Vise-Grips): This is a non-negotiable safety tool. You’ll use these to clamp the door to the track, preventing it from unexpectedly slamming down while you're working.
• Sturdy Step Ladders: Notice the plural. You absolutely need two ladders to safely support long door sections and tracks during assembly.

Pro Tip: You must have a pair of proper winding bars made specifically for torsion springs. Do not—under any circumstances—try to use screwdrivers, tire irons, or anything else. Those springs hold an incredible amount of tension. Using the wrong tool can cause them to fail catastrophically, leading to severe injury. If your kit doesn't include them, buy them. It's that important.

Inspecting Your Materials Before You Start

Your new garage door will arrive in a kit with everything from the giant panels down to a tiny bag of bolts. Before you lift a single tool, lay everything out and do a quick inventory. It’s much easier to deal with a missing or damaged part now than when your garage is wide open with a half-built door in the way.

What’s in the Box

Unpack the entire kit so you can see what you're working with. You should be able to identify:

• Door Panels: The main sections of the door. Give each one a once-over for any dents or damage that might have happened during shipping.
• Tracks: Both the vertical and horizontal rails. Sight down each one to ensure they are perfectly straight and not bent.
• Rollers: The little wheels that attach to the panels and ride inside the tracks.
• Hinges and Brackets: All the metal hardware used to connect panels and attach the rollers.
• Spring System: This will be either a torsion spring (a large, single spring on a bar above the door opening) or extension springs (a pair of smaller springs that run alongside the horizontal tracks).
• Hardware Bag: A collection of all the nuts, bolts, and screws needed for assembly.

A quick word of advice: always use the fasteners that came with the door. They've been engineered and tested for your specific door's weight and design. Using your own bolts could compromise the door's safety and will almost certainly void the warranty. Pay special attention to the lag screws for the track brackets—make sure they’re the right type for your garage’s framing.

Assembling the Door and Track System

Alright, now for the satisfying part—turning that stack of panels and hardware into something that actually resembles a garage door. This is where the magic happens, but it’s also where precision is everything. A tiny mistake here can lead to major headaches and a door that just won't run right.

We're going to build this from the ground up, and that starts with the single most important piece of the puzzle: the very first panel.

Think of that bottom panel as the foundation for a house. If it isn't perfectly centered and dead-level, everything you stack on top of it is going to be crooked. I can't tell you how many DIY jobs I've had to fix because this crucial first step was rushed. Take your time here; it will save you a world of frustration later.

Placing the First Panel

Before you even think about lifting the panel, lay the bottom weatherstripping on the concrete right where the door will sit. It acts as a temporary cushion and gives you a clear line to work with. Now, grab your helper and carefully set that first panel down on top of the seal.

Get out your tape measure. Check the distance from the left edge of the panel to the garage door opening, then do the same on the right side. Nudge the panel left or right until those two measurements are exactly the same. It has to be perfectly centered.

Once it's centered, grab your 4-foot level and place it on top of the panel. Is that bubble right in the middle? If not, use shims underneath the panel or weatherstripping to make it perfect. An unlevel door will grind, bind, and wear itself out in no time. Do not move on until this panel is perfectly level and centered.

Stacking the Panels and Attaching Hardware

With your foundation solid, it's time to build up. The process is a bit repetitive, but you need to stay focused.

• With your helper, lift the second panel and set it on top of the first one. You'll see how the tongue-and-groove edges are designed to fit together.
• Next, attach the hinges right over the seam where the two panels meet, following your door's specific instructions.
• Slide the rollers into their brackets on the sides of each panel. It's a good idea to leave the hardware a little loose for now—you can snug it all up later.

Just keep repeating this rhythm—stack, hinge, add rollers—all the way to the top panel. The temptation to speed through this is real, but a steady, methodical pace is your best friend here.

A quick tip from the field: As you stack these panels higher, they can get wobbly. Once you have the vertical tracks in place, use a pair of C-clamps or locking pliers to temporarily secure the panels to the track. It's a simple safety measure that keeps a heavy panel from taking a tumble.

Mounting the Vertical Tracks

Now that the door itself is assembled, you need to build the frame that will guide it. The vertical tracks must be perfectly plumb, which is just the professional term for vertically level.

Start by loosely fastening the vertical tracks to the door jambs with lag screws. You want the track’s flange to be about one inch away from the edge of the door panels. This gap gives the rollers room to move without getting jammed.

Hold your level against the side of the track to check if it's perfectly plumb. If it’s leaning one way or the other, adjust it. Once it's perfectly straight up and down, go ahead and tighten those lag screws. Do the same for the track on the other side.

Assembling and Installing the Horizontal Tracks

These are the tracks that will carry the door overhead when it opens. Assembling and lifting them into place can be awkward, which is why having two sturdy stepladders is non-negotiable.

First, you’ll bolt the curved section of the track onto the top of the vertical track you just installed. Then, you'll connect the long, straight piece of the horizontal track. This whole assembly needs to be supported at the back of the garage with angle iron brackets secured firmly to the ceiling joists or framing.

Here's another spot where measurements are critical. The horizontal tracks must have a slight downward slope toward the back of the garage—think about 1/2 inch of drop for every 4 feet of track. This gentle slope uses gravity to help keep the door in the fully open position. Use your level and tape measure to get the height and angle just right before you permanently fasten the rear support brackets.

Key Alignment Checks for Your Track System

• Plumb Verticals: Are both vertical tracks perfectly straight up and down? Check them with your level.
• Consistent Spacing: Is the width between the two vertical tracks identical at the bottom, middle, and top?
• Square Corners: Do the horizontal tracks form a perfect 90-degree angle with the wall?
• Diagonal Measurement: Here’s a pro trick. Measure diagonally from the top back corner of one track to the bottom front corner of the opposite track. Now, measure the other diagonal. If those two numbers are the same (or very close), your entire system is square.

Getting the track system installed correctly is more than half the battle. This framework is the skeleton for your door, and it determines how smoothly and quietly it will run for years. A little extra time spent on alignment now pays off big time down the road. With the tracks securely in place, you're ready to tackle the most safety-critical part of the job: the spring system.

Handling the Spring System: Where Safety Is Everything

Alright, let's talk about the springs. I’m not going to sugarcoat this: this is the most dangerous part of a garage door installation. These springs are under an incredible amount of tension, and a mistake here can lead to serious, life-altering injuries. If you feel even slightly hesitant at any point, stop what you’re doing and call a professional. This is no place for guesswork.

You'll be dealing with one of two types of counterbalance systems: torsion springs or extension springs. We'll cover both, always putting safety first.

Torsion Spring Systems

Torsion springs are the big, heavy-duty springs you see on a metal tube directly above the door opening. They do the heavy lifting by twisting, and that stored energy is what makes them so hazardous if you don't know exactly what you're doing.

Your first move is to slide the torsion tube through the end bearing plates you've already mounted. From there, you'll slide on the center bracket, the spring itself (or springs, if you have a heavier door), and finally the cable drums on each end. Get that center bracket securely fastened to the wall—it needs to be rock solid. Now, you can attach the lift cables to the bottom brackets on the door, loop them over the cable drums, and make sure they sit perfectly in the drum grooves with equal tension on both sides.

A Critical Warning from the Field: You absolutely must use proper winding bars to tension a torsion spring. I've seen the aftermath of people trying to use screwdrivers or pieces of rebar. The tool slips out of the winding cone under immense force and becomes a projectile. It’s a recipe for disaster. Don't even think about it.

Winding the spring is where things get really intense. You'll insert a winding bar into one of the holes on the winding cone and rotate it a quarter turn at a time, using a second bar to leapfrog your way up. How many turns? It depends on your door's height, but a standard 7-foot door typically needs about 30-35 quarter turns. Always follow the manufacturer’s specific instructions. For a more in-depth look at this process, check out this guide on how to safely wind a garage door spring. Once the tension is set, you’ll tighten the set screws on the cone to lock everything in place.

Extension Spring Systems

Extension springs are a little less complex, but they come with their own set of risks. These are the springs that run parallel to your horizontal door tracks, and they work by stretching. The biggest danger here is a spring breaking and snapping across the garage.

For these, you'll start by attaching a pulley to the end of the horizontal track. You’ll run your lift cable from the door's bottom corner bracket, up and over that pulley, and then connect it to the track support bracket. The spring itself connects between that same track support and the pulley at the other end of the cable.

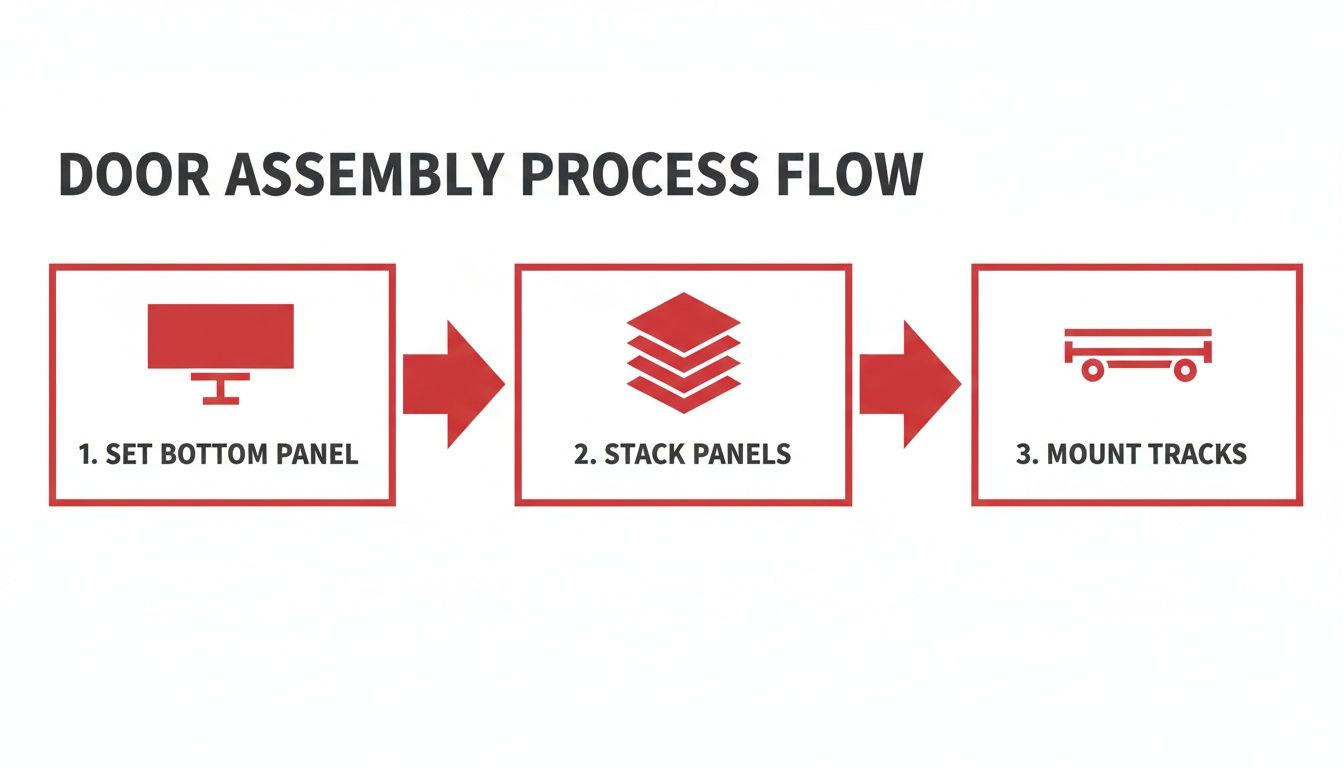

As you can see, the overall assembly is a logical sequence—you set the bottom panel, build up from there, and then get the tracks mounted.

The Safety Cable: A Non-Negotiable Step

I’m going to say this as clearly as I can: you must install safety cables with extension springs. This isn't a suggestion; it's a critical safety requirement.

These thin steel cables run directly through the center of each extension spring and are secured to the track supports at both ends. Think of them as a safety net. If that spring ever breaks under pressure, the cable contains the two pieces and prevents them from flying across your garage.

Every year, there are thousands of injuries related to garage doors, and many of them could have been prevented with this one simple step. Installing a door with extension springs and no safety cables is just plain irresponsible. It’s a small detail that makes all the difference.

Fine-Tuning and Final Safety Checks

You’ve got the door up—great work. But don't break out the victory snacks just yet. This last stretch is all about dialing in the details and running critical safety checks. Think of it like a pilot's pre-flight checklist; skipping it isn't an option.

Getting these final adjustments right is what separates a decent installation from a great one. It ensures your door runs like a dream, seals up tight, and, most importantly, is completely safe for everyone who uses it.

The All-Important Balance Test

First up, let's check the door's balance. This simple test tells you if the springs are doing their job correctly. If they aren't properly tensioned to carry the door's weight, your garage door opener is going to take a beating and burn out years before its time.

Here's how to see where you stand:

1. Pull the red emergency release cord to disconnect the opener from the door.
2. Lift the door by hand to about waist height. It should feel surprisingly light.
3. Now, carefully let go.

A perfectly balanced door will hang in place, maybe drifting just an inch or two. If it slams back to the ground, the springs are too loose. If it rockets upward, they're way too tight. Spring adjustments are no joke—they store an incredible amount of force. If the balance is off, this is a non-negotiable "stop and call a pro" moment.

Sealing the Deal with Weatherstripping

With the door closed, walk the perimeter and look for light. The goal is a tight seal that keeps out wind, rain, and critters, which makes a big difference in your home's energy efficiency.

The vinyl weatherstripping on the frame should press gently against the door, leaving no gaps. If you can see daylight, the trim might need a slight adjustment to close things up.

My Takeaway: Pay close attention to the bottom seal. It needs to compress just enough against the concrete to create a solid barrier. If your garage floor is a little uneven, a thicker, more flexible bottom seal can often solve the problem without any major concrete work.

Setting the Opener’s Travel Limits

Time to reconnect the opener. Once it's re-engaged with the door, you need to set the travel limits. These settings tell the motor exactly where to stop when the door is fully open and fully closed. Every opener brand has a slightly different process, but you'll typically find adjustment buttons right on the motor unit.

• Set the UP Limit: Run the door to its highest point. You want it to stop just as it clears the opening, without pushing too far and stressing the components.
• Set the DOWN Limit: Bring the door down until it closes. It should create a snug seal at the bottom but not slam into the floor or bow the top panel.

When you get this right, the door will come to a smooth, quiet stop in both directions. If you're tackling the electrical side for a new opener, our guide on wiring a garage door has some practical advice to help you do it safely.

The Critical Safety Reversal Tests

This is, without a doubt, the most important part of the entire job. Since 1993, federal law has mandated that all garage door openers include two automatic safety reversal systems. Testing them is not just a good idea—it’s an absolute necessity.

1. The Photo-Eye Sensor Test:
Your photo-eyes are the two small sensors mounted near the floor on either side of the opening. They create an invisible beam that detects obstructions.

• Press the button to close the door.
• As it's moving, just wave your foot through the beam.
• The door must immediately stop, then reverse and travel all the way back up.

2. The Auto-Reverse Mechanism Test:
This test checks the opener's ability to reverse when it physically contacts something.

• Lay a 2×4 board flat on the floor, right in the center of the door's path.
• Start the door closing.
• The instant the bottom of the door makes contact with the wood, it must immediately reverse direction.

If your door fails either of these tests, stop using it with the opener right away. Something is wrong, and the door is a serious safety hazard. Check the opener's manual for troubleshooting or, better yet, call a professional for an immediate fix.

There's a certain satisfaction that comes from a well-done DIY project. But let's be honest: installing a garage door isn't like assembling a bookshelf. The smartest move any homeowner can make is recognizing when a project crosses the line from challenging to dangerous.

Knowing your limits isn't admitting defeat. It's making a calculated, wise decision for your home's safety and your own well-being. If you find yourself feeling overwhelmed or second-guessing a step, that's your cue to pause.

When the Job Turns Pro: Warning Signs

Sometimes, a how-to guide just can't prepare you for the curveballs an installation can throw. If you encounter any of these scenarios, it's a clear sign to put down the tools and call for backup.

• A Stubbornly Heavy Door: You've done the balance test, and the door feels like it weighs a ton or slams down hard. This means the spring tension is dangerously off. Don't even think about trying to adjust it yourself—this is where injuries happen.
• Tracks That Just Won't Align: You've used your level, you've measured a dozen times, but the tracks refuse to line up perfectly. Forcing them into place is a recipe for a door that grinds, binds, and wears out in a fraction of the time.
• The Torsion Spring Stare-Down: If you find yourself staring at the torsion spring with even a flicker of hesitation about winding it, stop immediately. The immense, coiled energy in those springs is not something to be trifled with. It demands professional tools and training.
• Damaged or Missing Parts: You’re halfway through the job and discover a bent track, a dented panel, or a crucial piece of hardware that's just… gone. A professional can source the exact part needed and get you back on track without the headache.

The peace of mind from a professional installation is worth every penny. It’s the quiet confidence that the door is perfectly balanced, all safety systems are triple-checked, and your family is protected by a solid warranty and the installer's liability insurance.

The Real Value of a Professional

Why is the garage door industry growing so fast? Because skilled technicians provide a level of expertise that’s tough to replicate on a weekend. The global market is set to hit $12.84 billion by 2034, largely because homeowners see the value in getting this critical job done right. You can find more details about these industry trends and see how North America is leading the charge.

A seasoned technician shows up with more than just a truck full of specialized equipment. They bring years of hands-on experience, having seen and solved every problem imaginable. They’ll spot the subtle things a DIYer might miss, like a slightly uneven floor that needs a custom-fit bottom seal, or wall framing that requires extra reinforcement before a heavy door is hung.

If the work seems to be expanding beyond just the door itself, or if it's part of a larger renovation, you might even consider bringing in a general contractor to coordinate everything.

Choosing to hire a pro isn't giving up. It's a smart investment in your home’s security, safety, and long-term value.

DIY vs Professional Installation Cost and Time

When you're weighing your options, it's helpful to look at the numbers and the non-monetary costs, like your time and potential risks. This table breaks down what you can realistically expect.

Factor	DIY Installation	Professional Installation (Danny's)
Upfront Cost	Price of the door kit + tools ($800 – $3,000+)	Door cost + Labor ($1,200 – $4,500+)
Time Commitment	10-16 hours (or a full weekend), assuming no major issues	3-5 hours for a standard installation
Required Tools	Must buy or rent specialized tools (winding bars, heavy-duty sockets)	All professional-grade tools and equipment are included
Safety Risk	High. Risk of serious injury from springs, cables, or a falling door.	Low. Technicians are trained, experienced, and insured.
Warranty	Manufacturer's warranty on parts only. No labor guarantee.	Parts and labor warranty included. Peace of mind guaranteed.
Hidden Costs	Cost of fixing mistakes, damaged property, or personal injury.	None. The quoted price covers the complete, safe installation.

Ultimately, while the DIY route might seem cheaper on paper, the risks and time commitment can quickly outweigh the savings. A professional installation ensures the job is done correctly, safely, and efficiently, protecting your investment for years to come.

---
