A lot of homeowners start thinking about garage door windows the same way they'd think about swapping house hardware. Pick a style, cut an opening, screw it in, done. That's where people get into trouble.
Installing garage door windows can absolutely make the front of your home look better and bring useful daylight into the garage. But a garage door isn't just a wall panel. It's a moving system with hinges, tracks, springs, rollers, and an opener all working together. When you add windows, you're not just changing the look. You're changing how the whole door carries weight and moves every day.
If you're in Cleveland or anywhere in Northeast Ohio, that matters even more. Cold weather, daily use, and older garage door setups don't leave much room for sloppy work. A clean window install looks great. A clean install on an unbalanced door becomes a callback waiting to happen.
Before You Begin Planning Your Window Project
The first step is not buying windows. The first step is figuring out whether your door should be cut at all.
Measure the panel, not just the space you like
Garage door panels have seams, bends, hinge points, and sometimes reinforcement struts that a homeowner can miss at first glance. Measure the exact panel area where the window kit will sit. Use a tape measure and level, and don't assume the panel is perfectly square just because it looks that way from the driveway.
You also need to check the kit's cut dimensions against the actual flat area available on the panel. A lot of mistakes start with someone measuring for the outside trim ring and forgetting the cutout opening has to fit inside that panel cleanly.
A few things to inspect before you order anything:
- Panel shape: Raised-panel doors and flush-panel doors give you different usable space.
- Door material: Steel, aluminum, wood, and insulated sandwich panels all cut differently.
- Hardware location: Hinges, top fixtures, and struts can interfere with where a window can go.
- Existing panel condition: Rust, dents, delamination, or soft wood can turn a simple retrofit into a replacement job.
Know what's behind the skin
Often, DIY plans falter at this stage. People see painted steel on the outside and assume it's just a thin shell. Some doors have insulation layers, backing material, or structural elements that affect how cleanly the opening can be cut and how well the frame will clamp together.
Practical rule: If you can't identify what the panel is made of and what supports it, you're not ready to cut it.
That's especially true with older doors. Around Cleveland, it's common to see doors that have had years of use, a little sag, or prior repairs. A retrofit kit has to fit the actual door in front of you, not the one in the product photo.
Treat this as a system change
This part matters more than most online guides admit. According to Clopay's garage door windows guide, adding windows to an existing garage door is not just cosmetic. A windowed panel is heavier, that added weight can adversely affect springs, and it may create problems for the automatic opener.
That's the big idea to keep in mind before you touch a drill. You're changing the door's load profile. If you install the windows perfectly but ignore the added strain on springs and opener, the job still isn't done right.
A quick planning checklist
Before buying a kit, confirm these points:
| Check | Why it matters |
|---|---|
| Panel compatibility | The frame has to fit a real flat mounting area |
| Door construction | Cutting steel, aluminum, wood, or insulated panels isn't the same job |
| Obstructions | Struts and hinges can block the opening or weaken the panel layout |
| Door condition | A tired panel may not be worth modifying |
| System tolerance | Added weight affects balance, spring behavior, and opener strain |
Good planning saves doors. It also saves you from cutting into a panel that was never a good candidate for windows in the first place.
Finding the Right Window Kit and Tools
Once the panel checks out, then it's time to choose the kit. At this stage, style and function need to meet in the middle.
Pick a kit that matches how the garage is used
Some homeowners just want more curb appeal. Others work in the garage and want daylight without opening the door. Those are different goals, and the right window insert depends on them.

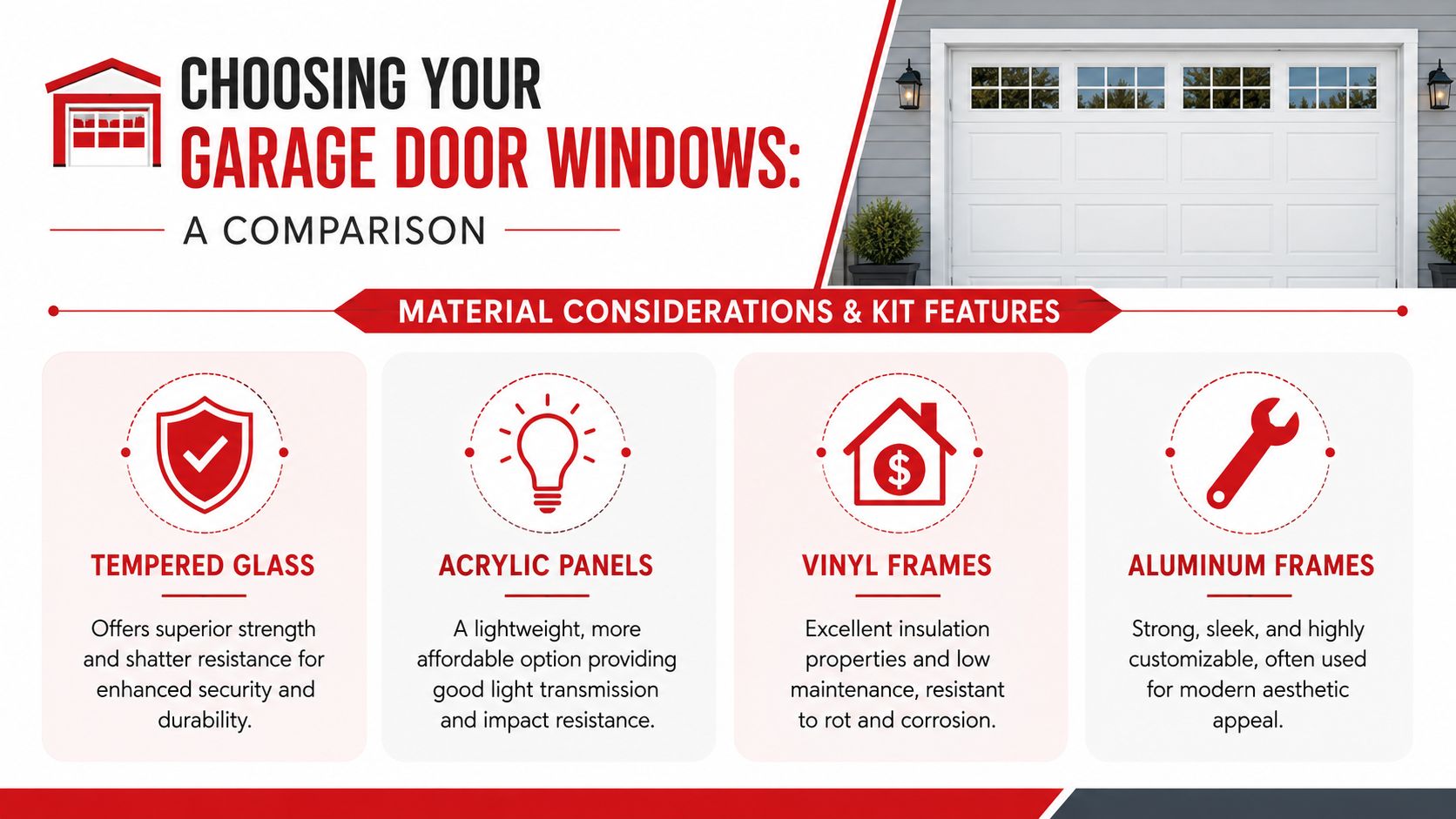

Here's a practical way to think about the common choices:
| Option | What it does well | Trade-off |
|---|---|---|
| Tempered glass | Clear view, durable feel, clean look | Heavier than lighter panel options |
| Acrylic panels | Lighter weight, easier to handle | Can scratch more easily |
| Vinyl frames | Low maintenance, good fit for many homes | Not always the sharpest match for modern styles |
| Aluminum frames | Crisp modern look, strong feel | Can be less forgiving on imperfect panel cuts |
In Northeast Ohio, insulation matters too. If your garage is attached, if there's living space nearby, or if you spend time working out there in winter, look closely at the thermal rating and construction of the kit. Thicker insulated assemblies usually look and perform better, but they also add more weight and depth to the panel.
Don't buy a window kit by looks alone
A good kit should include the clamping pieces needed for the install. For cut-in work, you want a system designed to sandwich the panel securely rather than relying on improvised fastening.
Check the box or product listing for these basics:
- Outer frame: The visible trim piece on the exterior side
- Glazing unit: Glass or acrylic insert, depending on the kit
- Inner frame: The back side that clamps the assembly together
- Fasteners and seal details: Hardware should match the frame design
If the kit description is vague about how it mounts, keep shopping.
The best-looking insert in the world won't help if the frame doesn't clamp square and stay sealed through an Ohio winter.
Gather the right tools before you start
Installing garage door windows goes smoother when everything is laid out first. You don't want to stop mid-cut because you're hunting for the right bit or realizing your blade is wrong for sheet metal.
A solid tool setup usually includes:
- Tape measure and level: For accurate layout
- Marker and painter's tape: To mark cut lines clearly and protect the finish
- Drill and drill bits: For starter holes
- Reciprocating saw or jigsaw: Depending on the panel and your comfort level
- Appropriate blade: Use one suited to the door material
- Locking pliers: To help secure the door during work
- Safety glasses and gloves: Non-negotiable
- Exterior-grade sealant or caulk: For weather protection
- Helper: Some parts of this job are easier and safer with two people
The cheapest part of a bad retrofit is the tool you forgot. The expensive part is the panel you cut wrong because you rushed.

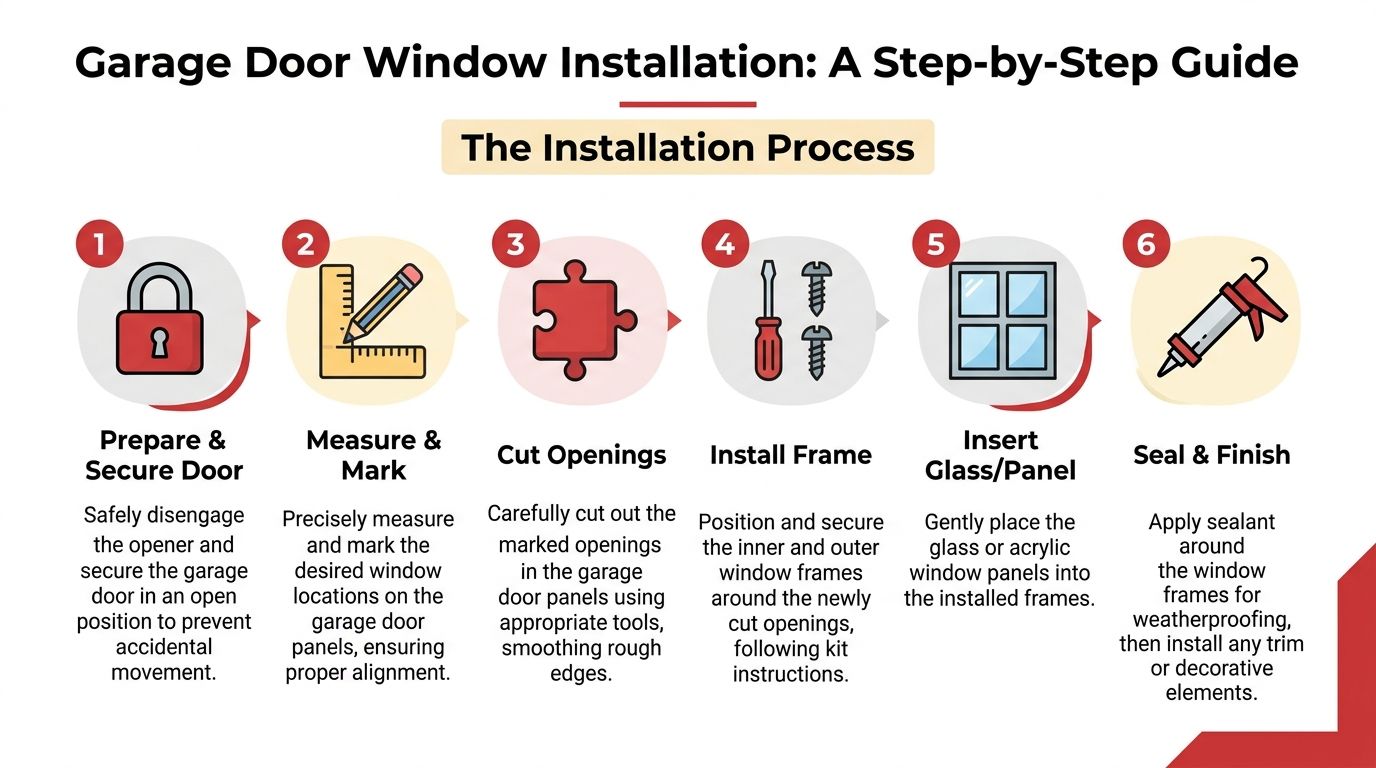

A Step-by-Step Guide to Cutting and Fitting
A lot of garage door window jobs look fine until the door starts moving again. The cutout may be clean, but if the frame sits twisted or the panel gets stressed during the install, that small mistake shows up later as rattling, leaks, or a door that no longer feels quite right on the tracks.
Secure the door before you touch a tool
Lock the door in place and disconnect the opener if needed. If the section moves while you drill or cut, the panel can flex, the blade can wander, and the frame opening can end up slightly out of square.
I also like to check how the door is sitting before any cutting starts. If one side is already lower, or the rollers are binding, adding windows can magnify a problem that was easy to ignore before. You are modifying one panel, but the whole door system reacts to that change.
Mark the opening carefully
Dry-fit the frame pieces first. That tells you what the trim will cover and what the actual cut line needs to be. Measure from fixed points on the panel, not from a stamped edge that may not be perfectly consistent across the section.
Painter's tape helps in two ways. It makes layout lines easier to see, and it gives the saw shoe a cleaner surface to ride on.
Use a simple check routine before drilling:
- Confirm which piece is the outer frame and which is the inner clamp ring.
- Mark the cut line from the kit dimensions, not from the visible trim width.
- Check both sides for level and equal spacing.
- Look behind the panel area for bracing, struts, or hardware interference.
If the door is insulated, now is also a good time to see how the window opening will affect the panel build. Homeowners trying to keep the garage more comfortable should also read this guide on how to insulate a garage door, because the insert choice and the cutout both affect how that section performs in winter.
Cut slowly and support the panel
According to Garage Door Land's installation guide for garage door windows, a dependable workflow is to verify the kit parts, mark the opening, drill pilot holes, and cut with a reciprocating saw. That same guide recommends using two people when installing the front frame, glazing, and rear frame.
That is good advice. One person can steady the panel and hold the frame where it belongs while the other starts the assembly. On wider steel sections, that extra set of hands helps keep the skin from oil-canning or twisting during the fit-up.
Cut just inside the line and keep the saw under control. If the blade starts chattering or grabbing, stop and reset your angle. Forcing the cut is how painted steel gets bent and edges get chewed up.
Shop advice: A straight, boring cut is the goal. Fast usually looks rough.
Fit the frame without distorting the panel
Clean the cut edges and test-fit everything before tightening screws. The frame should sit flat against the door skin, with even contact all the way around. If one corner stands proud or the opening pinches the insert, correct that now.
Garage Door Land also notes that screws should be tightened snug, not cranked down hard, so the frame has room for thermal movement. That matters in Ohio. A frame that is overtightened in mild weather can bind, squeak, or stress the glazing once temperatures swing.
Pay attention to the seal surfaces while you fit the parts. If the frame is warped from overtightening, the seal will not compress evenly. For a plain-language explanation of why window seals matter for homes, this breakdown is helpful. The same basic idea applies here. A window that is pinched on one side and loose on the other rarely stays weather-tight for long.
The frame should feel secure and square. If it only goes together with force, the opening is off, the panel is flexed, or the kit is not matched well to the door. Stop there and correct it before you move on.
Sealing Insulating and Finishing Touches
A lot of DIY installs look decent from the driveway and rough up close. The difference usually shows up around the edges.
Clean up the cut before sealing
When you cut into a steel panel, the edge may not come out factory-pretty. Even careful work can leave a slightly uneven line. That's normal. The problem starts when someone ignores those edges and tries to hide everything with trim or caulk.
One installer's demonstration notes that poor edge control is a common failure point, and it also points out that in cold conditions adhesive cure time can roughly double, which raises the chance of the glass shifting before the bond sets, as shown in this DIY garage door window install demonstration.
If it's cold in the garage, slow down. Give sealants and adhesives the time they need. Don't install the insert and immediately assume it's locked in place.
Seal for weather, not just appearance
Use an exterior-grade caulk or sealant around the window frame where the kit calls for it. Smooth, even beads matter. Big globs don't make a better seal. They just make cleanup harder and usually signal that the frame wasn't fitted well in the first place.
Good sealing work should do three things:
- Block rain intrusion: Water always finds weak points first
- Reduce drafts: Especially important on attached garages
- Protect the cut opening: Moisture at raw edges creates future problems
If you want a better understanding of why window seals matter for homes, that primer does a nice job explaining what a proper seal is doing over time.
Finish the inside so it looks intentional
The same DIY demonstration recommends generous bonding adhesive and perimeter caulk, then finishing the interior edge with tape or trim to improve appearance and help seal the opening against rain intrusion. That inside finish matters more than people think. It hides minor cut irregularities and gives the retrofit a more factory-installed look.
If your garage is drafty already, this is also the point where the rest of the door deserves attention. Extra daylight won't help much if the whole door leaks air around the perimeter. If that's your situation, it helps to read up on garage door insulation options for colder weather.
A neat inside edge tells you the installer cared about the last ten percent of the job. That last ten percent is usually what keeps the first storm from exposing the shortcuts.
The Critical Final Check Rebalancing Your Door
A lot of window installs look finished at this point. Then the homeowner hits the opener and finds out the door no longer feels right.
Cutting the opening and setting the frame is only part of the job. Adding glass changes the panel weight. That change carries through the whole system, including the hinges, tracks, springs, and opener. A door can look sharp from the driveway and still be out of balance by the time it reaches waist height.
Test the door by hand first
Before you trust the opener, disconnect it the way the manufacturer recommends and run the door by hand. Pay attention to how it feels, not just whether it opens and closes. The travel should stay controlled from the floor to the fully open position.
A balanced door feels steady. It should not suddenly get heavy, jump upward, drag in one section, or sound rough in the track. If the feel changed after the windows went in, the added weight is affecting more than the panel you cut.
What a bad balance check looks like
Homeowners can do a simple check with the opener disconnected. Raise the door halfway and see whether it wants to stay put. Then lower it and lift it again slowly. You are checking for control, not speed.
Watch for signs like these:
- The door drops from a partly open position: The springs may no longer be carrying the new load correctly
- The door rises on its own: Spring tension may now be too strong for the door's actual weight
- The opener sounds strained after reconnecting: The motor is working harder than it should
- One side feels different from the other: Uneven load or panel flex can show up after a retrofit
- The door gets heavier in one spot of travel: Balance and track behavior are no longer working together cleanly
A garage door should feel predictable by hand. If it does not, stop there.
Don't treat spring adjustment like a casual fix
I tell Cleveland homeowners this all the time. Testing balance is fair DIY territory. Adjusting torsion or extension springs is not the same kind of task.
Springs store enough force to hurt you fast, and window retrofits can expose a balance problem that was already borderline before the cut was ever made. That is why this final check matters so much. It tells you whether the door system accepted the added weight or whether the spring setup now needs correction.
If you want a clearer sense of what proper door behavior looks like, review the basics of garage door balance and spring tension. It will help you judge what you are feeling without guessing.
Good window work should leave you with more light, not a door that fights the opener every morning.
Know Your Limits When to Call a Pro in Cleveland
There's nothing wrong with doing your own work when the job fits your skill level. There's also nothing smart about forcing a garage door project past the point where it's safe.
Call a pro if any of these show up:
- The door is badly out of balance after the install
- You suspect the springs need adjustment
- The panel has a strut, reinforcement, or unusual construction
- The opening cut went off-line and the frame won't seat flat
- You're working on an older wood door or a damaged insulated panel
- You're not comfortable making a permanent cut into the door
In Cleveland, I'd add one more practical reason. Weather and age expose weak work fast. A retrofit that looks acceptable on a mild day can start leaking, rattling, or stressing the opener once the temperature swings and the door gets used hard.
Hiring a professional for this kind of job isn't giving up. It's deciding that the door, springs, opener, and panel structure all need to work together when you're done. If you'd rather get a clear opinion before cutting anything, it makes sense to ask for a free garage door repair estimate.
If you want help from a local team that understands both the cosmetic side and the mechanical side of installing garage door windows, reach out to Danny's Garage Door Repair. They serve the Greater Cleveland area, and they can help you decide whether your current door is a good retrofit candidate, what kind of window setup makes sense, and whether the door needs adjustment after the upgrade.
