Master Your Overhead Door Garage Door Bottom Seal

You notice it on a cold morning first. The garage feels raw, the concrete near the door is damp, and there’s a thin line of daylight under the bottom panel. A week later, you spot leaves blown inside. Then a little road salt slurry. Then you start wondering why the room above the garage never feels quite right in winter.

That small strip at the bottom of the door causes more trouble than most homeowners expect. In Cleveland, a worn overhead door garage door bottom seal doesn’t just let in air. It lets in water, grit, bugs, and the kind of freeze-thaw abuse that can turn a minor maintenance item into a bigger repair.

Older homes around Northeast Ohio add another complication. The door may be fine, but the slab underneath it often isn’t. Years of movement, moisture, and winter weather leave floors uneven enough that a basic replacement seal still won’t close the gap. That’s where choosing the right profile, the right material, and the right install method matters.

Why That Gap Under Your Garage Door Matters More Than You Think

You usually see the problem after a Cleveland snow. The driveway starts to melt, the bottom of the door leaves a wet line across the slab, and one corner of the garage stays colder than the rest. In older homes, I often find the seal getting blamed when the actual problem is a floor that has heaved, settled, or worn unevenly through years of freeze-thaw cycles.

That gap at the bottom of the door is a working opening. It lets in cold air, wind-driven rain, slush, road salt, insects, and fine grit. On an attached garage, it can also make nearby rooms feel colder and force the opener, rollers, and lower door section to sit in damp, dirty conditions more often than they should.

Some warning signs show up fast. Others build over a season.

• Light under one side of the door: The seal is not contacting the floor evenly.
• A wet strip just inside the threshold: Meltwater or rain is getting past the bottom edge.
• Leaves, grit, and salt inside the garage: Wind is pushing debris through the opening.
• Cracked, stiff, or flattened seal material: The bottom seal has lost the flexibility it needs to compress against the floor.

In Northeast Ohio, the floor matters as much as the seal. A new bottom seal can still leave gaps if the concrete dips in the center or rises at one corner. That is common on older Cleveland slabs. Generic advice usually skips that part, but it changes what is effective. A basic flat contact seal may be fine on a newer, level floor. On an uneven slab, you often need a different seal profile, a better retainer fit, or an adjustment to how the door meets the concrete.

The problems are not limited to comfort. Water that keeps getting under the door can soak boxes, leave mineral staining on the slab, and keep the bottom edge of the door wet longer. On steel doors, that can shorten the life of the lower section. On wood trim near the opening, repeated wetting can start paint failure and rot.

I tell homeowners to treat this as a condition issue, not a cosmetic one. If you can see daylight, feel cold air at the floor, or notice one side of the seal crushed flatter than the other, the door is no longer closing the way it should.

If you want a broader look at how small air leaks affect the house as a whole, this explanation of a blower door test gives helpful context. For homeowners comparing bottom-seal problems with side and top gaps, this guide on how to seal garage door gaps is also useful.

A worn bottom seal is a small part with a big job. In Cleveland, it has to seal against water, salt, grit, and a floor that may not be perfectly straight anymore. That is why the right diagnosis matters before you buy a replacement.

First Things First Identifying Your Existing Bottom Seal

Before you buy anything, check what’s already on the door. That’s the step many DIYers skip, and it’s the reason they end up with a new seal that won’t fit the retainer.

Start with the bottom edge of the door, not the packaging at the store. The retainer track is what decides compatibility.

Look at the end of the seal

The easiest way to identify the type is to pull a small section from one side and look at the profile from the end.

Here’s what you’re usually looking for:

• T-style seal: The ends look like little T-shapes that slide into channels in the retainer.
• Beaded seal: The edges are rounded and sit into circular or rounded track grooves.
• U-shaped or bulb seal: The sealing portion forms a hollow bulb or loop that compresses against the floor.
• J-style seal: The profile curves in a hook-like shape and is often used where heavier wear or different floor contact is needed.

Why T-style is so common

The T-style garage door bottom seal has been a standard on residential Overhead Door models since the 1950s. It uses a T-shaped profile that slides into a retainer track and works well on the smooth concrete floors found in roughly 85% of U.S. residential garages (Angi).

That matters because many homeowners in Northeast Ohio still have doors using this setup. If you have an older residential steel or aluminum door, there’s a good chance you’re looking at some version of a T-style arrangement.

A photo of the seal end and a photo of the retainer channel save a lot of guesswork. If you’re buying online, those two images are often more helpful than the model number alone.

Check the retainer, not just the rubber

The rubber may be torn, shrunken, or flattened, but the retainer is usually the key indicator. It’s the metal or rigid bottom channel attached to the door where the seal slides in.

Look for these details:

1. How many channels are there
   Many retainers have two parallel grooves. Others use a different capture system.

2. What shape are the openings
   Narrow slots suggest a T-style insert. Rounded ends point more toward a beaded design.

3. Is the retainer damaged
   Bent, rusted, or crushed retainers can make even the correct seal impossible to install smoothly.

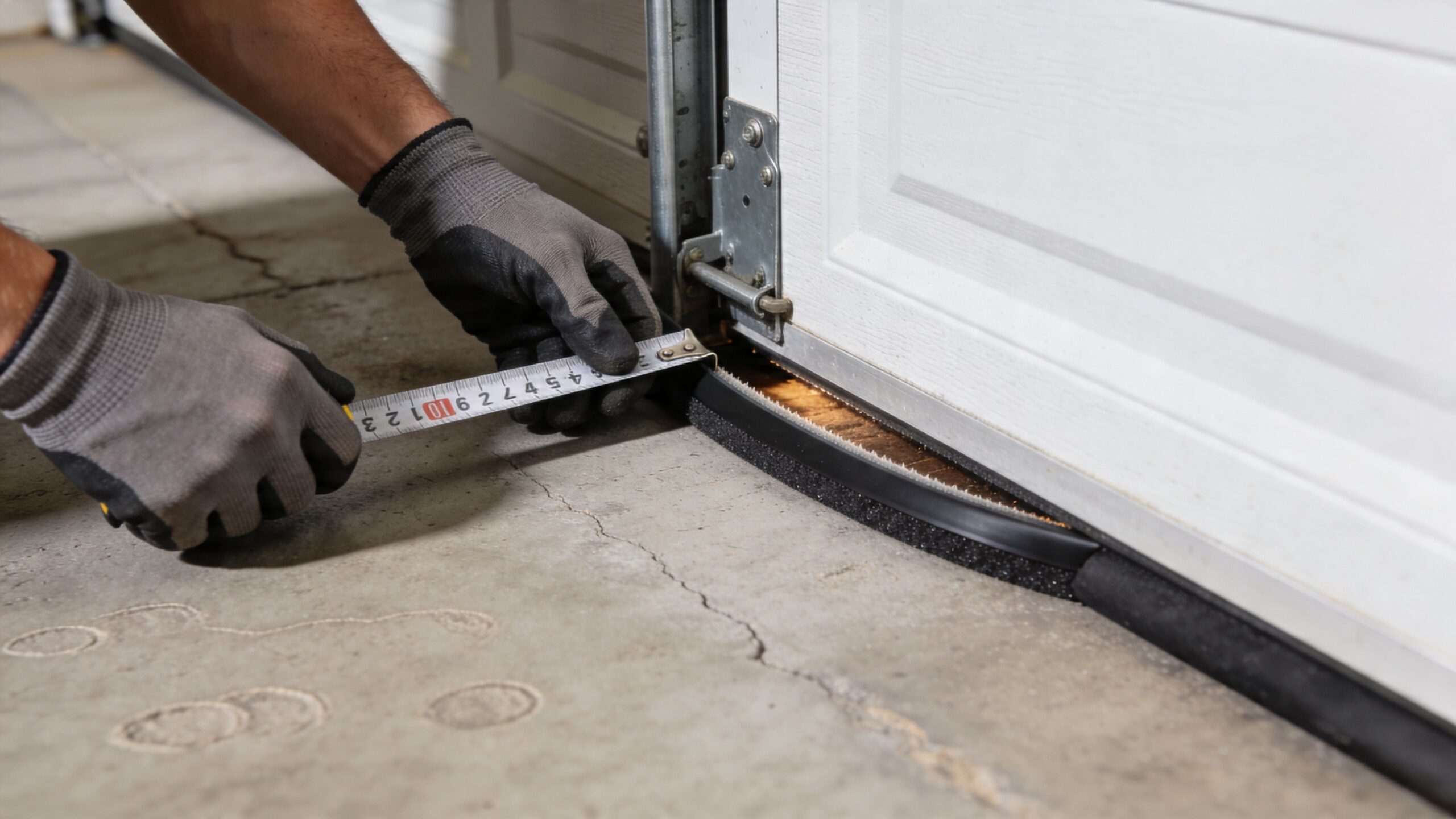

Measure once before ordering

After you identify the profile, measure the door width carefully. It’s also smart to check whether the old seal extends slightly past the edges.

Use a tape measure and write down:

• Door width
• Retainer condition
• Seal profile shape
• Whether the floor looks flat or uneven across the opening

If the slab has visible dips, cracks, or heaving near one side, that changes what will work effectively. A seal that matches the original part may still be the wrong practical choice for your floor.

A quick field check that helps

Close the door and step outside. Then look across the bottom edge from one side to the other.

If the gap changes shape along the width, the problem may not be the seal alone. It may be the floor, the door alignment, or both. That’s common in older Cleveland garages, especially when one corner of the slab has shifted over time.

The goal here isn’t just to identify a part. It’s to understand the setup you’re sealing against.

How to Choose the Right Seal for Ohio Weather and Your Floor

A Cleveland homeowner can buy the correct insert for the retainer, slide it in, close the door, and still see daylight at one corner. I see that a lot in older garages where the concrete has shifted after years of freeze-thaw cycles. The right choice is not just about what fits the track on the bottom of the door. It is about what will still seal against the floor you have in January.

Material matters more in freeze-thaw climates

In Northeast Ohio, a bottom seal has to handle cold, moisture, road salt residue, and constant temperature swings. Cheap material gets stiff, shrinks, or cracks sooner than homeowners expect.

EPDM and TPE are usually the safer picks for this climate. EPDM can last 10 to 15 years and maintains a 92% survival rate at temperatures from -50°F to 180°F (Bestar Door). That matters because a seal only works when it stays flexible enough to compress against the floor instead of hardening up in winter.

What usually works best

Material choice comes down to service life, cold-weather flexibility, and budget.

• Vinyl is easy to find and costs less, but it tends to get stiff in freezing weather.
• Standard rubber is serviceable for milder conditions, but repeated Ohio winters wear it out faster than better compounds.
• EPDM holds up well for homeowners who want a longer-lasting seal.
• TPE also performs well in low temperatures and stays pliable.

If you are also trying to cut drafts around the rest of the door, this guide on how to winterize your garage door is a good companion.

Garage Door Bottom Seal Comparison

Seal Material	Best For	Cold Weather Performance	Uneven Floor Suitability
Vinyl	Basic replacement where budget is the main concern	More likely to stiffen in freezing weather	Limited
Standard rubber	General use in moderate conditions	Better than vinyl, but not the top choice for harsh winters	Fair
EPDM	Cleveland-area homes dealing with cold, moisture, and repeated freeze-thaw cycles	Excellent	Good, depending on profile
TPE	Homes that need flexibility in very low temperatures	Excellent	Good, depending on profile

Profile shape matters just as much as material

A good material in the wrong profile still leaves gaps.

Flat profiles work best on concrete that is fairly even across the opening. A bulb or U-style seal has more give, so it does a better job on floors with shallow dips, minor settling, or a slightly crowned center. That is often the better fit in older Cleveland neighborhoods, where the slab may have moved a little every winter for decades.

The trade-off is simple. A larger profile can forgive more floor variation, but only if your retainer is designed to accept it and the door closes with enough pressure to compress it.

On an uneven slab, the best seal is the one that can flex into the low spots without bunching up or dragging too hard on the high spots.

How I’d choose it on a real Cleveland job

Smooth floor and standard retainer

Use the matching profile and upgrade the material. If the floor is flat and the retainer is in good shape, an EPDM or TPE replacement is usually the cleanest answer.

Mild unevenness across the opening

Stay with the correct attachment style, but pick a seal with more body if the retainer allows it. A bulb-style or U-style profile usually gives better contact across small dips and surface wear.

Larger gap on one side or through the middle

At that point, the floor is part of the repair. Replacing the seal alone may improve the gap, but it often will not finish the job. In many Cleveland garages, the better fix is a proper bottom seal paired with a floor threshold, especially where water tracks in under the door.

Real trade-offs to keep in mind

Every option solves one problem and gives up something else.

• Lower-cost material saves money upfront, but it usually needs replacement sooner in Ohio winters.
• Flat profiles install easily on even floors, but they do not forgive slab movement well.
• Bulb-style seals handle imperfect concrete better, but they can drag more and must match the retainer.
• Adding a threshold improves resistance to water and drafts, but the floor has to be cleaned and prepped carefully for it to stay bonded.

The best seal is the one that matches the retainer, stays flexible in cold weather, and has enough profile to meet the floor you have now, not the floor the garage had when the house was built.

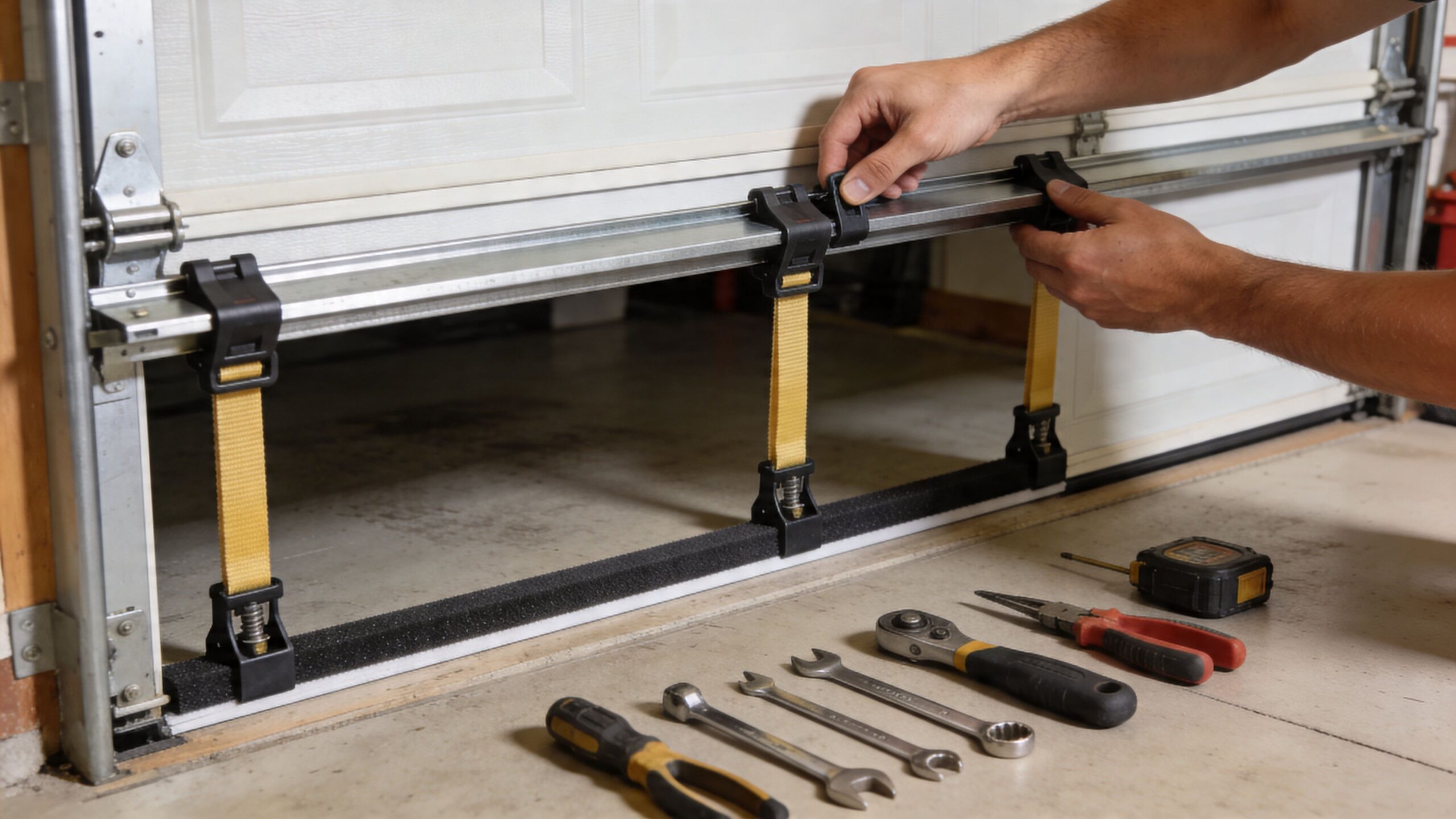

Your DIY Guide to Replacing an Overhead Door Bottom Seal

Replacing a bottom seal is one of the more manageable garage door jobs for a careful homeowner. It’s still worth taking your time. Most problems come from rushing the prep, forcing the material, or assuming the floor will forgive a sloppy fit.

If the door itself is damaged, off track, or hard to move, stop there. A bottom seal replacement should happen on a stable, properly operating door.

Gather the right tools first

Most homeowners only need basic hand tools:

• Tape measure
• Utility knife
• Flathead screwdriver
• Vacuum
• Clean rag
• Isopropyl alcohol
• Rubber mallet
• WD-40 White Lithium Grease
• Work gloves

If you need a broader overview of bottom weather sealing before starting, this page is worth keeping open in another tab: https://garagedoors101.com/weather-seal-garage-door-bottom/

Step one is safety and access

Raise the garage door fully so you can reach the bottom retainer without fighting the weight of the panel. Make sure the door is stable before you start working.

Then inspect the full width of the retainer. If you see heavy rust, severe bends, or crushed channel openings, a new seal may not slide in correctly until that issue is fixed.

Remove the old seal completely

Pull the old seal out from one end. Sometimes it slides. Sometimes it tears and comes out in sections.

Use a flathead screwdriver carefully if needed, but avoid gouging or spreading the retainer channel. The goal is to remove the old material without turning a simple replacement into a track repair.

Clean the channel better than you think you need to

This is the step DIYers skip most often.

A common pitfall behind 40% of DIY failures is debris left in the retainer channel. Cleaning the channel with a vacuum and wiping it with isopropyl alcohol before lubrication helps avoid that problem, and applying WD-40 White Lithium Grease can reduce insertion force by 50% (Clopay).

Don’t slide a new seal into a dirty track. Old rubber crumbs, rust flakes, and grit create drag, twist the seal, and lead to bad seating.

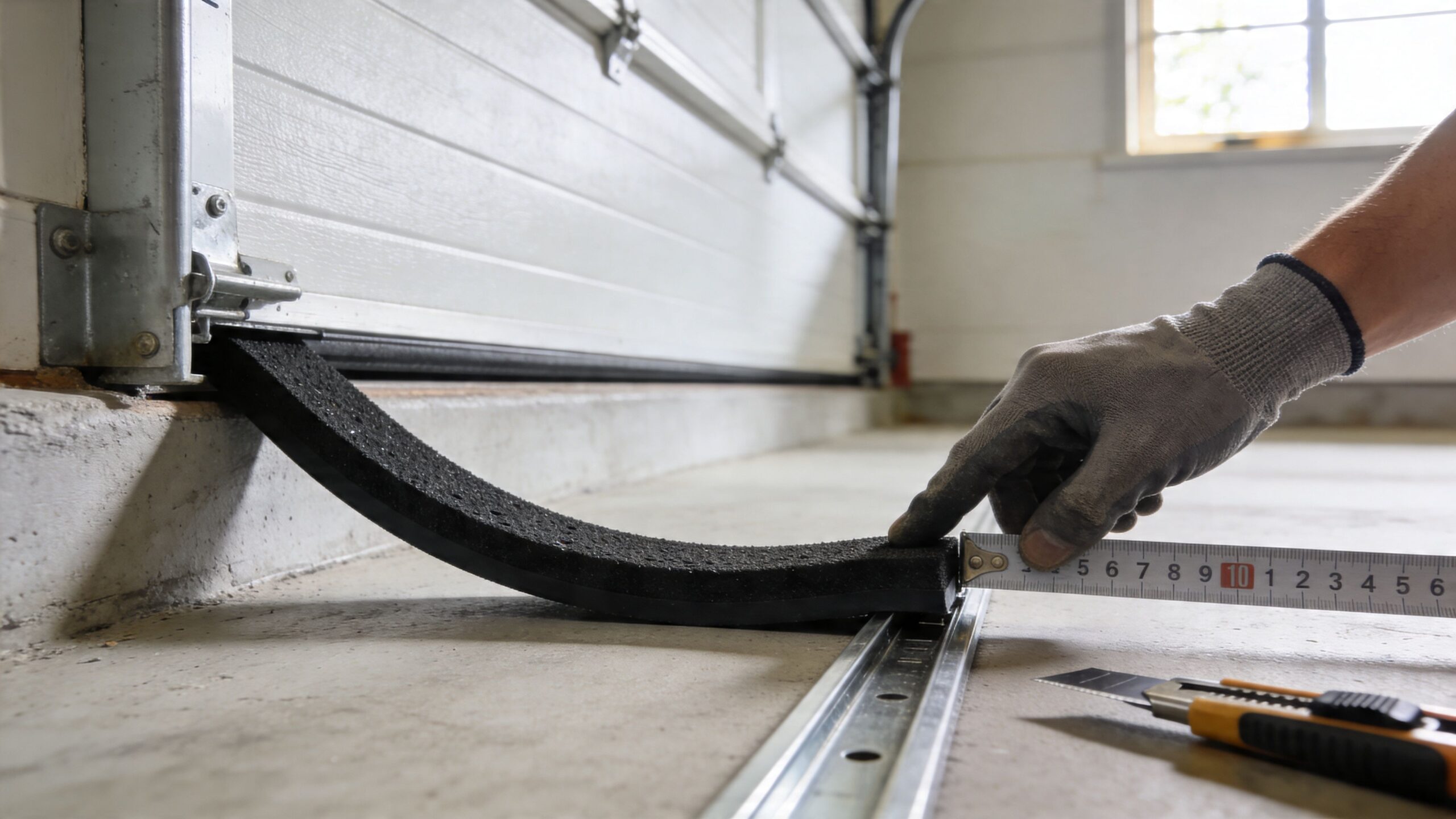

Measure and cut the new seal

Measure the door width carefully before cutting the new material. It’s smart to leave the new seal slightly long at first. You can always trim the excess after it’s installed and centered.

A seal cut too short leaves you no room for adjustment. A little extra length gives you control.

Feed the seal into the retainer

Start at one end of the track and work the seal into both channel openings evenly. Go slowly.

Some seals slide in by hand. Others need gentle taps with a rubber mallet to keep them moving. The key is steady progress, not brute force.

If the material starts binding:

1. Stop pulling harder.
2. Check whether one side has jumped out of alignment.
3. Add a small amount of lubricant to the channel.
4. Resume with both sides feeding evenly.

Center it, close the door, and check compression

Once the seal is through, center it so each side extends evenly. Lower the door and see how the bottom edge contacts the slab.

What you want is consistent compression across the opening. Not crushed flat on one end and floating on the other.

A good first check:

• Look for daylight
• Run your hand near the floor for moving air
• Inspect the corners
• Look outside after rain or snowmelt for where water would travel

Trim only after testing

Raise the door again and trim off the extra material neatly. A sharp utility knife gives the cleanest cut.

Then cycle the door several times. Watch for the seal pulling sideways, bunching at one end, or sliding out of the retainer. Those are signs something isn’t seated correctly.

What homeowners usually get wrong

The mistakes are usually predictable:

• Buying by appearance only: The old seal looked like a match, but the retainer wasn’t.
• Skipping channel cleaning: The seal drags, tears, or twists during insertion.
• Using the wrong material for winter: The seal goes stiff and stops conforming to the floor.
• Expecting the seal to fix a slab problem: The door is fine, but the floor isn’t.

A realistic DIY test before you call it done

Close the door at night and check from inside with the lights off outside, or during the day with interior lights off. Look for visible light under the bottom edge.

Then wait for weather. A clean install should noticeably reduce drifting debris, low-level drafts, and water movement at the threshold.

If it still leaks in one area, don’t assume the whole job failed. The install may be fine, and the floor may be telling you the next step is a threshold solution instead.

Troubleshooting Gaps and Other Common Seal Problems

You replace the bottom seal, close the door, and one corner still shows daylight after a cold Cleveland night. That usually means the install was only part of the job. In Northeast Ohio, the bigger problem is often the floor.

Older garages around Cleveland rarely have a perfectly flat slab. Years of freeze-thaw movement can leave a dip near one corner, a high spot in the center, or a floor that pitches back toward the opening. A new seal can improve the gap, but it cannot reshape concrete.

Gap on one side after installation

If the seal touches on one side and misses on the other, start with the floor before blaming the rubber. I see this a lot in older homes where the concrete has settled unevenly over time.

Check the gap with the door closed and look at it from inside. If the seal is compressed hard on one end and barely touching on the other, the slab is the likely cause. In that case, a threshold on the floor can help bridge the low area and slow water entry. That matters if melting snow or heavy rain already leaves you worrying about water damage cleanup costs.

The seal bunches up in the track

A seal that wrinkles or slides sideways usually points to an installation problem or a mismatch between the seal and the retainer.

Look for these causes:

• Debris in the channel: Rust flakes, hardened dirt, and bits of the old seal create drag.
• Uneven feeding during installation: One side was pulled farther, so the material has nowhere to go.
• Wrong seal profile: It may look close enough on the garage floor, but it will not stay seated once the door starts cycling.
• Retainer damage: A bent aluminum track can pinch the seal and force it to gather.

If the seal fought the whole way in, stop and recheck the fit. A correct seal usually slides with some resistance, but it should not twist, shave rubber, or need excessive force.

Water still gets in during rain

Follow the water path.

Many homeowners focus on the bottom edge of the door and miss what is happening a few feet outside. If the driveway slopes toward the garage or the slab dips at the opening, water can push under the seal even when the seal itself is in decent shape. If the puddle forms near the jamb, inspect the side weatherstripping too. Water often comes around the edges and then collects at the floor, which makes the bottom seal look like the culprit when it is only part of the problem.

The seal freezes to the ground

This is common after slush melts during the day and refreezes overnight. The issue is usually trapped moisture at the contact point, plus a seal material that has gone stiff in low temperatures.

Keep the area at the threshold as dry as you can during winter. Sweep out salt, grit, and packed snow. If the seal has hardened or shows cracking, replace it with a material that stays flexible in cold weather. A softer seal releases better in January than an old brittle one.

The corners still leak

Corners tell the truth fast. If one lower corner leaks while the middle looks tight, inspect the meeting point between the bottom seal, the side weatherstripping, and the lower section of the door.

Check for:

• Bent bottom retainer
• Damage to the lower door section
• Worn or short side weatherstripping
• A twisted seal that is not sitting square at the end

Sometimes the bottom seal is doing its job, but the corner connection is open just enough to let in wind-driven rain or drifting snow.

When the floor is the real problem

There is a point where changing seals stops helping. If the slab has a pronounced dip, crown, or broken edge at the opening, the fix may need to include a threshold, concrete repair, or an adjustment to the door setup.

That is the trade-off homeowners in Northeast Ohio deal with. A bottom seal is meant to conform to the floor, not compensate for years of slab movement. If the door and seal are in good shape and the gap keeps returning in the same spot, the concrete is usually the part that needs attention.

Cost Lifespan and When to Call Danny's Garage Door Repair

A Cleveland homeowner usually notices the bottom seal after a hard thaw. The snow melts, water runs toward the door, and the same low spot in an older slab lets moisture creep inside again. At that point, the question is not just what a new seal costs. The primary question is whether a seal alone will solve the problem on your floor.

How long a bottom seal usually lasts

Most bottom seals are a wear item. In Northeast Ohio, I tell homeowners to expect replacement sooner if the door closes onto rough concrete, drags across salt and grit, or sits in standing meltwater through winter.

Lifespan depends on a few practical factors:

• Seal material
• How often the door opens and closes
• Moisture at the threshold
• Salt, sand, and debris on the floor
• How uneven or broken the concrete is near the opening

A good seal can last for years. A cheap one on a shifted Cleveland slab may flatten, tear, or stiffen much faster.

Trade-offs between cheap and durable

Low-cost seals have their place. If the slab is fairly smooth and the garage does not see much winter mess, a basic replacement may be enough.

Older homes around Cleveland often present a different situation. The concrete may have a dip at one corner, a chipped edge at the opening, or minor heaving from freeze-thaw cycles. In that setting, better rubber or vinyl usually holds shape longer and stays more flexible in the cold. The upfront price is higher, but repeat replacement is less likely.

That is the trade-off. Paying less at the start can mean doing the job again sooner.

How a good seal helps you avoid bigger costs

A bottom seal helps with drafts, but water control is usually the bigger issue here.

If water keeps getting under the door, the problem can spread to boxes, stored tools, drywall edges, trim, and anything sitting near the front of the garage. I have also seen moisture wick into adjacent framing in attached garages where the leak was ignored for too long. If you want a general sense of how fast repair bills can grow after water gets established, this breakdown of water damage cleanup costs gives useful context.

A seal is inexpensive maintenance. Repeated water intrusion is not.

Signs the job is still a good DIY project

DIY usually makes sense if the problem is straightforward and the hardware is in decent shape.

You can usually handle it yourself if:

• The door opens and closes smoothly
• The bottom retainer is straight and usable
• You have matched the correct seal profile
• The floor is only slightly uneven
• You are comfortable working with the door secured in the open position

For a patient homeowner, this is a manageable weekend repair.

Signs it is time to call a pro

Call for service if the seal problem keeps coming back or the door system has more than one issue.

Professional help is the better choice if:

• The retainer is bent, rusted, or cracked
• The door closes crooked or binds
• The slab has a pronounced dip, hump, or broken edge
• The new seal slides out or will not seat correctly
• You replaced the seal and the same gap remains
• You want the floor, door alignment, and seal checked together

That last point matters in Cleveland. On older homes, the seal is often only part of the problem. A technician can tell whether you need a new seal, a retainer repair, a door adjustment, or a different approach because the concrete has moved too much.

Simple maintenance that adds life

Keep the area under the door clean.

Sweep out grit. Clear packed snow. Rinse or wipe away salt residue when practical. Check the bottom edge when the weather changes, especially after winter.

That small routine helps the seal stay flexible, seat better, and wear more evenly.

If your garage door still has a gap, keeps letting water in, or sits over an uneven Cleveland slab, Danny's Garage Door Repair can help you figure out what’s wrong and fix it the right way. We handle bottom seal replacement, retainer issues, off-track problems, and full garage door repairs across Greater Cleveland, with clear advice and practical solutions that hold up in Ohio weather.
