Getting your Overhead Door keypad up and running is a lot simpler than it looks. It's really just a matter of "introducing" the keypad to your garage door opener's motor unit. Think of it as a quick digital handshake. This guide will walk you through that process, skipping the technical jargon and getting straight to the steps that matter.
Your Quick Guide to Programming Overhead Door Keypads
Let's get that keypad synced. It can be tempting to just start pressing buttons, but a few moments of prep will save you a headache later. The good news is that overhead door keypad programming is designed to be a straightforward DIY job.
This is your fast-track guide. We'll show you exactly what to look for on the motor unit, what the blinking lights mean, and the simple button sequences that bring it all together. This process works whether you're setting up a brand-new keypad or just need to reprogram an old one that's giving you trouble.
Understanding the Tech Behind the Keypad
The technology inside these systems has come a long way. The real game-changer was the introduction of CodeDodger® technology back in the mid-1990s, which uses rolling codes for much better security. Every time you use the keypad, the access code changes, making it virtually impossible for someone to steal your signal.
Most modern setups involve a simple sequence: you'll press a 'PROG' or 'Learn' button, enter your personal PIN (usually 3 to 8 digits long), and confirm. This is a fundamental part of home security, aligning with essential access control best practices that help keep your property safe.
Key Takeaway: The whole point of programming is to create a secure, wireless link between your keypad and the motor that lifts the door. You're teaching them to communicate using a unique code that only you and your family know.
To help you visualize the process, here's a quick summary of what you'll be doing.
Keypad Programming At a Glance
| Action | Typical Button(s) To Use | What to Look For |
|---|---|---|
| Enter Programming Mode | Press and hold 'PROG' and '6' on the keypad simultaneously. | The keypad's indicator light will start flashing. |
| Set Your PIN | Enter your chosen 3-8 digit PIN, then press 'PROG'. | The light should flash at a different rate to confirm. |
| Sync with Opener | Press the 'Learn' or 'Program' button on the motor unit. | The motor's LED will typically light up or start blinking. |
| Finalize Sync | Enter your PIN on the keypad and press 'Up/Down' arrow key. | The opener's main lights should blink and you might hear a click. |
This table covers the most common sequence, but always remember that specific button presses can vary slightly depending on your exact model.
Getting Started the Right Way
Before you climb up that ladder, grab what you'll need. A sturdy stepladder is a must, and a flashlight can be surprisingly helpful for finding the right button on a dark motor unit.
Your first mission is to locate the "Learn" or "Program" button on the opener itself. This is the magic button. Pushing it tells the opener, "Hey, get ready to pair with a new device!"
Once you've got your gear and have located the button, you're ready to go.
First Things First: What Kind of Garage Door Opener Are You Working With?
Before you start punching in codes, you need to know exactly what kind of opener you have. This is hands-down the most critical first step in overhead door keypad programming, and trust me, skipping it is a fast track to a major headache.
Think of it this way: not all Overhead Door openers speak the same language. A brand-new model from this year communicates very differently than a workhorse that's been faithfully lifting your door for 15 years. The programming method hinges entirely on the technology inside that motor unit hanging from your ceiling. A quick look will save you a ton of guesswork.
The Easiest Tell: The "Learn" Button
For most modern openers—pretty much anything made after 1995—the dead giveaway is a "Learn Code" button. You'll need to get up on a ladder and inspect the motor unit itself. The button is usually on the back or side panel, often right next to a little LED light. Sometimes it's tucked away behind a light cover, so you might have to pop that off.
The button itself can give you clues:
- You'll often see a square button, which might be black, green, or purple.
- Round buttons in various colors are also a clear sign of a modern, programmable unit.
If you spot a button labeled "Learn," "Program," or "Set," you're golden. That little button is the key to syncing your keypad wirelessly.
What If You Can't Find a Button?
Okay, so you've looked all over the motor and there's no button to be found. Don't panic. This almost certainly means you're working with an older model that uses a different system: DIP switches.
A Little Pro Insight: DIP switches are a block of tiny on/off toggle switches, usually in a single row. They look like a miniature bank of light switches. You'll find them on both the motor unit (you may have to open a small panel) and inside the keypad's battery compartment.
For these older systems, programming is all about matching patterns. You have to set the sequence of the DIP switches on the keypad to exactly mirror the sequence on the opener. This physical configuration is what creates the secure link. As you can see, it's a completely different ballgame from pressing a "Learn" button, which is why figuring out your opener type from the get-go is so important.
Programming Your Keypad with a "Learn Button"
If you've spotted a "Learn Code" button on your garage door opener motor, you're in luck. This is the modern, and much simpler, way to handle overhead door keypad programming. Let's skip the jargon-filled manuals and get this done.
Think of this as a two-step handshake. First, you'll get the keypad ready and teach it the new PIN. Then, you'll tell the opener itself to listen for that specific PIN. Once they're introduced, you're good to go.
Waking Up the Keypad
Before you even think about climbing a ladder, the first job is to put the keypad into programming mode. This is how you tell it to get ready for a new code.
The exact button combo can differ slightly between models, but for the vast majority of Overhead Door keypads, it’s a pretty standard sequence.
- Press and hold both the "PROG" and "6" keys at the same time.
- Keep holding them down for a few seconds until the small indicator light on the keypad begins to blink.
That blinking light is your signal. The keypad is now officially in learning mode and waiting for its new PIN.
The image below gives you a quick visual on figuring out if you have a modern "Learn Button" opener or an older "DIP Switch" style.
It’s a handy reference that shows the clear difference, making sure you’re following the right set of instructions for your specific garage door opener.
Choosing and Setting Your PIN
Now for the fun part—picking your code. Modern wireless keypads from brands like Overhead Door have come a long way in terms of security. The standard approach involves setting a PIN between 3 and 8 digits long and pairing it with the opener's 'Learn Code' button. This method really became the go-to around 2010 for popular models like the Odyssey and Destiny series. For a deeper dive, you can explore detailed guides from Overhead Door.
With that keypad light still blinking away:
- Go ahead and key in your new PIN. Try to pick something that's easy for you to remember but hard for others to guess.
- Once your PIN is entered, press the "PROG" button one more time.
- You should notice the indicator light change its rhythm—it usually goes from a slow blink to a much faster one. That’s the keypad telling you, "Got it, PIN accepted."
The keypad now knows your secret code. All that's left is to introduce it to the motor.
Syncing the Keypad with the Opener
Alright, time to grab that stepladder. Make your way up to the garage door opener motor unit.
Zero in on that square "Learn Code" button we found earlier. Press it and immediately let go. A common mistake is holding it down, which can accidentally wipe the memory of all your other remotes. Just a quick press is all you need.
Pro Tip: The moment you press the "Learn Code" button, a small LED light next to it should start blinking. This is your cue! The opener is now actively searching for a new signal for the next 30 seconds. You have to act fast.
While that light on the motor is blinking, head back to your keypad on the wall.

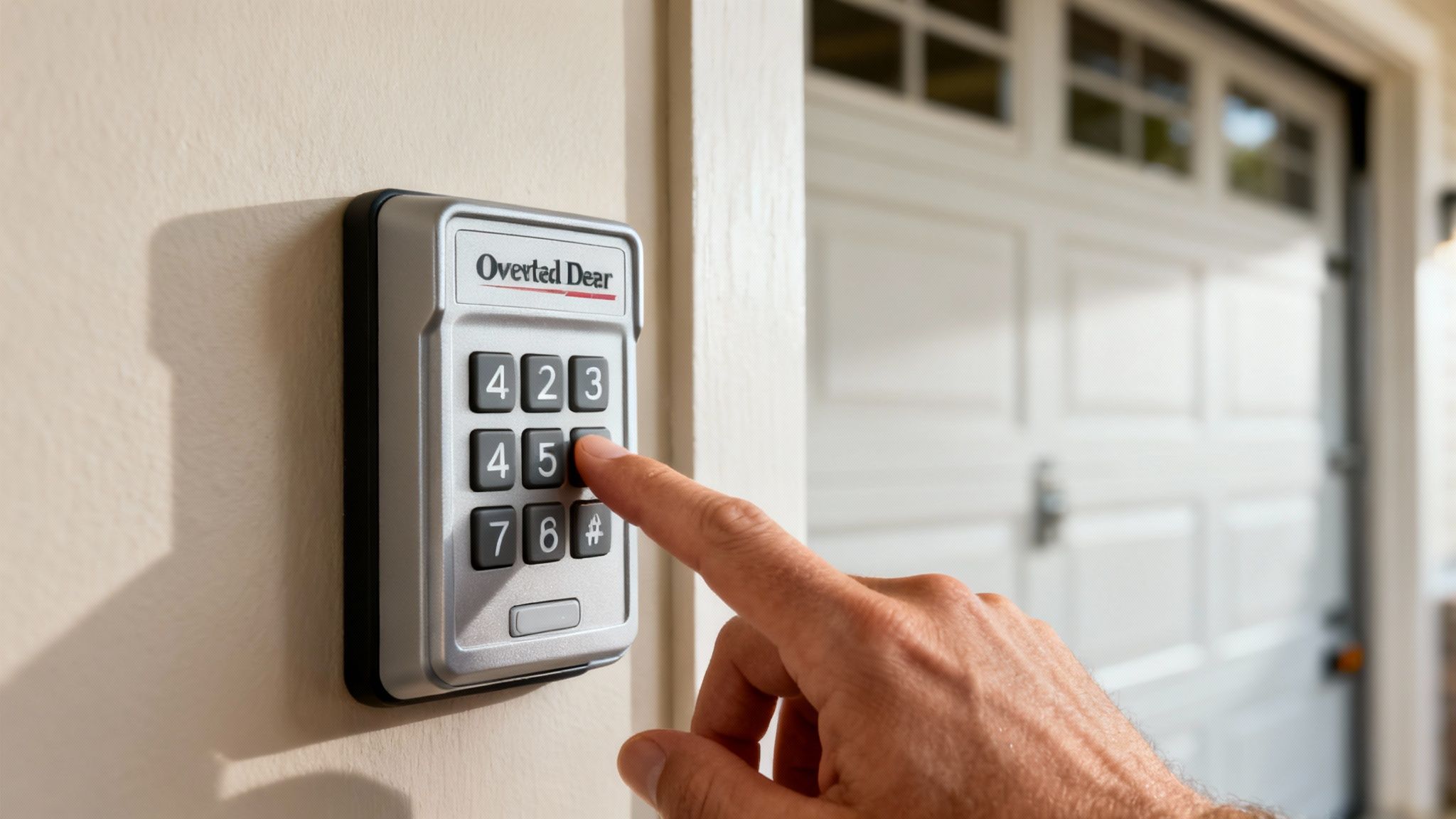

- Type in the PIN you just created.
- Press the "Up/Down Arrow" key just once.
Success! You should see the main light bulbs on the opener flash and hear a distinct click from the motor. That's the confirmation that the keypad and opener have successfully synced.
To be sure, give it a quick test. Enter your PIN and hit the "Up/Down Arrow" key again. Your garage door should begin to move.
What If You Have Multiple Doors?
No problem. If you have a two or three-car setup, most modern keypads are designed to handle them all. The programming process is almost identical. You'll just repeat the steps for each door, with one tiny addition. After you enter your PIN and hit "PROG," the keypad will ask you to pick which door you're programming (e.g., 1, 2, or 3). Just assign a unique number to each opener, and you'll be able to control everything from that single keypad.
How to Program Older Models Using DIP Switches
If you’ve looked all over your garage door opener for a “Learn Code” button and come up empty, you’re almost certainly dealing with an older model. These reliable workhorses use a completely different system for overhead door keypad programming: a series of tiny physical switches called DIP switches.
Don't let the analog tech throw you off. The process is actually quite straightforward. Instead of the opener learning a code, you're manually setting a matching "password" on both the opener and the keypad. When the patterns align perfectly, they can talk to each other. Simple as that.
Locating the DIP Switches
First things first, you need to find these switches. You’ll have to get access to them on both your opener and your keypad.
- On the Opener Motor: Grab a ladder and take a look at the motor unit itself. You're searching for a small access panel, often tucked away on the back or hidden under a light cover. Pop it open, and you should see a row of 8 to 12 tiny switches.

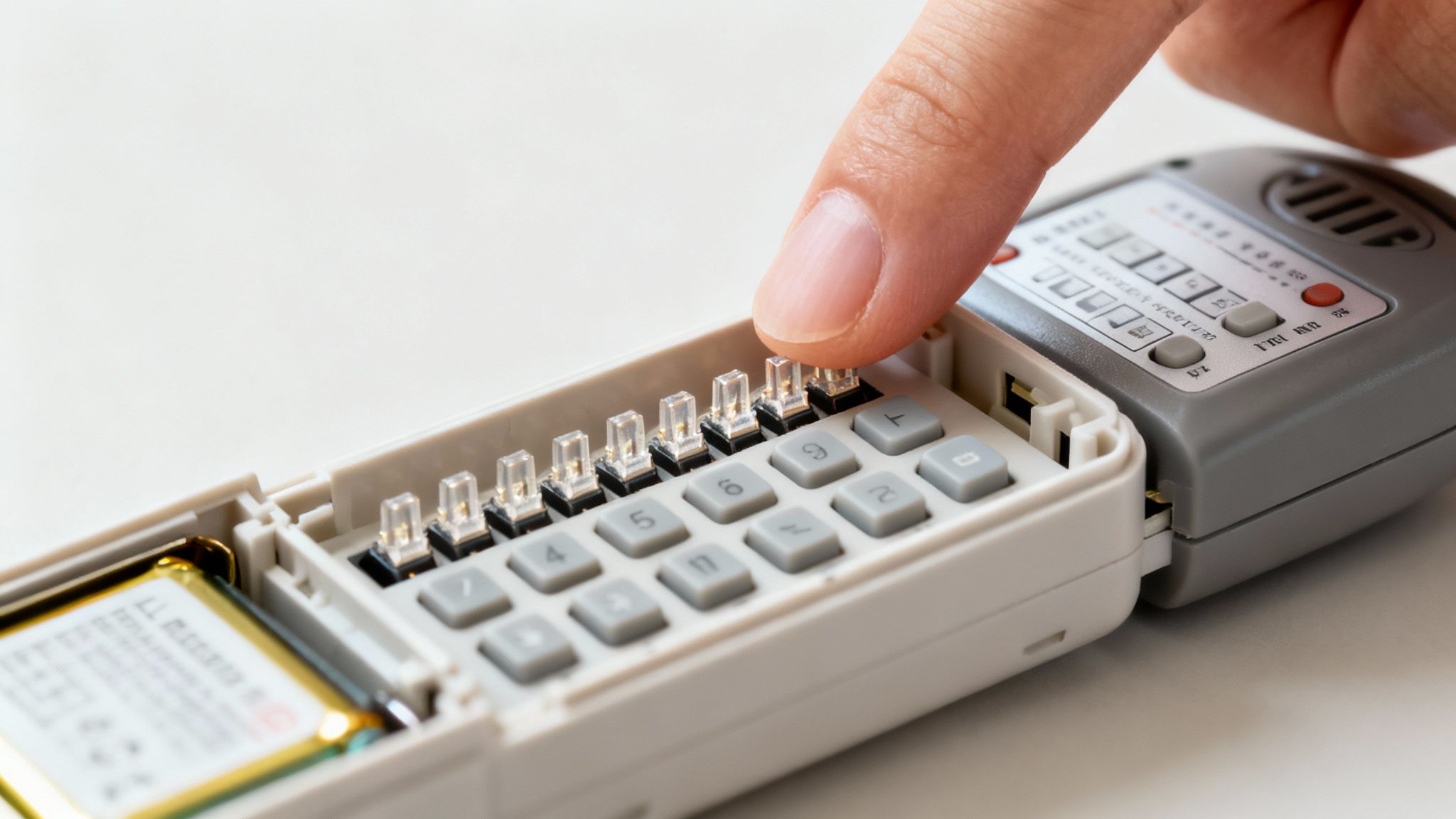

- Inside the Keypad: On your wireless keypad, just slide the battery cover off. The DIP switches are usually right there in plain sight, often next to the battery compartment.
You'll know you've found them when you see what looks like a miniature set of light switches. Each one can be toggled into an up, down, or sometimes a middle position.
Expert Tip: Be gentle with these switches. They’re small and can be a bit fragile. Using a big screwdriver is a bad idea. I always recommend using the tip of a pen, a paperclip, or a small precision screwdriver to flip them without causing any damage.
Setting a Matching Code
Now for the easy part. Take a good look at the pattern of the switches on your opener motor. Your only job here is to make the switches inside the keypad match that pattern exactly.
If the first switch on the opener is in the "up" position, the first switch on the keypad needs to be up. If switch number four is down, you get the idea—make switch number four on the keypad down as well.
This perfect one-to-one match is what creates your secure link. It’s a beautifully simple and effective system.
Once you’ve mirrored the pattern perfectly, close up the panel on the motor and put the battery cover back on your keypad. Now, punch in your desired 1-4 digit PIN and hit the "Send" or "Enter" button. The door should move right away.
If nothing happens, the most common culprit is a single mismatched switch. Head back up the ladder and double-check your work. Even one switch in the wrong position will keep the system from working.
Wrestling with Common Keypad Programming Glitches
So you’ve followed all the steps for your overhead door keypad programming, but the door just isn't cooperating. It’s a classic, frustrating moment, but don't worry—the fix is usually much simpler than you think. Let's walk through some of the most common issues I see out in the field and get that keypad talking to your opener.
First, take a breath. It's almost never a major system failure. Garage door keypads have come a long way from those old-school mechanical buttons. Today's wireless systems, with their PROG buttons and PIN sequences, are built for security and are incredibly reliable after decades of refinement. You can actually see how much these systems have evolved over the years.
When a keypad acts up, it’s usually a simple communication breakdown, a power issue, or a signal getting blocked.
The Keypad is Completely Dead
You're pushing buttons, but the keypad is a brick—no lights, no beeps, nothing. Before you start thinking about a replacement, check the most obvious culprit: the battery. A dead battery is, by far, the number one reason a keypad goes silent.
- Swap the Battery: Pop open the keypad cover and put in a fresh, brand-name battery. Don't grab one from the "junk drawer"; a new battery can make all the difference.
- Check for Corrosion: While it's open, glance at the battery terminals. If you see any fuzzy white or greenish buildup, that's corrosion. Gently scrub it off with a small brush.
Honestly, a new battery solves this problem more than 90% of the time. It’s the first and most important troubleshooting step.
The Lights Blink, But Nothing Happens
This is another one I hear all the time. The keypad’s lights flash, telling you it’s alive and sending a signal, but the door doesn't move an inch. This signals a communication breakdown between the keypad and the opener motor.
First, check your distance. Are you trying to program it from the end of the driveway? Even with good range, walls and other objects can weaken the signal. Step a little closer to the garage and try again.
If that doesn't work, it’s time for a reset. You'll need to clear the opener's memory to give it a clean slate. Find the "Learn Code" button on the motor unit itself, then press and hold it for about 6 to 10 seconds. The indicator light will go out, which means it has forgotten all connected remotes. Now you can try programming the keypad from scratch.
Heads Up: Wiping the opener's memory erases everything—including your car's remote and any other clickers. You'll have to reprogram all of them after you get the keypad working.
Hunting Down Signal Interference
Sometimes, the problem isn't your gear at all. Something else in your garage might be screaming on the same frequency, blocking the signal from your keypad. It’s a sneaky issue that’s easy to miss.
One of the most common culprits I find? Non-compatible LED light bulbs. Yep, certain LEDs, particularly cheaper ones, can emit radio frequency interference that messes with garage door openers.
Here’s a quick way to test this theory:
- Unscrew the Bulbs: Take the light bulbs right out of your garage door opener motor.
- Try Programming Again: With the bulbs removed, try to use or program the keypad.
If it magically starts working, you've found your interference. The solution is to buy LED bulbs specifically marked as "garage door opener compatible." If you’re facing other strange motor or logic board problems, our guide on garage door opener troubleshooting has some deeper diagnostics you can run.
Your Overhead Door Keypad Questions Answered
We get a lot of the same questions from homeowners trying to get the hang of their overhead door keypad programming. It's completely normal to have a few questions after getting through the main setup. Think of this as your personal FAQ, where we tackle the real-world problems and scenarios our team hears about every single day.
Here are some direct, no-fluff answers to help you put the finishing touches on your keypad setup or solve that one last nagging issue.
How Do I Change My Keypad PIN?
Changing your PIN every so often is just smart security. For most modern Overhead Door keypads, it's a quick and painless process.
You'll start by entering your current, working PIN to wake up the keypad. Once the lights are on, press and hold the "PROG" button. Keep holding it until you see the indicator light change its blinking pattern—that's the signal it's ready for something new.
Now, punch in your new 3-8 digit PIN and hit "PROG" one last time to lock it in. The light should give you a confirmation flash. I always tell people to test it immediately to make sure the change stuck.
What Happens If I Forget My PIN?
It happens to the best of us. If your keypad PIN has completely slipped your mind, don't panic. For security reasons, there isn't a "forgot my password" link here. The only real solution is to wipe the opener's memory and start fresh.
To do this, you'll need to press and hold the "Learn Code" button on the motor unit itself for about 6-10 seconds, or until the little LED light goes out. This action clears all paired devices. From there, you'll have to reprogram your keypad from scratch, which lets you set a brand new PIN.
Important Note: Clearing the opener's memory erases everything—your keypad, all your car remotes, and any other clickers. You will need to re-sync every single device after performing this reset.
Can I Use My Keypad for Multiple Garage Doors?
Absolutely! This is a fantastic feature for homes with more than one garage bay. Most current Overhead Door keypads are built to control up to three separate openers from the same unit.
The process is almost identical to programming a single door. You'll just repeat the syncing steps for each garage door opener. After you set your main PIN during the programming sequence, the keypad will ask you to assign that opener to a specific door number (usually by pressing 1, 2, or 3). Just give each door its own number, and you're all set. It's so much better than juggling multiple remotes.
Will My Keypad Work With Other Systems?
Beyond just the keypad, a lot of people want to sync their garage with their car's built-in remote system. If that's you, check out our guide on how to program a HomeLink garage opener, which walks you through syncing your vehicle directly to the opener.
For those looking to beef up security beyond the garage, a comprehensive approach is always best. A secure keypad is great, but it's just one piece of the puzzle. If you're the hands-on type, a guide to DIY home security system installation can offer some great insights into protecting your entire property.
