You hit the wall button, grab your coffee, and wait for the garage door to close behind you. Instead, it drops partway, hesitates, then pops right back up.
If you live in Northeast Ohio, that scene feels familiar. Cold mornings, wet slush, road salt, bright sun bouncing off snow, and garages that take a beating all winter can turn a simple door closing cycle into a daily headache. Most of the time, the trouble starts with one small part near the floor.
Those little boxes on each side of the opening are your overhead door sensors. They don’t look like much, but they’re one of the most important safety parts on the whole system. They protect kids, pets, tires, bikes, storage bins, and anything else that ends up under a moving door. When they work, you barely notice them. When they don’t, you notice fast.
Modern openers rely on them more than ever. The global overhead door sensors market reached USD 1.23 billion in 2025, and 85% of U.S. garage door openers sold in 2023 featured smart sensors with IoT connectivity, according to Trend Vault Research on overhead door sensors. That tells you something simple. These sensors aren’t some optional add-on anymore. They’re baked into how people expect a garage door to work today.
The Unsung Heroes of Your Garage Door
Most homeowners first notice sensors when the door refuses to close. That’s usually when somebody squats down, sees one little light blinking, and wonders if the opener is dying.
Usually, it isn’t.
The sensor system is often doing exactly what it was built to do. It sees something wrong, or thinks it sees something wrong, and it stops the door from coming down. That can be annoying when you’re already late for work, but from a safety standpoint, it’s a good thing.
Why these tiny parts matter so much
Think of overhead door sensors like a crossing guard at the bottom of the opening. Their whole job is to watch the path of the door and say, “Nope, not safe,” if something is in the way or if the system can’t confirm the path is clear.
That matters in everyday situations like these:
- A child chasing a ball into the garage as the door is closing
- A pet slipping under the opening at the last second
- A bumper or bike tire sitting just a little too far out
- A trash can or snow shovel left in the doorway after a storm
Without sensors, the door would rely far more on physical contact or older reversal methods. That’s not where you want your safety margin to begin.
Sensors are frustrating when they act up. But the same feature that keeps the door from closing on your car also keeps it from closing on something much worse.
Why Northeast Ohio homeowners notice sensor problems more
In this area, sensors have a harder life than people think. They sit low to the floor, right where snow, mud, salt, water, and kicked-up debris collect. A sensor can be perfectly fine electrically and still stop working because the lens has grime on it or the bracket got nudged a little during a deep freeze.
Homes with attached garages often feel this most in winter. Commercial spaces and rental properties see it too, especially when doors cycle often and equipment traffic bumps the tracks or mounting hardware.
They’ve become part of the smart garage too
A lot of newer systems now tie sensors into app-based controls, alerts, and remote monitoring. That doesn’t change the core job. It just means the old “photo eye” has become part of a larger safety and convenience setup.
The smart features are nice. The core value is still simple. These sensors help make sure the door only closes when it should.

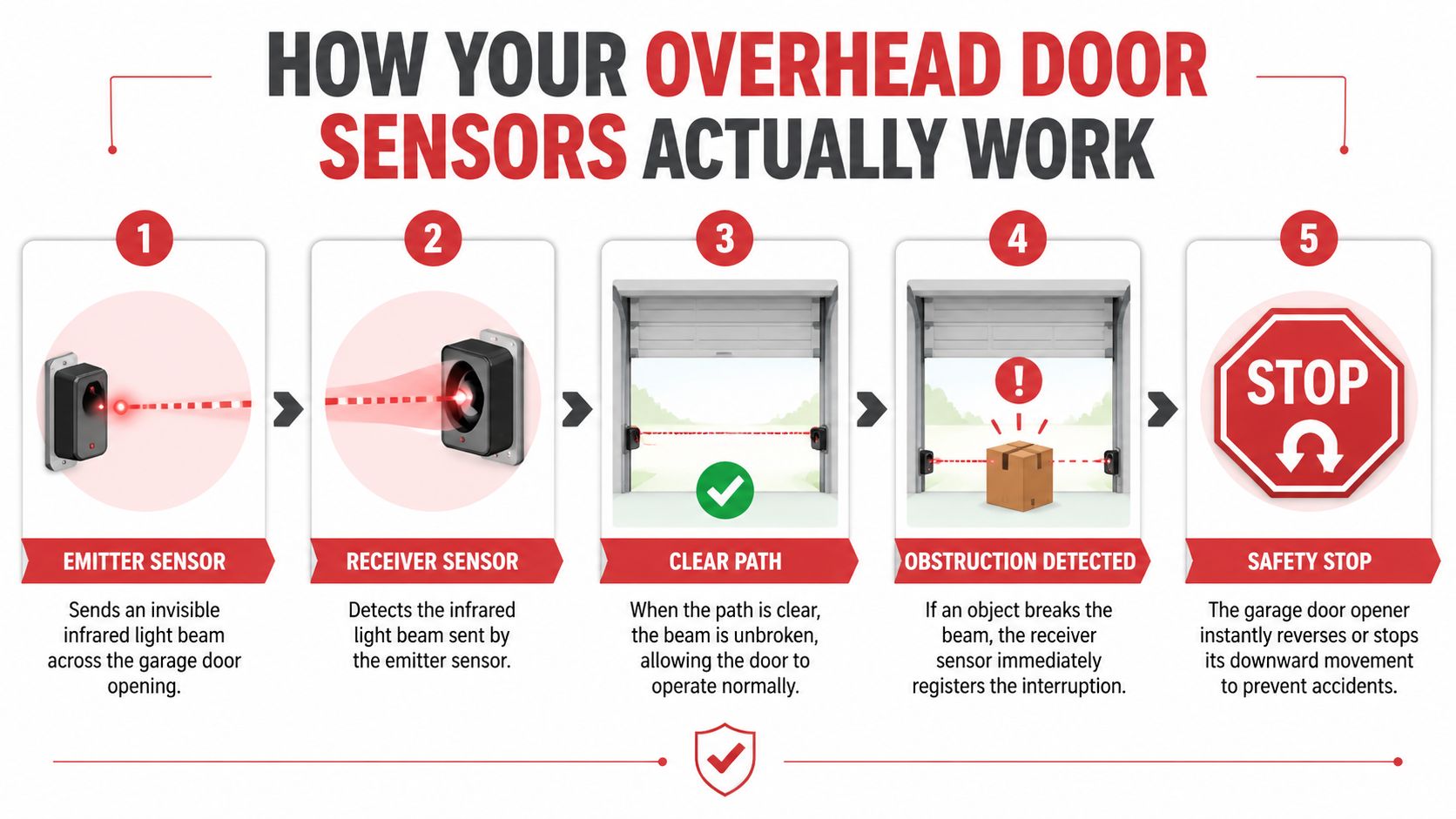

How Your Overhead Door Sensors Actually Work
The easiest way to understand overhead door sensors is to picture an invisible tripwire stretched across the bottom of the garage opening.
One sensor sends a beam. The other sensor receives it. If that beam stays connected, the opener sees a clear path. If anything breaks the beam while the door is moving down, the opener reacts right away.
The two parts that do the work

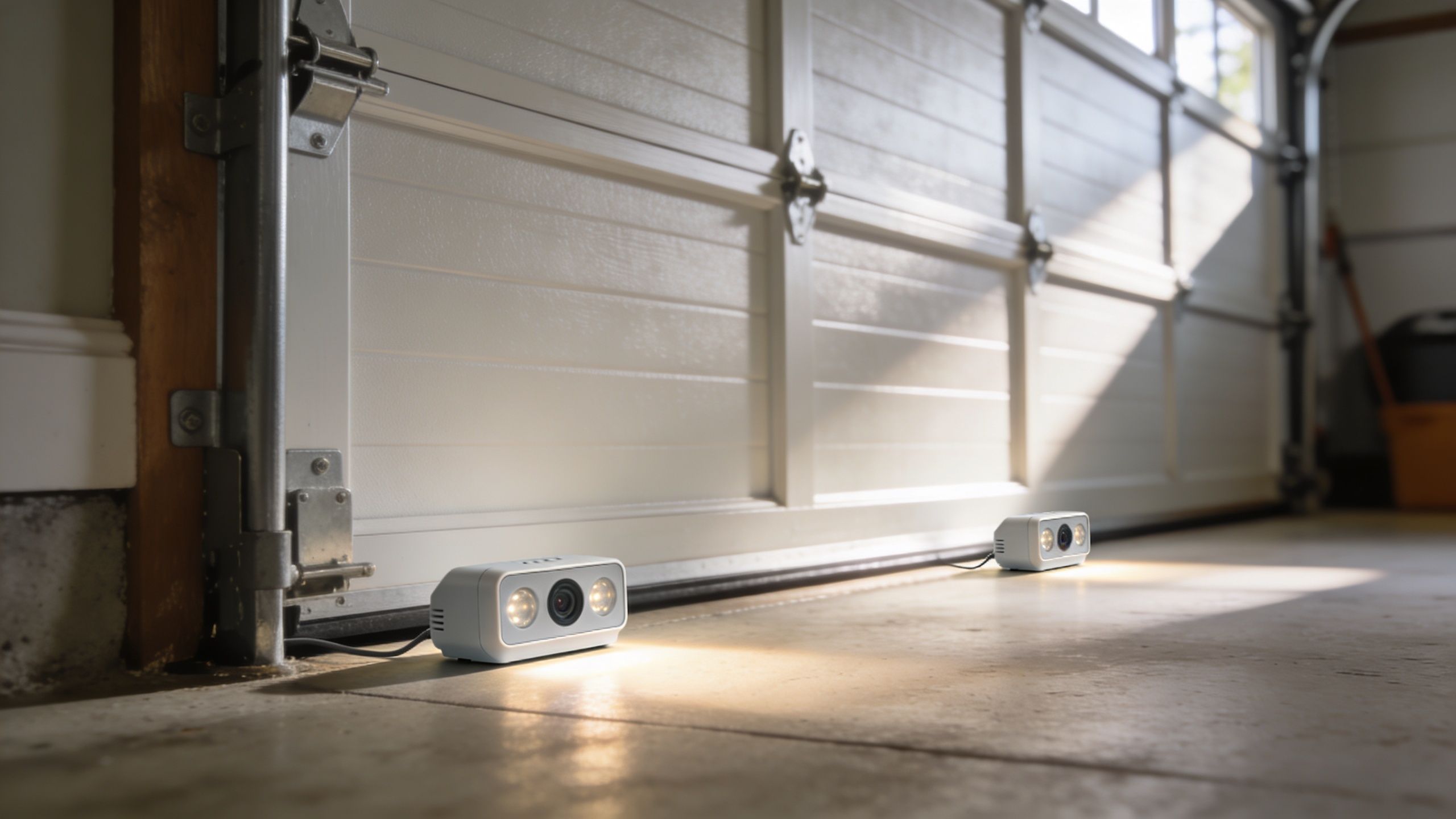

Most residential systems use a pair of photoelectric sensors.
One side is the transmitter. It sends an invisible infrared beam across the opening.
The other side is the receiver. It waits for that beam to arrive. When the receiver sees a steady signal, the opener knows the path near the floor is clear.
If the receiver loses that signal, the opener assumes one of three things is happening:
- something is blocking the opening
- the sensors are out of alignment
- the system has a wiring or power problem
That’s why a door may open just fine but refuse to close. The opener is being cautious on the downward cycle.
Why they sit so low
This part confuses people all the time. Homeowners sometimes ask why these sensors are mounted near ankle height instead of somewhere higher where they’d stay cleaner.
The answer is safety.
Overhead garage door safety sensors are required to be positioned no higher than 6 inches above the floor, and when the beam is interrupted, the door must reverse within 2 seconds. That placement and response standard reduces entrapment injury risk by 95% compared to older systems, according to this explanation of overhead garage door sensor operation.
That low position helps the system catch things that a higher beam could miss, like a small child, a pet, or a car tire.
Practical rule: If a sensor gets bumped upward, even if the door still seems to work sometimes, the setup isn't as safe as it should be.
What the lights are trying to tell you
Most sensors have indicator lights. They’re the system’s way of giving you a quick status check without opening up the opener.
A steady light usually means the sensor sees what it needs to see. A blinking or dark light often points to misalignment, dirt on the lens, or a wiring issue. Different brands use slightly different colors and patterns, so the exact signal can vary.
If your opener light is flashing too, this guide on a blinking light on a garage door opener can help you match the symptom to the likely problem.
What happens the instant the beam breaks
Here’s the short version of the chain reaction:
- The transmitter sends the beam
- The receiver confirms the beam is present
- The opener allows the door to close
- An object breaks the beam
- The opener stops and reverses the downward movement
That whole process happens fast enough that observers typically only see the result. The door starts down, then changes direction.
The sensors aren’t “thinking.” They’re just constantly answering one simple question for the opener: is the path clear or not?
Why alignment matters so much
Photo eyes are simple, but they’re picky. If one bracket gets bent a little, or if the house settles enough to shift the angle, the beam may miss the receiver. To you, it looks like the door has a mind of its own. To the opener, the signal just disappeared.
That’s why small changes matter with overhead door sensors. A little dirt, a loose bracket, or a slight twist can break the conversation between the two sides.
Exploring Different Types of Door Sensors
When most homeowners say “garage door sensors,” they mean the small photo eyes near the floor. That’s the standard setup on residential doors, and for good reason. They’re simple, effective, and built around preventing a closing door from hitting something in the opening.
But they’re not the only kind of sensor used around overhead doors.
Photoelectric sensors in most homes
Photoelectric sensors work by line of sight. One side sends an infrared beam, and the other side receives it. If the beam gets blocked, the opener reacts.
They’re common in homes because they do one job very well. They monitor the opening itself. If a child, pet, tire, or storage bin crosses that path, the door won’t keep coming down.
Their weak spot is the environment around them. Dirt on the lens, direct sun, spider webs, ice, and bracket movement can all interfere.
Magnetic contact sensors in tougher settings
Property managers and small businesses often run into a different problem. They may care less about a tiny line-of-sight beam and more about reliable door position monitoring on doors that see frequent use, vibration, or track wear.
That’s where magnetic contact sensors come in.
Magnetic contact sensors offer a 2.75 to 3 inch operational gap tolerance and 99.9% uptime, according to ControlByWeb’s overview of garage door magnetic sensors. That wider tolerance makes them more forgiving when a door shakes, sags slightly, or operates in a rougher light-commercial setting.
Side-by-side comparison
| Sensor type | Best fit | Main strength | Main drawback |
|---|---|---|---|
| Photoelectric sensor | Most residential garages | Detects an object in the door opening | Can be affected by dirt, glare, and alignment issues |
| Magnetic contact sensor | Light-commercial doors, warehouses, multi-unit properties | Handles vibration and track wear better | Serves a different role and may not replace the safety beam setup required on a residential opener |
Why the choice matters in Northeast Ohio
A warehouse bay in Cleveland doesn’t live the same life as a two-car garage in Pepper Pike. Forklift traffic, repeated cycles, vibration, and weather exposure can be rough on standard components. In those situations, a magnetic sensor can make sense for monitoring whether a door is open or closed.
For most homes, though, the familiar photo eye remains the key safety device at the bottom of the opening.
If you manage a rental, shop, or small warehouse, don’t assume every overhead door should use the same sensor strategy. The right setup depends on what the door does all day, not just what brand opener is on the wall.
One common misunderstanding
People sometimes hear about magnetic sensors and think they’re an upgrade that replaces all other sensor systems. Usually, it’s not that simple.
A photo eye is watching for a person, pet, or object in the door path. A magnetic contact sensor is usually telling a system whether the door is open or closed. Those are related jobs, but they’re not identical jobs.
That distinction matters when you’re troubleshooting. If the complaint is “the door won’t close,” you’re often dealing with the safety beam system. If the complaint is “the app says the door is open when it isn’t,” you may be dealing with a position sensor instead.
Your Step-by-Step Troubleshooting Guide
Most sensor problems are small. The hard part is figuring out which small thing is causing the trouble.
Start with the symptom, not the part. Is the door reversing? Refusing to close in bright sun? Working fine one day and acting up the next? The pattern usually points you in the right direction.
Start with the easy checks
Before you grab tools, do these basic checks:
- Look for objects in the opening. A shovel, broom, bike tire, or storage tote can sit low enough to break the beam.
- Check the sensor lenses. Dust, salt film, spider webs, and splash marks from slush can block the signal.
- Look at the indicator lights. If one light is off or blinking, that usually narrows the issue.
- Check if one sensor got bumped. Trash cans, kids, pets, and snow blowers hit these things all the time.
A soft cloth fixes a surprising number of calls.
Common sensor problems and fixes
| Symptom | Likely Cause | DIY Solution |
|---|---|---|
| Door starts down, then reverses | Beam is blocked or misaligned | Clear the opening, wipe both lenses, and gently adjust the sensor brackets until the lights steady up |
| One sensor light is off | Loose wiring, loss of power, or failed sensor | Check for a disconnected wire at the sensor or opener, then inspect for visible damage |
| Door won’t close in bright morning or afternoon sun | Sunlight interference | Shade the receiving sensor temporarily, then adjust the angle slightly if the bracket allows |
| Problem comes and goes | Loose bracket, intermittent wire, vibration | Tighten mounting hardware and inspect wire runs for pinch points or worn insulation |
| Door acts up after snow or freezing rain | Ice, slush, debris, or bracket shift | Remove buildup near both sensors and recheck alignment after the area dries |
For a more detailed walk-through, this guide on how to align garage door sensors is a useful next step.
The Northeast Ohio troublemakers
Sunlight and weather cause more overhead door sensor problems here than many homeowners expect. Direct sun on an east or west facing garage can create false obstructions, and in Northeast Ohio, 40% of winter service calls are anecdotally tied to ice, debris, or misalignment from freeze-thaw cycles affecting sensor brackets positioned 4 to 6 inches off the ground, according to Northside Garage Doors on sensor alignment and interference.
That lines up with what homeowners see in real life. Snow melts during the day, refreezes at night, and leaves a little ridge of ice or a shifted bracket right where the sensors live.
A driveway-friendly troubleshooting order
If I were standing there with you, I’d tell you to work in this order.
Clean first
Wipe both lenses with a soft, dry cloth. Don’t spray harsh cleaner directly onto the sensor.Check the brackets by hand
Lightly wiggle each sensor mount. If one moves easily, tighten it.Compare the heights
Stand back and see if both sensors look level with each other. If one points up or out, that’s a clue.Inspect the wire path
Look for staples driven too tight, frayed insulation, or a wire hanging loose near the track.Test the door again
Run one close cycle and watch what happens at the exact point it fails.
A sensor problem that happens at random often isn’t random. It’s usually vibration, temperature movement, glare, or a wire that loses contact when the door shakes.
If the problem only happens at certain times of day
That usually points to sunlight interference.
The classic case is a garage door that works fine early, then refuses to close when the sun hits one sensor directly. Snow on the ground can make this worse by reflecting even more light into the lens.
Try these practical fixes:
- Use temporary shade with a piece of cardboard to confirm the cause
- Clean the lens thoroughly because grime makes glare problems worse
- Adjust the angle slightly if the bracket design allows it
- Look for shiny nearby surfaces that might reflect light back into the sensor
If that solves it, the sensors may need a more permanent shield or bracket adjustment.
High-lift doors need extra attention
High-lift overhead doors, common in taller garages and light-commercial buildings, create a different challenge. When the track geometry changes, sensor mounting can become pickier. If the door setup puts the sensor at an awkward angle, alignment may drift more easily.
Watch for these clues:
- the door works after adjustment but fails again soon
- the sensor bracket looks shimmed, bent, or improvised
- vibration from daily operation keeps knocking the beam off line
On high-lift setups, a “good enough” alignment often doesn’t stay good enough for long.
When a quick fix isn’t enough
If you’ve cleaned the lenses, checked the brackets, inspected the wires, and the lights still won’t stabilize, stop guessing. At that point, the issue may be a damaged sensor, bad wiring at the opener, or a mounting problem that needs proper replacement parts.
That’s especially true if the symptoms come and go during temperature swings. Freeze-thaw cycles can expose weak wiring and marginal alignments that look fine during a quick visual check.
Sensor Safety, Compliance, and Maintenance
A garage door is the biggest moving object in most homes. That’s why the safety system matters so much.
Since 1993, federal law has required safety sensors on all new U.S. garage door openers, and when properly aligned, those sensors eliminate 95% of entrapment risks by reversing the door when the beam is broken, according to RJ Garage Door Service’s summary of garage door safety requirements.
That rule didn’t appear out of nowhere. It came after years of serious accidents, especially involving children.
Safety isn’t just about the door closing
Homeowners sometimes treat sensors like a convenience feature. If the door won’t close, the instinct is to find a shortcut.
That’s the wrong way to think about them.
A working sensor system helps prevent a heavy moving door from closing when it shouldn’t. In a busy household, that can mean the difference between a close call and a serious injury. In a business setting, it’s also part of a broader habit of keeping access points safe, predictable, and compliant. If you manage a property or commercial space, these advantages of security compliance help explain why consistent safety practices matter beyond the garage itself.
What to test at home
You don’t need special tools for a basic sensor check. You just need a minute and a careful routine.
Try this every so often:
- Check the lenses. Look for dirt, salt haze, cobwebs, or moisture.
- Look at the mounts. Make sure both sensor brackets feel secure and haven’t twisted.
- Watch the indicator lights. A change from their normal pattern is your early warning.
- Run a closing test. Start the door down and wave a long object through the beam path. The door should react immediately.
- Check the area around the sensors. Don’t let boxes, tools, or yard gear crowd the bottom corners.
If you want a deeper explanation of how these protective devices are supposed to behave, this page on safety sensors for garage doors is worth bookmarking.
Worth remembering: The safest sensor system is the one you test before it causes a problem, not after.
A simple seasonal routine for Northeast Ohio
Weather changes are hard on low-mounted hardware. A good maintenance rhythm is usually seasonal.
In winter, look for slush, salt residue, and ice near the floor. In spring, check for bracket movement after freeze-thaw cycles. In summer, watch for glare if your garage faces direct sun. In fall, clear leaves, dust, and insect buildup before cold weather returns.
That routine sounds basic because it is basic. Basic maintenance is what keeps small sensor issues from turning into lockouts and late-night emergencies.
When to Skip the DIY and Call Danny's Garage Door Repair
Cleaning a lens is a DIY job. Tightening a loose bracket is usually a DIY job too.
But some overhead door sensor problems cross the line from simple to risky. The trick is knowing when you’ve reached that point.
Red flags that deserve professional help
Call for service if you see any of these:

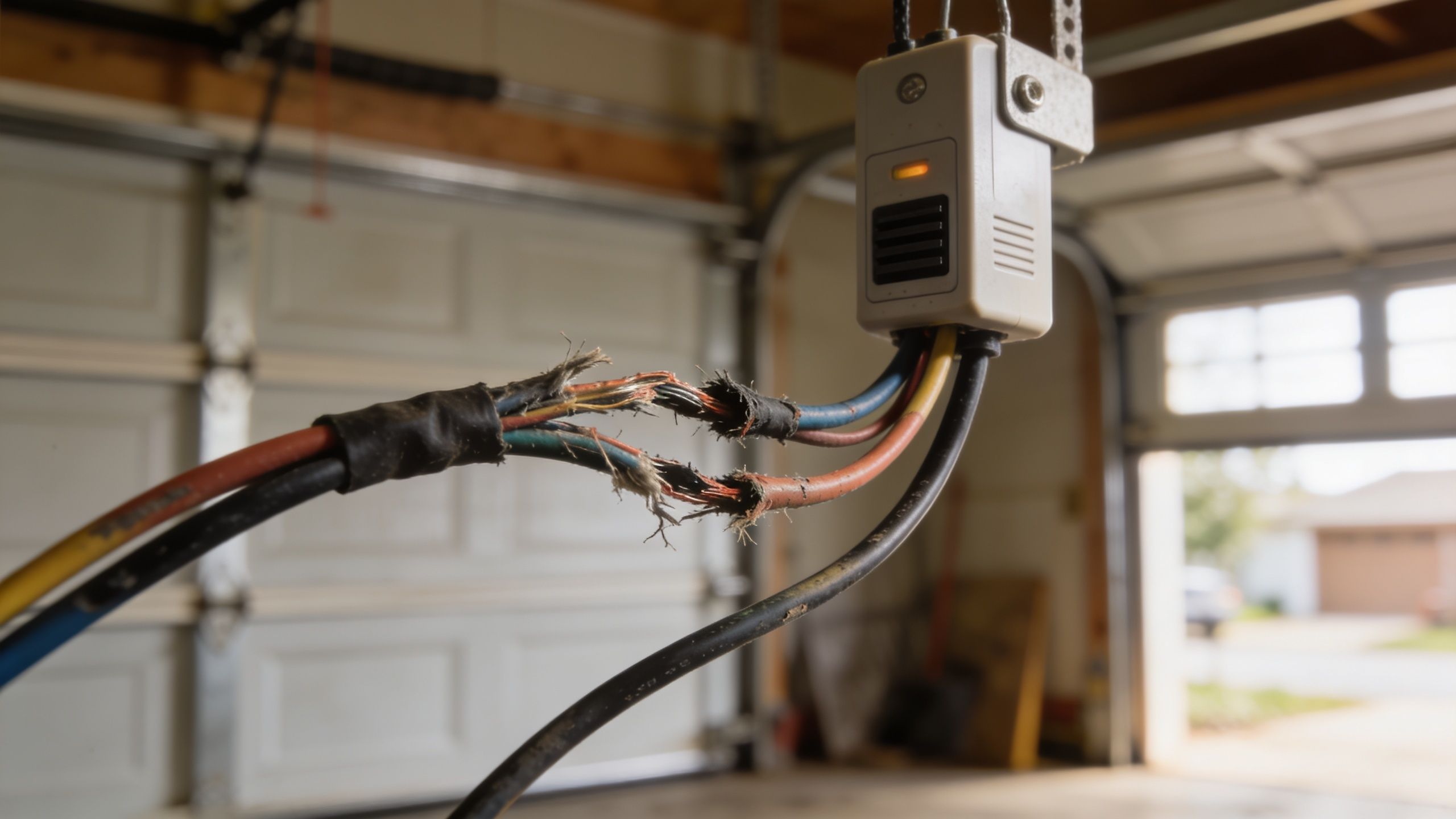

- Frayed or crushed wiring near the sensors, track, or opener
- Broken sensor brackets that won’t hold alignment
- Water damage or corrosion on terminals or connectors
- Intermittent operation after repeated adjustments
- A high-lift or custom track setup that won’t stay aligned
- A door that behaves unsafely even after the obvious fixes
Wiring problems are where many homeowners should stop. A loose low-voltage connection might be simple. A damaged wire hidden behind finished walls, stapled trim, or track hardware usually isn’t.
Why repeated DIY attempts can make things worse
The danger isn’t just that the door won’t close. The danger is getting the system into a half-working state that hides the actual fault.
I’ve seen homeowners bend brackets trying to “aim” the sensors, pinch wires with new fasteners, or force a close cycle without fixing the cause. That can turn a quick repair into a bigger one.
If you’re dealing with an urgent situation, like a door stuck open during bad weather or a business bay that won’t secure, articles on Urgent garage door fixes can help you understand the kinds of emergency issues that deserve fast professional attention.
The practical decision rule
Here’s a simple rule that works.
If the problem is visible, minor, and clearly resolved, DIY is reasonable.
If the problem is electrical, structural, repeating, or safety-related, it’s time to call.
Don’t judge a sensor issue by how small the part looks. Judge it by what happens if the safety system fails when someone or something is under the door.
A few cases where calling right away makes sense
Some situations don’t need more trial and error:
- the door only closes if you hold the wall button
- the sensor lights won’t stabilize after cleaning and careful alignment
- the bracket keeps shifting every few days
- the sensor was struck hard by a vehicle, snow blower, or equipment
- you own an older opener and aren’t sure whether the replacement parts match safely
That last one matters more than people think. Sensors need to communicate correctly with the opener they’re paired with. Guessing with incompatible parts can leave you with a door that still isn’t dependable.
Frequently Asked Questions About Overhead Door Sensors
Can I install garage door sensors myself
Sometimes, yes. If you’re replacing like for like on a straightforward residential opener and the wiring and brackets are in good shape, a capable homeowner may handle it.
The caution is that the job isn’t just “mount the boxes and go.” The sensors need correct placement, secure wiring, and reliable alignment. If the door still acts up after installation, the issue may not be the sensors at all.
Why do my sensors fail only once in a while
Intermittent failure usually means something changes with time, temperature, vibration, or light. A loose bracket may shift when the door moves. A weak wire may lose contact during vibration. Bright sunlight can affect the receiver only at certain hours.
That’s why “it works sometimes” is a useful clue, not a mystery.
Can older garage doors be updated with modern sensors
Some older systems can be updated, but compatibility depends on the opener and the safety design of the whole setup. This isn’t a good place to guess.
If your opener predates modern safety expectations or has had pieced-together repairs over the years, a technician should evaluate whether a retrofit is appropriate or whether a larger update makes more sense.
Why does the door open normally but not close
That’s one of the classic signs of a sensor-related issue. The opener may allow the opening cycle but block the closing cycle when it can’t verify a clear beam path.
In plain terms, the system is more cautious on the way down because that’s when the door could trap or strike something.
Can I bypass the sensors temporarily
It’s not a good idea. Even when someone finds a workaround, they’re removing a core safety function from the system.
If the door needs to be secured right away, the better move is to diagnose the fault properly or call for service. A temporary shortcut has a way of turning into a long-term hazard.
Are smart garage systems changing how sensors work
They’re changing how people monitor and manage the door more than the basic safety principle itself. App controls, alerts, and remote status checks are more common now, especially in connected homes.
If you’re already building out a smarter home setup, this directory of select home automation companies can help you evaluate broader integration options. Just remember that the simple beam-based safety function at the bottom of the door still has to work first.
What’s the most common thing homeowners miss
They focus on the opener on the ceiling and forget to inspect the bottom corners of the opening.
That’s where the actual problem often is. Dirt on the lens, a bumped bracket, or winter grime near the floor can stop the whole system.
If your door keeps reversing, one sensor light is blinking, or the problem comes back every time the weather changes, Danny's Garage Door Repair can help homeowners and property managers across Greater Cleveland with sensor troubleshooting, opener repairs, safety tune-ups, and emergency overhead door service. You’ll get clear explanations, honest recommendations, and a fix that puts safety first.
