You heard a bang in the garage, the opener now groans or stops, and the door suddenly feels like dead weight. That usually points to one thing. A spring has failed, or is close enough that the door is no longer balanced.
Overhead door spring replacement sits in a strange category. It's a common repair, but it's also one of the few homeowner jobs where a small mistake can put a steel bar, a set screw, or the door itself in motion fast enough to hurt you badly. A capable DIYer can handle some torsion spring jobs. A lot of people should not. Knowing the difference matters more than knowing how to turn a wrench.
First Things First Confirming a Broken Spring
The usual call starts the same way. You hear a sharp bang from the garage, hit the opener, and the door either jerks a few inches or refuses to move. That often means a spring has let go, but do not order parts yet. Confirm the failure first.
A broken spring changes how the whole door behaves. The opener may strain, the door may sit crooked, or the door may suddenly feel far heavier than it did last week. Those are strong clues, not proof.
The quickest check is a visual one.
What a broken spring looks like
On a torsion spring system, the spring mounts on the shaft above the door. A failed torsion spring usually shows a visible gap in the coil, often around 2 inches. If you see that gap, the spring is broken. Stop there and do not try to run the opener.
On an extension spring system, the springs run beside the horizontal tracks. A broken one may hang loose, stretch out unevenly, or leave one side of the door lower than the other. If one side looks wrong, treat the whole door as unstable until you confirm what failed.
This guide focuses on torsion springs because they are common on residential overhead doors and because their stored torque can injure you fast if you handle them carelessly.
Torsion vs Extension Springs at a glance
| Feature | Torsion Springs | Extension Springs |
|---|---|---|
| Location | Mounted above the door on a shaft | Mounted along the side tracks |
| How they work | Twist to create lifting force | Stretch and contract to lift |
| Typical feel | Smoother, more controlled door travel | More bounce and side-to-side movement |
| DIY risk point | Winding and unwinding stored torque | Side-loaded tension and cable movement |
| Common visual failure sign | Visible gap in the coil | Loose or stretched spring on one side |
Use objective balance tests before you buy parts
I see plenty of homeowners replace springs based on age, noise, or a sales pitch. That wastes money sometimes, and other times it misses the underlying problem, like a bad roller, seized bearing, or door that was never balanced correctly to begin with.
Disconnect the opener so the door can move by hand. Then test the counterbalance system carefully.
Halfway test
Lift the door to about halfway and let go carefully. A properly balanced door should stay close to that spot. If it drops hard or rises on its own, spring tension is off.Open-position hold test
Raise the door near the top and release it carefully. If it falls instead of holding position, the spring system is not carrying the door weight correctly.Heavy-lift feel
Lift the door a few feet by hand. If it suddenly feels much heavier than normal, stop forcing it. That usually points to a broken spring or a spring that has lost enough torque to be unsafe to use.
These tests also tell you when you are getting in over your head. If the door binds in the tracks, hangs crooked, has a loose cable, or tries to twist as it moves, the issue may involve more than the spring. At that point, a DIY spring swap may not be the whole repair.
A good replacement decision starts with what the door does, not what somebody guesses. Replace the spring when it is visibly broken, when the door fails balance tests, or when the counterbalance system clearly is not supporting the door.
If you want another visual reference before touching the hardware, review this guide on how to tell if a garage door spring is broken.

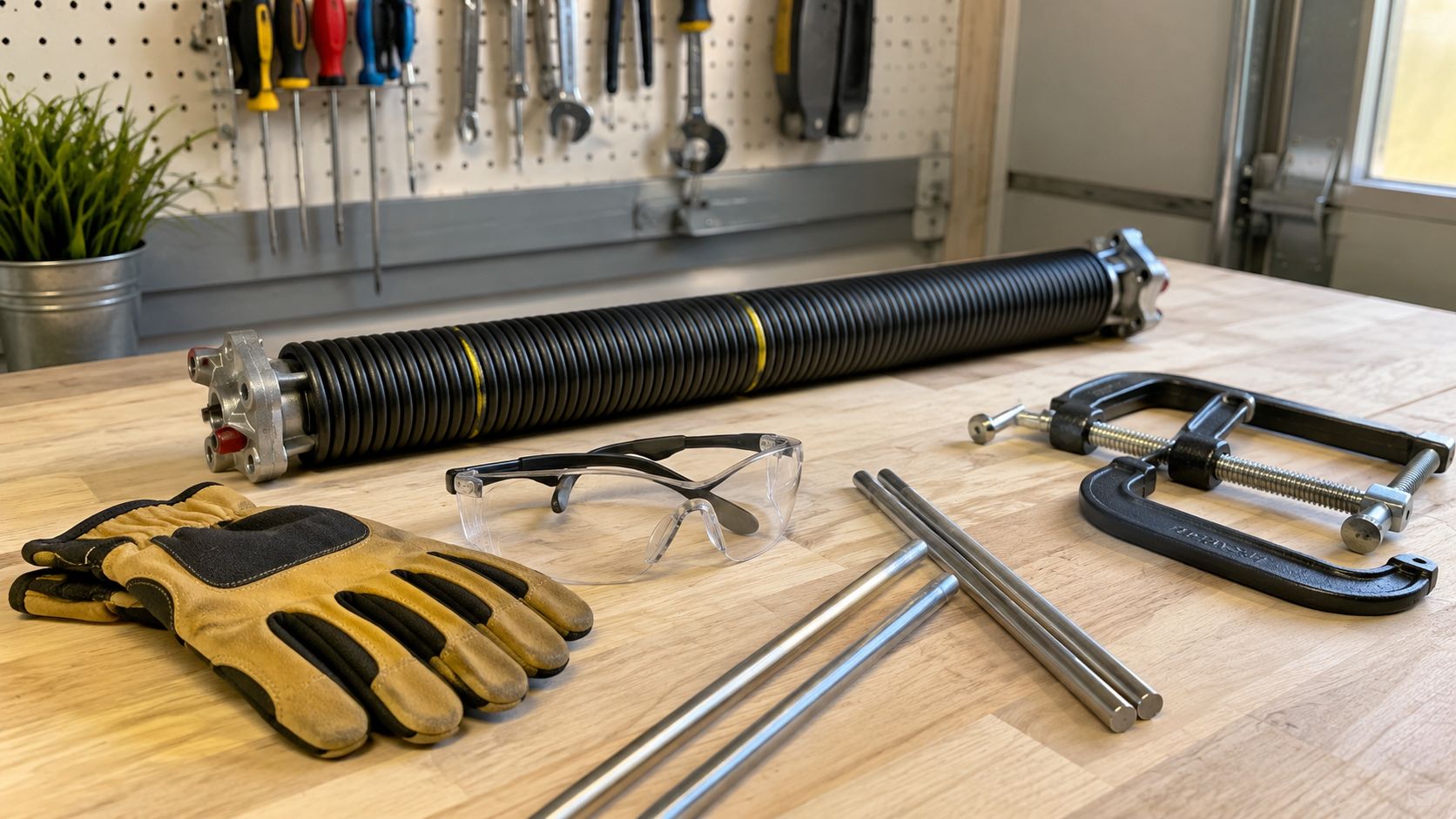

Your Safety First Toolkit and Parts List
The tool list for overhead door spring replacement isn't flexible. You either have the right tools, or you stop.
The one mistake I never recommend is improvising the winding tools. Screwdrivers, sockets, pry bars, and rebar aren't substitutes for proper steel winding bars sized for the winding cone. The most dangerous moments in this job happen when tension is coming off or going back on. Tool slop is what turns a repair into an injury.
Non-negotiable tools
Set these out before you loosen a single screw:
Proper winding bars
Use steel winding bars that fit the winding cone correctly. This is the heart of the job.Locking pliers or C-clamps
Clamp the door to the track so it can't jump up or crash down while you work.Wrenches and sockets
You'll need them for set screws, center brackets, and drum hardware.Tape measure and calipers if available
Accurate spring identification starts with accurate measurement.Safety glasses and gloves
Eye protection isn't optional. Gloves help with handling sharp cable ends and worn metal.
If you don't own winding bars already, that alone is a valid reason to stop the DIY plan.
The three measurements that have to be right
Spring matching is where a lot of DIY jobs go sideways. Technical success depends on measuring wire diameter across 20 coils, inside diameter, and coil-only length, according to this torsion spring measurement and setup walkthrough. That same source also notes that set screws should be tightened 1/2 to 3/4 turns past shaft resistance.
Here's the practical version:
Wire diameter
Measure across 20 coils of the broken spring, then convert that reading to the correct wire size. Measuring one coil is too easy to misread.Inside diameter
Many residential springs are typically 2 inches, but don't assume. Read the cone if it's marked, or measure it.Coil-only length
Measure only the spring body. Don't include cones. If the spring is broken, account for the gap when determining total coil length.
Parts to order and what not to guess on
For a standard torsion replacement, you're usually ordering:
- Matching torsion spring or pair of springs
- Center bearing or end bearings if worn
- Lift cables if frayed or rusted
- Drums if grooves are damaged
- New fasteners only when the originals are compromised
A door with two torsion springs should be treated as a matched system. If one broke, the other has usually lived the same life.
Some homeowners prefer a complete garage door spring replacement kit so all the related hardware is in one package. That can make sense if you've confirmed the specifications and the kit matches your door.
One more check before you start
Look at the spring orientation before disassembly. Mark the shaft, drums, and bracket locations with a paint pen. Take photos. Label left and right parts if you need to.
That sounds basic, but it prevents the most annoying kind of mistake. Getting halfway through the job and realizing you're relying on memory.
The Step by Step Torsion Spring Replacement Process
This is the part where patience matters more than confidence. Move slowly. Reset your grip often. If anything feels uncertain, stop there.
Secure the door and disconnect the opener
Close the door fully. Unplug the opener, then pull the emergency release so the door is disengaged from the opener trolley.

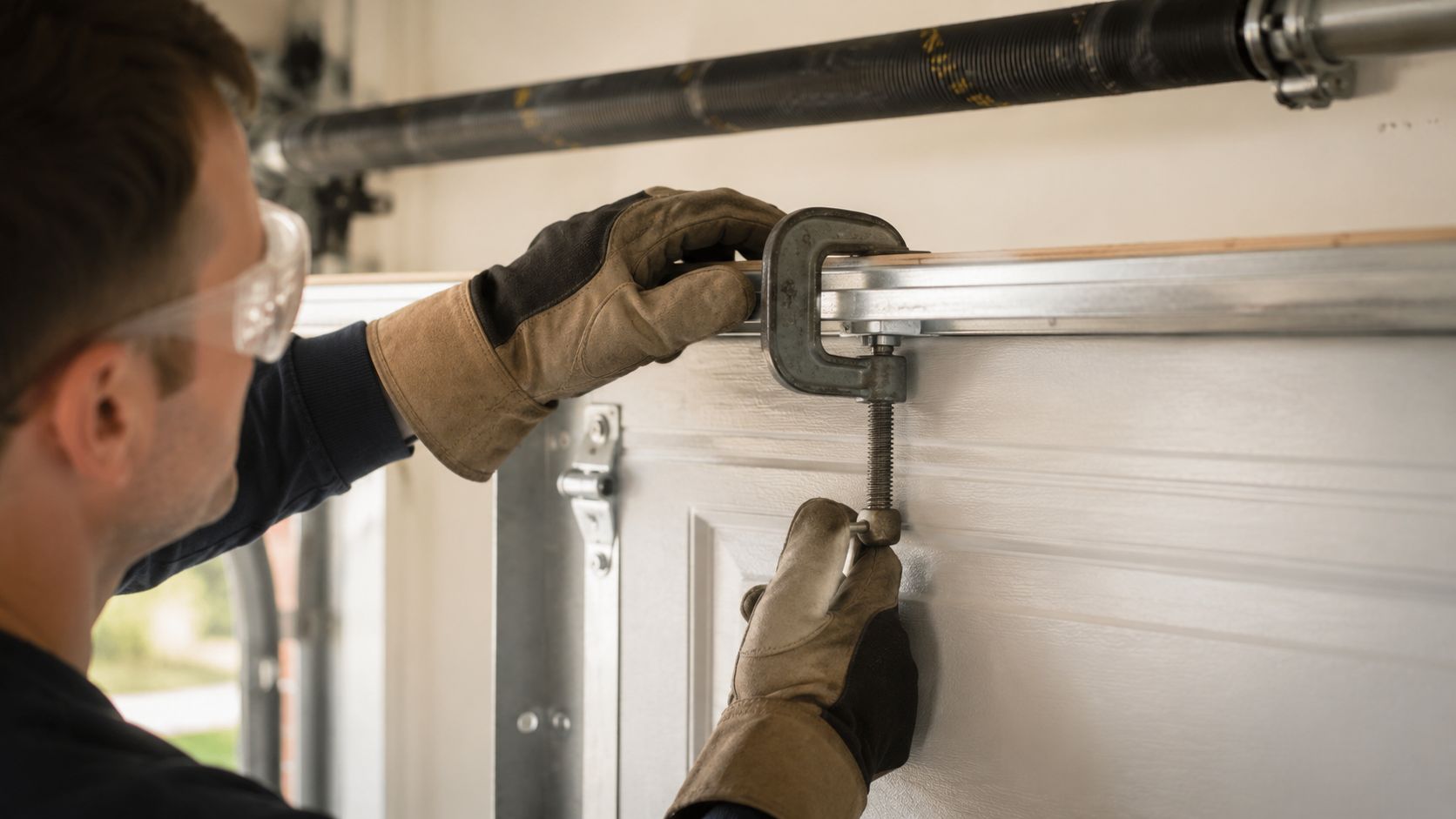

Clamp the door to the tracks with locking pliers or C-clamps just above a roller. You're preventing vertical movement while the spring system is being worked on.
Never work on a spring with the door unsecured. If the door moves while tension is changing, you can lose control of both the bar and the door.

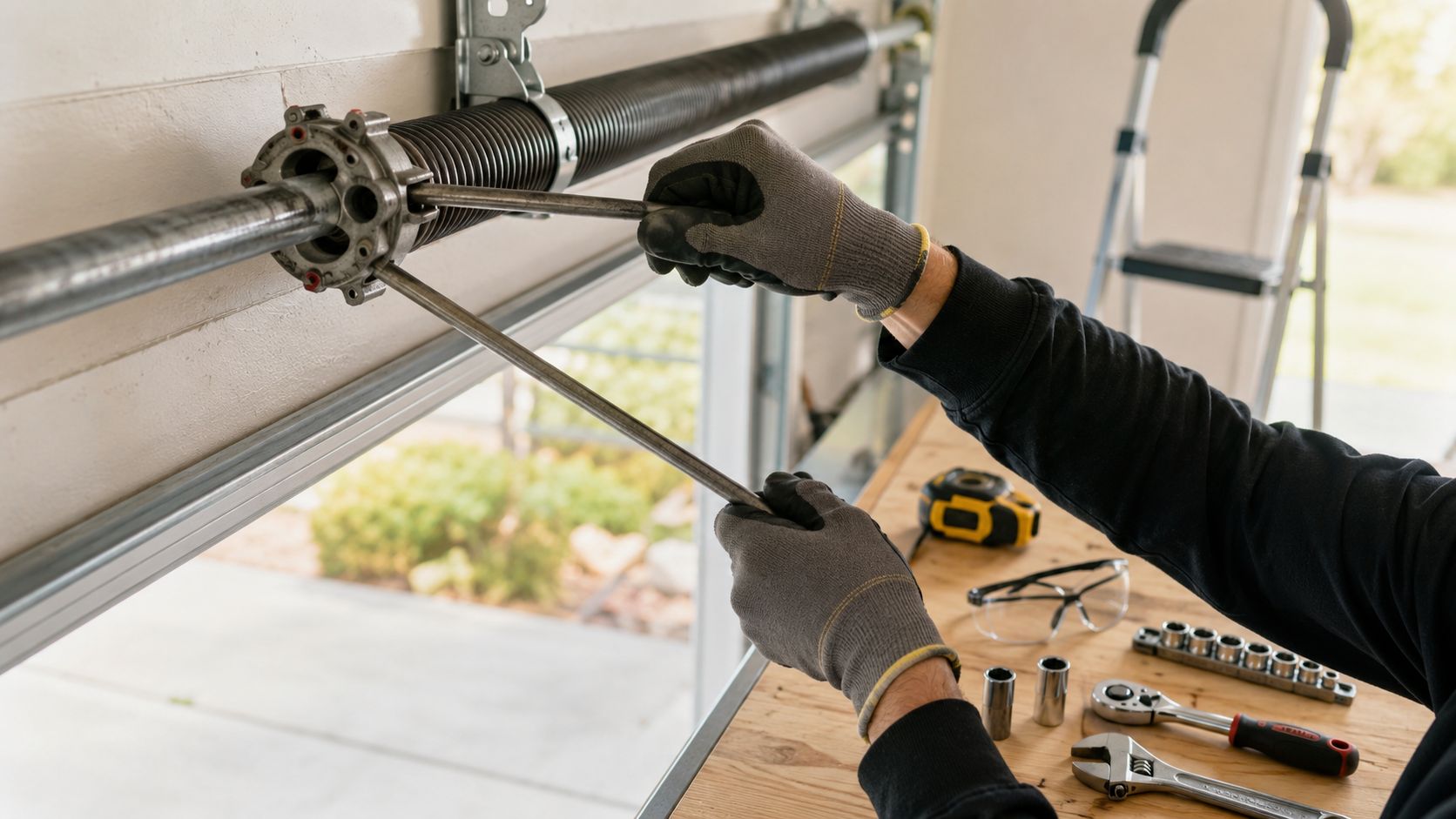

Unwind the loaded spring
If one spring is broken and the other is still intact, the unbroken spring still holds energy. Insert a proper winding bar fully into the winding cone before loosening the set screws.
This is one of the highest-risk points in the whole repair. Keep your body out of the bar's path. Expect the cone to push hard against the bar as the screws release.
Use the bars to unwind one quarter turn at a time until all spring tension is gone. Keep one bar in the cone at all times while moving the other.
The dangerous moment isn't only the winding. It's the first release of set screws on a loaded cone. If the bar isn't seated fully, stop and correct that before touching the screws.
If you want a visual reference on hand position and bar movement, review winding a garage door spring safely before starting.
Loosen hardware and remove the old springs
Once all tension is removed:
- Loosen the cable drums so the lift cables can relax
- Disconnect the center bracket that anchors the spring assembly
- Slide the springs off the torsion tube
- Inspect the shaft and bearings for scoring, wear, or wobble
This is a good time to wipe the shaft clean. Old grease, metal dust, and rust make reassembly harder and can hide wear points.
Install the new springs in the correct position
Slide the new springs onto the torsion shaft with the stationary cones toward the center bracket. On many systems, the red winding cone goes on the right side and the black on the left. Check the actual spring wind direction instead of trusting paint alone if anything looks off.
Reinstall the center bracket and cable drums. Run the lift cables back into the drum grooves and make sure both sides seat evenly.
If the door has two torsion springs, best practice is to replace both at the same time because they wear at similar rates, as noted in this torsion spring replacement reference.
Wind the new springs carefully
Once the cables are taut and the drums are set, you can wind the new spring.
The same source above states that a standard 7-foot door needs exactly 30 quarter turns, while an 8-foot door needs 34 quarter turns for proper balance in this setup. Apply turns evenly and count carefully.
A few practical points help here:
- Count out loud so you don't lose track
- Watch cable tension as you wind
- Keep the bars fully seated before every movement
- Don't rush the final turns because that's where people get sloppy
After winding, tighten the set screws against the shaft.
Remove clamps and test balance by hand
With tension applied and hardware rechecked, remove the clamps from the track. Lift the door manually.
You're looking for a door that:
- stays near mid-height when released carefully
- opens without jerking
- doesn't drift rapidly up or slam down
- keeps both cables equally tensioned
If the door behaves correctly by hand, reconnect the opener and run a full open-close cycle while watching from a safe position.
A good spring job doesn't just make the opener work again. It makes the door feel balanced in your hands.
Common Pitfalls and Troubleshooting Your Work
The risky part of this job is not always winding the spring. It is convincing yourself the door is "close enough" when it still is not balanced, the cables are not even, or the hardware is slipping.
A new spring can still leave you with a bad repair if the size is wrong, the tension is off, or one side was set up a little differently than the other. That is why I tell homeowners to troubleshoot by symptom, not by guesswork.
What the door is telling you
Start with the opener disconnected. Lift the door by hand and pay attention to what it does in the first foot, at mid-height, and near the top. Those three spots usually tell you where the setup went wrong.
Door feels heavy all the way up
The spring may be underwound, or you may have installed the wrong spring for the door weight.Door shoots up or will not stay down
The spring likely has too many turns.Door rises crooked
One cable is carrying more load than the other, or a drum moved while you were tightening hardware.Door jerks, binds, or rubs
Check the cable path, drum grooves, bearing plates, and whether the shaft is walking side to side.Door balances at halfway but acts strange near the floor or header
Look for track issues, cable miswrap, or a drum that is not seated correctly. That problem is not always spring tension.
One more hard rule. If one cable looks looser than the other, do not hit the opener just to test it. Fix the cable setup first.
The set screw mistake that ruins good work
Set screws cause a lot of repeat calls. People either leave them too loose, or they crank them down hard enough to scar the shaft and create a new problem.
The correct approach, as noted earlier, is tightening the set screws a measured amount after they first meet shaft resistance. That's one of those details that separates a smooth-running door from one that starts wobbling, slipping, or chewing up hardware.
If the spring starts to "walk" on the shaft, or the cone looks like it is twisting out of line, stop and inspect before adding more tension. A spring that is not sitting square can slip under load.
A practical troubleshooting sequence
Use the same order a tech would use.
- Disconnect the opener again if you already reconnected it.
- Test the door by hand and see whether it stays near the halfway point.
- Check both cables for equal tension and clean wraps in the drum grooves.
- Look at the drums and shaft for any movement since you tightened the set screws.
- Inspect the spring cones and center bracket for shifting or sideways distortion.
- Confirm the door travels evenly and the bottom section stays level as it moves.
If the door is still wrong after that, do not keep adding or removing turns at random. Random adjustments hide the underlying problem and can make the door less predictable.
Know when the job has moved past DIY
Some problems are fixable with patience. Some are your signal to stop.
Call for help if the shaft is bent, the bearing plates are loose, the cable keeps jumping the drum, the spring will not stay centered, or the door still will not balance after careful correction. That is also the point where it makes sense to find licensed contractors in SC & NC or call a local garage door company in your area.
A good DIY spring replacement ends with a door that feels controlled, level, and boring. Boring is what you want here.
The Pro Decision When to Call Danny's Garage Door Repair
Some repairs reward confidence. This one rewards judgment.
If you have extension springs, if your winding bars don't fit correctly, if the shaft is bent, if the cables are off the drums, or if you don't like what you're looking at, calling a pro is the smart move. That isn't backing out. That's understanding where the risk stops being reasonable.
The cost side of the decision
Professional residential garage door spring replacement averages $250, and most homeowners pay between $150 and $350, according to Angi's garage door spring replacement cost guide. That same source notes torsion spring replacement typically runs $75 to $150 per spring including materials and labor.
For many homeowners, that number changes the calculation. By the time you buy the correct springs, proper winding bars, safety gear, and then spend a Saturday doing careful setup and testing, the savings may not be worth the exposure to risk.
Cases where I'd tell a homeowner to stop
I'd hand this off if any of these apply:
You have extension springs
They bring a different set of hazards, and many DIY guides gloss over them.You can't positively identify the spring specs
Guessing on spring size creates balance problems fast.The cable system already looks wrong
Slack cables, crooked drums, or a tilted door usually mean more than a simple spring swap.You don't have the exact tools
No winding bars means no spring job.You feel tense before starting
That gut feeling matters here. If you're uneasy, listen to it.
Some jobs become dangerous because the hardware is under tension. Others become dangerous because the person doing the work knows they're unsure and keeps going anyway.
What a pro can do that most DIY jobs miss
A professional spring replacement isn't only about swapping broken parts. It's also the time to correct the reason the old spring system didn't last well.
One upgrade many homeowners never hear about is spring up-sizing. Instead of replacing the exact same spring that wore out, a technician can sometimes match the door with a higher-cycle option that better fits the door's weight and usage. That matters in homes where the garage is the main entrance and the door gets used constantly.
Garage door springs typically last 7 to 14 years and are generally rated for 10,000 to 20,000 cycles, based on Precision Door's spring lifespan overview. In practice, a better-matched spring can help break the habit of replacing the same underperforming setup again and again.
For homeowners outside Ohio who are comparing contractors and credentials, a solid checklist is to find licensed contractors in SC & NC and use that same standard in your own market. Licensing, insurance, and clear scope matter on any high-risk home repair.
When local help makes more sense
In Northeast Ohio, Danny's Garage Door Repair is one option for homeowners who want a technician to handle spring measurement, replacement, balance testing, and related cable or hardware issues. The company serves the Greater Cleveland area, including emergency calls, scheduled repairs, and safety-focused service for residential and light-commercial doors.
That kind of call makes the most sense when the door is stuck open, half-open, off balance, or tied into a busy household where downtime creates a real problem.
If your door is heavy, stuck, crooked, or you started this repair and decided it's not worth the risk, contact Danny's Garage Door Repair. They provide licensed, bonded, and insured garage door service across Greater Cleveland, with help for spring replacement, cable issues, off-track doors, opener problems, and emergency repairs.
