You're probably reading this because you're in the driveway tapping a remote that suddenly does nothing. Or you bought a new clicker, tried the instructions, and the opener still acts like it's never seen that remote before.
That's a common garage call for a reason. Pairing a garage door opener is usually simple once you know which system you have, where the Learn button is, and which step people tend to miss. The tricky part is that old-school remotes, vehicle buttons, wireless keypads, and smart opener apps all pair a little differently.
Most homeowners still need the manual side of this. Only 11% of homeowners globally own a smart garage opener, so most households still rely on physical remotes or keypads using radio frequency, which makes learning the manual pairing process important for everyday use (smart garage opener adoption data).

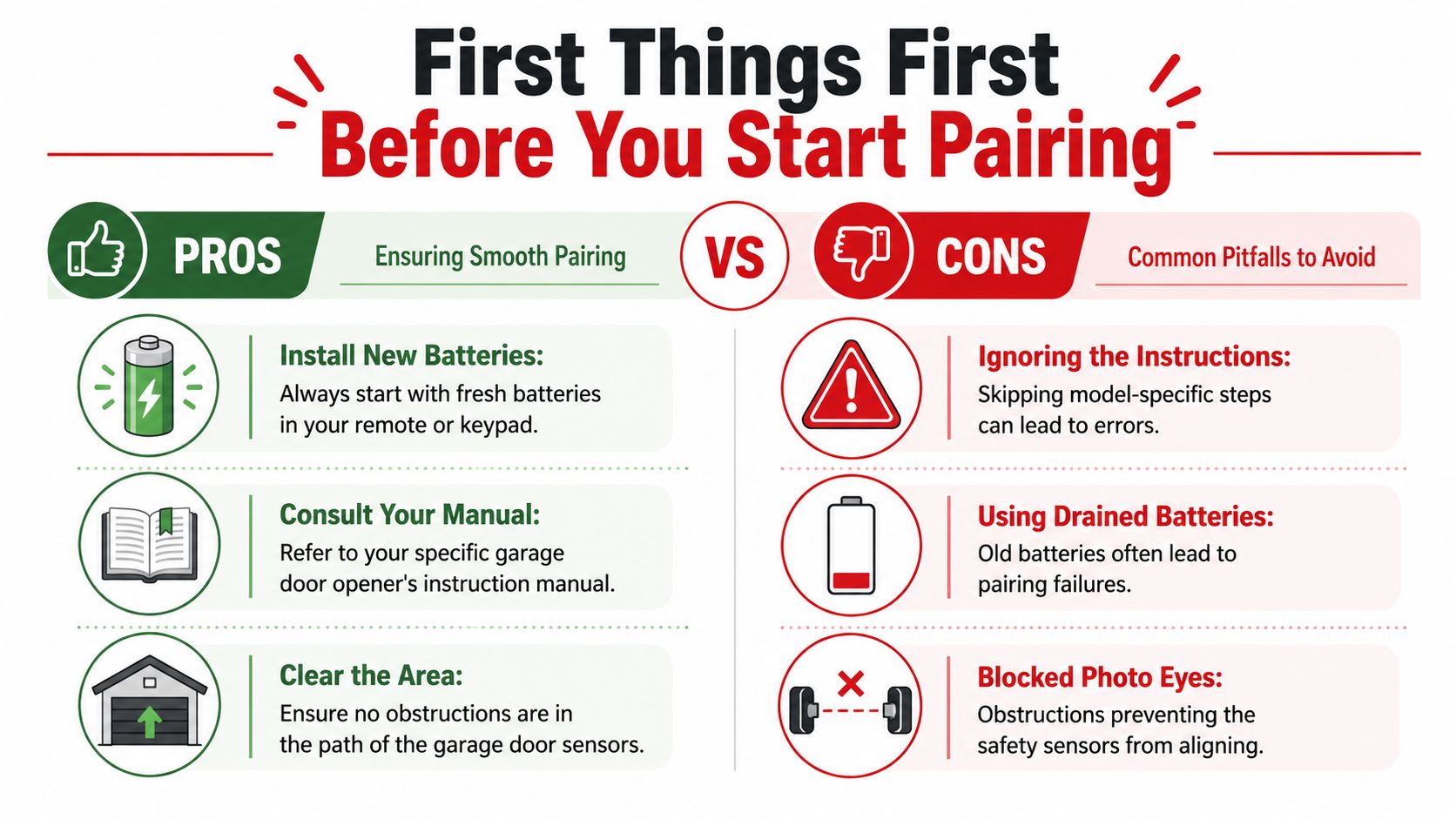

First Things First Before You Start Pairing
Before you press anything, stop and do a quick setup check. That saves a lot of repeat attempts.
A garage opener won't pair well if the remote battery is weak, if you can't find the correct Learn button, or if you're guessing at the sequence. Most pairing failures start before the actual pairing step.
Start with the simple prep
Use this checklist before you climb the ladder:
- Put in fresh batteries: A dim little LED on the remote can fool you. The light may come on, but the signal still may not be strong enough to complete pairing.
- Open the manual if you have it: Brand differences matter. LiftMaster, Chamberlain, Genie, and older DIP-switch remotes don't all behave the same way.
- Clear the doorway: Make sure nothing is blocking the photo eyes or the door path while you test.
- Use a stable ladder: You'll usually need to reach the opener head safely, not stretch from the top step.
- Bring the remote, keypad, and vehicle close by: Once Learn mode starts, you don't want to waste time hunting for devices.
If you like understanding how radio-based entry systems behave in general, Blade Auto Keys' keyless entry guide gives useful background on how these access systems differ from simple mechanical entry.
Find the Learn button first
The Learn or Smart button is usually on the back or side of the motor unit. It's often under the light cover or near the antenna wire. On many units, it's color-coded.
Common colors include:
| Learn button detail | What to look for |
|---|---|
| Yellow | Often found on newer rolling-code models |
| Red or orange | Common on many older opener generations |
| Purple | Frequently seen on certain LiftMaster and Chamberlain units |
Practical rule: Don't start pressing the remote until you've already located the Learn button and know how you'll reach it again if the first try fails.
Know what kind of system you're pairing
Older units may use a fixed-code or DIP-switch setup. Those require matching switch patterns inside the remote and receiver. Newer systems use rolling code security, which creates a new code sequence during pairing and use.
That difference matters because a rolling-code opener usually needs a very specific button sequence and timing. If your opener light doesn't blink or confirm the code, the opener likely never saved it. When that happens, it's usually a timing problem, not a dead opener.
Syncing Remotes and Vehicle HomeLink Buttons
When attempting this task, many individuals expect a one-minute job and end up making six tries.
For handheld remotes, the process usually starts at the motor unit. For built-in car buttons like HomeLink or Car2U, there's often an extra re-sync step that generic instructions skip.
Pairing a handheld remote
A standard handheld remote usually follows this order:
- Go to the opener head and locate the Learn button.
- Press and release Learn. The indicator light should show the unit is in programming mode.
- Press the remote button you want to assign within the available pairing window.
- Watch for confirmation, usually a light blink or click from the opener.
- Test the remote from the floor after the opener exits programming mode.
Some opener models also tie the number of button presses to the Learn button color. On certain units, that means once for yellow, twice for purple, three times for orange or red, and four times for green (button-press color reference).
If you're working through car-side programming issues too, Top Motor Keys' key programming advice is a good companion read because it explains why built-in vehicle buttons can seem paired when they still aren't fully synced.

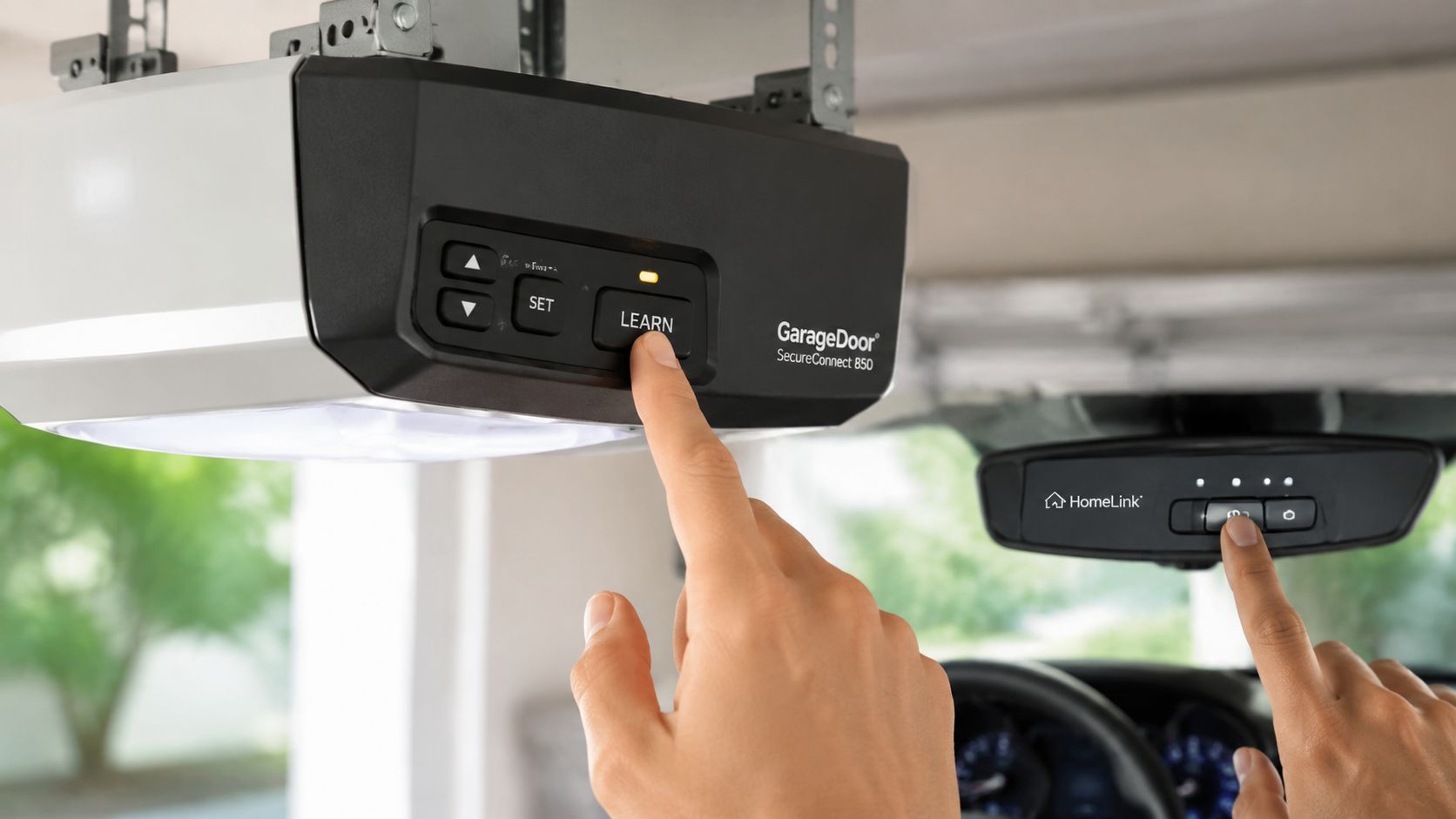

Pairing HomeLink or built-in vehicle buttons
Vehicle pairing trips people up because it's really two jobs. First, the car learns the remote signal. Then the opener has to accept that vehicle button as a valid rolling-code device.
To train a HomeLink button, hold your chosen vehicle button with the remote signal until the indicator changes, then go to the opener and press Learn. After that, return to the vehicle and press the programmed car button twice, holding the second press, within 30 seconds (HomeLink programming sequence).
For modern rolling-code systems, 40% of pairing failures happen because users miss the second step near the opener, where the vehicle button must re-sync after the initial frequency pairing (rolling-code vehicle pairing issue).
If the car learned the signal but the door still won't move, don't erase everything right away. The missing piece is often that second rolling-code sync.
If you want a model-specific walkthrough for in-car buttons, this HomeLink garage opener programming guide is worth keeping open while you work.
Programming a Wireless Outdoor Keypad
A wireless keypad is one of the handiest upgrades on a garage. No keys in your pocket. No remote clipped to the visor. Just a PIN on the wall outside.
The setup is close to remote pairing, but with one extra decision. You need a code you'll remember without making it too easy to guess.
The basic keypad setup
The first move is always the same. Locate the Learn button on the motor unit, which is often color-coded in yellow, red, or purple depending on the model (keypad pairing starting point).
From there, most keypads follow this pattern:
- Enter Learn mode: Press the opener's Learn button so the unit will accept a new device.
- Type your PIN: Enter your chosen 4-digit code on the keypad.
- Confirm the programming command: Many keypads use an Enter, Send, or similar confirmation button.
- Wait for the opener response: A blink or click usually confirms the code saved correctly.
What works better than guessing
Pick a PIN you can remember without writing it on the keypad cover. Avoid obvious combinations tied to your address or birthday if possible.
After programming, step back and test the keypad normally. Don't mash the buttons quickly. Press your code cleanly, then the confirm button once. If you rush the test and the opener doesn't move, people often assume the keypad failed when the underlying issue is sloppy input.
A more detailed walkthrough for different brands is in this overhead garage door keypad programming guide.

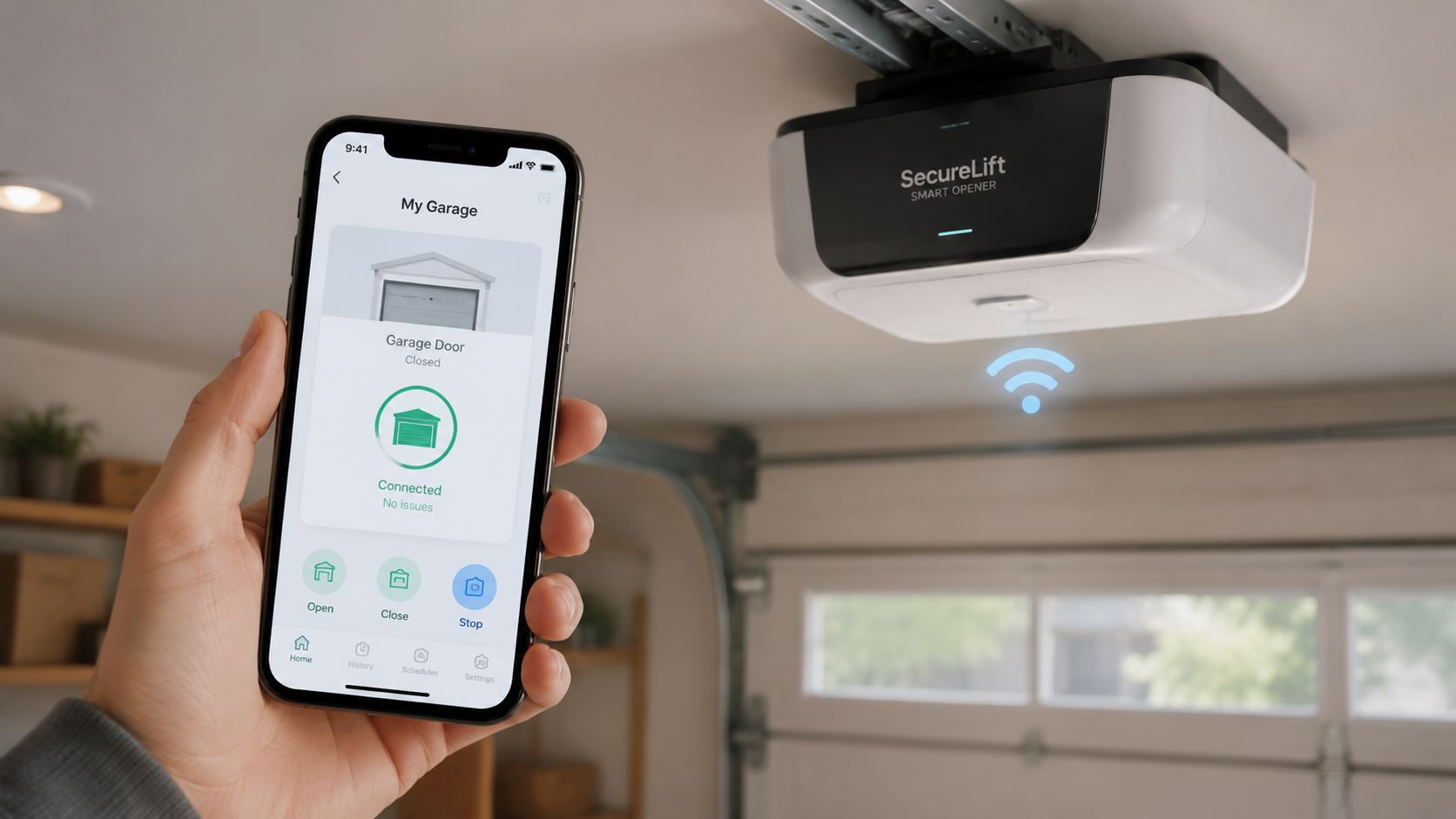

Connecting Smart Openers to WiFi and Apps
Smart opener setup feels different because you're no longer just pairing a radio remote. You're linking the opener to your phone, your router, and the brand's app.
That's convenient when it works. It's also where many DIY setups stall out.
The normal smart setup flow
Most systems like myQ or Aladdin Connect follow a familiar sequence:
- Download the correct app for your opener brand.
- Create or sign in to your account.
- Put the opener into WiFi pairing mode using the wall control or opener settings.
- Join the opener in the app when it appears.
- Select your home WiFi network and enter the password.
- Name the opener so you can identify it later in the app.
If the app finds the opener but the opener won't finish setup, the problem is often your wireless band, not the opener itself.
The 2.4GHz issue that gets missed
Recent data shows that 60% of smart opener pairing failures stem from users trying to connect on 5GHz WiFi, while major opener brands require 2.4GHz for the initial setup (smart opener WiFi pairing issue).
That matters in newer Cleveland-area homes where dual-band routers handle everything automatically. Your phone may jump to the stronger or newer band while the opener still expects 2.4GHz only.
Try these fixes if app pairing stalls:
- Split the bands if your router allows it: Give 2.4GHz and 5GHz different network names temporarily.
- Move closer to the garage: Weak signal in the far corner of the garage can interrupt setup.
- Disable automatic switching during setup: Some phones hop between saved networks without making it obvious.
- Restart the opener WiFi mode: If the pairing window expires, start fresh instead of forcing repeated retries.
Smart opener setup is less about the remote and more about getting the opener, phone, and router to speak the same language.
If you're interested in the bigger connectivity side of smart devices, this guide to business IoT connectivity explains the network side in a way that also helps homeowners understand why some devices connect easily and others don't.
For homeowners comparing app-ready systems, this garage door opener that works with Alexa guide can help narrow down what's worth installing.

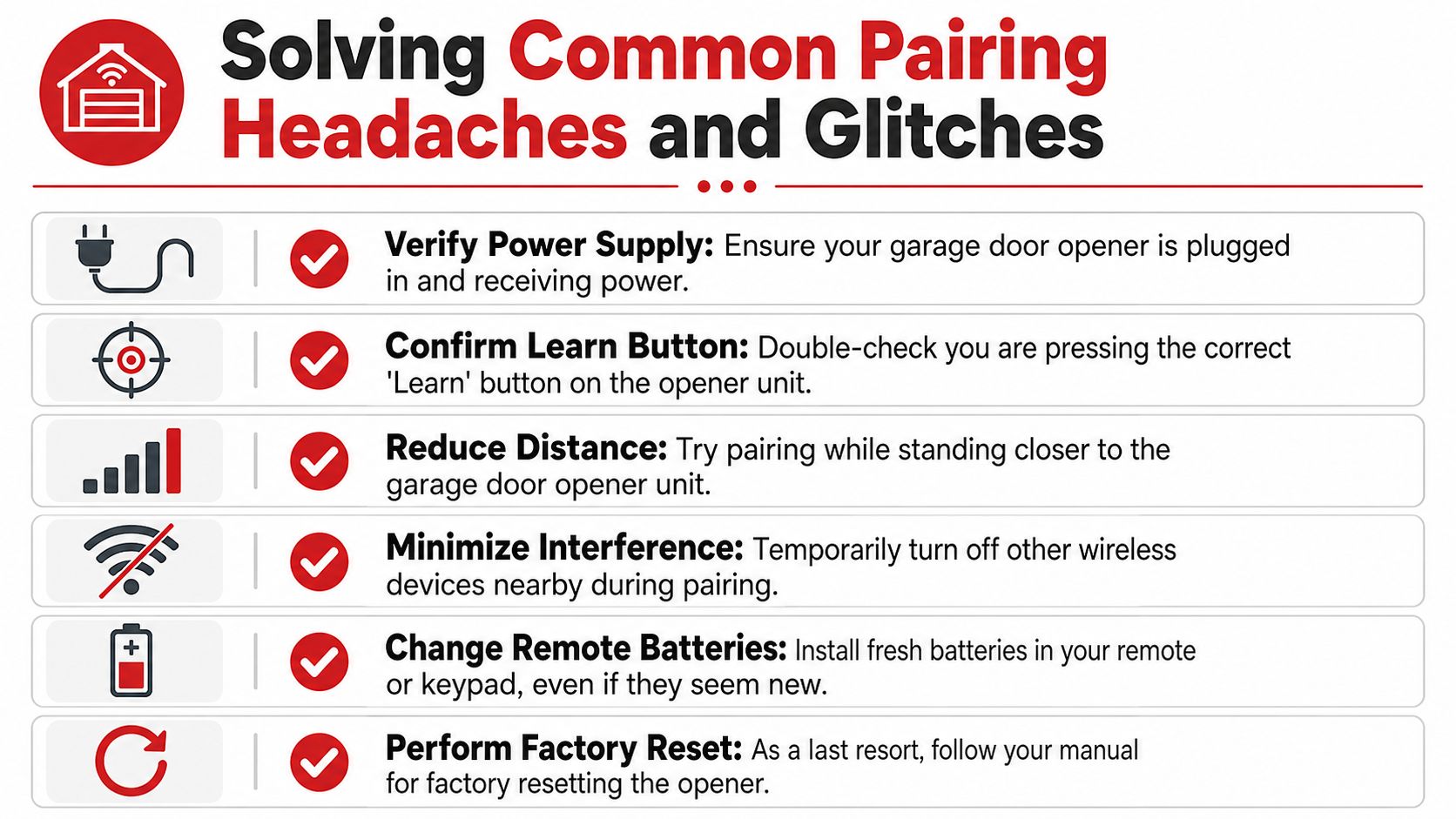

Solving Common Pairing Headaches and Glitches
You press the Learn button, hit the remote, and nothing happens. Then you try it again from a different spot in the garage, then again with a little more force on the button, and now it just feels random.
Usually it is not random. The opener is missing one part of the handshake: signal strength, timing, memory space, or compatibility.
When the remote won't pair
Start simple. A remote can light up and still have a weak coin-cell battery that will not transmit strongly enough during programming. I see that a lot with remotes that have been sitting in a kitchen drawer for a year.
Position matters too, especially with older clickers and vehicle buttons. Some openers want the remote close to the motor head during programming. Others respond better when you follow the manual exactly and stand back. If one method fails, do not keep guessing. Restart Learn mode and repeat the sequence at a steady pace.
Use this quick triage:
| Problem | Most likely cause | What to try |
|---|---|---|
| Learn light comes on, no sync | Wrong button sequence or pairing window timed out | Restart Learn mode and repeat the steps slowly |
| Remote light works, opener ignores it | Weak battery | Install a fresh battery, then program again |
| Works sometimes, not always | Interference or poor signal | Remove likely interference sources and test again |
| New remote never responds | Incompatible remote or opener memory issue | Confirm compatibility, then clear stored codes if needed |
One more check for older systems. If the remote or receiver uses DIP switches, every switch has to match exactly. One switch out of place is enough to stop the whole setup.
Interference can block pairing
Garage door openers are more sensitive than many homeowners expect. Bright LED bulbs near the opener, a tucked-away antenna wire, or extra electronics plugged in around the ceiling outlet can all interfere with programming. The same source that discusses reprogramming notes both LED-related interference and situations where clearing stored codes helps resolve stubborn pairing issues (LED interference and opener troubleshooting).
A quick test saves time. Remove the LED bulbs from the opener sockets for a few minutes, let the unit sit, and try pairing again. If the remote suddenly programs and works normally, you found the problem.
Also check these basics:
- Antenna wire: It should hang down freely, not be wrapped up, pinched, or broken.
- Nearby plug-in devices: Battery chargers, cameras, and other garage electronics can create noise during setup.
- Button timing: A lot of failed pairings come from pressing too fast, too slowly, or holding the wrong button too long.
Homeowners often assume the keypad or remote failed when the issue is just inconsistent button timing.
When clearing memory helps
Stored codes can become a problem on openers that have had years of remotes, cars, and keypads added and removed. That comes up often after a home purchase, after a lost remote, or when the opener seems to accept a device and then act like it forgot it.
Clearing memory is also a good safety step if you do not know who still has access to the garage.
Before you wipe everything, make sure you are ready to program every device back in. That includes remotes, vehicle buttons, outdoor keypads, and any smart bridge tied to the opener. On some jobs, clearing memory solves the issue in five minutes. On others, it creates extra work because the homeowner did not realize how many devices were linked.
A good stopping point
If you have replaced the battery, confirmed the remote is compatible, checked for interference, and cleared memory when appropriate, but the opener still will not save a device, the problem may be inside the opener.
At that stage, I start suspecting the receiver board, wall control circuit, or wiring. More button pressing rarely fixes that.
Need a Hand? When to Call Danny's Garage Door Repair
DIY pairing makes sense when the opener is healthy and the issue is just setup. A new clicker, keypad, or HomeLink button often comes together with the right sequence and a little patience.
Call a pro when the problem stops looking like pairing and starts looking like hardware. That includes an opener that won't enter Learn mode, lights that don't respond normally, remotes that pair and immediately forget, wall controls that act erratic, or suspected receiver and wiring issues. If you keep forcing resets without knowing what failed, you can create more confusion and wipe out working devices unnecessarily.
For homeowners around Greater Cleveland, that's where local service helps. If you're in Pepper Pike, Brunswick, Beachwood, Chagrin Falls, or nearby, getting someone out with the right remotes, batteries, test equipment, and brand-specific experience is usually faster than another hour on a ladder. It also helps when your opener is older and you're not sure whether it's worth reprogramming, repairing, or replacing.
A good service visit should answer three things clearly. Is the device compatible, is the opener receiving signals correctly, and is the system still worth keeping. Once you know those answers, the repair path gets much easier.
If your remote, keypad, HomeLink button, or smart opener still won't connect, Danny's Garage Door Repair can help with troubleshooting, opener programming, repairs, and replacement options across Greater Cleveland. You'll get clear advice, a free estimate, and fast service from a local team that works on garage doors and openers every day.
