Your Craftsman remote quit working, you're standing in the garage, and the wall button still opens the door. That usually sends people straight to the ladder.
Hold off for a minute.
A lot of remote problems have nothing to do with programming. I see people waste time pressing the Learn button, clearing out working remotes, and getting more frustrated than they started. The smart move is to diagnose the problem first, identify the opener type second, and only then program the remote the right way.
Before You Program Check These First
You press the remote from the driveway, nothing happens, then the wall button works right away. That usually means the opener is fine. The problem is often somewhere between the remote battery, the wall control settings, and the signal getting to the motor.
A quick check now can save you from wiping out working remotes or climbing up to the Learn button for no reason. At Danny's Garage Door Repair, we see this a lot. Homeowners assume the remote lost programming, but the fix ends up being much simpler.
Quick checks that save time
Start with the remote in your hand, not the opener on the ceiling.

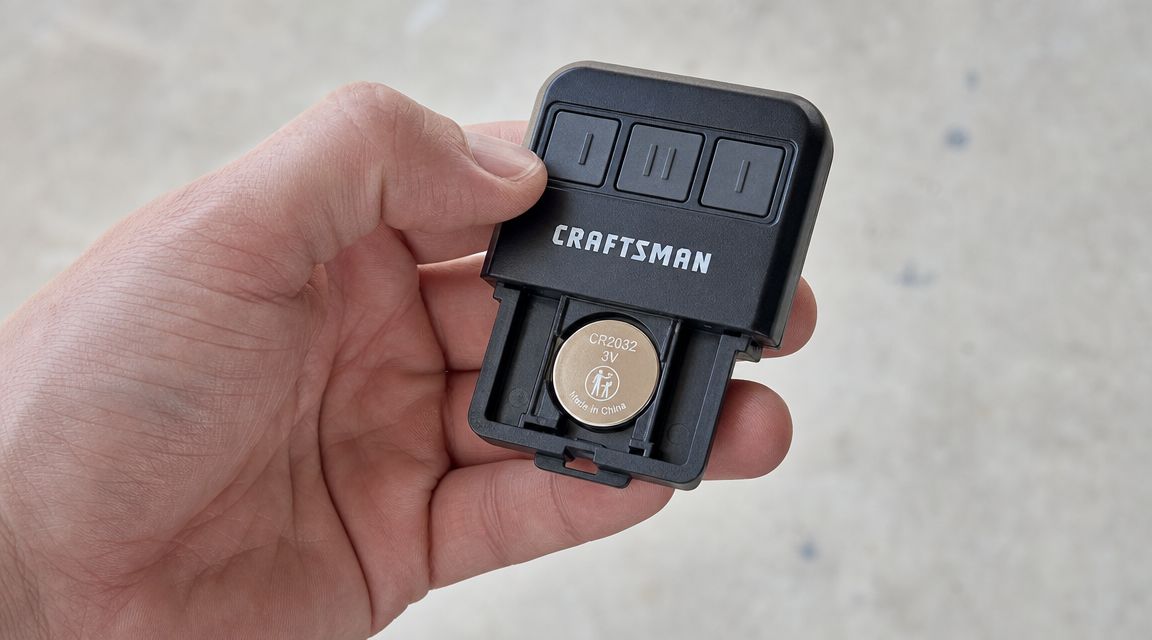

- Replace the battery first. A weak coin-cell battery can still light a tiny LED and still fail to send a strong signal. If you want help opening the case and confirming battery direction, this guide on garage door opener remote battery replacement walks through the basics.
- Check the wall control for LOCK or vacation mode. Many Craftsman wall consoles can block remote operation while the wall button keeps working normally.
- Test the remote close to the opener. If it only works when you're standing under the motor unit, that points more toward a weak battery, radio interference, or an antenna issue than a programming problem.
- Inspect the remote for damage. After a drop, I often find bent battery tabs, worn buttons, or a cracked case that keeps the battery from making solid contact.
One more practical check. If the opener lights blink or click but the door does not move, stop and look at the door itself. That is a door or safety issue, not a remote programming issue.
Know what the job should feel like
Programming a Craftsman remote is usually a short, straightforward task if the remote, opener, and signal path are all in good shape. If the basic checks above do not change anything, the next step is to identify which Craftsman system you have so you use the right method the first time.
If the problem starts looking electrical, keep the diagnosis simple. A failing wall station, broken accessory wire, or loose terminal can mimic a remote problem. Understanding the basics of checking circuit continuity can help you sort out whether you have a signal issue or a wiring issue before you spend time reprogramming.
Identify Your Craftsman Opener Type
Many DIY attempts encounter difficulties. Craftsman used more than one remote system over the years, and the programming method depends on which one you have.
If your opener has a Learn button on the motor unit, you're dealing with a modern rolling code system. If the opener and remote both use a row of tiny little switches, you're dealing with an older DIP switch setup. Those are completely different animals.
For a deeper look at how modern secure remotes work, this primer on rolling code garage door openers helps if you're not sure what you're seeing.
What to look for on the motor unit
Start at the ceiling-mounted opener head.
A rolling code Craftsman opener usually has a visible button labeled Learn or a clearly identified pairing button area on the motor housing. The remote gets added electronically.
An older DIP switch unit usually has a small access panel. Behind it, you'll see a bank of tiny switches. The remote has matching switches inside, and programming means matching those positions.
Craftsman Opener Type Identification
| Feature | Rolling Code (Modern) | DIP Switch (Older) |
|---|---|---|
| Main identifier | Learn button on motor unit | Small switch bank inside opener |
| Remote setup method | Electronic pairing | Match switch pattern manually |
| What you do | Put opener into learn mode, then sync remote | Open remote and copy switch positions |
| Confirmation style | Light flash or click from opener | Works when switch pattern matches |
| Best clue | No tiny switch bank in remote | Tiny numbered switches in both units |
If you don't see switches, don't keep hunting for them. Most Craftsman units people ask about today are Learn-button models.
A simple decision test
Use this quick test:
- Check the remote case. If it opens to reveal a strip of little switches, it's DIP switch.
- Check the opener head. If you find a Learn button, it's rolling code.
- Don't mix the methods. A Learn-button opener won't program by matching switches, and a DIP switch opener won't pair through timed learn mode.
That one decision saves the most time.

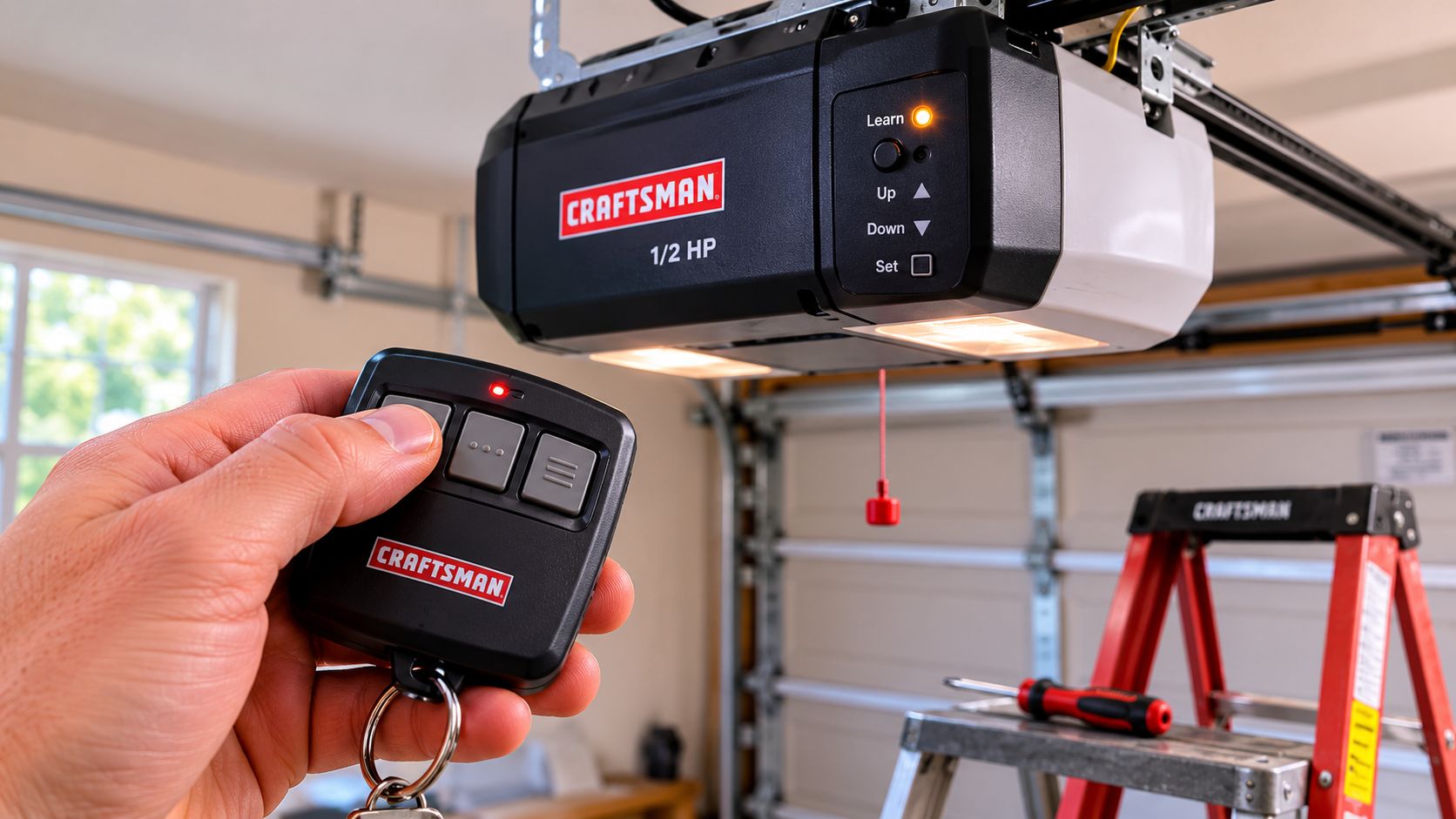

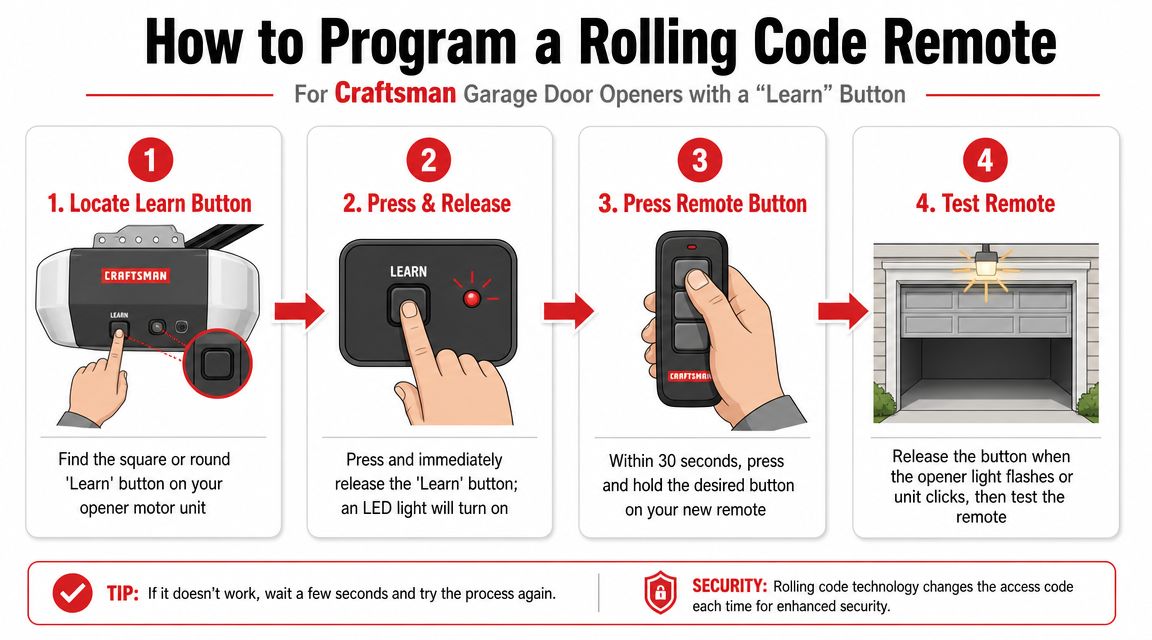

How to Program a Rolling Code Remote
If your Craftsman opener has a Learn button, this is the method you want. The key is timing.
A reliable workflow is to locate the Learn button on the opener, press and release it, then use the remote during the short pairing window. Homeowners generally have about 30 seconds to press and hold the remote button they want to assign, and the opener confirms success with a flashing light or clicking sound. If you need to erase old remotes first, holding the Learn button for about 6 seconds typically clears existing codes before you start over (Heritage Door on reprogramming Craftsman openers).
If you need help identifying where that button is before climbing up, this guide to the garage door opener Learn button can make that part easier.
The step-by-step method
- Set up safely. Use a stable ladder and make sure the garage doorway is clear.
- Find the Learn button. It's on the motor unit, often near the antenna wire or behind a light cover.
- Press and release it. Don't hold it unless you're intentionally erasing memory.
- Use the remote quickly. Within the pairing window, press and hold the button on the remote you want to use.
- Watch and listen for confirmation. The opener light may blink, or the unit may click.
- Test the remote. Step down and make sure the door responds normally.
What works and what doesn't
What works:
- A firm press on the Learn button, then immediate action on the remote
- Fresh batteries
- Programming one remote at a time
- Standing reasonably close during setup
What doesn't work:
- Holding Learn by accident when you only meant to enter programming mode
- Waiting too long before pressing the remote
- Assuming one programmed remote automatically adds the others
- Trying to pair a damaged or incompatible remote
A blinking opener light or a click means the opener accepted the signal. If you don't get that confirmation, stop guessing and repeat the sequence cleanly.
When clearing old codes makes sense
Erasing memory is a smart move if:
- You've lost a remote
- You moved into the home recently
- The opener has old remotes still floating around
- Programming attempts have gotten messy and you want a clean restart
Just remember the trade-off. Clearing memory removes previously paired remotes, so you'll need to add each one back individually.

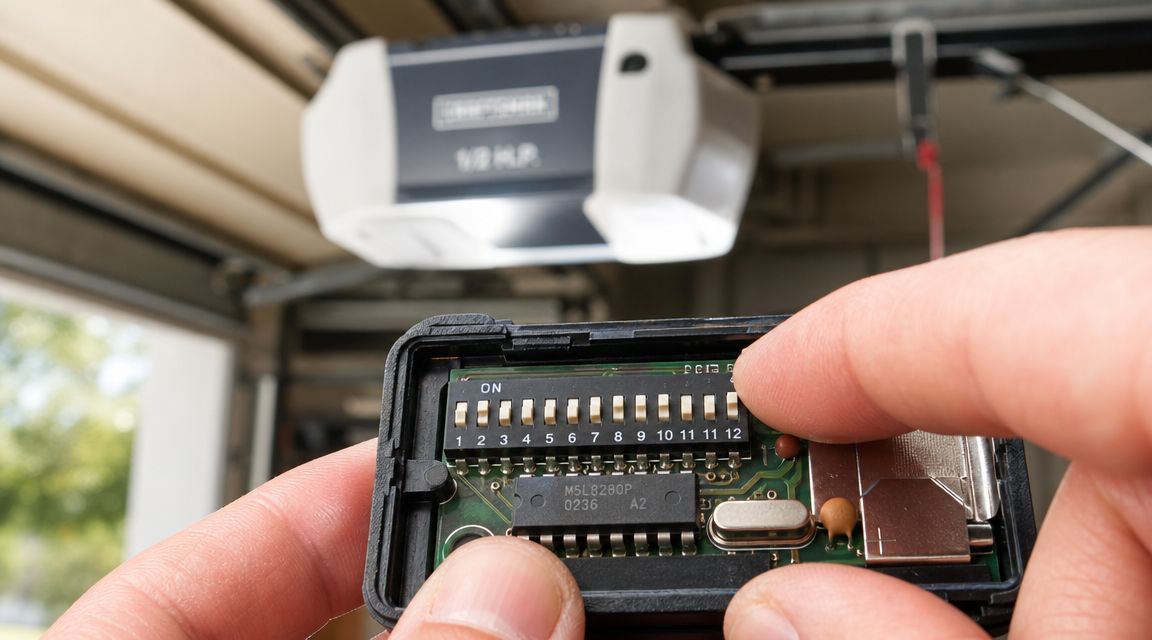

Programming an Older DIP Switch Remote
Older Craftsman systems don't use the timed Learn-button process. They use a physical code pattern.
That sounds old-school because it is, but it's usually simple once you open things up. You're not syncing electronically. You're matching positions.
How the system works
Inside the remote, you'll find a row of tiny switches. The opener motor unit has a matching switch bank. For the remote to operate the door, both patterns need to match exactly.
No countdown. No learn window. No waiting for a flash.
The right way to set it up
Use a small screwdriver, good light, and some patience.
- Open the remote carefully. Don't force the tabs. Older plastic gets brittle.
- Locate the switch bank. You'll usually see several tiny numbered toggles.
- Access the opener's switch bank. This may be behind a cover on the motor unit.
- Match the pattern exactly. Up means up, down means down. One wrong switch is enough to stop the remote from working.
- Reassemble and test. Press the remote button near the door and confirm operation.
Mistakes I see on older remotes
The biggest one is reading the switch direction backwards. On some housings, people look at the opener from one angle and the remote from another, then accidentally mirror the pattern.
Another common problem is dirty battery contacts inside the remote. If the pattern matches and the remote still won't trigger the opener, inspect the battery terminals and button contacts before assuming the opener is bad.
With DIP switch models, success comes from matching the pattern, not from repeating the process faster.

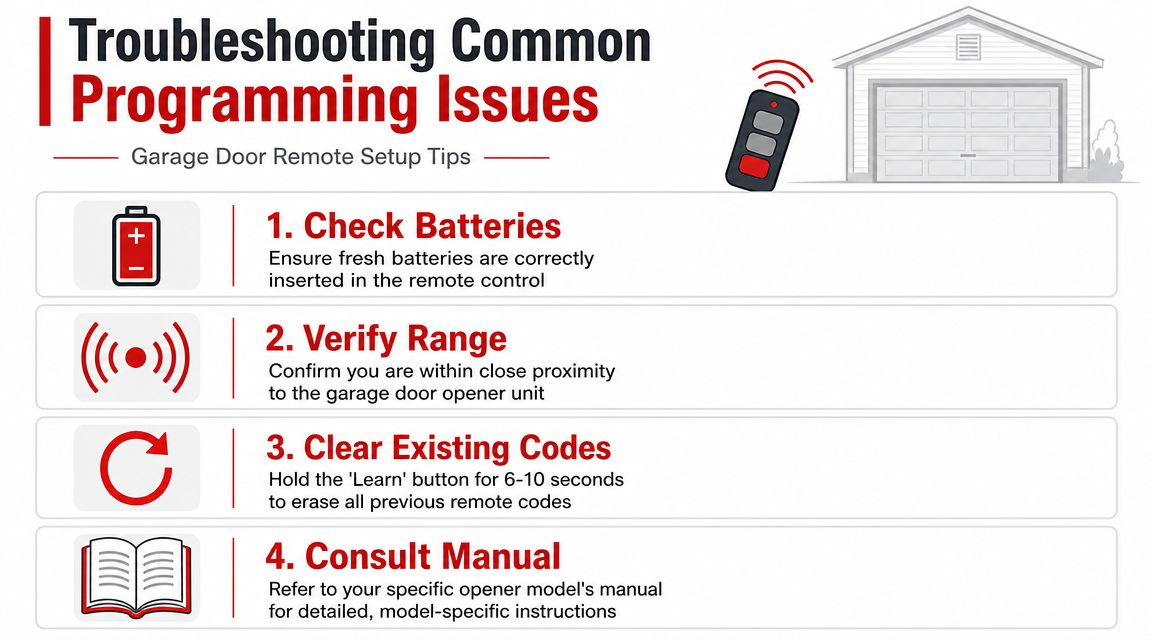

Troubleshooting Common Programming Issues
You press the remote, the light blinks, and nothing happens. That usually means the problem is no longer "how do I program it?" The core question is what part of the system is failing.
A few symptoms point in very different directions. Sorting them out first saves a lot of repeated button presses and ladder trips.
| Problem | What to check |
|---|---|
| Wall button works, remote doesn't | Remote battery, wall control LOCK setting, remote condition |
| Learn mode starts but remote won't sync | Remote compatibility, weak battery, distance during programming |
| Remote appears to program but door won't move | Interference, opener antenna position, failing remote |
| Nothing happens when pressing Learn | Power to opener, wrong button, bad learn button or logic board |
Practical fixes
- Wall button works but remote doesn't. As noted earlier, this often points to a simple issue like a weak battery or the wall control being in LOCK mode. If the wall button runs the door normally, the opener itself is at least getting power and responding.
- The remote light comes on, but the opener ignores it. Stand closer to the opener and test again. If it only works at short range, the remote may be weak, the opener antenna may be tucked up or damaged, or you may have signal interference in the garage.
- The Learn indicator never responds. Confirm the opener has power and make sure you're pressing the actual Learn button, not the light button. I see that mistake more often than you'd think, especially on units with tight covers or faded labels.
- Programming worked once, then stopped. That usually points away from the programming steps and toward a battery issue, worn remote button contacts, or a receiver problem on the opener.
Interference can mimic a programming problem
This comes up in garages with LED bulbs, add-on accessories, or other electronics near the opener. The remote may work from the driveway one day and only from directly under the motor the next.
That inconsistency matters.
If a remote works occasionally, the opener often already has the code stored. Repeating the programming process usually does not fix that kind of symptom. It makes more sense to look at range, antenna position, nearby devices, or a remote that is starting to fail.
One last practical tip. If you have a second remote that is known to work, test it before blaming the opener. If both remotes act the same way, the problem is probably on the opener side, not in the handset.
When to Call a Professional for Help
If you've checked the battery, looked for LOCK mode, identified the opener type, and followed the correct setup method, you've already done the useful homeowner-level work.
At that point, call for help if the opener won't enter learn mode, the remote only works intermittently at close range, the antenna looks damaged, or multiple remotes fail the same way. Those signs usually point to something deeper than routine programming. It may be a receiver problem, internal board issue, wiring fault, or another opener-side failure.
The other time to stop DIY work is when the problem is getting muddy. If you aren't sure whether you're dealing with a remote issue, a wall control issue, or an opener issue, more guessing usually creates more confusion.
For homeowners and property managers around Greater Cleveland, getting a technician involved can save a lot of repeat trips up the ladder and a lot of unnecessary remote purchases.
If you're in Northeast Ohio and your Craftsman remote still won't pair, or the opener seems to have a deeper electrical or receiver problem, Danny's Garage Door Repair can help you sort it out with straightforward troubleshooting, repair, and opener programming support.
