A DIY Guide to Replacing Garage Door Extension Springs

That loud, sudden BANG from the garage is a sound that will jolt you right out of your seat. More often than not, it's the tell-tale sign that you need to replace an extension spring on your garage door. These springs do all the heavy lifting, and when one goes, your door isn't going anywhere.

So, you can absolutely save some cash by replacing the spring yourself. But let's be clear: this isn't your average weekend DIY project. It's a job that demands your full attention and a healthy respect for the power stored in these springs. When a spring is broken, your garage door opener is suddenly forced to lift the door's entire weight, which is a fast track to burning out the motor.

Extension springs are the muscles behind your door's operation, stretching alongside the horizontal tracks to counterbalance hundreds of pounds of weight. Over thousands of open-and-close cycles, the metal just gets tired and eventually snaps. If you're looking at your system and aren't quite sure what's what, our guide on how to tell if a garage door spring is broken can help you pinpoint the problem.

I've put this guide together to walk you through the entire process, from start to finish. We'll cover everything you need to know:

• Crucial safety checks to perform before you even touch a tool.
• How to find the right tools and, more importantly, the correct replacement springs.
• A clear, step-by-step process for a safe and successful replacement.
• The final, critical step of balancing the door properly once you're done.

Think of this guide as having a seasoned pro right there with you. I'm sharing the kind of hard-won knowledge that comes from years of working on homes all over the Cleveland area.

I want you to feel confident tackling this repair. But it's just as important that you understand the risks. Knowing your limits and recognizing when to call in a professional is the smartest, safest decision you can make. Your safety always comes first—no exceptions.

Essential Safety Before You Start

Before you touch a single tool, we need to talk seriously about safety. When you replace an extension spring on your garage door, you’re handling an object under immense tension. I can't stress this enough: a single slip-up can lead to severe injury or major damage to your property.

This part of the job is absolutely non-negotiable. There's no room for error here.

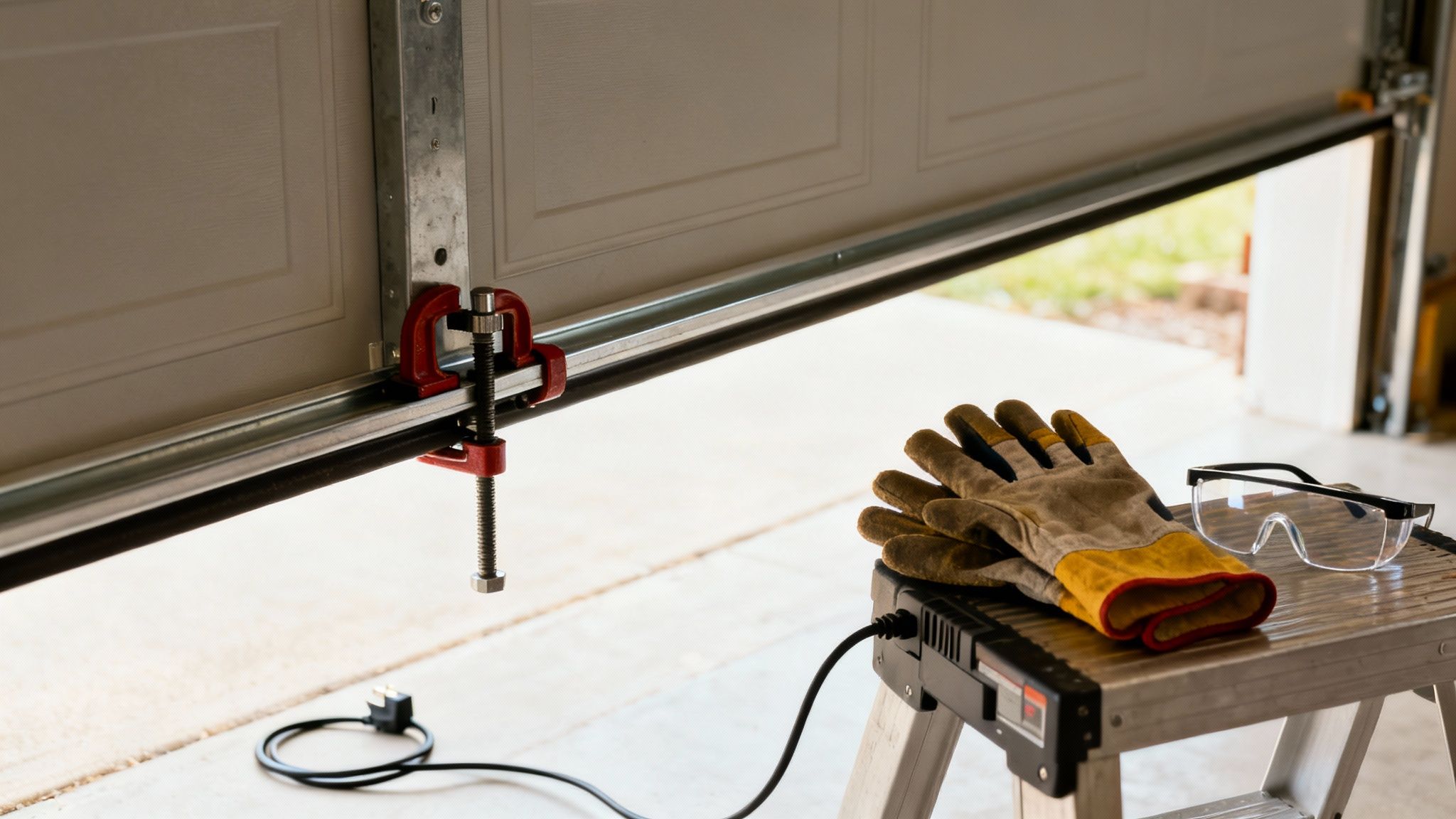

Securing the Door and Workspace

Your first move, before anything else, is to open the garage door all the way. Once it's up, you have to lock it in place. The best way I've found is to clamp a sturdy C-clamp or a set of locking pliers tightly onto each vertical track, just underneath the bottom roller. This creates a hard stop, physically preventing the door from slamming down.

With the door secured, head over to the opener and unplug it from the wall. This simple step eliminates any chance of the door being accidentally activated while you’re in its path.

Lastly, give yourself room to work. Move your cars out, and clear away any clutter like tools, bikes, or boxes. You'll need a clear, trip-free zone to maneuver your ladder and tools safely.

Personal Protective Equipment (PPE) is a Must

This is not a job for bare hands and squinting. At a bare minimum, you absolutely need two things:

• Impact-Resistant Safety Glasses: A spring letting go unexpectedly can send metal flying. Protect your eyes.
• Heavy-Duty Work Gloves: These give you a much better grip and protect your hands from the sharp edges of the track and springs.

Being prepared with the right gear is crucial for any repair. You can check out a complete guide to safety supplies to make sure you're fully covered. Creating a safe work environment isn't just about being careful—it’s about respecting the very real power you're dealing with.

The statistics are sobering. A shocking 85% of garage door injuries are caused by spring accidents during DIY repairs. This is exactly why calling a bonded technician is often the smartest move. Following these safety steps isn’t a suggestion; it’s what keeps you from becoming another statistic.

Taking the time to prepare properly is what separates a successful weekend project from a trip to the emergency room. Get this right, and you're set up for a smooth and safe replacement.

Getting the Right Tools and Replacement Springs

Trust me, trying to replace an extension spring on your garage door using whatever you can find in the junk drawer is a bad, bad idea. Showing up to the job with the right equipment is crucial for doing this safely and getting it right the first time. This is one of those projects where a basic home toolkit just isn't going to cut it.

You'll need a few specific things on hand before you even think about starting. Consider this your must-have list—skipping even one of these can bring the whole project to a grinding halt.

• A Sturdy Ladder: You'll be working overhead, so make sure you have a solid step ladder. Please, don't try to balance on a shaky kitchen chair.
• C-Clamps or Locking Pliers: As I mentioned in the safety warnings, these are absolutely non-negotiable. You'll use them to lock the door in place so it can't move while you work.
• Socket Wrench Set: This is essential for removing the nuts on the pulley forks and any track brackets you might need to adjust.
• Proper Safety Gear: I know I sound like a broken record, but it’s that important: wear impact-resistant safety glasses and a pair of heavy-duty work gloves.

Having everything ready to go means you won't be tempted to improvise or run out to the hardware store halfway through the job. That’s usually when accidents happen.

Finding the Correct Replacement Springs

Okay, now for what is easily the most important part of your prep work: buying the correct replacement springs. This is where most DIY attempts go wrong, and the consequences can be serious. Garage door springs are definitely not a one-size-fits-all part.

Each spring is engineered for the precise weight and height of a specific door. If you install the wrong one, the whole system will be out of balance. It might make the door dangerously heavy to close, or it could cause it to fly open unexpectedly. An incorrectly matched spring will also shred your garage door opener's motor in no time.

To find the right replacement, you need two pieces of information from your old, broken spring.

1. Measure its length. You need the relaxed length of the spring coil, not when it's stretched out. If your spring is broken in two, just measure both pieces and add the lengths together. You’re typically looking for a measurement around 25 or 27 inches.
2. Identify its weight capacity. This is where the color-coding system comes in handy. The ends of the spring are painted a specific color that tells you the door weight it's designed to lift.

The biggest mistake I see is people guessing or buying a spring that "looks close enough." Precision is everything here. Taking a few extra minutes to get an accurate measurement and identify the color code is what separates a successful repair from a dangerous, costly mess.

Garage Door Extension Spring Color Code Chart

To help you out, here’s the industry-standard color code chart. Simply match the color on your old spring to the chart below to find the weight it supports. This is the key to ordering the perfect replacement.

Color Code	Supported Door Weight (lbs)
Tan	100 lbs
White	110 lbs
Green	120 lbs
Yellow	130 lbs
Blue	140 lbs
Red	150 lbs
Brown	160 lbs
Orange	170 lbs
Gold	180 lbs
Light Blue	190 lbs

For example, a 260-pound door will almost always have two 130-pound yellow springs—one on each side.

And that brings up a final, crucial point: always, always replace both springs at the same time. Even if only one broke, they've both done the same amount of work over the years. The other one is living on borrowed time. Replacing them as a matched pair is the only way to ensure your door stays perfectly balanced and safe.

From Old to New: The Spring Swap

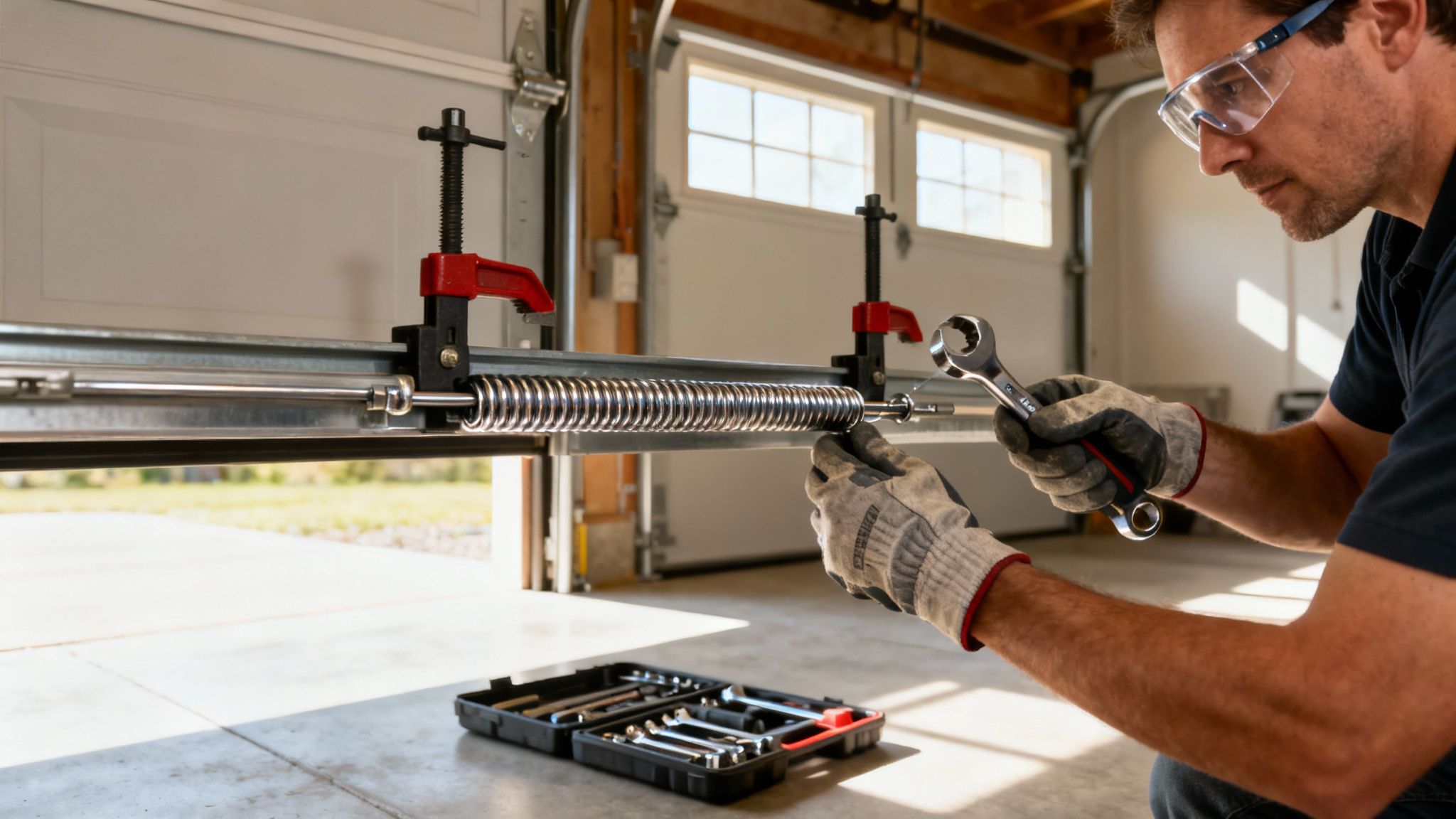

Alright, you’ve done the prep work, the door is secured, and the power is off. Now for the main event: swapping out those springs. This is where your focus is critical. Just double-check that your door is clamped open and that opener is definitely unplugged before you touch a single bolt.

Even with a broken spring, there's often still tension lurking in the system. The cable on the broken side might be holding some energy, and the other spring is certainly still under load. You've got to release this pressure before you can safely take anything apart.

Using your socket wrench, carefully detach the spring from the track hanger and the extension spring pulley. Take your time here. You want to control the movement of every piece as it comes loose. Once the spring is free, you can unthread and slide out the safety cable.

Getting the Old Springs Out

With the tension safely managed, removing the worn-out springs is next. The broken one is the easy place to start. Just unhook it from the eyebolt at the back and the pulley fork at the front. I always use a magnetic tray or even just a plastic cup to keep all the nuts, bolts, and washers together—you'll need them again in a minute.

Now, turn your attention to the spring on the other side. Don't be fooled just because it isn't broken. It's just as old and has seen the exact same amount of work as the one that failed, which is precisely why we're replacing them as a pair. Follow the same steps to detach it from its connection points.

A Quick Word of Advice: I can't stress this enough: never replace just one spring. It might seem like a quick way to save a few dollars, but it's a huge mistake that I see people make all the time. The other spring is on borrowed time. Replacing them in pairs is the only way to ensure your door stays properly balanced and that you aren't right back here doing this job again in a few months.

Installing the New Extension Springs

Time to bring in the new parts. Precision is key here. Grab one of your new, correctly-sized extension springs and its safety cable.

Here’s a crucial step that can be easy to forget: thread the safety cable through the middle of the new spring before you attach it. This is arguably the most important safety feature of the whole setup. If that new spring fails years down the road, the cable is what will stop it from flying across your garage and causing serious damage or injury.

With the cable threaded, you can reassemble everything in the reverse order of how you took it apart.

• Attach the back end of the spring to the track hanger or eyebolt.
• Connect the front end of the spring to the pulley fork.
• Route the safety cable and secure it, leaving just a tiny bit of slack.

Do the exact same thing for the second spring on the other side. Go back and give every nut and bolt a final turn to make sure they're snug. Nothing should feel loose or wobbly.

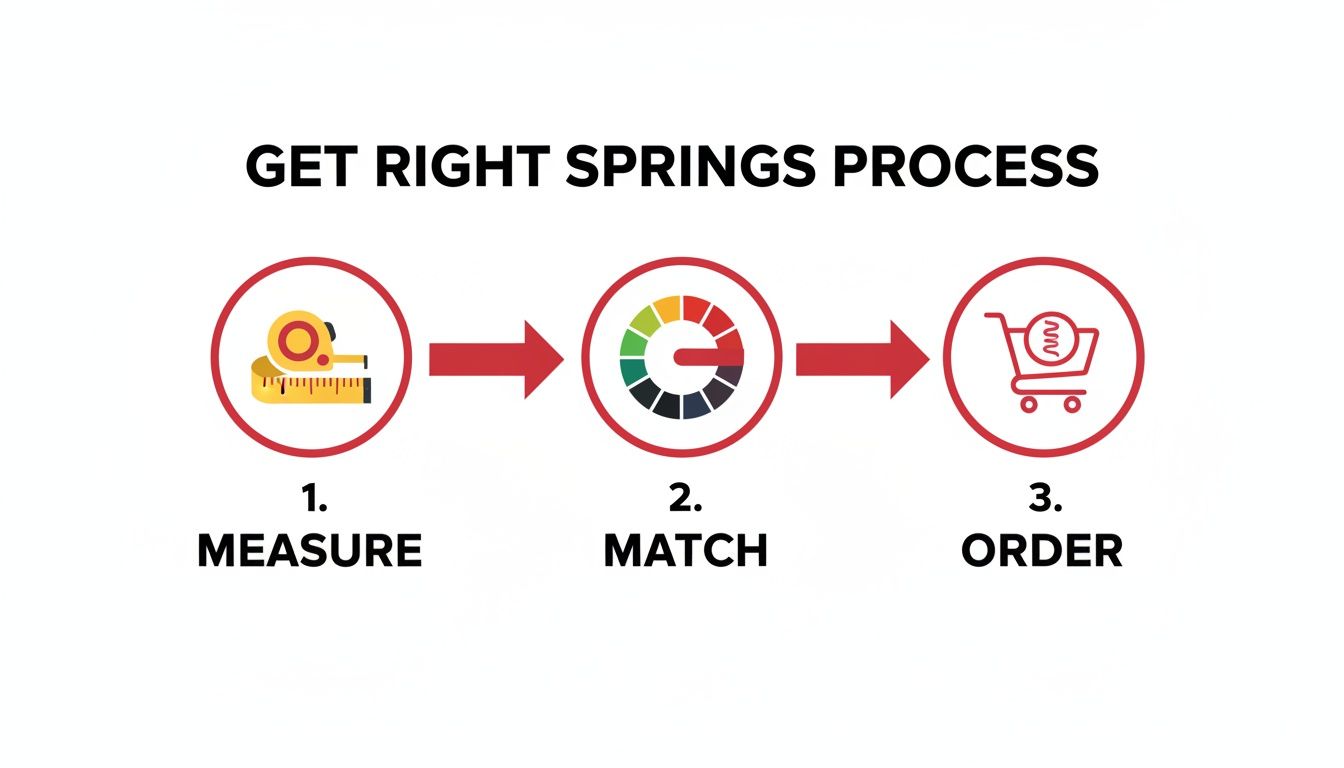

This whole replacement hinges on getting the right parts from the very beginning, a process that this graphic simplifies nicely.

It boils down the prep work into three simple actions: measure, match, and order. Getting this part right is the foundation for a safe and successful repair.

Reconnecting the Pulley System

With both new springs and their safety cables in place, the last piece of the puzzle is reattaching the lift cable pulley system. This is the cable that runs from the bottom corner of the door, up and over the pulley on the new spring, and back to the track support.

Check that the cable sits perfectly in the groove of the pulley wheel, then re-secure the pulley fork to the horizontal track bracket. When the door is fully open, the cable should be taut but not stretched banjo-tight. We'll fine-tune this in the next step when we balance the door.

Finally, take a step back and give both sides a good visual inspection. Do they look like mirror images? Are all connections tight? Is the safety cable running through both springs? A quick check now can prevent a lot of trouble later. If it all looks good, you're ready for the final, and most important, phase: balancing and testing.

How to Balance and Test Your New Garage Door Springs

You've got the new springs on, and that's a huge step. But hold on, the job isn't quite done. This next part—balancing the door—is arguably the most critical step of the entire process.

An unbalanced door forces your garage door opener to do all the heavy lifting, putting a massive strain on the motor and gears. That's a surefire way to burn it out years before its time. Getting the balance just right ensures smooth, safe operation and protects your investment. It’s what separates a professional-grade repair from a risky shortcut.

The Professional Balance Test

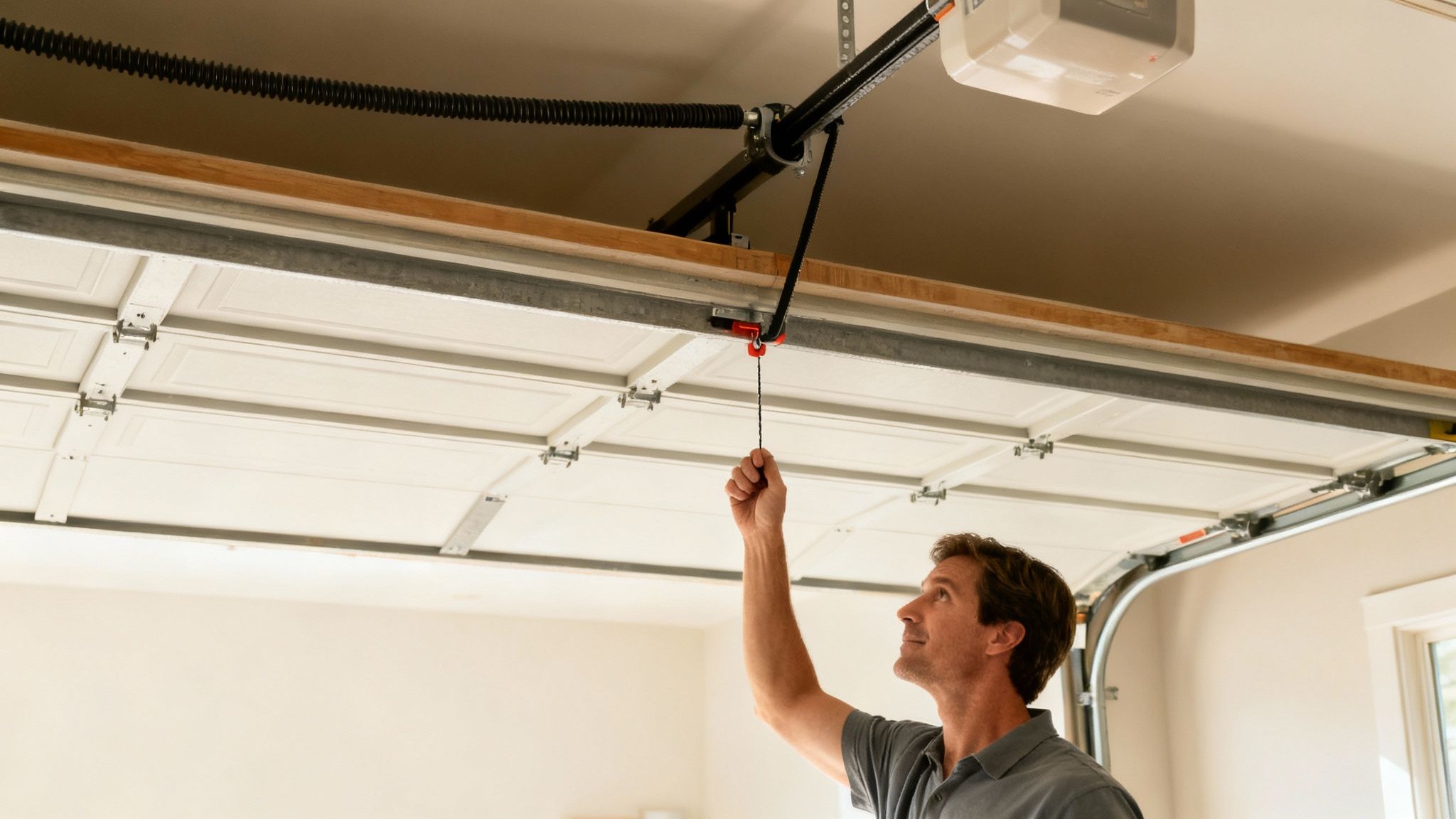

First things first, you need to disconnect the door from the opener. Grab that red emergency release cord hanging from the opener's trolley and give it a solid pull down and back. You should hear a distinct click as it locks into the disengaged position. This lets you move the door by hand, totally independent of the motor.

Now, manually lift the door to about the halfway point—maybe three or four feet off the floor—and carefully let it go. Here’s what you’re looking for:

• It stays put. The door might drift an inch or so, but it essentially hovers in place. This is a perfect balance.
• It slowly drifts down. This tells you the springs are a little weak or don't have quite enough tension.
• It shoots up. If the door takes off on its own, the springs are too hot, meaning they have too much tension.

This halfway balance test isn't optional. It’s the only true way to confirm the springs are doing their job correctly. A door that slams shut or flies open isn't just an annoyance; it’s a serious safety hazard that needs immediate attention before you even think about reconnecting that opener.

Adjusting Tension for a Perfect Balance

If your door didn't pass the test, don't worry. A few small tweaks are usually all it takes. You'll be adjusting the tension by moving the S-hook on the lift cable to a different hole or notch on the track bracket.

• If the door falls, you need more tension. Move the S-hook to a hole further from the door. This shortens the cable slightly and gives the spring a little more stretch.
• If the door rises, you need less tension. Move the S-hook to a hole closer to the door. This will introduce a bit of slack and ease up on the pull.

Make your adjustments one hole at a time, and always do the exact same thing on both sides to keep the door level. After every single change, you have to repeat the balance test. For a more detailed look at the process, check out our complete guide on balancing a garage door.

Final Safety and System Checks

Once you've nailed the balance, it's time for one final inspection. Run through this quick checklist to make sure everything is buttoned up and safe.

1. Safety Cables: Are they threaded properly through the springs and securely fastened at both ends? Give them a good look.
2. Hardware Check: Go back and put a wrench on every nut and bolt you touched. Make sure everything is tight and secure.
3. Reconnect the Opener: Pull the emergency cord again to re-engage the trolley. You might need to run the opener until it locks back into the door arm.
4. Full Cycle Test: Use your remote or wall button to run the door through a complete open-and-close cycle. Listen for any strange noises and watch for smooth, even movement.

Remember, a good set of extension springs should last for 10,000 to 15,000 cycles, which works out to about 7-10 years of typical use. Here in Cleveland, our rough winters can speed up that wear and tear, making proper balance even more important. It’s the best way to prevent premature failure, which is a major reason why faulty springs account for 30% of all garage door failures.

Knowing When to Call a Garage Door Pro

Even the best DIY guide has its limits. Honestly, knowing when to put the tools down and pick up the phone is just as crucial as knowing which wrench to grab. Sometimes, what looks like a straightforward project to replace an extension spring on a garage door uncovers much deeper problems that really need a pro’s eye.

Your safety is paramount. If you start the job and your gut tells you something’s off, listen to it.

A quick inspection might reveal more than just a broken spring. Spotting frayed lifting cables, rollers rusted into oblivion, or tracks that are bent and mangled are all major red flags. These are signs of system-wide fatigue, and just swapping out a spring won't solve the root cause. Fixing these issues correctly and safely demands specialized tools and experience.

Red Flags That Mean "Stop and Call for Help"

Some situations just aren't worth the risk. If you run into any of these, it's time to call in a professional:

• Heavy or Custom Doors: Is your door made of solid wood, or is it an oversized, custom job? Those systems are engineered differently and are under way more tension than a standard lightweight door. Don't mess with them.
• Multiple Damaged Parts: You’re not just looking at a broken spring. You also see frayed cables, worn-out pulleys, or track brackets pulling away from the wall. This isn't a one-part problem; it's a system failure waiting to happen.
• Signs of a Torsion System: Look up above the door. If you see a metal bar running across the top with one or two massive springs wrapped around it, back away. That's a torsion spring system, and it holds an incredible amount of energy. It's extremely dangerous to work on without the right training and tools.

The smartest thing any homeowner can do is recognize when a job is out of their league. There's no shame in it. In fact, it shows you value your safety over trying to save a few bucks on a repair that could go very wrong, very fast. To get a real sense of the forces at play, read up on the dangers of garage door springs.

The Value of an Expert Technician

When you call a professional, you're getting more than just an extra set of hands. A pro will use high-cycle springs that are built to last far longer than what you'll find at a big-box store.

More importantly, they can spot the subtle, underlying problems you might miss—like an imbalanced door or a slightly misaligned track—that caused the spring to fail in the first place. This is especially true for Cleveland homeowners; with 70% of local garages built before 2000, their original springs are battling fatigue from decades of lake-effect snow and humidity.

There's a reason professional repair and maintenance services are a growing market. Homeowners see the value in safe, reliable upgrades. Plus, you get the confidence that comes from having a professional warranty on both the parts and the labor.

Your Top Questions About Extension Spring Replacement

Even with the best guide, you might still have a few questions. When you're dealing with something as important as a garage door spring, it's completely normal to want to be sure about every detail. I hear these same questions all the time from folks, so here are the straightforward answers you're looking for.

If Only One Spring Broke, Should I Replace Both?

Yes. Full stop. This one isn't even up for debate. Think of it this way: both springs were installed on the same day and have lifted and lowered your heavy door the exact same number of times.

If one just snapped from metal fatigue, its partner is right on its heels. Replacing them as a pair is the only way to ensure the door stays properly balanced. It saves you from putting a ton of extra wear and tear on your opener and, frankly, from having to do this whole job again in a few weeks or months.

What's the Real Difference Between Extension and Torsion Springs?

The springs we've been talking about in this guide—the ones that run alongside the horizontal tracks—are extension springs. They do their job by stretching out and contracting, sort of like a giant, super-strong bungee cord.

Torsion springs, on the other hand, are a whole different beast. You'll find them mounted on a metal shaft right above the door opening. They work by twisting (or "torquing") to generate the force needed to lift the door. Torsion systems are often seen as more modern and a bit safer, but extension springs are still incredibly common on residential doors.

Here's the most important thing to remember: make sure you know what you have. If you look up and see a big spring (or two) on a bar directly over the door, you have a torsion system. Do not proceed. Torsion spring replacement is significantly more dangerous and absolutely requires special tools and expertise. It's a job for the pros.

What Should I Expect to Pay for a Professional Replacement?

While the final price tag can shift a bit depending on where you live and the specific size of your door, it's probably more affordable than you'd guess. For a standard two-spring extension system, a professional replacement usually falls in the $200 to $350 range. That price typically includes both the new springs and the labor.

When you weigh that against buying the tools, sourcing the right parts, and the very real safety risks of doing it yourself, calling a pro offers a lot of value and peace of mind. Plus, you get the guarantee that the job was done right with the correct, high-quality parts.

Can I Just Install a Stronger Spring to Make My Door Work Better?

No, please don't do this. It’s a common misconception that leads to dangerous situations. Garage door springs aren't about "stronger is better"; they are about being perfectly matched to the precise weight of your door.

A spring that’s too powerful will try to rip the door open and make it nearly impossible to close safely. A spring that's too weak won't provide enough support, forcing your garage door opener to strain and eventually burn out its motor. You must stick to the exact replacement spring indicated by the color code on your old one.

---
