That loud, echoing BANG from the garage is a sound no homeowner wants to hear. It almost always means one thing: a garage door extension spring has snapped. Your first thought might be to look up a tutorial and tackle it yourself, but this is one of those jobs where you really need to pause and think. Replacing an extension spring isn't just a home improvement task; it's a serious mechanical job with some very real safety risks.
Should You Really DIY This Project?
Before you even touch a wrench, you have to be brutally honest with yourself. Is this truly a project within your skill set, or is it a situation that calls for a professional? Making the right call here isn't about saving a few bucks—it's about staying safe.
Understanding the Risks
Extension springs are the muscles of your garage door system, constantly stretched under immense tension to counterbalance hundreds of pounds of door weight. When that stored energy is released unexpectedly—either from a break or improper handling—that spring can become a dangerous, high-velocity projectile.
This isn't an exaggeration. Every year, thousands of people are injured attempting DIY garage door repairs, with accidents ranging from deep cuts and broken bones to far more severe outcomes.
The most important question to ask yourself isn't "Can I do this?" but "Can I do this safely?" If there's even a shadow of a doubt, the smart move is always to call a licensed technician.
What the Job Actually Takes
Watching a video makes it look easy, but successfully replacing an extension spring demands more than just following steps. It requires a specific combination of skills, tools, and focus.
You'll need:
- A Solid Mechanical Background: You should be genuinely comfortable working with tools and have a practical understanding of how tension and force work in mechanical systems.
- The Right Equipment: This isn't a job for your basic home toolkit. You'll need C-clamps, locking pliers, and a very sturdy ladder, at a minimum.
- Meticulous Attention to Detail: There's no room for "good enough" here. A tiny mistake in installation can throw the entire door off balance, creating a new set of safety hazards.
A broken spring might feel like a rare event, but it's a common problem. More than 30% of garage doors will need a spring replacement within their first decade. That’s because the average spring is only rated for about 8,000 to 15,000 cycles (one cycle is opening and closing the door once), and a busy family can burn through that lifespan surprisingly fast.
If you're weighing the pros and cons, it's also worth looking into what a professional repair might set you back. You can check out our guide on garage door spring replacement costs to get a clearer picture.
Gathering the Right Tools and Replacement Springs
If you've decided to take this on, your success and safety come down to one thing: preparation. Trying to replace a garage door extension spring without the right gear is like trying to fix a watch with a hammer—it’s not just ineffective, it’s downright dangerous. Let's walk through your pre-project checklist.
Before you even think about touching that spring, you need to get your toolkit ready. This isn't a job for that random assortment of tools in the junk drawer. You need specific items to do this safely.
Here’s a quick rundown of what you absolutely must have on hand.
Essential Toolkit for Extension Spring Replacement
| Tool/Equipment | Purpose and Key Features | Pro Tip |
|---|---|---|
| Sturdy Ladder | Provides stable, safe access to the springs and track hardware. An A-frame or solid extension ladder is ideal. | Never stand on the top two rungs. Make sure the ladder is on level ground before you climb. |
| C-Clamps or Locking Pliers | Secures the garage door to the track, preventing it from unexpectedly moving while you work. | Use at least two—one on each side of the door. Clamp them tightly onto the track directly above a roller. |
| Wrenches & Socket Set | For loosening and tightening the nuts and bolts on the pulleys, brackets, and spring assemblies. | A set with both standard and metric sizes is a good idea, as garage door hardware can vary. |
| Tape Measure | Crucial for measuring your old spring to ensure you buy an exact replacement. | A flexible steel tape measure is best for getting accurate coil and length measurements. |
| Work Gloves & Safety Glasses | Essential personal protective equipment (PPE). Protects hands from sharp edges and eyes from flying debris. | Don't skip this! A spring snapping under tension can cause serious injury. Choose ANSI-rated safety glasses. |
With your tools ready, it's time for the most critical part of the prep work: getting the right replacement springs.
Finding the Correct Replacement Springs
This is where you can't afford to guess. Garage door springs are precisely matched to the weight of your door. Installing the wrong one is a recipe for disaster—it could make the door impossible to lift or, even worse, cause it to slam shut or fly open uncontrollably.
The simplest way to get a perfect match is by looking for the color code on the end of your existing spring. This isn't just for decoration; it's an industry-standard system that tells you the specific weight capacity. For example, a gold color often indicates it's for a 110 lb door, while white is for a 150 lb door.
What if the paint has worn off? No problem. You'll just have to do it the old-fashioned way and take three measurements from the old spring. If it’s broken, you can measure the two pieces together. Make sure the spring is completely relaxed (not stretched) before measuring.
- Overall Length: Measure the spring from the very end of one hook to the end of the other.
- Inside Diameter: Measure the width across the inside of the spring coils.
- Wire Size: This one is a bit trickier. The best way is to measure 20 coils and then divide that number by 20 to get an accurate wire gauge.
Pro Tip: Always Replace Springs in Pairs.
If one spring broke, the other isn't far behind. It's seen the exact same amount of wear and tear. Replacing both at the same time is the only way to ensure your door stays balanced and operates safely.
Once you have the color code or your three measurements, you can head to the hardware store or an online supplier with confidence. Always double-check the weight rating on the packaging of the new springs to confirm it's what you need. Getting this step right is half the battle.
Safely Removing the Old Garage Door Spring
Okay, you've got your new springs and all the right tools laid out. Now for the hands-on part. I can't stress this enough: slow and steady wins the race here. Rushing through this job is a recipe for disaster. Every move needs to be deliberate and careful.
Your very first step, before touching anything, is to secure the garage door in the fully open position. Why? Because when the door is all the way up, the extension springs are almost completely relaxed. This makes them much safer to work with.
With the door open, immediately disable the automatic opener. The easiest way is to just unplug it from the outlet on the ceiling. If yours is hardwired, head to your breaker box and flip the correct circuit breaker to the OFF position. This is a critical step to prevent someone from accidentally hitting the wall button while you're in the middle of working.
Locking the Door in Place
Don't trust the opener arm to hold the weight of the door. It's not designed for that, and gravity can be unforgiving. You need to physically lock the door open.
This is where your C-clamps or locking pliers come into play.
- Firmly clamp one onto the vertical track on one side, right underneath the bottom roller. Get it good and snug.
- Do the exact same thing on the other side.
Think of these clamps as your safety net. They create a physical block that makes it impossible for the door to come crashing down while you’re working. This isn't optional; it's an absolute must.

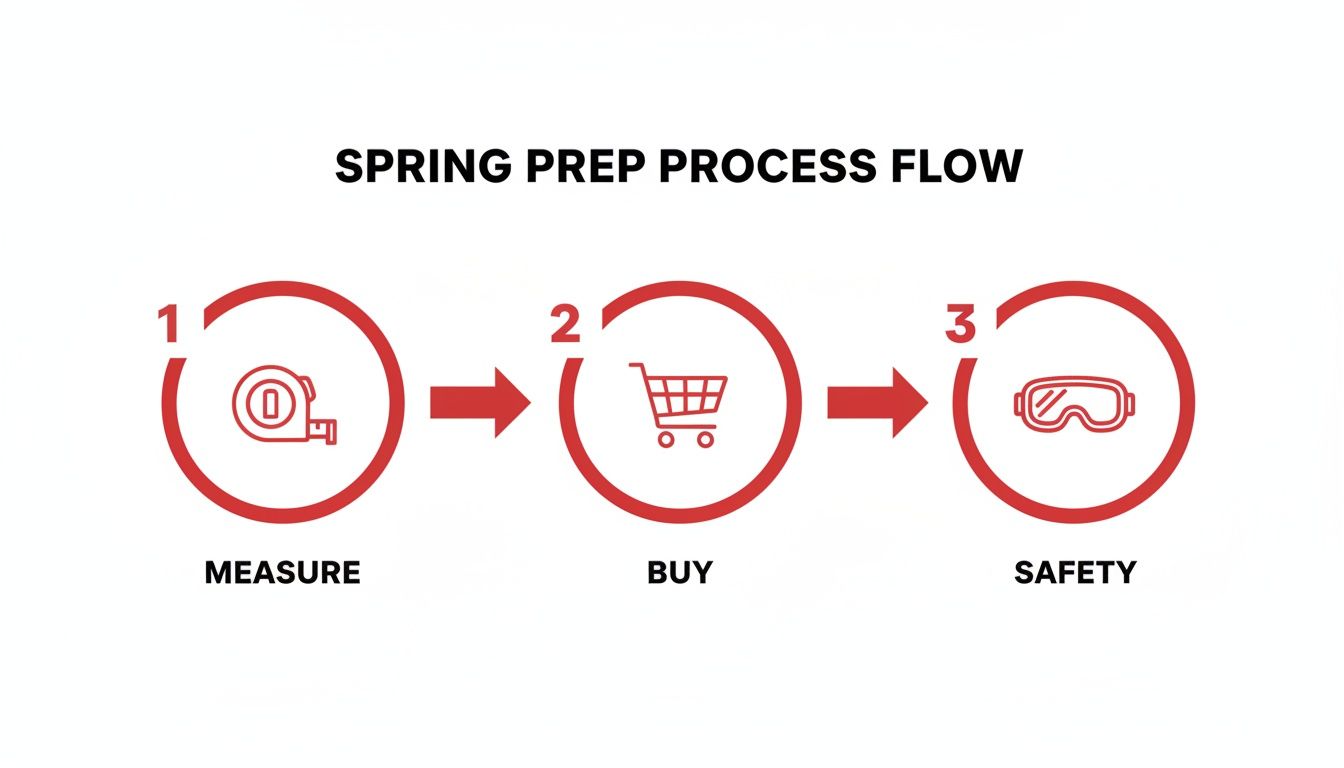

This workflow—measure first, buy the right parts, then focus on safety—is the foundation of any successful and safe DIY repair.
Stick to this process, and you’ll avoid the common mistakes that can turn a simple job into a major headache.
Detaching the Old Spring
Now you're ready to tackle the spring itself. Before you unhook anything, pull out your phone and take a few clear pictures of the whole setup. Get a good shot of how the safety cable, pulley, and spring are all connected. Trust me, this visual reminder will be a lifesaver when you're putting the new one on.
If you still have one intact spring, start there. Even with the door open, it might be holding a tiny bit of tension, so be cautious. Carefully unhook the spring from the track hanger bracket. Then you can work on the other end, disconnecting it from the pulley fork and lift cable.
Even when broken, garage door parts can be heavy and awkward. With the potential dangers and weight involved, it's crucial to master safe lifting techniques to prevent injury during the removal.
With the spring free, slide the safety cable out from its center. You'll be feeding this through your new spring, so hang onto it. Now you can repeat this process for the broken spring on the other side, which will be much easier since there's zero tension.
Once both old springs are out of the way, take a good look at the pulleys and cables. Are the cables fraying? Do the pulleys look worn or wobbly? Since you have everything apart, now is the absolute best time to replace any other tired parts. Getting the tension right is a huge part of the re-installation, and you can learn more about how to adjust garage door tension to ensure a perfectly balanced door.
Installing the New Extension Spring Correctly
With the old, broken hardware out of the way, it's time to get the new spring in place. This isn't just about hooking things up; it's about doing it with precision. Getting this part right ensures your door works safely and smoothly for years to come.
Your first move, before you do anything else, is to thread the safety cable through the center of the new spring. This is non-negotiable. Think of this cable as the spring's bodyguard—if that spring ever snaps under tension down the road, the cable is the only thing stopping it from becoming a dangerous projectile.
Seriously, never install an extension spring without a safety cable. It takes just a few seconds and can prevent a disaster.
Securing the New Spring and Pulley
Let's get the new spring mounted. Start by attaching one end of the spring to the stationary stud on the rear track support. This is the main anchor point that holds the spring securely in place.
With that end locked in, you can deal with the other side of the spring, where the pulley comes in.
- Attach the Pulley: First, connect the pulley fork to the other end of your new extension spring. This is what allows the lift cable to glide smoothly.
- Connect to the Track Hanger: Now, hook the entire assembly (the spring with the pulley attached) to the S-hook or eyebolt on the front track hanger.
Give every connection a good, firm tug. You want to be absolutely sure everything is seated properly before putting it under tension. A loose hook here is a recipe for failure.
Pro Tip: A common mistake I see is poor alignment. Make sure the spring, pulley, and cable all form a straight line, running parallel to the horizontal track. If it’s crooked, it's going to cause unnecessary friction and wear out parts way too fast.
Routing the Lift Cable Correctly
Now that the spring and pulley are mounted, it's time to route the lift cable. This steel cord is what transfers the lifting power from the spring to the door itself.
Take the end of the lift cable and run it down from the track hanger. Loop it around the groove in the new pulley you just installed, then continue running it down to the bottom corner bracket on the garage door. Make sure that cable sits perfectly inside the pulley's groove.
Once the cable is attached to the bottom bracket, check the tension. The cable should be taut—no slack—but not banjo-string tight. Too loose, and the door won't lift correctly. Too tight, and you're putting a ton of unnecessary strain on the whole system.
After you've got one side completely set up, you need to repeat the exact same process on the other side of the garage door. It is absolutely critical that both sides are identical. A balanced setup is the secret to a smooth, even lift and a long-lasting repair when you replace a garage door extension spring.
Final Adjustments and Safety Checks
The new springs are on, but don't pack up your tools just yet. This last part—the testing and fine-tuning—is what really separates a decent repair from a job well done. It’s crucial for the long-term health and safety of your entire garage door system.
Go ahead and carefully remove the C-clamps from the tracks. With those out of the way, the door is now hanging entirely on the new springs. It's the moment of truth.
Getting the Door Balance Just Right
With the opener still disconnected, manually lift the door to about halfway down the track and let it go. You'll know it's perfectly balanced if it just hangs there, almost feeling weightless. It shouldn't try to drift up on its own or, worse, slam shut.
If the door immediately starts to drop, your springs don't have enough tension. On the flip side, if it wants to fly open, they're too tight.
A properly balanced door is the number one goal of this entire project. An unbalanced door puts a massive strain on your automatic opener, forcing the motor to do all the heavy lifting. That's a surefire way to burn it out years before its time.
For a deeper dive into this, our guide on how to balance a garage door breaks down every little detail.
If you find an adjustment is needed, it's usually a pretty simple fix. Open the door all the way up and re-clamp it for safety. To add more tension, just move the spring's S-hook to a hole further away from the door on the track hanger. To lessen the tension, you'll move it to a hole closer to the door.
Final Safety and Opener Tests
Once you're happy with the balance, it's time to re-engage the garage door opener trolley and plug the motor back in. Now for the most important safety check of all.
Lay a 2×4 piece of wood flat on the floor right in the middle of the door's path. Now, use your wall-mounted button to close the door. The second the door touches that wood, it must immediately stop and reverse. This is the auto-reverse safety feature, and it absolutely has to work.
If the door doesn't reverse, you need to adjust your opener's force settings right away. Every model is a little different, so pull out your owner's manual for the specific instructions on how to do that.
Last but not least, test the photo-eye sensors. Start closing the door, then wave something like a broom handle in front of one of the sensors near the floor. The door should instantly stop and head back up.
After you've confirmed both of these safety features are working perfectly, you can officially call this job a success. You’ve just safely and correctly replaced your garage door's extension springs.
Knowing When to Call a Professional
Every DIYer, no matter how skilled, has to know when to put the tools down and pick up the phone. When it comes to garage doors, that line is pretty clear. While this guide walks you through replacing an extension spring, there are some very real scenarios where calling a pro is the only smart—and safe—move.
Think of it this way: recognizing these red flags isn't about giving up. It's about making a responsible choice for your home and your safety. Sometimes, what seems like a simple broken spring is actually a clue to a bigger, more complex problem.
Clear Signs to Hire an Expert
If you run into any of these situations, stop immediately and call a licensed technician. No exceptions.
- You Have Torsion Springs: Look above your garage door. If you see a spring (or two) wrapped around a metal shaft, that’s a torsion spring system. This is a completely different animal and is far more dangerous to work on. It requires special tools and expertise to handle the extreme tension. Seriously, don't even think about touching it.
- You Spot Other Damaged Parts: As you're inspecting things, you might see frayed lift cables, bent tracks, or worn-out pulleys. Just slapping a new spring on without fixing these other issues is like putting a band-aid on a broken bone. A professional will spot and fix everything at once.
- You Feel Unsure at Any Point: If you hit a step and feel a flicker of doubt or confusion, that’s your gut telling you to stop. The risks of something going wrong are just too high to "figure it out as you go." A pro brings the confidence that comes from doing this job day in and day out.
The real value of hiring a pro isn't just about the labor. It’s about their experience, their access to professional-grade parts, and the warranty that backs up their work.
Understanding the Cost of Professional Service
Hiring a professional is an investment in doing the job right and keeping everyone safe. On average, you can expect to pay about $250 to have a pro replace the extension springs on a single door, with a typical range falling between $150 and $350.
This price usually includes the new springs, any related hardware, and the expert labor to get your door perfectly balanced and running smoothly. While the parts themselves aren't terribly expensive, you're paying for the peace of mind that comes from a correct and safe installation. You can learn more about what factors into garage door repair pricing on angi.com.
At the end of the day, while tackling a project yourself is rewarding, a professional repair guarantees the safety of the largest moving object in your home. In the long run, it's often the most cost-effective choice.
