Replacing your garage door extension springs is one of those home repairs that's definitely doable, but it demands your full attention. While we often suggest calling a pro for safety reasons, understanding the job is crucial, whether you do it yourself or hire a technician. This isn't a quick fix—it requires the right tools, a bit of patience, and a healthy respect for the power stored in those springs.
What Do Garage Door Extension Springs Actually Do?
Most people think the garage door opener does all the heavy lifting, but that's not the case. The opener just gives the door a little push to get started. The real muscle comes from the extension springs.
These are the long, tightly coiled springs you see running along each side of your horizontal door tracks. Their job is to perfectly counterbalance the entire weight of the garage door. As the door closes, the springs stretch out, storing a massive amount of energy. When you open it, that energy is released, making a door that weighs hundreds of pounds feel light enough to lift with one hand.
How They Work
Imagine them as a pair of super-strong industrial rubber bands. As the door lowers, cables attached to the bottom corners pull on the springs, stretching them and loading them with potential energy. That tension is what helps you (or your opener) lift the door back up. Without working springs, you'd be trying to deadlift the full weight of the door, which is nearly impossible and puts a huge strain on your opener motor.
But these parts are under constant stress and don't last forever. Over time, they stretch, weaken, and eventually break. This isn't a sign you did anything wrong—it's just a normal part of your home's upkeep.
My Two Cents: Your opener is built to guide a balanced door, not to lift dead weight. When a spring breaks, the opener takes the full load, which can burn out the motor in a hurry. A simple spring replacement is way cheaper than a whole new opener unit.
Telltale Signs Your Springs Are on Their Way Out
The good news is that garage doors usually give you a heads-up before a spring completely breaks. Catching these warning signs early can save you a ton of hassle and prevent a dangerous situation. Keep an eye (and an ear) out for these red flags.
You’ll know it’s time for a replacement if you notice any of these issues:
- The Door Feels Incredibly Heavy: If you pull the emergency release cord and try to lift the door by hand, it should feel fairly light—maybe 10-15 pounds at most. If it feels like you're trying to lift a car bumper, your springs are toast.
- It Opens Crooked or Jerkily: A door that stutters, shakes, or lifts unevenly is a classic sign. It usually means one spring has broken or lost its tension, throwing the whole system out of balance.
- The Opener is Straining: Is your opener motor making a lot more noise than it used to? That groaning sound is a clear sign it’s working way too hard because the springs aren't pulling their weight.

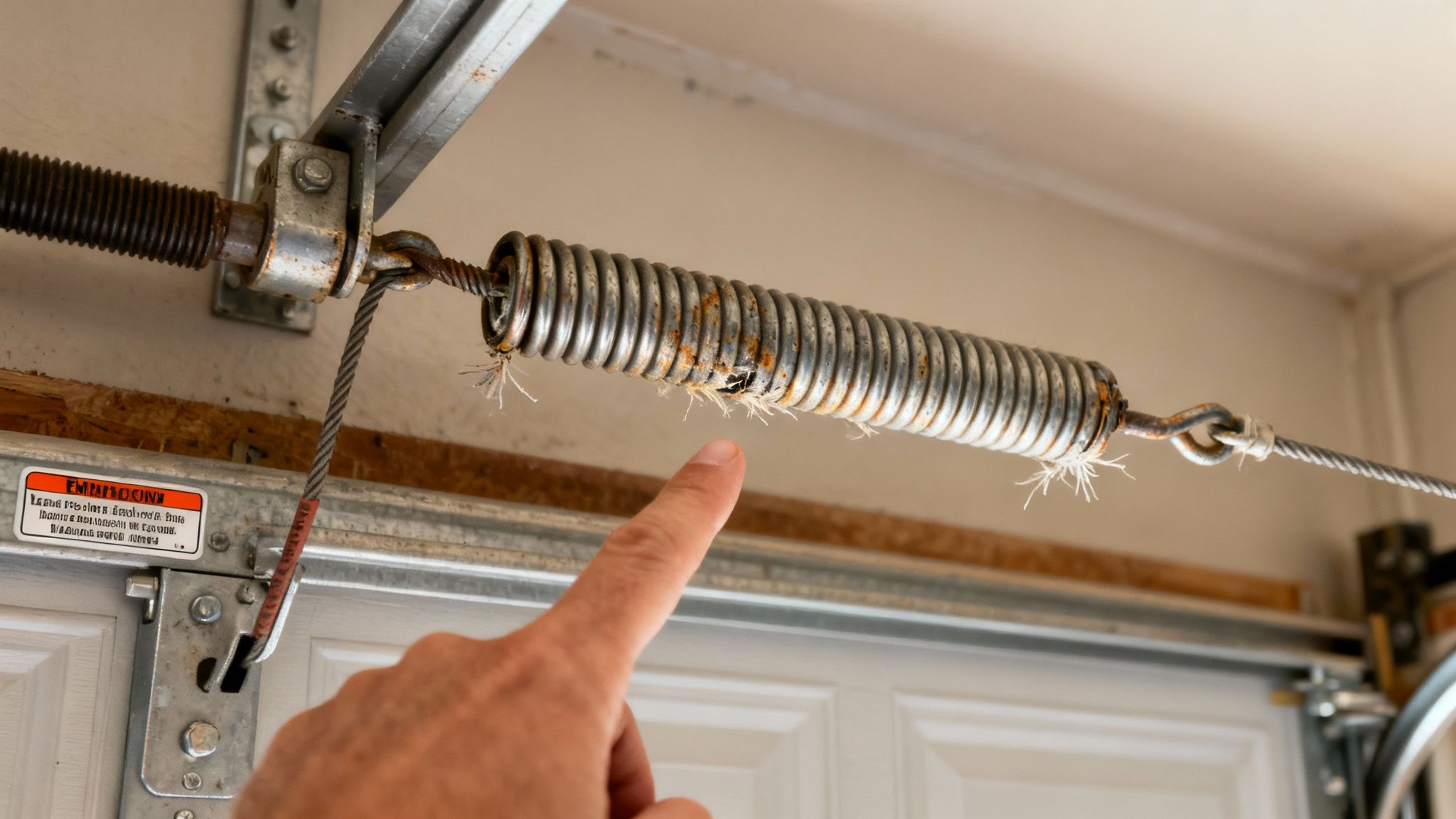

- You Can See Gaps in the Coils: This one’s the most obvious. Take a look at the springs. If you see a distinct 1- to 2-inch gap somewhere in the middle of the coils, the spring has snapped.
From what we see in the field, more than 30% of residential garage doors need a spring replacement within their first 10 years. Most extension springs are rated for 8,000 to 15,000 cycles (one cycle is one open and close). For an average family, that works out to about 7 to 12 years. If you're constantly in and out, you might only get 5 to 7 years out of them. If you’re curious about what to expect from your specific setup, you can learn more about garage door spring lifespans from our detailed guide.
Why This Is a Job for Pros, Not a Weekend Project
Before you even think about grabbing a wrench, let's talk honestly about what you're up against. Deciding to replace garage door extension springs yourself isn't like fixing a leaky faucet. This task consistently ranks among the most dangerous DIY home repairs you can tackle, and for very good reason.
Each of those springs is loaded with an incredible amount of kinetic energy. We're talking enough force to lift a 200-pound door with ease, which means it’s more than capable of causing serious, life-altering injuries if that energy gets loose. An uncontrolled release can turn the spring, a pulley, or a mounting bracket into a high-speed projectile.
This isn't just about scaring you off. It's about having a healthy respect for the power you're dealing with. Your safety, and that of anyone nearby, has to be the number one priority.
The Hidden Dangers You Can't Ignore
When a professional from Danny's Garage Door Repair shows up, they aren't just faster because they've done it a hundred times. They're trained to spot and manage a whole list of risks that the average homeowner might never even consider. These aren't just "what-ifs"; they are real-world scenarios that happen far too often.
Here are the specific hazards a pro is trained to handle:
- Violent Spring Recoil: An extension spring that isn't secured with a safety cable can whip around like a metal bullwhip if it snaps. This is the single greatest danger, as that recoil can cause severe lacerations, or much worse.
- Unexpected Door Drop: If you don't properly clamp the door in the open position, it can come crashing down the second the old spring's tension is gone. A 200-pound door in free fall will crush anything—or anyone—in its path.
- Projectile Parts: It’s not just the spring itself. Brackets, pulleys, and bolts are also under extreme tension. One slipped wrench can send hardware flying across your garage with frightening force.
A Word From the Field: We've seen it all—from shattered car windshields to holes punched clean through drywall. Just about every one of these incidents could have been avoided if the homeowner had recognized the risks and called a trained, insured technician.
The Problem with the Wrong Parts and Tools
Beyond the immediate physical dangers, using the wrong replacement spring is a recipe for trouble. Springs are precisely calibrated to your door's exact weight and size. Grabbing a “close enough” part from a big-box store can create an unbalanced door that either flies open too fast or slams shut with dangerous force.
This not only makes the door a hazard but also puts a massive strain on your garage door opener, causing it to wear out years ahead of schedule. Both torsion and extension systems are generally rated for about 10,000 cycles, but they operate under constant, high tension and can release hundreds of pounds of force if they fail.
This kind of job is a classic example of corrective, not preventive, maintenance. Understanding the difference between preventive versus corrective maintenance makes it clear why complex, reactive repairs need a professional touch. When it comes to something this risky, the smartest and safest move is to step back and call in someone who does this every day.
Gathering The Right Tools And Parts
If you're determined to replace your garage door extension springs yourself, let’s be crystal clear: having the right equipment is non-negotiable. This isn't a project for your junk-drawer multi-tool. The correct tools aren't just for convenience—they're your first and most critical step toward doing this job safely.
You'll need a few specific items to secure the door and handle the immense tension stored in the springs. Without them, you’re not just risking a botched job; you're putting yourself in real danger. Think of this as your pre-flight checklist. Don't even think about starting until every item is accounted for.

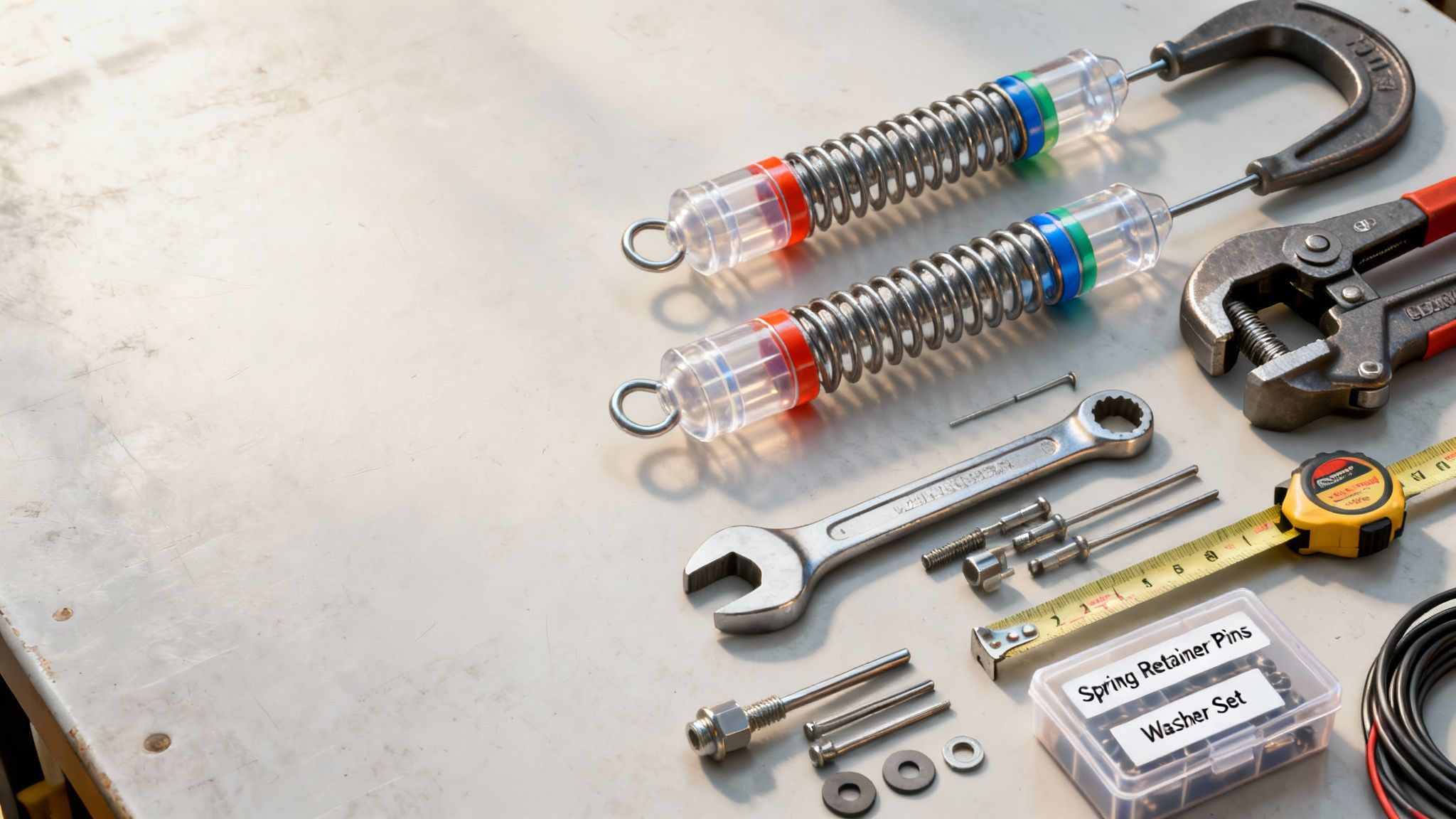

Your Essential Tool Checklist
Here’s what a pro would have laid out before even touching the door. You'll see some familiar tools, but they're backed by serious safety gear.
- Heavy-Duty C-Clamps: You'll need at least two. These are clamped tightly onto the vertical tracks right above the top rollers. They are your failsafe, physically stopping the door from crashing down once the spring tension is released.
- Sturdy Step Ladder: This is no time for a wobbly kitchen chair. You need a stable, reliable platform to work from.
- Socket Wrench Set: A good set with various sizes is a must-have for loosening and tightening the nuts on pulleys and mounting brackets.
- Adjustable Wrench: This is your backup for any odd-sized bolts or nuts that a socket can't quite grab.
- Vise Grips or Locking Pliers: I can't stress this enough—these are crucial for getting a secure, non-slip grip on cables or parts while they're under tension.
- Protective Gear: Don't even think about skipping this. Safety glasses will shield your eyes from flying debris or a snapping cable, and heavy-duty work gloves will save your hands from cuts and scrapes.
This specialized toolkit is a big reason why this job is so often left to the professionals. It simply requires more than what’s in the average home repair kit.
Sourcing The Perfect Replacement Springs
Now we get to the most important part of your shopping list: the springs themselves. Garage door extension springs are not a one-size-fits-all component. If you install the wrong spring, you're guaranteed to have an unbalanced door that operates poorly and puts a massive strain on your opener.
Thankfully, manufacturers use a simple color-coding system to make this easier. The ends of extension springs are painted with specific colors that directly correspond to the weight of the door they're designed to lift.
A Pro Tip You Can't Ignore: Always, always replace both extension springs at the same time, even if only one is broken. Springs are sold in pairs for a reason—they wear out at roughly the same rate. When you replace just one, you create an imbalanced system that will open unevenly and could destroy your garage door opener.
To find the right replacement, just look for the paint color on the end of your existing spring.
- Tan: For 100 lb. doors
- White: For 110 lb. doors
- Green: For 120 lb. doors
- Yellow: For 130 lb. doors
- Blue: For 140 lb. doors
- Red: For 150 lb. doors
While these are the most common, there are many other colors. If the paint is long gone, your only option is to weigh the garage door. This is a tricky and potentially hazardous process that involves disconnecting the door and using a scale. Honestly, this step alone is often where homeowners decide to call a professional who can identify the right spring just by looking at the door's model and size.
Once the new springs are on, the job isn't quite done. Knowing how to adjust garage door tension correctly is the final, critical piece of the puzzle to ensure a perfectly balanced door.
Cost Comparison: DIY Parts vs Professional Service
To help you decide, let's break down what this project might cost. While a DIY approach looks cheaper on paper, it doesn't account for your time, potential mistakes, or the safety risks involved.
| Item / Service | DIY Estimated Cost | Professional Service (Danny's Garage Door Repair) |
|---|---|---|
| Pair of Extension Springs | $30 – $70 | Included in Service |
| Safety Cables | $10 – $20 | Included in Service |
| Pulleys (if needed) | $15 – $30 | Included in Service |
| Tools (if not owned) | $50 – $150+ | N/A |
| Labor & Expertise | Your Time (2-4 hours) | $150 – $300 |
| Total Estimated Cost | $55 – $270+ | $200 – $400 (all-inclusive) |
As you can see, hiring a professional like us at Danny's Garage Door Repair not only saves you a trip to the hardware store but also comes with the peace of mind that the job is done right, with all necessary parts and safety checks included.

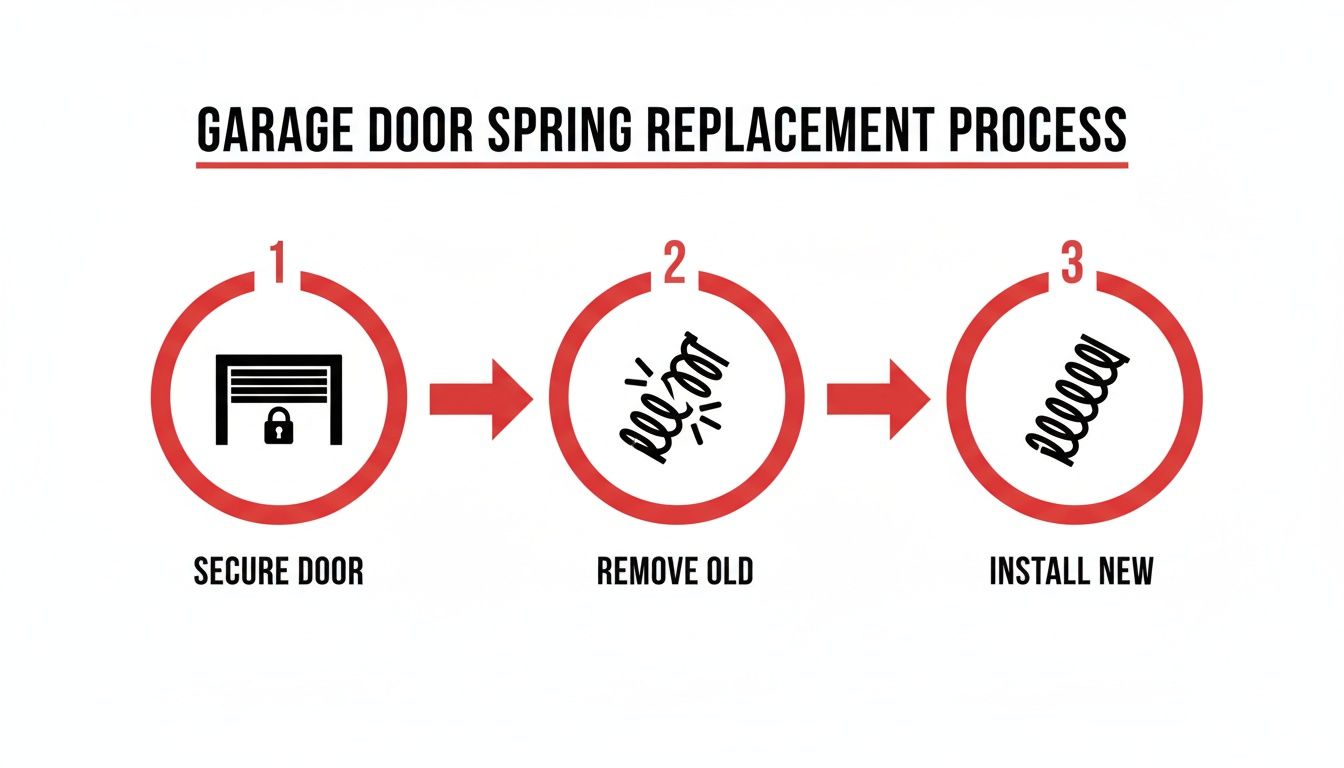

A Look at How a Pro Replaces Extension Springs
So, what exactly does it take to replace a set of garage door extension springs? I want to give you a behind-the-scenes look at the process we follow. Think of this less as a DIY guide and more as an inside look at the precision and safety measures a professional takes. Every single step is deliberate and methodical for one critical reason: we're dealing with extreme tension that has to be managed safely from start to finish.
The absolute first thing we do, before a single tool comes out, is get all the tension off the springs. The easiest way to do that is by opening the garage door all the way. When the door is fully up, the springs are in their shortest, most relaxed state.
But you can't just leave it there. We have to lock that heavy door in place. This is where a pair of heavy-duty C-clamps becomes a technician's best friend. We clamp one tightly onto each vertical track, right below the lowest roller on each side. These clamps are a non-negotiable safety stop—they physically prevent the door from slamming down once we remove the old, broken springs.
Tearing Down the Old Spring Assembly
With the door safely secured, we can start taking apart the old system. This isn't a race; it's about carefully disassembling everything to avoid any surprises from lingering tension.
First, we pull the emergency release cord on the garage door opener, disconnecting it from the door. You never want the opener trying to engage while you're working. Then, we get to work on the spring assembly on one side.
Here's the typical order of operations:
- Unhooking the Lift Cable: This cable runs from the bottom corner of the door, up to a pulley, and connects to the spring. We carefully detach it from the track bracket first.
- Removing the Pulley: The small wheel (we call it a sheave) that the cable runs on is attached directly to the spring. We'll unbolt that and get it out of the way.
- Taking Off the Spring: With everything else disconnected, the spring itself can now be unhooked from its mounting points.
While we're at it, we pull out the old safety cable. This is the thin wire that runs right through the middle of the spring. Its only job is to catch the spring if it snaps. If that cable is old, frayed, or kinked, it's not doing its job and has to go.
An Insight from the Field: While that old spring is off, any good technician will give the pulley a quick inspection. The bearings inside these pulleys wear out, and when they do, they feel gritty when you spin them. A bad pulley will chew up your brand-new spring in no time. Replacing a $10 pulley during the service call can save you a whole lot of headache and another bill later on.
Installing the New Springs and Safety Gear
Once the old parts are cleared out, it's time to put the new system in. We're just as meticulous here, making sure every part goes on correctly and is fastened down tight. And remember, we always replace both springs at the same time. It's the only way to ensure the door stays balanced.
The new spring gets hung first, stretching between the rear support and the front track hanger. Now for the most important safety step in the whole job: threading the new safety cable.
We carefully run the new, high-strength cable through the entire length of the new spring. One end gets locked down at the rear support bracket, and the other is secured to the vertical track frame. This simple-looking cable is the only thing stopping a broken spring from turning into a dangerous projectile in your garage. Skipping this or doing it wrong is a massive, unacceptable risk.
With the safety cable properly installed, we attach the new pulley to the end of the spring. Finally, we thread the main lift cable back through the new pulley and re-attach it to the door bracket. We then go back and double-check every single nut and bolt before repeating the exact same process on the other side of the door.
Common Mistakes That Create an Unsafe Door
It might sound straightforward, but there are plenty of ways this job can go wrong, leading to a door that’s either unsafe or just doesn't work right. We see the aftermath of these common mistakes all the time.
A few of the frequent foul-ups include:
- The Wrong Springs: We've talked about this, but it's the most common error. Springs that are too powerful or too weak create an unbalanced door that can destroy your opener or come crashing down without warning.
- Uneven Cable Tension: If the lift cables on each side aren't pulled to the same tension, the door will go up crooked. This puts a huge strain on the tracks, the rollers, and even the door panels themselves.
- Forgetting to Re-engage the Opener: It sounds silly, but after being so focused on the springs for an hour, it's surprisingly easy to forget to reconnect the opener's trolley to the door.
- Ignoring Other Worn Parts: A pro will instinctively check the rollers, hinges, and cables for wear and tear. A DIYer focused solely on the spring might miss that a roller is about to fail, setting themselves up for the next repair.
This detailed look at how to replace garage door extension springs should give you a real appreciation for the precision it requires. It's a job where "close enough" is a recipe for disaster. Every connection, every part, and every safety step has to be perfect to give you a safe and reliable garage door for years to come.
Final Checks and Balance Testing
Alright, the new springs are on. That's a huge milestone, but don't pack up your tools just yet. We've reached what I consider the single most important part of the job: the final checks and, critically, the balance test. This is what separates a safe, professional-grade repair from a job that could fail dangerously down the line.
Getting these finishing touches right ensures your door runs smoothly and safely, preventing it from crashing down or flying open unexpectedly. It’s how you confirm that the new springs are doing their job—perfectly counterbalancing the door's weight.
As you can see, every stage of this process—securing the door, removing the old hardware, and installing the new—is built around safety. Now, let's make sure it operates that way.
Performing the Garage Door Balance Test
The balance test might sound technical, but it’s a straightforward reality check. It tells you if the new springs have the right muscle for your door's specific weight. A door that's out of balance puts a punishing amount of strain on your opener motor and is a serious safety hazard.
Here’s the right way to perform the test:
- Disconnect the Opener. Make sure the door is all the way down, then pull that red emergency release cord. This puts the door in manual mode.
- Lift the Door Manually. Grab the door and lift it slowly until it's about waist-high, somewhere around three to four feet off the floor.
- Let Go and Watch. Now, carefully let go.
What happens next tells you everything. A perfectly balanced door should stay right where you left it, maybe drifting an inch or two at most. If it slams shut, your springs don't have enough tension. If it shoots upward, they're too strong. Anything other than staying put means you've got adjustments to make. For a more detailed breakdown, you can learn about the finer points of balancing a garage door.
From Our Experience: I’ve seen openers burn out years before their time, all because they were forced to lift an unbalanced door. Your opener is designed to guide a weightless door, not deadlift hundreds of pounds. This simple test is the best insurance policy for that expensive piece of equipment.
Your Final Inspection Checklist
Before you reconnect that opener and call it a day, do one last walkthrough. Your eyes are your best tool here. Look for anything that seems loose, out of place, or just not quite right.
- Check All Nuts and Bolts: Go back over everything you touched. Are the pulley nuts tight? The spring hooks secure? The track brackets snug? Give them a final check with your wrench.
- Confirm Safety Cables: Make sure the safety cables are threaded cleanly through the springs. They should be securely fastened at both ends without a lot of sag.
- Watch the Door Travel: Slowly lift the door all the way up by hand, then lower it completely. Keep an eye on the rollers on both sides. The movement should be smooth, without any jerking, scraping, or binding.
If you hear grinding sounds or see the door tilting as it moves, you might have uneven cable tension or a roller that’s popped out of its track. These seem like small details, but they are absolutely critical to fix before you even think about reconnecting the opener.
Your Top Questions About Extension Spring Replacement
When you're staring at a broken garage door spring, you're bound to have questions. It's a job that feels urgent, but it's also one where a small mistake can have big consequences. As a team that’s been serving the Cleveland area for years, we’ve heard just about every question in the book. Here are the answers to the ones that come up most often.
If Only One Spring Broke, Can I Just Replace That One?
I get this question all the time, and my answer is always a firm "no." You absolutely have to replace both. Think of them like tires on a car—you wouldn't just replace one, right?
Extension springs are installed as a matched pair and get the exact same amount of wear and tear every single time you open and close your door. If one finally snapped, the other one is hanging on by a thread. Putting a brand-new, strong spring on one side and leaving a tired, old one on the other throws the entire system out of whack. The door will lift crookedly, putting immense stress on the tracks, the door panels, and especially your opener's motor.
Bottom line: For safety, balance, and to avoid even bigger repair bills down the road, always replace both springs at the same time. It's the only way we do it, and the only way you should, too.
What’s the Ballpark Cost to Replace Extension Springs?
Everyone wants to know what they're in for, and that's fair. The cost can move around a bit depending on the door, but a typical professional replacement for a pair of extension springs usually lands in the $150 to $300 range.
The springs themselves aren't too pricey, often just $15 to $45 each. The bulk of the cost is labor, which generally runs from $75 to $150 for the service call. Some sources put the national average around $250, which is a pretty reliable figure. You can get a deeper dive into pricing with these helpful cost-related insights from Angi.
Can I Grab Any Spring from the Hardware Store?
Absolutely not. This is one of the most dangerous assumptions you can make. Garage door springs are anything but universal; they are meticulously matched to the specific weight and height of your door.
Picking the wrong one is a recipe for disaster. If the spring is too strong, your door could fly up with enough force to cause serious injury. If it's too weak, it won't be able to hold the door's weight, and the door could come crashing down. Always stick to the manufacturer’s color-coding system to get an exact match. No guesswork allowed.
What's the Real Difference Between Extension and Torsion Springs?
It's easy to mix them up, but they're two totally different animals.
- Extension Springs: These are the long, slinky-like springs you see running along the sides of the door, parallel to the horizontal tracks. They work by stretching out as the door closes.
- Torsion Springs: This is a beefier system with one or two large, tightly wound springs on a metal bar right above the door opening. They work by twisting, or "torsion."
Both systems do the same job—counterbalancing the door's weight—but torsion springs are generally considered the safer, more modern, and more durable option. We cover both systems in our detailed guide on the average cost to replace garage door springs.
Feeling like this is a bit much to take on? You’re not alone. The team at Danny's Garage Door Repair has the right tools, training, and firsthand experience to get this job done safely and quickly. Give us a call for a straightforward, no-hassle estimate and let us get your door running smoothly again. You can schedule your service today at https://garagedoors101.com.
