That loud BANG you just heard from the garage? It’s a sound you won’t forget, and it almost always means one thing: a garage door spring just snapped. If your door suddenly feels like it weighs a ton, sits crooked, or just plain won’t budge, a broken extension spring is the prime suspect.
Figuring out what went wrong is the first step. Getting it fixed safely is the next.
Spotting the Signs of a Failing Spring
Before you order any parts, you need to be sure a broken spring is actually the issue. A failed spring is more than just a hassle; it’s a major safety risk. The good news is the clues are usually pretty obvious once you know what to look for.
Here are the classic red flags we see all the time:

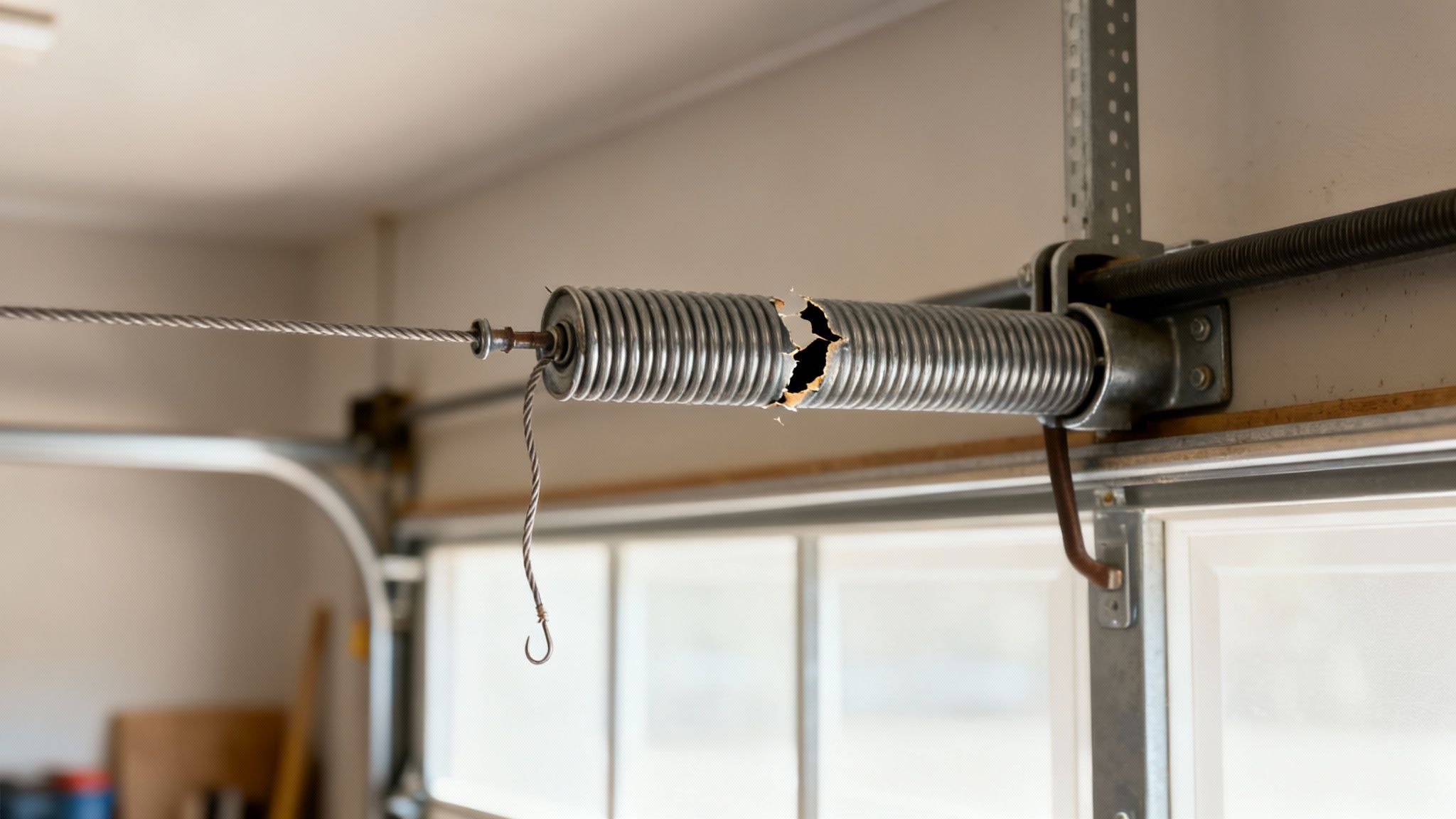

- A Visible Gap in the Spring: This is the dead giveaway. Just look at the long springs running along the horizontal tracks. A healthy spring is one continuous coil. A broken one will have a clear gap—sometimes an inch or more—right where the metal gave way.
- A Crooked or Uneven Door: Extension springs work in pairs. When one breaks, the other is left trying to lift the entire door on its own. This pulls the door sideways, making it hang noticeably crooked.
- The Door is Extremely Heavy: Your opener doesn't do the heavy lifting; the springs do. If you pull the emergency release and try to lift the door by hand, it will feel incredibly heavy, often well over 100 pounds. That’s a sure sign a spring isn't pulling its weight.
- Loose and Dangling Cables: Those cables running through the middle of the springs are a critical safety feature. When a spring snaps, the cable that was holding it in place will often go slack and hang loosely.
Extension Springs vs. Torsion Springs
It's really important to know which kind of spring system you're dealing with. This guide is all about extension springs, but your garage might have a different setup.
Extension springs are the long, slender springs that run parallel to the door tracks, one on each side. They work by stretching out as the door closes, storing energy to help lift it back up.
Torsion springs are a different animal entirely. You’ll find these beefier springs mounted on a metal shaft directly above the garage door opening. They work by twisting, not stretching. Replacing a torsion spring is a much more dangerous job that involves specialized tools and know-how—it’s something you should always leave to a pro.
Why You Must Replace Both Springs
Here’s a piece of advice I give every single homeowner: if one extension spring breaks, always replace both. This isn't an upsell; it's about safety and performance. The springs were installed at the same time and have gone through the exact same number of lift cycles. If one just failed from metal fatigue, the other isn't far behind.
Replacing only one spring throws the whole system out of whack. The brand-new spring will be much stronger than the old one, creating a dangerous imbalance. This puts a massive strain on the garage door opener and can cause other parts to fail, leading to a much bigger and more expensive headache later on.
This is especially true with our local weather, where the constant temperature swings can be tough on metal. It's no surprise that more than 30% of garage doors need their springs replaced within the first 10 years. With an average lifespan of 8,000 to 15,000 cycles, these parts are under constant stress. While good maintenance helps, once a spring breaks, the only safe fix is a balanced, two-spring replacement. To understand why this is so critical, you can learn more about the importance of balancing a garage door.
Gearing Up: Safety and Tools Come First
Let's get one thing straight right from the start: replacing garage door extension springs is not a casual weekend project. I can't stress this enough. We're dealing with springs holding back hundreds of pounds of raw energy. If one of those lets go unexpectedly, it can cause devastating property damage or, far worse, serious personal injury. Your top priority, before you even lay a hand on anything, has to be safety.
A successful and safe spring replacement is all about preparation. Rushing in without the right gear and a solid safety plan is just asking for trouble. Taking the time to get organized now will make the actual job go smoother, faster, and a whole lot safer.
Your Non-Negotiable Safety Checklist
Think of these steps as the foundation of the entire job. If you skip one, the whole operation becomes dangerously unstable. Do not proceed until you've checked off every single one.
- Kill the Power: The very first thing you do is unplug the garage door opener. Don't just turn it off at the wall switch—pull the plug right out of the outlet. The last thing you need is for someone to accidentally hit the remote while you're working.
- Lock the Door Open: Manually lift the garage door all the way up. Now, take a pair of heavy-duty C-clamps or locking pliers and clamp them tightly onto the vertical tracks, right underneath the bottom rollers on both sides. This is what will stop the door from crashing down when the spring tension is gone.
- Gear Up with PPE: This isn't optional. You need safety glasses to protect your eyes from flying parts or a snapping cable. A good pair of work gloves will save your hands from grease and sharp metal edges. Don't start without them.
The whole point here is to control the immense energy stored in these springs. By locking the door in the fully open position, you're working on the springs when they're at their point of least tension, which is the safest way to handle them.

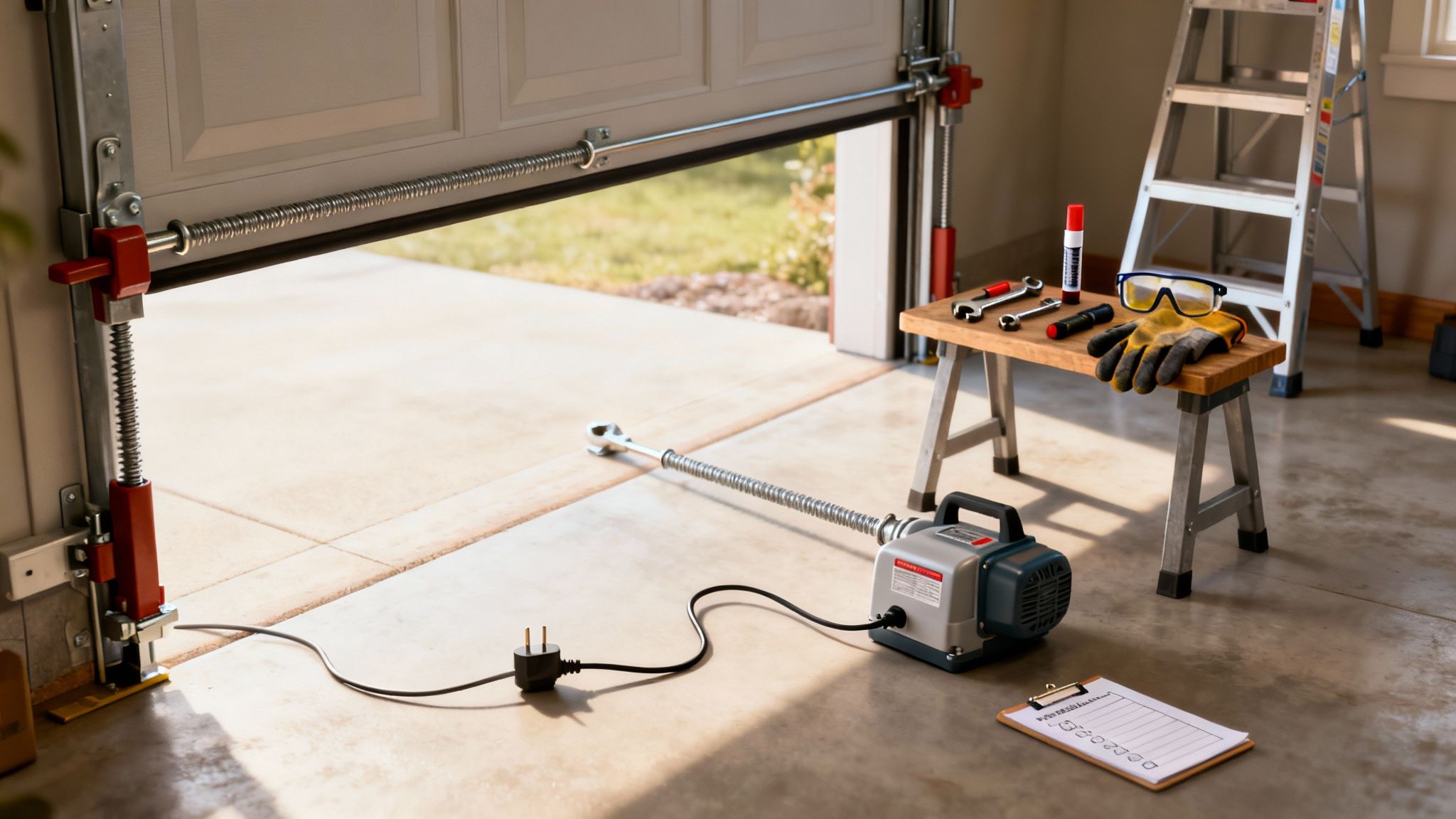

Assembling Your Toolkit
Having every tool you need within arm's reach is key. It keeps you focused and prevents you from trying to make the wrong tool work, which is often where things go wrong. You don't need a professional-grade setup, but a few specific items are essential.
Here’s a quick rundown of what to gather before you start:
- A Sturdy Ladder: You'll be working over your head, so make sure you have a stable step ladder. Check that it's on solid, level ground.
- Socket Wrench Set: This will be your go-to for removing the nuts on pulleys and other hardware. Having a full set ensures you won’t get stuck looking for the right size.
- Adjustable Wrenches: It’s always good to have a couple of these on hand for any odd-sized nuts or bolts your socket set might not cover.
- Locking Pliers or C-Clamps: As I mentioned above, these are absolutely critical for securing the door. You need two—one for each track.
- Permanent Marker or Tape: A simple but brilliant trick. Use a marker to mark the position of cables and pulley brackets before you disassemble anything. It's a huge time-saver when you're putting it all back together.
By taking a few minutes to get prepared, you turn a dangerous job into a manageable one. Once you've double-checked your clamps, confirmed the opener is unplugged, and laid out your tools, you're ready to tackle the removal process.
How to Measure and Buy the Right Springs
Putting the wrong springs on your garage door is a classic mistake. It's like trying to run a marathon in boots—it’s just not going to end well. If the springs are too weak, your opener will groan under the strain of a door that feels like a ton of bricks. Go too strong, and the door might fly up so fast it becomes a genuine safety hazard.
Getting this right isn't about guesswork; it's about precision. Taking a few extra minutes now to get accurate measurements will save you a world of frustration and a potentially dangerous situation down the road.
The Three Critical Measurements You Need
To find the right replacement extension springs, you need three key pieces of information from the old spring. Don't worry if one of them has snapped. As long as you have one intact spring, you can get what you need. It’s always a good idea to measure both anyway, just to confirm they were a matched pair to begin with.
Here’s what you’re looking for:
- Total Length: Measure the spring from end to end, including the loops or clips. This needs to be its un-stretched, relaxed length. If both springs are broken, you can carefully gather all the pieces of one and add their lengths together.
- Inside Diameter (ID): This is simply the width of the opening inside the spring coil. A tape measure or ruler held straight across the opening will do the trick. Common sizes are usually 1-¾”, 2”, or 2-⅝”.
- Wire Size: This one is the trickiest to get but absolutely essential. The best way to do it is to measure 10 coils of the spring wire bunched together, then divide that measurement by 10. For instance, if 10 coils measure 2.5 inches, your wire size is 0.250.
I can't stress this enough: getting these three measurements right is non-negotiable. A small error in length or wire size can completely throw off the door's balance. Double-check your numbers before you buy anything.
Deciphering the Color Code System
Thankfully, most manufacturers use a color-coding system that makes this whole process much easier. You'll usually find a splash of paint or a colored sticker on the end of the spring, which tells you the weight it's designed to lift.
This is a fantastic shortcut that helps you identify the spring's capacity without having to weigh the door itself.
Here is a chart that breaks down what those colors mean.
Extension Spring Color Code Chart for Door Weight
This table helps you identify the correct replacement spring based on the color code, which corresponds to the weight of your garage door.
| Color Code | Door Weight (lbs) | Common Door Size Application |
|---|---|---|
| Tan | 100 lbs | Single car, non-insulated doors |
| White | 110 lbs | Single car, non-insulated doors |
| Green | 120 lbs | Single car, lightweight insulated |
| Yellow | 130 lbs | Single car, standard insulated |
| Blue | 140 lbs | Single car, heavier insulated |
| Red | 150 lbs | Single car, wood or heavy doors |
| Brown | 160 lbs | Double car, non-insulated doors |
| Orange | 170 lbs | Double car, lightweight insulated |
| Gold | 180 lbs | Double car, standard insulated |
| Light Blue | 190 lbs | Double car, heavier insulated |
Using this color code is the quickest path to finding your replacement, but only if you can still see the color clearly.
What to Do if the Color is Gone
After years of use, it's pretty common for that helpful color code to be completely gone, hidden under rust or simply worn away. If you find yourself in that situation, you’ll have to figure out your door’s actual weight.
First, and this is critical for safety, make sure both extension springs are disconnected from the door. Next, grab a standard bathroom scale and place it right under the center of the door. Carefully lower the door all the way down until its full weight is resting on the scale. That number is what you'll use to find the right springs.
With your measurements or the door's weight in hand, you're ready to buy. You can find high-quality springs at local garage door supply stores, or you can order them online. My advice? Steer clear of the generic, one-size-fits-all options from big-box retailers. You want to invest in high-quality, oil-tempered springs—they'll perform safely and last for years.
A Practical Walkthrough for Replacing Extension Springs
Alright, you’ve done the prep work, you have the right tools, and your shiny new springs are waiting. Now it’s time to get down to business. This is where your careful preparation pays off.
I'm going to walk you through this process just like our technicians do, focusing on a safe, methodical approach.
Before you touch a single bolt, do a final safety check. Is the opener unplugged? Are the C-clamps securely fastened to the vertical tracks right below the bottom rollers? Good. Let's get started.
Releasing Tension and Removing the Old Spring
The first big step is to safely detach the old spring. Even a broken one can hold some residual energy, and the working spring on the other side is definitely still under a lot of load. With the door locked in the fully open position, the springs are at their most relaxed state, which is exactly what we want.
Pick a side to start on. You'll see the lift cable running from the bottom of the door, up over a pulley, and then connected to the spring. Our goal is to disconnect this assembly piece by piece.
- Detach the Lift Cable: First, find the S-hook or clip that connects the extension spring to the hanger bracket on the track support. Carefully unhook it. This will release any final bit of tension from that spring.
- Remove the Pulley: The lift cable is threaded through a pulley attached to the spring's end. Grab your socket wrench and remove the nut holding the pulley fork to the spring's loop. Don't lose this hardware; you'll need it again in a few minutes.
- Untie the Cable: Now, follow that lift cable down to the bottom corner bracket of the garage door. It's usually tied off in a loop. Carefully untie it and set the cable aside.
With everything disconnected, you can simply slide the old, broken spring off the safety cable. That cable running right through the middle is a lifesaver—it’s what prevents a broken spring from whipping across your garage. Don't take it off just yet.

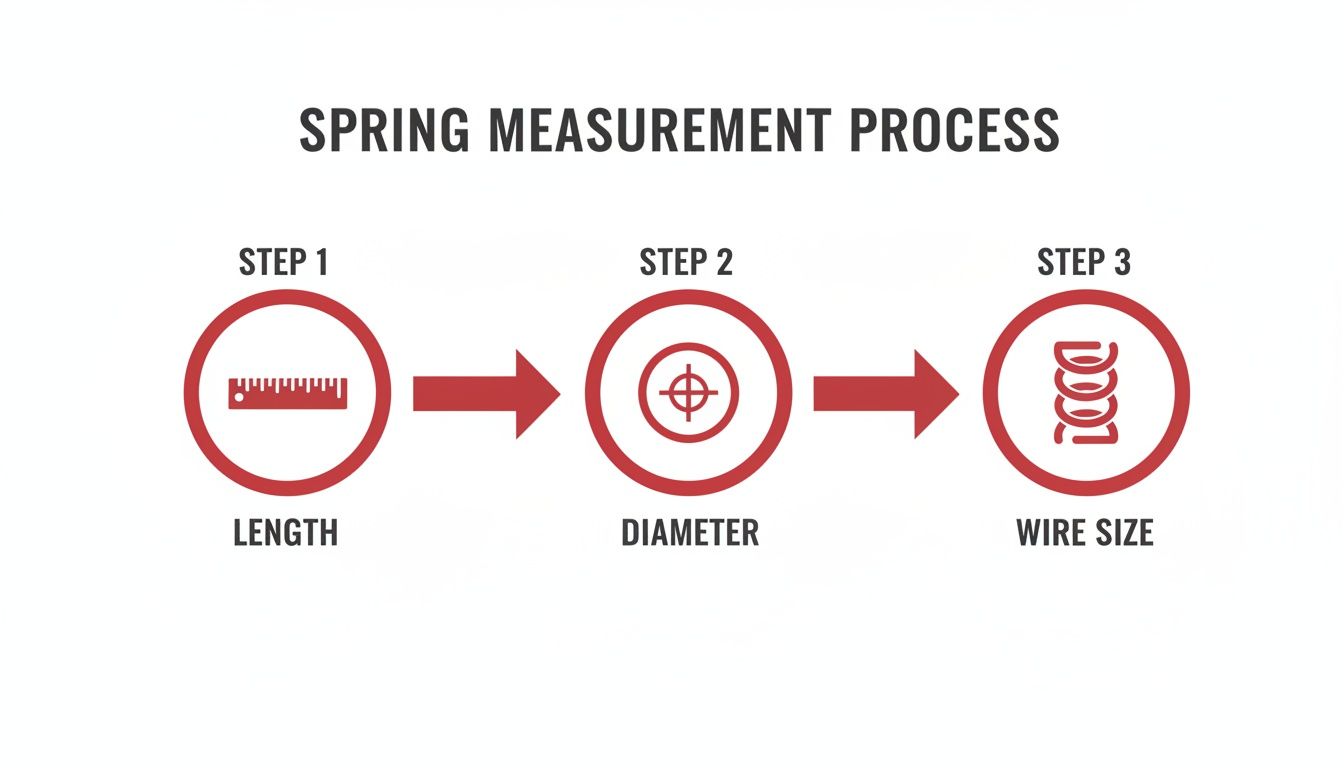

This diagram breaks down the essential spring measurements—length, diameter, and wire size—which are absolutely critical for getting the right replacement parts.
Having these precise numbers ensures the new springs will properly balance your door's weight. A balanced door prevents unnecessary strain on your opener and is fundamental to safe operation.
Installing the New Spring and Safety Cable
With the old spring out of the way, you’re ready to install the new one. This part is pretty much the reverse of what you just did, but there are a few key details to watch for.
Go ahead and unhook the old safety cable from the track hanger. Now, thread it through your new extension spring. Make sure the colored end of the spring is the one that will attach to the pulley.
Slide the new spring onto the safety cable. Secure one end of the cable to the track support bracket, then run it through the spring and attach the other end to the far end of the horizontal track. You want just a little bit of slack in the cable—it shouldn't be pulled taut, but it shouldn’t be drooping down either.
Pro Tip: Whatever you do, don't skip or skimp on the safety cable. This is arguably the most important safety component in the entire system. A properly installed cable contains the spring if it ever breaks, preventing a dangerous and destructive projectile situation.
Most garage door extension springs are rated for 8,000 to 15,000 cycles. For the average household, that translates to about 7-12 years of use. But with wild temperature swings, that lifespan can be shorter. All that stretching and contracting leads to metal fatigue, cracks, and eventually a snap—often a loud bang that can take out cables or pulleys, hiking repair costs by 20-30%. You can explore more data on garage repair costs to get a better sense of the investment.
Reattaching the Pulley and Lift Cable
You’re on the home stretch now. It’s time to reassemble the pulley and lift cable with your new spring in place. Attention to detail here is what ensures a smooth, safe operation for years to come.
Take the pulley and its fork bracket. Re-attach it to the colored end of your new spring, securing it with the original nut and bolt. You want it tight, but not so tight that the pulley can't spin freely.
Next, grab the lift cable and thread it back through the pulley. Run the cable down to the bottom corner bracket on the door and securely tie it off, just like it was before. Give it a quick check to make sure the cable isn't twisted or caught on anything.
Finally, you can re-attach the other end of the spring (the non-pulley end) to the track hanger bracket using the S-hook. For now, use the same hole the old spring was attached to. You might need to adjust this later to fine-tune the door's balance, but this is the best starting point.
Now, do it all again on the other side. Remember, you're replacing both springs to maintain balance, so what you do on one side, you must do on the other. Take your time, double-check your work, and never stand directly in the path of a spring under tension.
Testing and Fine-Tuning Your New Springs
You’ve got the new springs on—great job. But hold off on packing up your tools, because the most critical part of the whole process is next. Think of it like this: you've just put new tires on your car, but you still need to balance them for a smooth, safe ride. It's the exact same principle here.
This final check, the balance test, ensures the springs are perfectly matched to your door's weight. Getting this right is what prevents your garage door opener from burning itself out trying to lift a door that's either too heavy or fighting springs that are too strong.
Performing the Garage Door Balance Test
First things first, you need to operate the door manually. With the door all the way down, give the red emergency release cord a firm pull. You'll hear a click as the door disconnects from the opener's trolley, letting you lift it by hand.
Now for the moment of truth.
- Lift the door to your waist. Grab the handle and raise the door until it's about halfway open.
- Carefully let it go. Don't just drop it. Gently release your grip and observe what happens next.
A perfectly balanced door should hover in place, maybe drifting an inch or two before settling. If it slams shut or shoots for the ceiling, you’ve got an issue that needs to be fixed right away.
If the door drops, it's too heavy. The springs don't have enough tension. If it flies up, it's too light because the springs are too powerful or over-tensioned. Either way, this imbalance puts a massive strain on your opener and is a major safety hazard.
Adjusting Spring Tension for a Perfect Balance
If the balance test didn't go as planned, don't sweat it. This is a normal part of the process and the fix is usually pretty straightforward. You just need to adjust the spring tension by repositioning the S-hook on the track hanger bracket.
If your door is too heavy and falls:
You need to add more tension. To do this, move the S-hook one hole further away from the door. This stretches the spring just a little bit more, giving it the extra lifting force needed to balance the door's weight.
If your door is too light and rises:
You need to reduce the tension. Simply move the S-hook one hole closer to the door. This relaxes the spring, dialing back its pulling force so the door's weight can properly counteract it.
After every single adjustment, no matter how small, run the balance test again. Keep tweaking it one hole at a time until that door stays right where you leave it. For a deeper dive into this, our guide on how to adjust garage door tension has all the details you'll need.
Final Checks and Troubleshooting
Once you've nailed the balance, it's time for one last inspection. Manually open and close the door a couple of times, nice and slow.
Listen carefully. Do you hear any scraping, grinding, or popping? Watch the cables. Are they tracking evenly on both sides? Make sure the door itself isn't tilting or binding in the tracks.
If everything looks and sounds smooth, you're in the home stretch. Re-engage the opener trolley, plug the unit back into the outlet, and run it through a few full cycles with the remote. If it all works perfectly, you can officially call this job a success.
Knowing When to Call a Garage Door Professional
Even the most confident DIYer needs to know when to put the tools down and pick up the phone. When it comes to garage door springs, recognizing your limits isn't just a good idea—it's the most critical part of staying safe. The temptation to save a few bucks on labor is real, but one slip-up could cost you a fortune in property damage or, even worse, a trip to the emergency room.
So, when is it time to stop? If you open that door and see tangled or frayed lift cables, that's a hard stop. Don't touch them. Another huge red flag is a low-headroom track system. These setups leave you with almost no space to work safely, dramatically increasing the risk of injury.
Understanding the True Cost
At the end of the day, this is a classic cost-benefit decision. A service call might seem like a big expense upfront, but what you're really buying is expertise, safety, and peace of mind.
A professional technician brings more than just the right tools. They have years of experience, proper training, and crucial liability insurance. That insurance protects you and your home if something unexpected happens, guaranteeing the job is done right.
Hiring a pro means the job gets done correctly the first time, with no guesswork. Nationally, the average cost to replace garage door extension springs hovers around $250. Here in the Cleveland area, you can generally expect to pay between $150 and $350 for a standard replacement, depending on the specific springs your door needs and current labor rates.
You can learn more about professional garage door spring replacement costs to see a full breakdown of what goes into that price.
Think of it as a smart investment in your home's busiest entryway. While the extension springs themselves might only cost $15 to $45 each, paying for professional labor ensures the entire system is properly installed, tensioned, and balanced for safe, long-term operation. You can find another great cost analysis on Angi.com if you want to dig deeper into the numbers.
Answering Your Top Extension Spring Questions
Even after a successful DIY repair, it's normal to have a few nagging questions. I've heard just about all of them from homeowners, so let's tackle the most common ones to put your mind at ease.
I Only Have One Broken Spring. Can I Just Replace That One?
This is a big one, and the answer is a hard no. You must always replace both extension springs at the same time, no exceptions. Think of them like tires on a car—they wear out together.
If one spring has snapped from metal fatigue, its partner is living on borrowed time and is likely just a few cycles away from failing itself. Putting a brand-new spring next to a worn-out one creates a severe imbalance. This not only strains your garage door opener but can damage your tracks and rollers, leading to a much costlier repair down the road.
What’s the Real Difference Between Extension and Torsion Springs?
Good question. Extension springs, which we've covered in this guide, are the long, skinny springs that run alongside your horizontal door tracks. They work by stretching and contracting, kind of like a massive rubber band.
Torsion springs are a different beast entirely. They are beefier springs mounted on a metal shaft directly above the garage door opening. Instead of stretching, they use torque—a twisting force—to lift and lower the door. While torsion systems are often more durable and considered a bit safer in design, replacing them is significantly more dangerous and is a job best left to the pros due to the extreme tension involved.
Remember, the springs are the muscle of your garage door system. An imbalance isn't just inefficient—it's a safety risk that should be addressed immediately.
How Can I Tell if My New Springs Are the Wrong Size?
The garage door balance test is the ultimate truth-teller here. After you've installed the new springs, pull the emergency release cord to disconnect the opener. Now, try to lift the door by hand to about halfway up and let go.
- If the door slams shut or is a bear to lift, your springs are too weak.
- If it shoots up to the ceiling on its own, they're too powerful.
- A perfectly balanced door will stay put, suspended in the middle, or drift down very slowly.
If you've run the balance test and something's not right, or if you'd rather have an expert handle the job from the start, Danny's Garage Door Repair is here for you. Our techs have the tools and experience to get it done right. Give us a call for a free estimate at https://garagedoors101.com.
