You're standing at a roll-up door that should be keeping the weather out, but it isn't. Cold air sneaks in around the edges, dust collects on the inside track, and if the building sits long enough, rodents find the weak spot too. That's usually the moment people start searching for a roll up door seal kit, then get surprised by how many parts are involved.
A lot of folks think the fix is one rubber strip at the bottom. In real life, roll-up door sealing is usually a multi-point job, with the bottom seal, brush seals, header seal, and side-guide weatherstripping all doing different work. Manufacturers sell these kits in standardized sizes, like 10 ft bottom seals and 8 ft rodent-proof kits for roll-up doors, which tells you the category is built around common commercial openings, not random one-off patches (ProSeal 10 ft Replacement Bottom Seal).

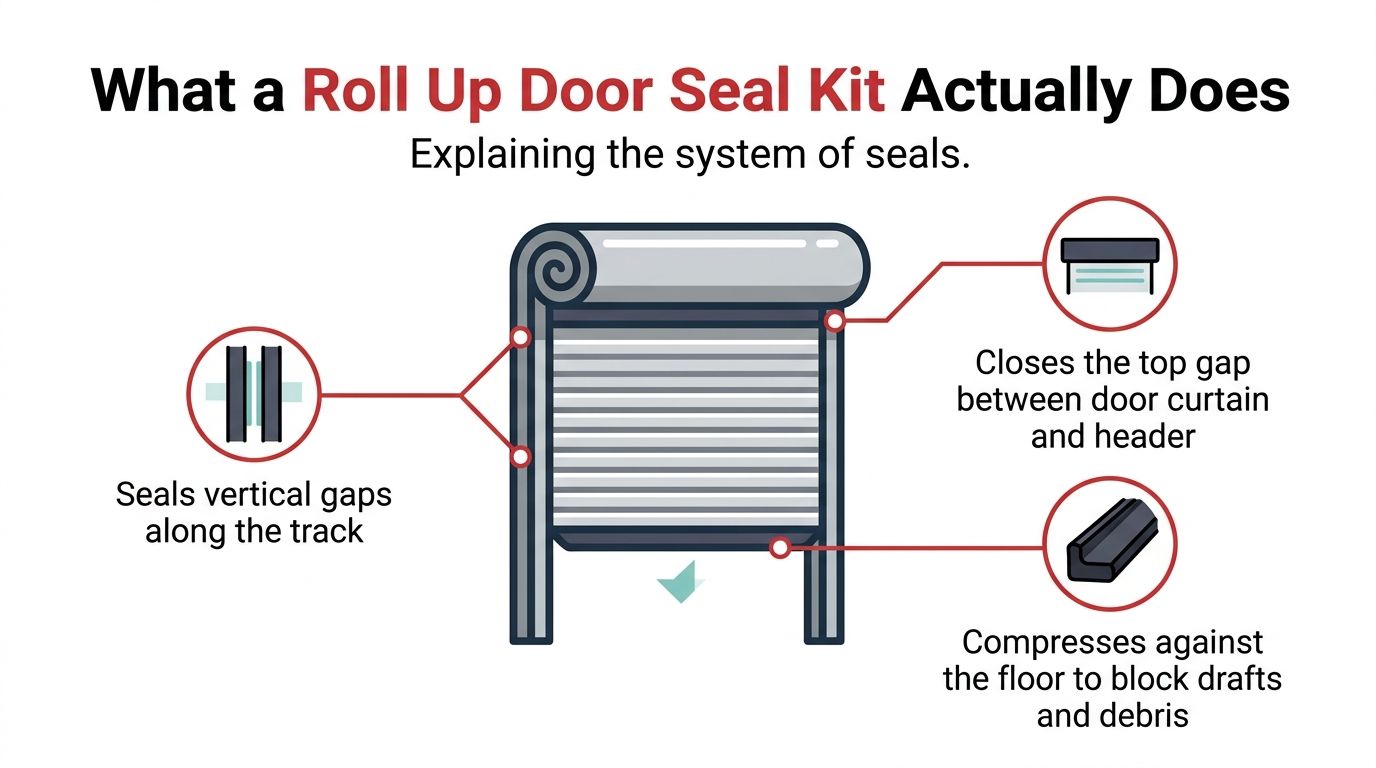

What a Roll Up Door Seal Kit Actually Does
A leaking roll-up door usually shows itself in boring ways first. The floor gets dusty. The top edge lets in a line of daylight. A few leaves blow inside after a windy night. Then somebody notices the door area feels colder than the rest of the shop, or a pest has made it past the opening again.
A real roll up door seal kit is built to deal with all of that at once. It's not just a bottom strip. Industry suppliers sell separate pieces for the bottom, sides, header, and even weatherproofing along the guides, because the opening leaks in more than one place. That's why sealing a roll-up door is treated as a perimeter problem, not a single-strip fix.
The job breaks down like this. The bottom seal closes the threshold gap. The brush seals handle irregular side and top openings without fighting the curtain. The header seal cuts the leak line above the door. And side-guide weatherstripping helps where the curtain rides near the jambs. If you want a broader look at door-perimeter sealing in general, the guide on sealing garage door gaps is a useful companion piece.
Where the pieces actually go
The simplest way to think about it is by location, not by product name. Bottom pieces fight floor gaps. Brush systems work where the opening isn't flat or consistent. Header seals sit above the curtain and attack the top leak line. That's why a kit can look overbuilt on paper and still be exactly what a real roll-up door needs.
For homeowners who are comparing a roll-up opening to other insulated exterior doors, the logic is the same. A good reference point is this breakdown of top insulated patio doors from Superior Home Improvement, because it shows how much sealing performance depends on edge contact and fit, not just the main panel itself.
How to Measure and Choose the Right Kit
A roll-up door can look straightforward until you measure the gap and see how much the opening changes from one side to the other. A door may be labeled 8 ft, 10 ft, or 12 ft, but the label does not tell you whether the floor slopes, the curtain ribs change the clearance, or the jambs sit out of square. The right kit is the one that matches the actual gap geometry, not the number on the paperwork.

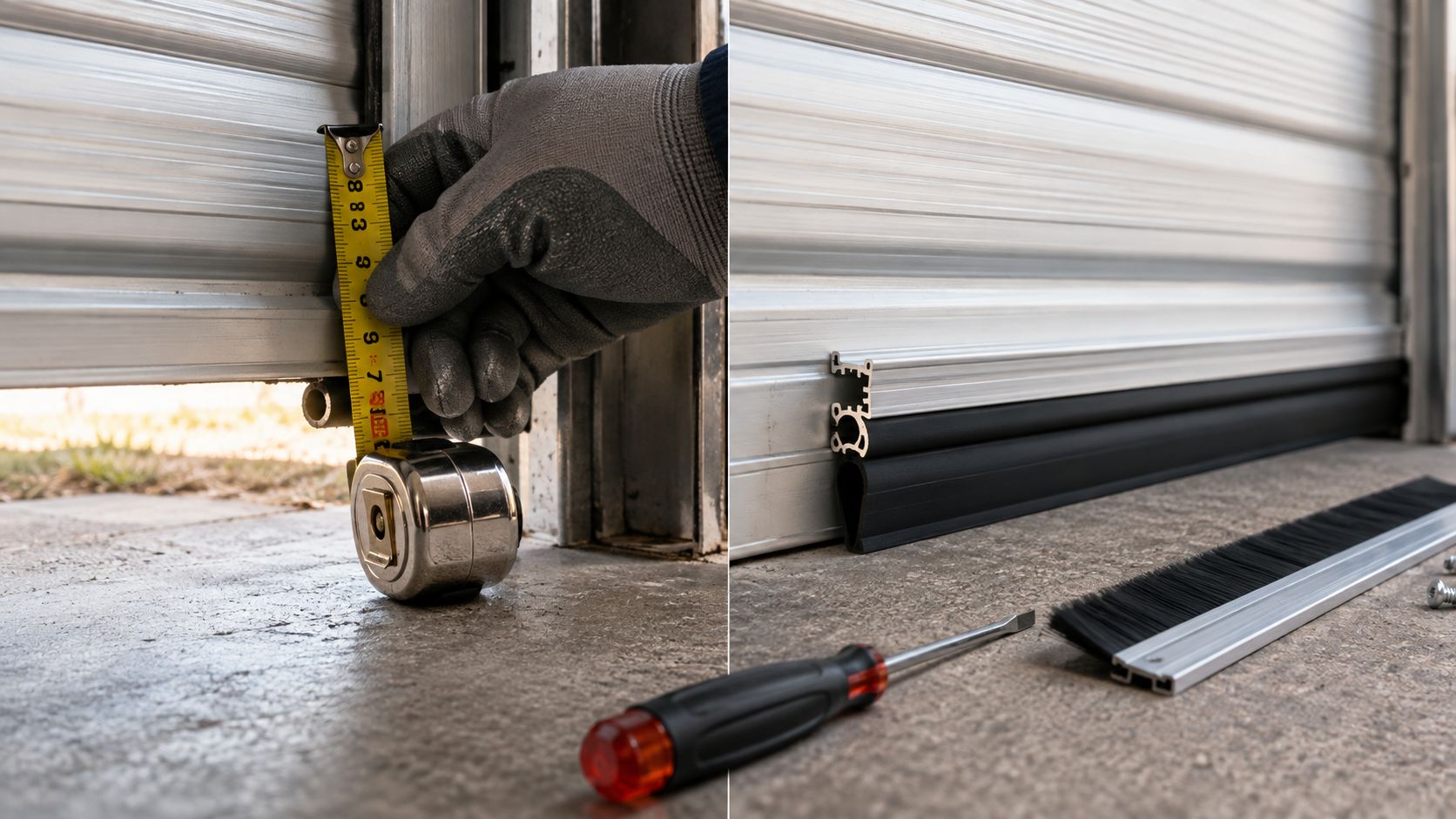

Start with the door closed and check the width, height, and the places where light, dust, or air get through. That means the top gap, both side-guide gaps, and the bottom clearance at the floor. On a corrugated roll-up curtain, note the distance from the seal contact point to the lowest rib too, because that sets brush length and how hard the seal will press against the door.
Practical rule: Match the seal to the measured gap, not to hope. If the brush is too short, it will miss contact. If it is too tall, the door will drag and wear faster.
Brush length matters more than many owners expect. In commercial and industrial work, the common choices are 1", 1.5", 2", and 3" bristles, and the retainer itself may be 45-degree or straight. One product line lists kits in standard sizes like 8×8, 10×8, 10×10, 12×12, 14×14, and 16×16, with pre-cut 4-foot or 5-foot retainer sections that reduce onsite assembly time (Roll-up Garage Door Brush Seal Kit).
Match the retainer to the door before you pick a seal size. A kit built for a sectional overhead door will not always fit a corrugated roll-up door, and the fit issue usually shows up at the mounting profile first. Xcluder's roll-up kit even states that it will not work on sectional overhead garage doors (Xcluder X2 Rodent-Proof Seal Kit for Roll-Up Doors).
For bottom seals, the retainer geometry matters just as much as the rubber. A common setup uses a 3/8" T-style mount with a 1" bulb profile, which is why the retainer shape needs to be confirmed before you order, especially if you are comparing profiles like the ones covered in this guide to overhead door garage door bottom seal retainer styles. Another commercial kit uses a 1-5/8" wide aluminum track with EPDM rubber made for a broad temperature range. The safest choice is the narrowest seal that still keeps contact across the travel path (100 ft Roll RL LIT BLB KIT100).
Measure twice on the floor side. A seal that is too large creates drag fast, and once it starts rubbing hard, both the door and the seal wear out sooner.
If you want a simple shopping filter, use this order. Measure the gaps, identify the curtain style, confirm the retainer profile, then pick the brush or bulb size that reaches contact without forcing the door. That approach keeps you from buying a kit that looks right on a shelf and fails on a real opening.
A straight hardware comparison helps here too. If you are sorting parts for another exterior opening, browse fence gate hardware kits from XTREME EDEALS INC. to see how much better matching works when the mounting profile and the gap both matter.
Installing Your Seal Kit Step by Step
A clean install starts before the first screw goes in. Gather the right driver bits, a tape measure, a drill, a level, snips for trim work, and a helper if the door is large or awkward. On roll-up doors, I like to cycle the curtain by hand first so I know how it travels and where it wants to hang up.
Lift the door just enough to access the bottom retainer, then secure the curtain so it can't roll back on you. If the old seal is brittle, pull it out carefully instead of yanking at the retainer. That avoids bending the bottom edge of the curtain, which is one of the fastest ways to turn a weatherproofing job into a repair job.
Bottom seal first, because the floor tells the truth
Remove the worn seal, clean the retainer, and check for rust, dents, or packed debris. If the retainer is full of grit, the new seal won't seat evenly. Dry-fit the replacement before fastening anything, because the fit should feel snug, not forced.
If you're dealing with a bottom system that uses an aluminum track, start your fasteners at one end and work steadily across instead of centering hardware first. That keeps the track aligned with the door edge. For EPDM or bulb-style replacements, make sure the profile sits squarely in the mount and isn't twisted during installation.
Then do the sides and header
Brush retainer sections are often pre-cut in 4-foot or 5-foot lengths, which makes one-person installs much more realistic. Set the side pieces first if the door opening is not perfectly square, then bring the header piece across the top. That sequence helps you follow the actual opening instead of forcing the opening to follow the kit.
The install should feel light at the brush contact points. A brush seal is supposed to touch, not shove. If it folds over hard or creates a bind when the door moves, the brush is too long, the retainer angle is wrong, or the gap measurement was off.
For a more general walkthrough on seal hardware and mounting, the guide on how to install garage door weather stripping is a useful reference.
Clean contact beats heavy pressure. If the door starts dragging after the seal goes on, back up and fix the fit. Don't “power through” a bad contact point.
Finish by cycling the door several times. Check for even compression, visible daylight, and any rough spots where the curtain catches. A good install looks boring, and that's exactly what you want.

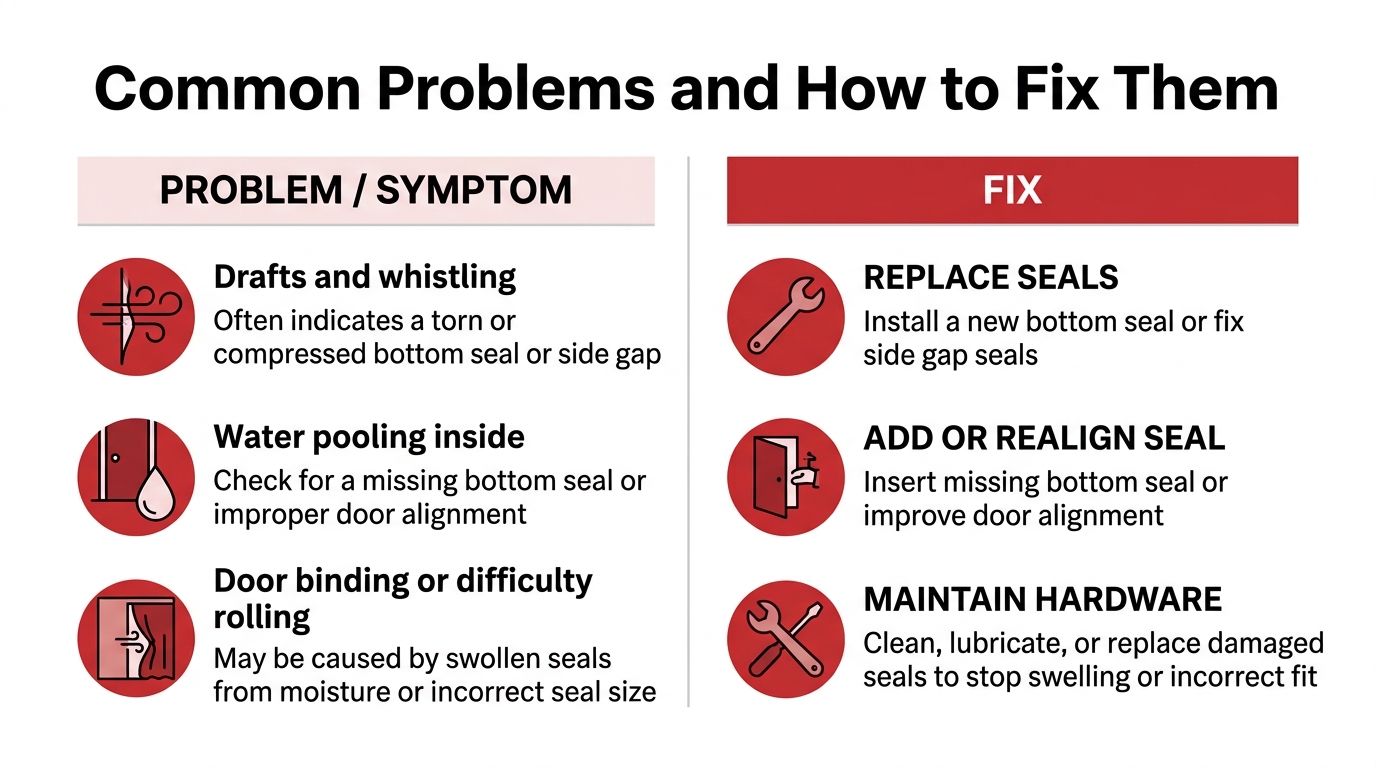

Common Problems and How to Fix Them
A brand-new seal can still fail if the door or opening is the problem. I've seen people replace perfectly decent weatherstripping and still get drafts because the track was out of line, the floor dipped, or the curtain didn't close flat against the jamb. When that happens, the seal gets blamed for a geometry problem.
Read the symptom before you replace the part
If you still feel drafts after the install, the first check is the contact line. A torn or compressed seal is one possibility, but a side gap can do the same thing. If the top leaks light, the header seal may be the wrong type for the gap, or the curtain may not be closing square to the opening.
A door that starts to feel heavier after sealing usually means the seal is too large for the gap, or the retainer is forcing the curtain to work harder than it should. In those cases, the fix is usually to step down to a smaller profile, straighten the mount, or adjust the contact point rather than assuming the material itself is bad.
Rodent-proof kits and uneven floors have their own rules
Rodent-resistant systems are useful when the opening needs more than a soft bottom strip. One commercial kit pairs a 4-inch-wide rodent-proof seal with a 3-inch-wide interior brush seal, and the source notes that the brush helps close small gaps caused by uneven floors while stainless steel mesh resists gnawing (RodentBlock Roll-Up Door X2 Rodent-Proof Seal Kit). That's a real two-layer approach, not a decorative upgrade.
If your floor is uneven, no seal can magically become flat concrete. The best fix is usually to fit the seal to the lowest usable point and accept that some openings need a different seal type on the side and top than they do at the bottom. A cheap seal that fits well outperforms an expensive seal that fights the door.
If the door itself is crooked, sealing won't save it. Fix the alignment first, then seal the perimeter.
That's especially true when the top gap is large or the opening is structurally irregular. In older buildings, the right answer is often repair before weatherstripping.
Keeping Your Seal Kit Working Year After Year
A seal kit doesn't need much attention, but it does need some. The best routine I've seen is simple: check it twice a year, clean the contact areas, and replace worn parts before they start tearing adjacent pieces. That takes far less time than dealing with dust, pests, or a room that's suddenly harder to keep comfortable.
I had one shop owner who ignored a flattened bottom seal for too long. At first it was just a thin strip of daylight. Then he started seeing grit at the threshold. By the time he called, the seal was compressed enough that the door was dragging harder on one side, and the repair had turned into a longer afternoon because the retainer and bottom edge both needed attention.
The seasonal check that actually works
Walk the opening and look for cracks, flattened brush bristles, loose hardware, and signs of rodent damage on mesh or flexible seal material. Clear debris from the retainer track so the seal can move or sit correctly. If the curtain rolls unevenly, stop and find out why before the wear pattern gets worse.
- Inspect the full perimeter: Look at the bottom, sides, and header for compression set, tears, or gaps.
- Clean the contact areas: Wipe away dirt, salt, and grit so the seal isn't grinding against debris.
- Check the fasteners: Loose hardware lets the retainer shift and creates new leak points.
- Replace before failure spreads: Once a seal starts curling, splitting, or flattening hard, don't wait for a bigger problem.
For rodent-proof mesh and heavier commercial seals, pay extra attention to gnaw marks and rust at the fastening points. Those small issues usually show up before the seal stops working completely.
A good seal lasts longer when the door still rolls straight and the opening stays clean. If the floor changes, the track moves, or the seal starts binding, the maintenance window has already begun.
When to Call Danny's Garage Door Repair Instead
Some roll-up door problems are seal problems. Others are door problems that happen to look like seal problems. If the door is off-track, the curtain is bent, the spring feels unsafe, or the seal keeps failing because the opening is structurally wrong, stop there and call a pro.
After-hours is its own category. If the door won't close and the building is exposed to weather or security risk, waiting until morning isn't always the smart move. The same goes for repeated failures that point to alignment, track, or bottom-bar issues instead of a simple weatherstrip swap.
