Most RV garage doors land in the 10 to 12 foot wide and 12 to 14 foot high range, and a Class A motorhome often needs an opening closer to 12 to 16 feet wide and 12 to 14 feet high. The part many homeowners miss is that the door size alone doesn't decide whether your RV fits. The approach, the ceiling space, and the depth behind the door matter just as much.
That's usually the moment the project gets real. Someone buys the RV first, walks out to the garage with a tape measure second, and realizes a normal residential setup isn't even close.
Around Cleveland, I see this thought process all the time. A homeowner searches for rv garage door dimensions, finds one simple number online, and assumes the job is straightforward. It usually isn't. A true RV bay has to work in practical use, not just on paper, and that means planning for mirrors, rooftop equipment, backing angle, and enough room to shut the door after the coach is inside.
Planning Your RV Garage The Right Way
The worst mistake is sizing the opening and stopping there.
A homeowner might measure the body of the RV, order a big door, and still end up with a bay that feels too tight to use comfortably. The vehicle may technically fit through the opening, but the mirrors are close, the roof accessories are nerve-racking, and there isn't enough room inside to park without creeping forward inch by inch.
Think in terms of clearance envelope
The better way to plan is to look at the full clearance envelope. That means the complete usable space your RV needs, not just the rough opening in the wall. Guidance on RV sizing gaps points out that many pages answer only the opening size, even though owners also need to account for roof A/C units, antennas, ladders, mirrors, future upgrades like solar panels, ceiling height, approach angle, and interior depth, because the door dimension alone is not enough (full clearance envelope guidance).
Practical rule: If your plan only answers “what size door do I need,” you're still missing part of the job.
That's why a garage can be framed with a large opening and still be frustrating to use. If the driveway slopes wrong, if the tracks hang too low, or if shelving steals side clearance inside, parking becomes stressful fast.
What works and what doesn't
What works is planning the bay around the RV you currently own, or the one you're likely to buy next.
What doesn't work is treating an RV opening like an oversized version of a standard garage door. It's a different kind of project. The vehicle is taller, wider at the mirrors, longer inside the building, and less forgiving when you're backing in.
A solid plan usually includes:
- Vehicle-first measurements: Measure the RV at its tallest and widest real-world points, not just the brochure dimensions.
- Approach planning: Look at how straight you can line up from the driveway into the bay.
- Overhead clearance: Make sure tracks, springs, opener setup, and ceiling framing won't steal useful height.
- Interior use: Leave room for walking space, storage, and closing the door without crowding the rear wall.
If you get that envelope right, the door becomes one piece of a working system instead of the whole plan.

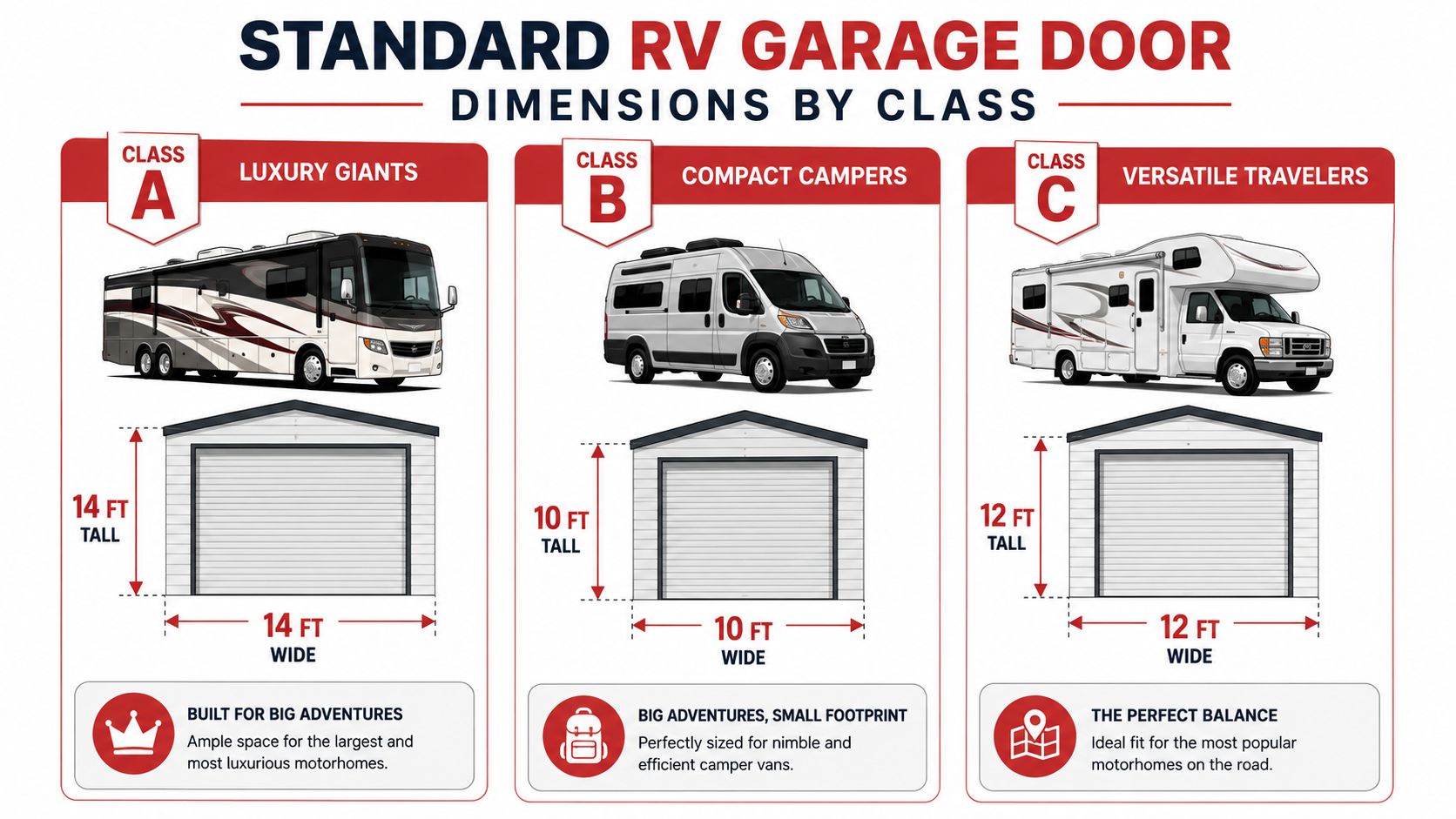

Standard RV Garage Door Dimensions by Class
Once you know the bay has to be larger than the opening alone, the next question is the one everyone asks first anyway. What size door fits your RV class?
A practical benchmark is that RV-specific doors commonly range from 10 to 12 feet wide and 12 to 14 feet high, while Class A motorhomes often need 12 to 16 feet wide and 12 to 14 feet high, Class B units usually fit around 8 to 9 feet wide by 8 to 9 feet high, and Class C motorhomes often need roughly 9 to 12 feet wide by 10 to 12 feet high (RV garage door size ranges by class).
Recommended RV garage door dimensions by class
| RV Class | Typical Vehicle Height | Typical Vehicle Width (w/o mirrors) | Recommended Door Height | Recommended Door Width |
|---|---|---|---|---|
| Class A | about 11 to 13+ feet | around 8 to 8.5 feet | 12 to 14 feet | 12 to 16 feet |
| Class B | about 8.5 to 10 feet | around 7 to 7.5 feet | 8 to 9 feet | 8 to 9 feet |
| Class C | about 10 to 12.5 feet | around 8 to 8.5 feet | 10 to 12 feet | 9 to 12 feet |
Why the ranges matter
The big takeaway is that door sizing by class is a starting point, not a final answer.
Class A rigs usually drive the whole design. They sit tallest, they carry more rooftop equipment, and they feel wide once the mirrors are in play. That's why these jobs often move into true RV-specific territory instead of anything that looks like a normal residential opening.
Class B vans are the easiest fit. Some are compact enough that homeowners assume a standard setup will work. Sometimes it does. Sometimes rooftop gear changes the answer. That's why measuring the actual van matters more than the label on the side.
Class C models sit in the middle, but that middle is broad. Some are fairly manageable, and others need a much more generous opening than people expect. If you're still comparing layouts and vehicle shape, this guide to understanding Class C motorhome layouts is useful because the over-cab design and body shape can affect how people think about storage.
A Class C can fool people. It looks more manageable than a Class A, but the cab-over section and overall height still push many garages out of contention.
If you're comparing RV openings to regular residential sizes, this overview of common garage door sizes helps frame the difference. Once you put the two side by side, it's clear an RV bay isn't just a “bigger garage.” It's its own category.
How to Measure Your Space for an RV Door
This is the point where tape measures settle arguments.
A lot of garage projects sound fine until someone measures the opening, the side room, and the back wall. Then the actual constraints show up. The opening may be too short, the interior may be too shallow, or the framing may leave no room for a practical track setup.
Start with the building, not the brochure
Industry guidance notes that a standard single-car garage may be about 12 to 18 feet wide and 20 to 30 feet deep, while a garage large enough for a Class A RV can reach about 18 feet wide and as deep as 50 feet, and that depth matters because you still need to close the door behind the vehicle (garage size guidance for motorhomes).
That one point saves people from expensive redesigns. A homeowner may focus on the front opening and forget that the rear wall is the actual limit.
What to measure on your garage
Take measurements in a few passes. Don't rely on one quick width and one quick height.
- Opening width: Measure the clear width where the finished opening is, not where you wish it could be.
- Opening height: Measure from the finished floor to the lowest part of the opening area.
- Side room: Check the space on both sides for vertical track, brackets, and hardware.
- Headroom: Look above the opening for tracks, spring assembly, and the path the door needs as it opens.
- Interior depth: Measure from the inside face of the door area to the rear wall, shelves, steps, or obstructions.
- Driveway approach: Stand back and look at how straight the RV can enter. A tight turn changes how usable the opening feels.
Measure the garage like someone has to use it on a rainy night, not like someone is trying to win a tight-fit contest.
Where homeowners get tripped up
The opening size gets all the attention, but these issues usually cause the trouble:
- Low ceiling interference: Tracks or opener equipment can hang lower than expected.
- Back wall obstacles: Freezers, stairs, and storage racks eat into parking depth.
- Tight side approach: Fences, retaining walls, and property lines can make backing in harder.
- Framing assumptions: Existing framing may not support the opening you want without structural changes.
If you're planning a conversion, understanding framing for a garage door helps before any contractor starts cutting. It gives you a better read on whether the project is a simple door swap or a real structural remodel.
One more practical note. Measure the RV itself the same day if you can. Owners often know the listed model dimensions, but the usable storage dimensions come down to the exact unit in the driveway, with all the rooftop gear and exterior hardware that came with it.
More Than Just a Hole in the Wall
A tall RV opening changes the structure, the hardware, and the way the whole system operates.
Do-it-yourself plans usually get shaky when people look at a large opening and think the job is mostly about ordering a larger sectional door. In reality, the framing above that opening, the spring system, the track layout, and the usable headroom all become more demanding as the door gets taller and wider.
Bigger opening means bigger structure
A normal residential header setup doesn't automatically translate to an RV bay. The wider the span and the taller the opening, the more important the structural design becomes. On retrofit work, this is often the line between “possible” and “not worth forcing.”
If the opening gets enlarged, the wall above it has to carry that load safely. That's not a finish-detail issue. It's a structural one. In older garages around Northeast Ohio, that can mean uncovering framing surprises once the wall is opened up.

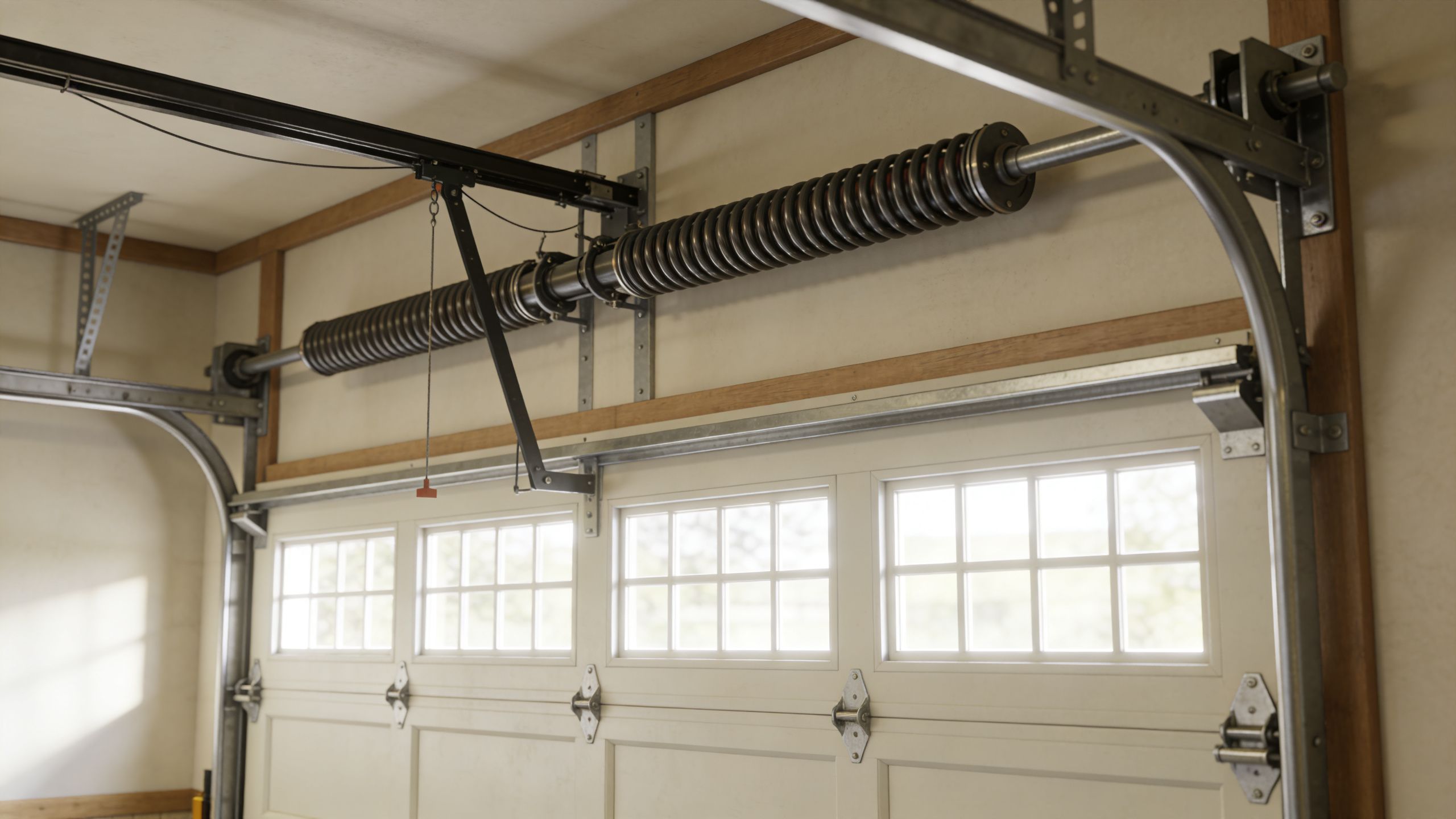

The track layout matters more than most people expect
Track choice changes usable space.
A standard track arrangement may be fine for a regular house door, but large RV bays often benefit from a setup that keeps the door higher as it travels back. High-lift configurations are a common example. They can help preserve more vertical room inside the garage, which matters when you're already working close to the roofline.
What works well in practice:
- Clean ceiling planning: Keep lights, storage, and mechanicals out of the travel path.
- Appropriate spring system: A large door needs hardware matched to its weight and cycle demands.
- Track matched to the room: The right track style depends on the ceiling and wall layout, not just the door size.
- Service access: Leave room to maintain springs, cables, rollers, and opener components later.
What causes problems:
- Treating it like a standard garage package: Large openings need more thought than a builder-grade swap.
- Ignoring overhead conflicts: Ducts, lights, and framing can block the door path.
- Underspecifying hardware: Big doors punish light-duty parts.
The door has to fit the building, but the hardware also has to fit the way the building is built.
That's the part homeowners can't always see from the driveway. The finished opening may look right, but the hidden details above it decide whether the system feels smooth and dependable or awkward from day one.
Choosing the Right RV Garage Door and Opener
Once the opening and structure are sorted out, the product choices get easier.
For most homes in Cleveland, an insulated sectional steel door is usually the practical choice. It gives you durability, better temperature control, and serviceable parts that most qualified garage door companies can maintain. For a large RV bay, that matters. You don't want a specialty setup that becomes a headache every time a spring, roller, or panel needs attention.
Door style decisions that make sense
Sectional doors work well when the building has the ceiling room and track layout to support them. They seal well, they're familiar to service, and they tend to make the most sense for attached or finished garages.
Roll-up styles can also fit certain RV applications, especially where interior wall space and ceiling conditions point that way. The trade-off is that the right answer depends heavily on the building design, not just personal preference.
In Northeast Ohio, insulation deserves serious attention. A large, uninsulated door can make the garage harder to heat, harder to work in, and rougher on any room attached to that bay. Even if the garage isn't conditioned full-time, a better-insulated door usually makes the space more usable.
Don't undersize the opener
A standard opener package often isn't the best match for a large RV door.
For these jobs, I generally lean toward heavier-duty opener setups, and wall-mounted jackshaft units are often a smart option when the layout allows it. They free up overhead space and avoid hanging a rail down the middle where clearance already matters. In other buildings, a powerful trolley-style operator may still be the better fit. The point is to size the opener to the door and the room, not just to grab the same unit used on a standard double-car garage.
If you want a baseline before talking with an installer, this guide on what size garage opener you need gives a helpful framework.
A good RV door setup should feel boring in the best way. It should open cleanly, close reliably, and not make you think about the hardware every time you park.
Codes, Permits, and When to Call a Pro
Before any framing gets cut, check local requirements.
In Cleveland and across Northeast Ohio, large garage modifications can trigger permit and code questions that a basic door replacement never touches. Once you enlarge an opening, alter framing, or build a new detached RV bay, you're not just choosing a door anymore. You're dealing with structural work, municipal review, and site-specific rules.
What to verify before work starts
Call the local building department for the city or township where the property sits. Ask what applies to your exact project.
A solid checklist includes:
- Permit requirements: Find out whether the job is a door replacement, structural alteration, or new construction in the eyes of the municipality.
- Framing review: Structural changes often need review beyond the garage door scope.
- Setback and zoning questions: Detached garages and additions can run into placement rules.
- Electrical approval: New opener circuits, lighting changes, or subpanel work may need their own signoff.
For homeowners acting as their own project lead, this article on managing your own construction project is worth reading. It gives a realistic sense of how much coordination falls on the owner when multiple trades and inspections are involved.
When professional help makes sense
There's nothing wrong with doing the homework yourself. In fact, you should.
But RV garage door projects cross into pro territory fast. Large torsion systems carry serious stored energy. Structural opening changes need to be right. Track geometry matters. Opener choice matters. One bad assumption can leave you with a door that technically operates but wastes clearance, binds under load, or creates long-term service issues.
Some garage jobs are parts swaps. An RV bay is usually a system design problem.
That's why experienced installation help matters most at the planning stage, before materials are ordered. Good guidance can tell you whether the opening should change, whether the track can work in the space you have, and whether the whole idea is practical without forcing a bad compromise.
If you're in Greater Cleveland and want a real-world opinion before you commit, Danny's Garage Door Repair can help you sort through the measurements, opener options, and installation approach. They handle everything from standard replacements to more complex garage door projects, and they'll give you a straightforward assessment instead of pushing you into the wrong setup.
